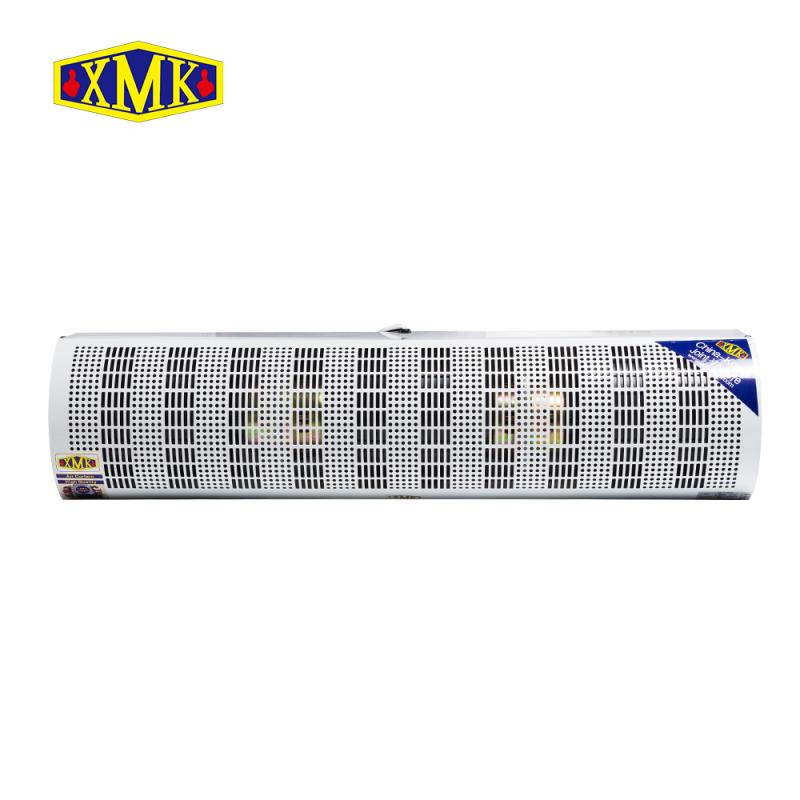

Commercial air curtain FM-3012B China Wholesale Air Curtain Industrial

CENTRIFUGAL AIR CURTAIN - STRONG AIR WALL

* All metal spraying with better fire prevention, corrosion resistance performance;

* Multiple control methods, such as manual switch, IR remote, magnet switch and door sensor, multiple control modes are available to satisfy different requirements at different places



  • Item NO.:

    FM-3012B
  • Order(MOQ):

    1
  • Payment:

    EXW
  • Product Origin:

    CHINA
  • Color:

    White
  • Shipping Port:

    Guangzhou
  • Lead Time:

    7-35days

CENTRIFUGAL AIR CURTAIN - STRONG AIR WALL

* All metal spraying with better fire prevention, corrosion resistance performance;

* New guide louver design is available so that the wind can be adjusted randomly to meet environment with different requirements for wind direction;

* Multiple control methods, such as manual switch, IR remote, magnet switch and door sensor, multiple control modes are available to satisfy different requirements at different places;

* Turbine impeller injection molded by ABS and glass fiber injection is characterized of high intensity and low noise;

* The unequal pitch and multi-blade rotor design is characterized of lower noise and smaller vibration;

* All pure copper wire motor at low temperature to ensure consistent running without failure;

* Professional air duct design can realize more silent effect and superior performance of the product;

* High-quality ball bearing to ensure motor running more smoothly and silent;

* Resettable thermal protection device will disconnect power when the product is at abnormal high temperature to avoid potential safety hazards to make the operation more safe;

* Start up at 100V ultra-low voltage which is more convenient in operation;

* Enclosure class IP44

* Insulation class E



Product Model:

Model Spec.(mm) Voltage Freq. Input power Air speed(m/s) Air flow Noise Dimension
(V) (Hz) (W) High      Low CMH       CFM (dB) (mm)
FM3509B 900 110/220 50/60 250 16         13 1120       660 53 900x230x225
FM3510B 1000 110/220 50/60 280 16         13 1290        760 53 1000x230x225
FM3512B 1200 110/220 50/60 320 16         13 1430        842 54 1200x230x225
FM3515B 1500 110/220 50/60 400 16         13 1780     1048 56 1500x230x225
FM3509B-1Y 900 110/220 50/60 250 16         13 1120        660 53 900x230x225
FM3510B-1Y 1000 110/220 50/60 280 16          13 1290        760 53 1000x230x225
FM3512B-1Y 1200 110/220 50/60 320 16         13 1430      842 54 1200x230x225
FM3515B-1Y 1500 110/220 50/60 400 16         13 1780     1048 56 1500x230x225

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Low noise air curtains 0.9m
Low Noise High Velocity Air Curtains 0.9M
Air curtain is an air fresher equipment , to form an "invisible air door' by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic , medicine making, food processing , precision processing , chemical , business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity . Air curtains also called air door , air barrier etc.
View More
Air Curtain

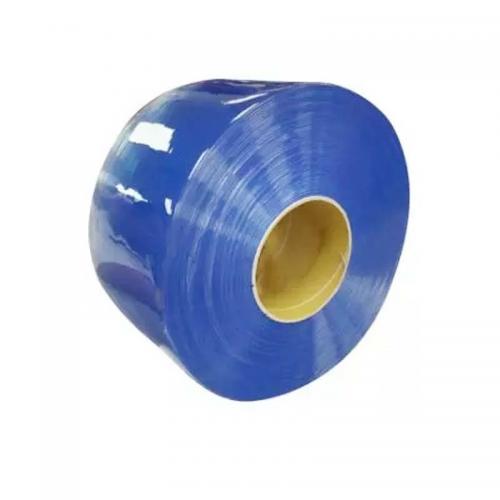

Polar Low Temperature PVC Strip Curtain Roll
