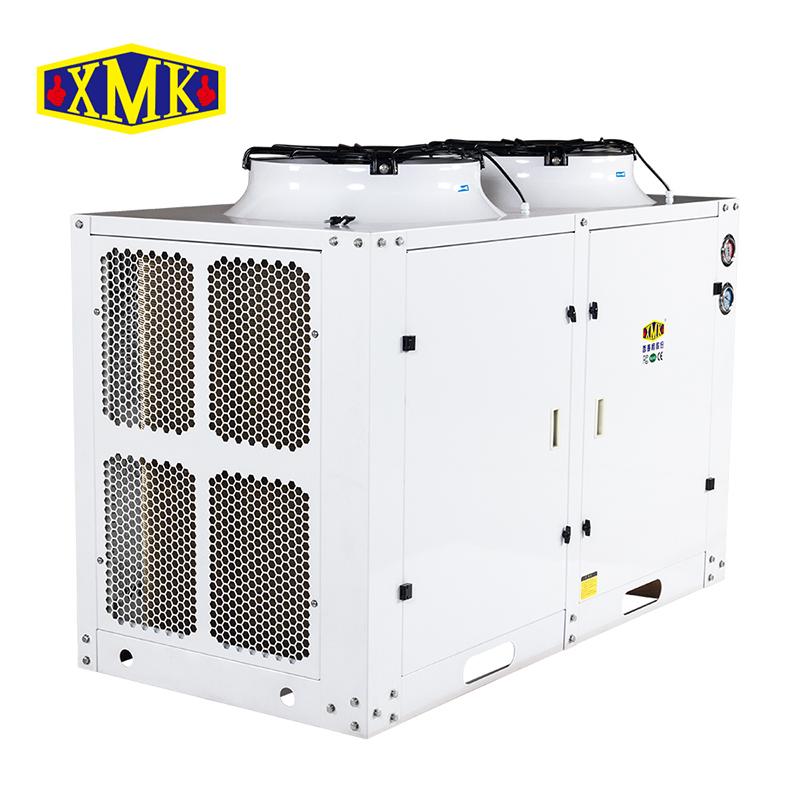

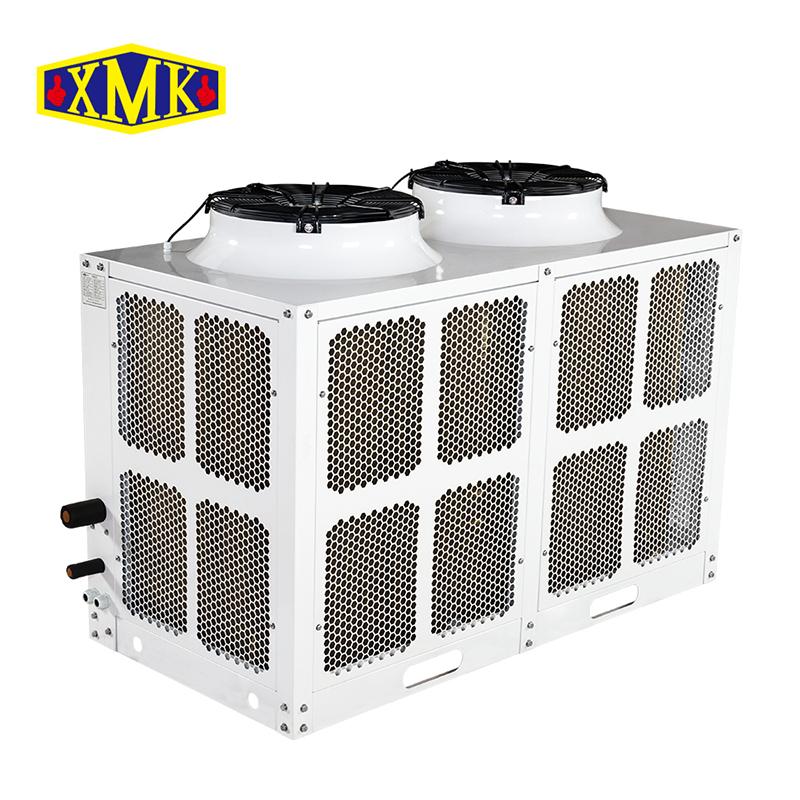

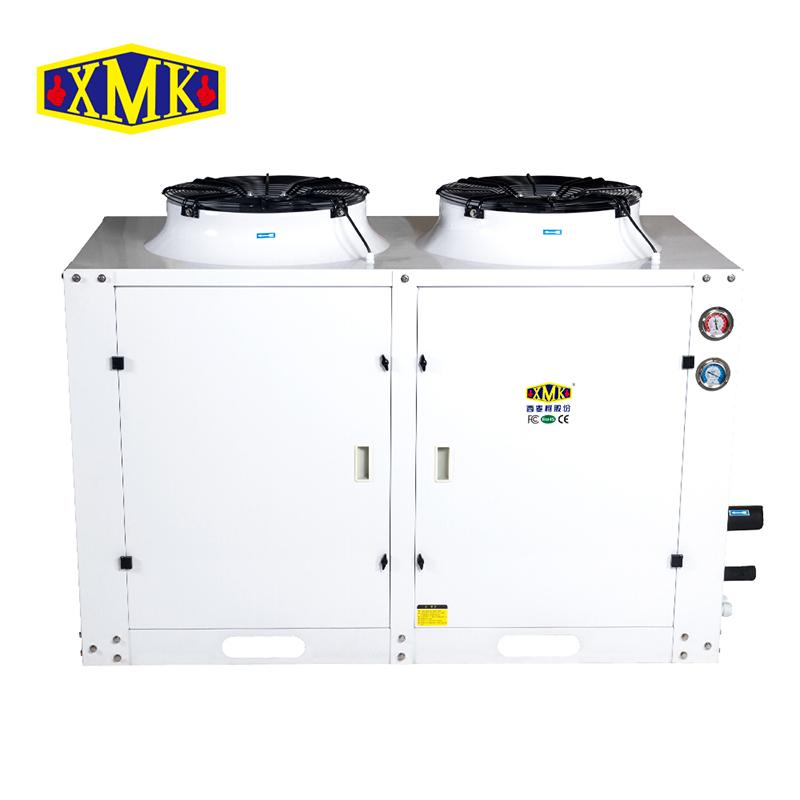

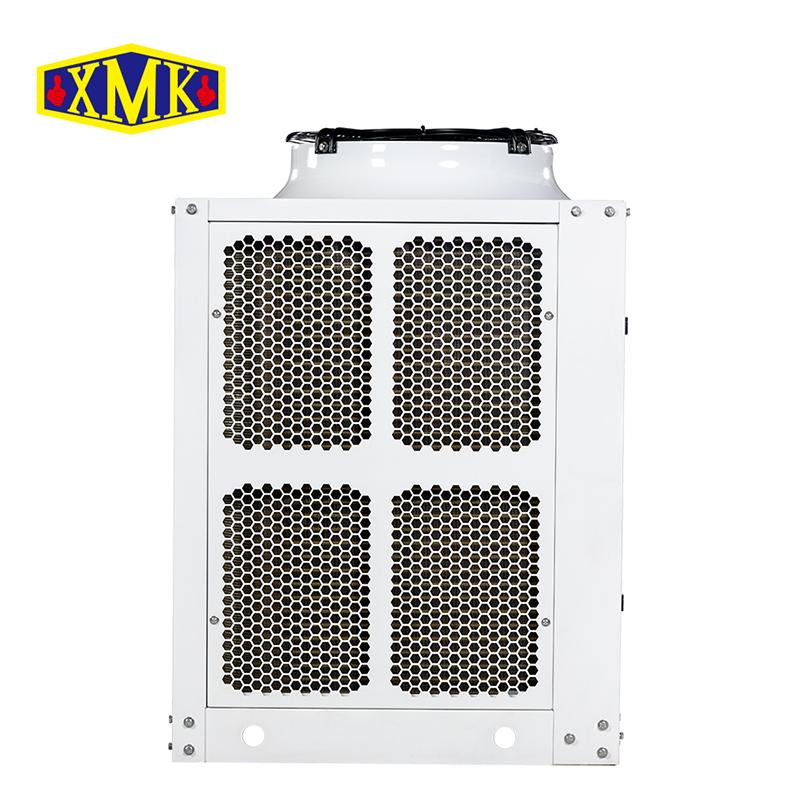

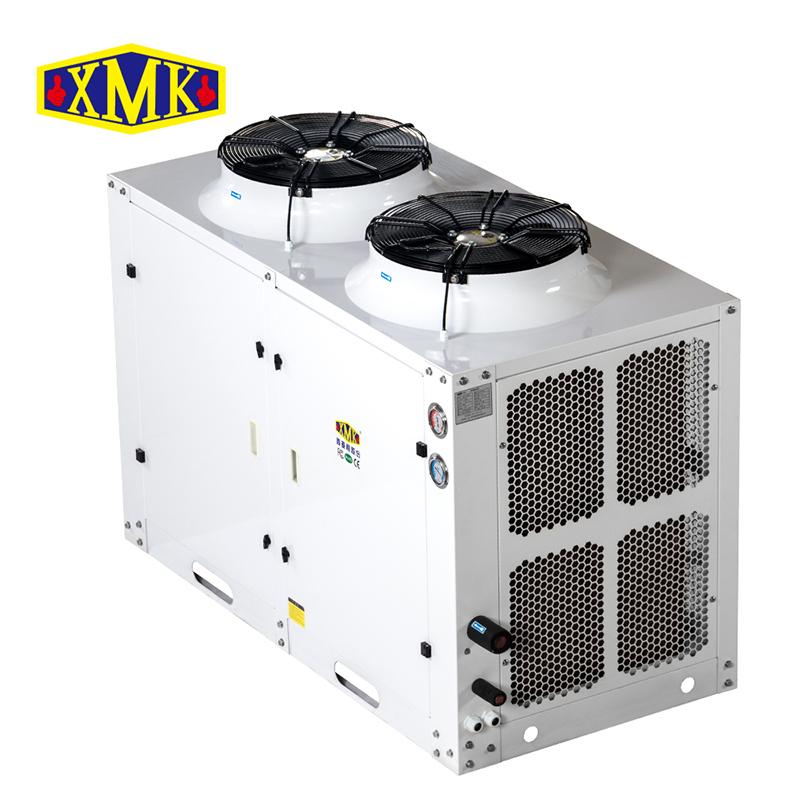

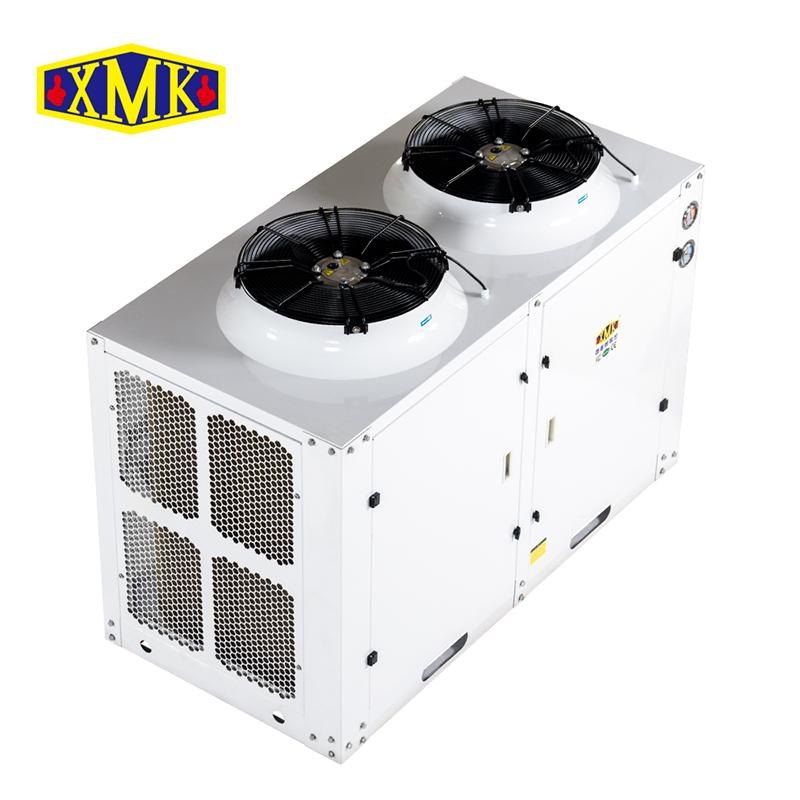

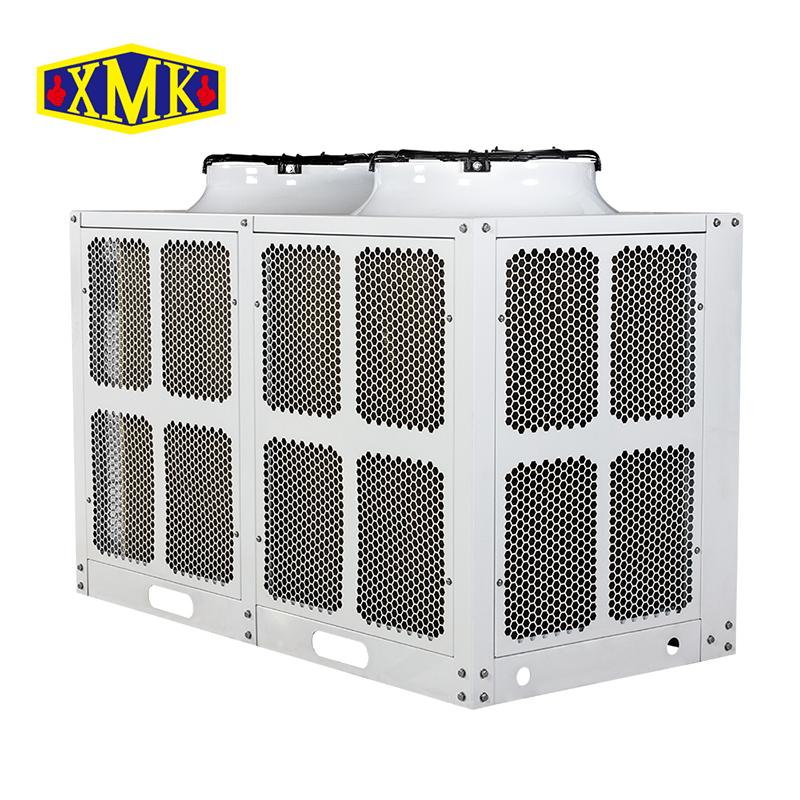

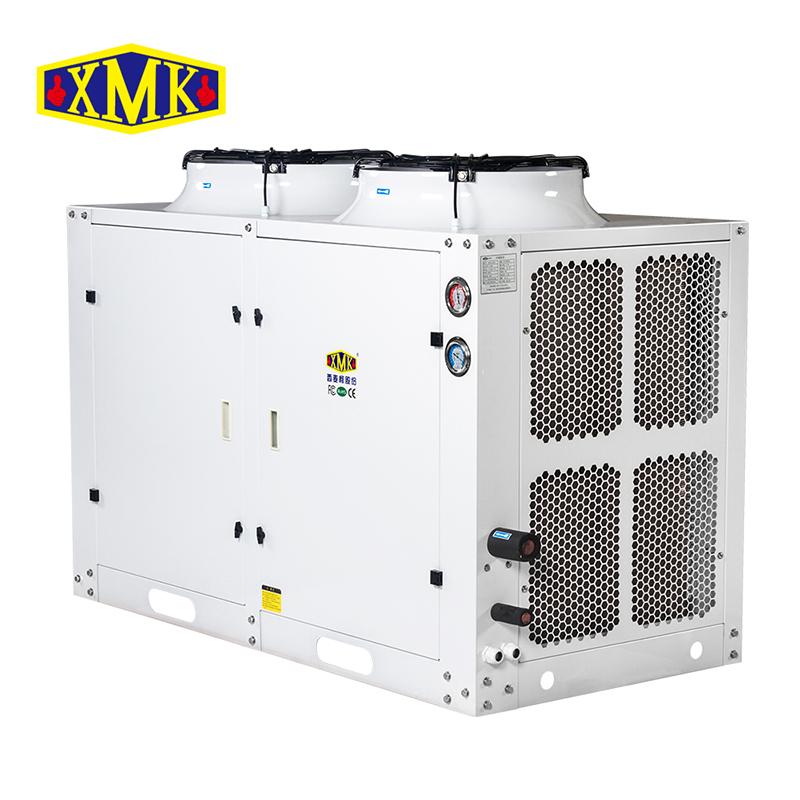

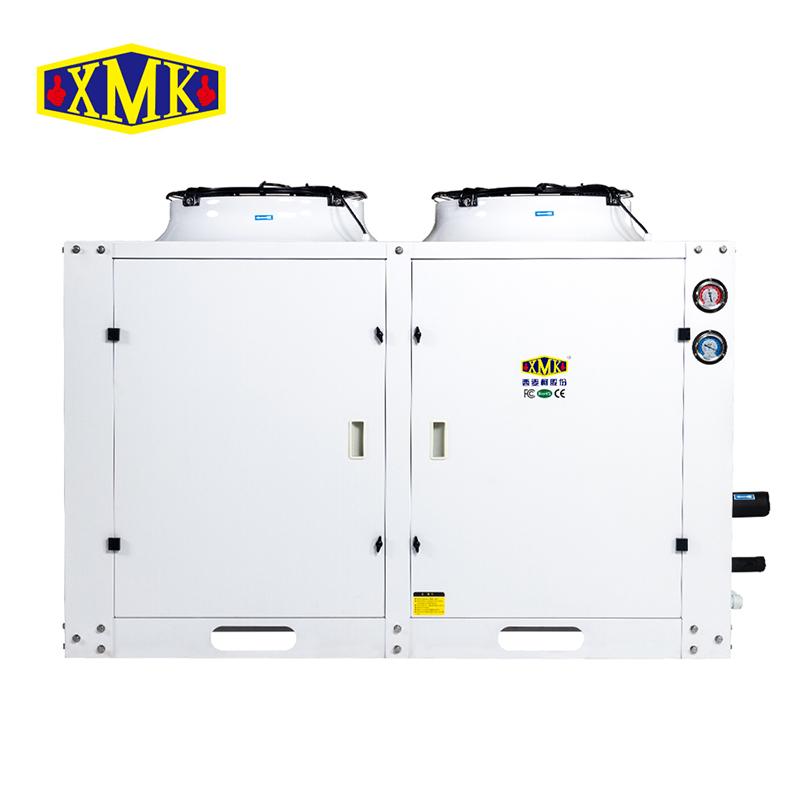

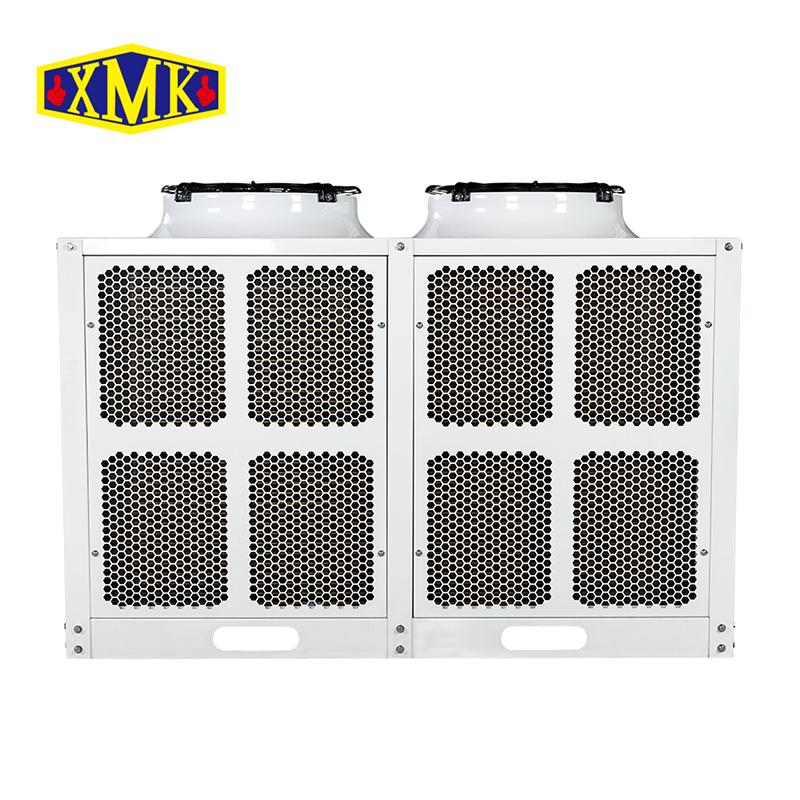

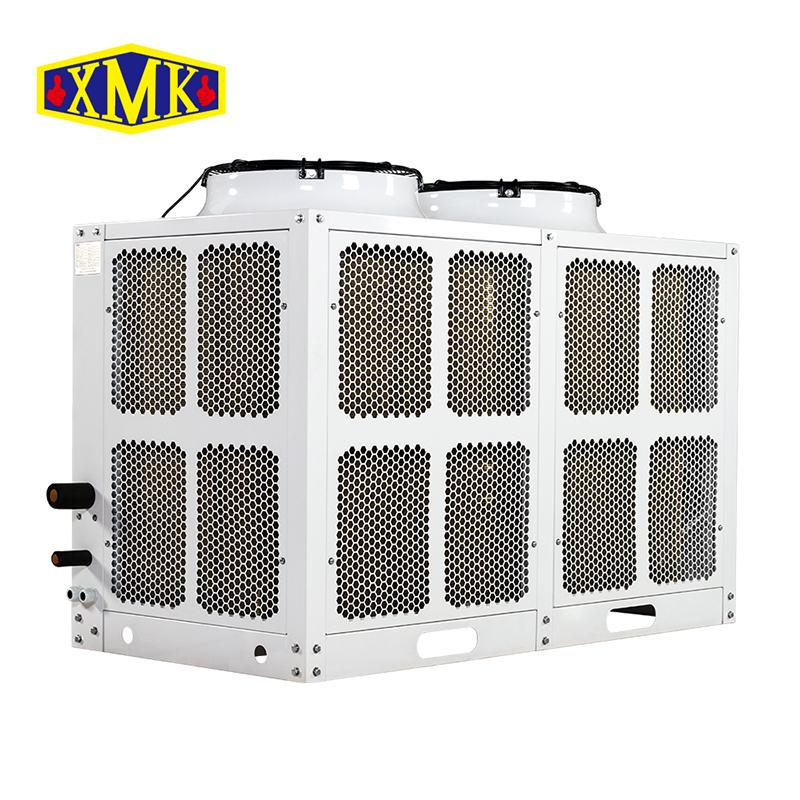

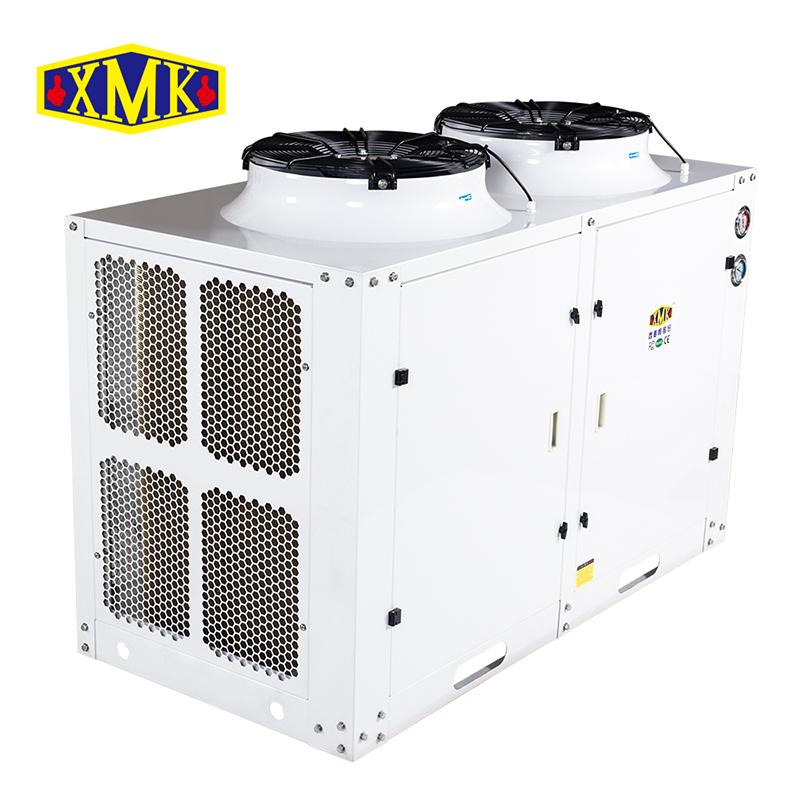

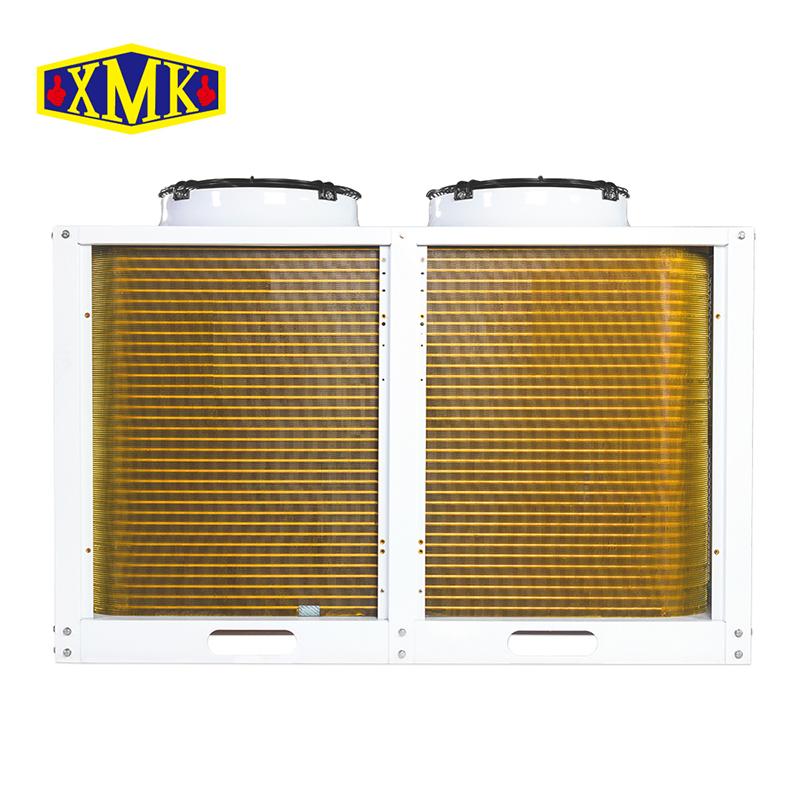

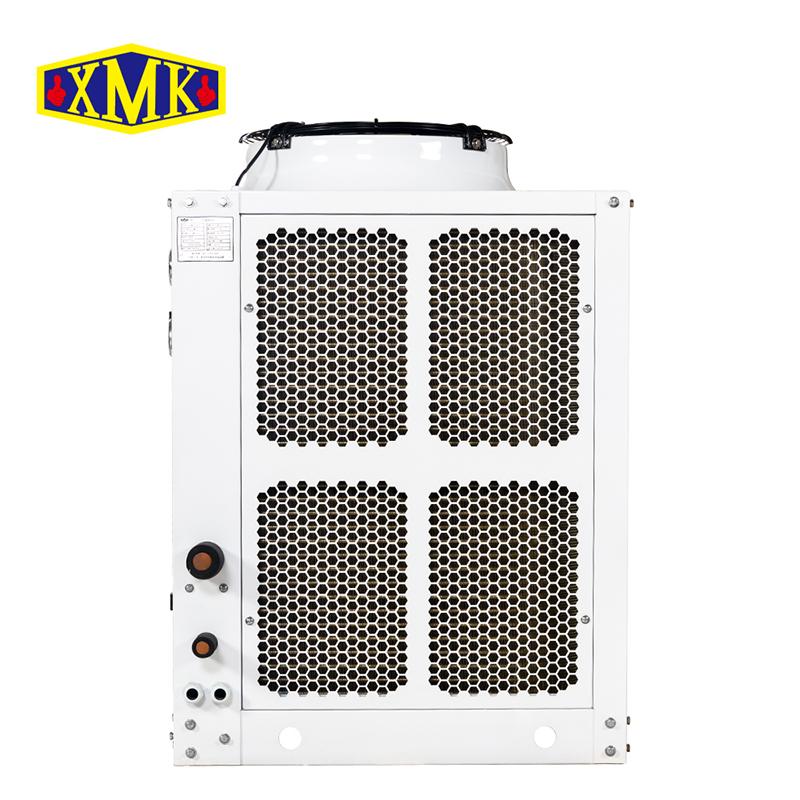

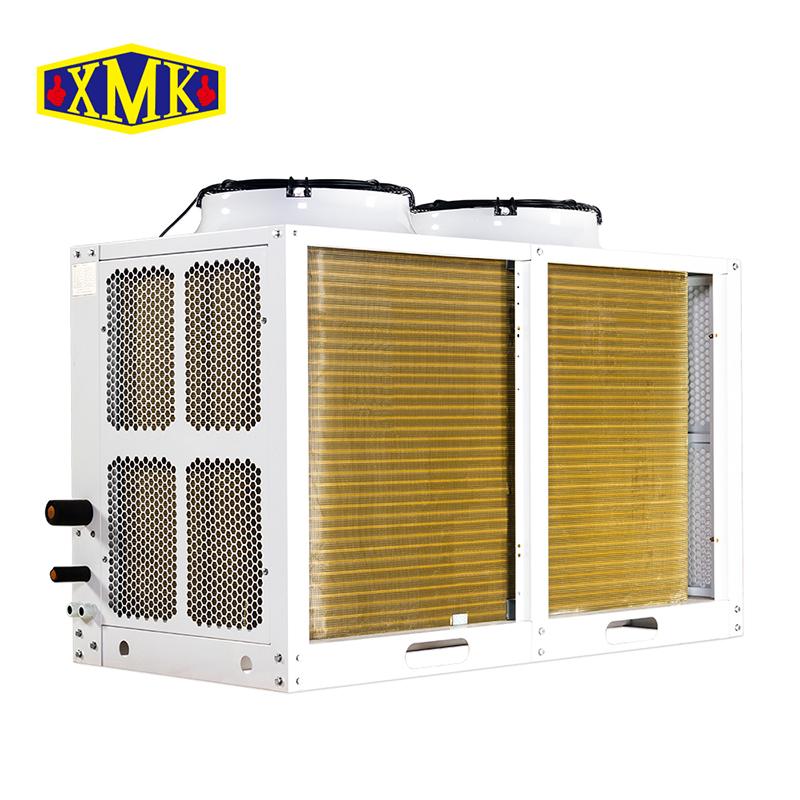

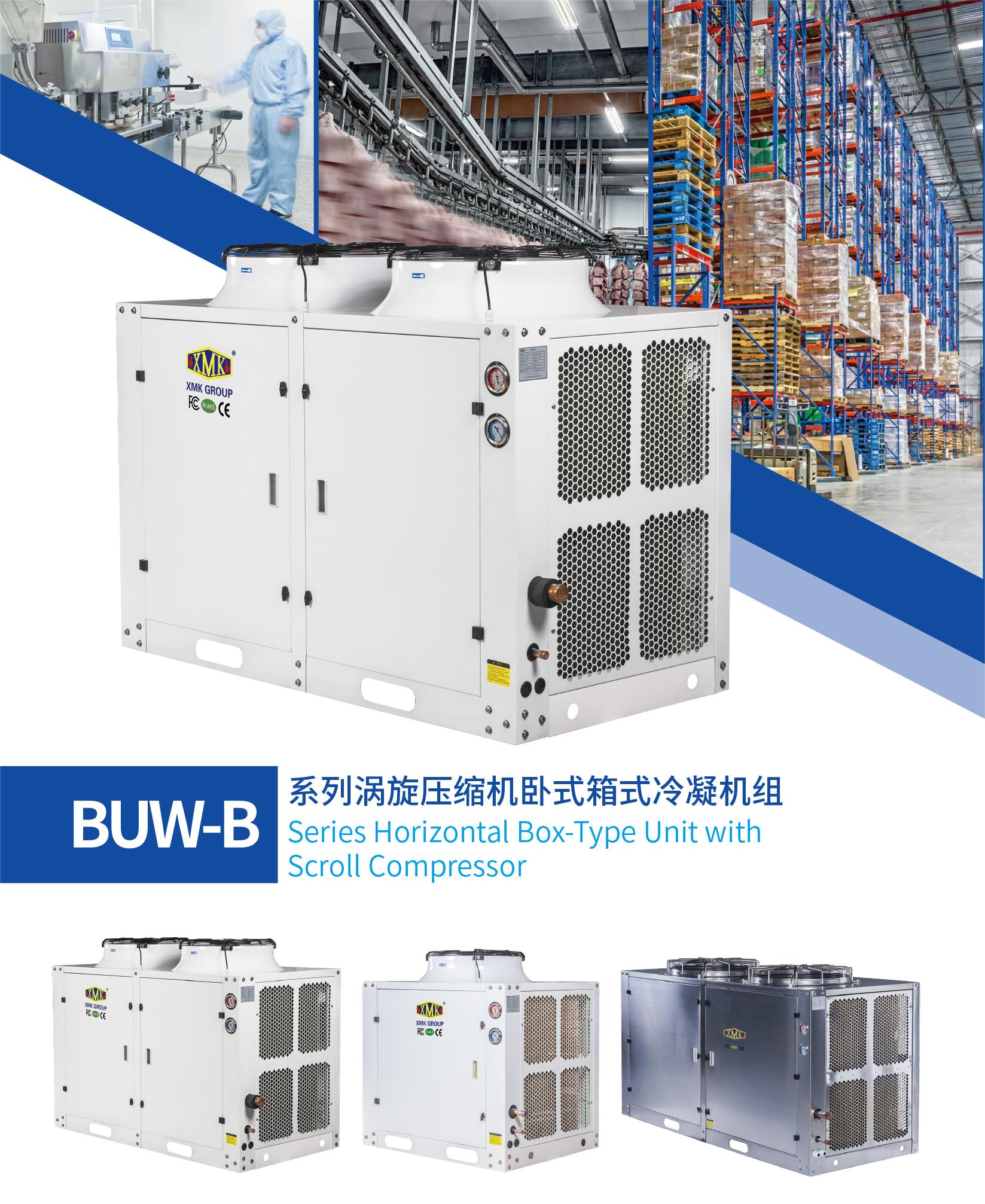

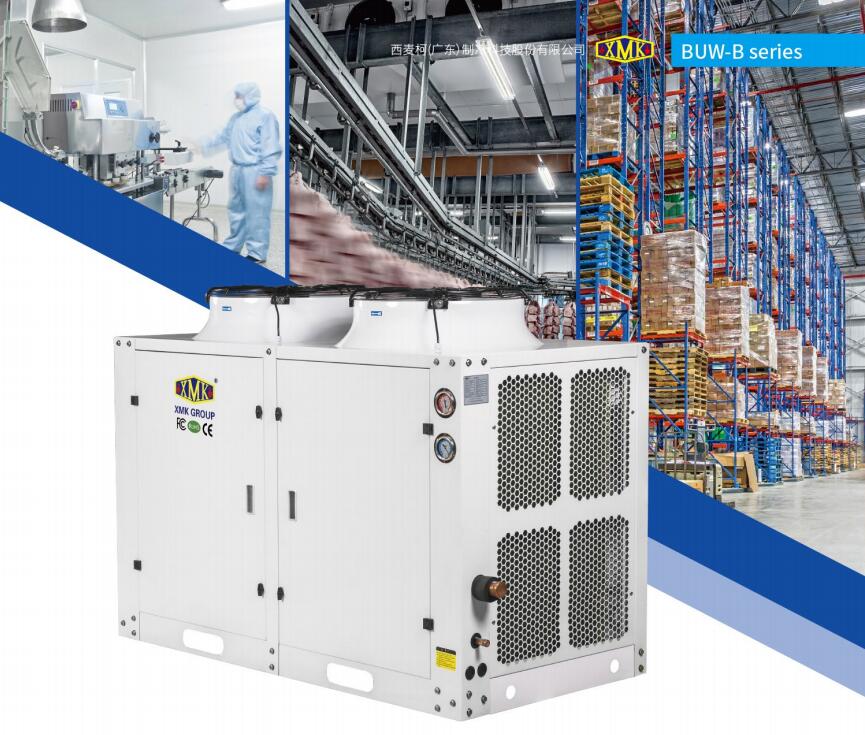

BUW-B Series Horizontal Box-Type Unit with Scroll Compressor

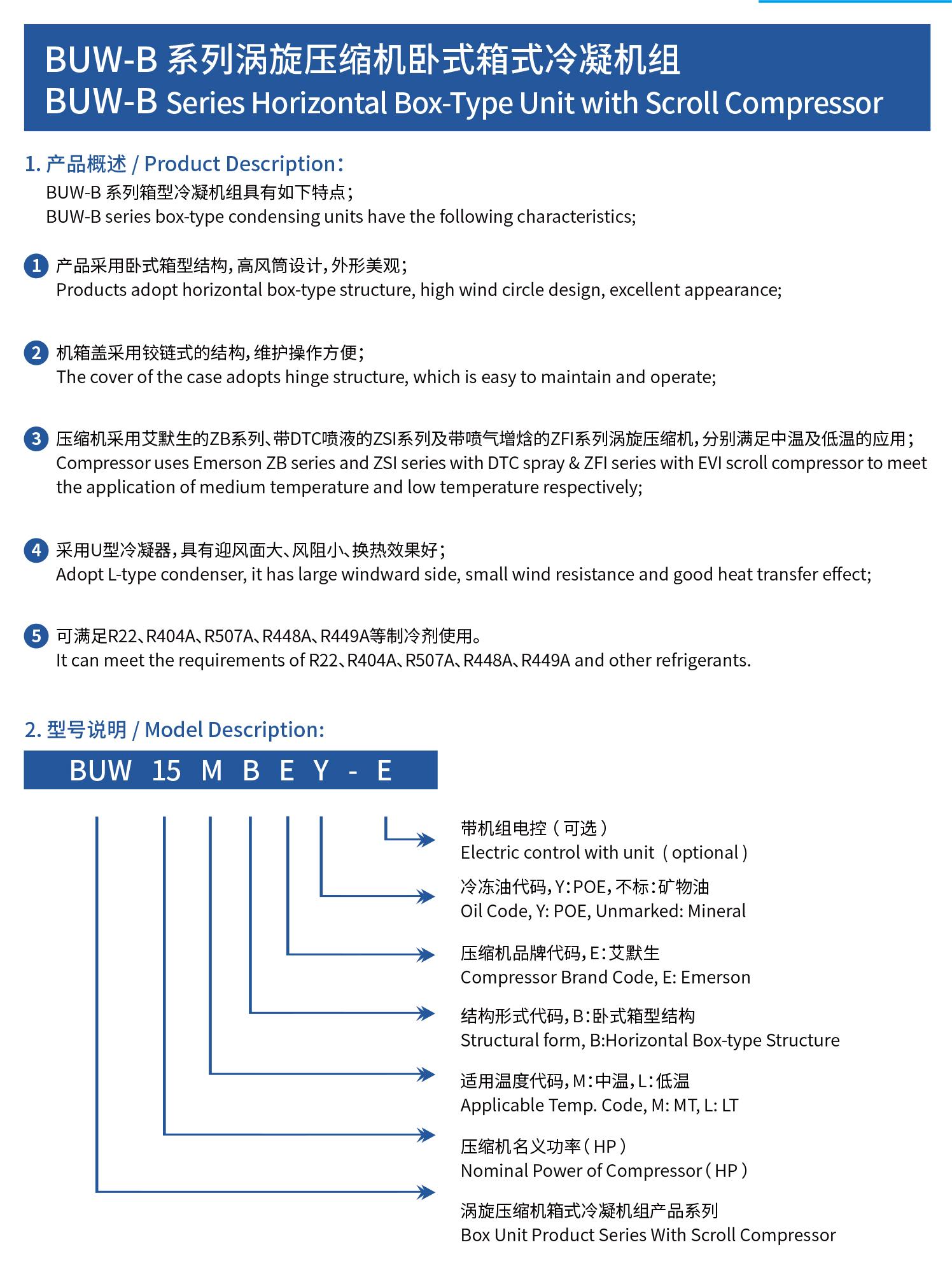

Product Description：

BUW-B series box-type condensing units have the following characteristics

1. Products adopt horizontal box-type structure, high wind circle design, excellent appearance;

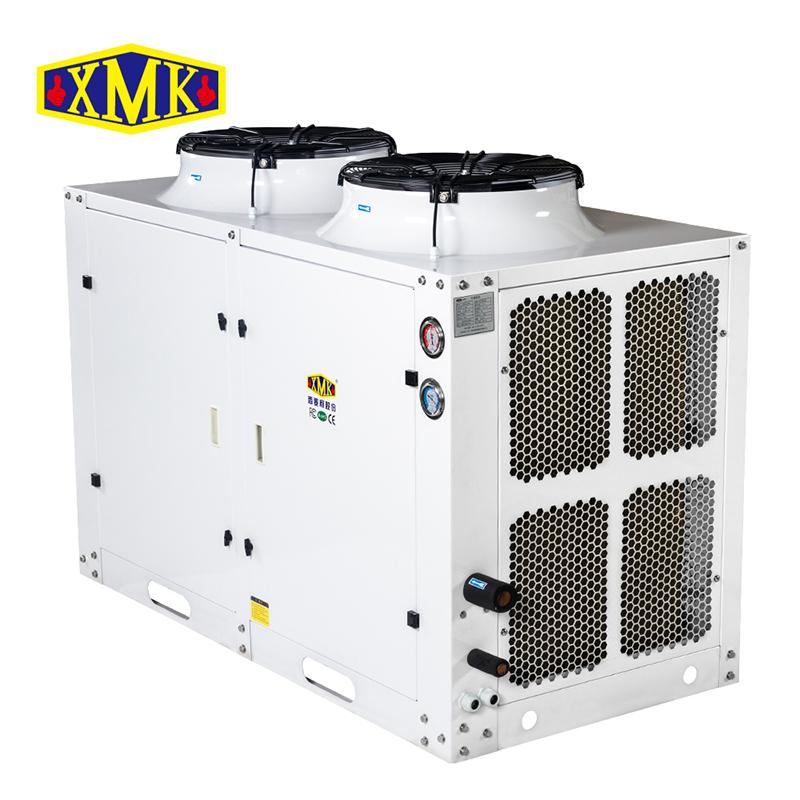

2. The cover of the case adopts hinge structure, which is easy to maintain and operate;

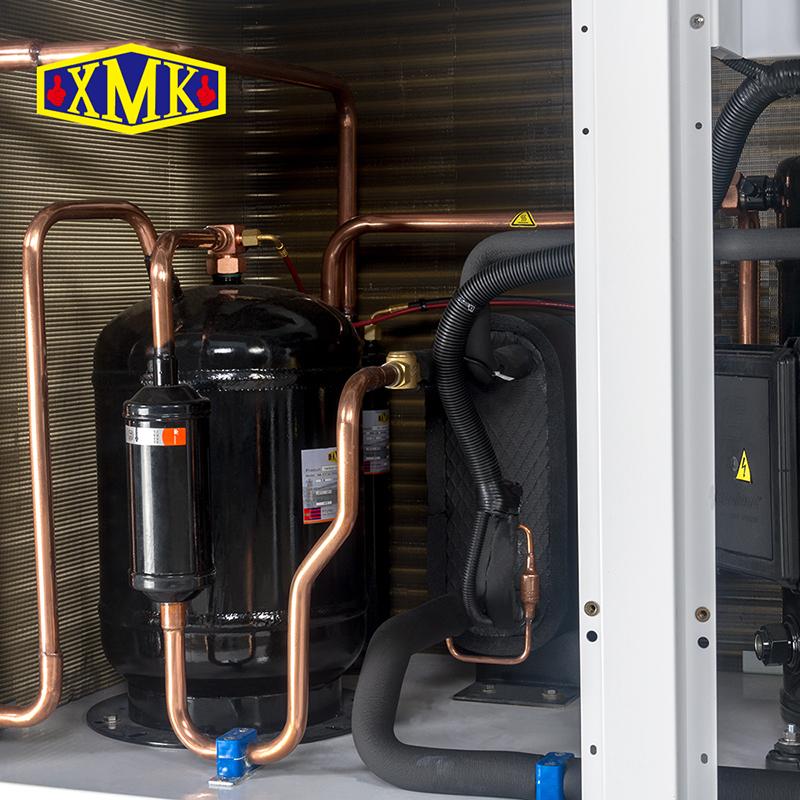

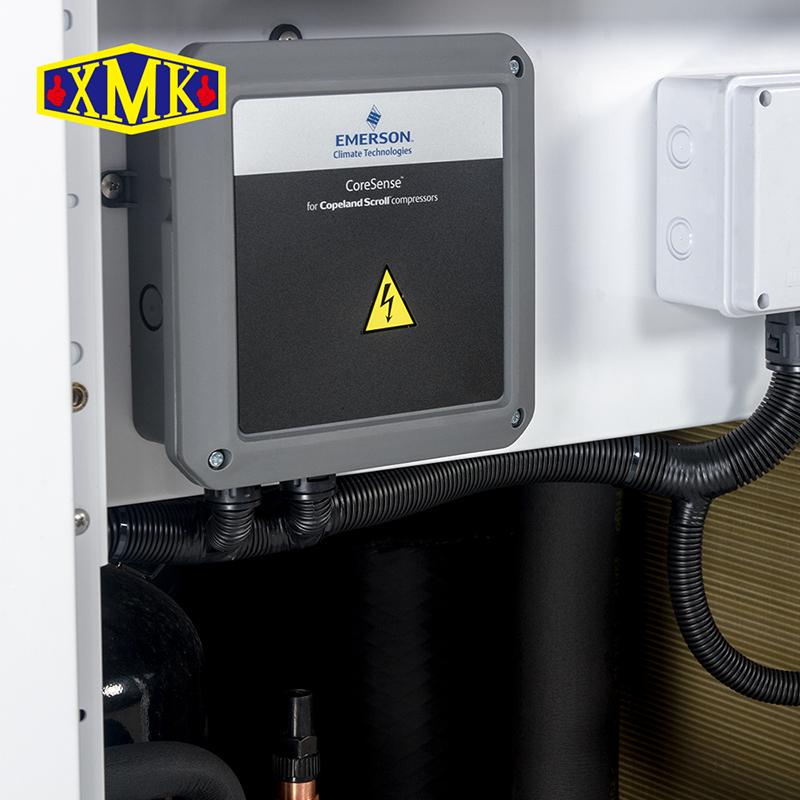

3. Compressor uses Emerson ZB series and ZSI series with DTC spray & ZFI series with EVI scroll compressor to meet the application of medium temperature and low temperature respectively;

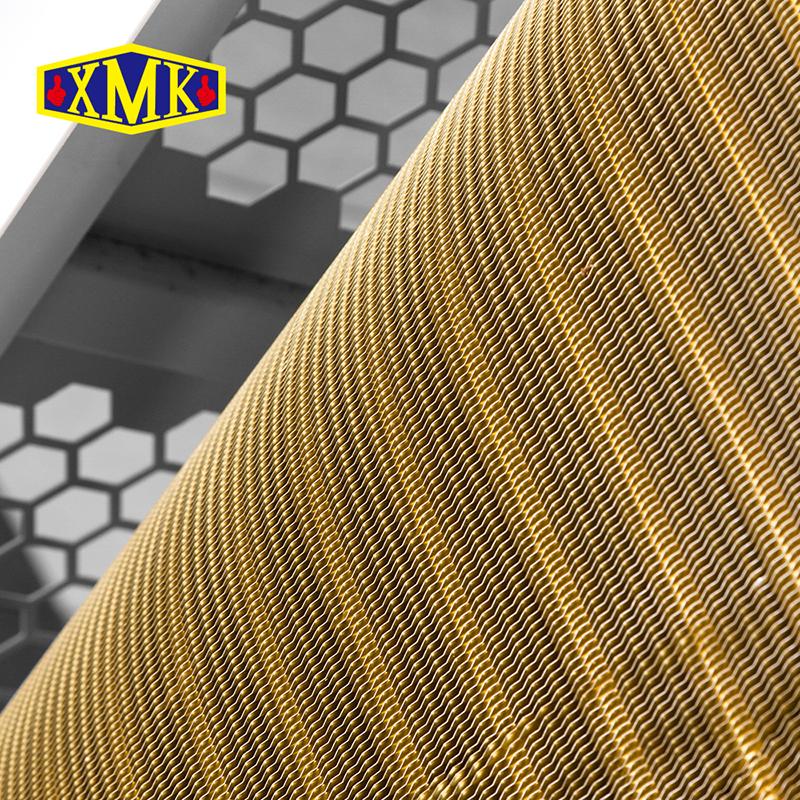

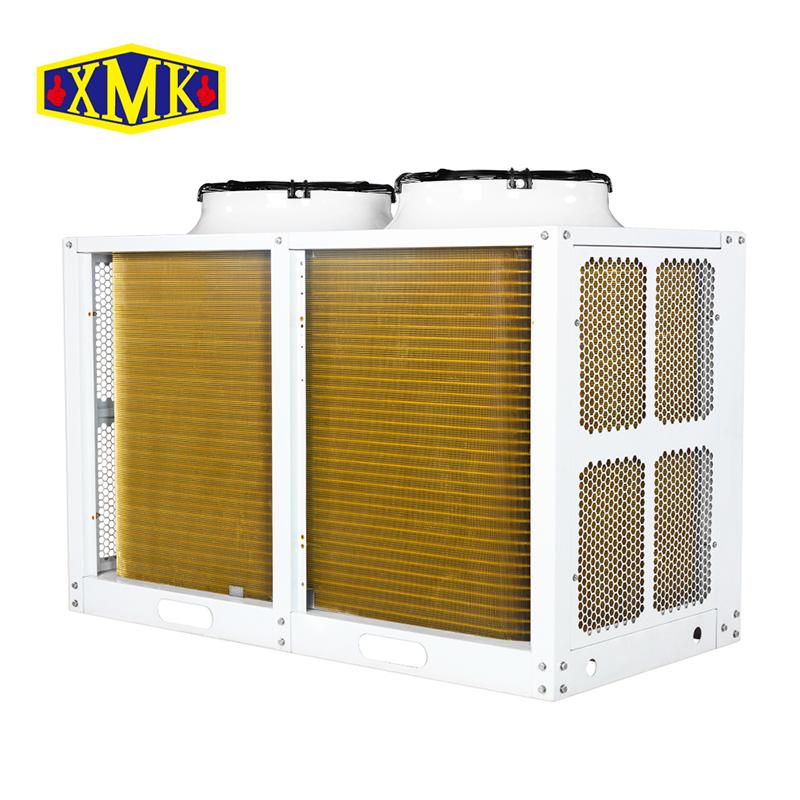

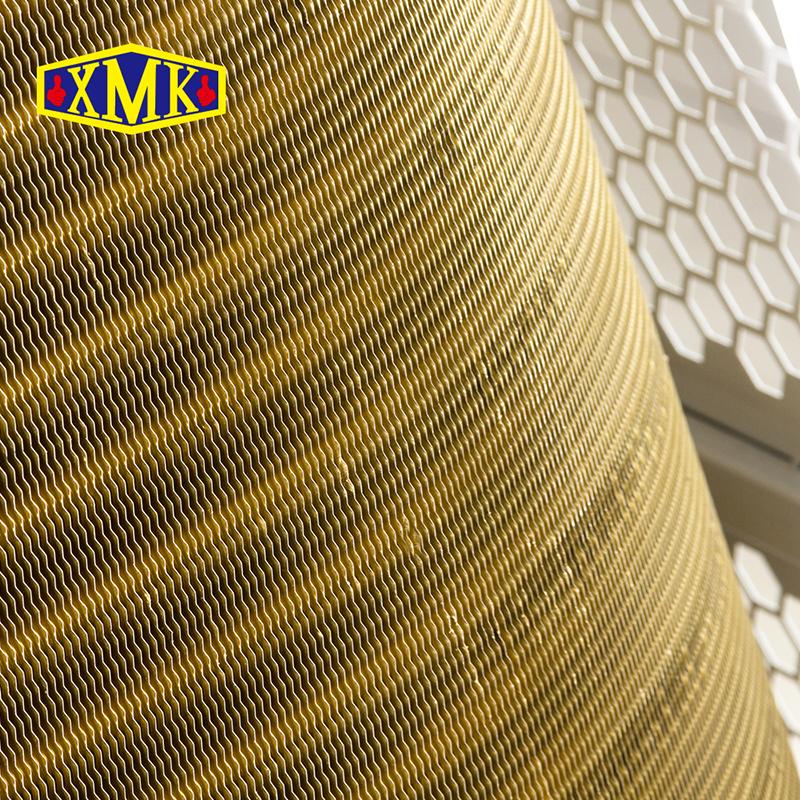

4. Adopt U-type condenser, it has large windward side, small wind resistance and good heat transfer effect;

5. It can meet the requirements of R22, R404A, R507A, R448A, R449A and other refrigerants.

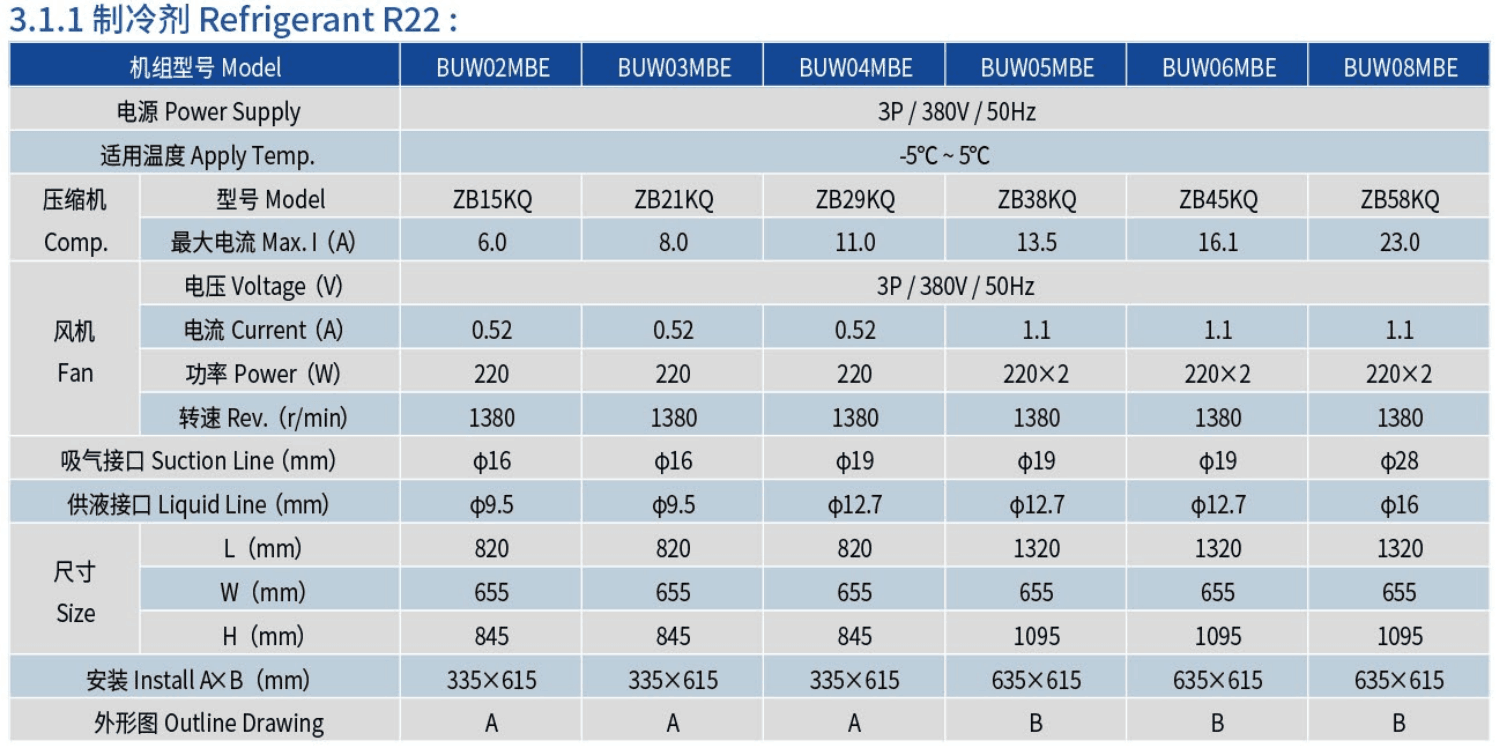

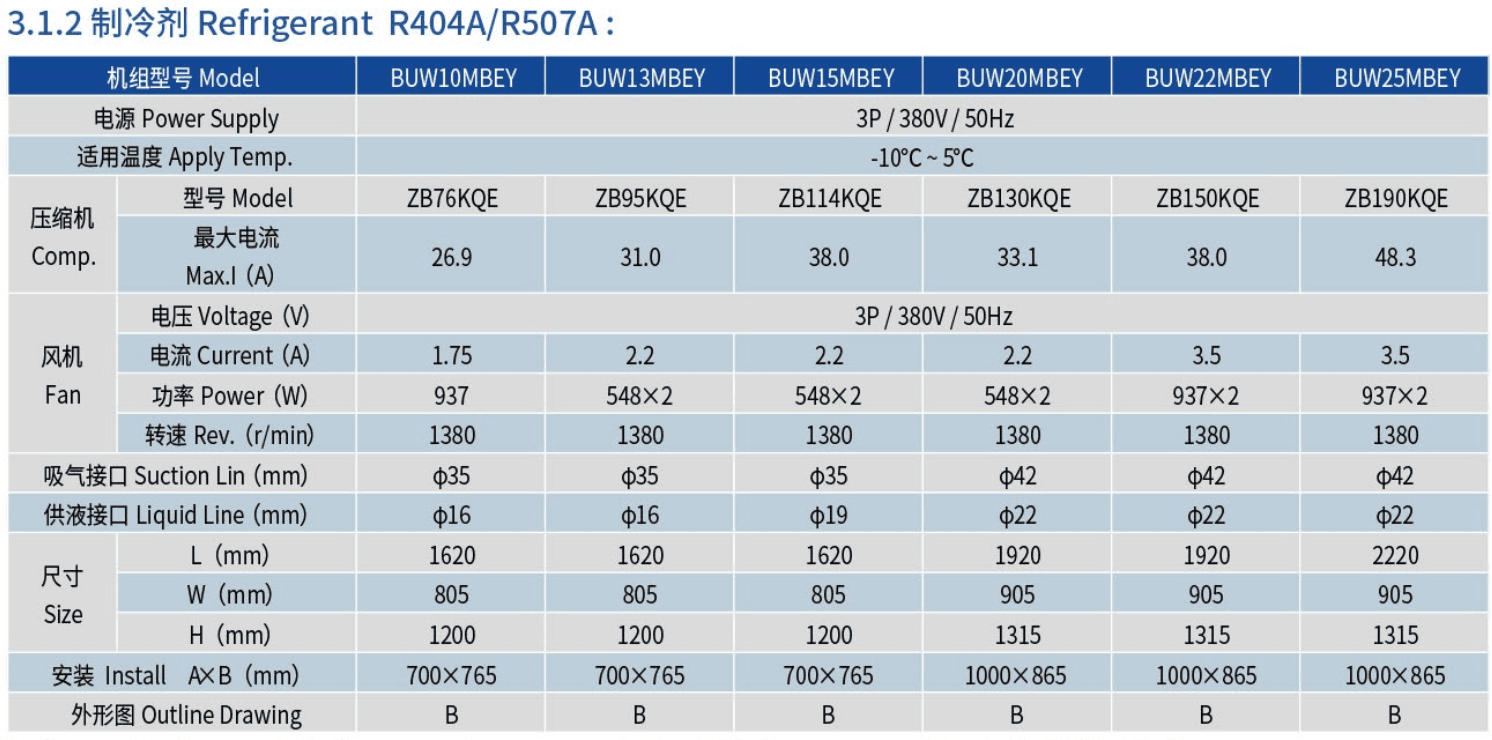

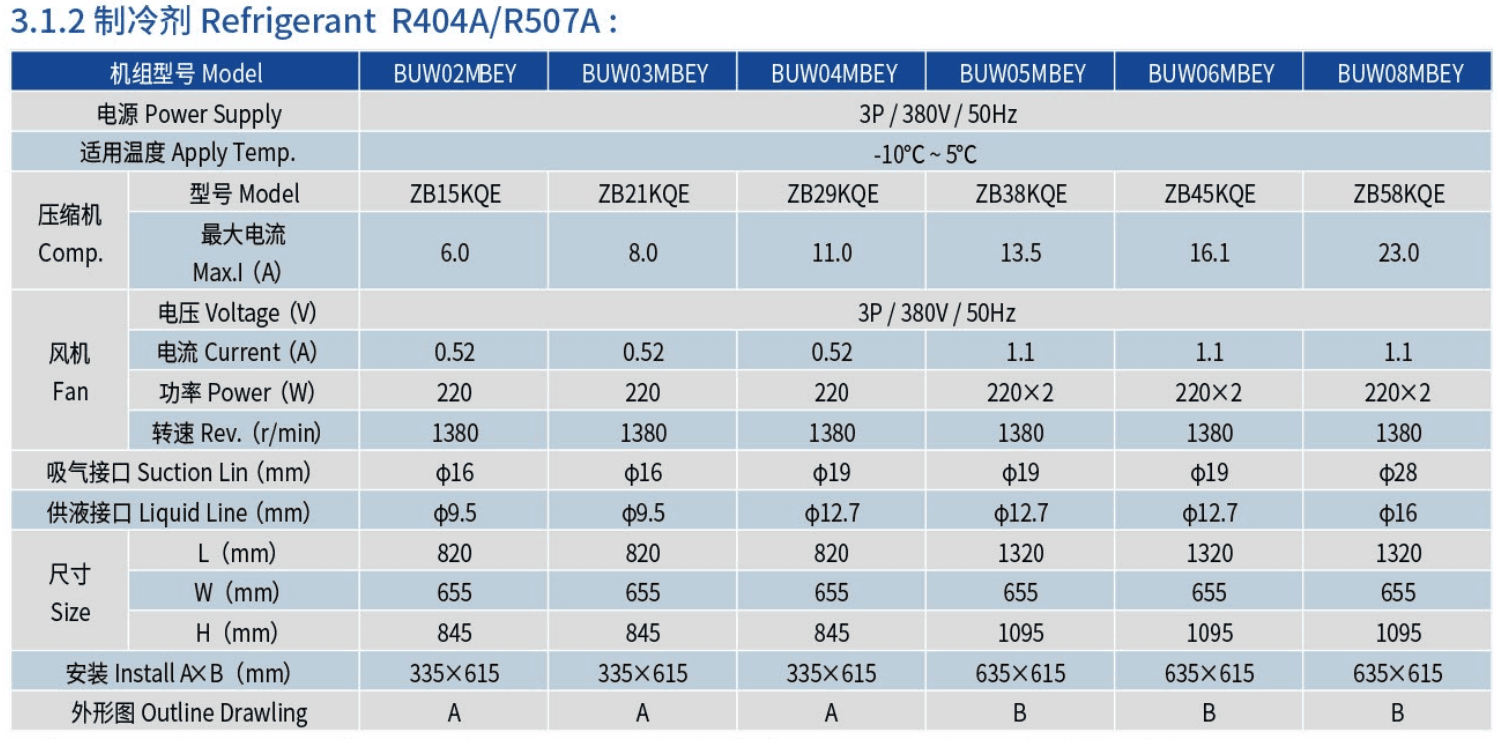

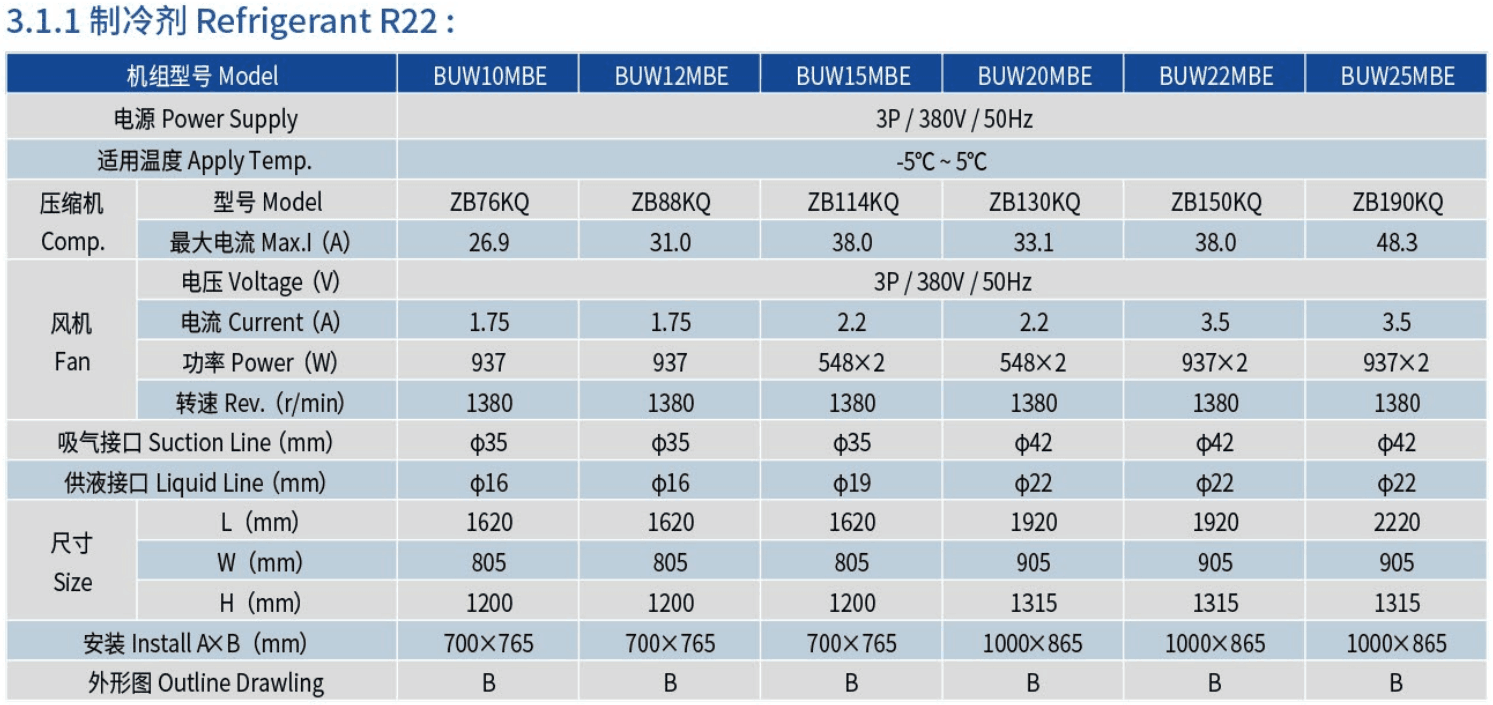

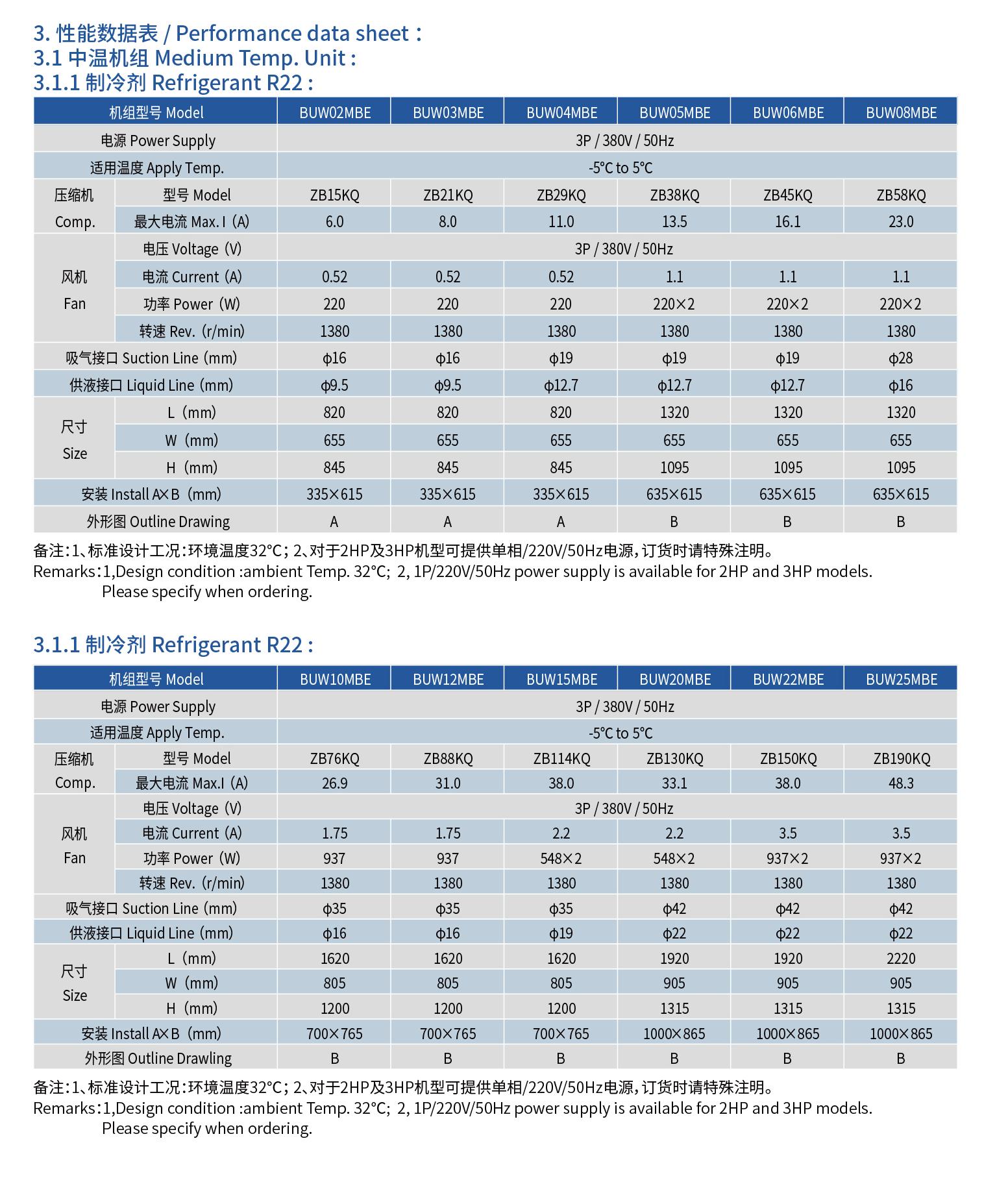

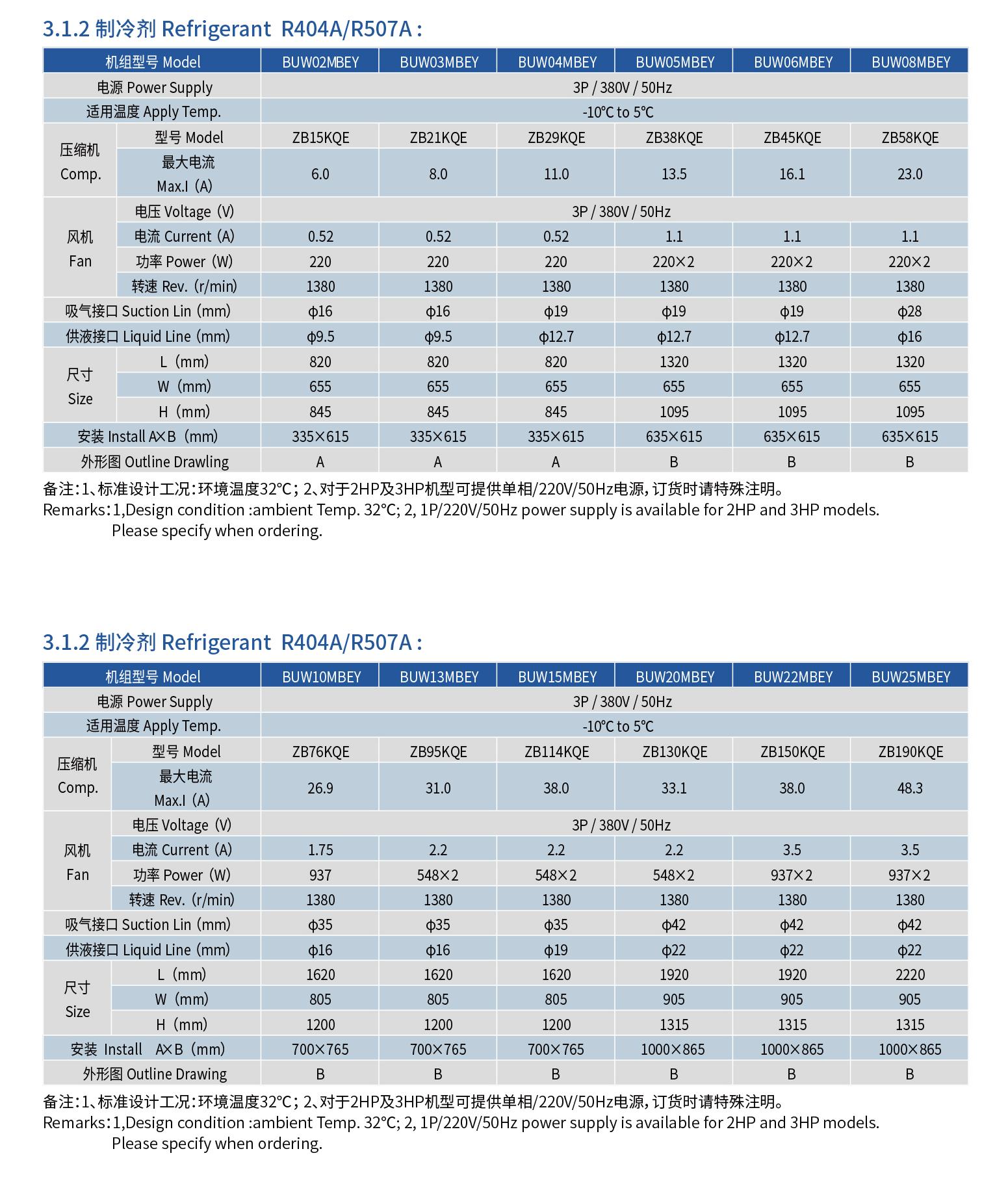

Performance data sheet :

Remarks：1,Design condition :ambient Temp. 32℃.  2, 1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering.

Remarks：1,Design condition :ambient Temp. 32℃.  2, 1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering.

Remarks：1,Design condition :ambient Temp. 32℃.  2, 1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering.

Remarks：1,Design condition :ambient Temp. 32℃.  2, 1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering.

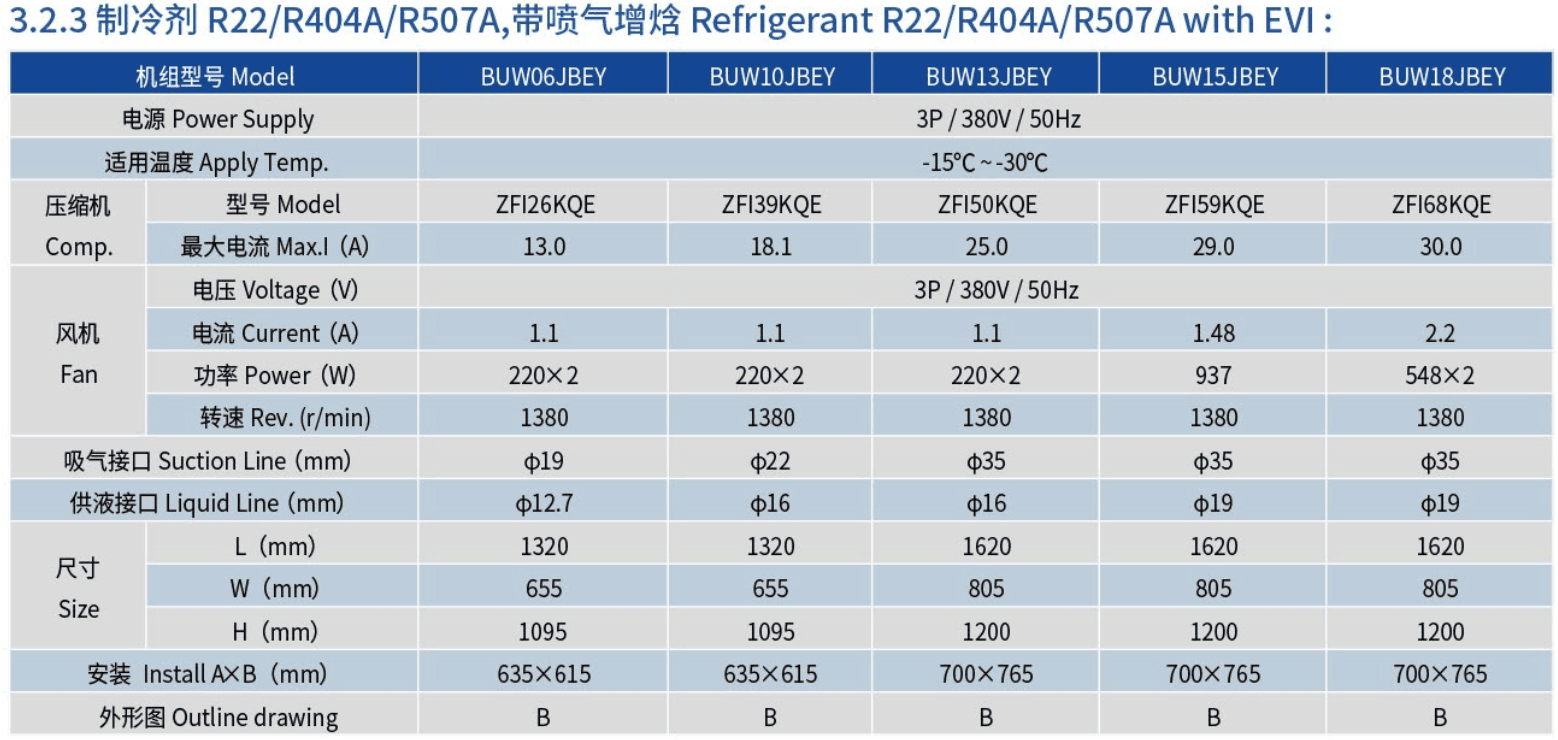

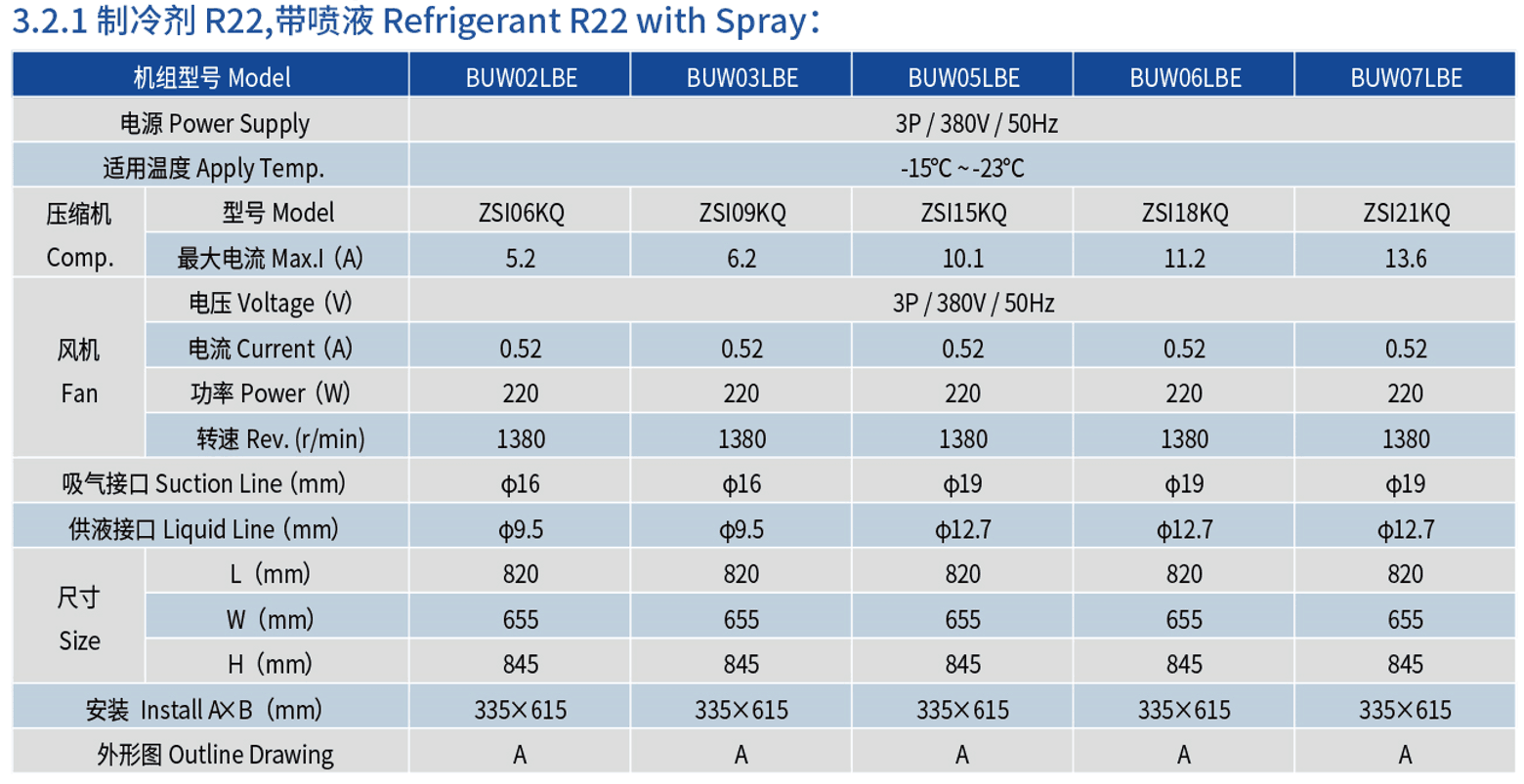

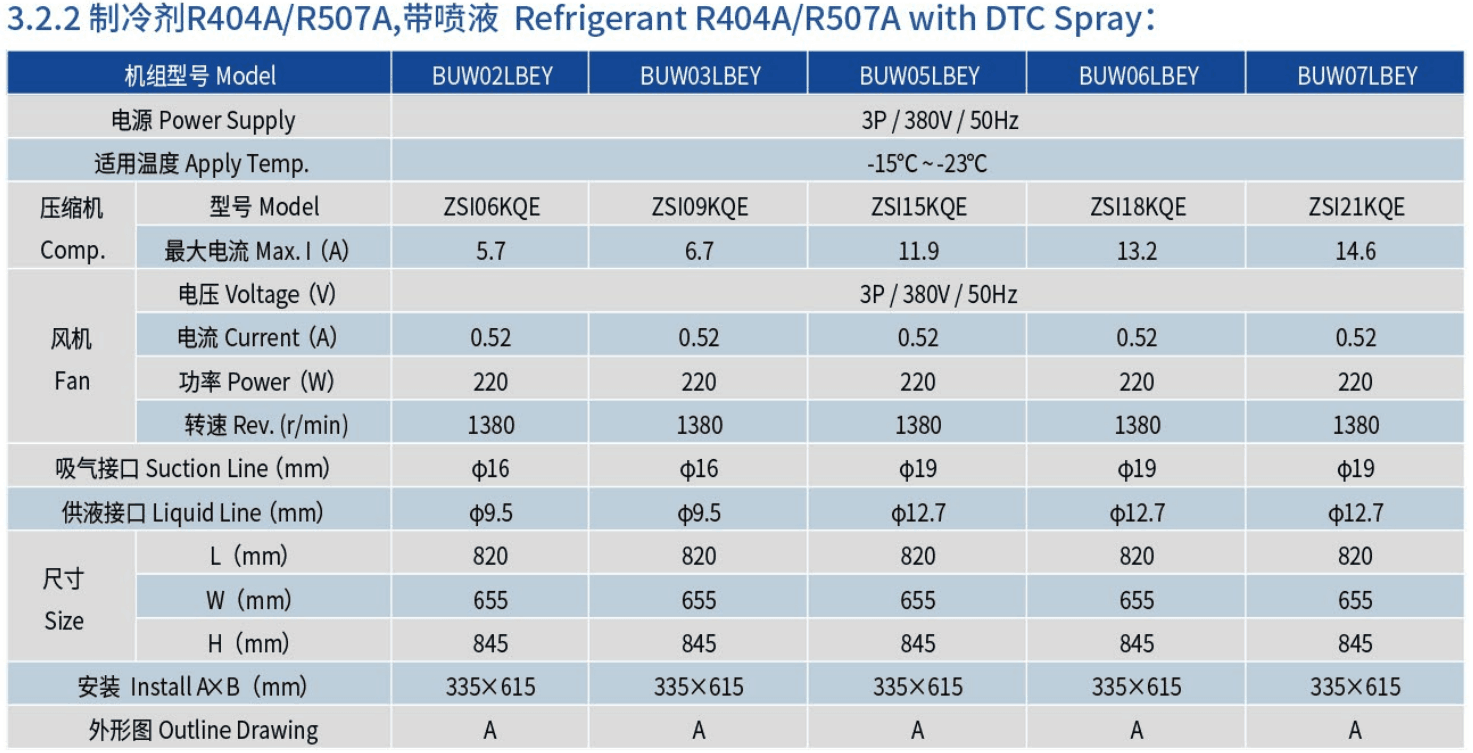

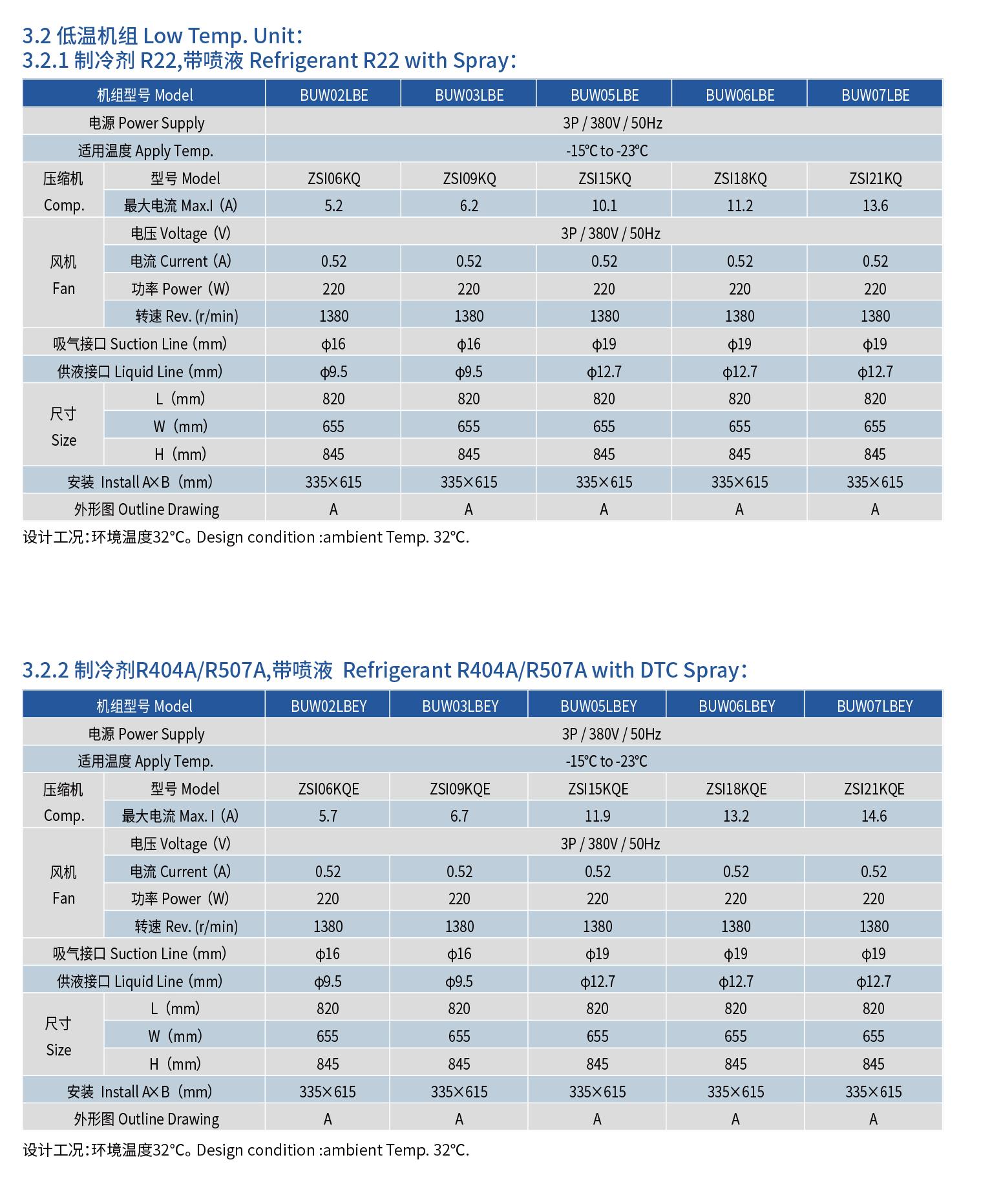

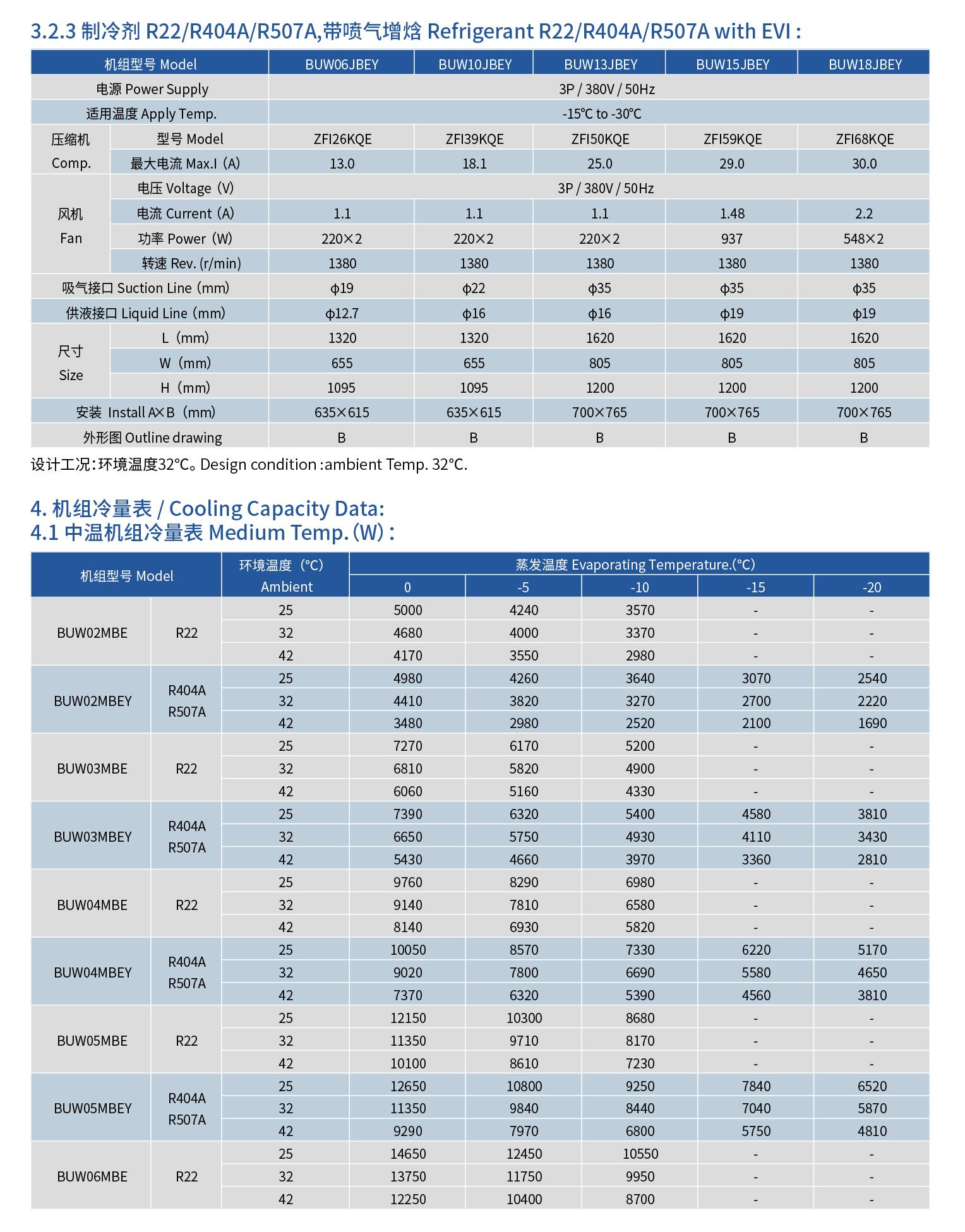

Low Temp. Unit:

Design condition :ambient Temp. 32°C

Design condition :ambient Temp. 32°C

Design condition :ambient Temp. 32°C

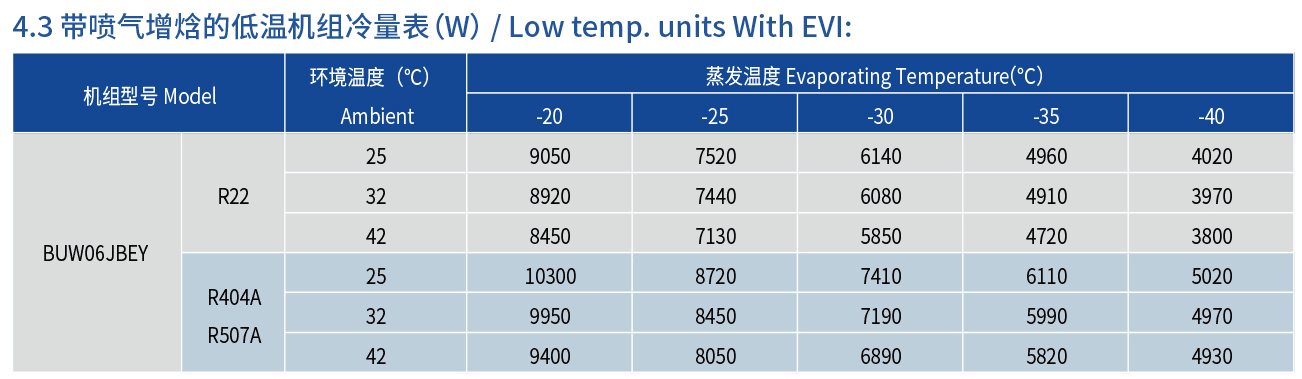

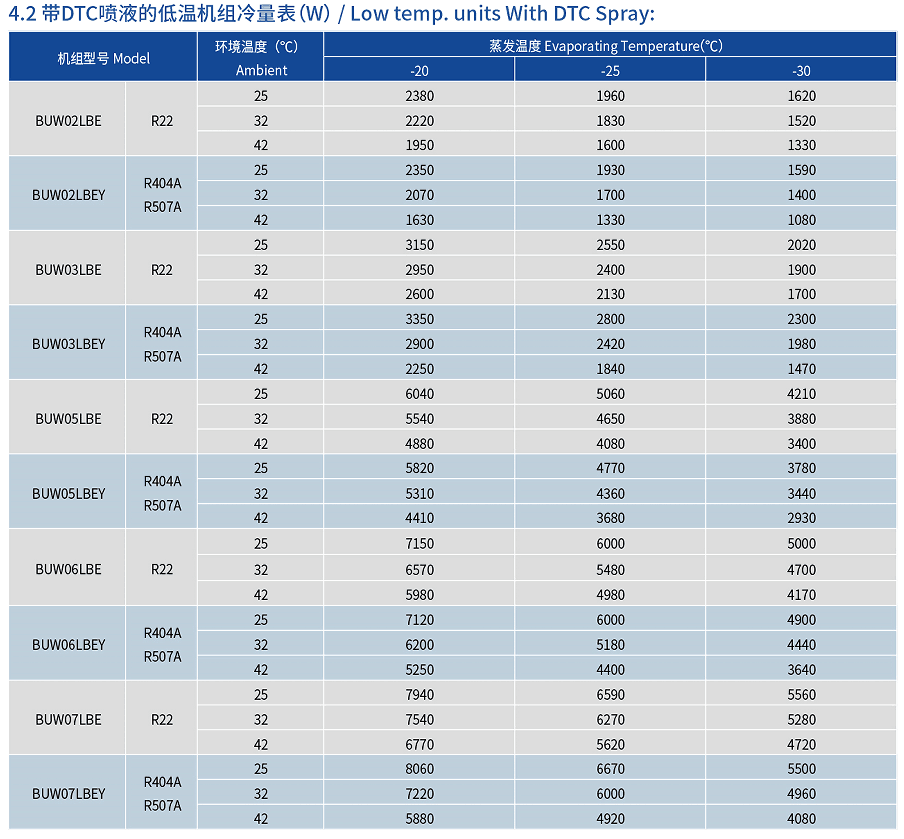

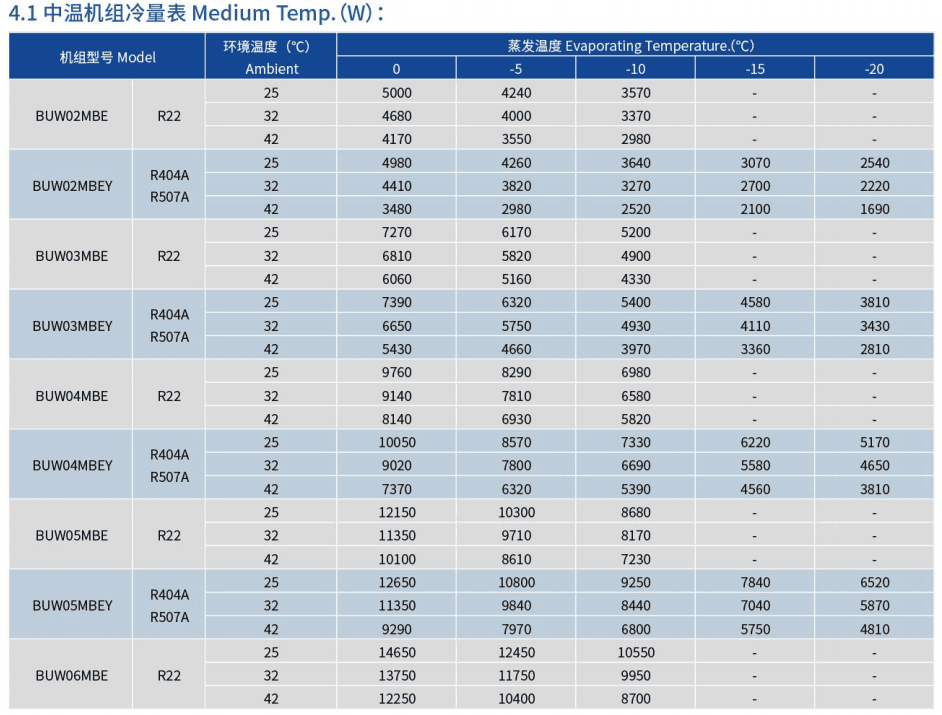

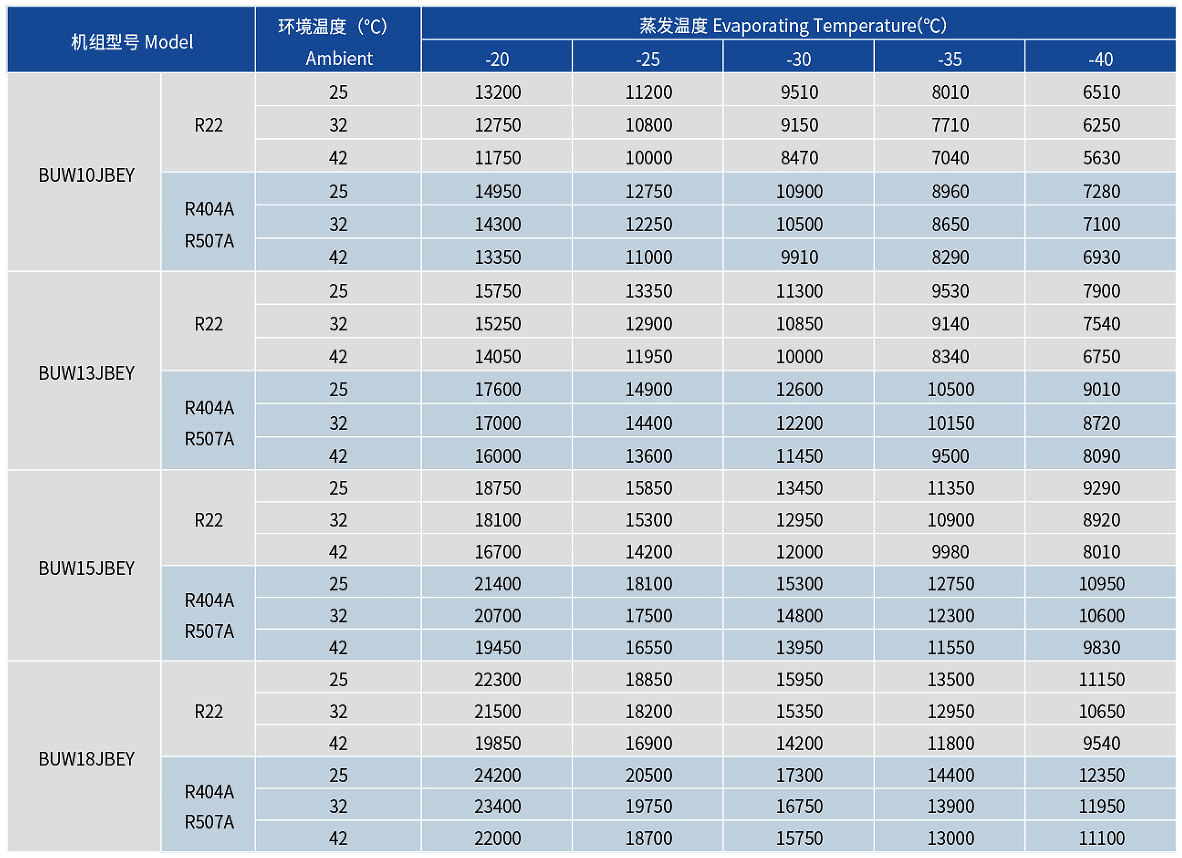

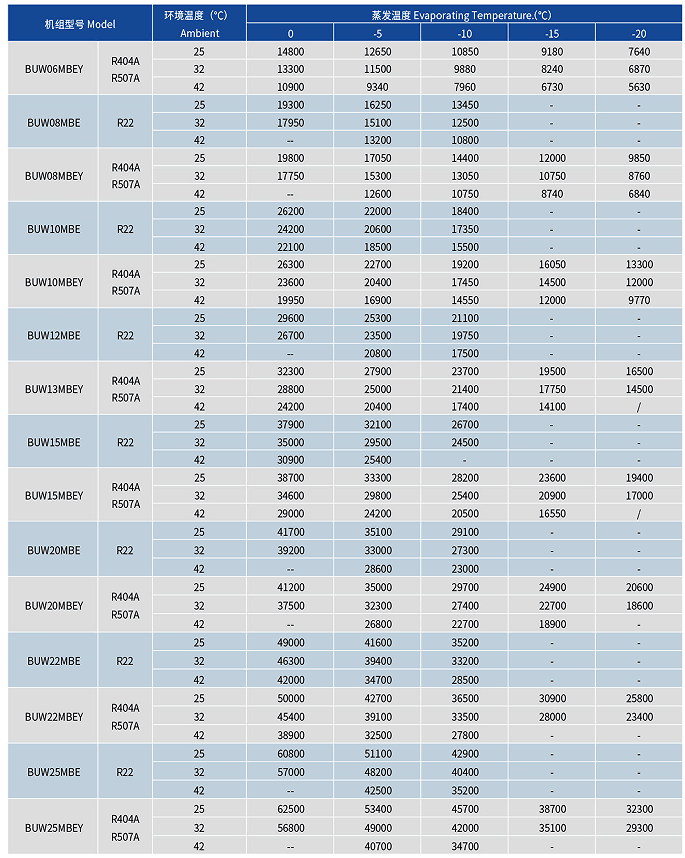

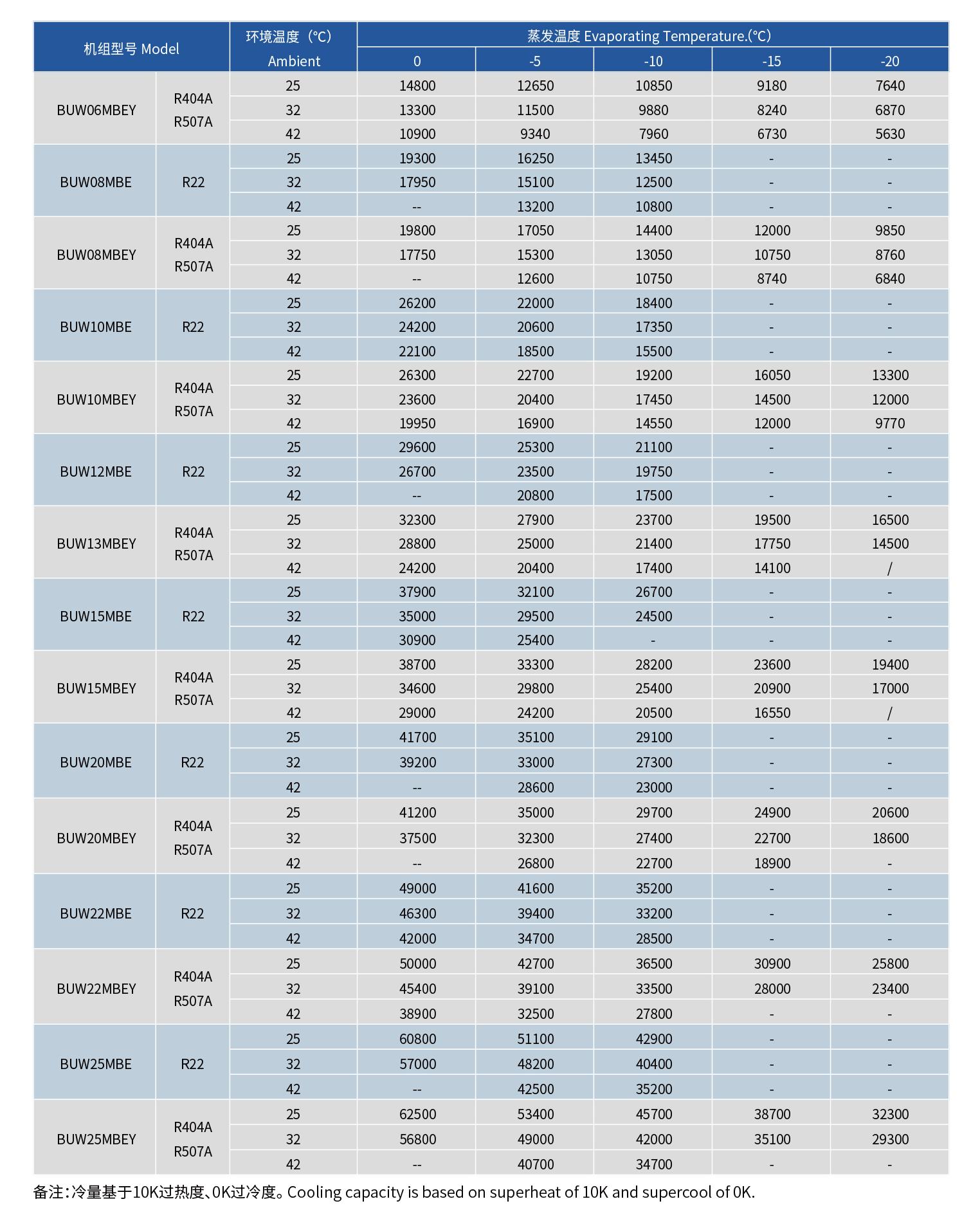

Cooling capacity Data:

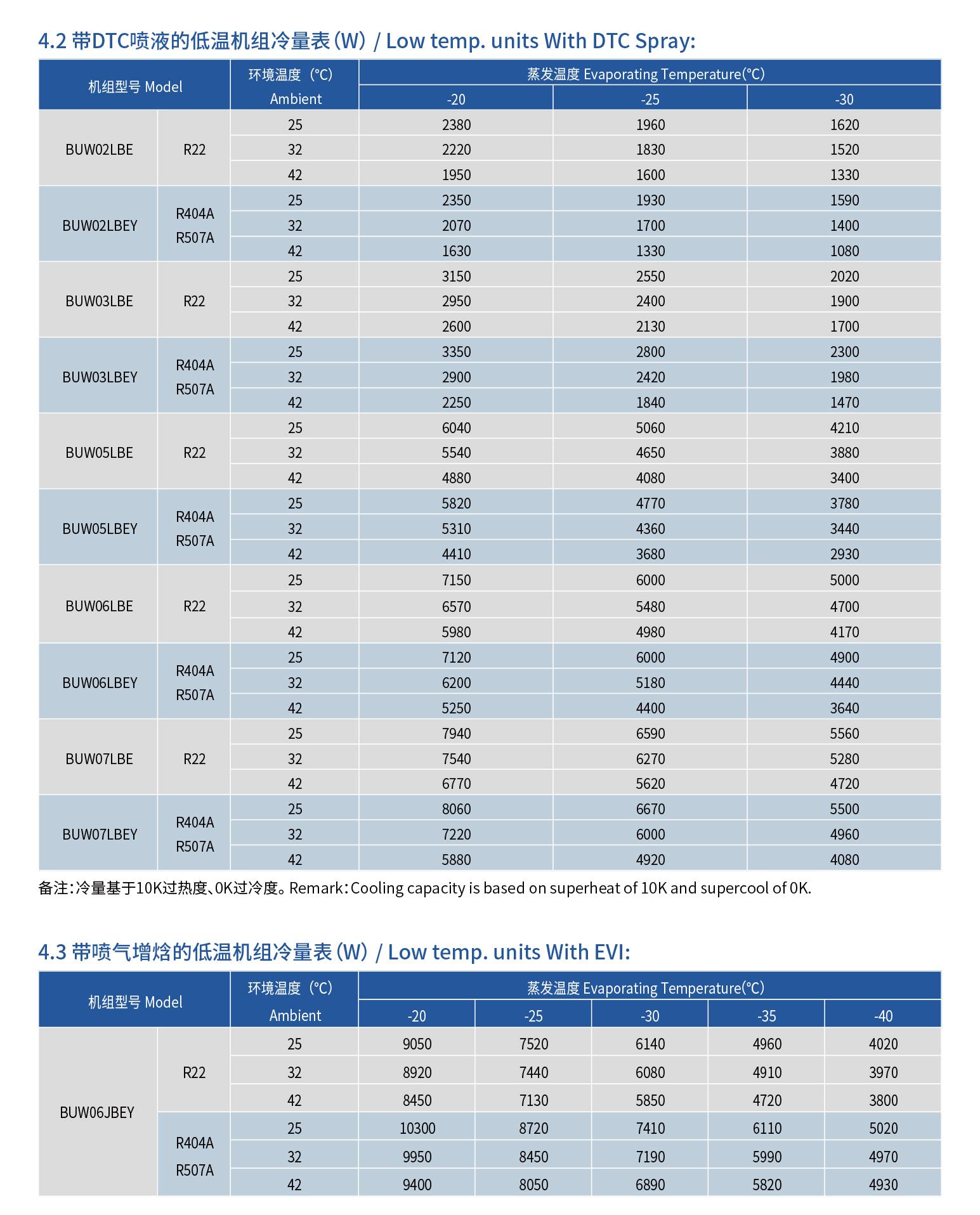

Cooling capacityis based on superheat of 10K and supercool of 0K.

Cooling capacityis based on superheat of 10K and supercool of 0K.

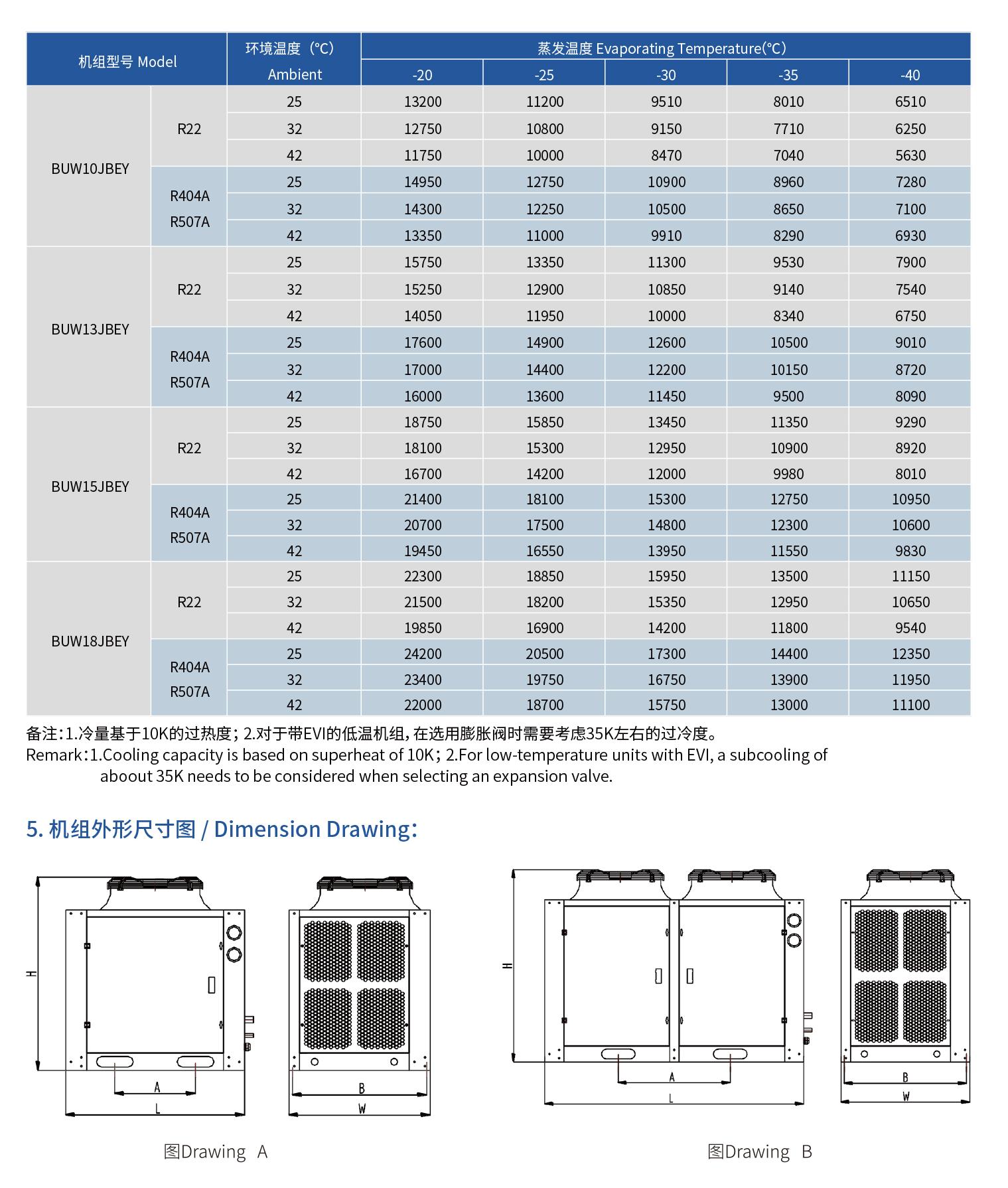

Remark: 1.Cooling capacity is based on superheat of 10K; 2.For low-temperature units with EVl, a subcooling ofaboout 35K needs to be considered when selecting an expansion valve.

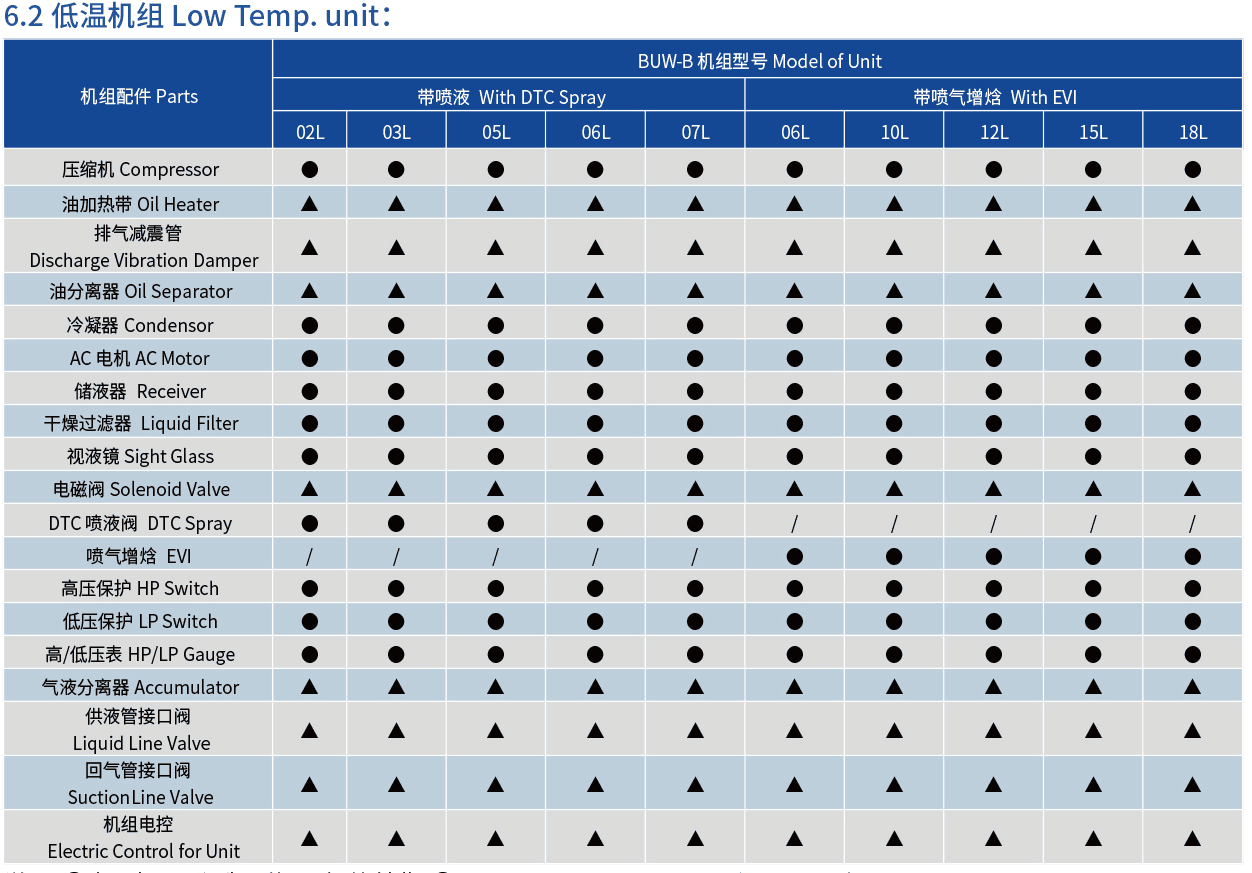

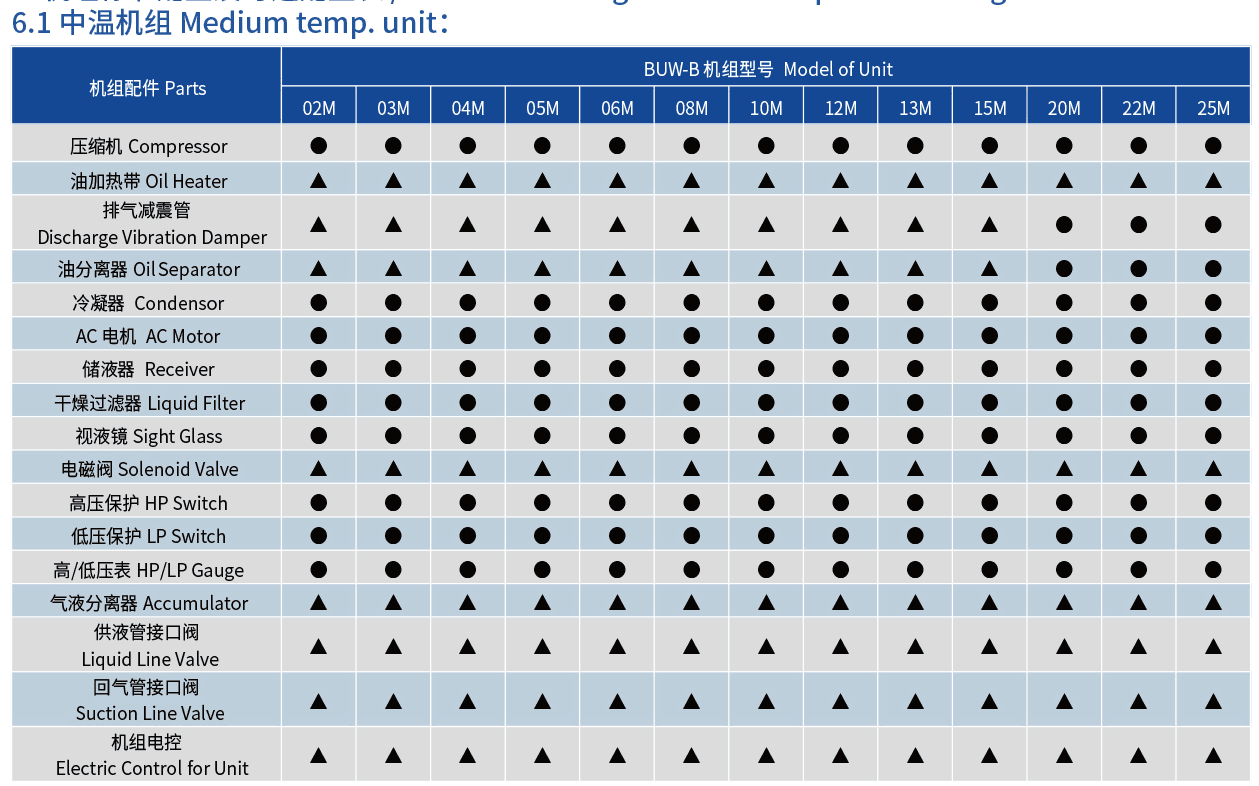

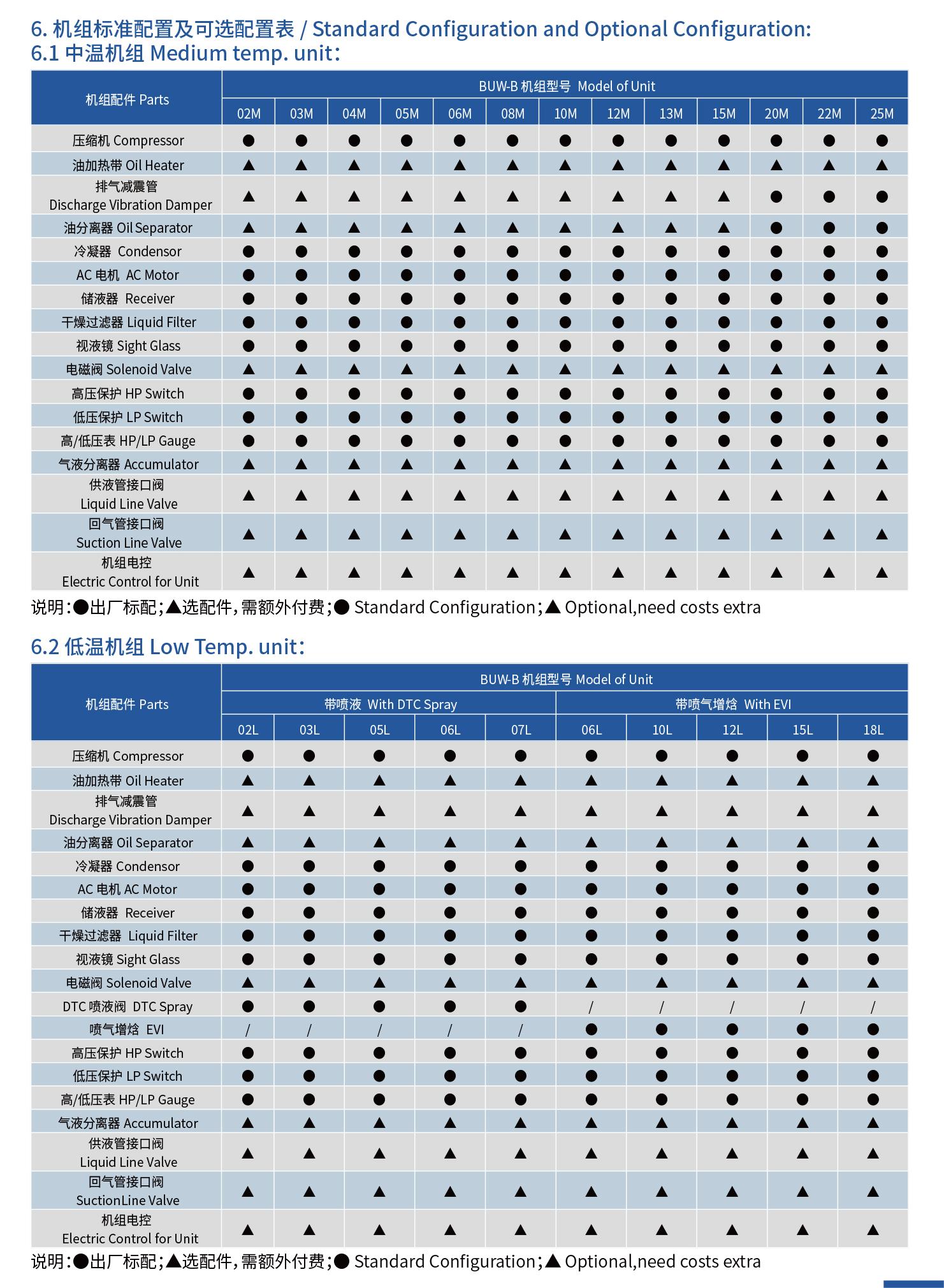

Standard Configuration and Optional Configuration:

● Standard Configuration；▲ Optional,need costs extra

● Standard Configuration；▲ Optional,need costs extra
