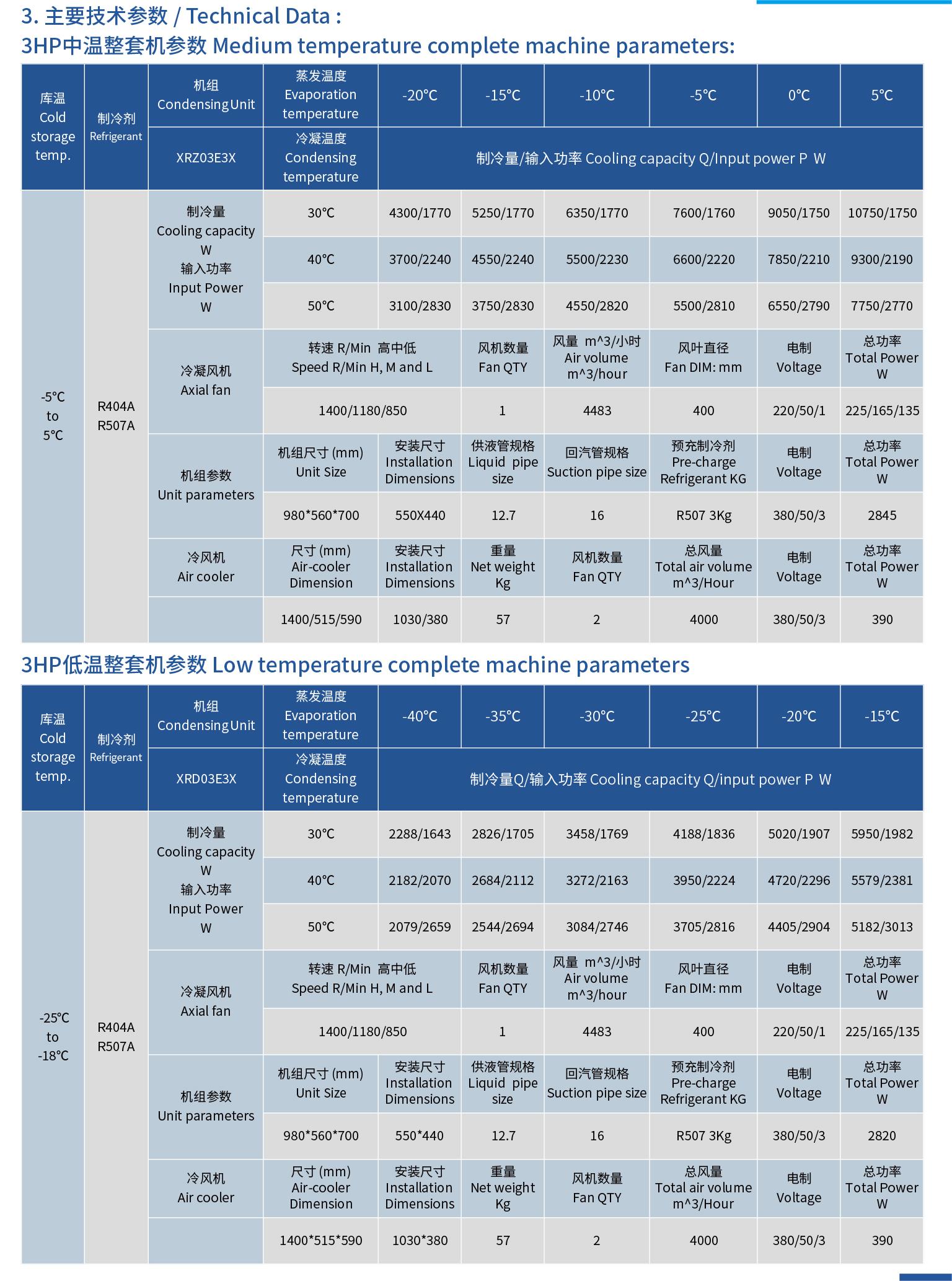

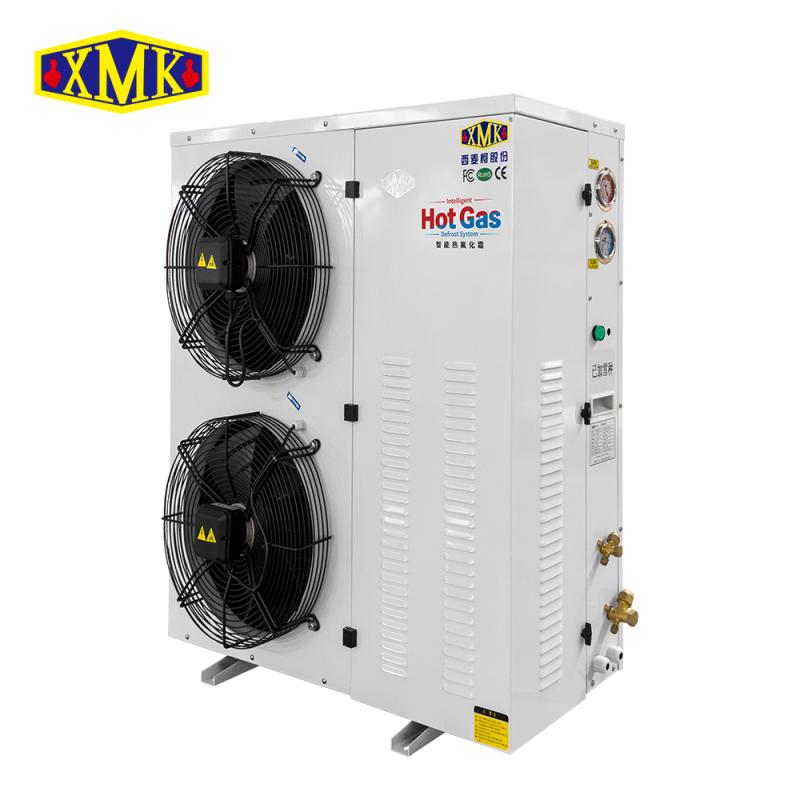

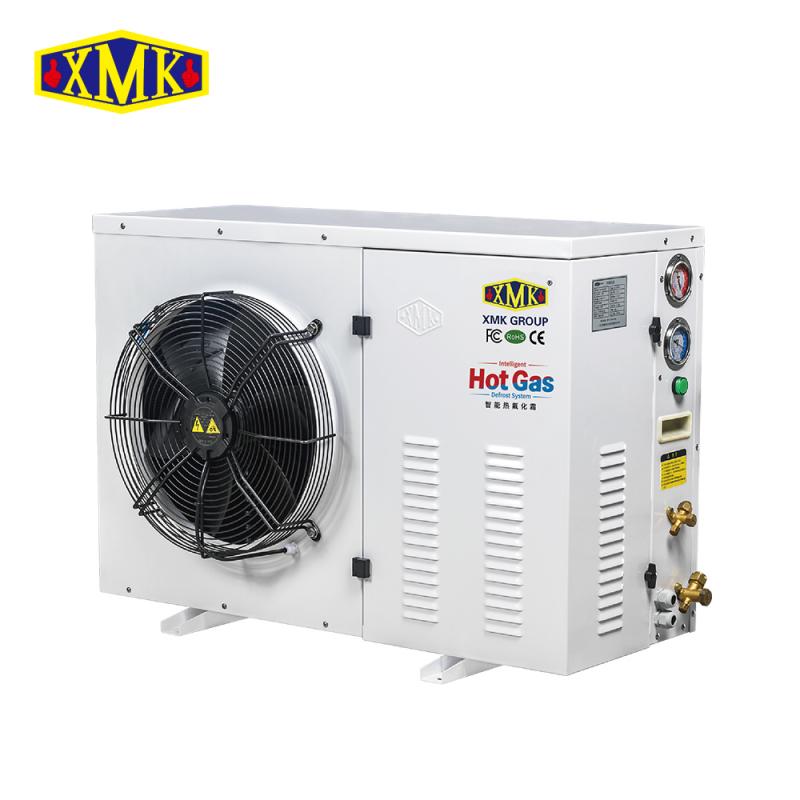

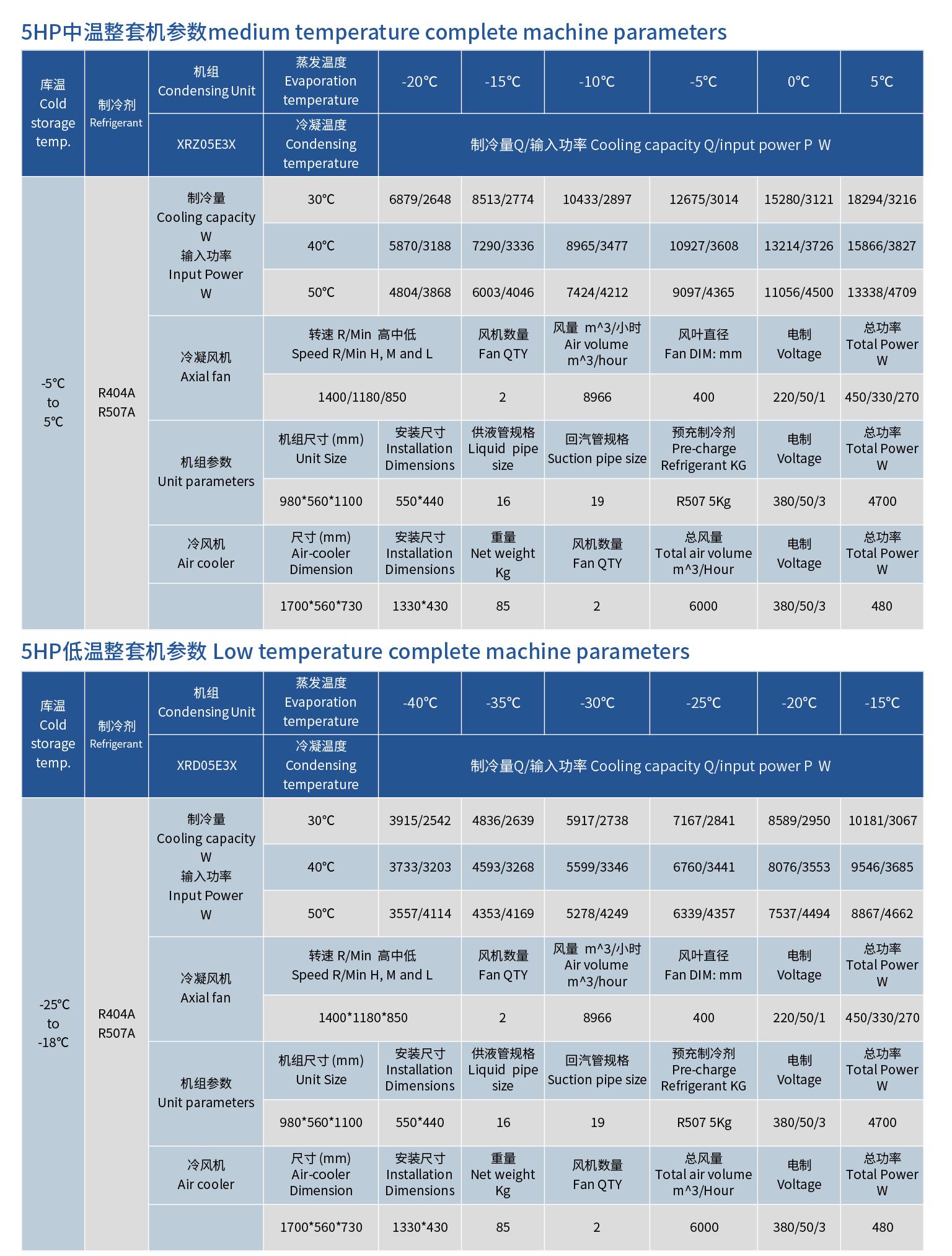

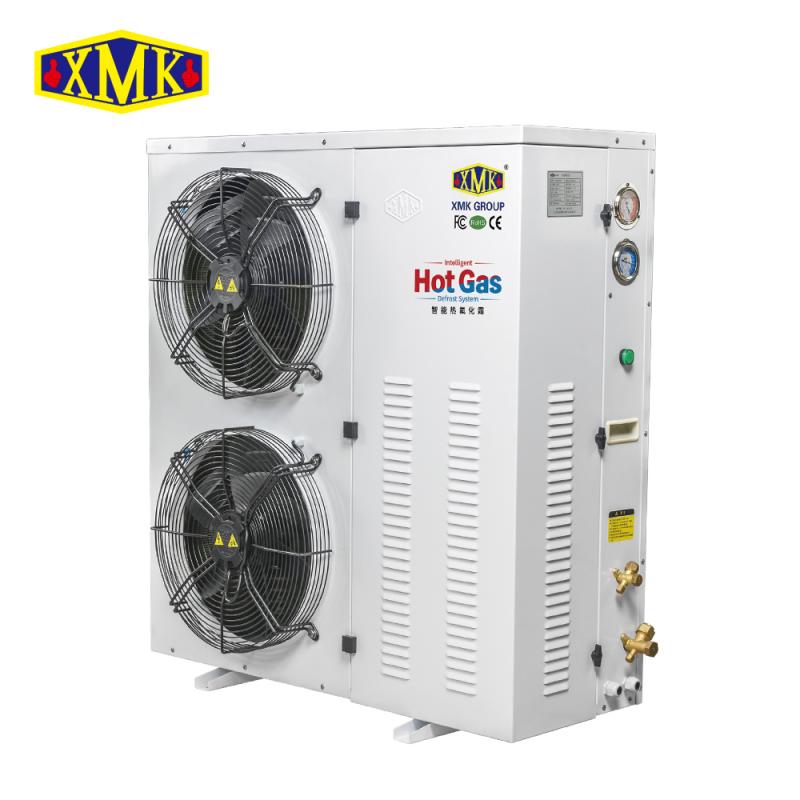

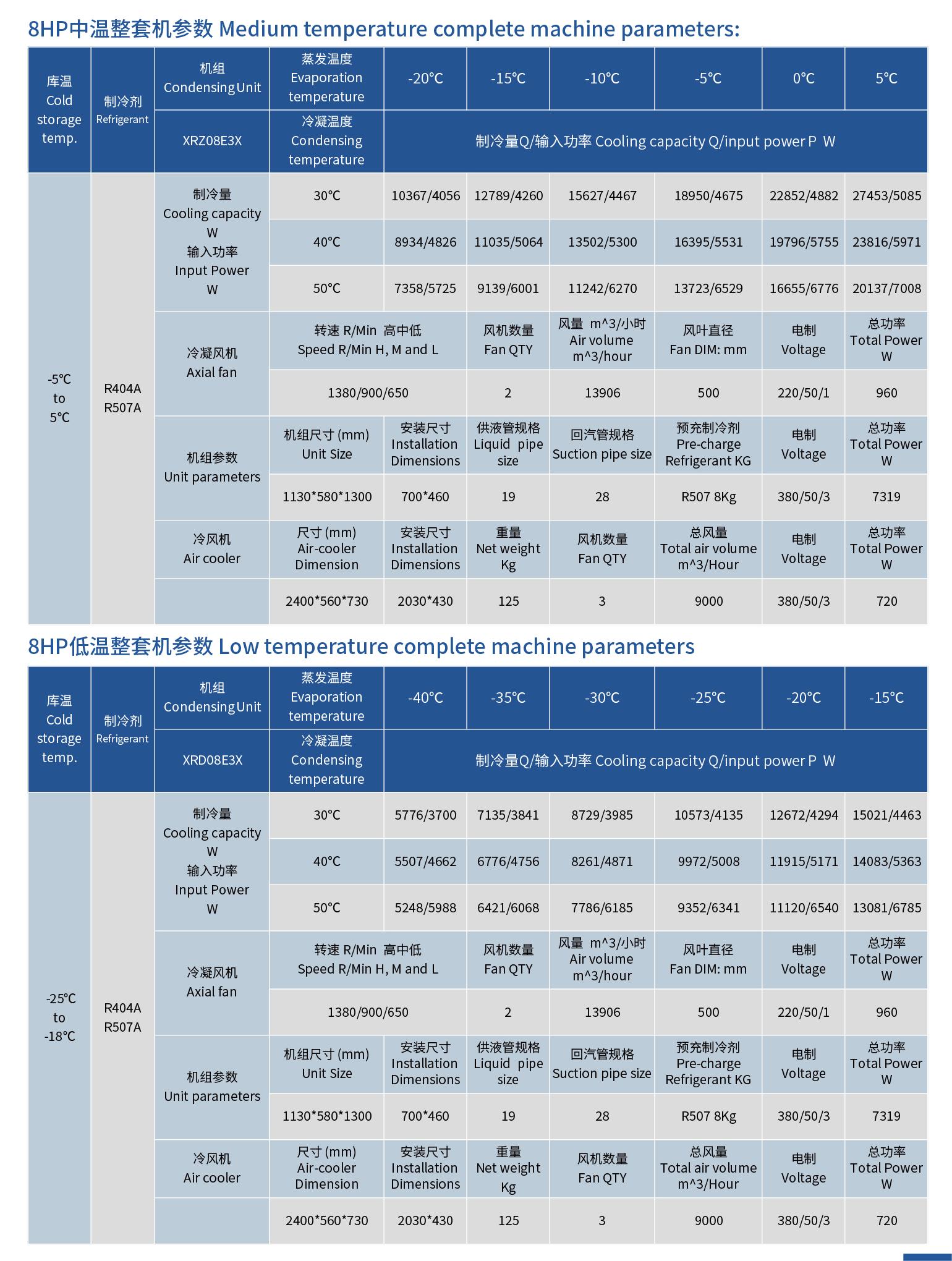

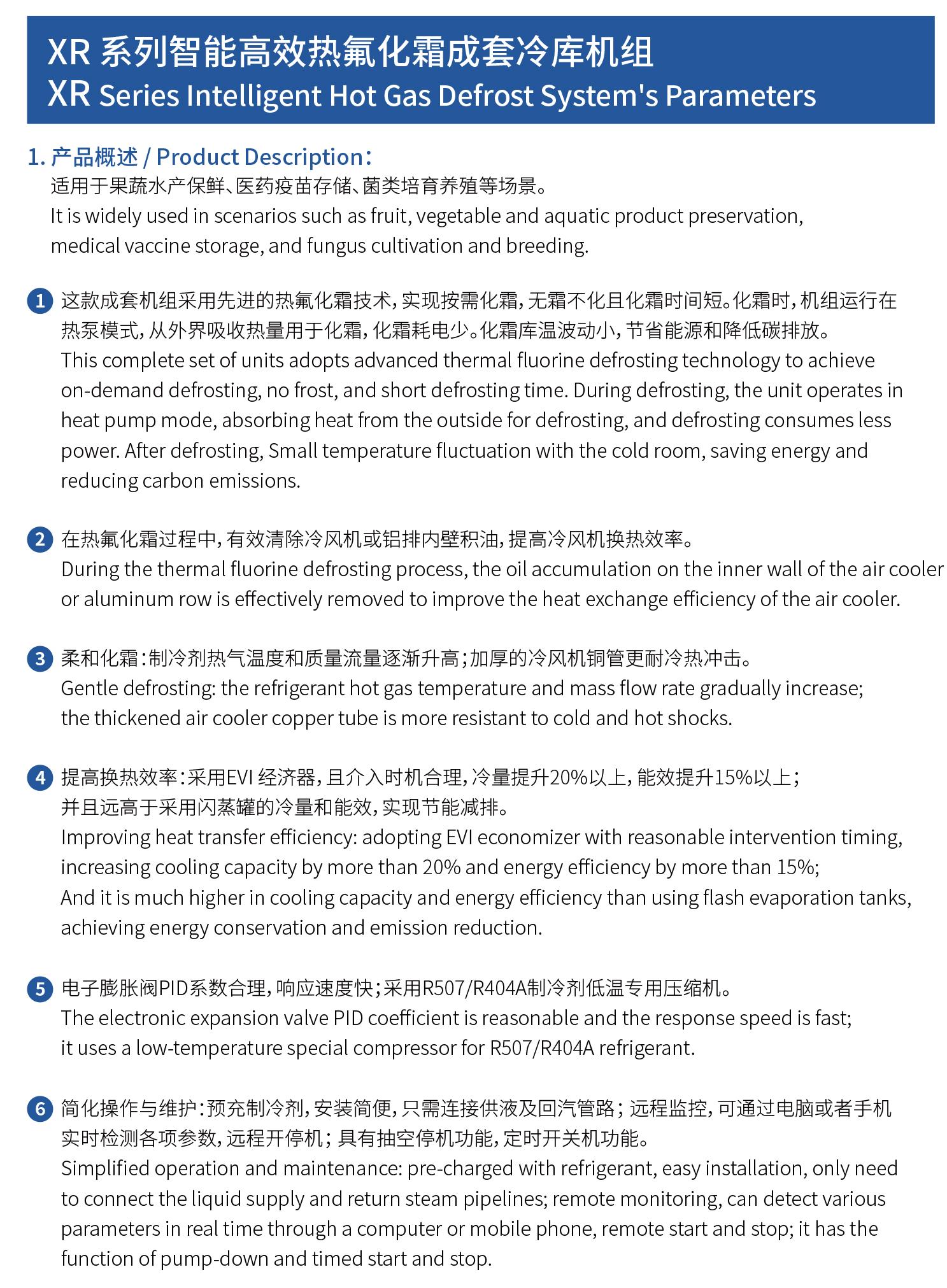

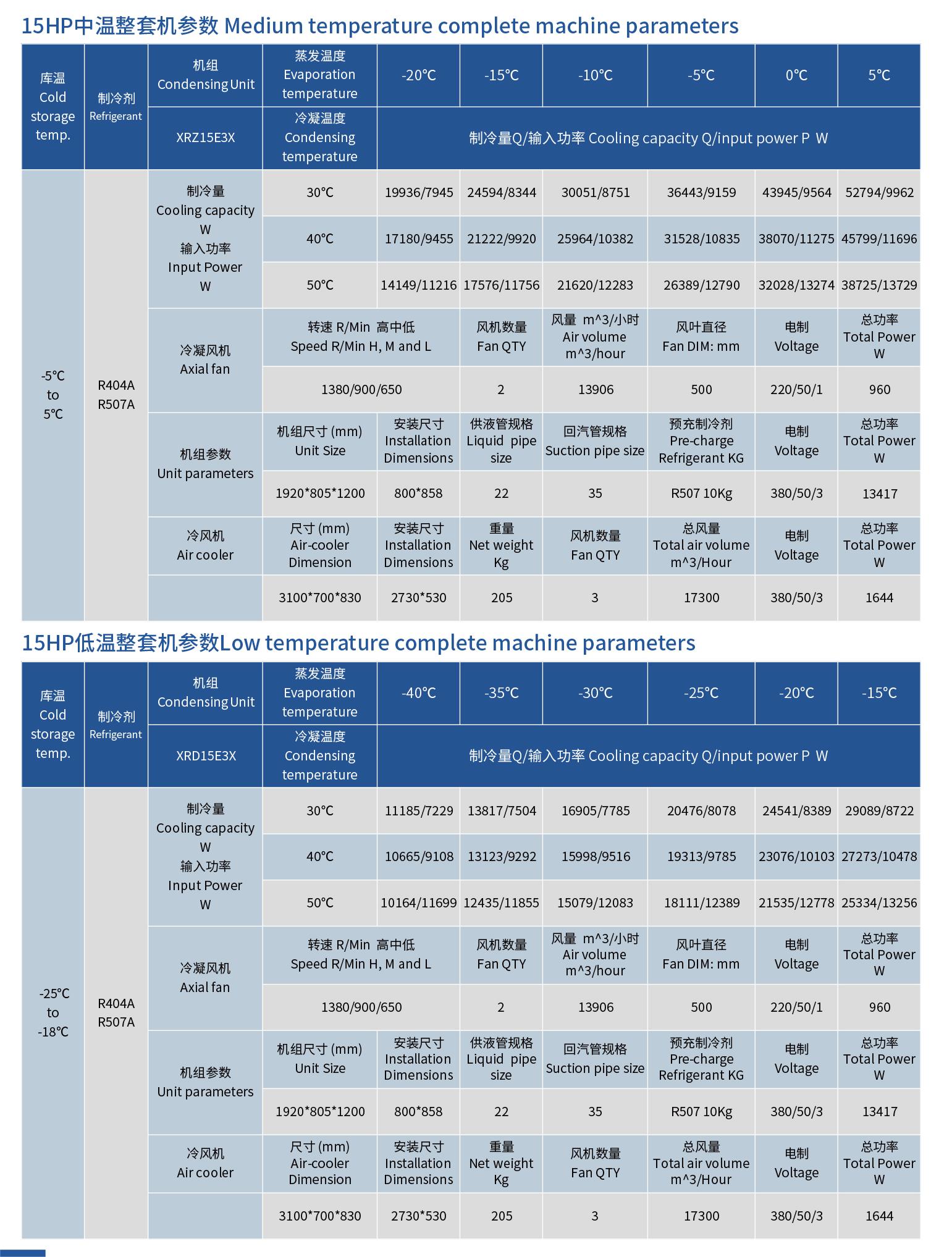

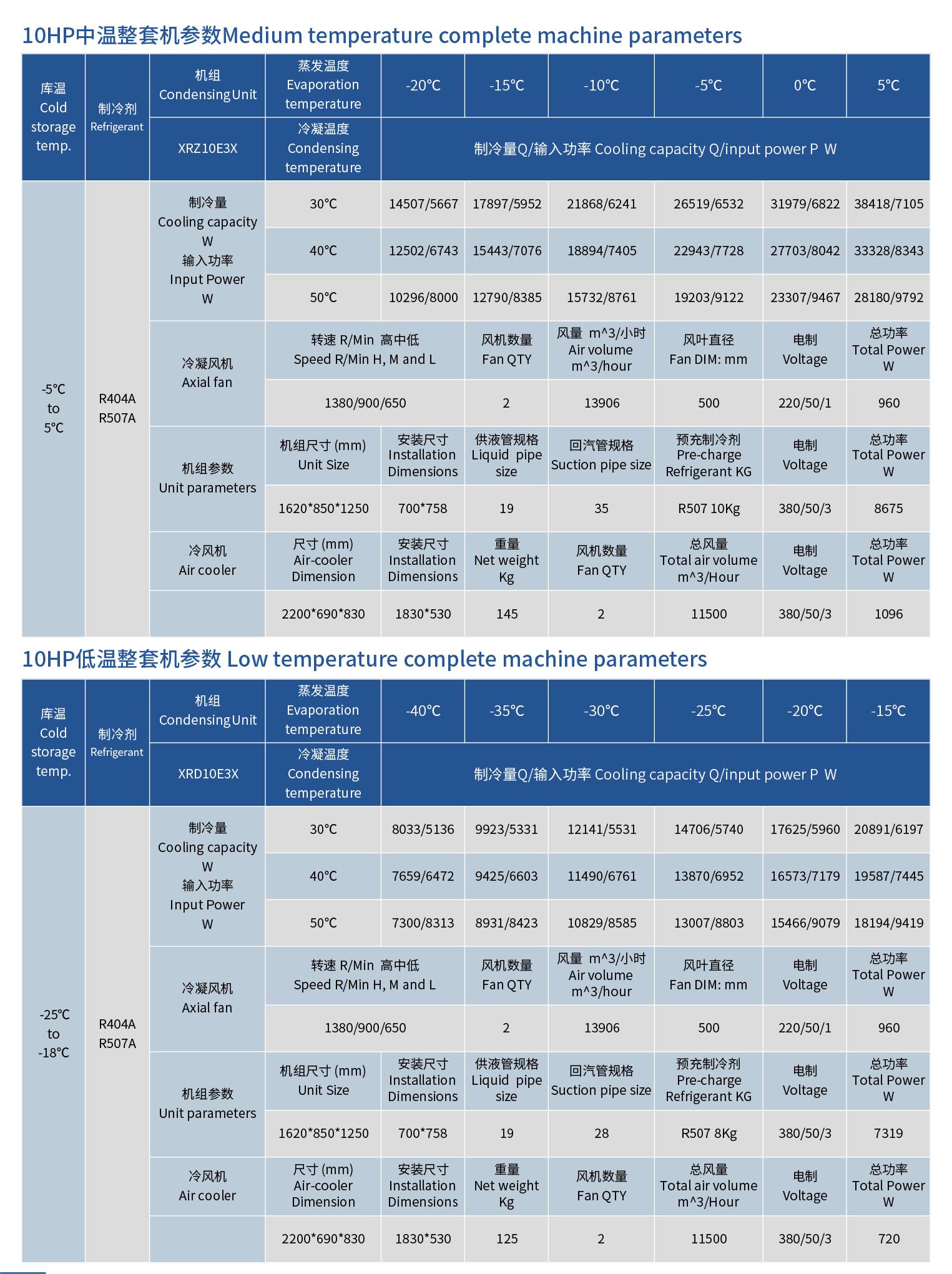

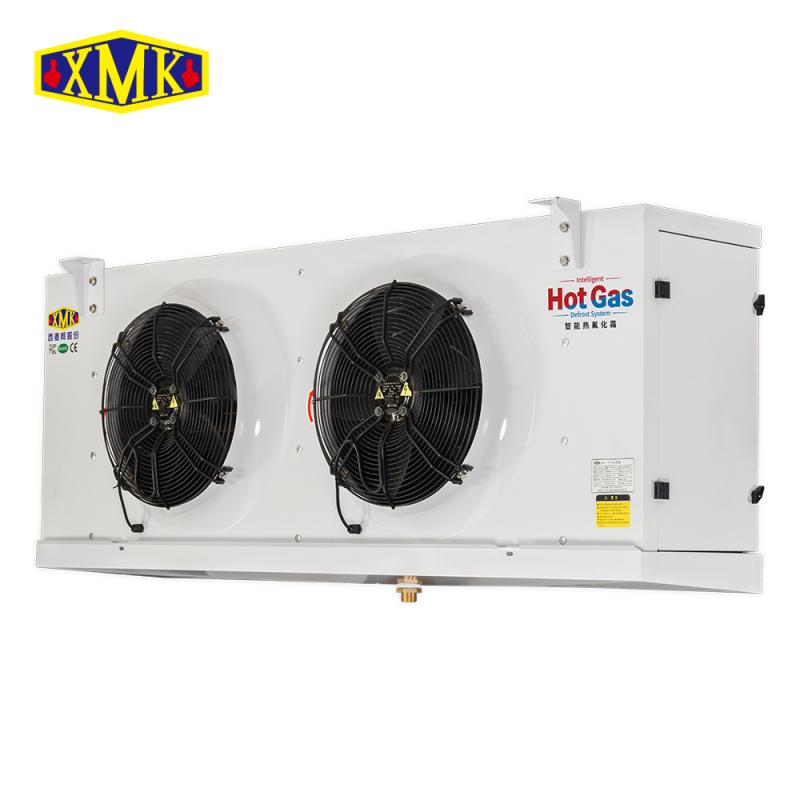

XR Series Intelligent Hot Gas Defrost System's Parameters

ZB45KQE Compressor Unit Condensing Unit Copeland Product description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB45KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB45KQE Compressor Max.I(A) 16.1 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.1 Rev.(r/min)1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 1320 Size Width (mm) 655 Size Height (mm) 1065

CS one fan Upgraded Type Condenser Portable Air Cooler Evaporator For low temerature small Cold Room With Electrical Defrost.

HC series air cooled condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure, with high heat transfer capacity.

LQF series groud-type freezer evaporators is mainly apply for quick-frozen cold storage require -18°C to -35 °C. Special external rotor fans with blow wind type and high wind pressure design to keep the large heat exchanger area enought. Fan blade diameter 630mm.

MTZ125 Condensing Unit Refrigeration Compressor  Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with DANFOSS or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Danfoss MTZ125 Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model MTZ125 Compressor Max.I(A) 12.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.04 Fan Power (W) 240X2 Suction Line (mm) 28 Liquid Line （mm） 12 Size length (mm) 1435 Size Width (mm) 850 Size Height (mm) 830

MTZ72 Danfoss Open Compressor Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with DANFOSS or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Danfoss MTZ72 Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. 5 to 15 degree Compressor Model MTZ72 Compressor Max.I(A) 10 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.04 Fan Power (W) 240X2 Suction Line (mm) 22 Liquid Line （mm） 12 Size length (mm) 1435 Size Width (mm) 850 Size Height (mm) 830

Screw Refcomp Semi-hermetic Compressor Condensing Unit Product description:  XRW series semi-hermetic screw unit is mainly used in cold storage projects with large coolingcapacity requirements1.Adopts Refcomp SW3 series screw compressorwith single unit and parallel unit.2.The series of products include two applicationseries of medium-temperature and low-tem-perature units. The medium-temperature unitmainly meets the requirements of cold storageat about OC, while the low-temperature unitmainly meets the requirements of low-tem-perature refrigeration storage at -20C andquick-frozen storage at -35C.3.The standard design of the unit adopts theform of water cooling, adopts high efficientshell and tube type water cooling condenser,and is equipped with a separate liquid receiver.4.The low temperature unit is equipped with aneconomizer system and an oil cooler system.5.The unit is controlled by Siemens PLC and thekey electrical components are controlled bySchneider. With compressor start and stop,energy regulation, oil cooling system, econo-mizer system, cooling water pump and coolingtower fan control and various protection functions.6.The unit standard uses R404A or R507A refrigerant.Refcomp Condensing Unit Data: Power Supply  380V 50Hz 3phase Apply Temp. -5 to 5 degree Compressor Model SW3H7500 Compressor Max.I(A) 124 Capacity(-5℃）140.4Capacity(-10℃）115Capacity(-15℃）93.4 Suction Line (mm) 28 Liquid Line （mm） DN65 Size length (mm) 1920 Size Width (mm) 1000 Size Height (mm) 1620

XMK Factory V Type Air Cooled Condenser  Product description:  RVC series condensers are mainly equipped with large heat transfer demand, large-scaleremote-mounted condensing units, piston parallel units and screw units.1.V-type structure design can be adopted,having larger windward area.2.Copper tube and corrugated aluminium fins with a distance of 2.1 mm are used.3.Fan specifications adopt 500mm and 630mm, divided into 4 poles and 6 poles motor.4.Testing pressure 32bar.5.Adopt high-quality steel plate with powder coating.6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449Aand other refrigerants.7.Retain 1.5bar pressure before leaving factory.RVC Series Air Cooled Condenser Data Sheet: ModelRVC157/250N Capacity (KW)59.5Surface (㎡）156.5 Volume (dm)18.5Fan Motor Air Flow13200Fan Motor Power1100Fan Motor Current2.2dB (A)55Connect Pipe Inlet2X28Connect Pipe Outlet2X22Weight (kg)175

ZSI21KQE Compressor Scroll Copeland Condensing UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZSI21KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -23 degree Compressor Model ZSI21KQE Compressor Max.I(A) 14.6 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1 Rev.(r/min)910 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 1040 Size Width (mm) 570 Size Height (mm) 1100
