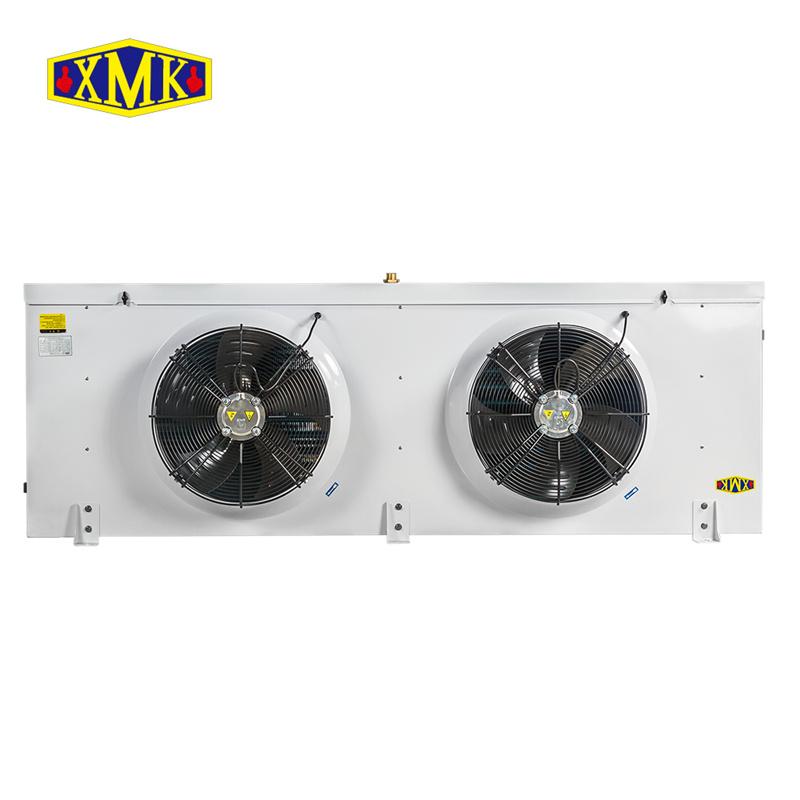

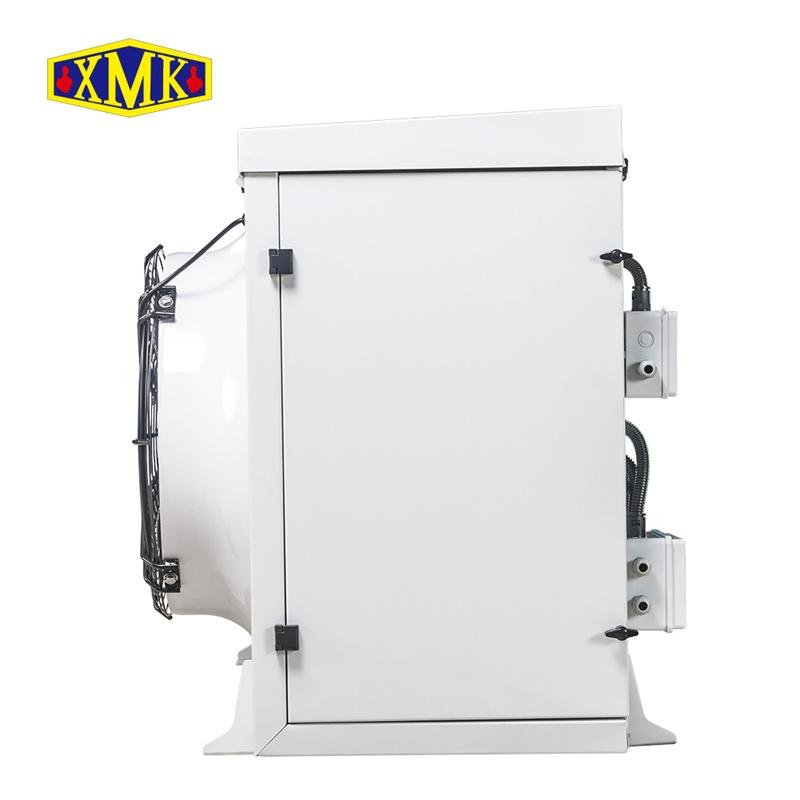

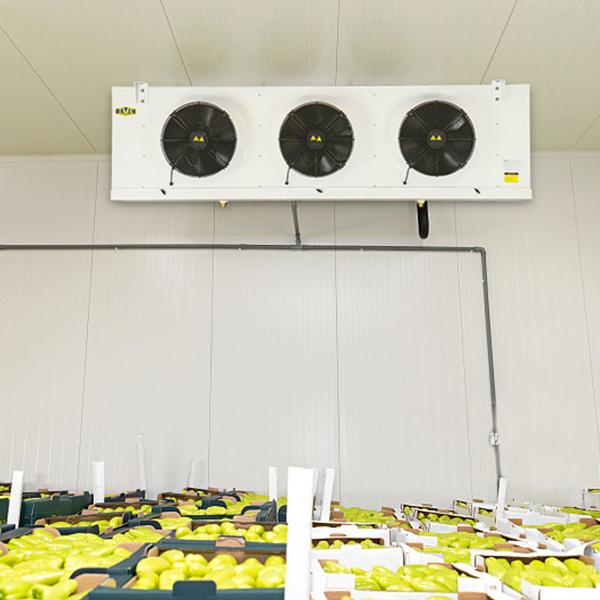

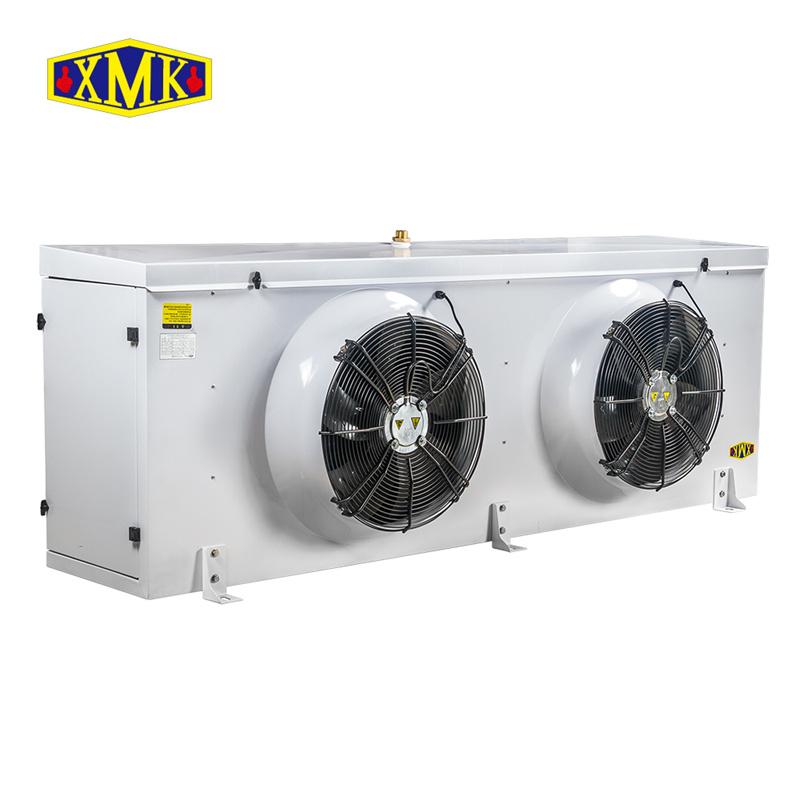

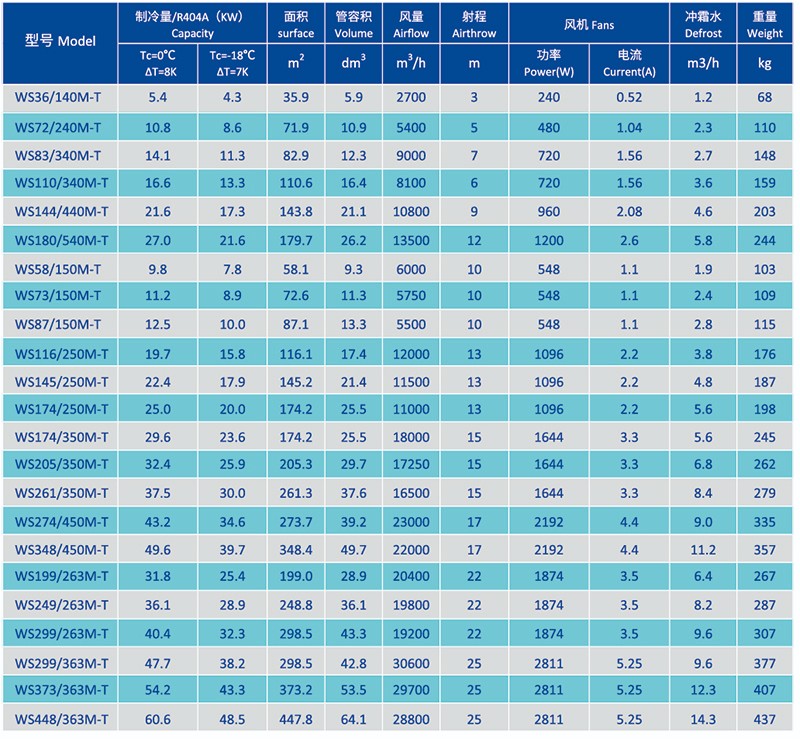

WS series unit coolers with water defrosting

XMK design WS series unit cooler is using water defrosting method , the defrosting time is short, and the little effect on cold room temperature. Sieve poretype defrosting water pan and inner & outer water baffles are used to prevent water spraying into cold storage and wind blades during defrosting.Efficient recirculating and Low Consumption are product feature.

XMK design WS series unit cooler is using water defrosting method , the defrosting time is short, and the little effect on cold room temperature. Sieve poretype defrosting water pan and inner & outer water baffles are used to prevent water spraying into cold storage and wind blades during defrosting.

XMK-5201 1/2 ODF Oil Separator RefrigerationWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.

HC series air cooled condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure

IDB series 6.4mm fin specing type refrigeration system air cooler is design in dual discharge and mainly used in operation room which require working temperature during -18°C to -2°C. Fan blade φ450 in voltage 380V. stander use of electric defrosting .

Cold storage PU panel also call polyurethane cold storage board or insulated panel for cold storage, type included cam-lock type PU panel and Plug-in type PU panle. Thickness 150mm/100mm can be use in -25°C and -18°C cold storage.

XMK-204 Liquid Accumulator Refrigeration PartsHas stronger construction. It maximize prevents the refrigerant lost.The liquid accumulator separator is designed with internal bend pipes to prevent from internal splashing and help the aggregation of the oil at the bottom of the separator.The separator shall be installed as nearer to the compressor as possible.ModelConnector sizeXMK-2041/2 ODFXMK-2055/8 ODFXMK-2063/4 ODFXMK-2077/8 ODFXMK-208/2111-1/8 ODFXMK-209/2131-3/8 ODFXMK-210/2151-5/8 ODFXMK-2212-1/8 ODFFeatures:1. “U” tube design for maximum flow of refrigerant and minimum oil entrapment;2. Saving refrigerant;3. Metering Orifice matched to system capacity assures optimum liquid refrigerant and oil flow back to compressor.4. Exterior corrosion resistant static electrical painting process protecting the shell from the rust.5. Maximum working pressure: 3.0 Mpa.

RC series air cooled condensers are mainly equipped with large heat transfer demand, large-scale remote-mounted condensing units, piston parallel units and screw units.

ZB Copeland Chiller Compressor Condensing Unit For Cold StorageProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB21KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB21KQE Compressor Max.I(A) 8 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min)1380 Suction Line (mm) 19 Liquid Line （mm） 9.5 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815
