Fin Type Evaporator Condenser And Evaporate

  • Item NO.:

    HC98/440NT
  • Order(MOQ):

    1
  • Payment:

    EX-WORK
  • Market Price:

    850
  • Product Origin:

    China
  • Color:

    Green
  • Shipping Port:

    Guangzhou
  • Lead Time:

    15 to 20 days

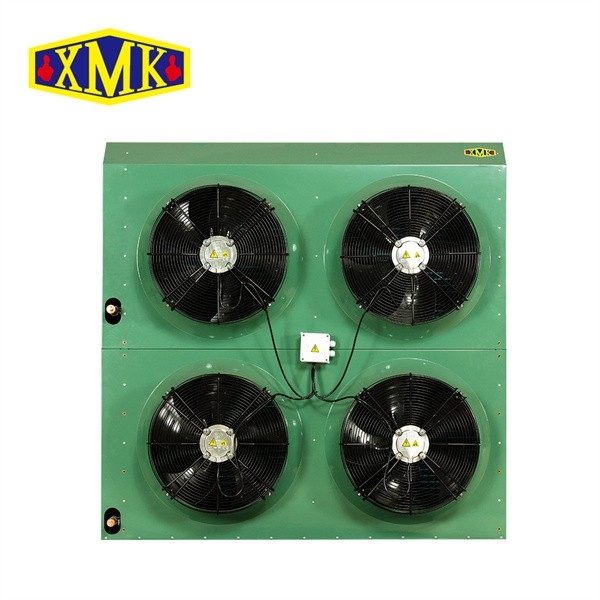

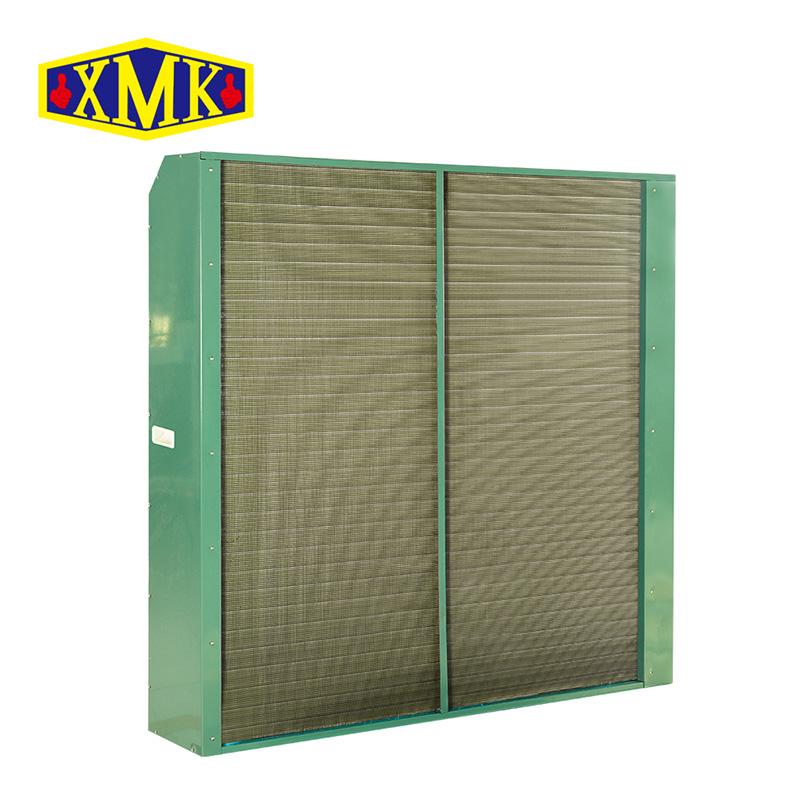

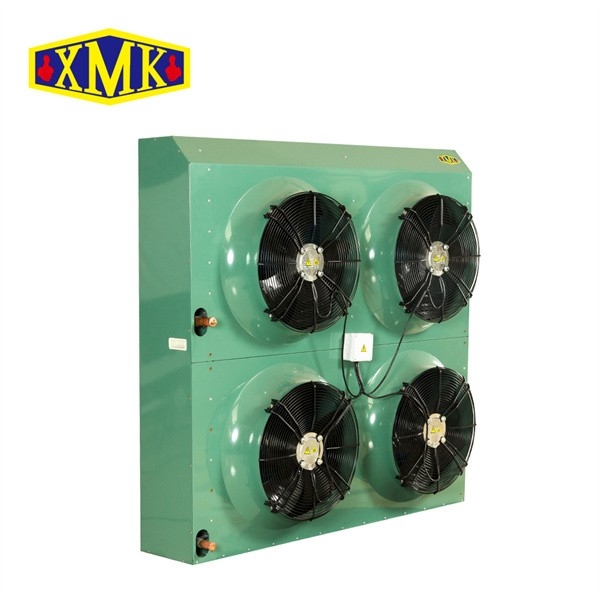

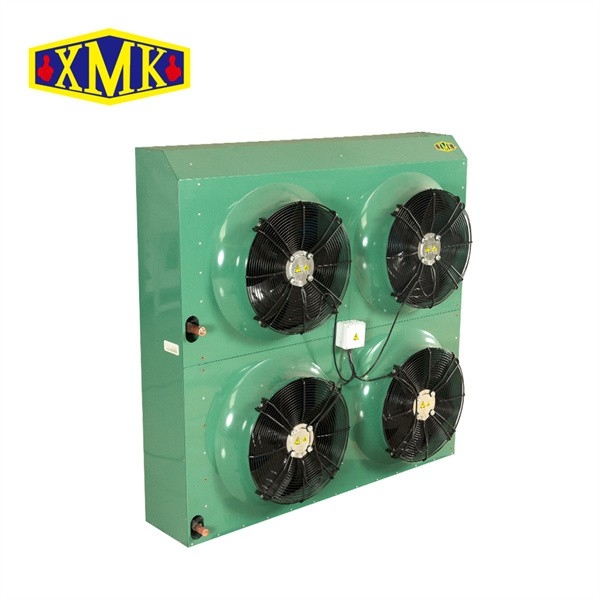

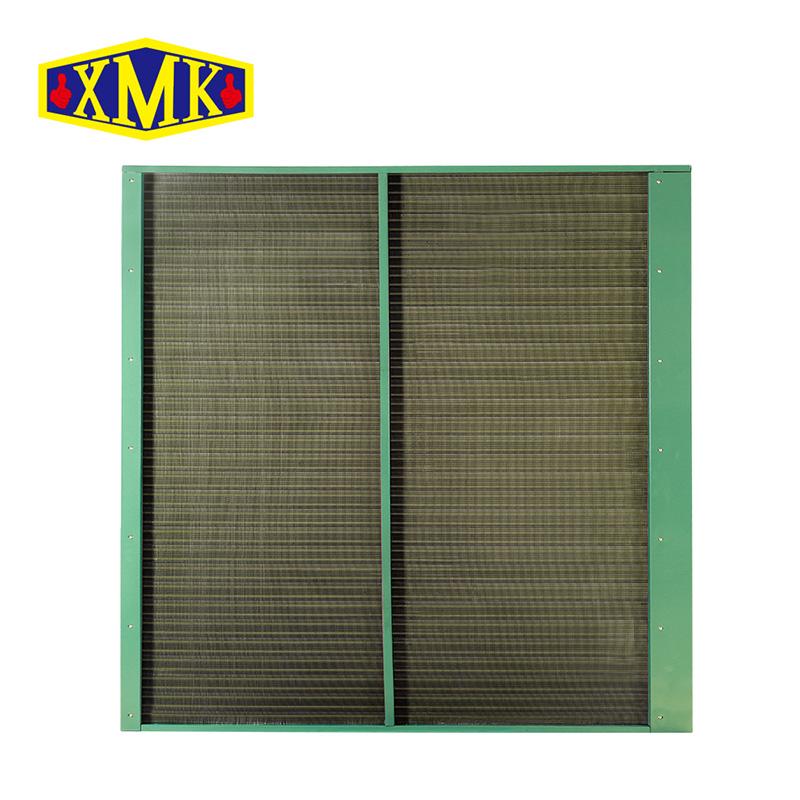

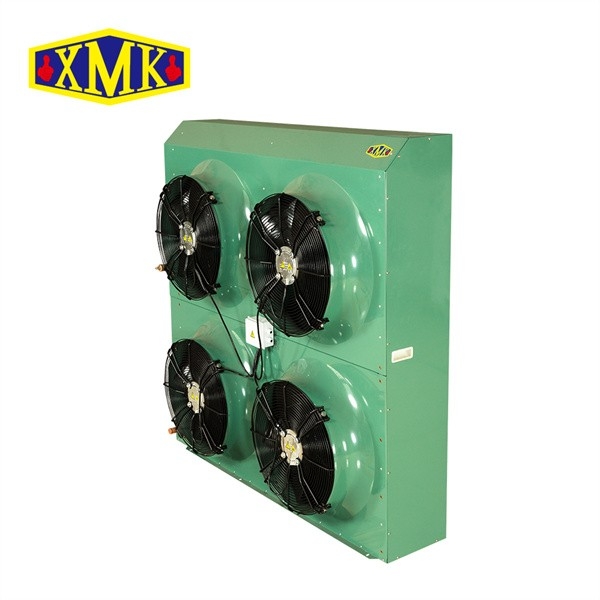

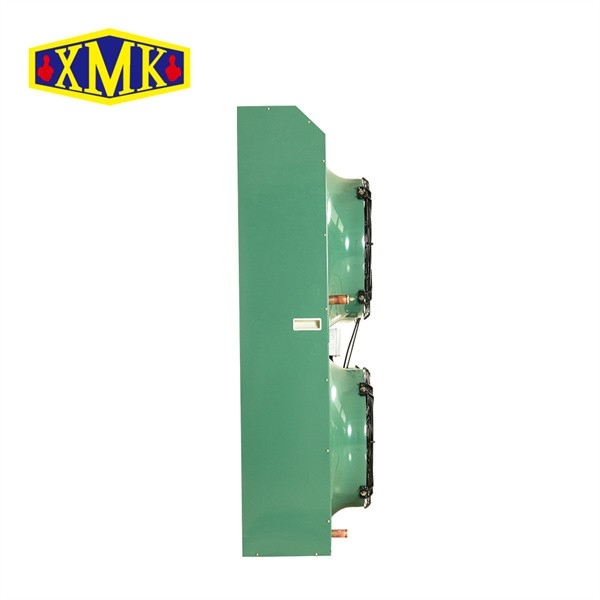

43.9KW Fin Type Evaporator

Product description:



HC series air cooled condensers are mainly equipped with open-type condensing units with scrollcompressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors canbe installed together or sepa rately from compressors .Design of High barrel with Side-mounted Structure.



1.Condensers and compressors can be installed together or separately from compressors. Design of Highbarrel with Side-mounted Structure.



2.Copper tube and corrugated aluminium fins with a distance of2.1 mm are used.



3.Fan specifications adopt φ400mm, φ500mm and φ630mm.



4.Testing pressure 32bar.



5.Adopt high-quality steel plate with powder coating RAL9003 or RAL6001.



6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449A and other refrig-erants.



7.Retain 1.5bar pressure before leaving factory.

HC Series Air Cooled Condenser Data Sheet:



Model HC98/440NT
Capacity (KW) 43.9
Surface (㎡) 97.7
Volume (dm) 11.6
Fan Motor Air Flow 14000
Fan Motor Power 960
Fan Motor Current 2.08
dB (A) 56
Connect Pipe Inlet 28
Connect Pipe Outlet 22
Weight (kg) 75





unit condenserrefrigeration condenser pricerefrigeration condenser manufacturers	refrigeration condenser
