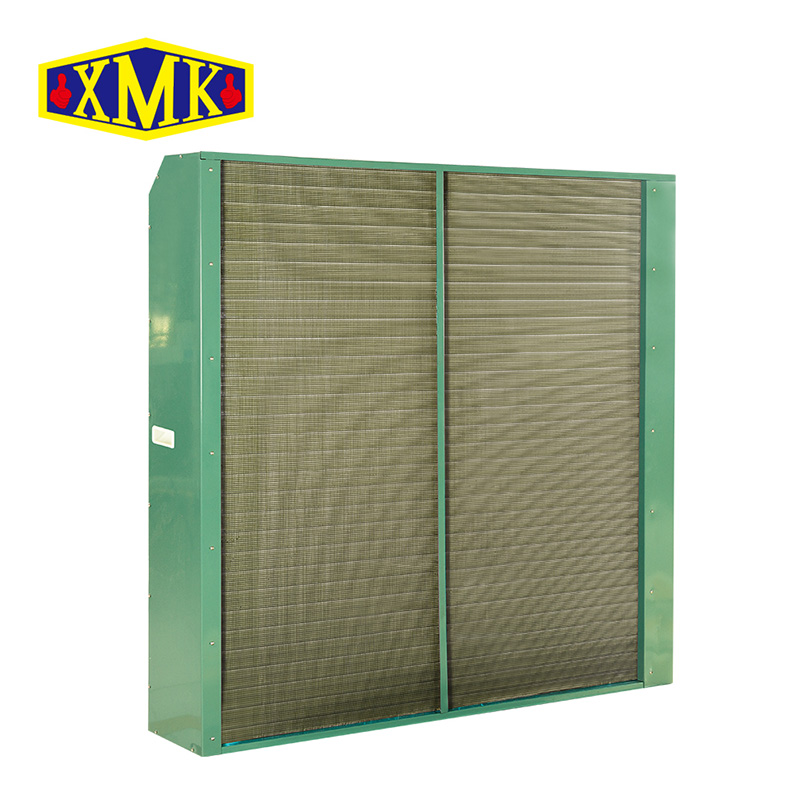

cold room storage air-cooled condenser

HC series air cooled condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure, with high heat transfer capacity.


  • Item NO.:

    HC202/450NT
  • Order(MOQ):

    1
  • Payment:

    EXW, 30% TT before production, 70% TT before
  • Product Origin:

    Guangzhou, China
  • Color:

    Green, Blue, Black
  • Shipping Port:

    Huangpu, Guangzhou
  • Lead Time:

    7 days

1. condensers are used 2.1mm distance of copper tube and corrugated aluminum fins.

2. fan specification: 400mm, 500mm, 630mm (4-pole, 6-pole), working environment: 60°C~-40°C

3. testing pressure 32 bar

4. adopt high-quality steel plate with powder coating RAL9003 or RAL6001.

5. it can meet the requirements of R22, R134a, R404a, R507c, R407c, R448a, R449a, etc.

6. retain 1.5bar pressure before delivery.

7. painting plate: international 1.0mm TK

8. Air volume is concentrated and long-range, fast return airflow.


Model Heat tranfer capacity (KW) Surface (㎡) Volume (dm³) Fan motor airflow (m³/h) Fan motor Power (W) Fan motor Current (A) Noise dB (A) 10m Connect pipe inlet Connect pipe outlet
HC202/450NT 86 202.4 24 26000 2192 4.4 61 φ42 φ35
