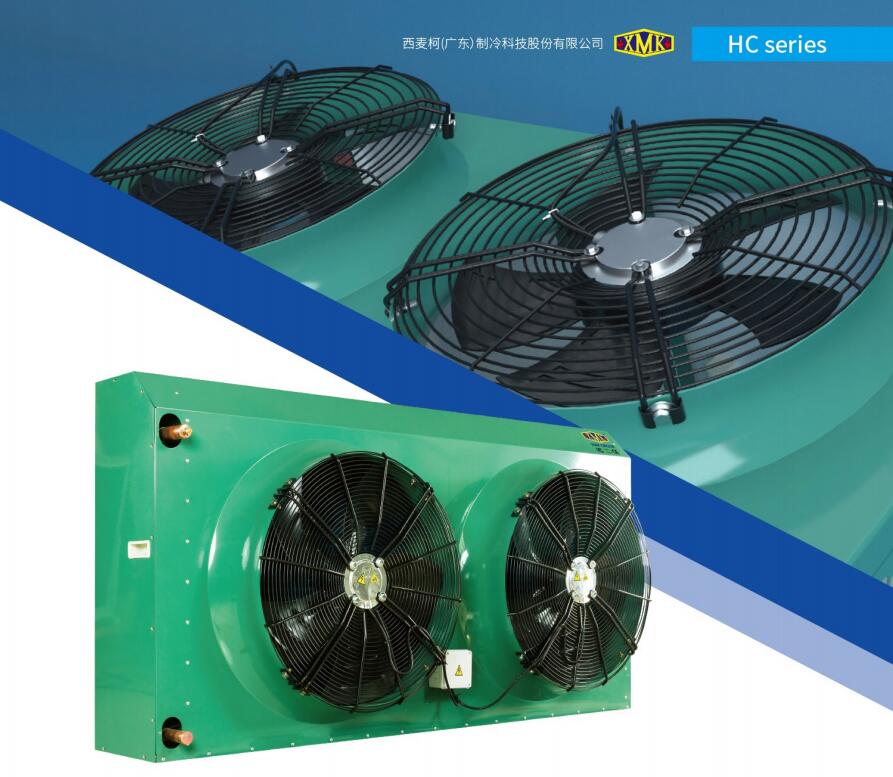

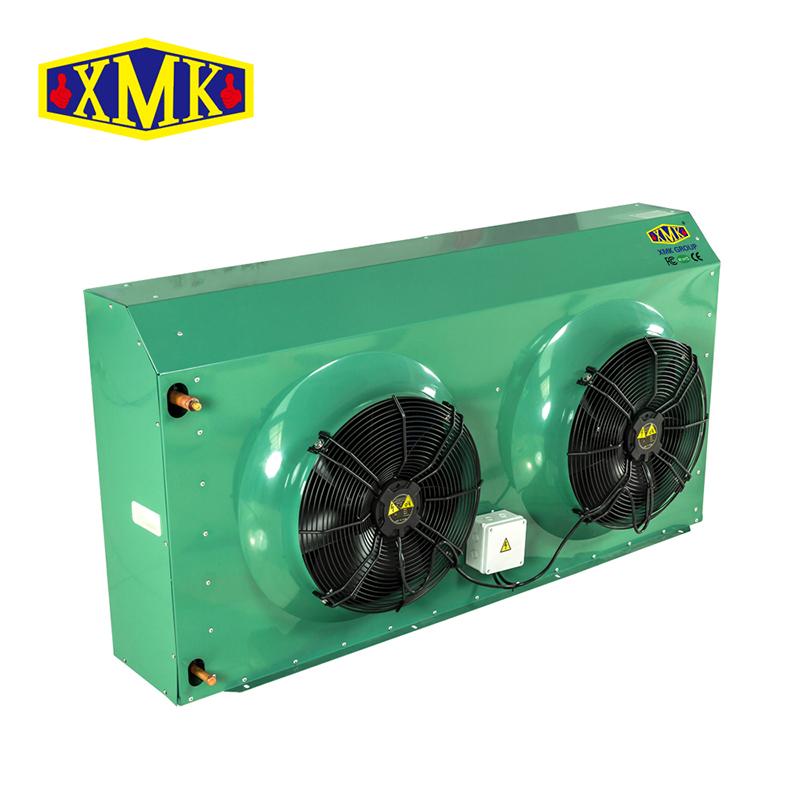

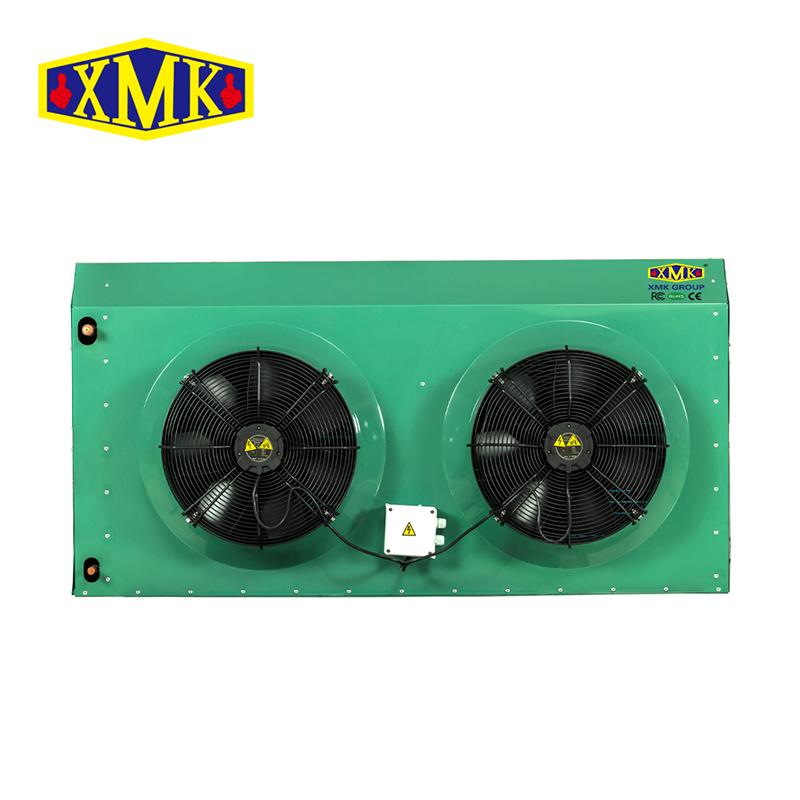

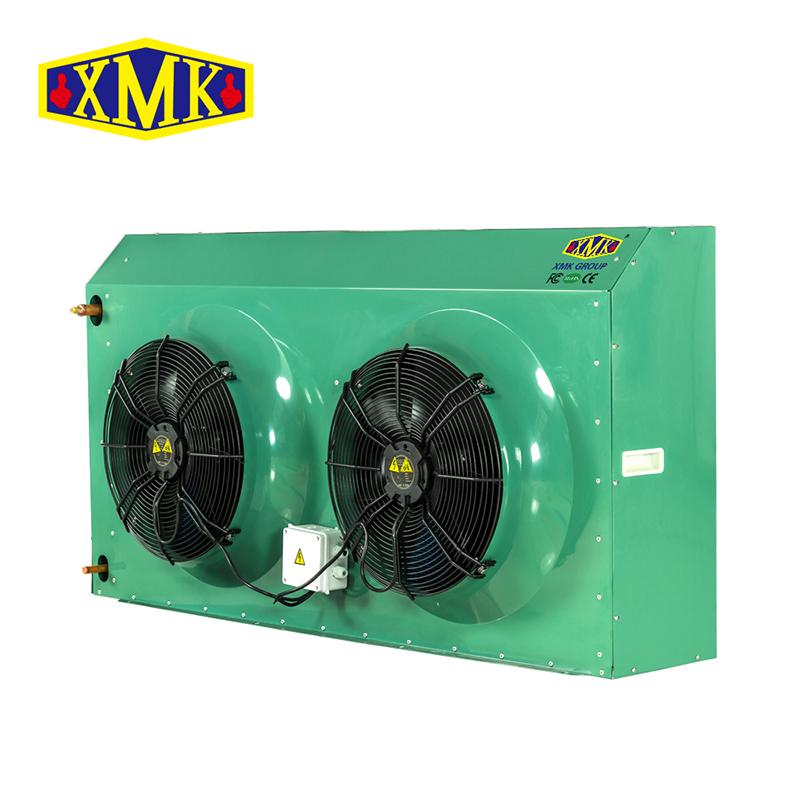

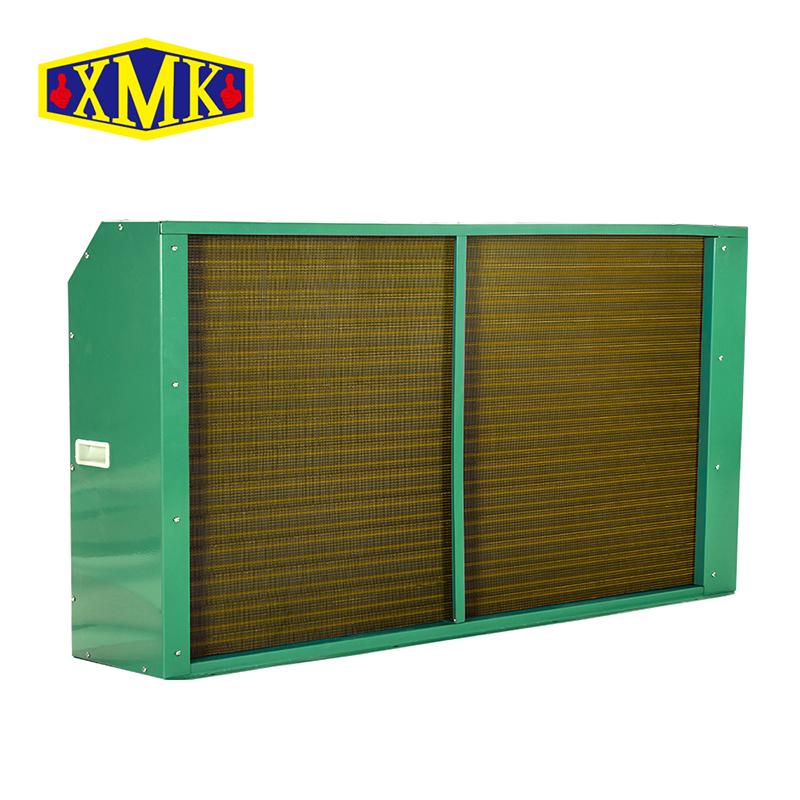

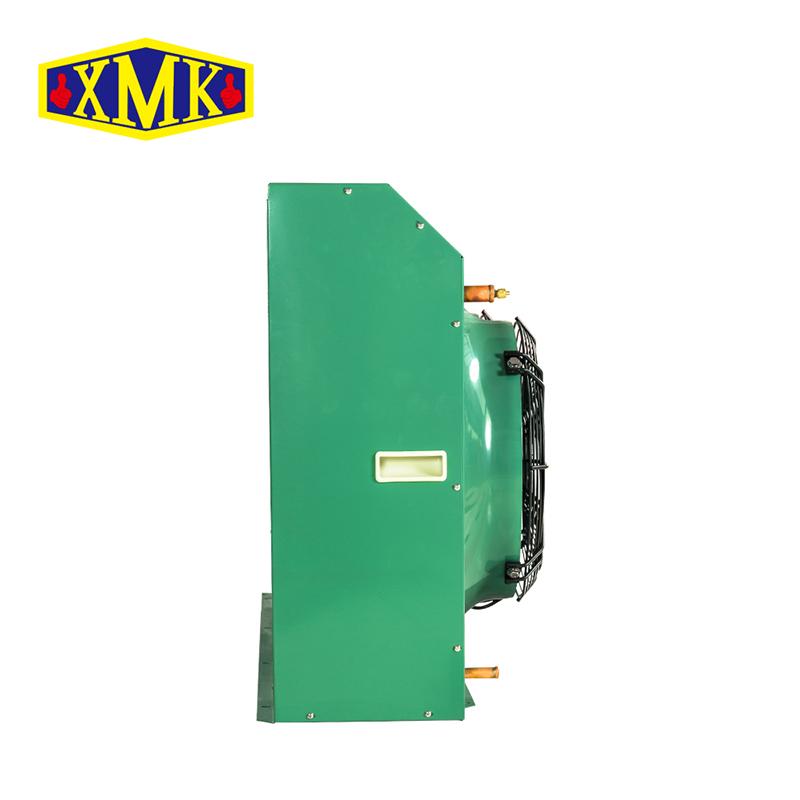

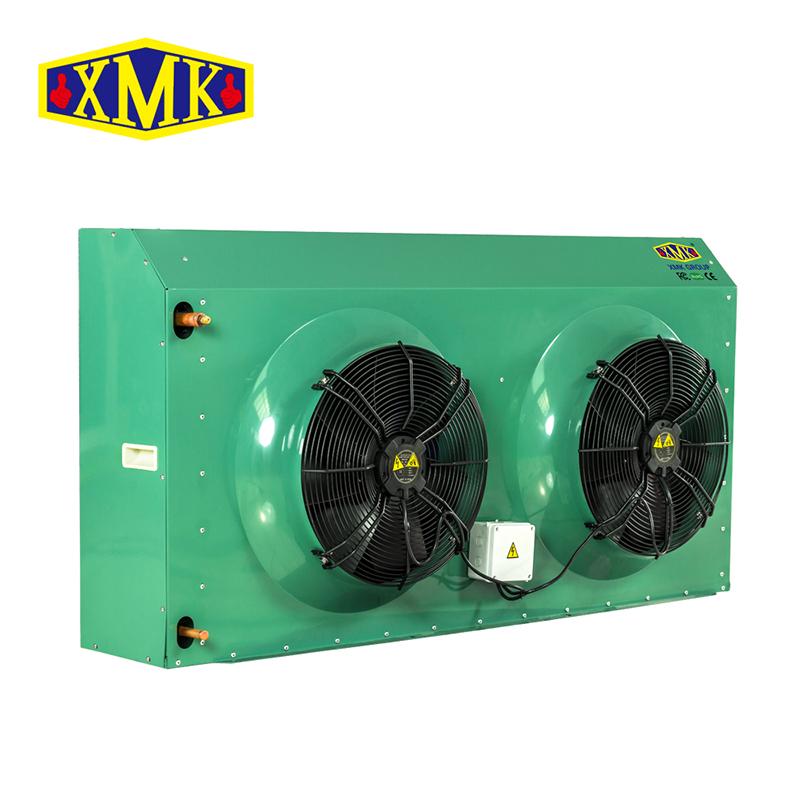

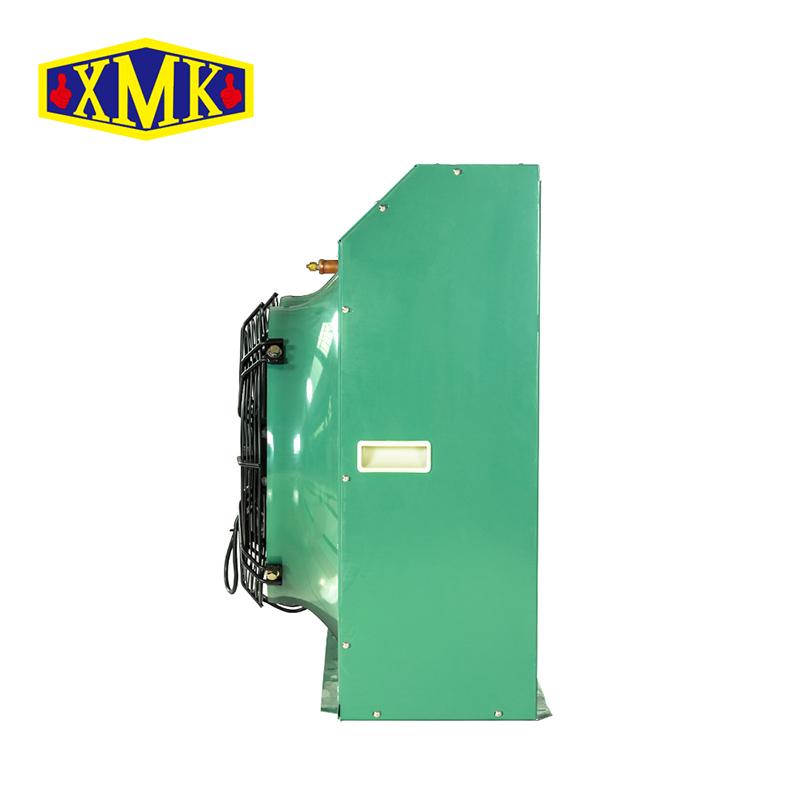

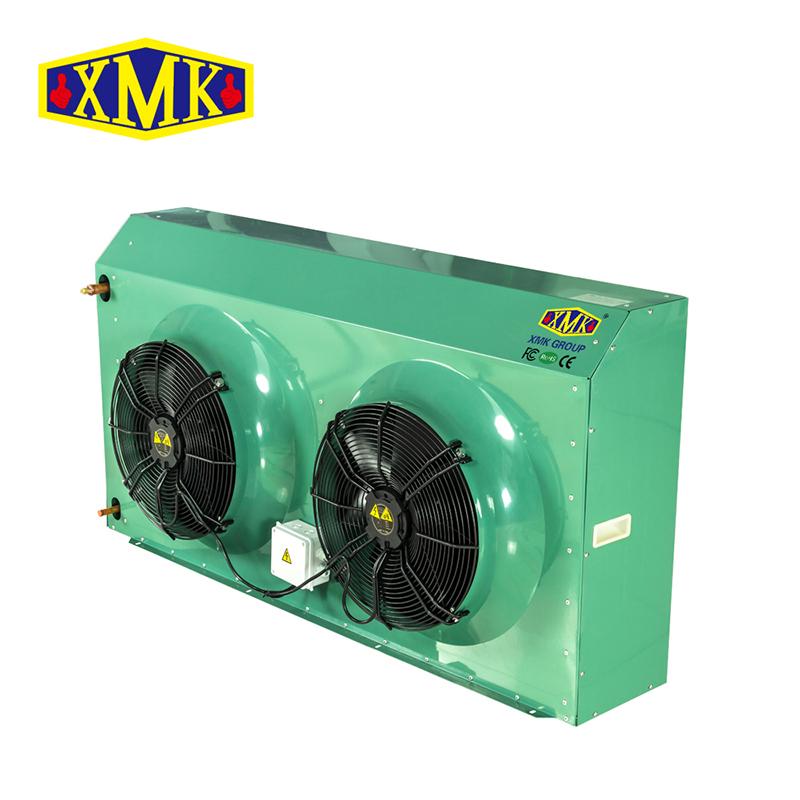

HC series air cooled condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure, with high heat transfer capacity.
Product Origin:
CHINAColor:
GreenShipping Port:
GUANGZHOUProduct Description：
HC series condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic &semi-hemertic compressor. Condensers and compressors can be installed together or separately from compressors.
1、Adopt high-quality steel plate with powder coating RAL9003 or RAL6001;
2、Design of High barrel with Side-mounted Structure.

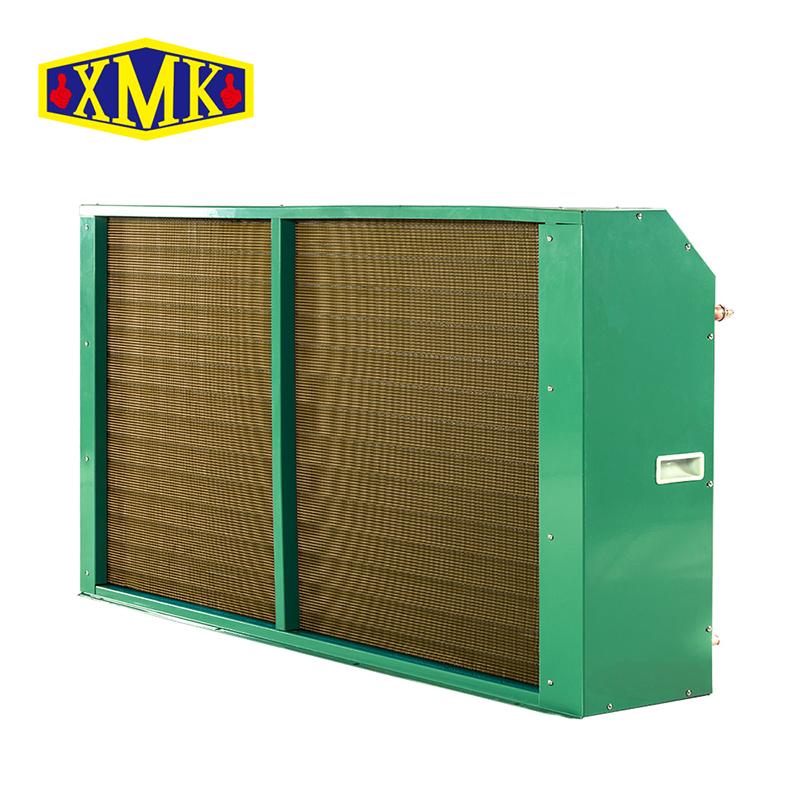

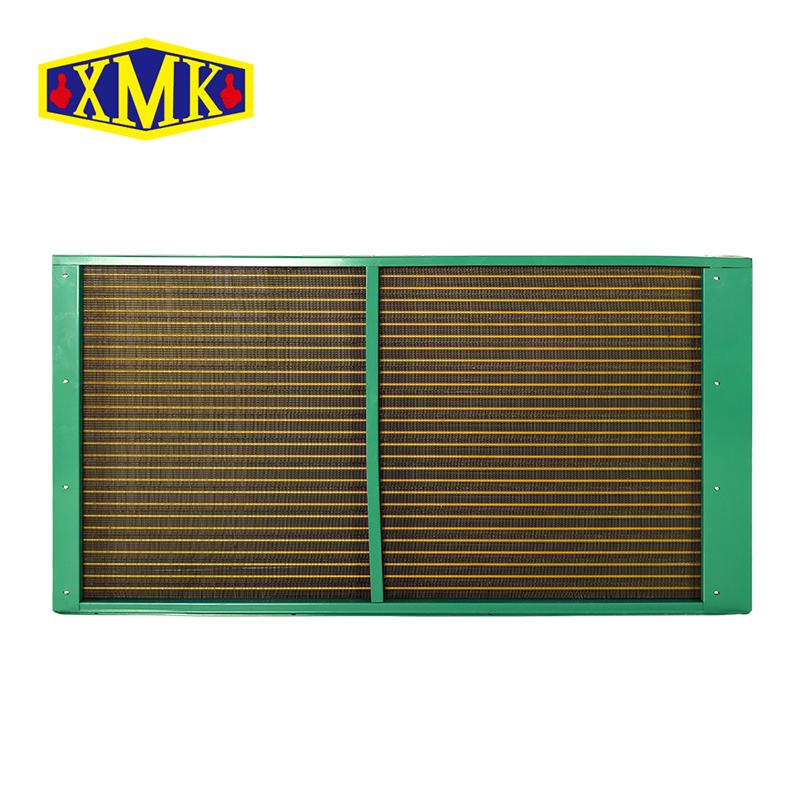

3、Copper tube and corrugated aluminium fins with a distance of 2.1 mm are used;
4、Fan specifications adopt 400mm, 500mm and 630mm; Testing pressure 32bar,Retain 1.5bar pressure before leaving factory;
5、It can meet the requirements of R22、R134a、R404A、R507A、R407A、R407C,R448A、R449A and other refrigerants.

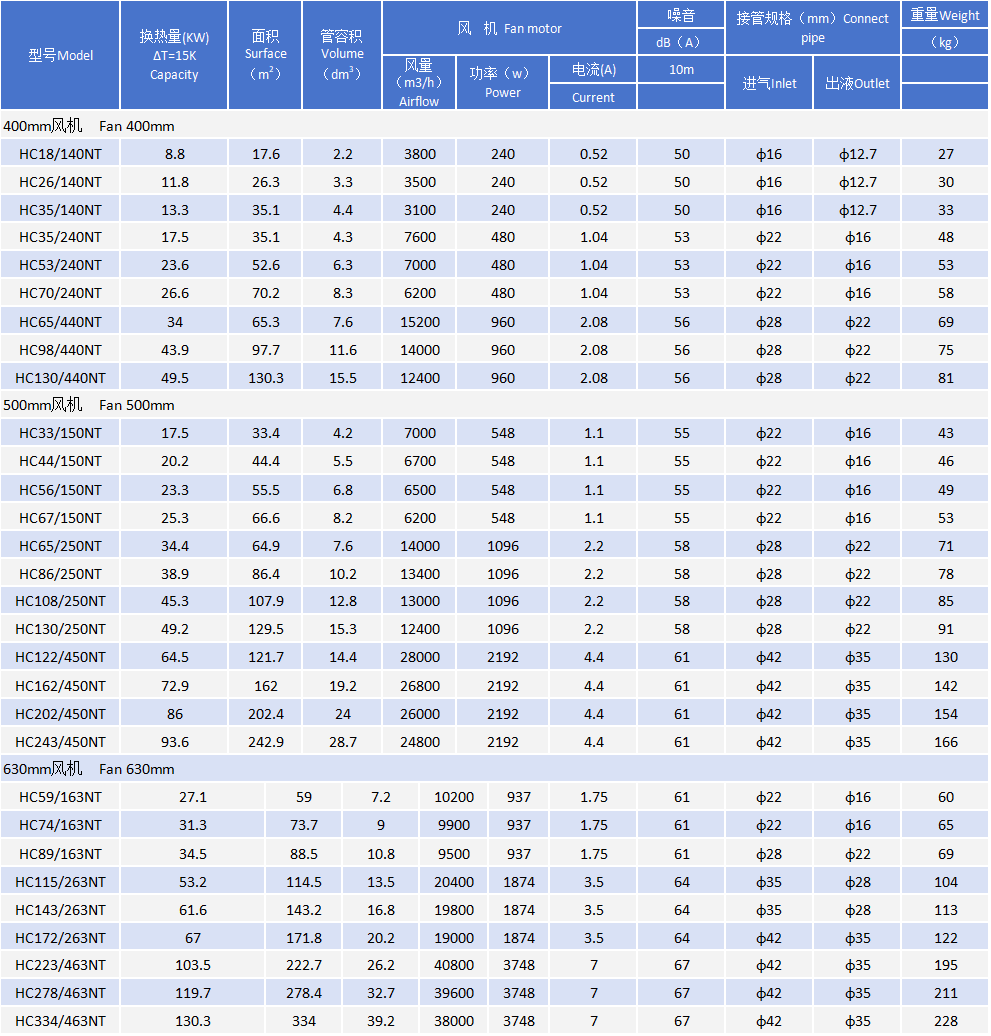

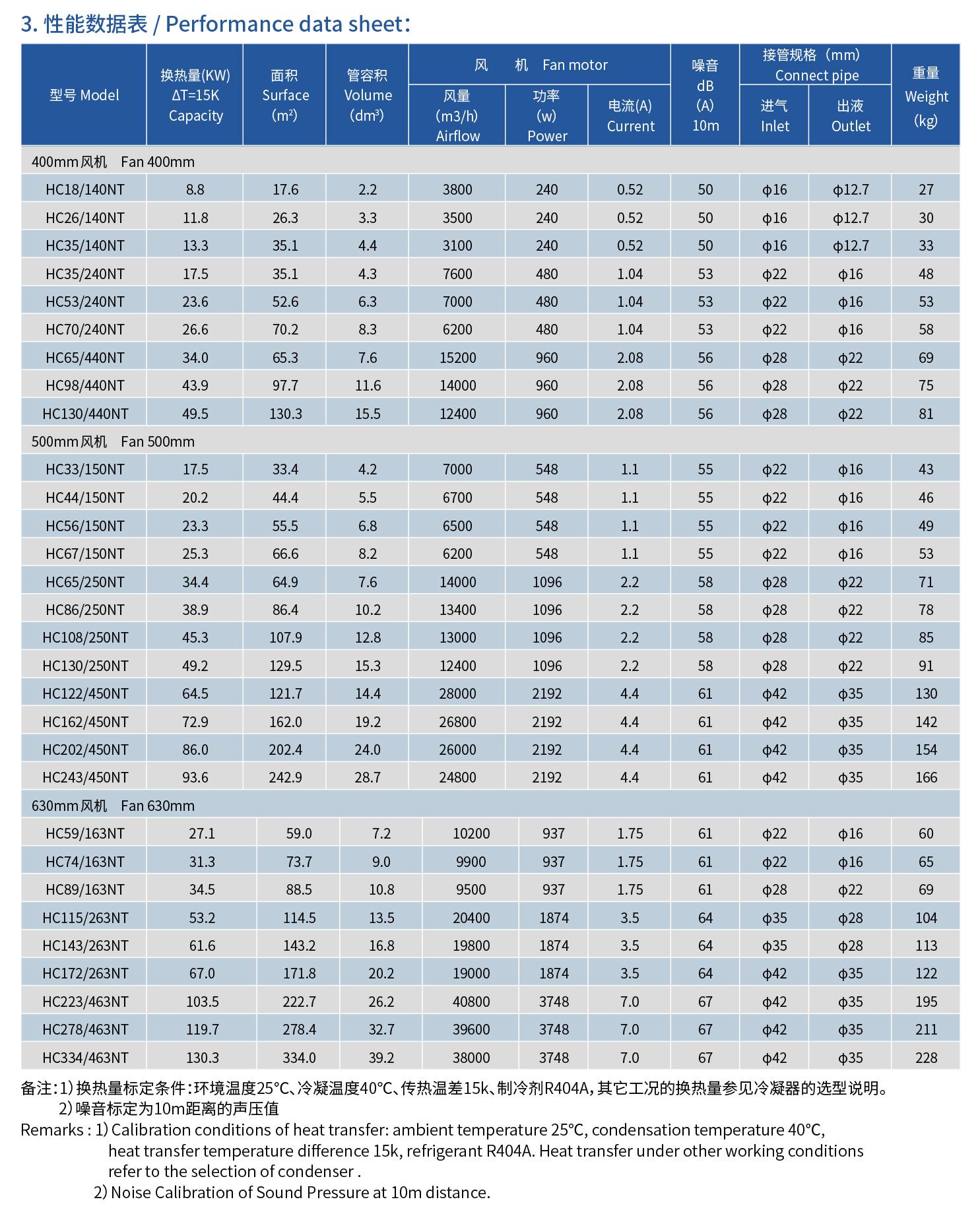

Technical data sheet：
Remarks : 1) Calilbration conditions of heat transfer: ambient temperature 25°c, condensation temperature 40°c,heat transfer temperature diference 15k, refrigerant R404A. Heat transfer under other working conditionsrefer to the selection of condenser .
2)Noise Calibration of Sound Pressure at 10m distance.

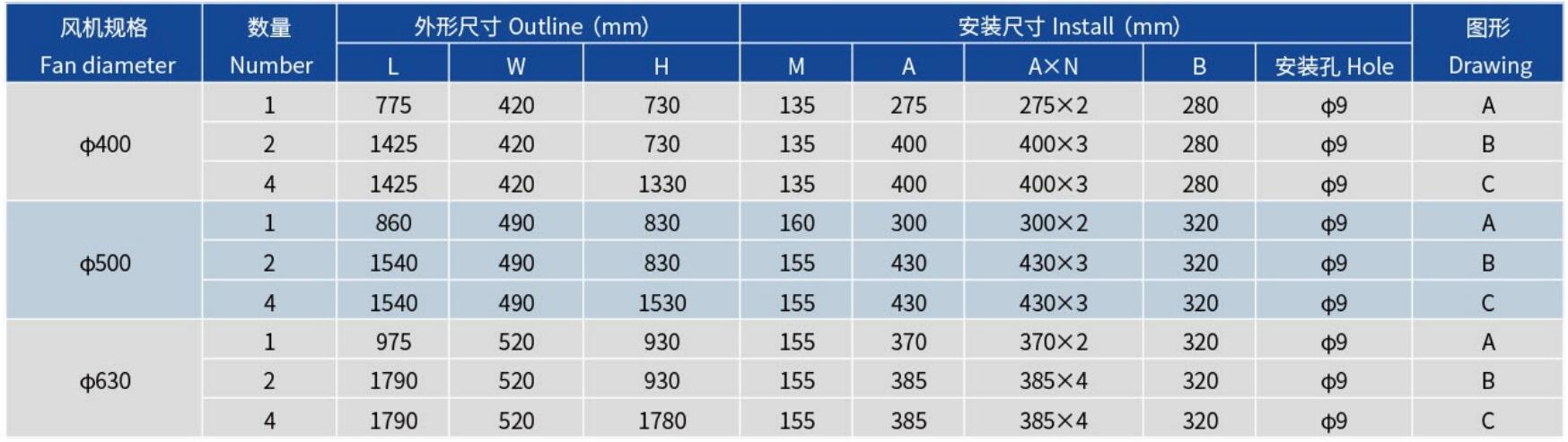

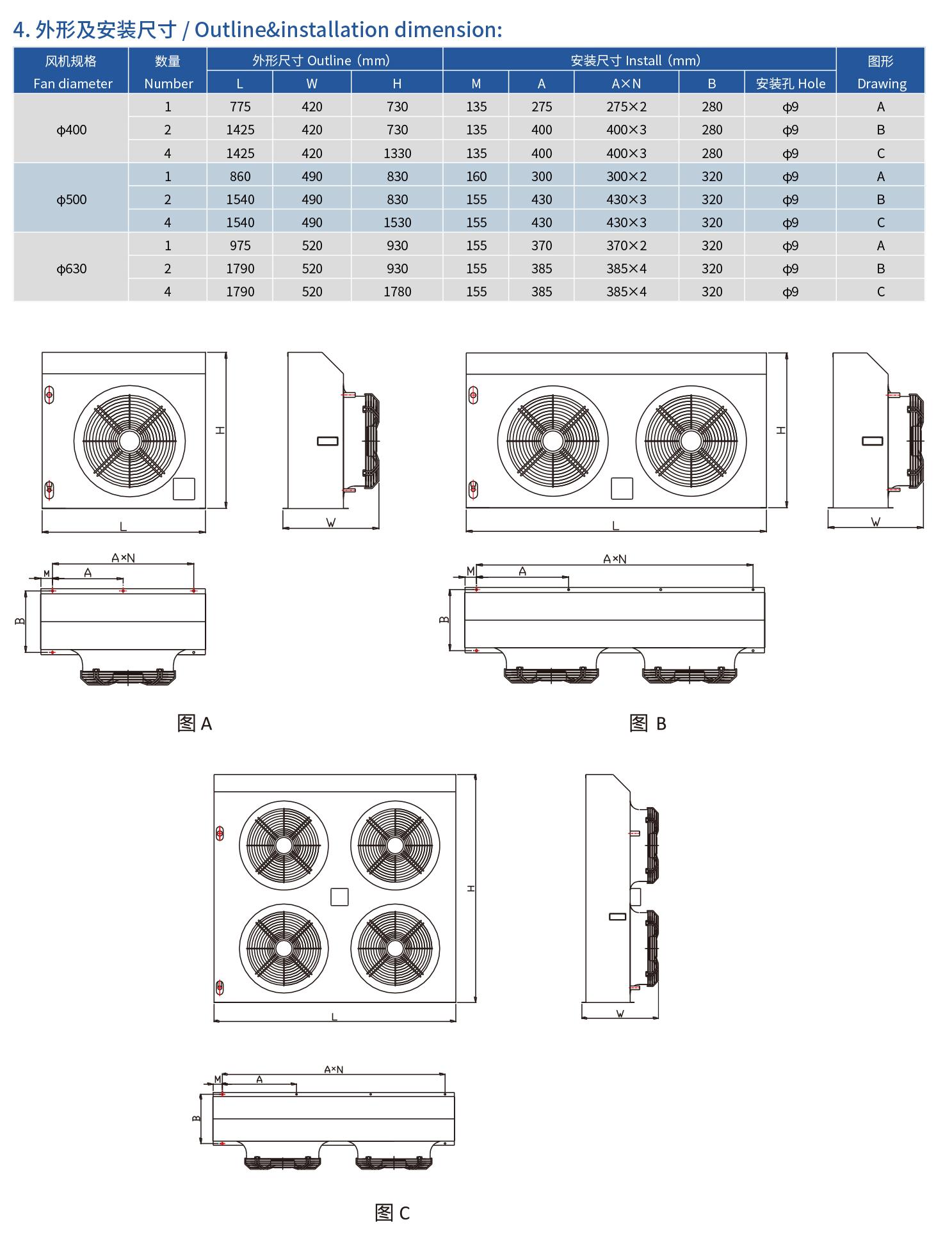

Outline and installation dimension：
