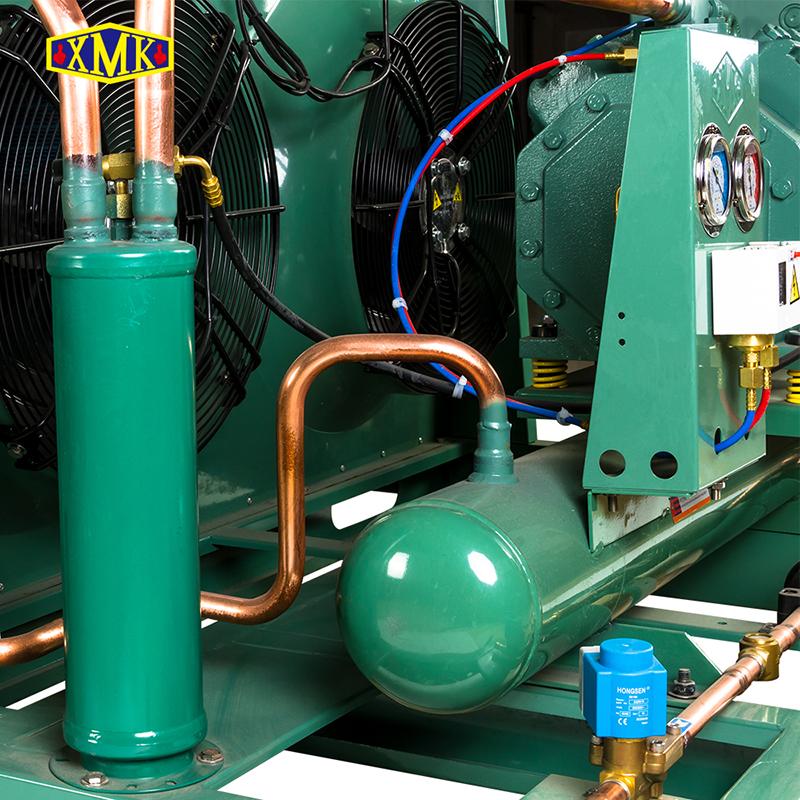

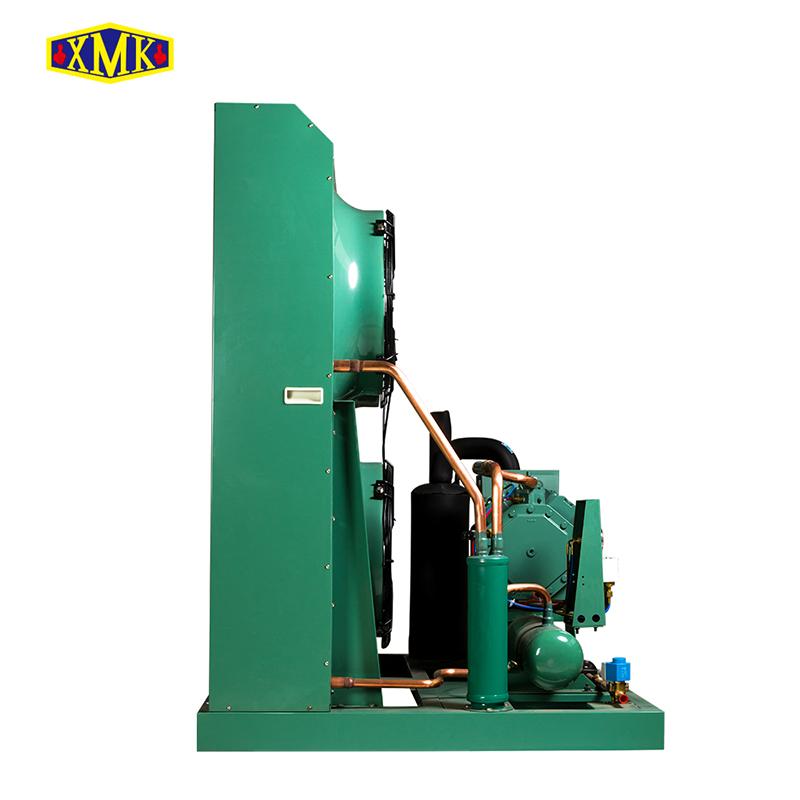

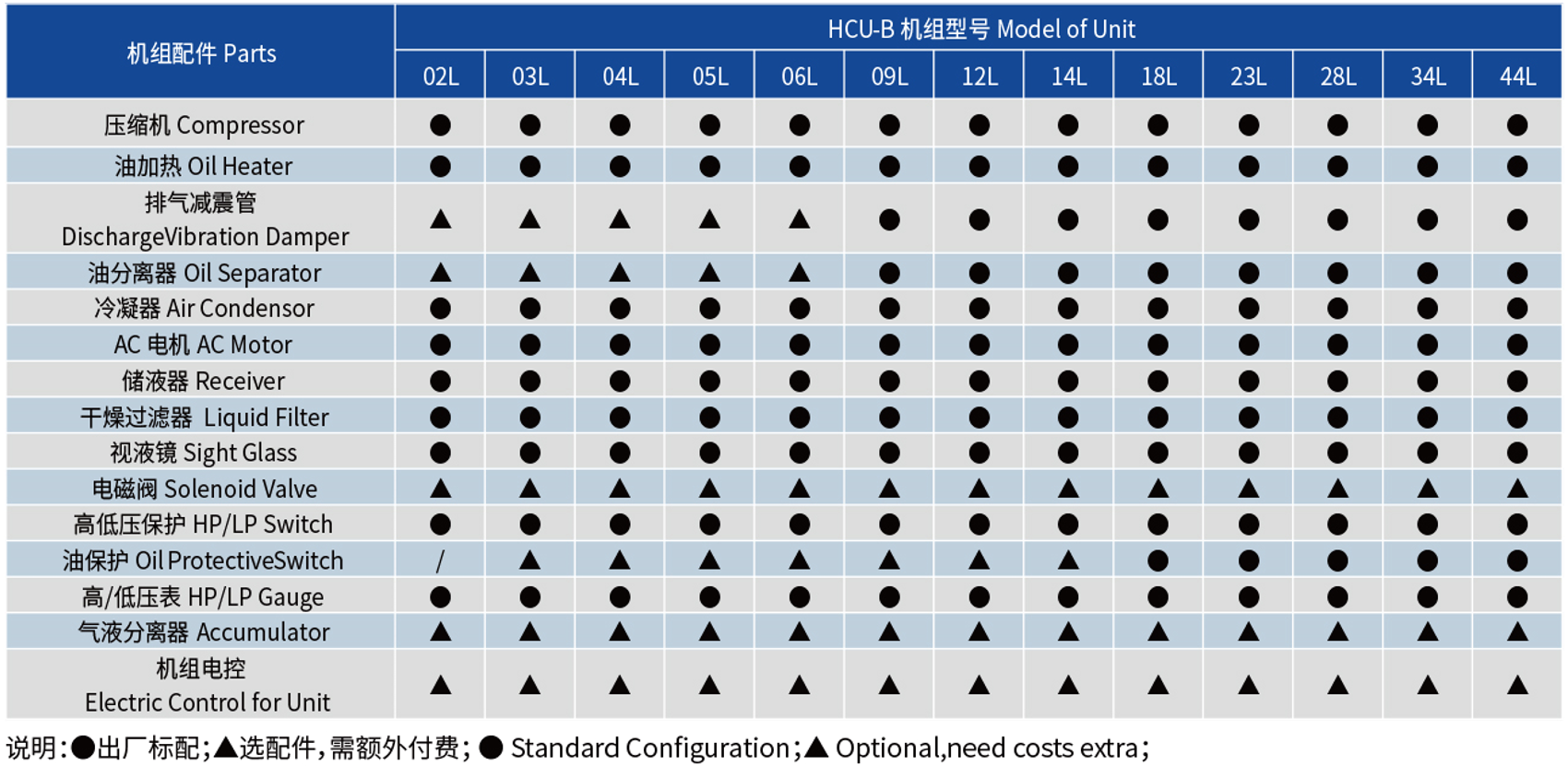

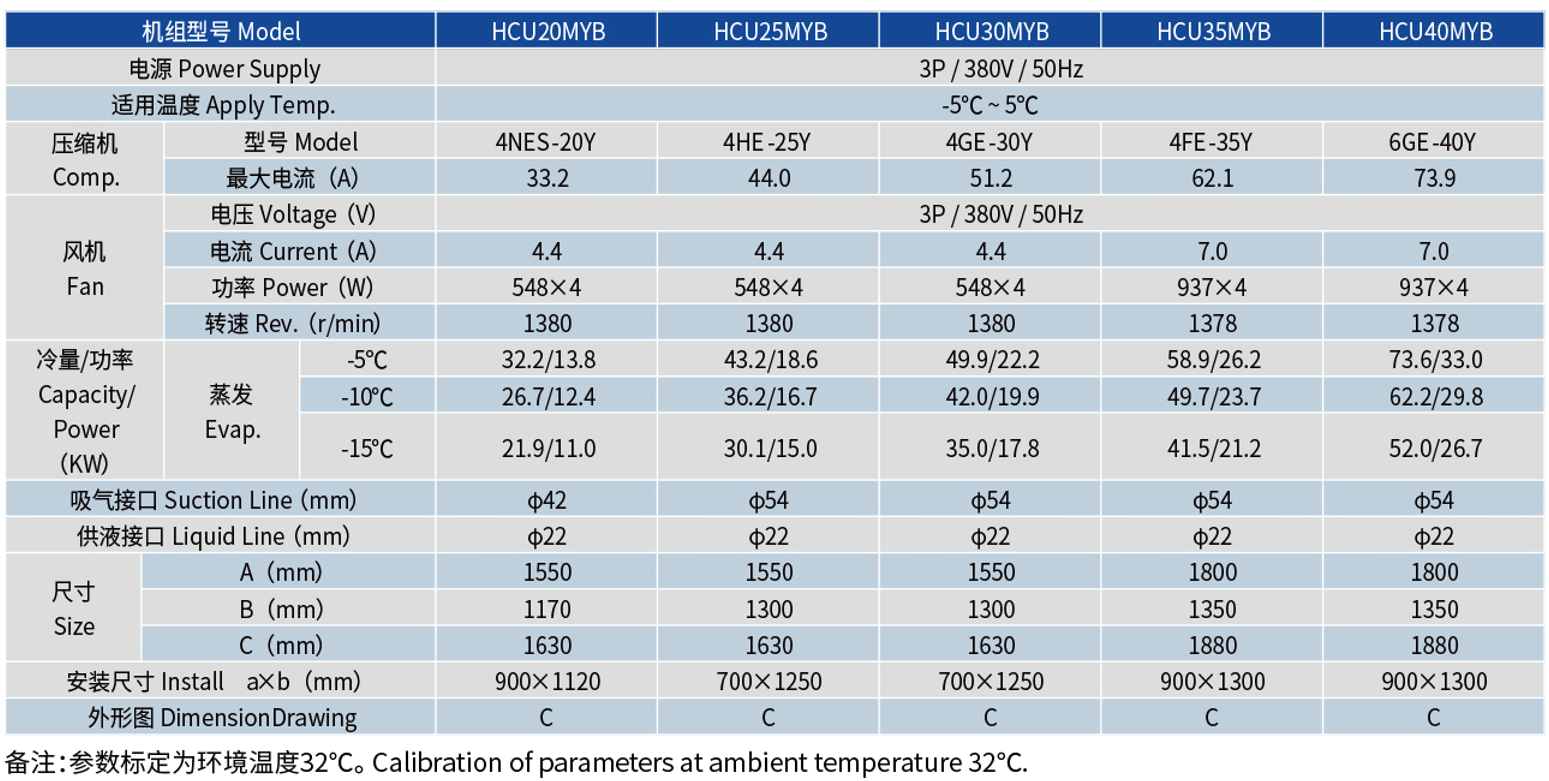

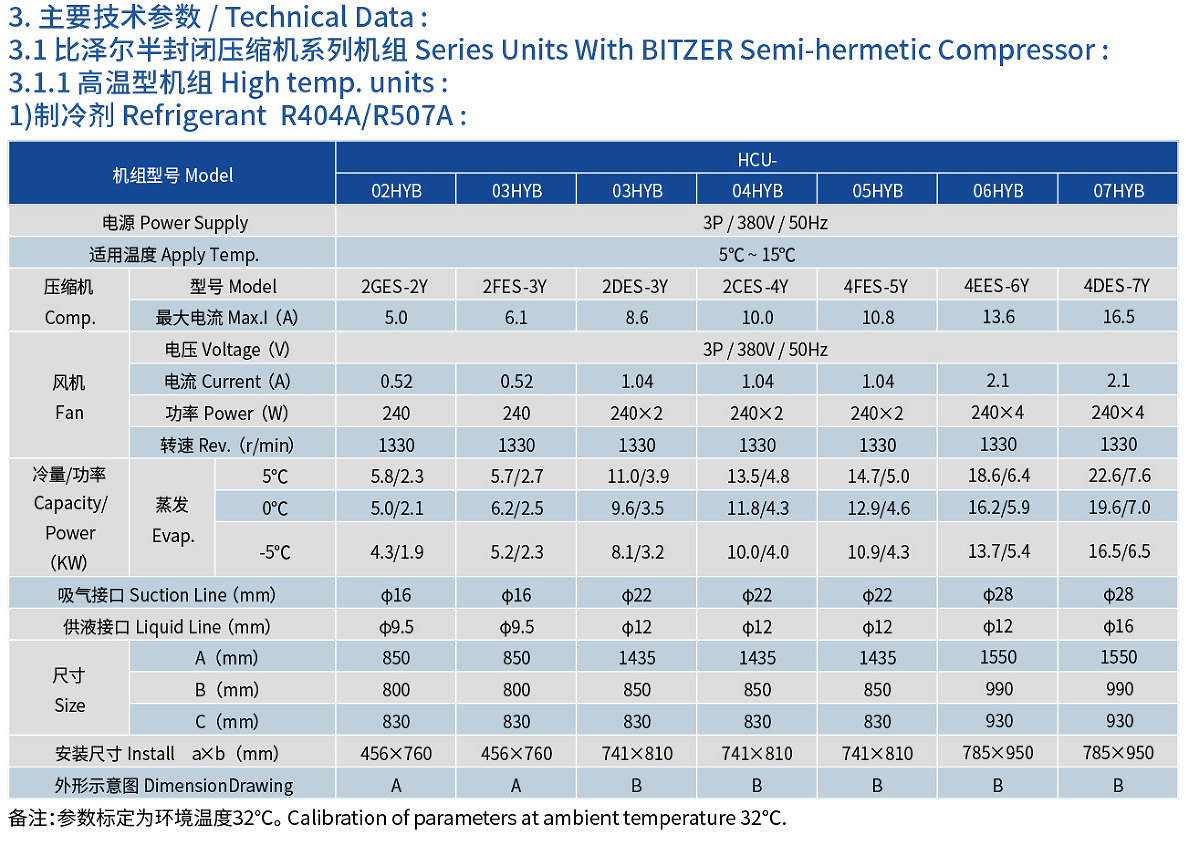

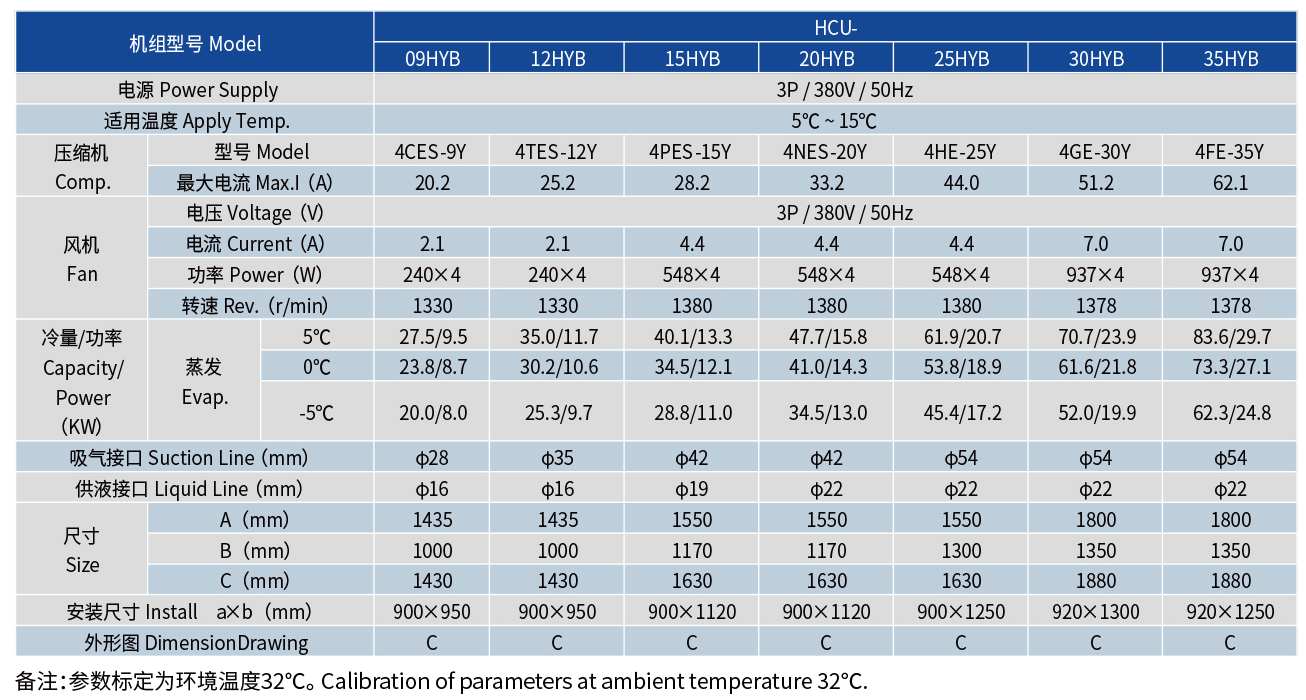

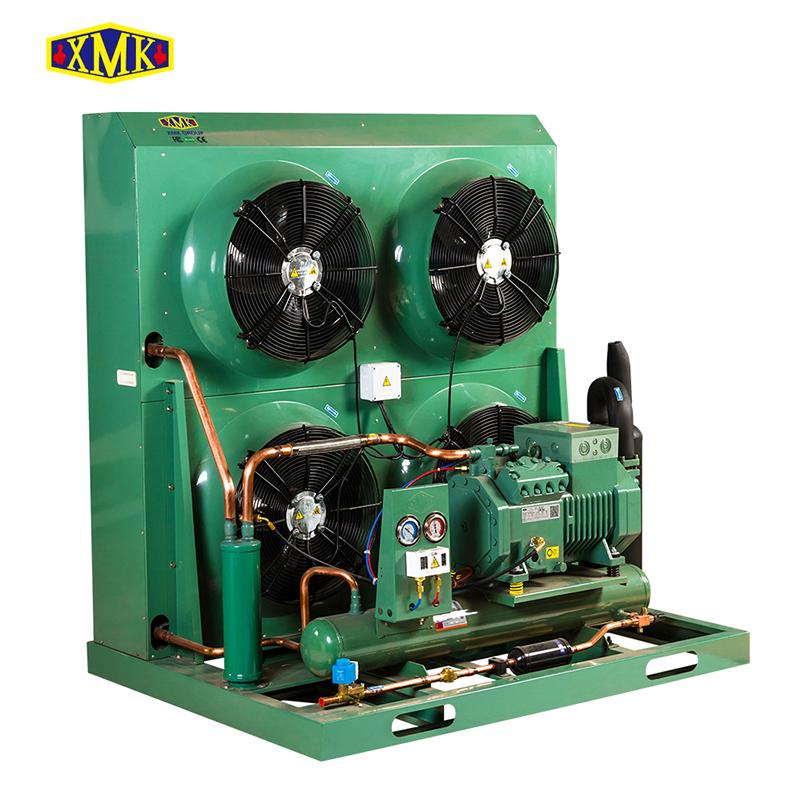

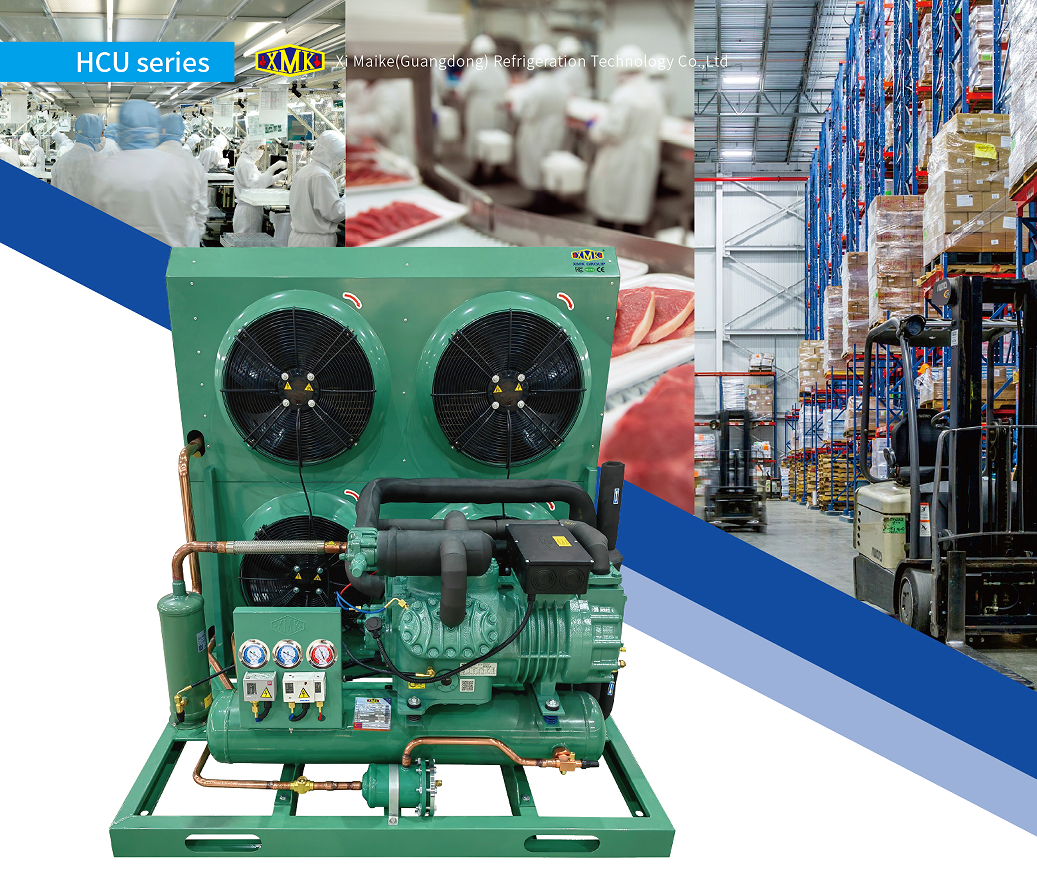

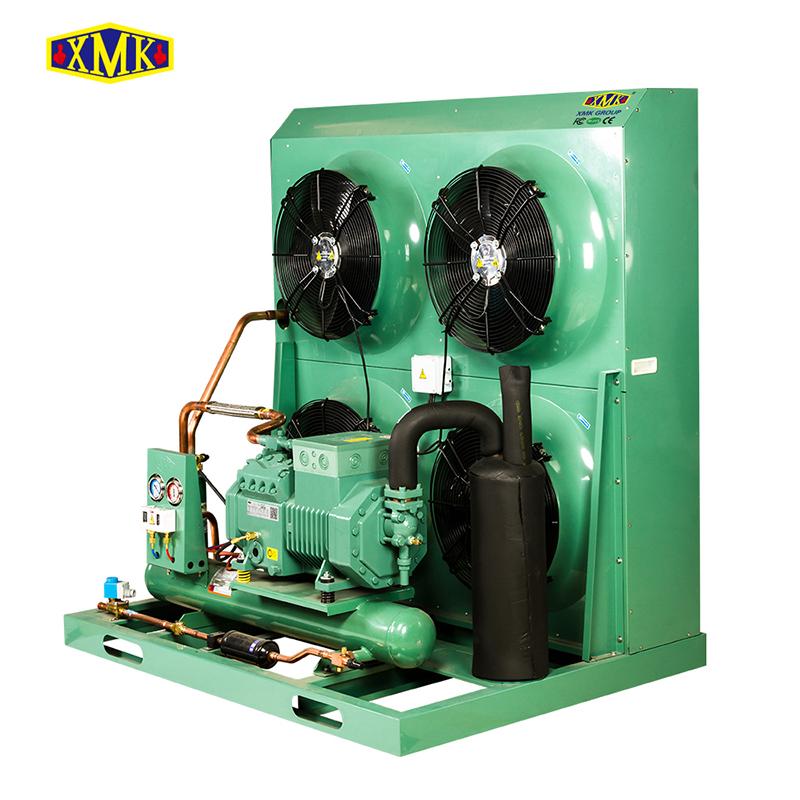

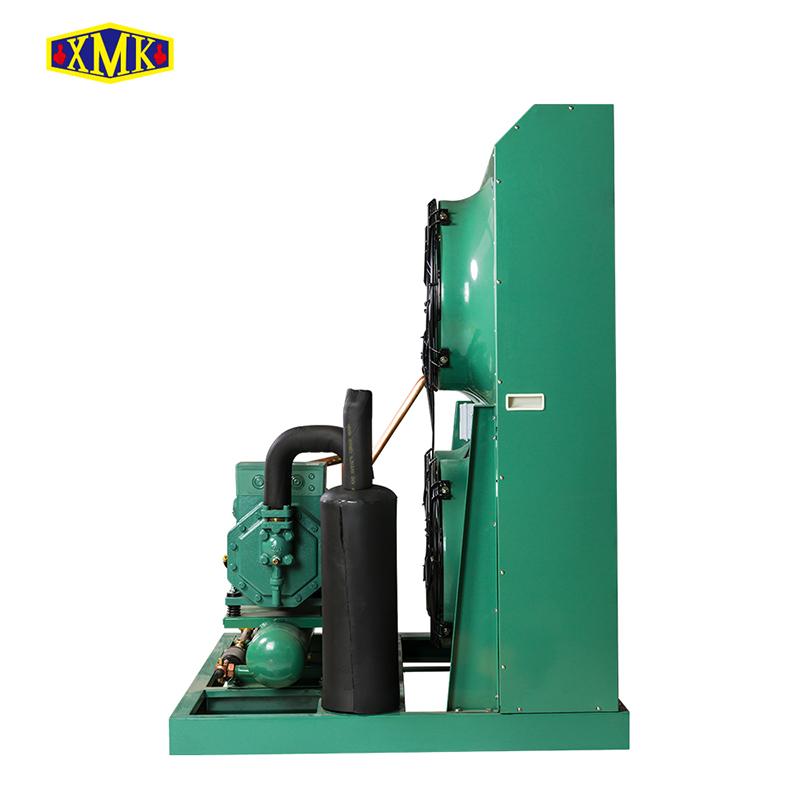

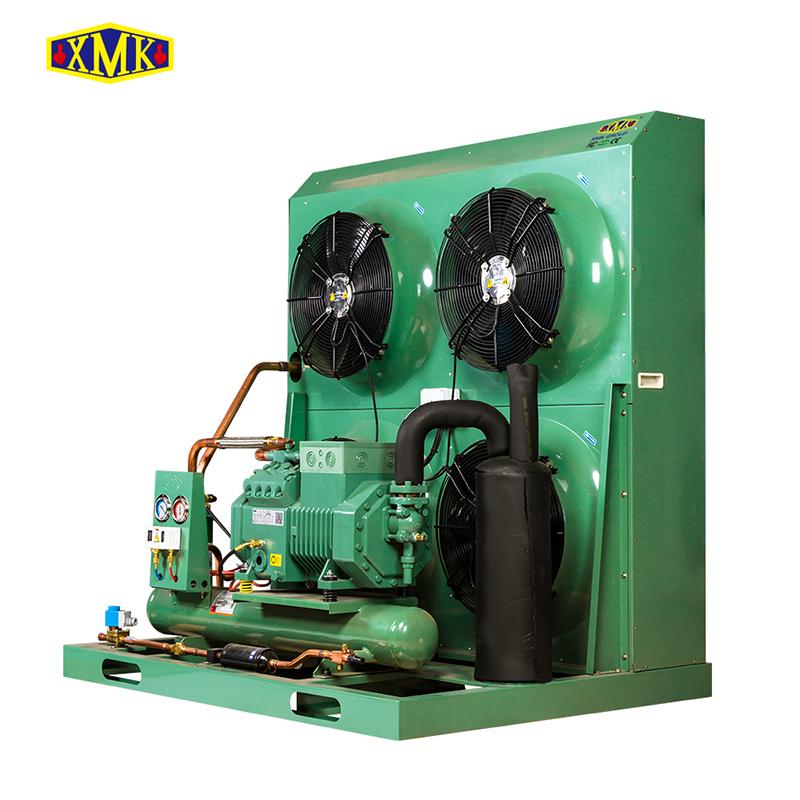

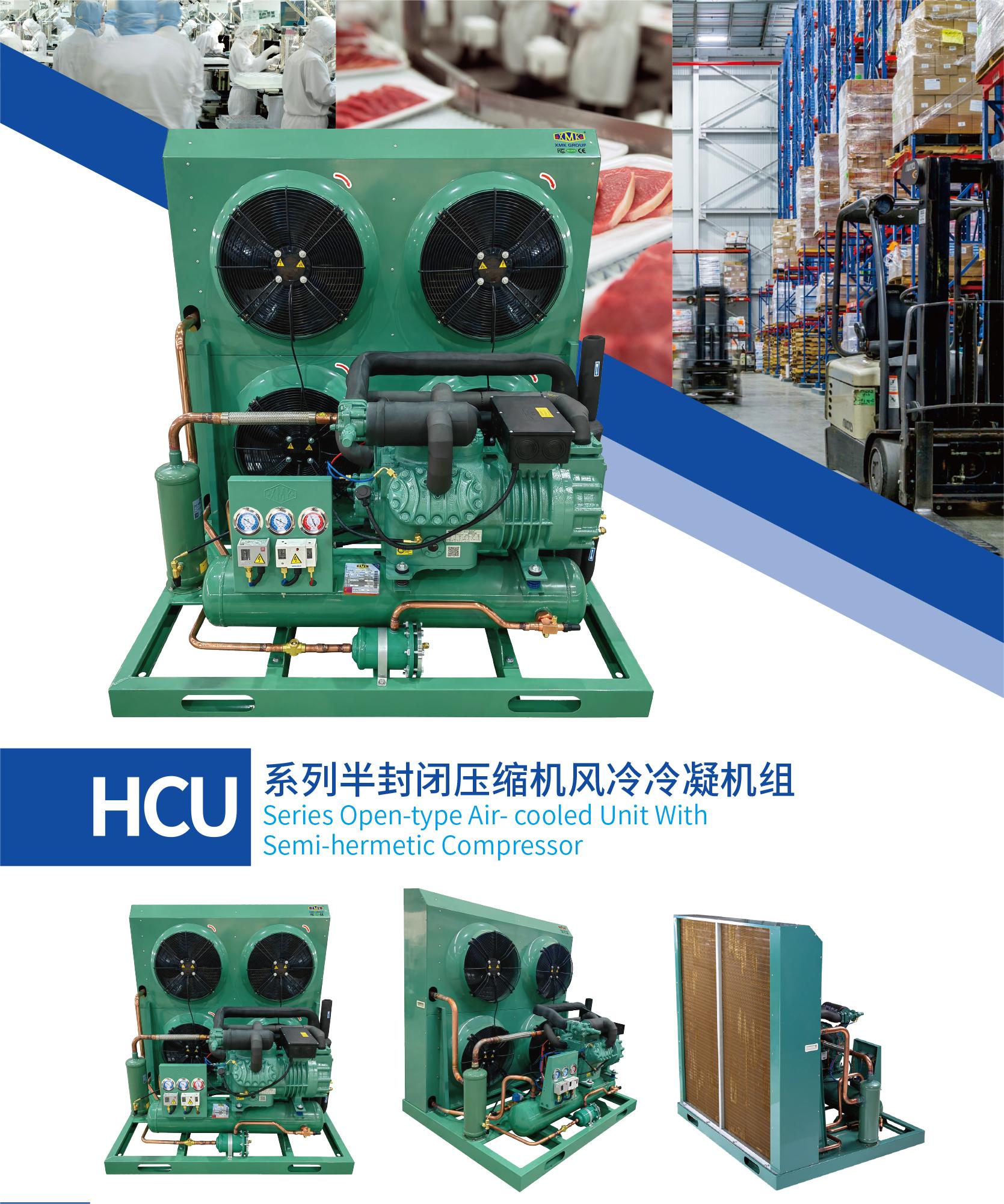

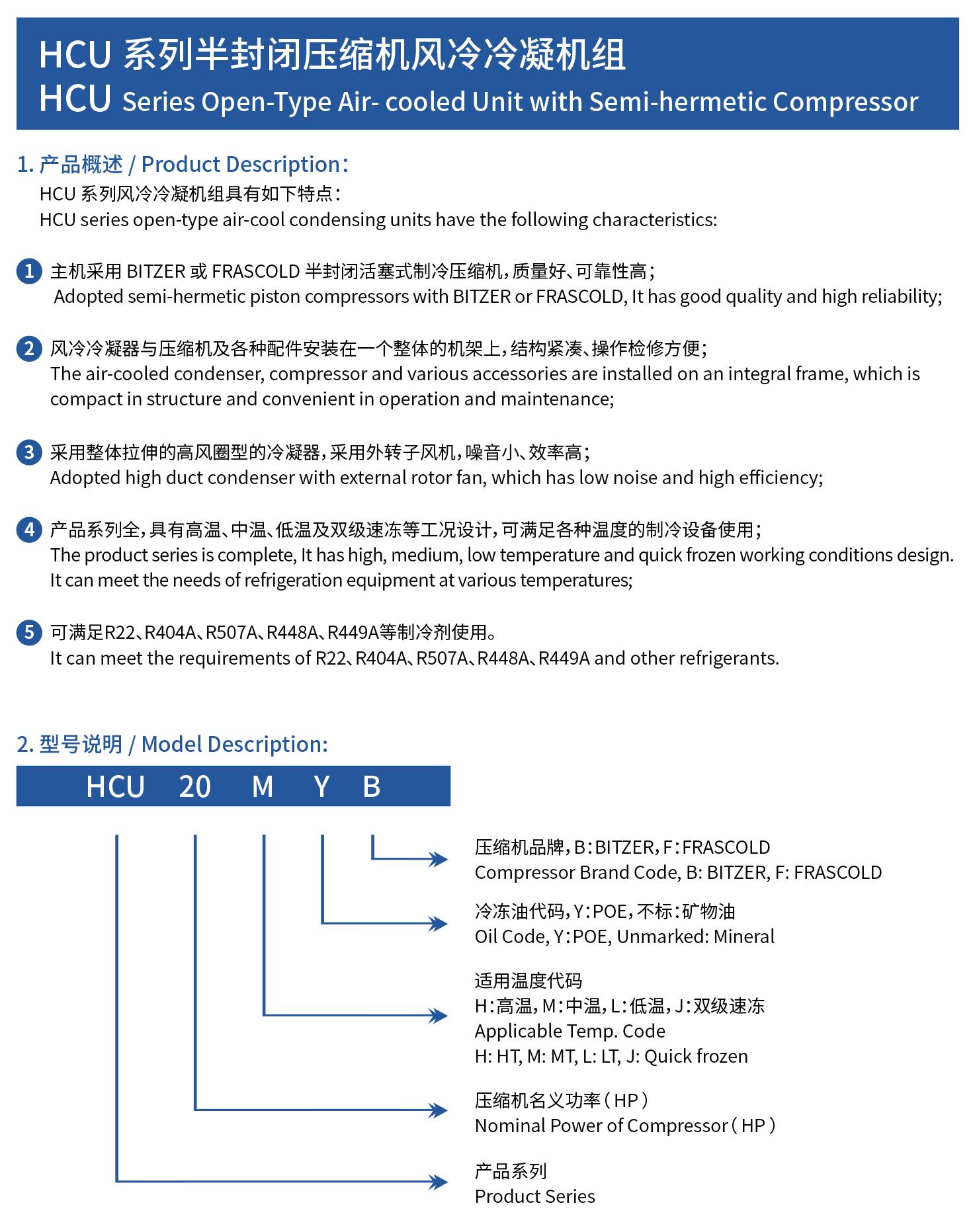

HCU Series Open-Type Air- cooled Unit with Semi-hermetic Compressor

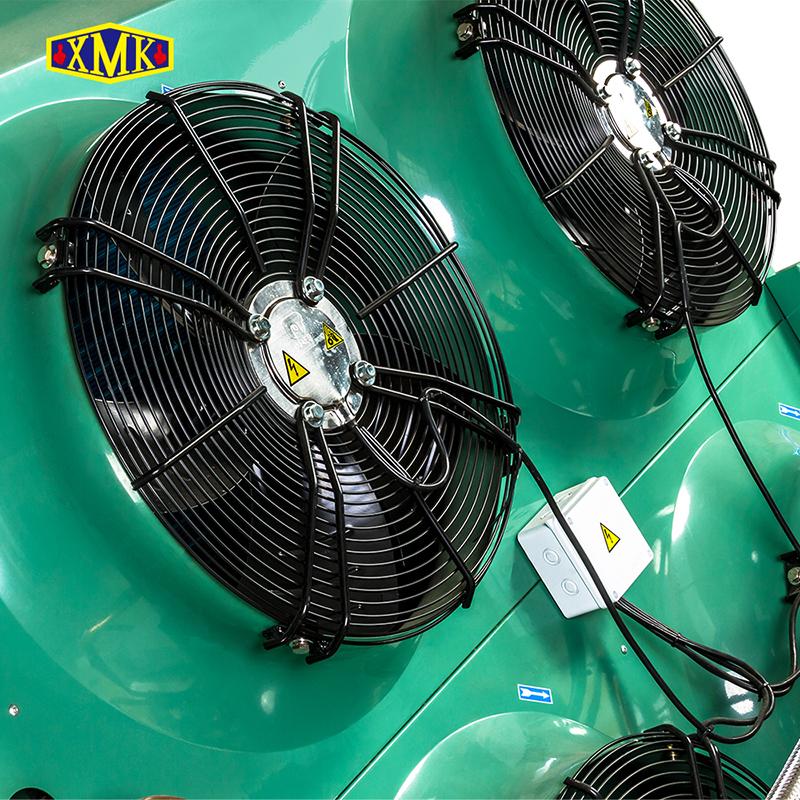

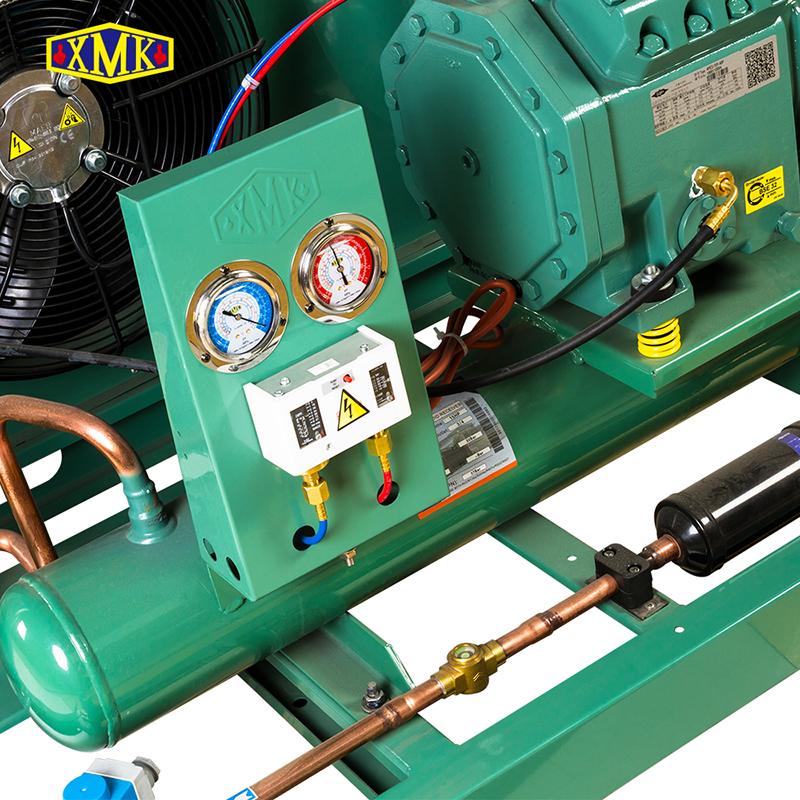

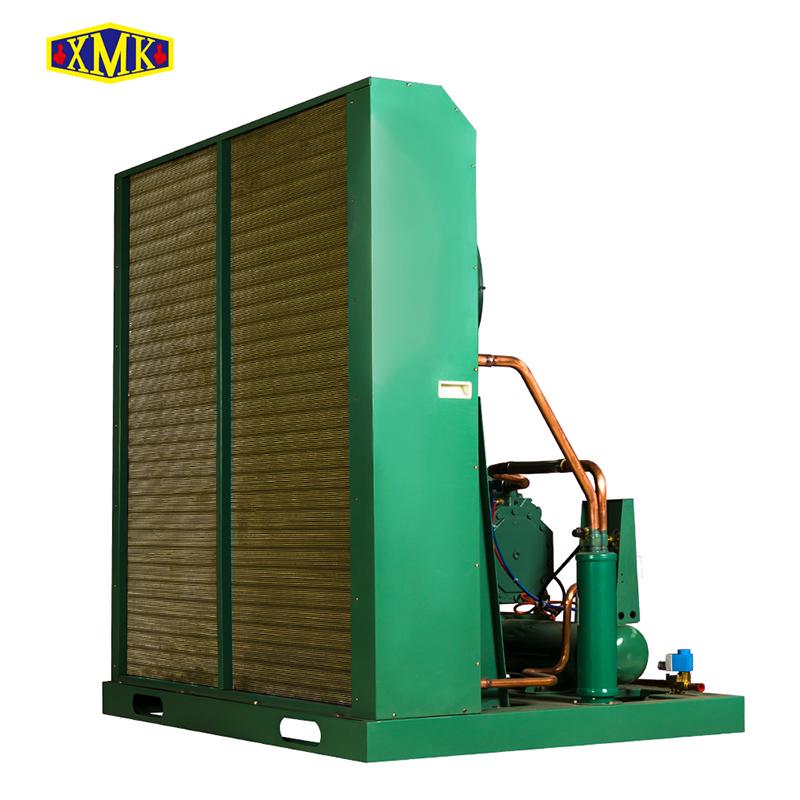

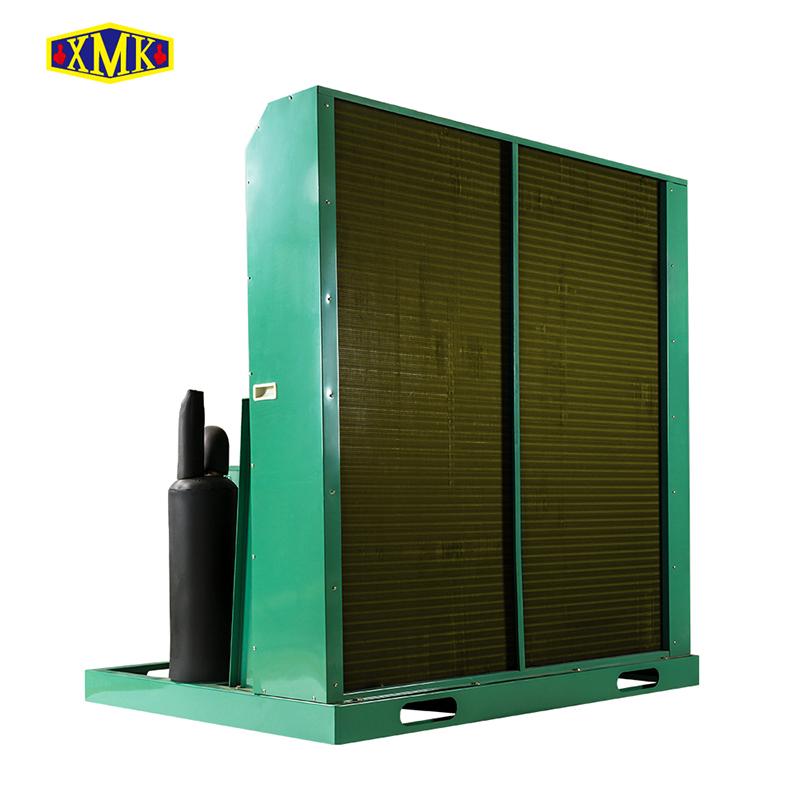

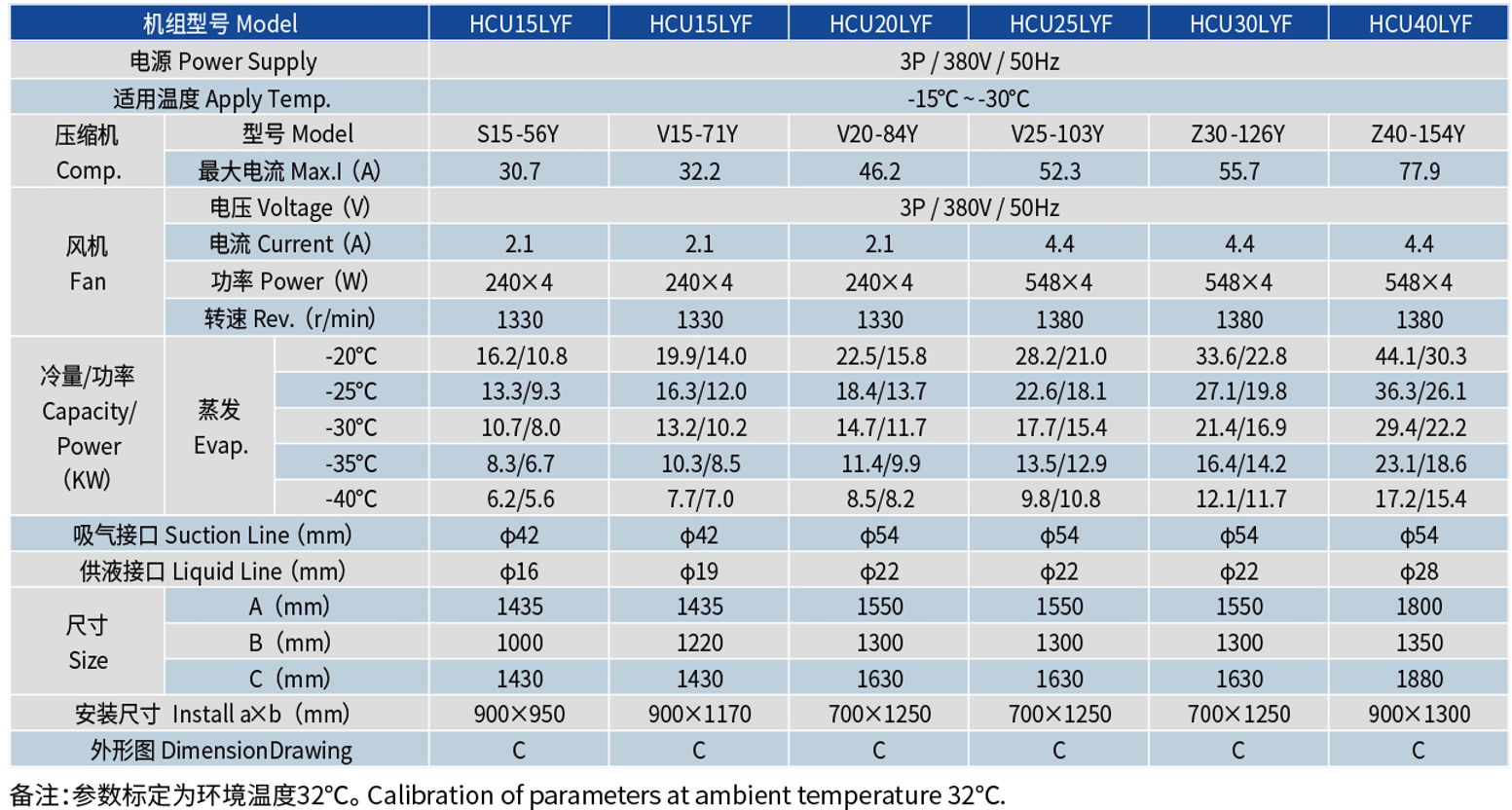

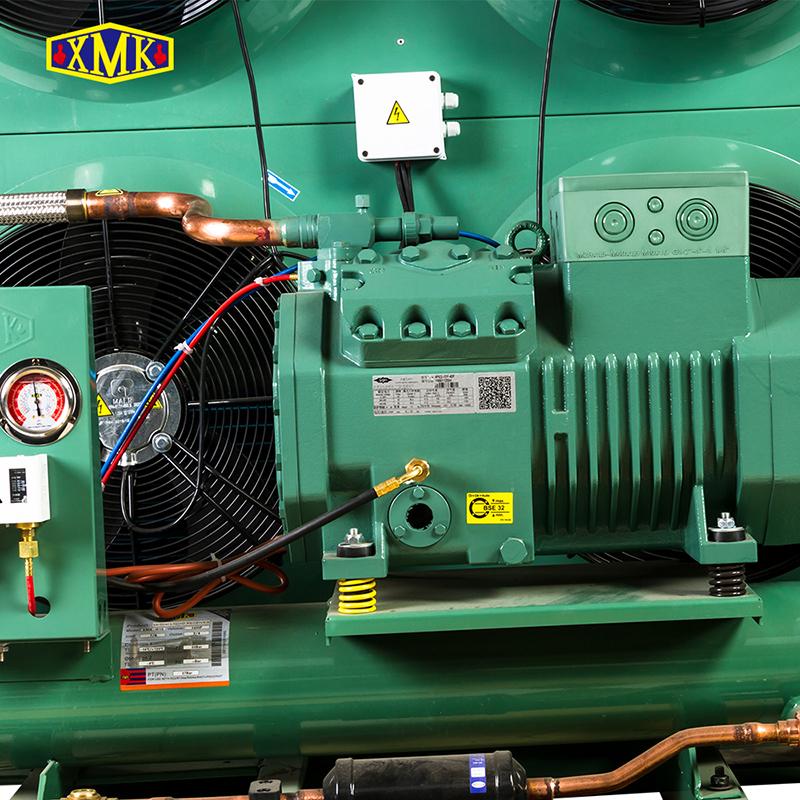

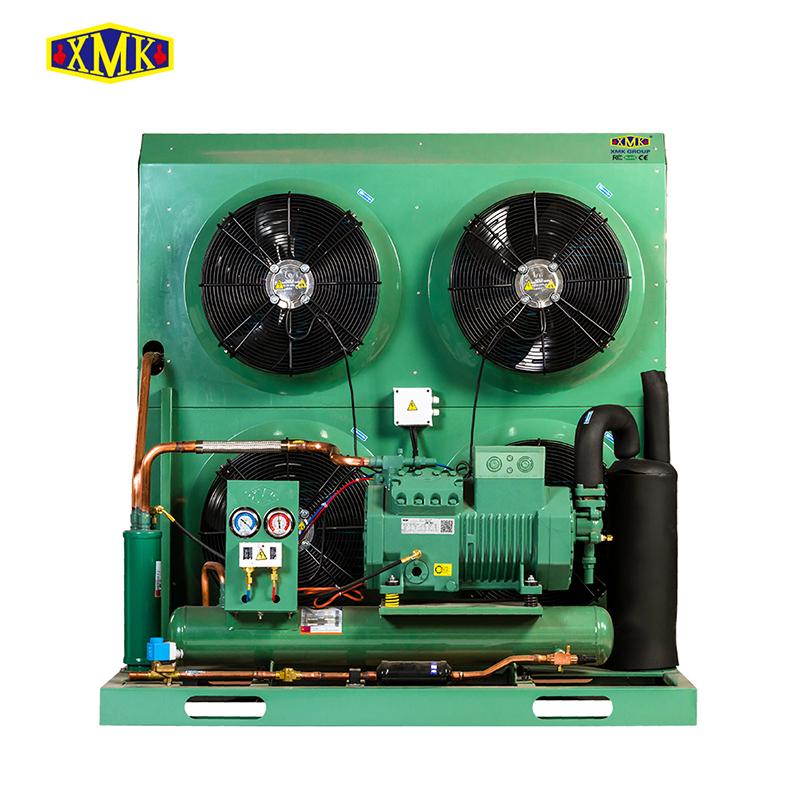

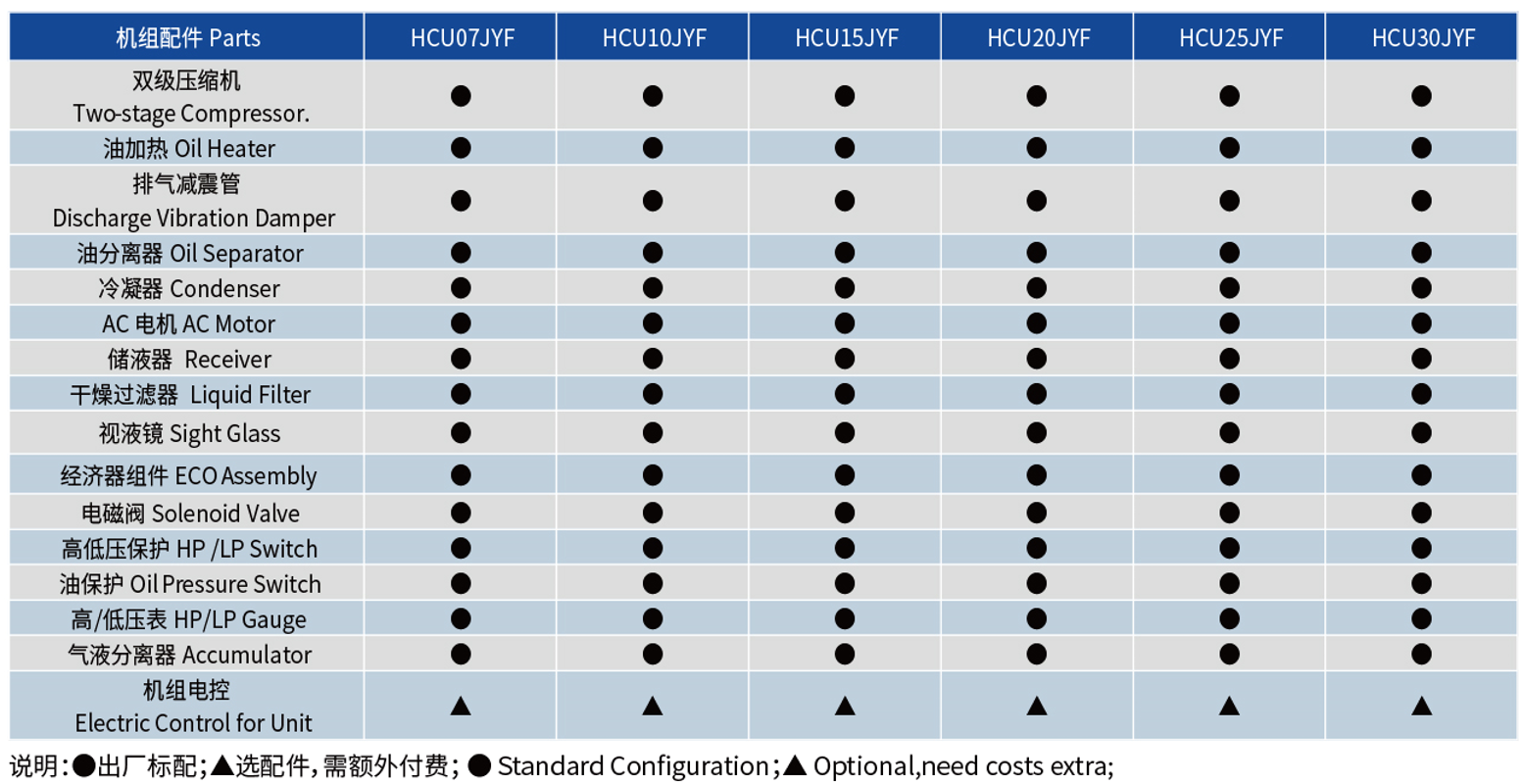

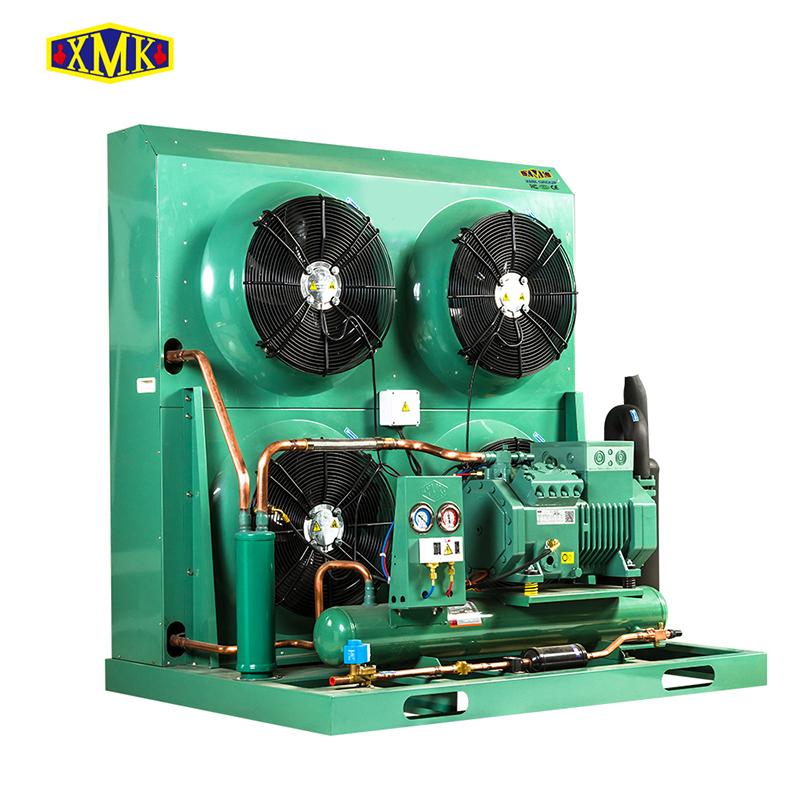

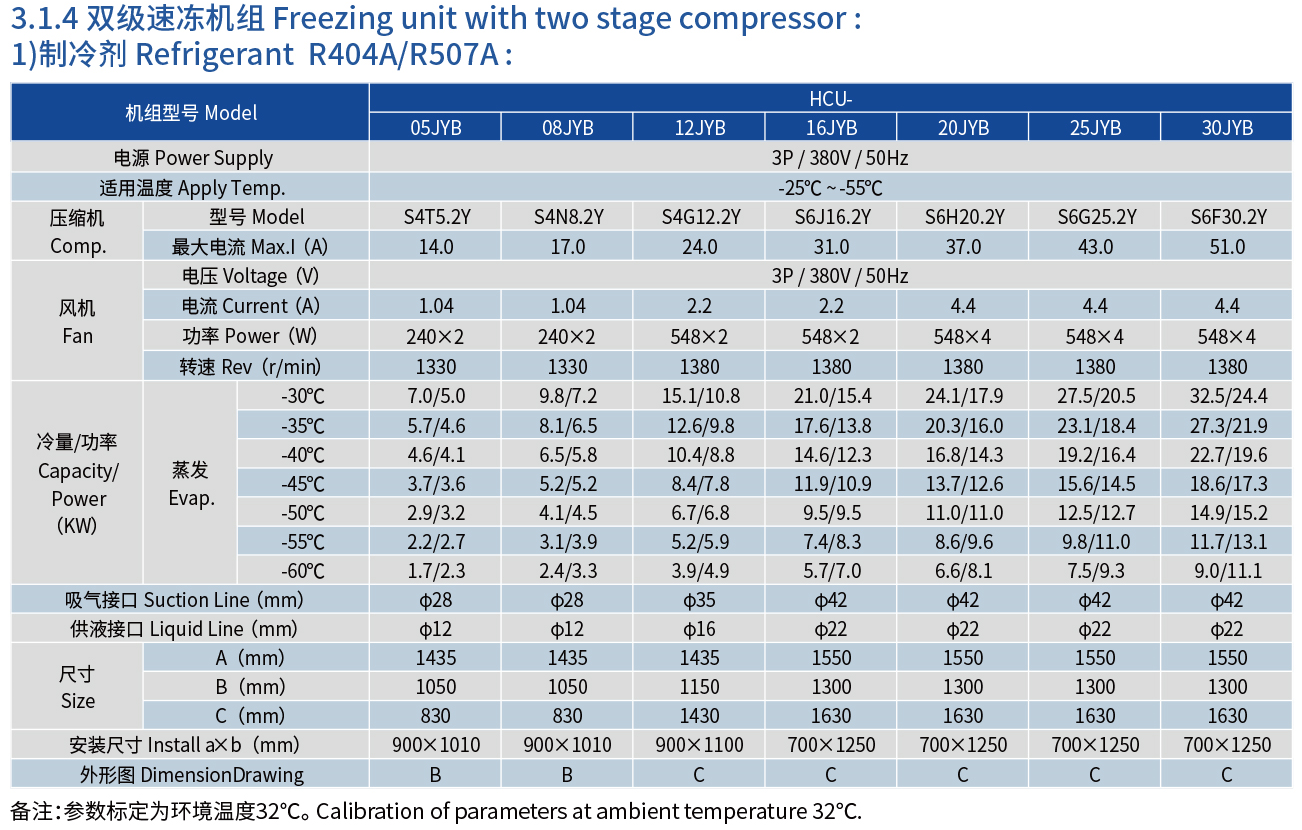

S4G-12.2Y Bitzer Compressor Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer S4G-12.2Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -25 to -55 degree Compressor Model S4G-12.2Y Compressor Max.I(A) 24 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.2 Fan Power (W) 548X2 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1550 Size Width (mm) 1150 Size Height (mm) 930

ZB Copeland Chiller Compressor Condensing Unit For Cold Storage   Product description:   BUW-B series box-type condensing units have the following characteristics   1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.   2.The cover of the case adopts hinge structure,which is easy to maintain and operate.   3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.   4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.   5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect.    Copeland ZB21KQE Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB21KQE Compressor Max.I(A) 8 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min) 1380 Suction Line (mm) 19 Liquid Line （mm） 9.5 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815

two fan 400mm industrial evaporator Fin space 4.2MM with Zinc coated steel casing with corrosion resistant highlighting powder coating finish which used for the food fresh with  -5~5℃ cold storage .

CA series compact air coolers are mainly used in small cold room, which occupy less space.

One fan 400mm evaporator Fin space 4.2MM which used for the food fresh with small size -5~5℃ cold storage .

ZB Copeland Chiller Compressor Condensing Unit For Cold StorageThis BUW-A series products with Emerson scroll compressor,applicable to cold display cabi-nets, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5'C~ 10"C.-l0'C~ -18C-18'C~-23"C. They can be widely used in hotels, restaurants, medicines, agricultur-al, chemicals industries all other place where cold storage is needed.1.Products adopt vertical box-type structure,compact structure design, excellent appear-ance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series scrollcompressor and ZSI series scroll compressorwith DTC spray to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt L-type condenser, it has large windwardside, small wind resistance and good heattransfer effect.5.Adopt 6-pole external rotor motor with lowspeed and low noise.6.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Copeland ZB21KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB21KQE Compressor Max.I(A) 8 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.5 Rev.(r/min)910 Suction Line (mm) 19 Liquid Line （mm） 9.5 Size length (mm) 1040 Size Width (mm) 570 Size Height (mm) 700

7.5m³ Volume Fish Water Chiller  Product description:  PU series vertical box-type condension units have the following characteristics1. The product adopts vertical box-type structure, fan side installation, effectively prevent dust, rain water and Soon into the cabinet;2. High air duct design, low noise, beautiful appearance;3. The cover of the case adopts hinge structure, which is easy to maintain and operate;4. Compressor uses Emerson ZB and ZFI series scroll compressor or Bitzer semi-hermetic compressor to meet theapplication of medium tem perature and low temperature;5. Adopt U-type condenser, it has large windward side, small wind resistance and good heat transfer effect;6. It can meet the requirements of R22, R404A, R507A, R448A, R449A and other refrigerants.HX Series Seafood Chiller data: Power Supply  220V 50Hz 1phaseApply Water Temp. 5 to 26 ℃Model HX300TApply Water Volume(m³） 2.5-7.5 Input Power(KW) 4.4 Nominal Capacity(KW)14.4 Size length (mm) 980 Size Width (mm) 530 Size Height (mm) 1250

XMK-233 2L vertical Liquid Receiver Refrigeration Spare PartsThe liquid receiver acts as a stock of liquid refrigerant for the evaporators, located after the condenser in a refrigeration system.The selection of receiver size should be based on refrigerant charge in the system, and it also should be sized to hold the full system charge during service work, the capacity of each liquid receiver listed on Technical data sheet below.ModelConnector sizeXMK-1333/8XMK-2333/8XMK-3333/8XMK-4441/2XMK-6441/2XMK-8441/2XMK-10555/8XMK-12555/8XMK-14555/8Production Introduction:1.Designed for refrigerant storage in system’s normal operation or maintaining.2.System adjustment is allowed to suit with different condition or loading.3.Compatible with HFC, CFC, CFC and associated oils and additives4. Assemble a high quality rotator valve or safety valve.

MTZ36 Compressor With Comdensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with Danfoss or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4EES-6Y Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. 5 to 15 degree Compressor Model MTZ36 Compressor Max.I(A) 13.6 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240X4 Suction Line (mm) 28 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430
