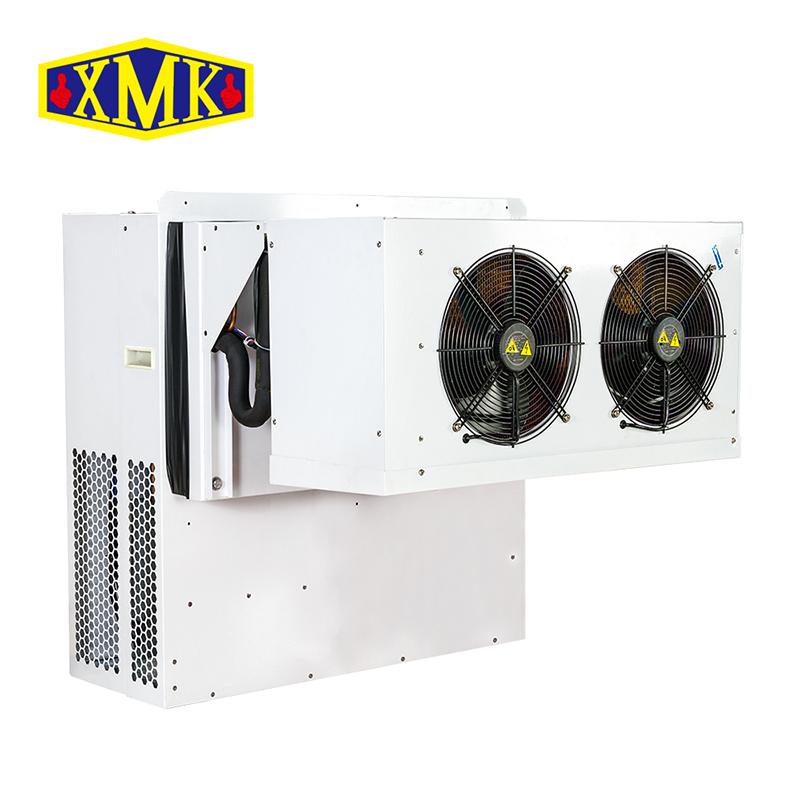

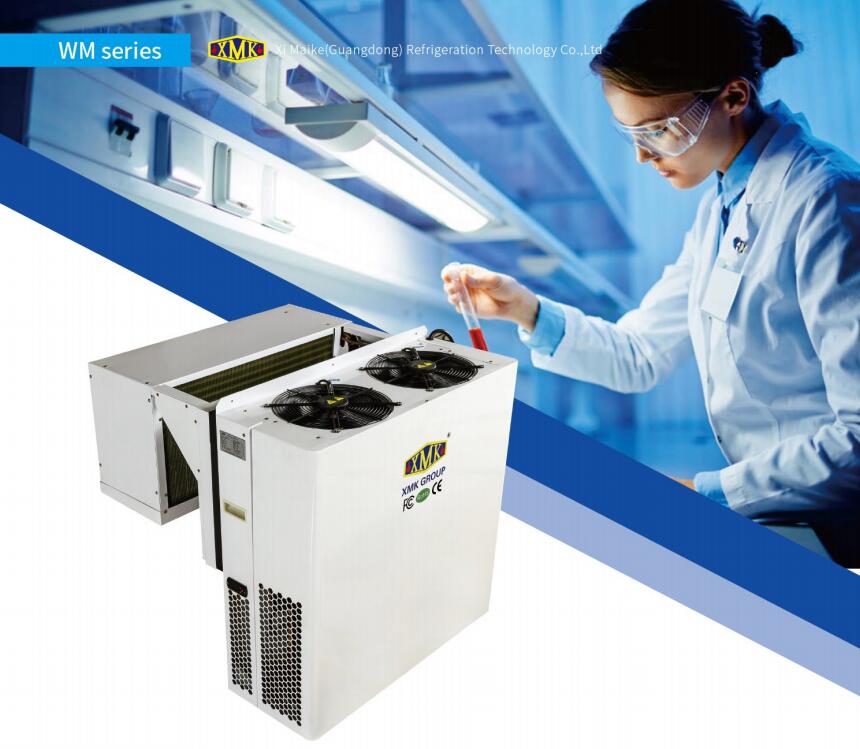

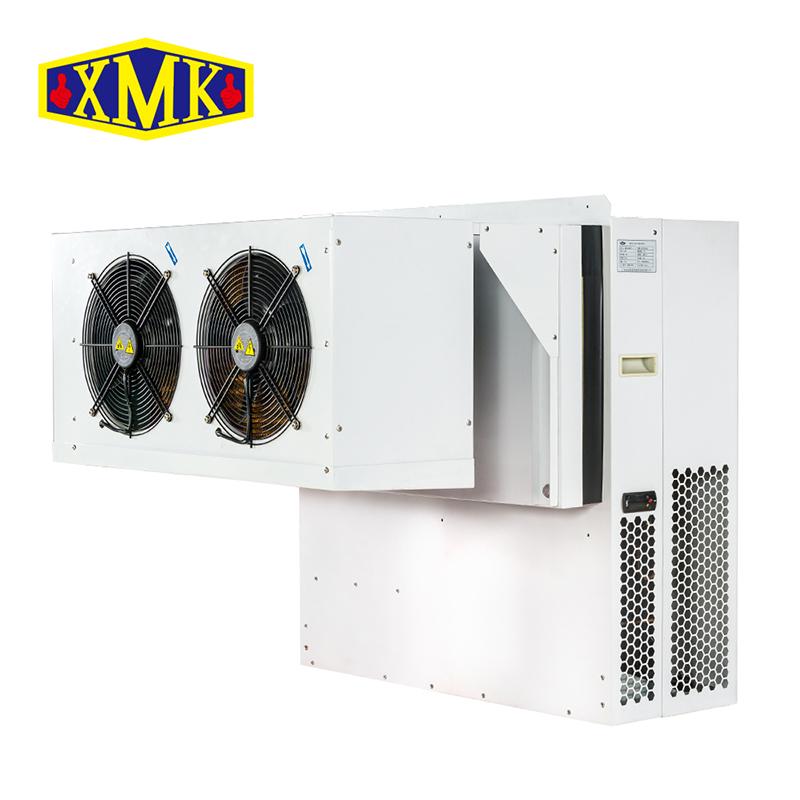

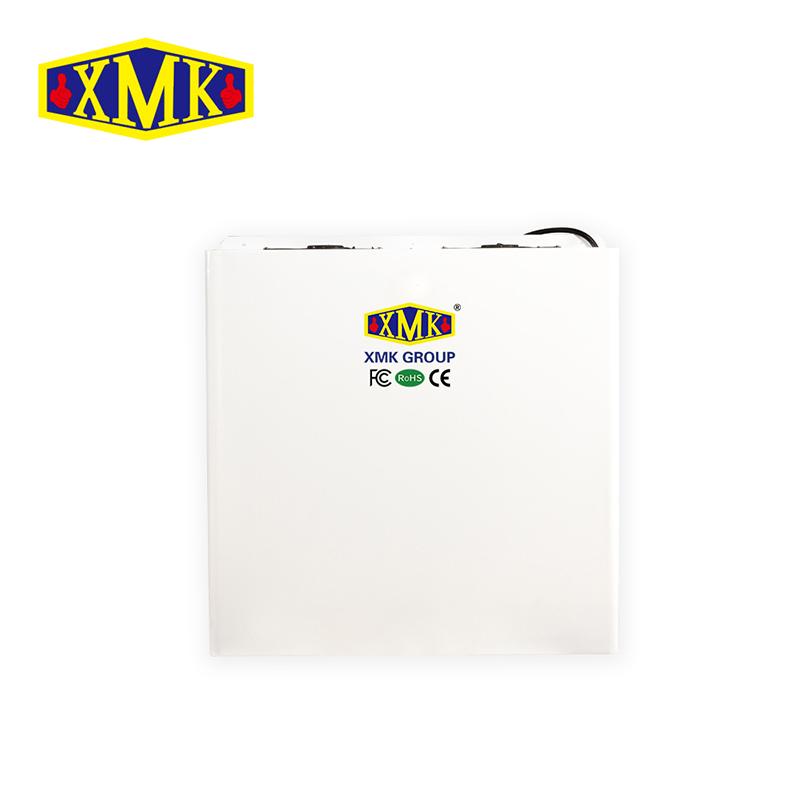

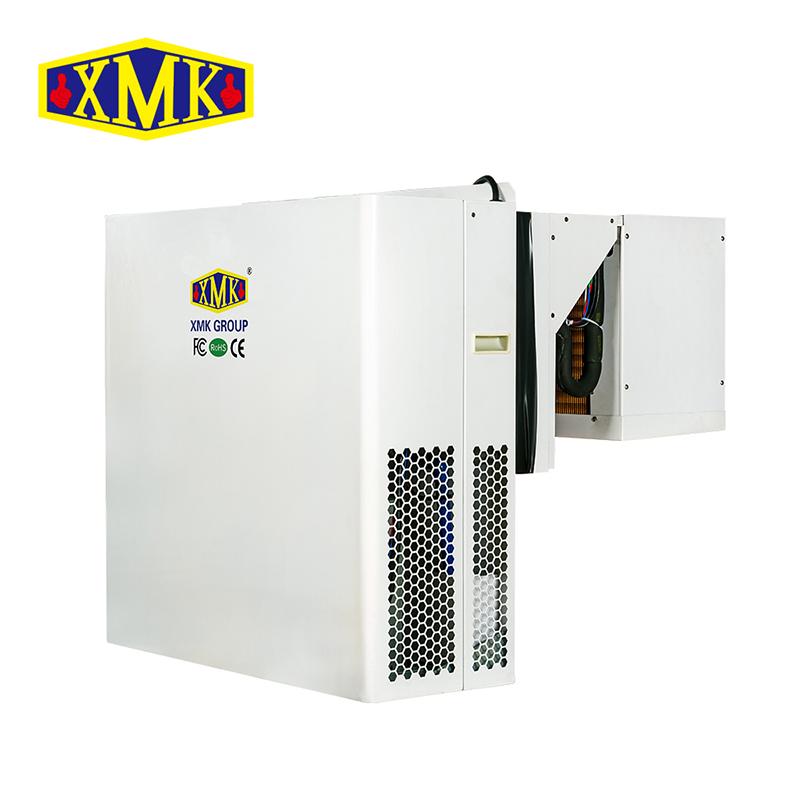

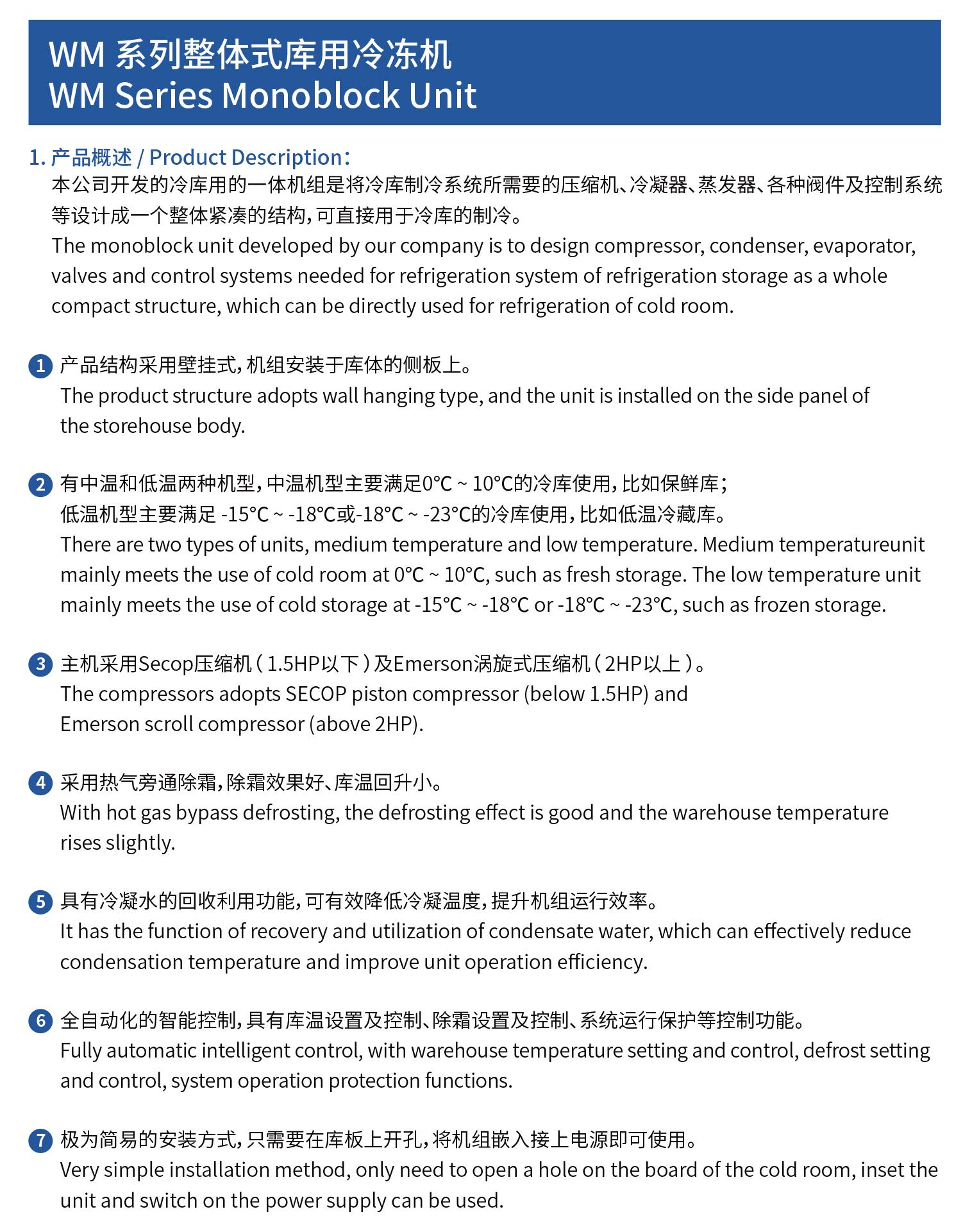

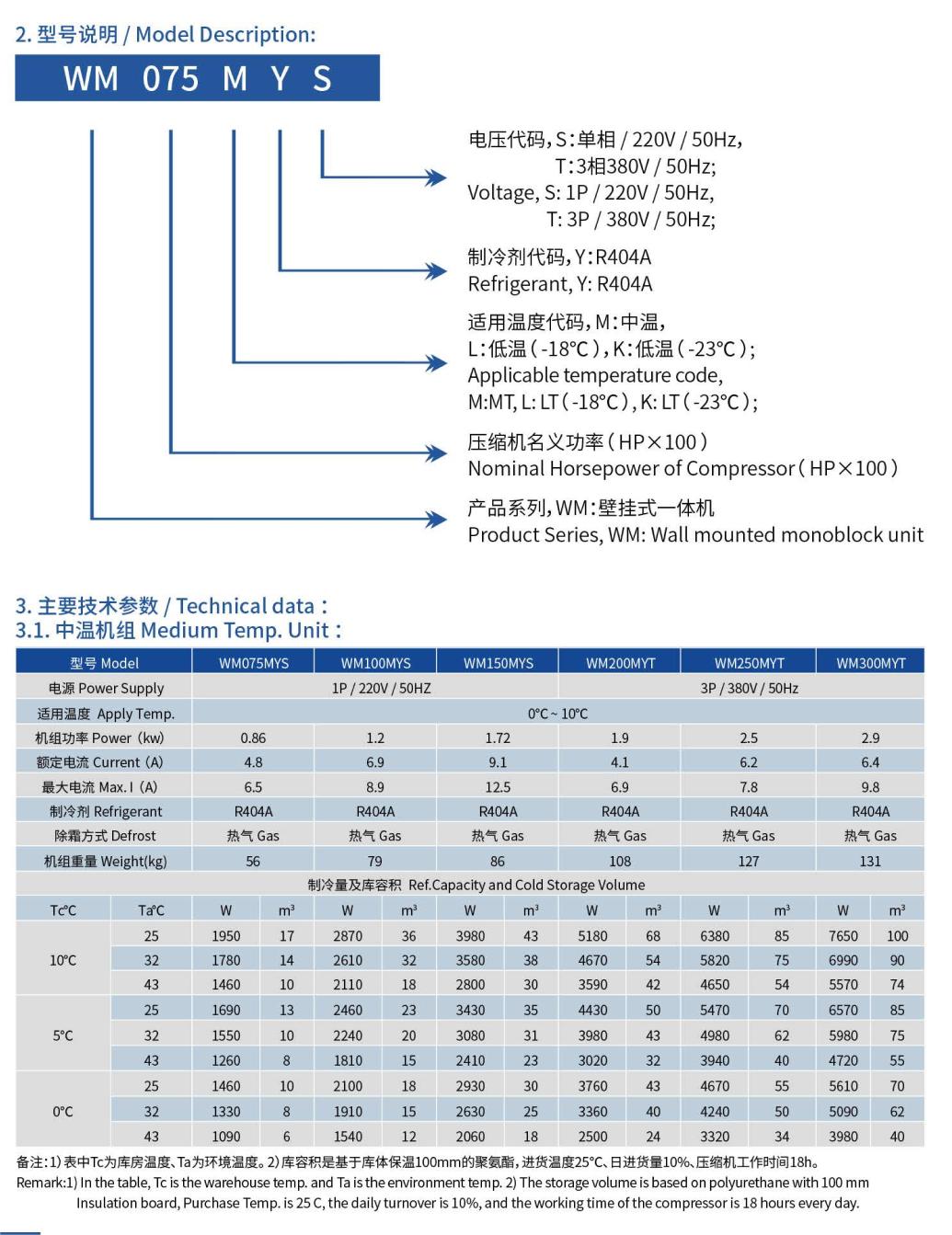

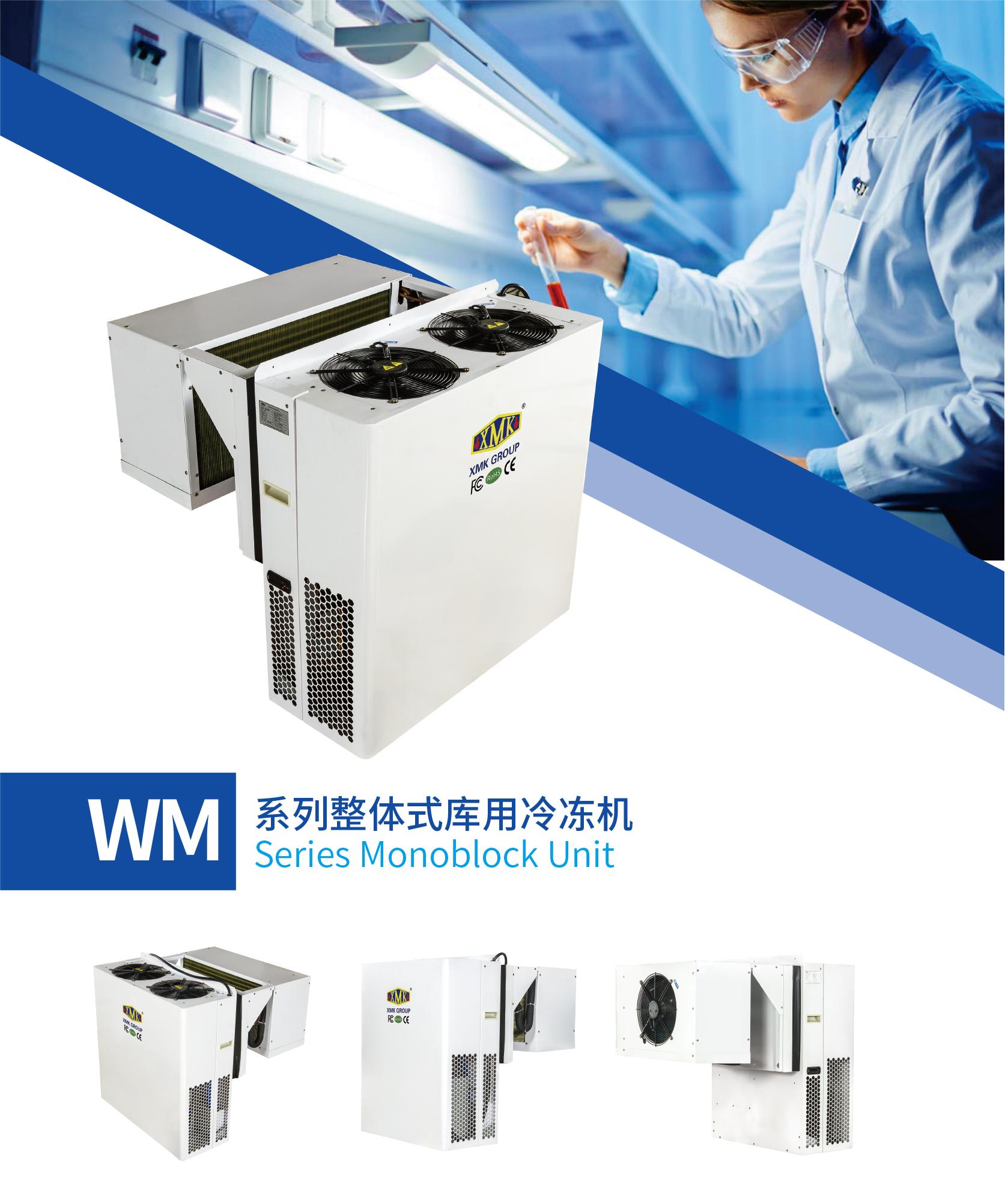

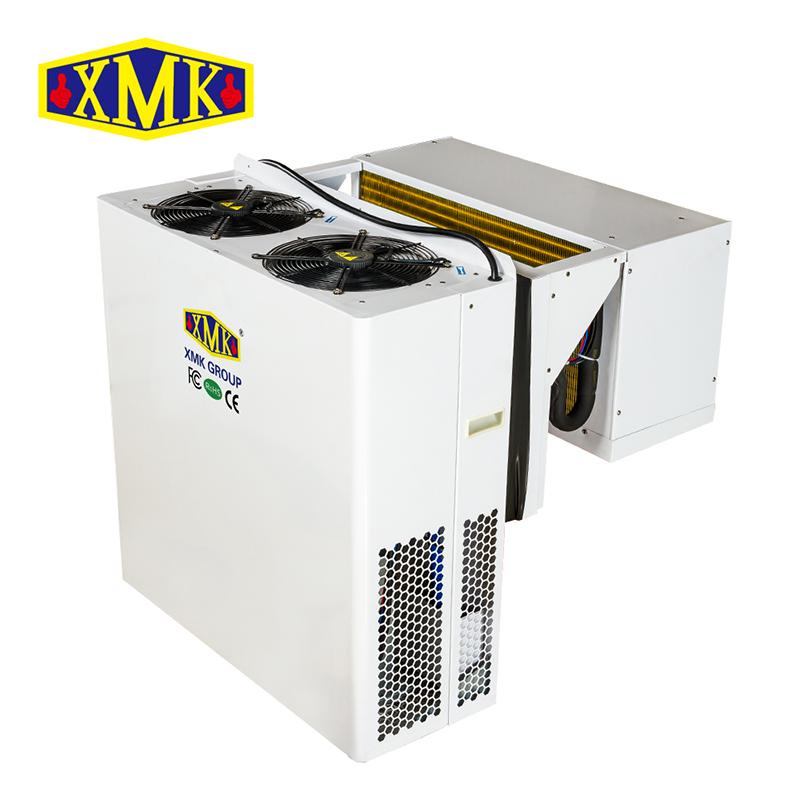

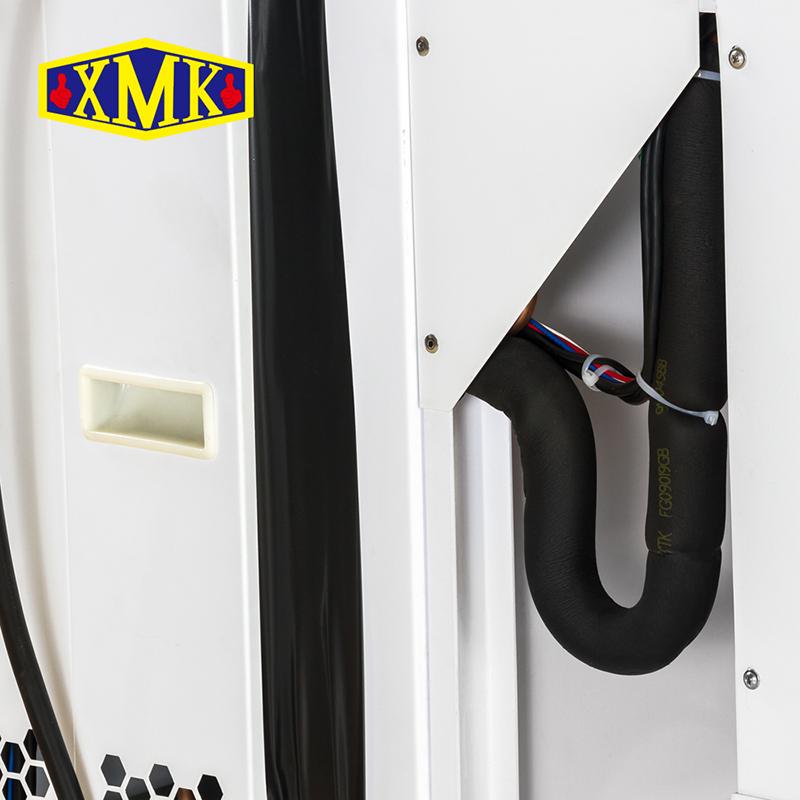

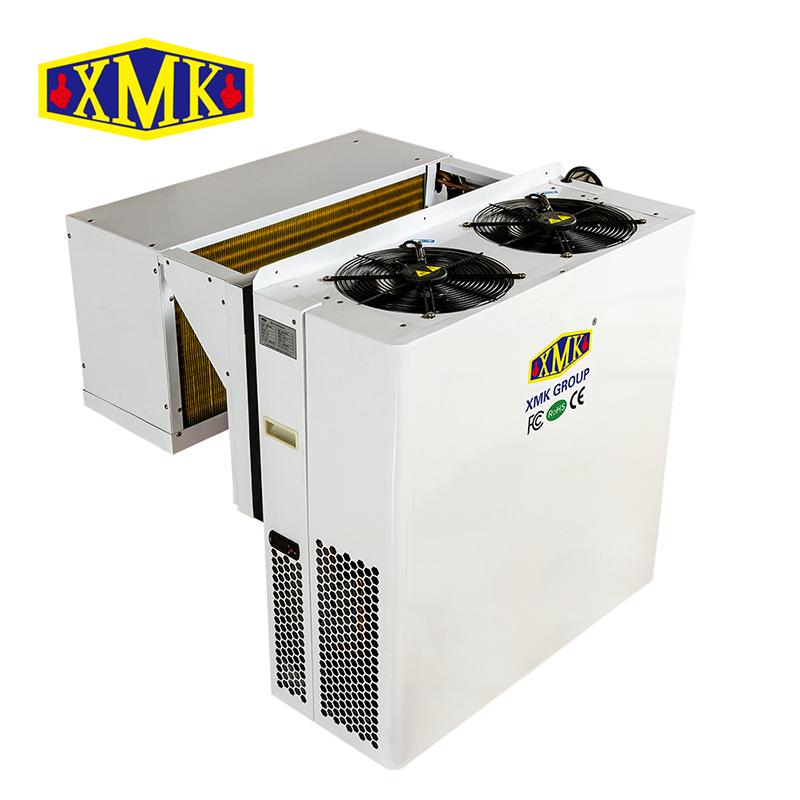

WM Series Monoblock Unit

MLZ038 Freezer Copeland Scroll Compressor Condensing UnitProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ038 Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ038 Compressor Max.I(A) 15 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 1.36 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight97Noise dBA61

ZB114KQE Copeland Compressor Scroll UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB114KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB114KQE Compressor Max.I(A) 38 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.2 Rev.(r/min)1380 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1620 Size Width (mm) 805 Size Height (mm) 1205

ZB21KQE Copeland Condensing Unit Scroll Compressor Box TypeProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants. Copeland ZB21KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to 5 degree Compressor Model ZB21KQE Compressor Max.I(A) 8 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight71Noise dBA60

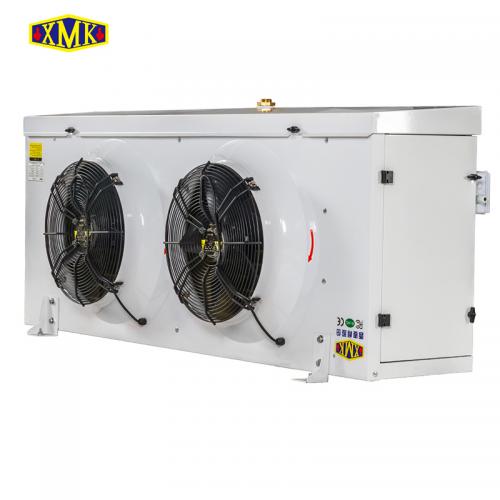

LS series is XMK second generation quick-frozen air cooler which mainly use for freezer cold storage as evaporator, such as food storage , ice rink , beverage factory and so on. It is design with that efficient recirculating and allows for installation in very close to walls to save spacing. Fan blade φ500 andφ630

ZB150KQE Cold Room Low Temperature Condensing UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB150KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB150KQE Compressor Max.I(A) 38 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.2 Rev.(r/min)1380 Suction Line (mm) 42 Liquid Line （mm） 22 Size length (mm) 1920 Size Width (mm) 905 Size Height (mm) 1305

Powerful and power efficient machinery foroptimal effect at affordable running cost. Brand:Copeland/BlTZER/Support specified brandsGAS: R22、R404A、R407A/C、R407F、R134a、R448A、R449A; 3中,380-420V, 50Hz;460V,60HZ;Multiplied cooling effect: supports rapid chilling orfreezing to +5°C,-5°C,-25°C AND(blast freezing to -30°Cor -40'C(Accpet OEM temperature. Remote Controlintellignce:Temperature range covers all normal storagerequirements.No need to compromise on thebest temperature, the rigid protocols ensureaccurate and precise temperature controlthroughout the storage container.

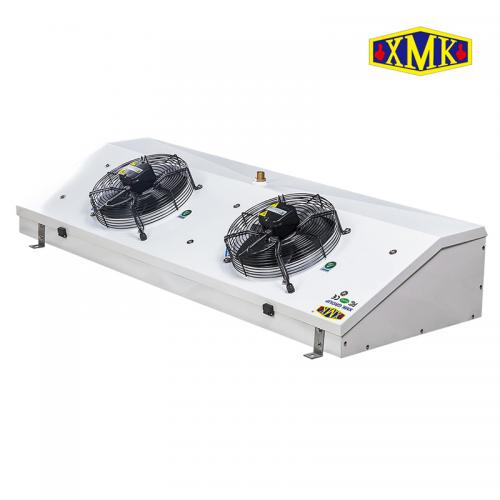

evaporator coil cooler for cold storage  Fin space 6.4MM with high efficiency 500mm axial fan.

The GDB series unit coolers is mainly used for cooling equipment in cold storage with glycol coolant.It is mainly used in large cold storage operation rooms with air inlet from below and air outlet from both sides.  The GDB series air cooler can be used in cold storage at about 10°C, 0°C and -18°C respectively.

Air cooled condenser is specially designed for Freon refrigeration equipment and cooled by air. XMK FNF series is suitable for R134a, R22, R404a, R407 and other refrigerants, widely used in freezing, refrigeration, air conditioning, heat pumps and industrial refrigeration. Fan blower support 350mm to 500mm.
