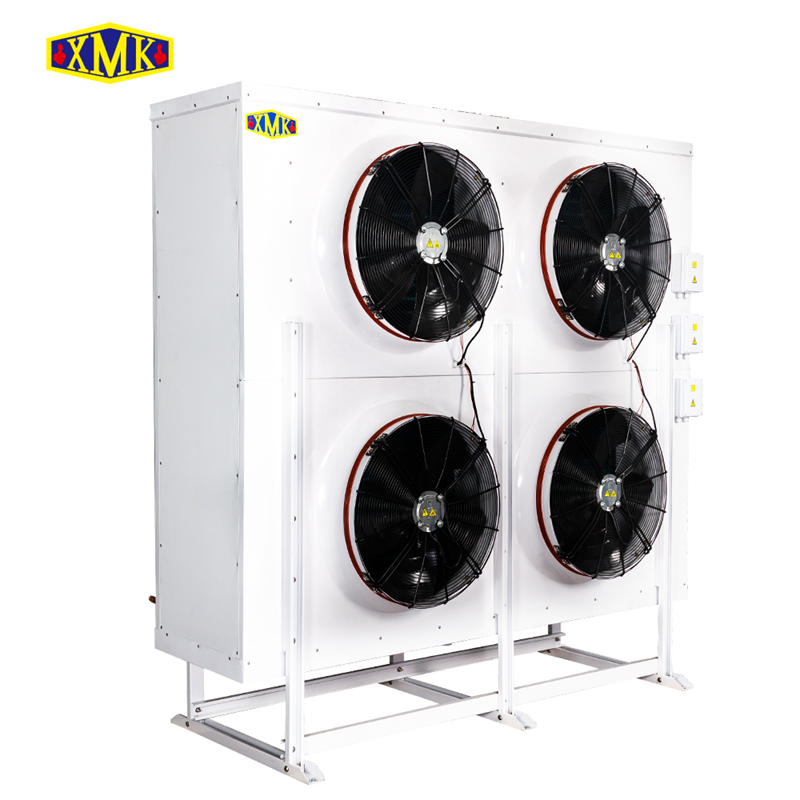

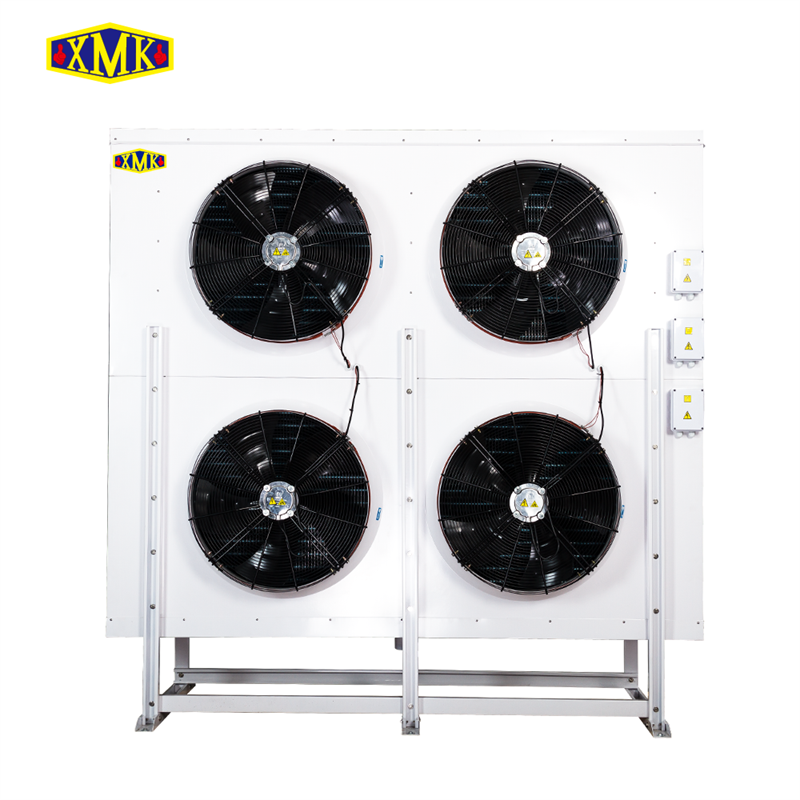

LQF series quick-frozen cold storage air cooler

LQF series quick-frozen cold storage air cooler apply for meat ,seafood or others cold storage freezer room. Total 3 type of fin spacing in 6.4mm, 10mm and 12mm to meet different cold room temperature requirement.

Fan blade diameter 630mm. voltage 380V



  • Item NO.:

    LQF141/463K
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    white
  • Shipping Port:

    Guangzhou

Product Feature

  • Casting:  Adopt high-quality steel plate with powder coating RAL9003

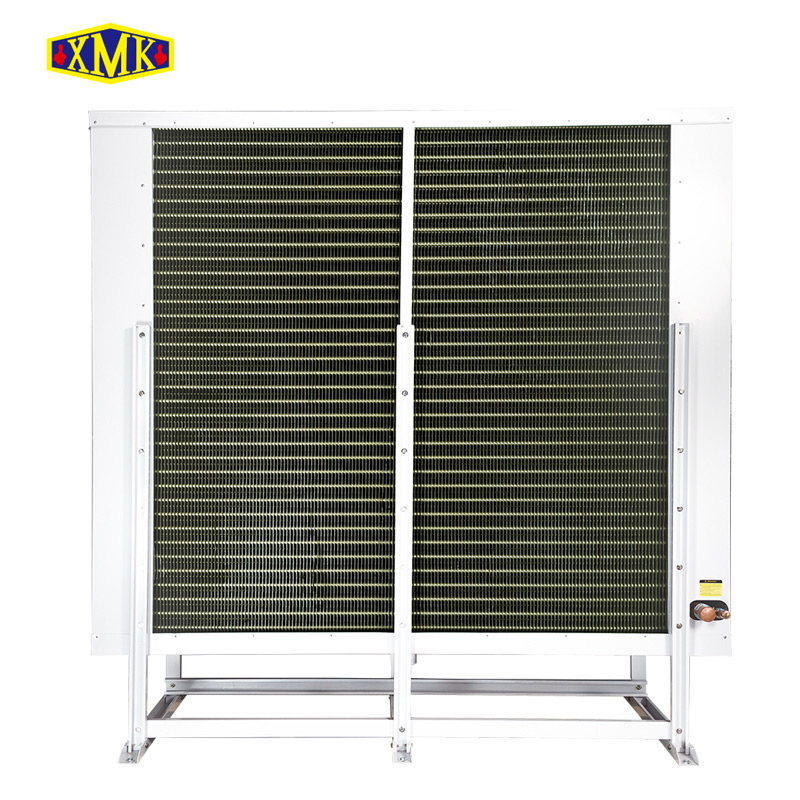

  • Heat exchanger coil : copper tubingφ15,spacing 50×50

Corrugated aluminium fins,fin spacing 6.4mm,10mm and 12mm

  • Defrosting : Electric defrosting,using stainless heating pipes, installed in the middle of coil and inner water plate.

Independent electric heating pipe junction box.

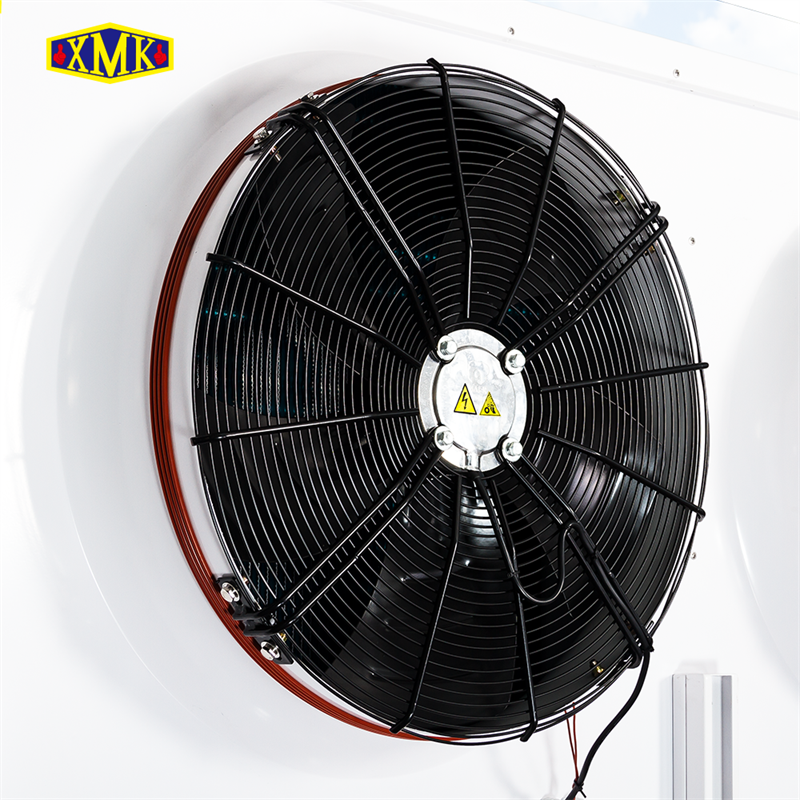

  • Fans : External rotor motor with blow wind type, high wind pressure design .

Working temperature -50°C to 60℃

Independent fans junction box

  • Refrigerants :  meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants



Specification

Model
R404A(kw)Capacity Surface Airflow Weight
Tc=0°C Tc=-18°C Tc=-35°C m2 m3/h kg
Fins spacing 6.4mm
LQF200/463L 48.8 39.0 31.7 200 38800 372
LQF250/463L 55.4 44.3 36.0 250 37200 298
LQF300/463L 62.0
49.6 40.3 300 35600
425
Fins spacing 10.0mm
LQF132/463J 35.6
28.4 23.5 132 40000 356
LQF165/463J 42.6 34.1 27.7 165 38400 379
LQF198/463J 49.6 39.6 32.2 198 60000 524
Fins spacing 12mm
LQF113/463K 31.6 25.2 20.5 113 40800 351
LQF141/463K 38.4 30.7 25.0 141 39200 373
LQF169/463K 45.2 36.2 29.4 169 37600 395
