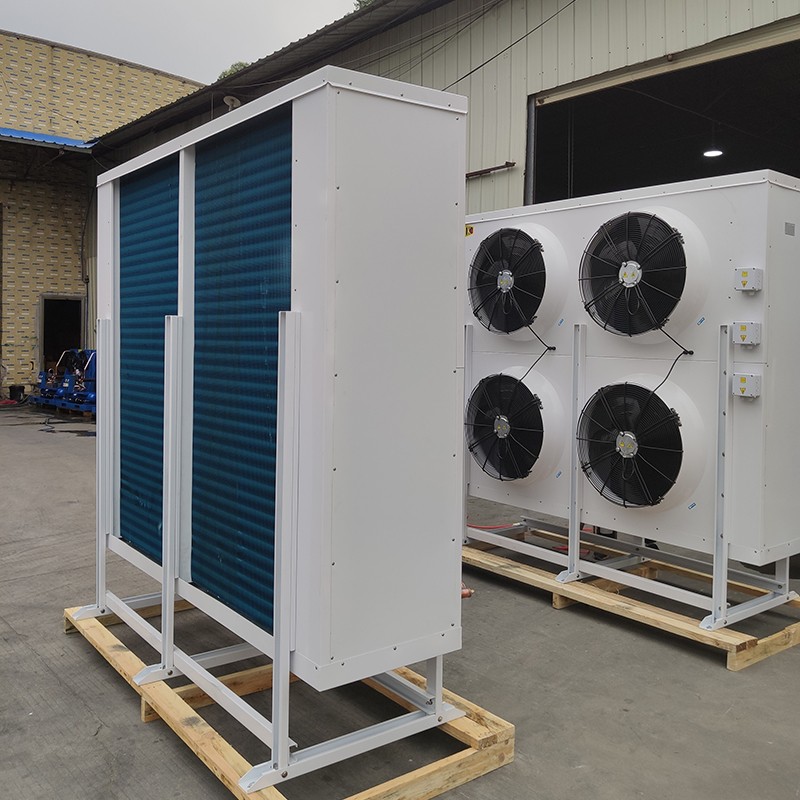

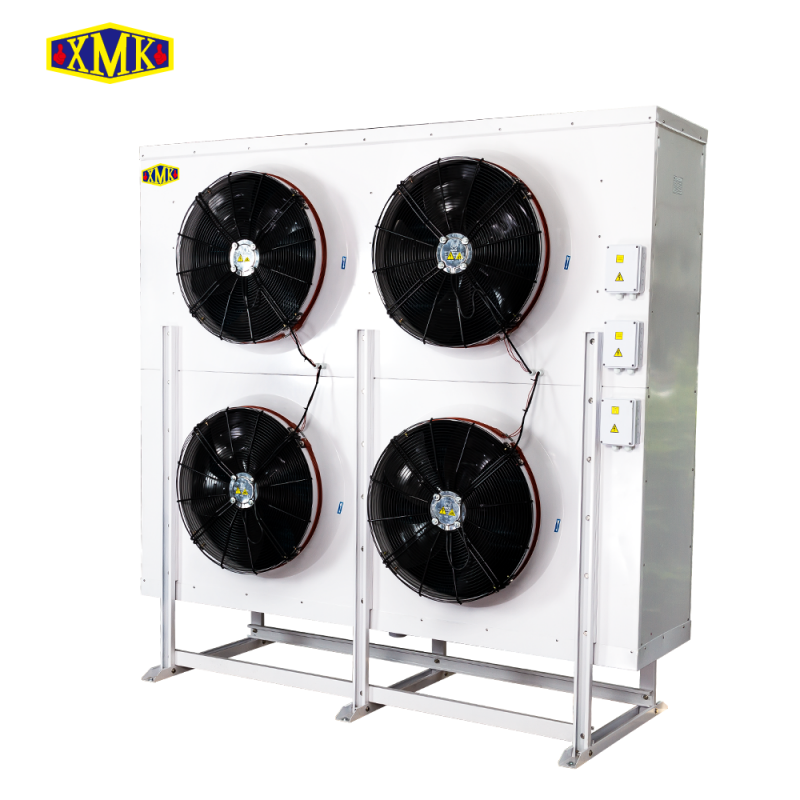

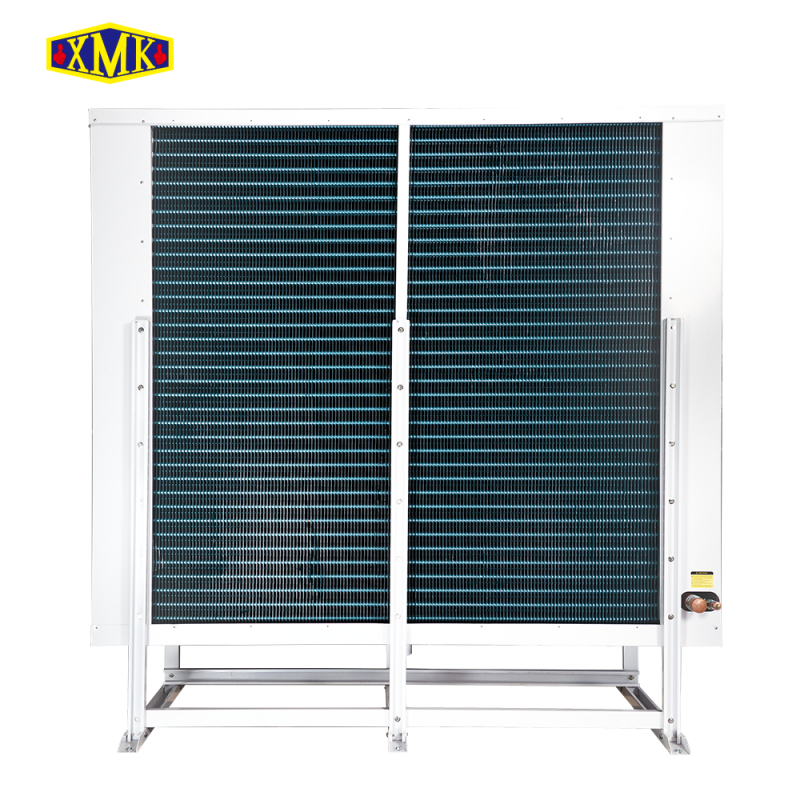

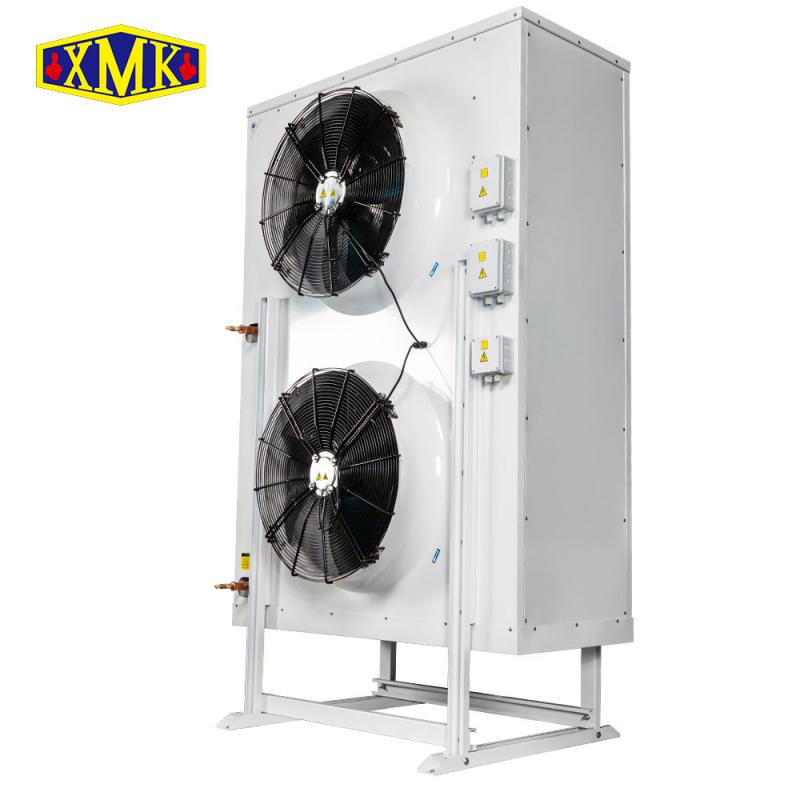

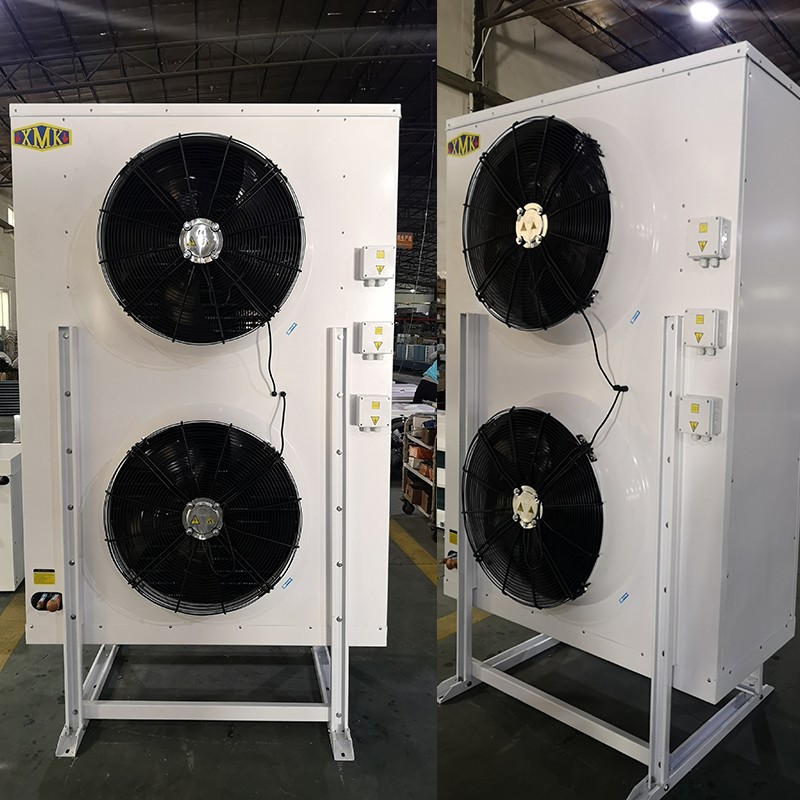

Frozen meat -25°C cold room evaporative air cooler

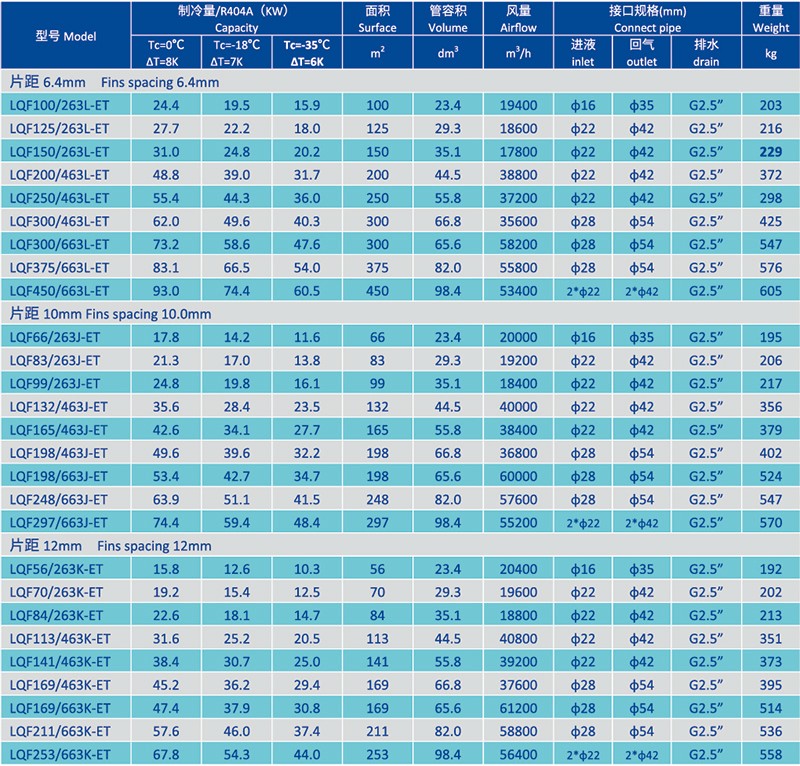

LQF series quick-frozen cold storage air cooler apply for meat ,seafood or others cold storage freezer room. Total 3 type of fin spacing in 6.4mm,10mm and 12mm to meet different cold room temperature requirement. Especially to -20°C to -35°C.

  • Item NO.:

    LQF198/463J
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    white
  • Shipping Port:

    Guangzhou
Working temperature-50°C  to 60°C
Product FeatureFast cooling,Energy saving, further air throw , lower noise , etc.
Material
Adopt high-quality steel plate with powder coating RAL9003 +Corrugated aluminium fins and copper tube
Fans motor
External rotor motor with blow wind type, high wind pressure design
Refrigerant
meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants

20.jpgquick cooling.jpg
