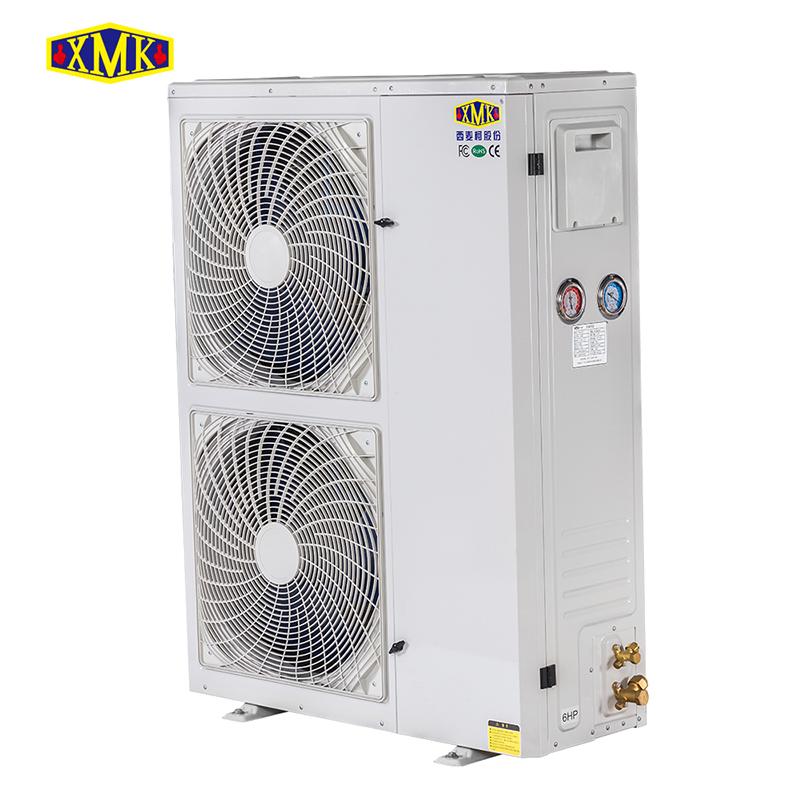

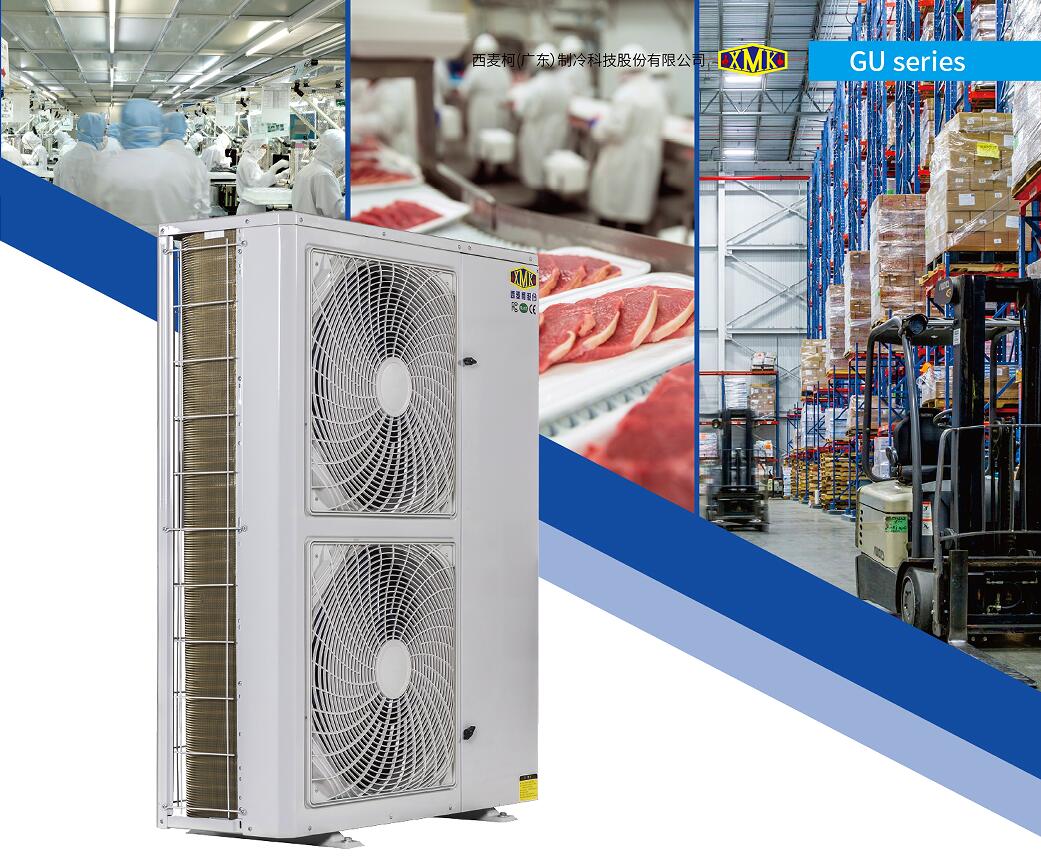

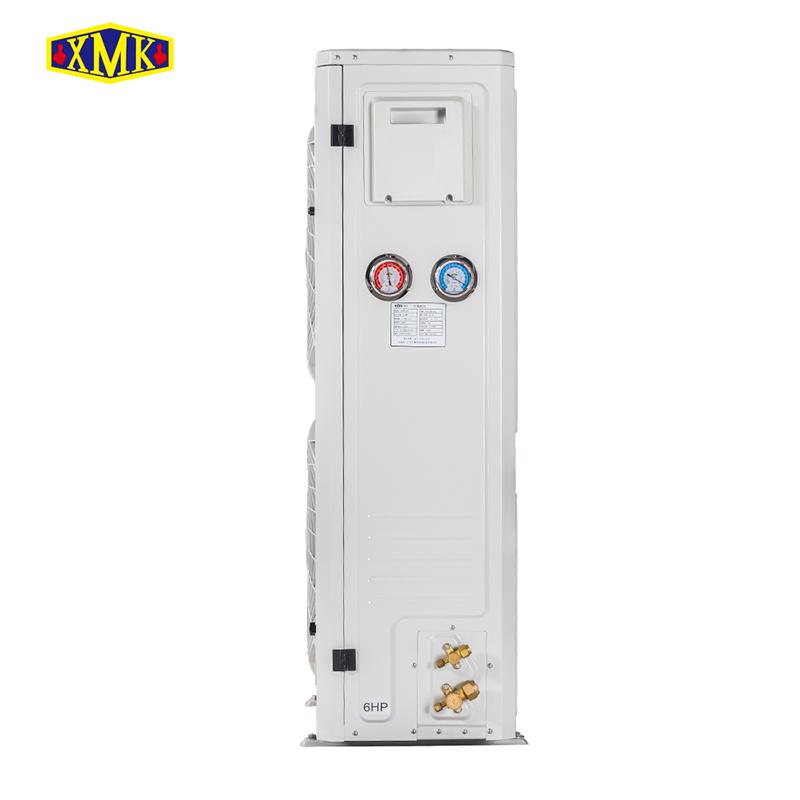

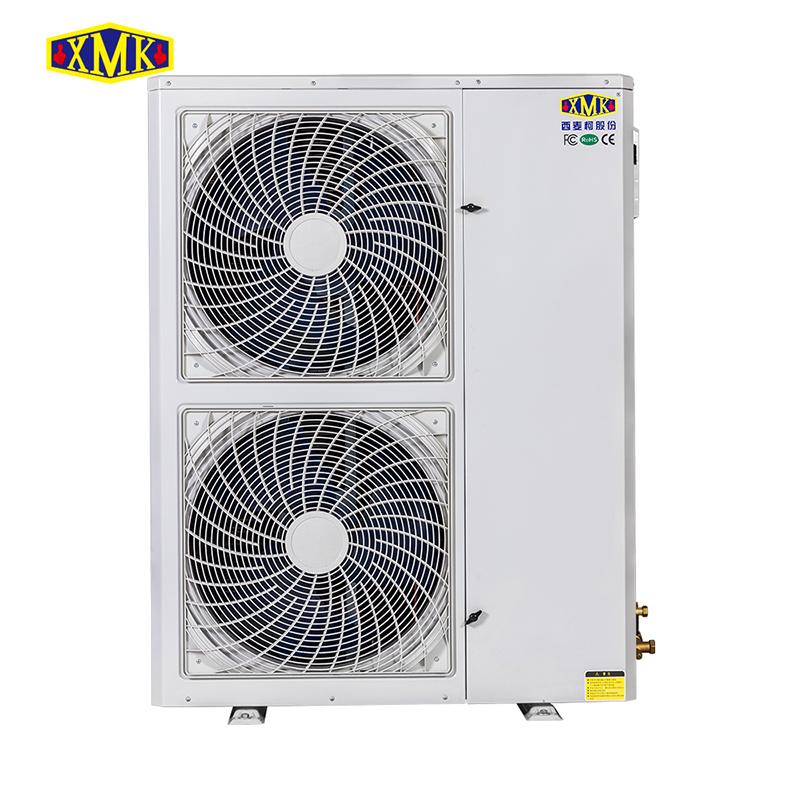

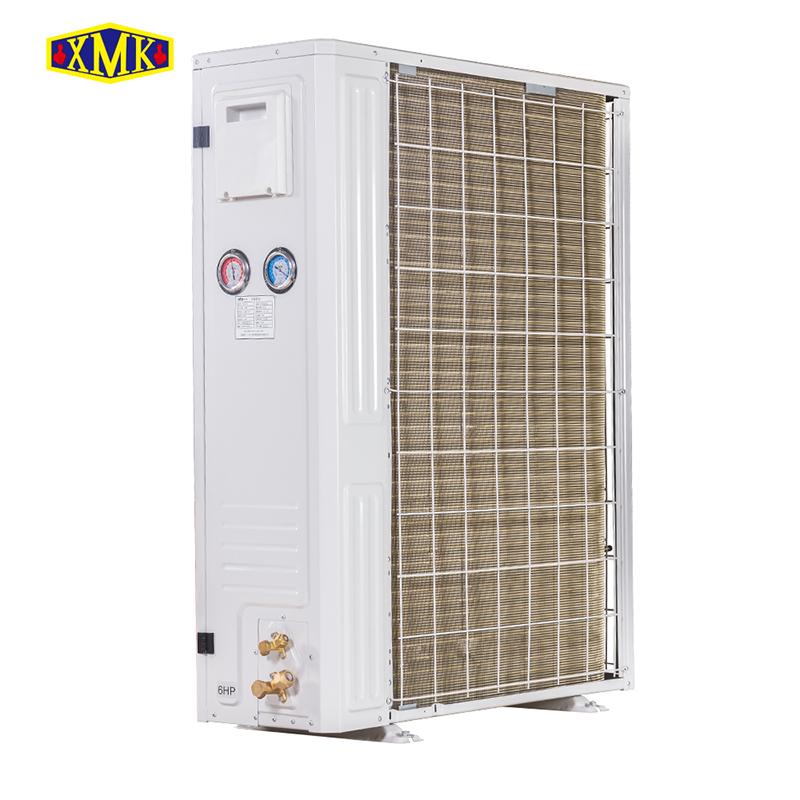

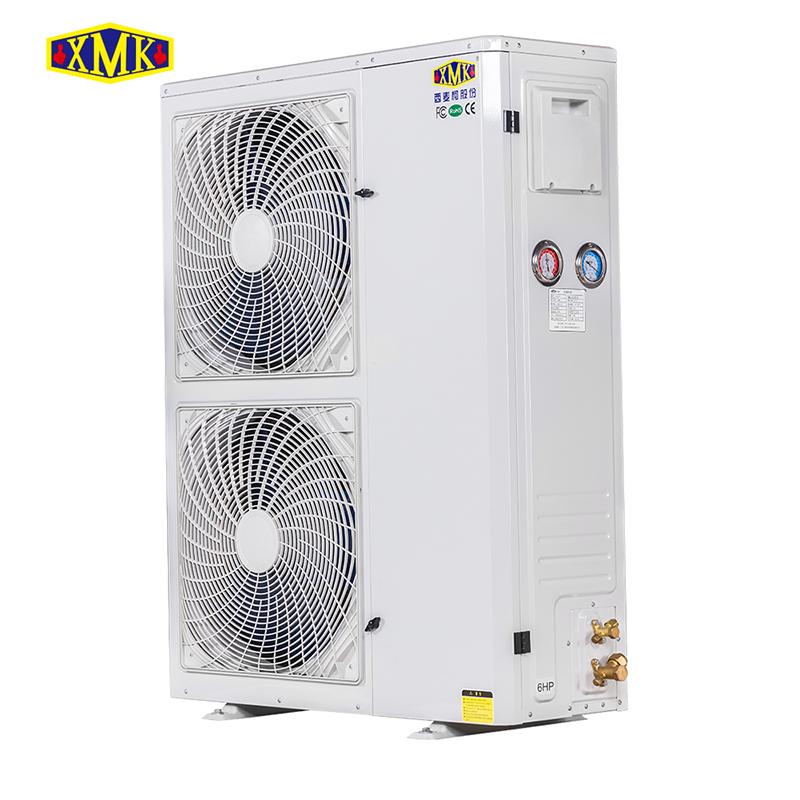

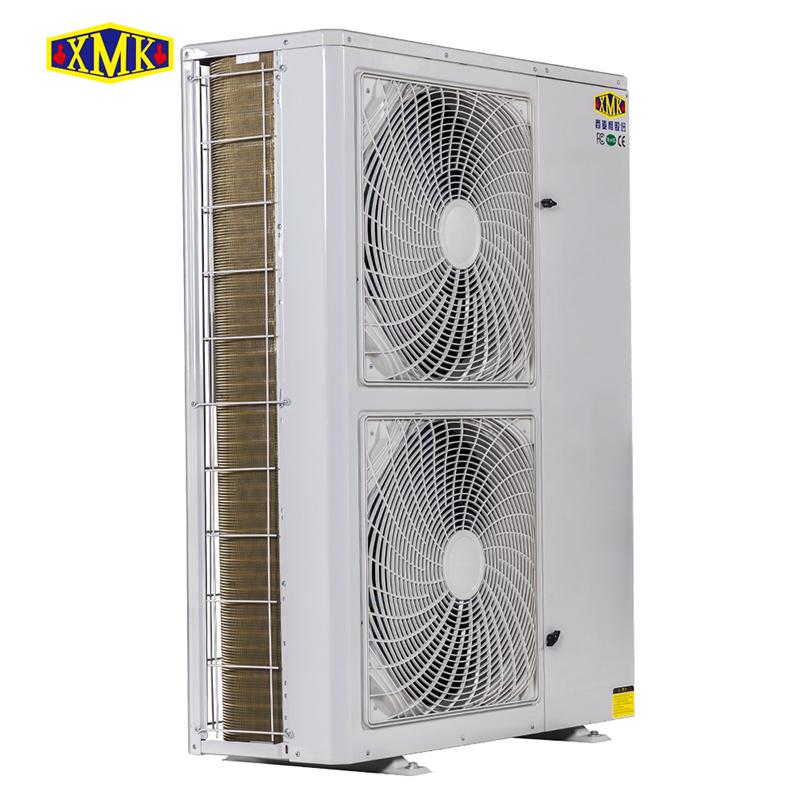

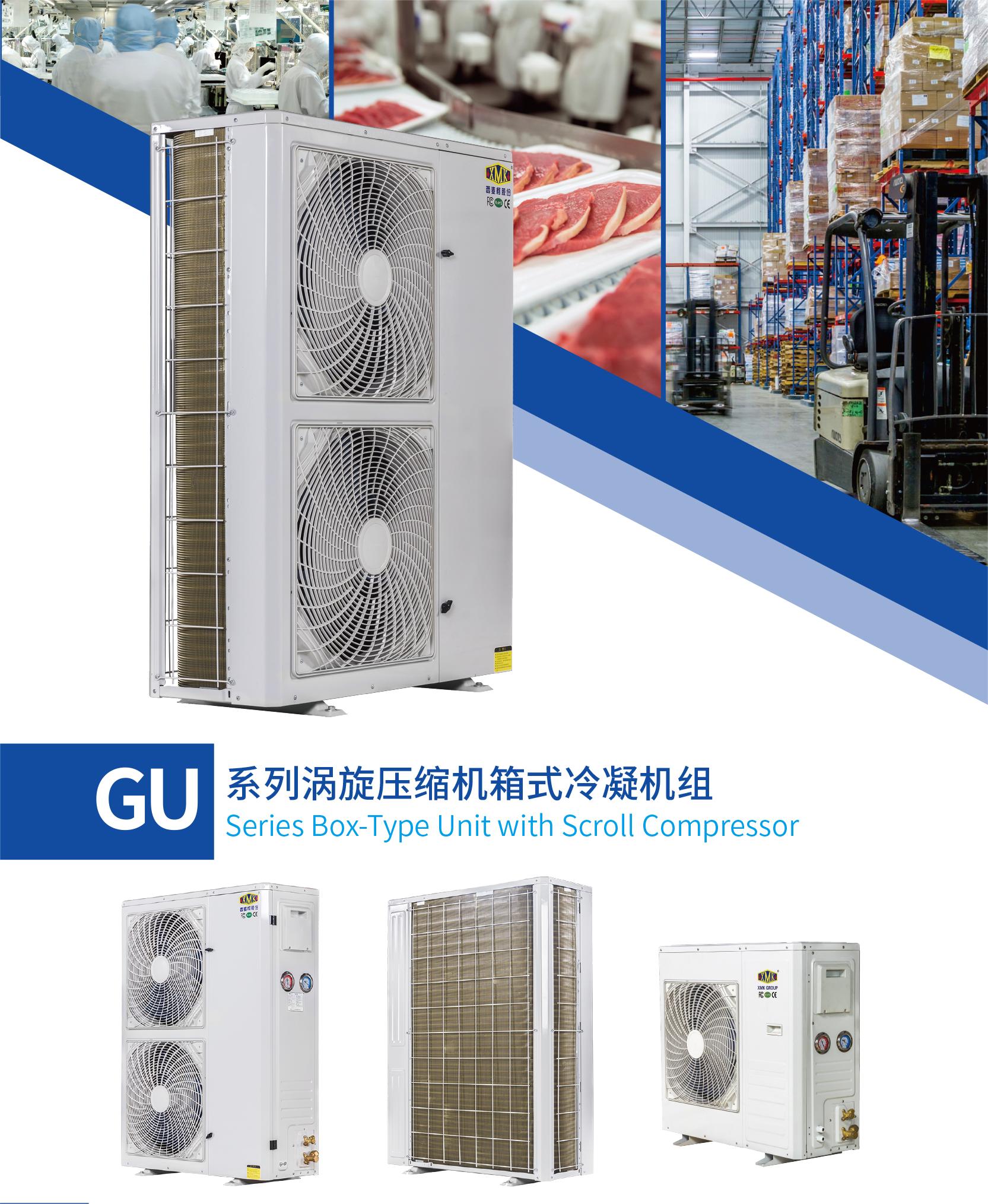

GU Series Box-Type Unit with Scroll Compressor

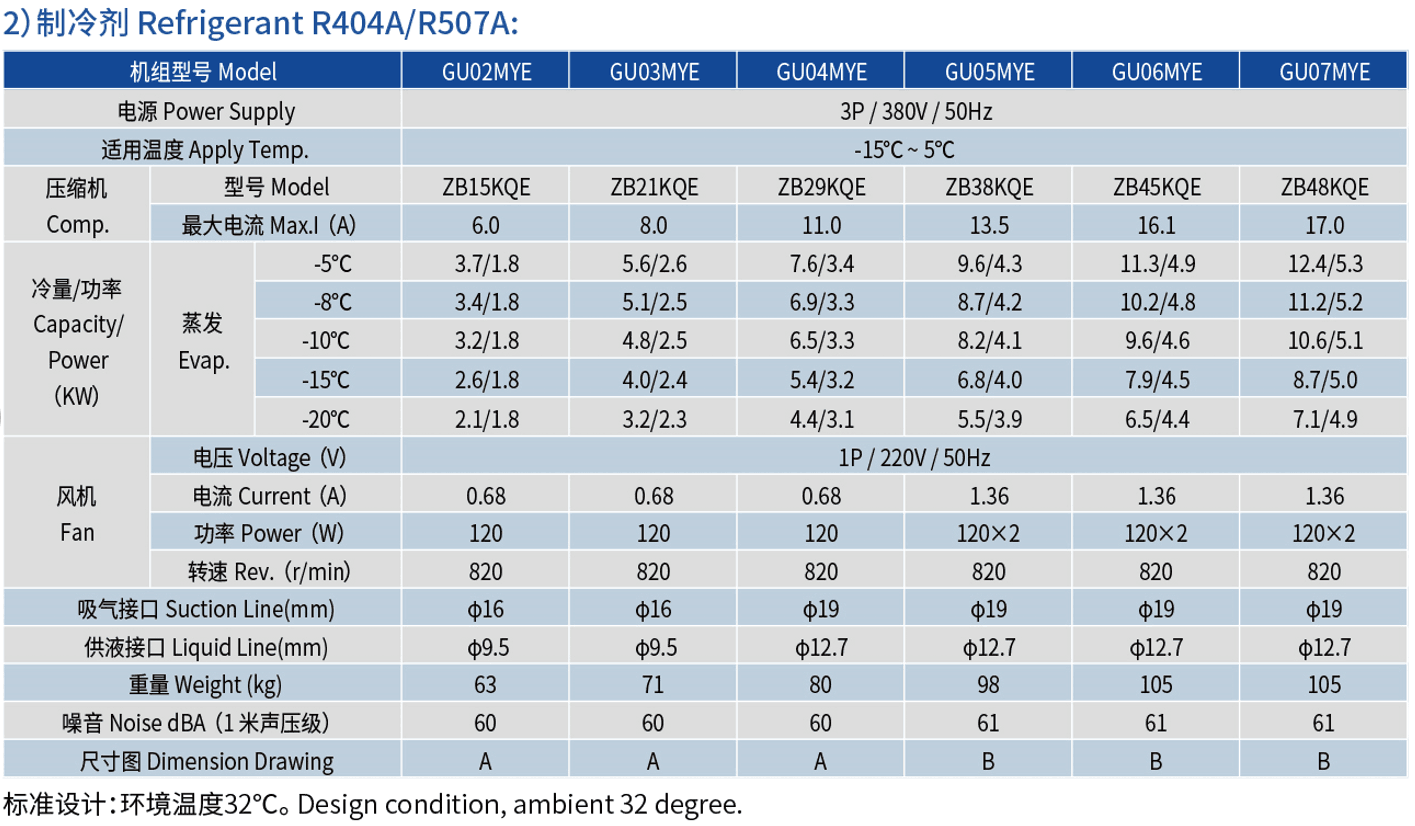

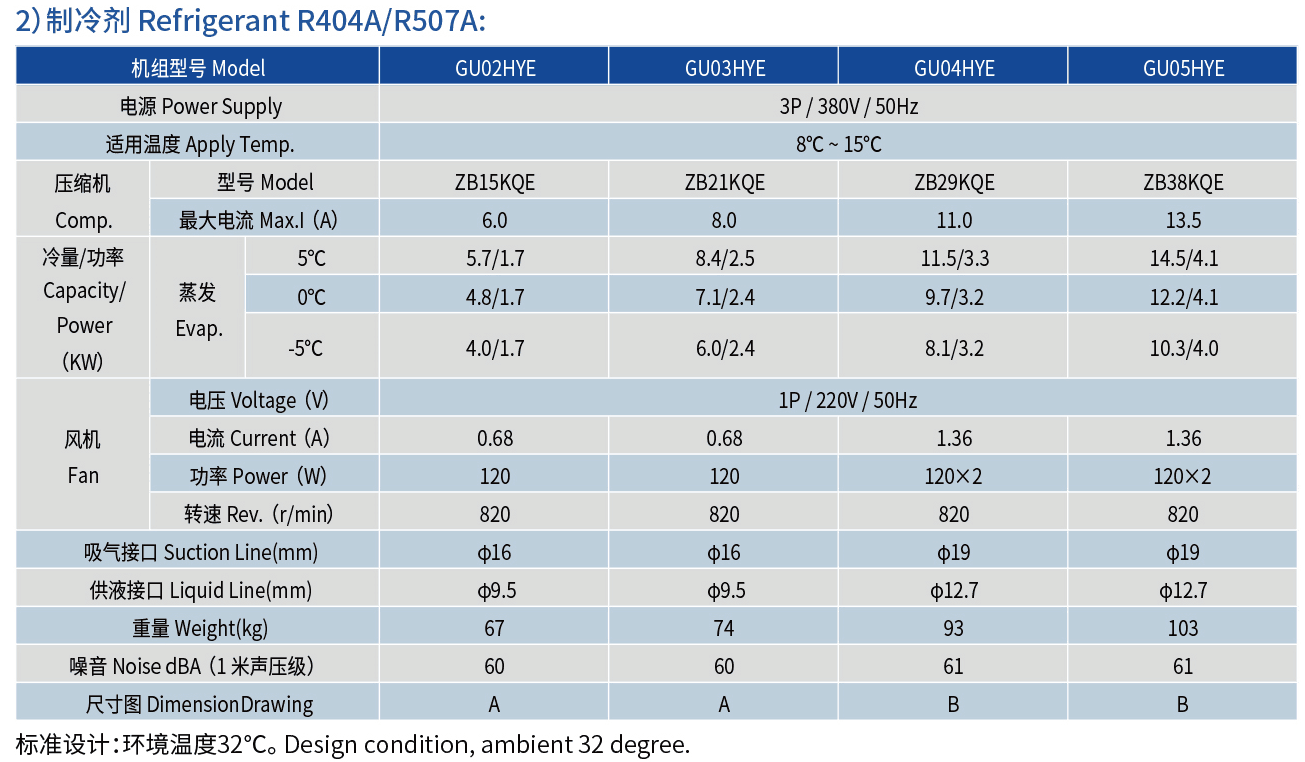

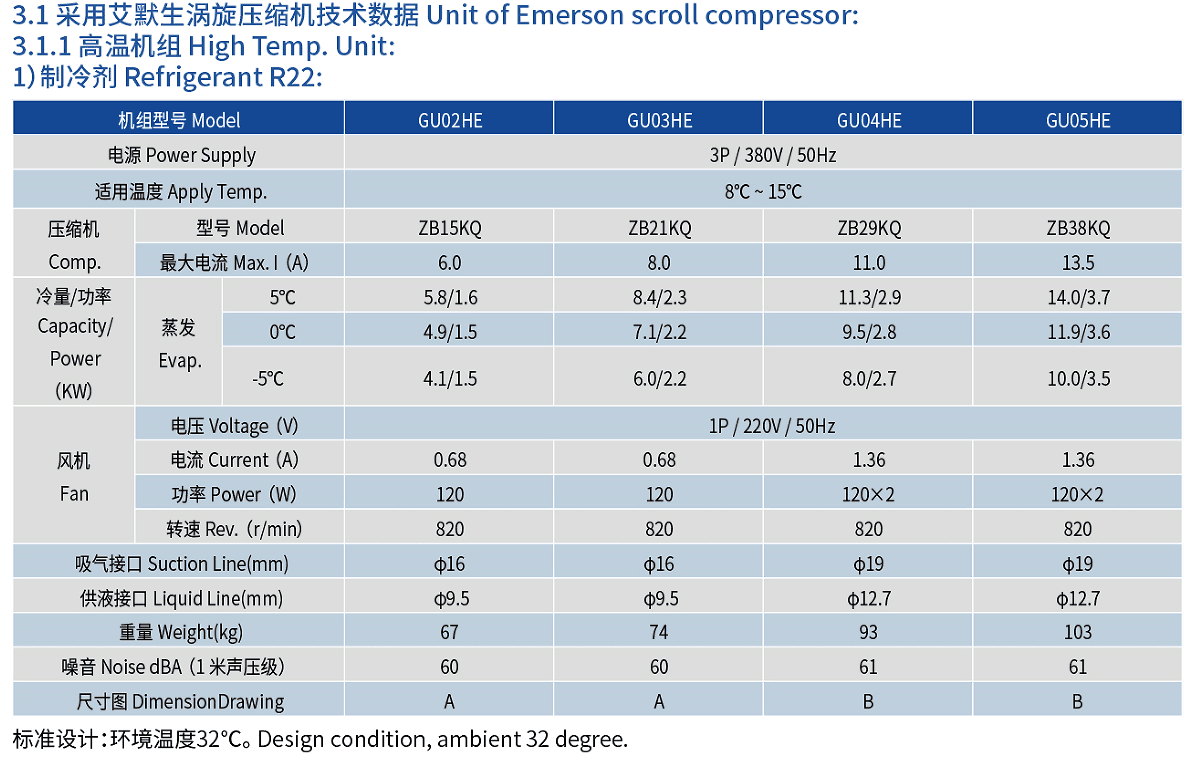

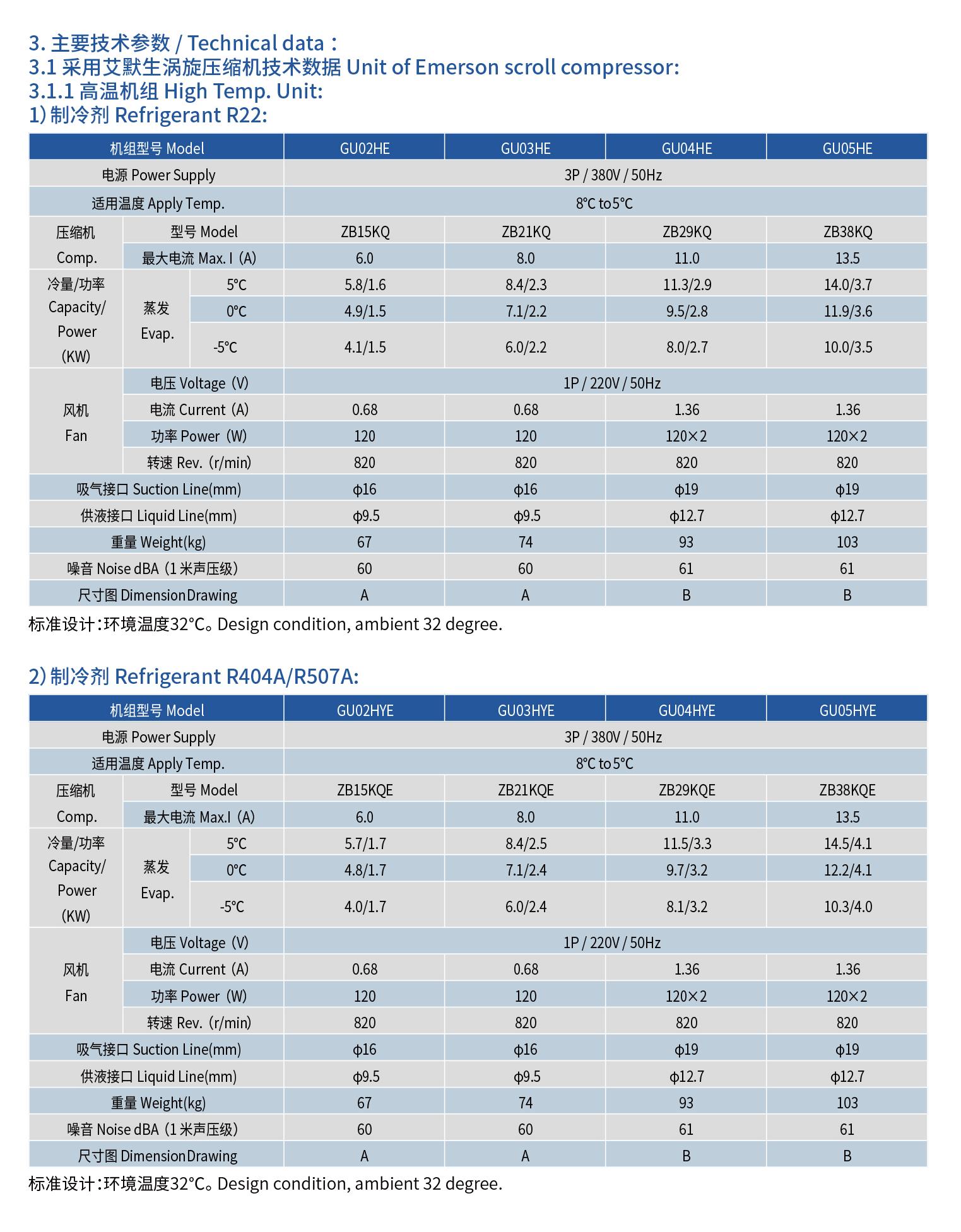

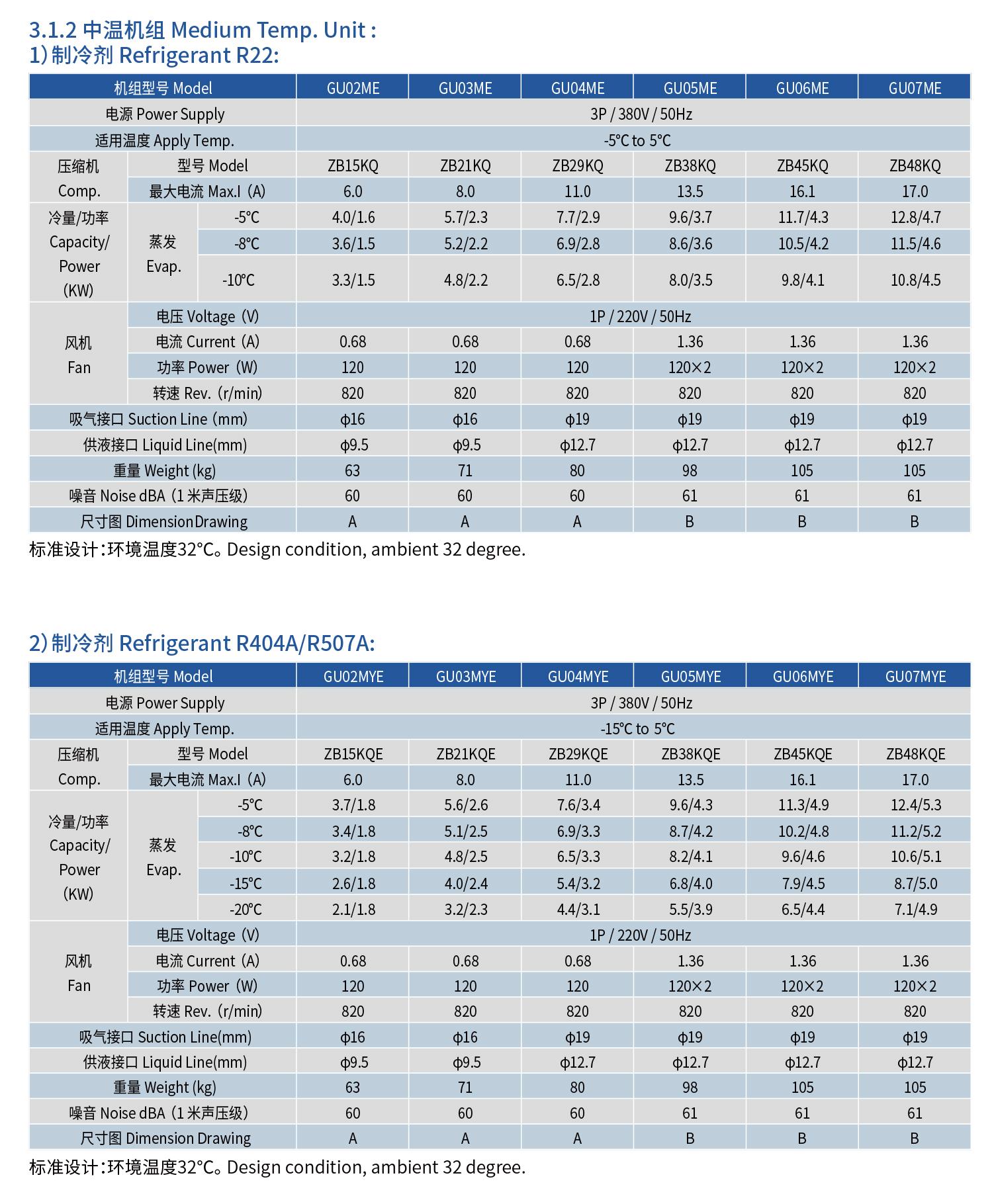

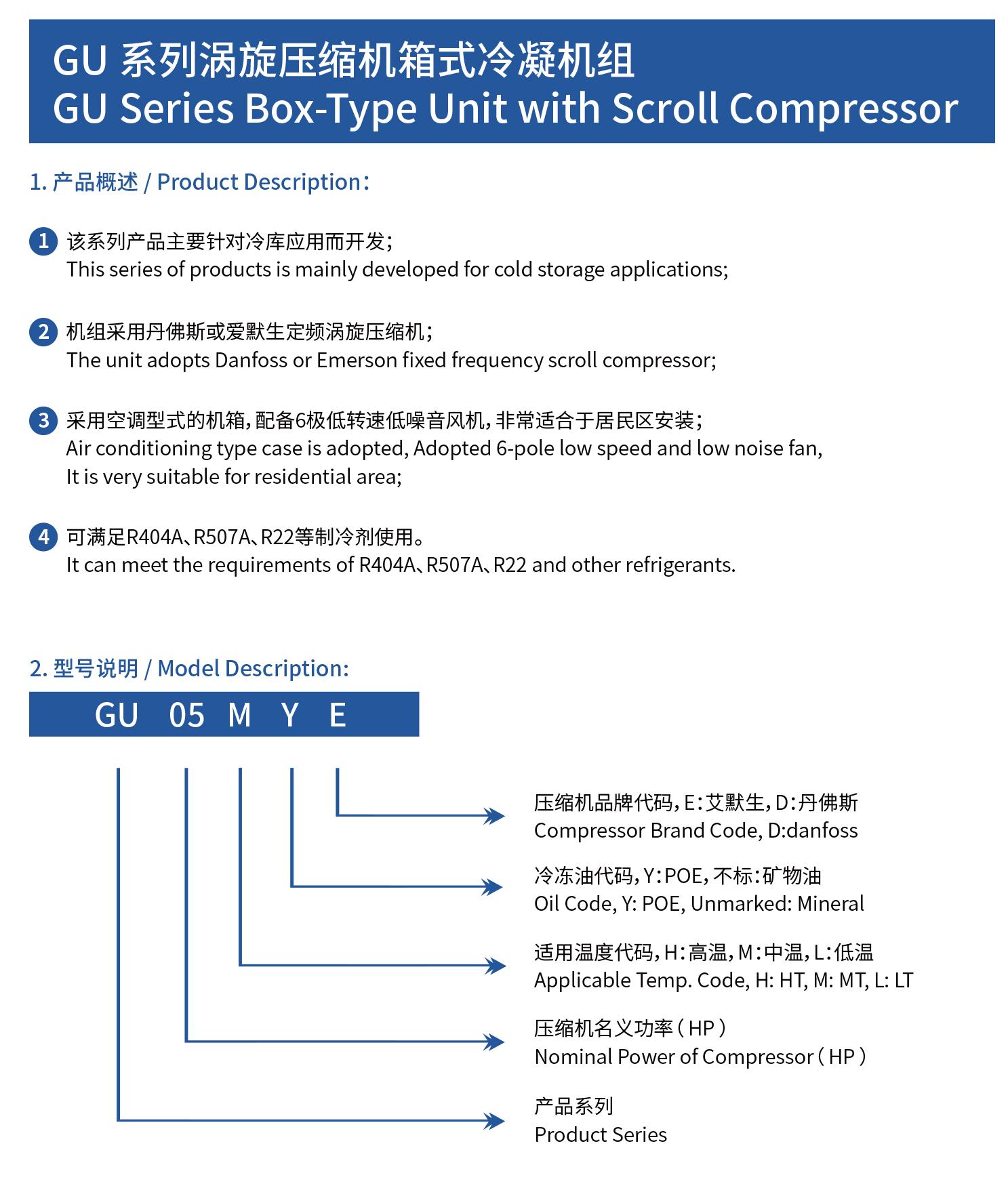

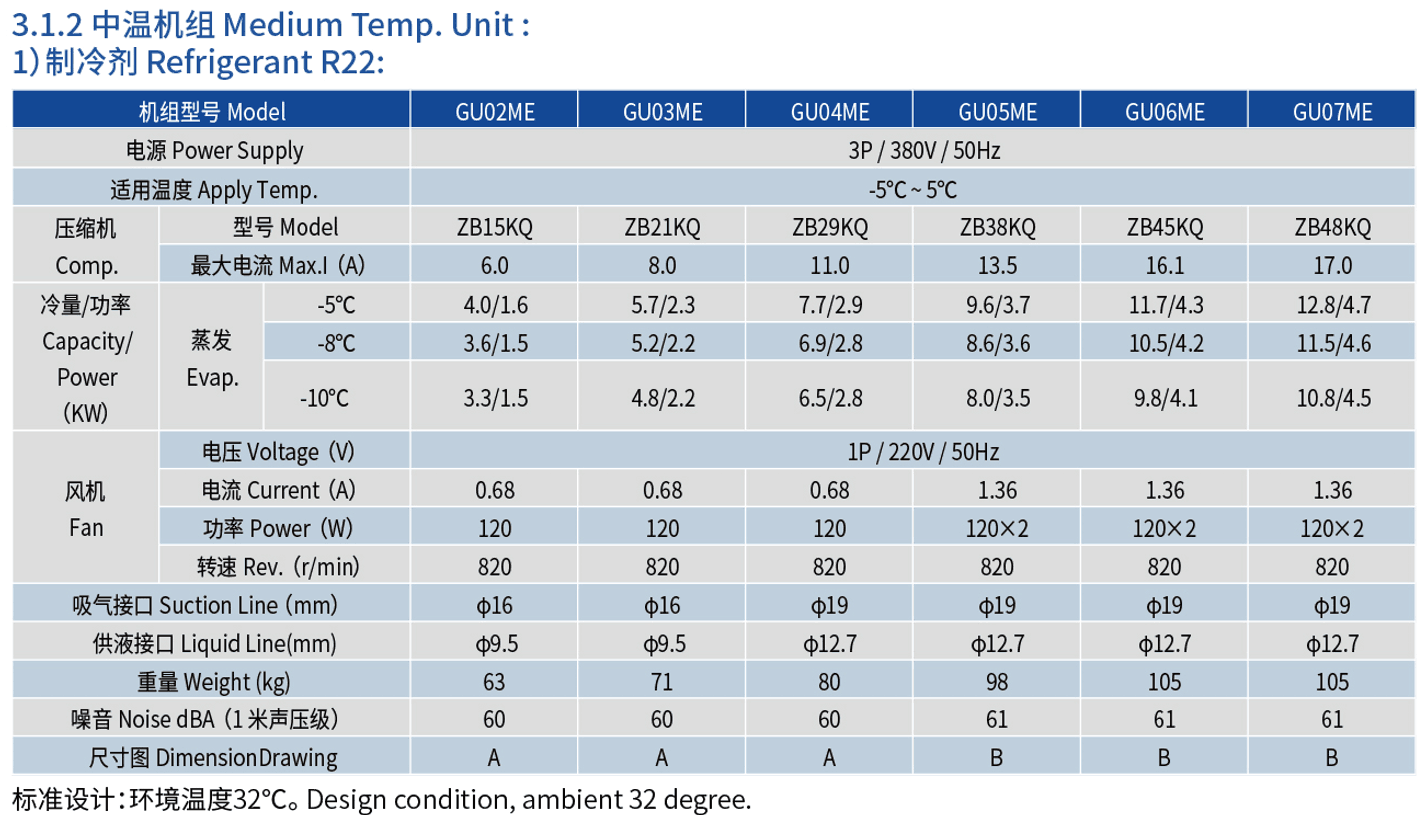

ZB15KQE Copeland ZB Scroll Compressor Box TypeProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants. Copeland ZB15KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to 5 degree Compressor Model ZB15KQE Compressor Max.I(A) 6 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight63Noise dBA655

ZB21KQE Copeland Condensing Unit Scroll Compressor Box TypeProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants. Copeland ZB21KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to 5 degree Compressor Model ZB21KQE Compressor Max.I(A) 8 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight71Noise dBA60

ZB29KQE Copeland Condensing Unit Scroll Compressor Box TypeProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants. Copeland ZB29KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to 5 degree Compressor Model ZB29KQE Compressor Max.I(A) 11 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight80Noise dBA60

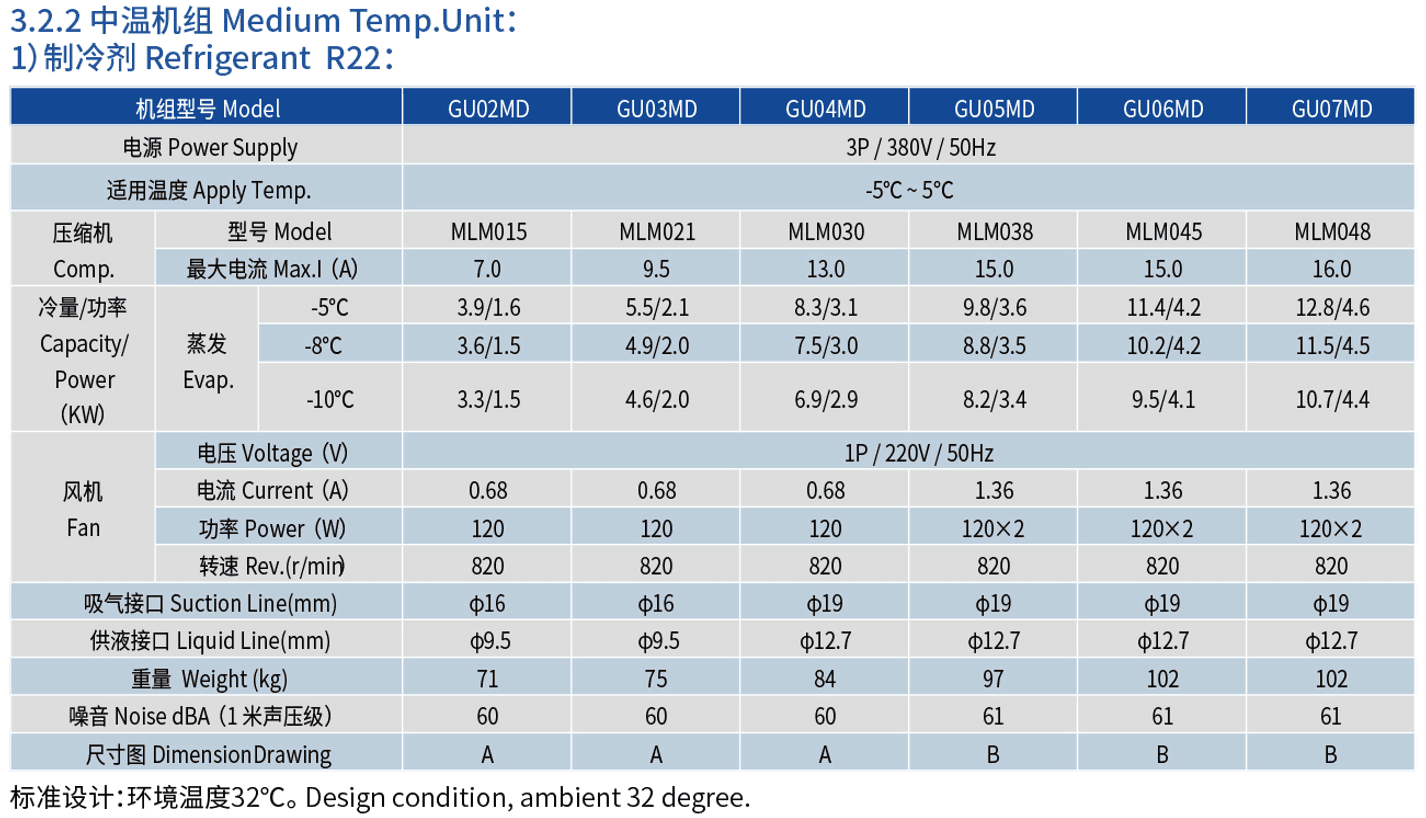

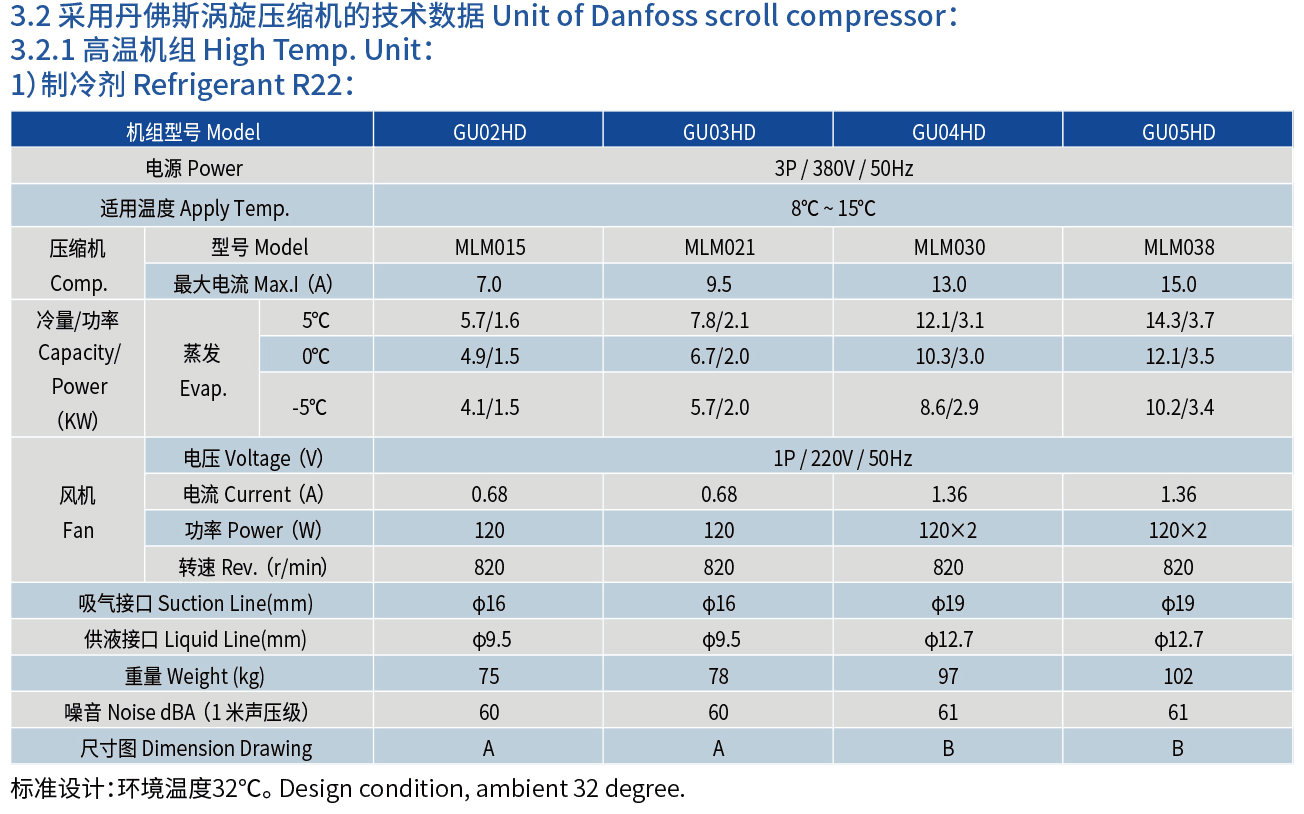

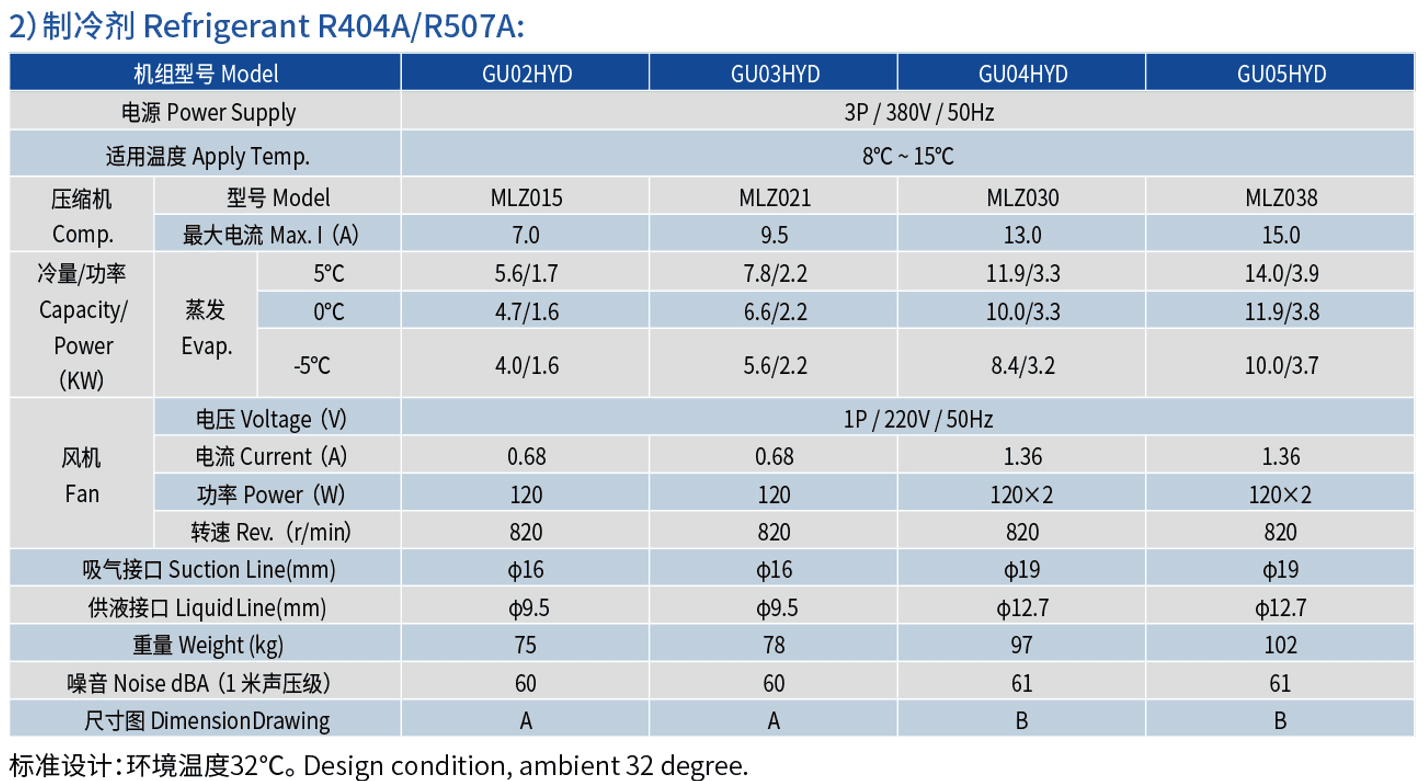

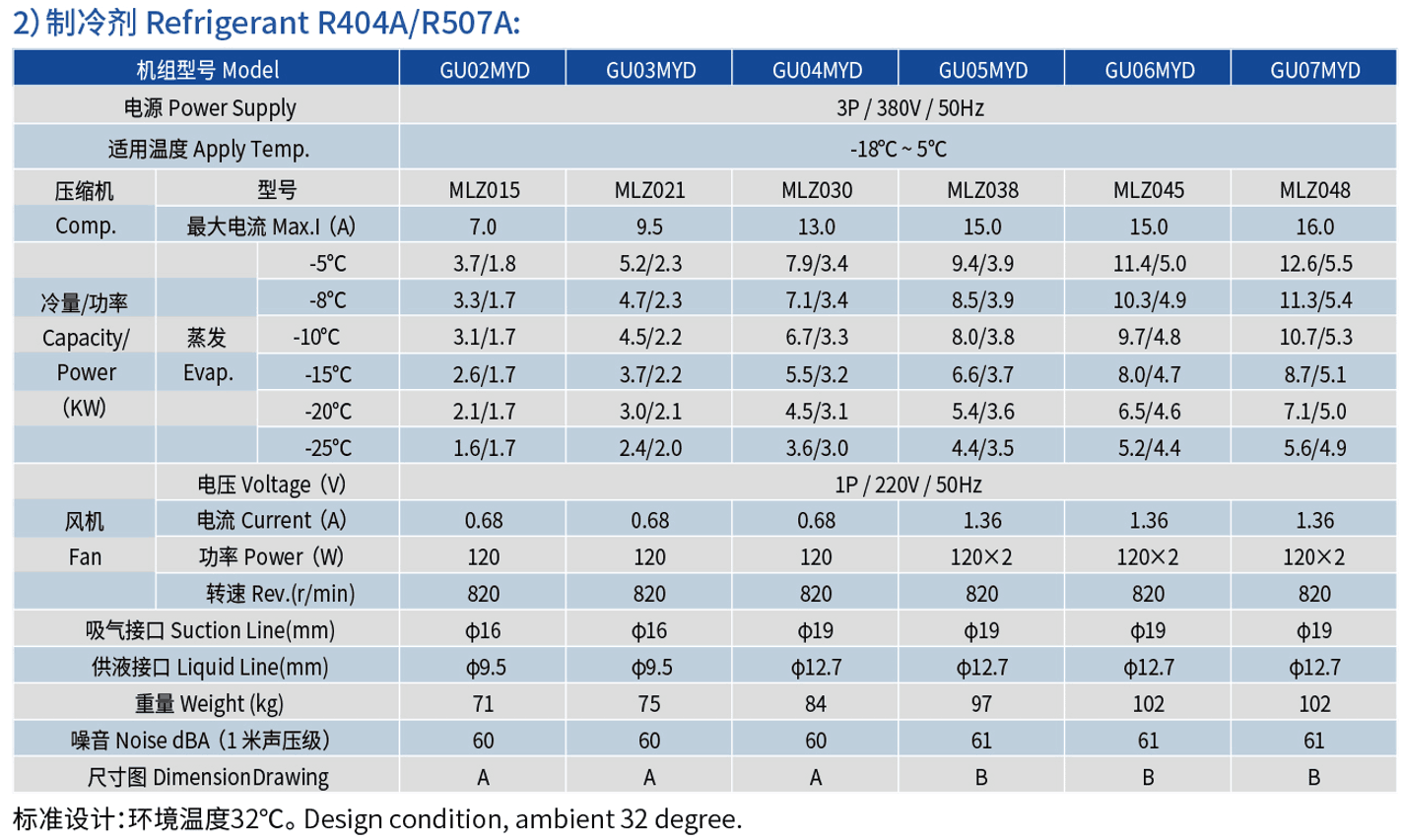

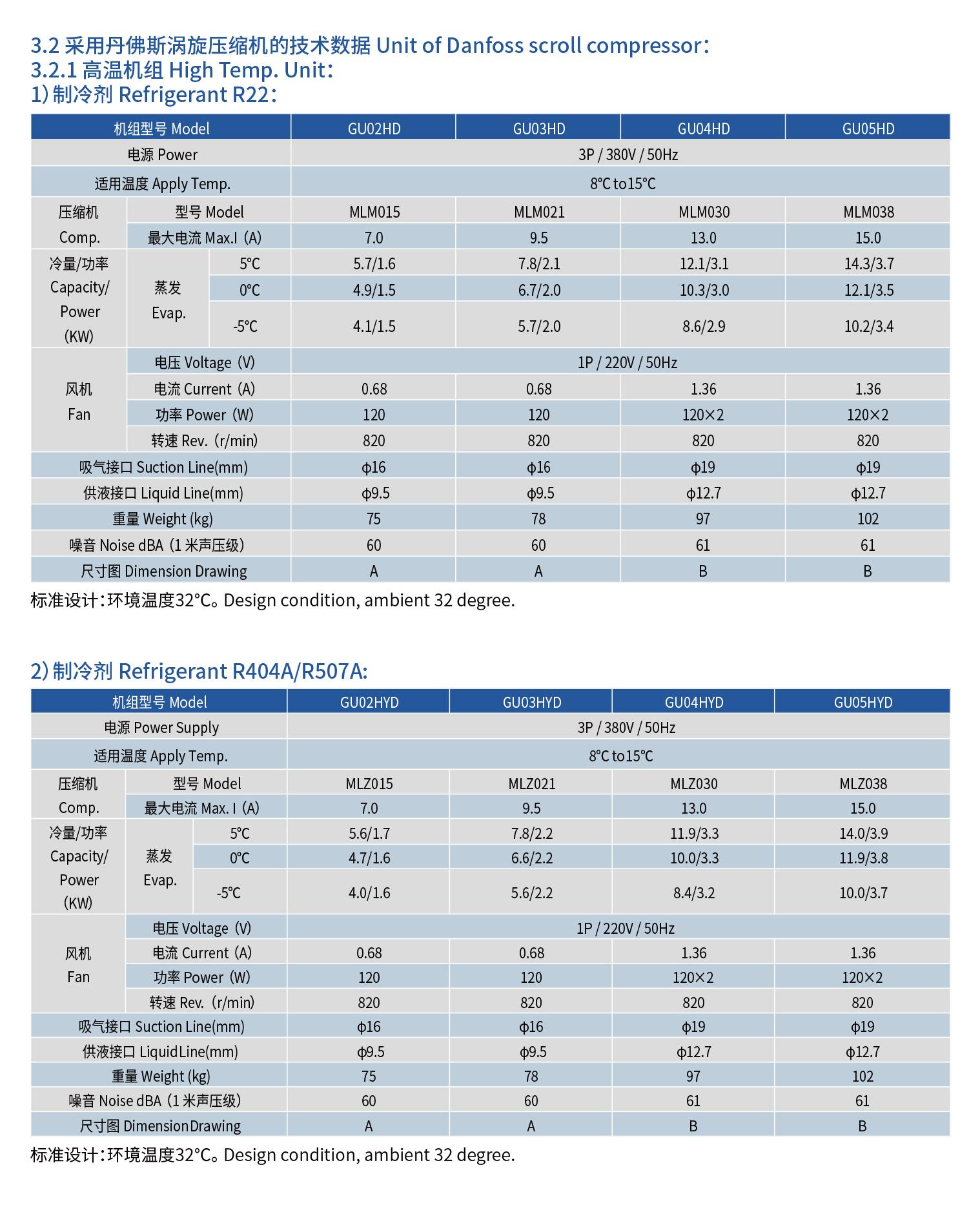

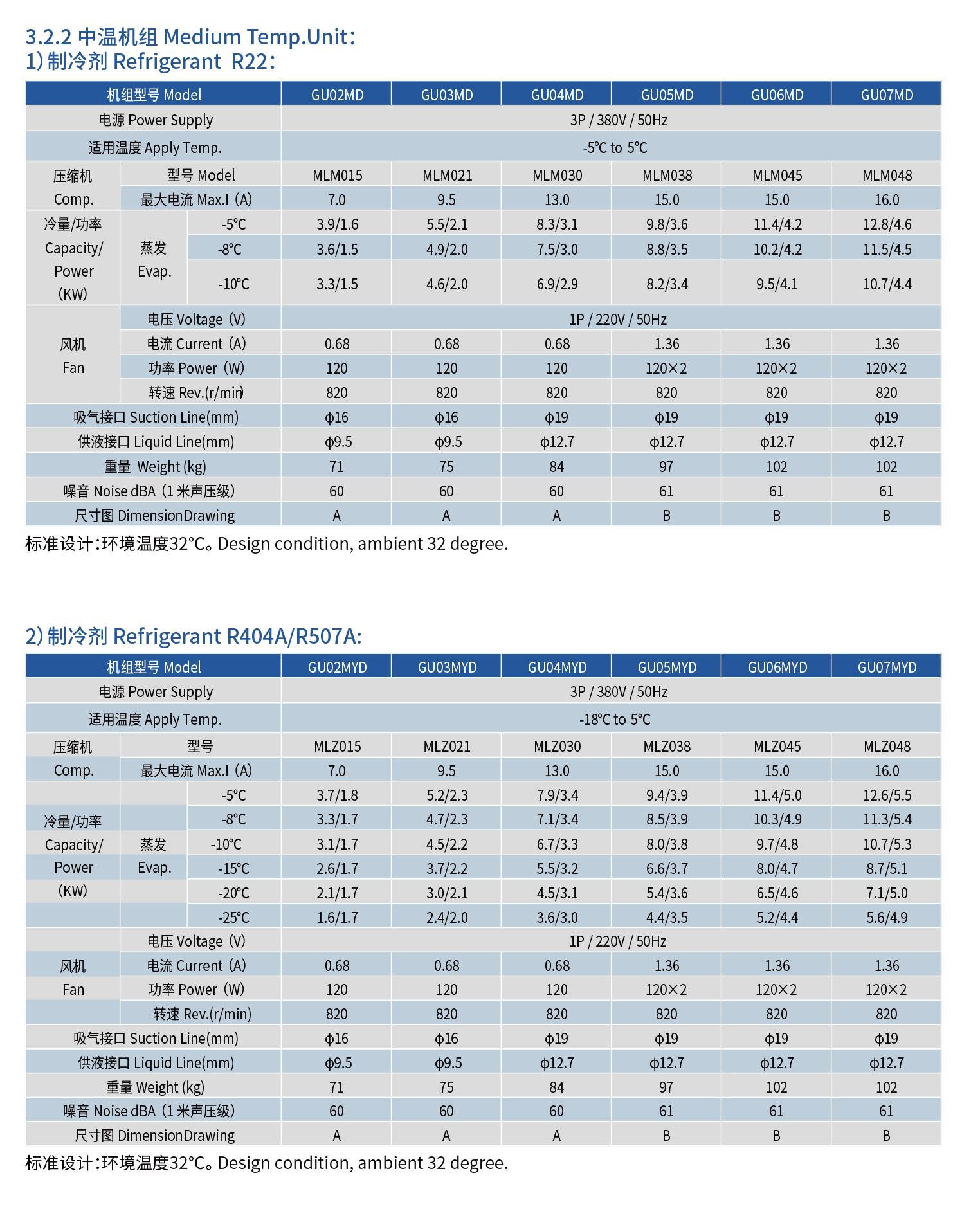

MLZ015 Danfoss Condensing Unit Scroll Compressor Box TypeProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ015 Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ015 Compressor Max.I(A) 7 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight71Noise dBA60

MLZ21 Danfoss Scroll Compressor Condensing UnitProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ021 Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ021 Compressor Max.I(A) 9.5 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight75Noise dBA60

MLZ030 Freezer Compressor Condensing UnitProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants. Danfoss MLZ030 Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ030 Compressor Max.I(A) 13 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight75Noise dBA84

ZB38KQE Copeland Scroll Compressor UnitProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants. Copeland ZB38KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model ZB38KQE Compressor Max.I(A) 13.5 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 1.36 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight98Noise dBA61

ZB45KQE Freezer Copeland Scroll Compressor UnitProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants. Copeland ZB45KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model ZB45KQE Compressor Max.I(A) 16.1 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 1.36 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight105Noise dBA61

MLZ038 Freezer Copeland Scroll Compressor Condensing UnitProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ038 Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ038 Compressor Max.I(A) 15 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 1.36 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight97Noise dBA61
