Sandwich PU panels, LED light for cold room and spare parts for condensing unit

  • Oil Separator
    Oil Separator
    XMK-5201 1/2 ODF Oil Separator Refrigeration
    XMK-5201 1/2 ODF Oil Separator RefrigerationWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.
  • Oil Separator Air Condition
    Oil Separator Air Condition
    5/8 ODF Oil Separator Air Condition And Refrigeration Spare Parts
    XMK-5202 5/8 ODF Oil Separator Refrigeration For Condensing UnitWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.
  • Liquid Accumulator
    Liquid Accumulator
    XMK-204 1/2 ODF Liquid Accumulator Refrigeration Parts
    XMK-204 Liquid Accumulator Refrigeration PartsHas stronger construction. It maximize prevents the refrigerant lost.The liquid accumulator separator is designed with internal bend pipes to prevent from internal splashing and help the aggregation of the oil at the bottom of the separator.The separator shall be installed as nearer to the compressor as possible.ModelConnector sizeXMK-2041/2 ODFXMK-2055/8 ODFXMK-2063/4 ODFXMK-2077/8 ODFXMK-208/2111-1/8 ODFXMK-209/2131-3/8 ODFXMK-210/2151-5/8 ODFXMK-2212-1/8 ODFFeatures:1. “U” tube design for maximum flow of refrigerant and minimum oil entrapment;2. Saving refrigerant;3. Metering Orifice matched to system capacity assures optimum liquid refrigerant and oil flow back to compressor.4. Exterior corrosion resistant static electrical painting process protecting the shell from the rust.5. Maximum working pressure: 3.0 Mpa.
  • Liquid Accumulator Part
    Liquid Accumulator Part
    XMK-205 5/8 ODF Liquid Accumulator HVAC Spare Part
    XMK-205 Liquid Accumulator Refrigeration Parts For Condensing UnitHas stronger construction. It maximize prevents the refrigerant lost.The liquid accumulator separator is designed with internal bend pipes to prevent from internal splashing and help the aggregation of the oil at the bottom of the separator.The separator shall be installed as nearer to the compressor as possible.ModelConnector sizeXMK-2041/2 ODFXMK-2055/8 ODFXMK-2063/4 ODFXMK-2077/8 ODFXMK-208/2111-1/8 ODFXMK-209/2131-3/8 ODFXMK-210/2151-5/8 ODFXMK-2212-1/8 ODFFeatures:1. “U” tube design for maximum flow of refrigerant and minimum oil entrapment;2. Saving refrigerant;3. Metering Orifice matched to system capacity assures optimum liquid refrigerant and oil flow back to compressor.4. Exterior corrosion resistant static electrical painting process protecting the shell from the rust.5. Maximum working pressure: 3.0 Mpa.
  • Oil Separator
    Oil Separator

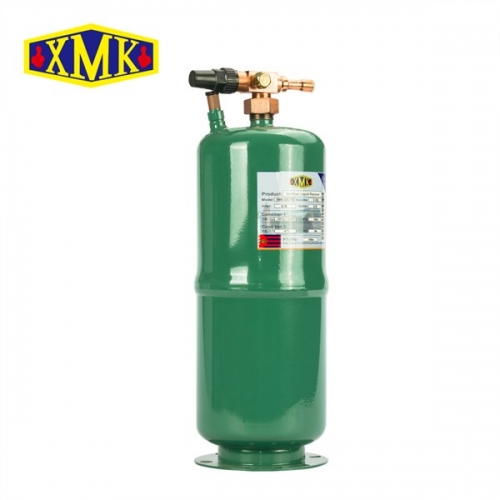

    XMK-133 3/8 vertical Liquid Receiver Refrigeration
    XMK-133 3/8 vertical Liquid Receiver Refrigeration The liquid receiver acts as a stock of liquid refrigerant for the evaporators, located after the condenser in a refrigeration system.The selection of receiver size should be based on refrigerant charge in the system, and it also should be sized to hold the full system charge during service work, the capacity of each liquid receiver listed on Technical data sheet below.ModelConnector sizeXMK-1333/8XMK-2333/8XMK-3333/8XMK-4441/2XMK-6441/2XMK-8441/2XMK-10555/8XMK-12555/8XMK-14555/8Production Introduction:1.Designed for refrigerant storage in system’s normal operation or maintaining.2.System adjustment is allowed to suit with different condition or loading.3.Compatible with HFC, CFC, CFC and associated oils and additives4. Assemble a high quality rotator valve or safety valve.
  • liquid receiver refrigeration
    liquid receiver refrigeration
    2L XMK-233 Liquid Receiver Tank Refrigeration Spare Parts
    XMK-233 2L vertical Liquid Receiver Refrigeration Spare PartsThe liquid receiver acts as a stock of liquid refrigerant for the evaporators, located after the condenser in a refrigeration system.The selection of receiver size should be based on refrigerant charge in the system, and it also should be sized to hold the full system charge during service work, the capacity of each liquid receiver listed on Technical data sheet below.ModelConnector sizeXMK-1333/8XMK-2333/8XMK-3333/8XMK-4441/2XMK-6441/2XMK-8441/2XMK-10555/8XMK-12555/8XMK-14555/8Production Introduction:1.Designed for refrigerant storage in system’s normal operation or maintaining.2.System adjustment is allowed to suit with different condition or loading.3.Compatible with HFC, CFC, CFC and associated oils and additives4. Assemble a high quality rotator valve or safety valve.
  • meat refrigerated cold storage
    meat refrigerated cold storage
    Meat refrigerated pork beef cold storage room
    Whether your need is large scale coolers ,processing room, walk in freezer cold storage or greenhouse storage, whole cooling system products we can provide and you just need to tell us  :1.The Length * Wide * High(m) of the cold room .2. The room temperature you want ? Or what do you want to refrigerate ? 3. If there any other special requirement for voltage ? And then we will provide you full quotation sheet ,thank you !
  • refrigerated storage cold room
    refrigerated storage cold room
    Vegetable fruit refrigerated storage cold room equipment
    Whether you want any equipment for your vegetable or fruit refrigerated cold storage which over -5°C , we can provide whole cooling system products include condensing unit, air cooler, PU panel ,door and all accessories to you , and you just need to tell us :1.The Length * Wide * High(m) of the cold room .2. The room temperature you want ? Or what do you want to refrigerate ? 3. If there any other special requirement for voltage ?
  • freezer room cold storage
    freezer room cold storage
    Cold storage facilities for freezer room cold storage
    Whether your need is cold storage faclities , refrigeration equirpment for Icehouse, walk in freezer room cold storage or seafood storage, whole cooling system products we can provide and you just need to tell us :1.The Length * Wide * High(m) of the cold room .2. The room temperature you want ? Or what do you want to refrigerate ? 3. If there any other special requirement for voltage ?
