2L XMK-233 Liquid Receiver Tank Refrigeration Spare Parts

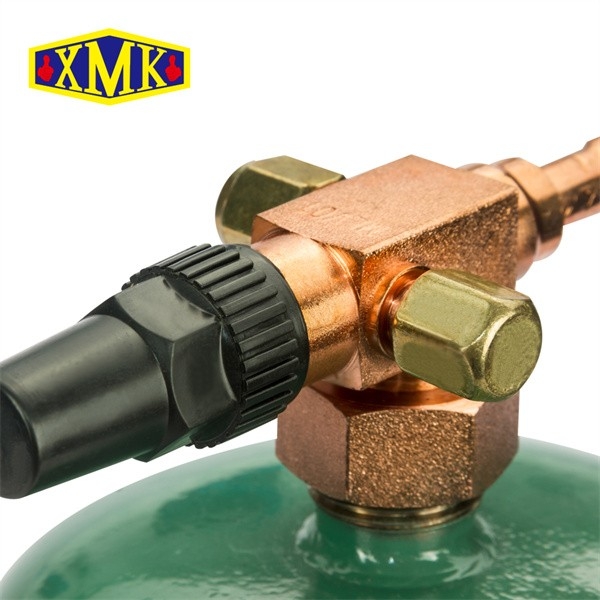

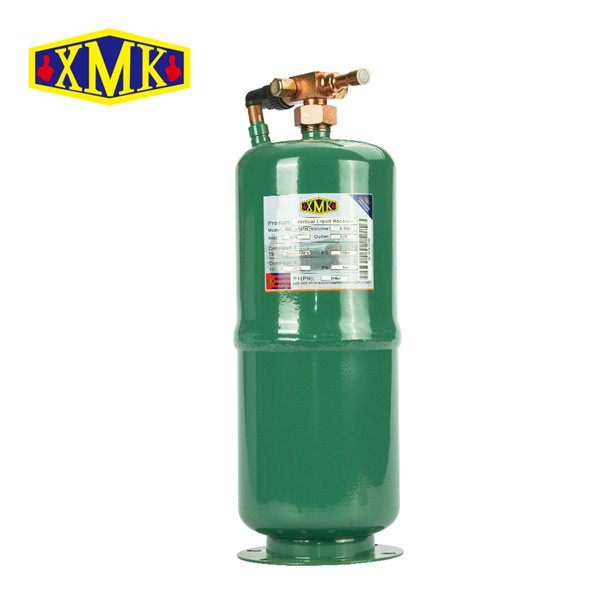

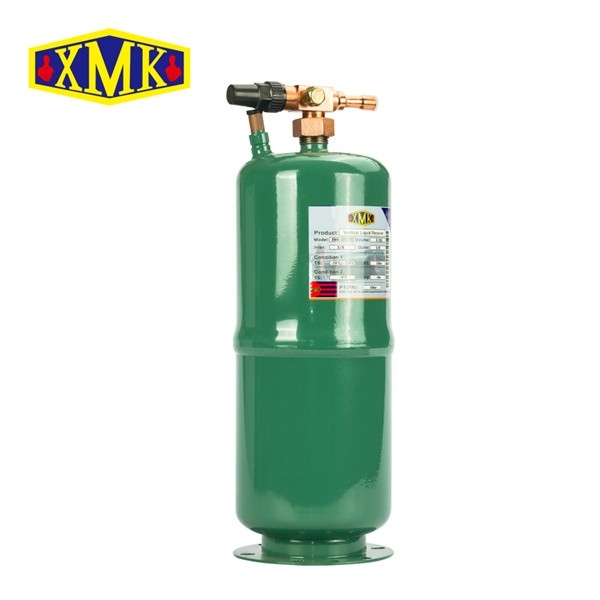

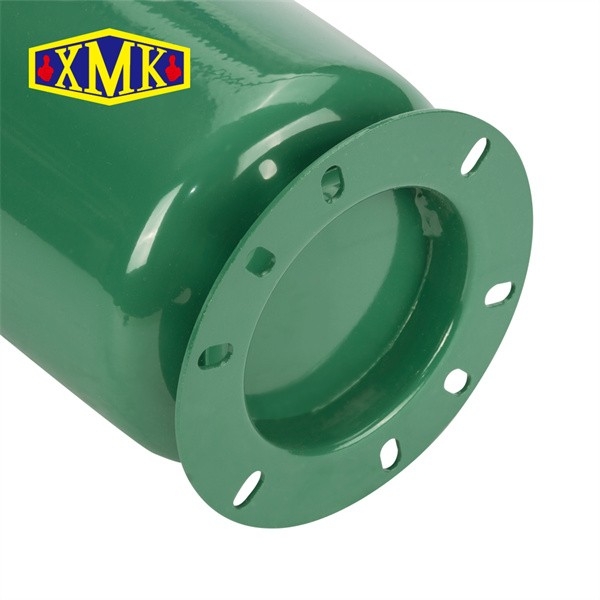

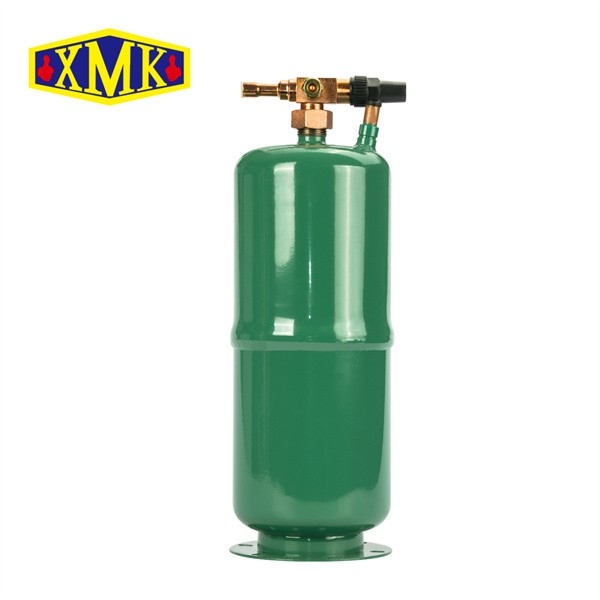

XMK-133 3/8 vertical Liquid Receiver Refrigeration The liquid receiver acts as a stock of liquid refrigerant for the evaporators, located after the condenser in a refrigeration system.The selection of receiver size should be based on refrigerant charge in the system, and it also should be sized to hold the full system charge during service work, the capacity of each liquid receiver listed on Technical data sheet below.ModelConnector sizeXMK-1333/8XMK-2333/8XMK-3333/8XMK-4441/2XMK-6441/2XMK-8441/2XMK-10555/8XMK-12555/8XMK-14555/8Production Introduction:1.Designed for refrigerant storage in system’s normal operation or maintaining.2.System adjustment is allowed to suit with different condition or loading.3.Compatible with HFC, CFC, CFC and associated oils and additives4. Assemble a high quality rotator valve or safety valve.

The most suitable temperature range for mushrooms is 18-20℃, and the most suitable growth temperature for the fruiting body stage is 12-16℃. In all stages of mushroom growth, temperature control is very important.Tell us your cold storage Length * Wide * High(m) and then we can send you full quotation sheet about all equipment you need !Voltage accept 220V/380/50~60Hz.

HC series air cooled condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure

4PES-15Y Refrigeration Unit Bitzer Condensing Unit For Cold Room Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4PES-15Y Condensing Unit data: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4PES-15Y Compressor Max.I(A) 28.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240x4 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430

ZB130KQE Copeland Compressor Scroll UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB130KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB130KQE Compressor Max.I(A) 38 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.2 Rev.(r/min)1380 Suction Line (mm) 42 Liquid Line （mm） 22 Size length (mm) 1620 Size Width (mm) 805 Size Height (mm) 1205

2EES-3 Bitzer Condensing Unit Compressor Cold RoomProduct description:BUB series horizontal box-type condensing units have the following characteristics.1.Products adopt horizontal box-type structure,high wind circle design, Excellent ventilationeffect and appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Adopted semi-hermetic piston compressorswith BITZER or FRASCOLD to meet the applica-tion of medium temperature and low tempera-ture respectively.4.Adopted U-type condenser, it has large wind-ward side, small wind resistance and goodheat transfer effect.5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. 2EES-3 Bitzer Condensing Unit Date: Power Supply  380V 50Hz 3phase Apply Temp. -5 to 5 degree Compressor Model 2EES-3 Compressor Max.I(A) 7.5 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min)1380 Suction Line (mm) 22 Liquid Line （mm） 12.7 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815

ZSI15KQE Blast Freezer Compressor Refrigeration Condensing Unit   Product description:   BUW-B series box-type condensing units have the following characteristics   1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.   2.The cover of the case adopts hinge structure,which is easy to maintain and operate.   3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.   4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.   5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect.    Copeland ZSI15KQE Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -15 to -23 degree Compressor Model ZSI15KQE Compressor Max.I(A) 11.9 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min) 1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815

4HE-18Y Air Cooled Bitzer Compressor Refrigeration Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4HE-18Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model 4HE-18Y Compressor Max.I(A) 36.7 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240x4 Suction Line (mm) 42 Liquid Line （mm） 22 Size length (mm) 1435 Size Width (mm) 1150 Size Height (mm) 1430

XMK-5201 1/2 ODF Oil Separator RefrigerationWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.
