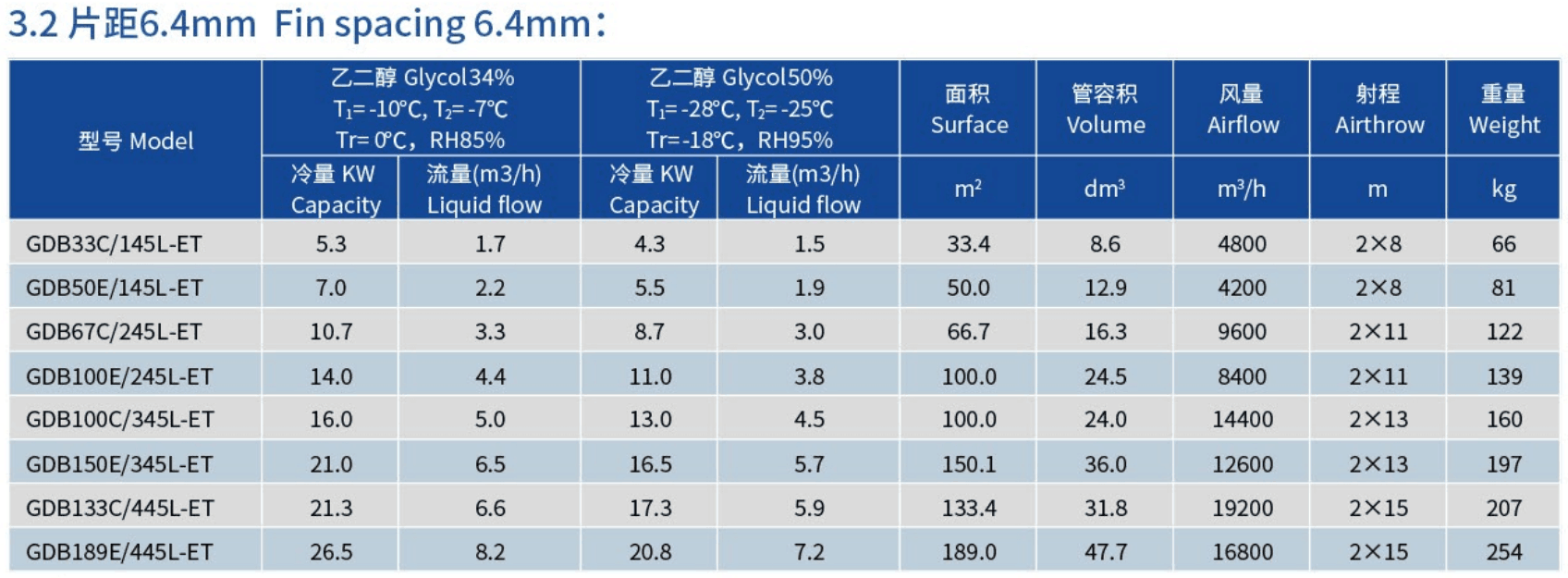

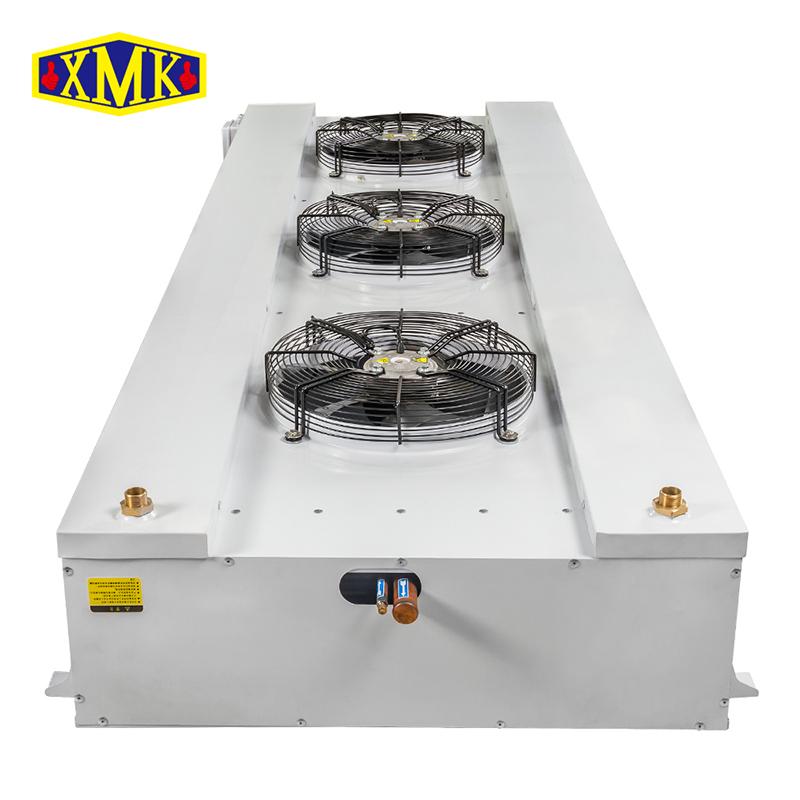

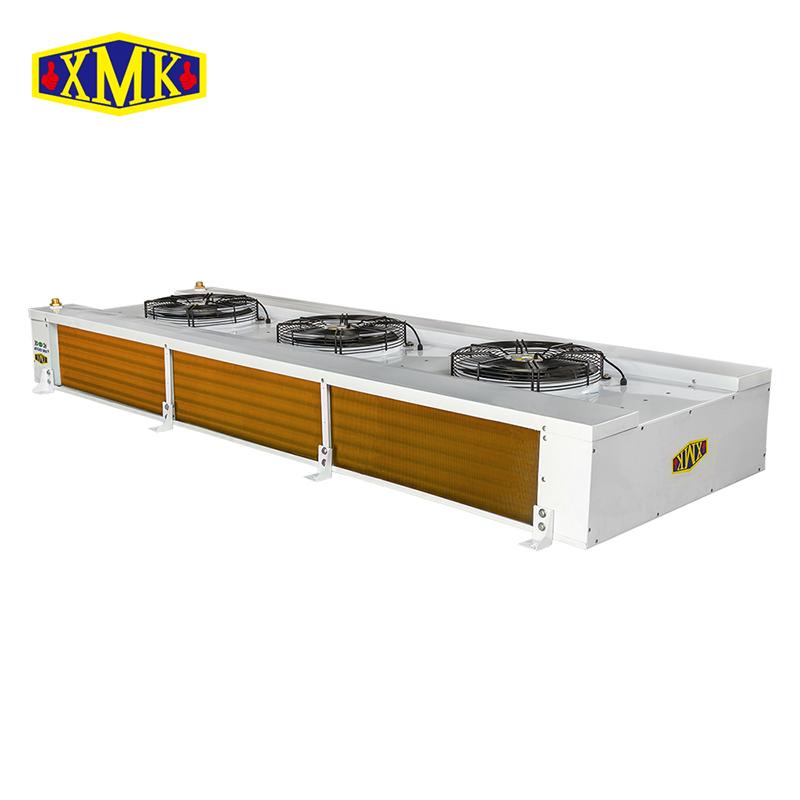

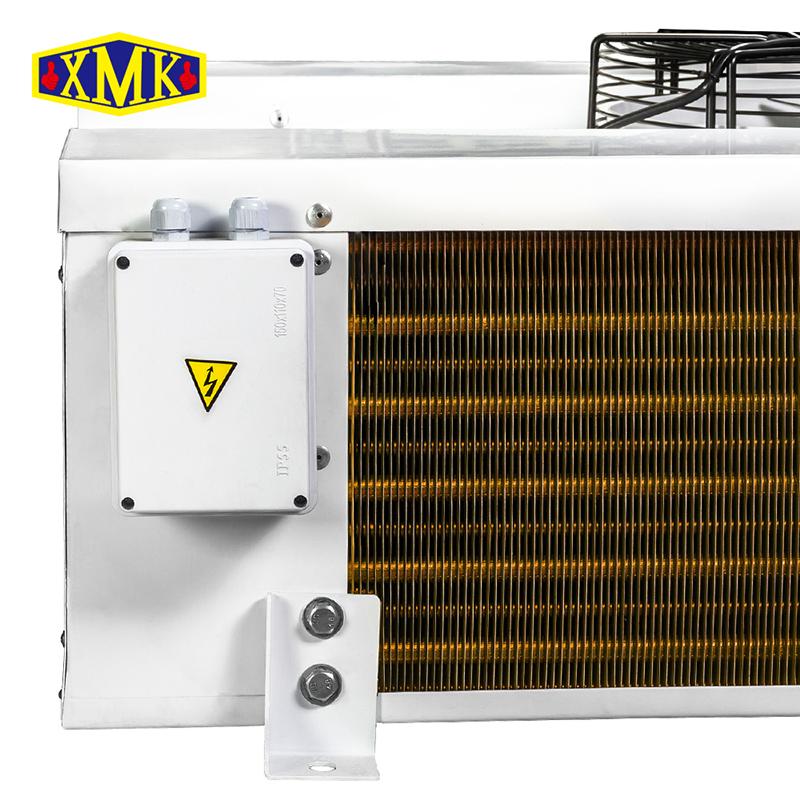

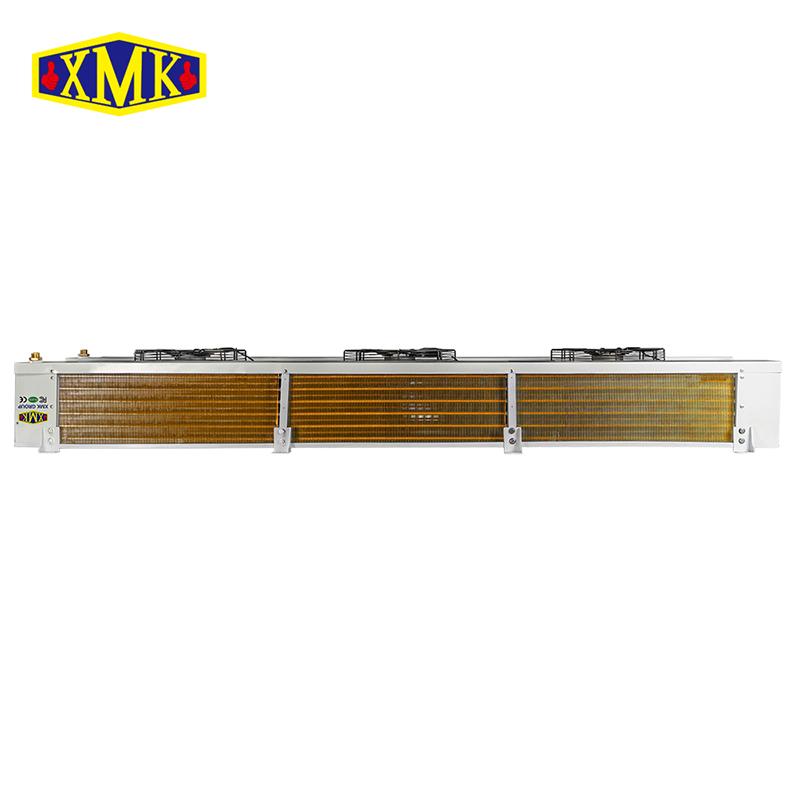

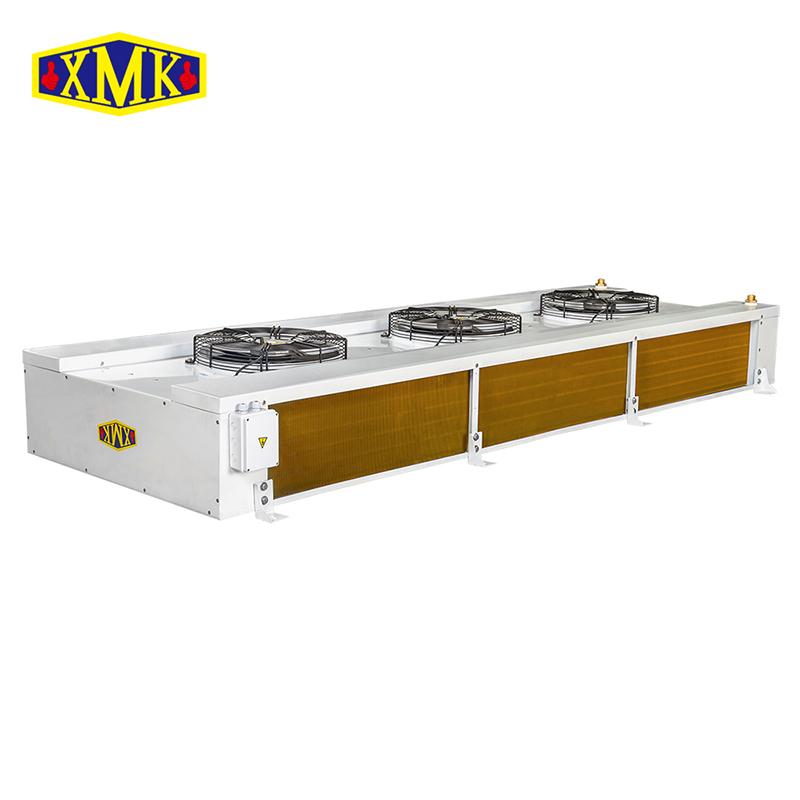

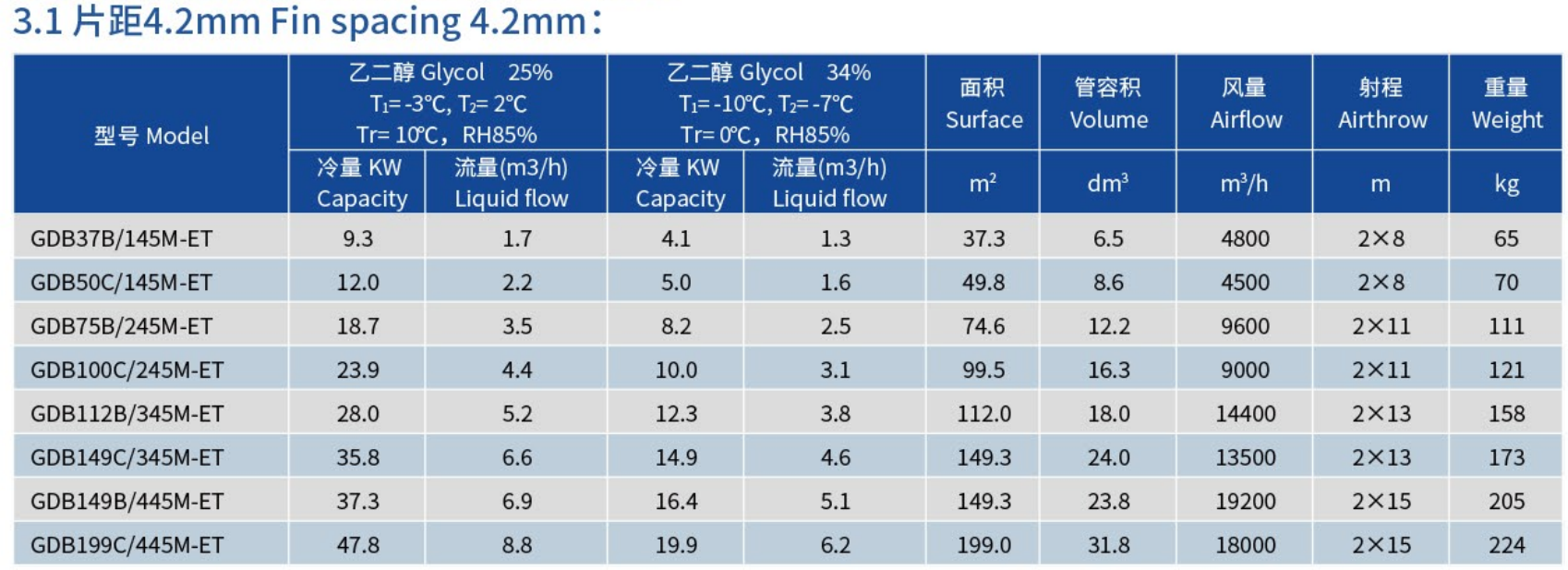

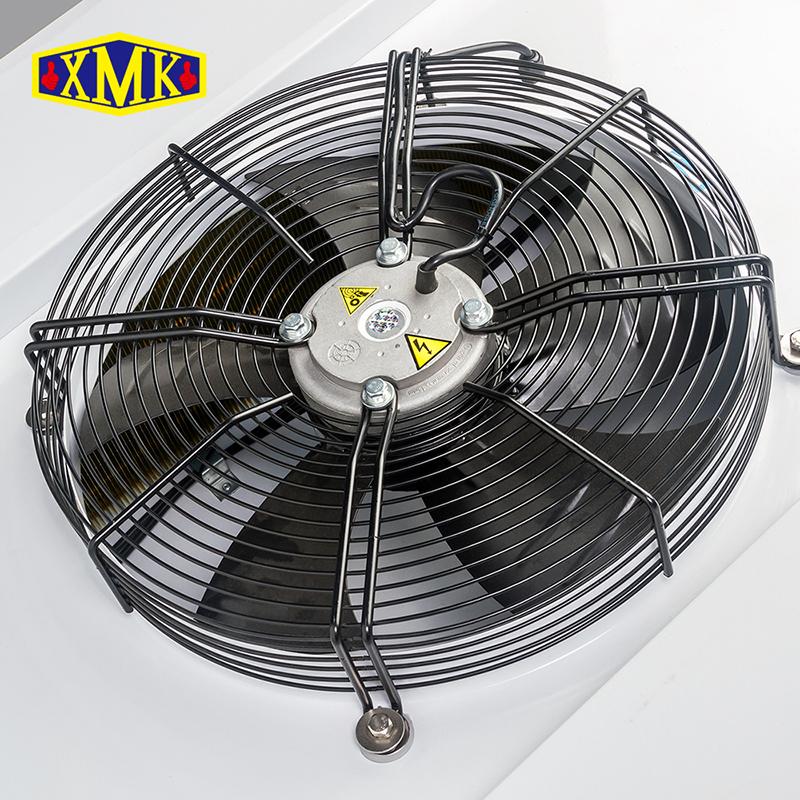

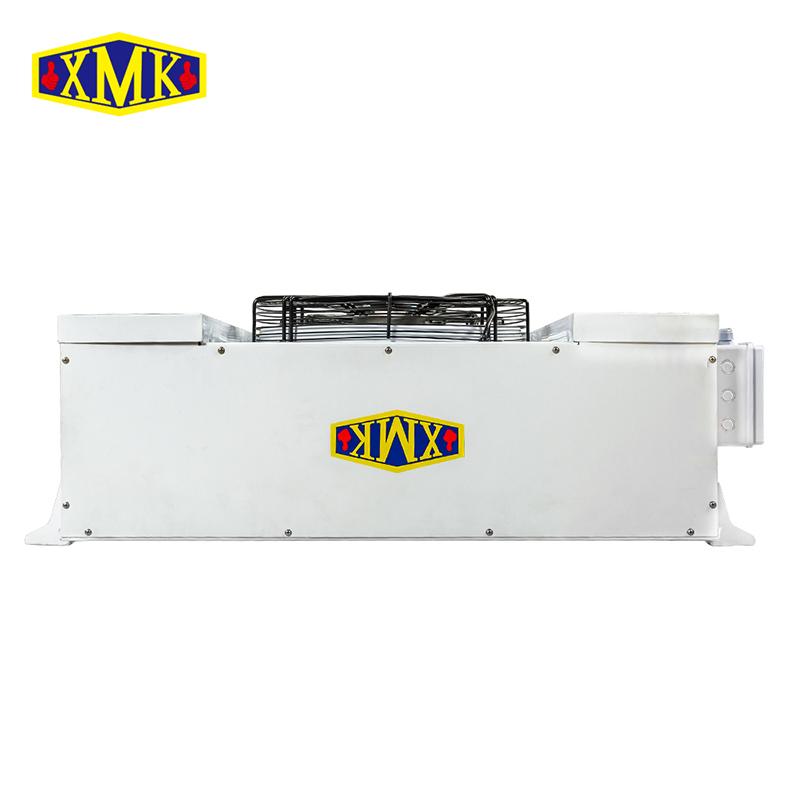

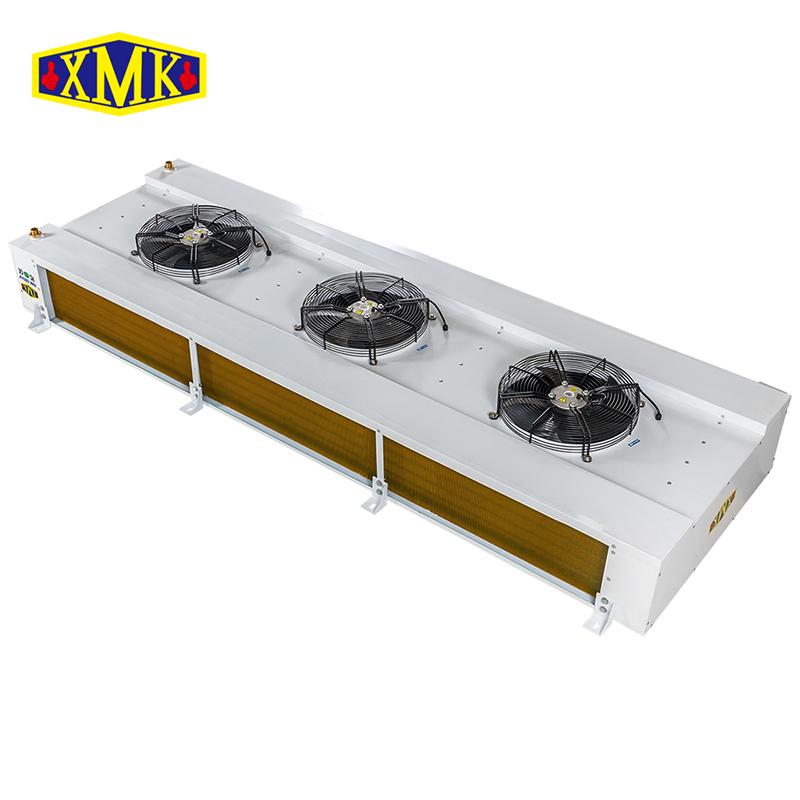

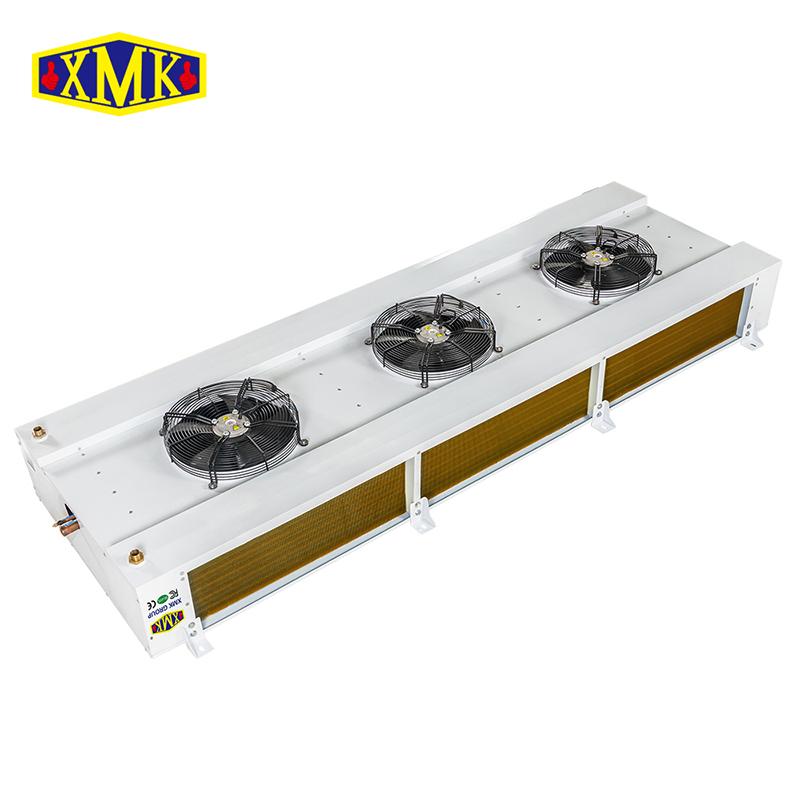

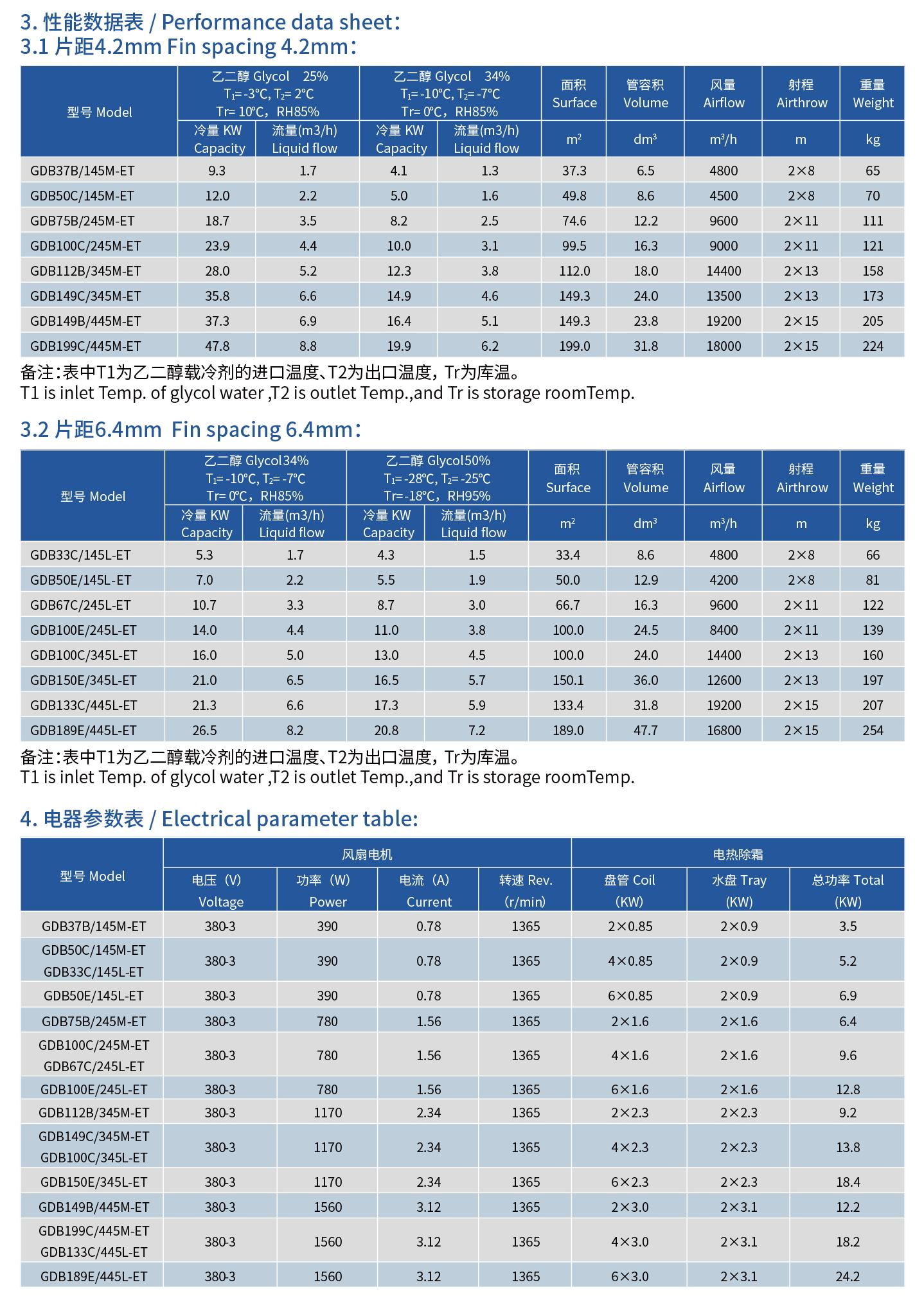

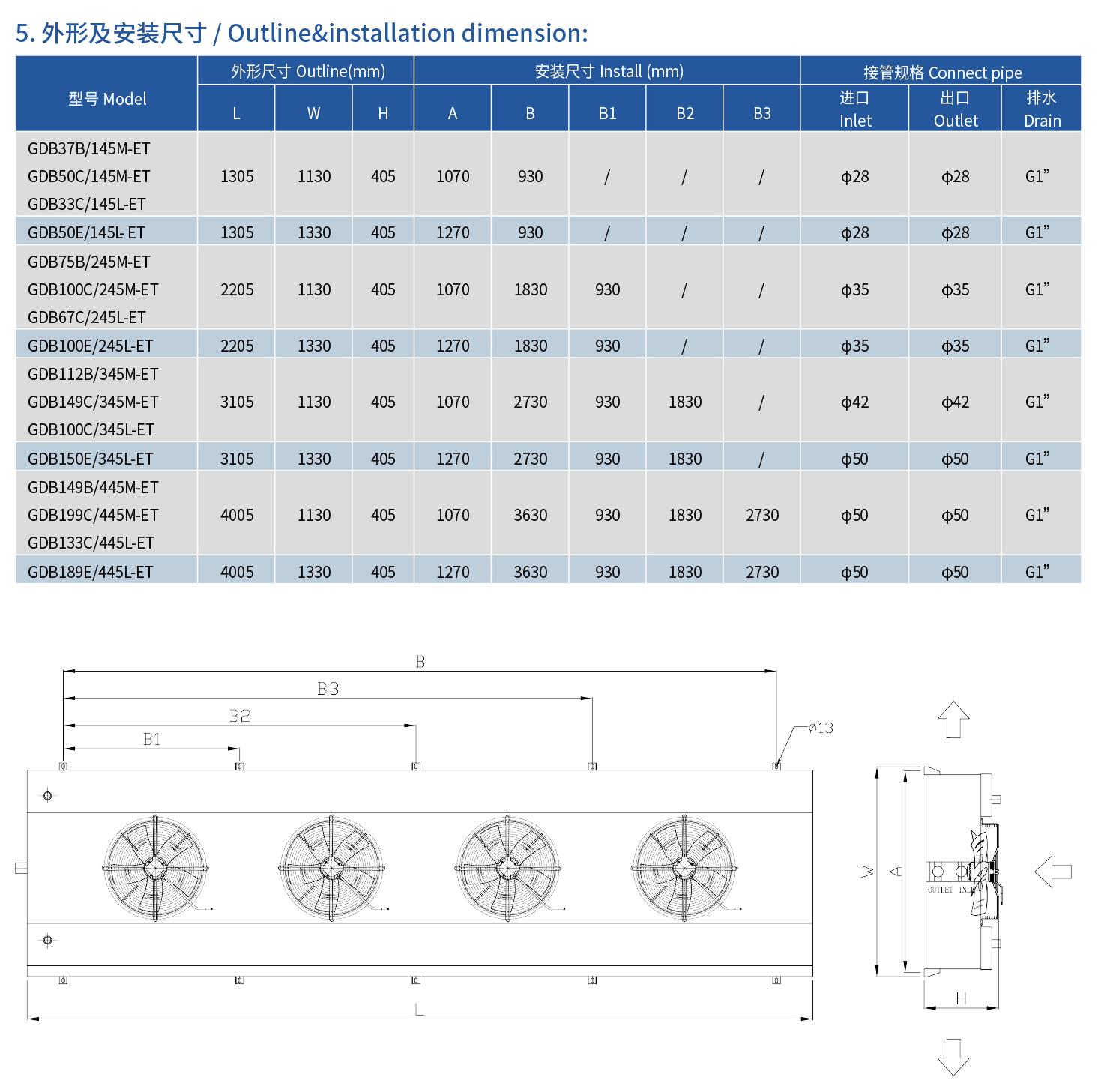

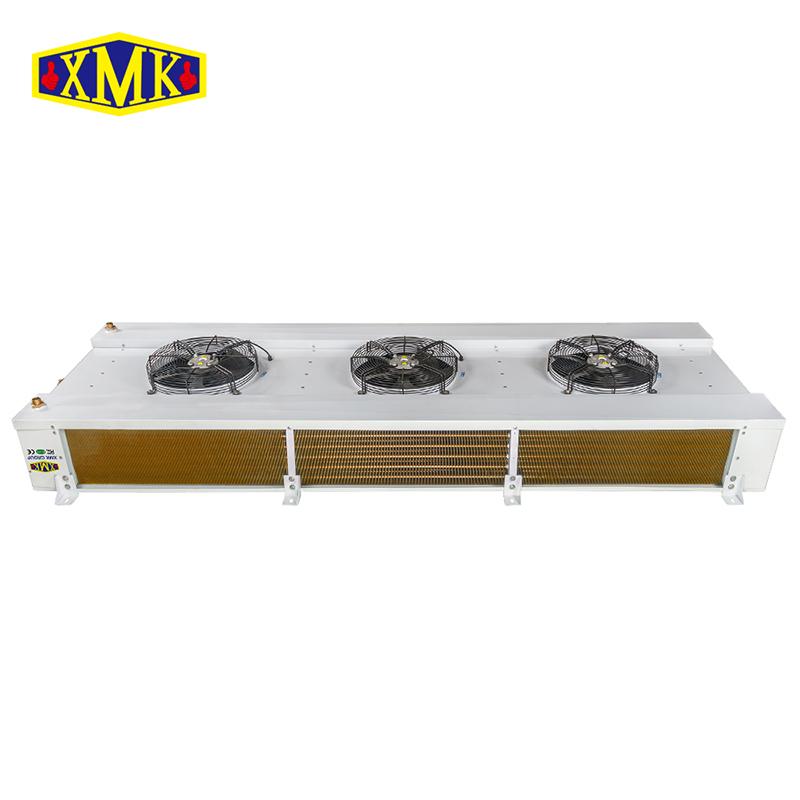

GDB Series Dual-Discharge Cooler for Glycol Coolant

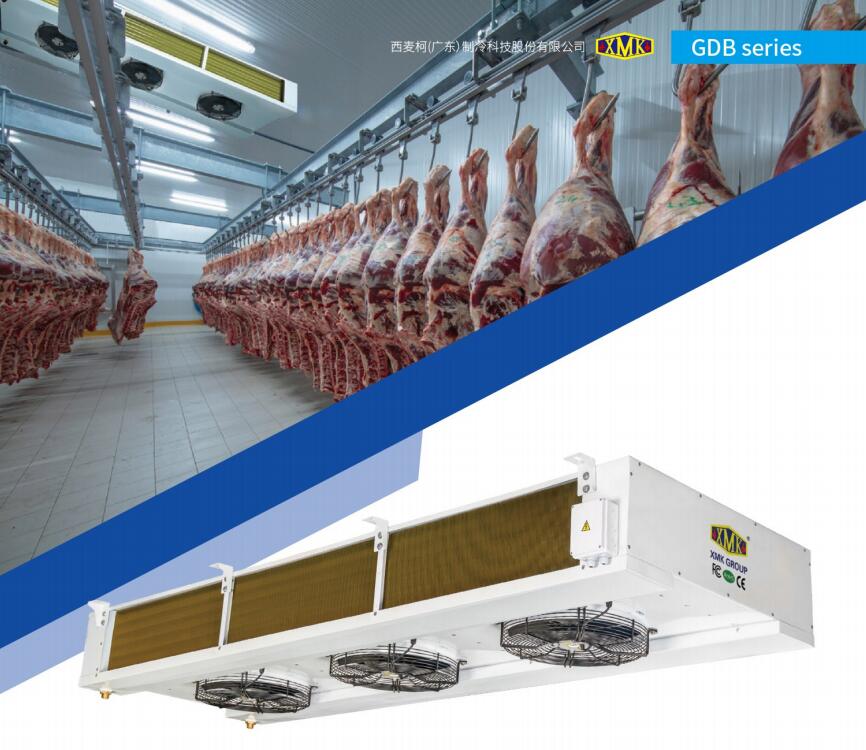

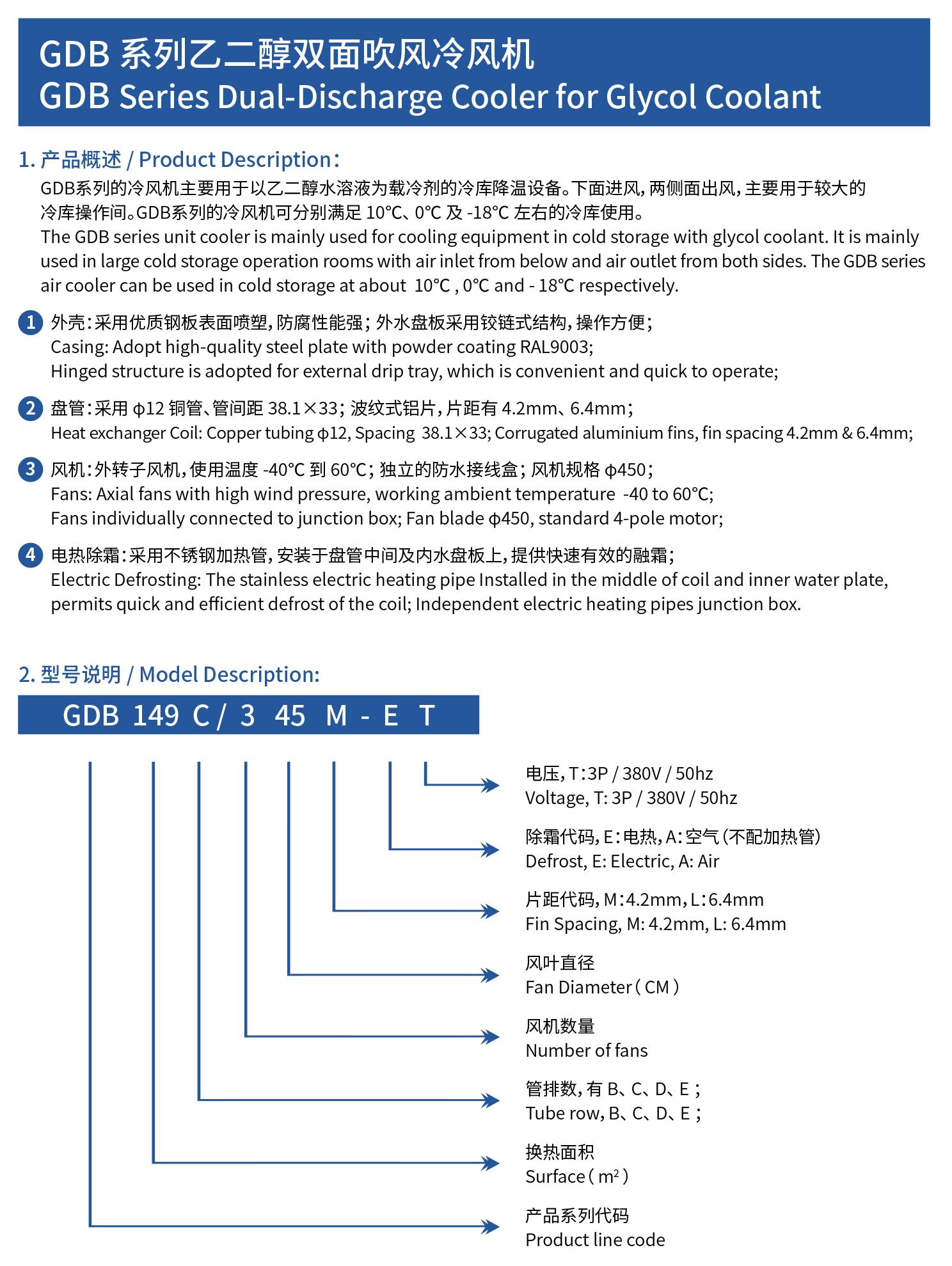

The GDB series unit coolers is mainly used for cooling equipment in cold storage with glycol coolant.It is mainly used in large cold storage operation rooms with air inlet from below and air outlet from both sides.  The GDB series air cooler can be used in cold storage at about 10°C, 0°C and -18°C respectively.

XMK-5201 1/2 ODF Oil Separator RefrigerationWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.

HC series air cooled condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure, and with high heat transfer capacity.

4PES-15Y Refrigeration Unit Bitzer Condensing Unit For Cold Room Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4PES-15Y Condensing Unit data: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4PES-15Y Compressor Max.I(A) 28.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240x4 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430

4CES-6Y Compressor Condensing Unit With Bitzer Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4CES-6Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model 4CES-6Y Compressor Max.I(A) 17.7 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.04 Fan Power (W) 240X2 Suction Line (mm) 28 Liquid Line （mm） 12 Size length (mm) 1435 Size Width (mm) 850 Size Height (mm) 830

4NES-20Y R404 Refrigeration Unit Bitzer Compressor Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4NES-20Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4NES-20Y Compressor Max.I(A) 33.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 548x4 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1550 Size Width (mm) 1150 Size Height (mm) 1630

Whether you want any equipment for your vegetable or fruit refrigerated cold storage which over -5°C , we can provide whole cooling system products include condensing unit, air cooler, PU panel ,door and all accessories to you , and you just need to tell us : 1.The Length * Wide * High(m) of the cold room . 2. The room temperature you want ? Or what do you want to refrigerate ?  3. If there any other special requirement for voltage ?

ZB29KQE Copeland Condensing Unit Scroll Compressor Box TypeProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants. Copeland ZB29KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to 5 degree Compressor Model ZB29KQE Compressor Max.I(A) 11 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight80Noise dBA60

ZB45KQE Compressor Unit Condensing Unit Copeland Product description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB45KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB45KQE Compressor Max.I(A) 16.1 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.1 Rev.(r/min)1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 1320 Size Width (mm) 655 Size Height (mm) 1065
