2EES-3 Cold Room Bitzer Refrigeration Condensing Unit

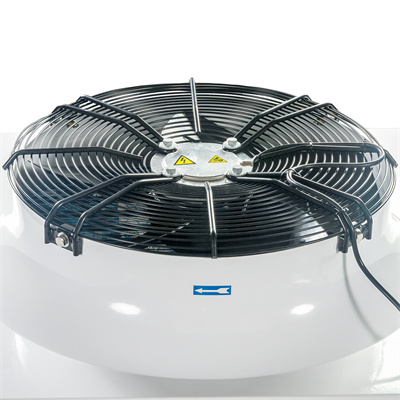

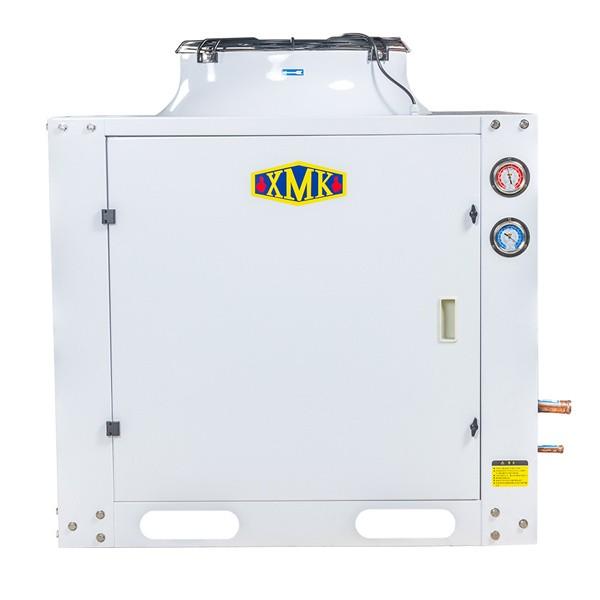

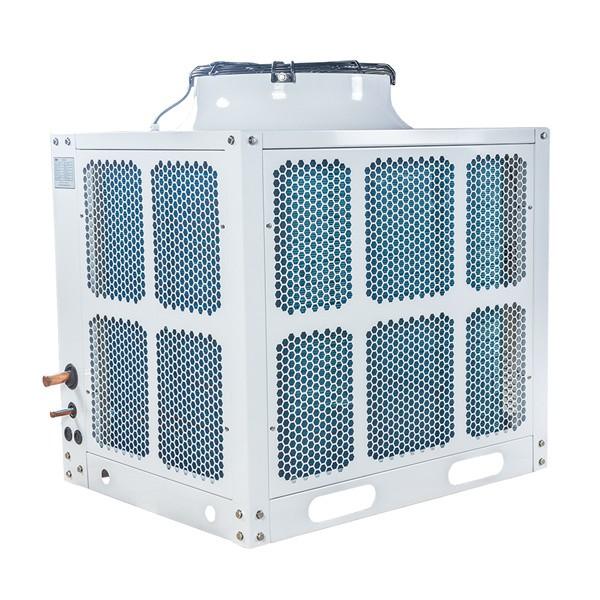

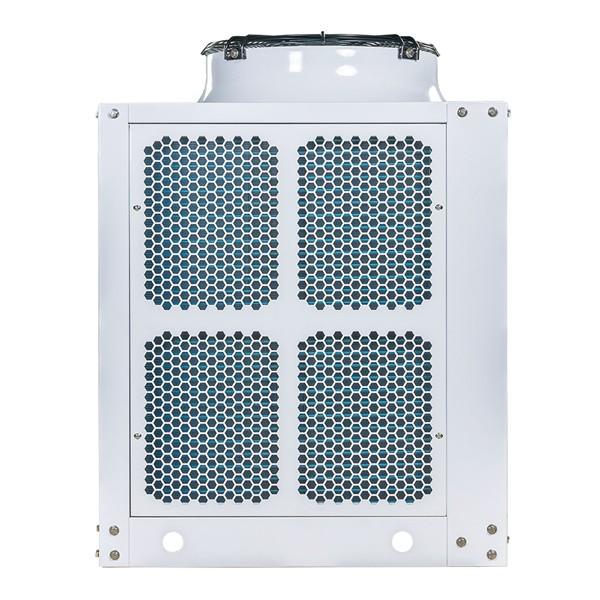

4FES-5Y Bitzer Compressor For Condensing UnitProduct description:BUB series horizontal box-type condensing units have the following characteristics.1.Products adopt horizontal box-type structure,high wind circle design, Excellent ventilationeffect and appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Adopted semi-hermetic piston compressorswith BITZER or FRASCOLD to meet the applica-tion of medium temperature and low tempera-ture respectively.4.Adopted U-type condenser, it has large wind-ward side, small wind resistance and goodheat transfer effect.5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Bitzer  Condensing Unit Data: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model 4FES-5Y Compressor Max.I(A) 10.8 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.1 Rev.(r/min)1380 Suction Line (mm) 22 Liquid Line （mm） 12.7 Size length (mm) 1320 Size Width (mm) 655 Size Height (mm) 1065

23.6KW  Cold Storage Condenser Refrigeration  Product description:  HC series air cooled condensers are mainly equipped with open-type condensing units with scrollcompressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors canbe installed together or sepa rately from compressors .Design of High barrel with Side-mounted Structure.1.Condensers and compressors can be installed together or separately from compressors. Design of Highbarrel with Side-mounted Structure.2.Copper tube and corrugated aluminium fins with a distance of2.1 mm are used.3.Fan specifications adopt φ400mm, φ500mm and φ630mm.4.Testing pressure 32bar.5.Adopt high-quality steel plate with powder coating RAL9003 or RAL6001.6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449A and other refrig-erants.7.Retain 1.5bar pressure before leaving factory.HC Series Air Cooled Condenser Data Sheet: ModelHC53/240NT Capacity (KW)23.6Surface (㎡）52.6 Volume (dm)6.3Fan Motor Air Flow7000Fan Motor Power480Fan Motor Current1.04dB (A)53Connect Pipe Inlet22Connect Pipe Outlet16Weight (kg)53

4DES-5Y Compressor R404 Cooling Room Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability. 2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency. 4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4DES-5Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model 4DES-5Y Compressor Max.I(A) 14.5 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.04 Fan Power (W) 240X2 Suction Line (mm) 28 Liquid Line （mm） 12 Size length (mm) 1435 Size Width (mm) 850 Size Height (mm) 830

XMK-5201 1/2 ODF Oil Separator RefrigerationWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.

ZFI59KQE R404A Cold Room Compressor Refrigeration UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZFI59KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model ZFI59KQE Compressor Max.I(A) 29 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.48 Rev.(r/min)1380 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1020 Size Width (mm) 805 Size Height (mm) 1205

ZB45KQE Compressor Unit Condensing Unit Copeland Product description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB45KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB45KQE Compressor Max.I(A) 16.1 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.1 Rev.(r/min)1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 1320 Size Width (mm) 655 Size Height (mm) 1065

ZFI59KQE R404A Cold Room Compressor Refrigeration UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZFI59KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model ZFI59KQE Compressor Max.I(A) 29 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.48 Rev.(r/min)1380 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1020 Size Width (mm) 805 Size Height (mm) 1205

Middle temperature Cold Storage Evaporators with 630mm axial fan(two), can be used for the -18C~-25C  cold storage

XMK design WS series unit cooler is using water defrosting method , the defrosting time is short, and the little effect on cold room temperature. Sieve poretype defrosting water pan and inner & outer water baffles are used to prevent water spraying into cold storage and wind blades during defrosting.Efficient recirculating and Low Consumption are product feature.
