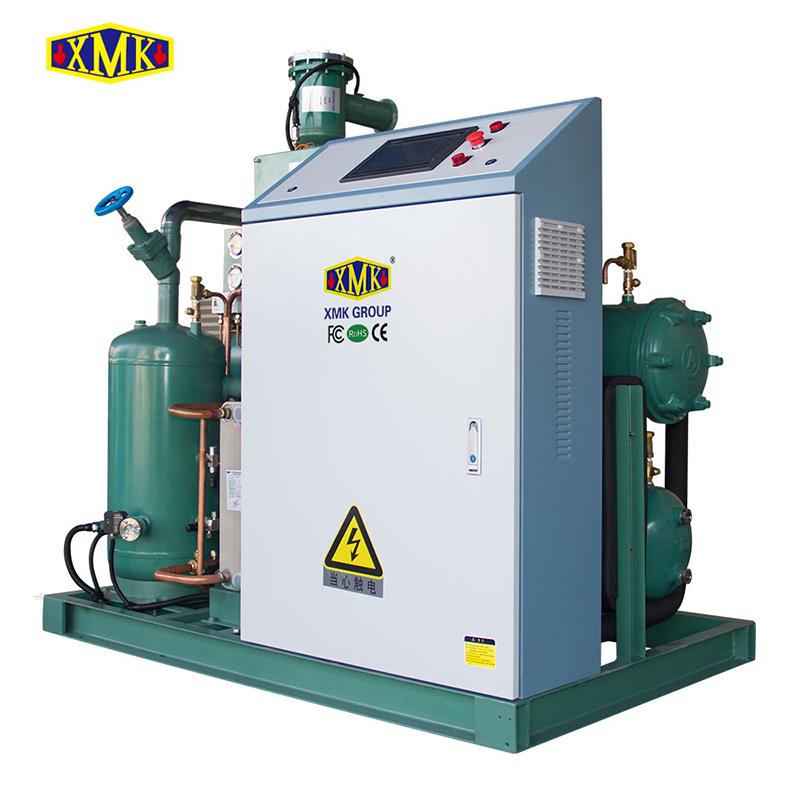

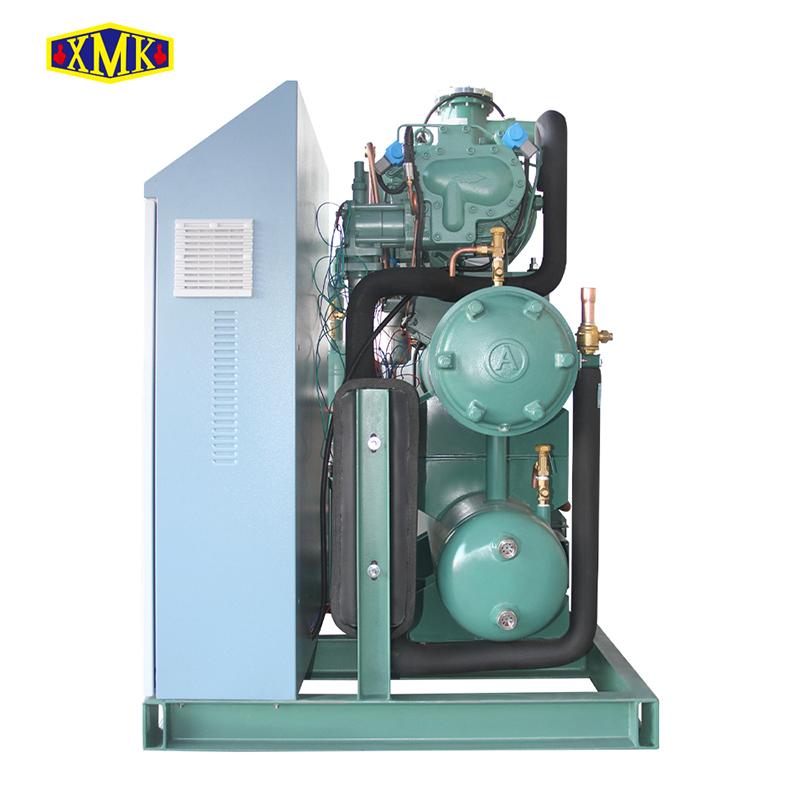

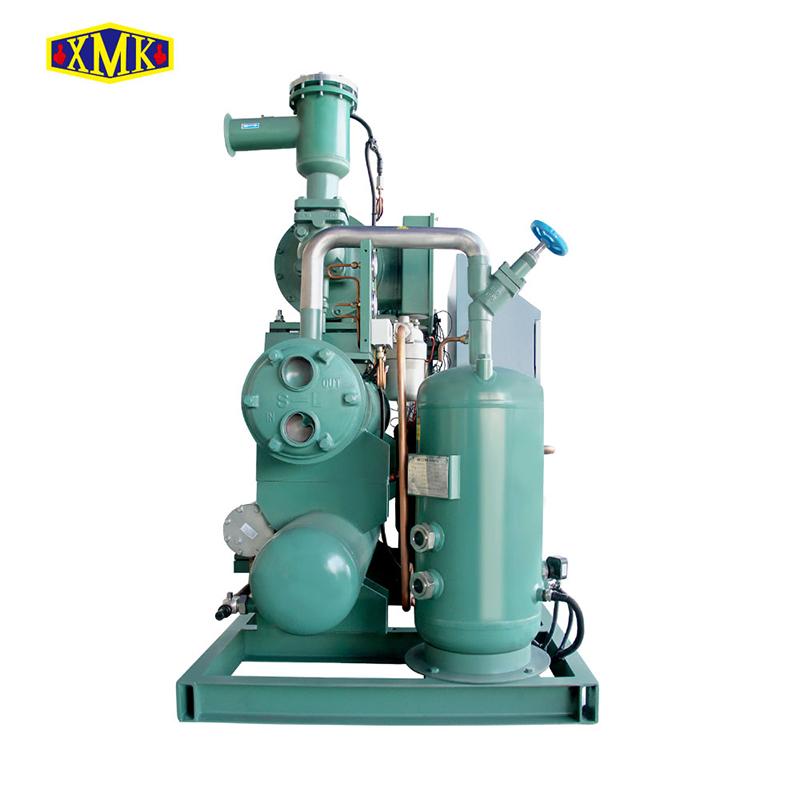

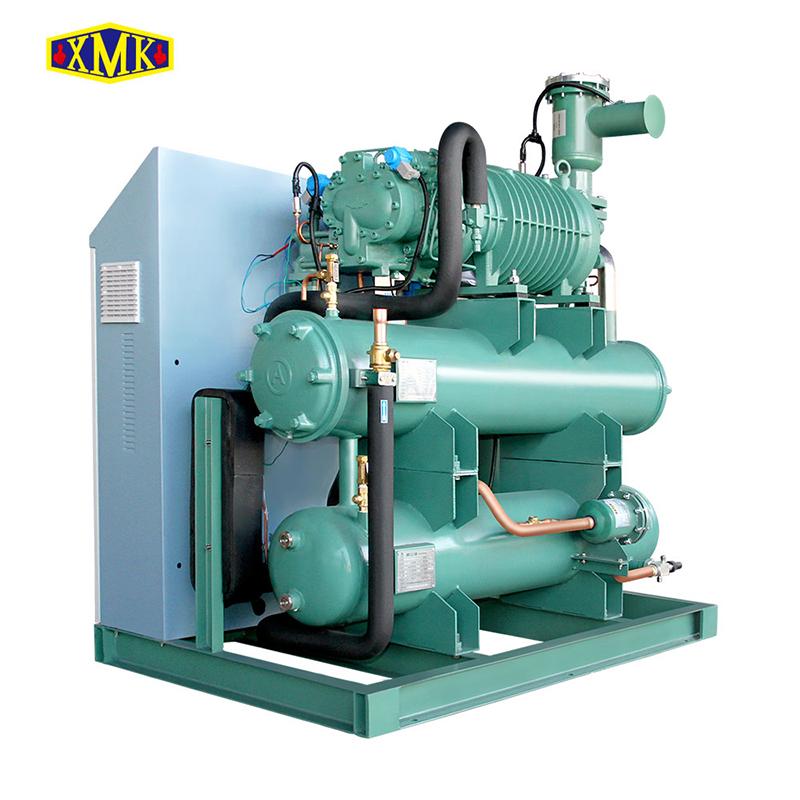

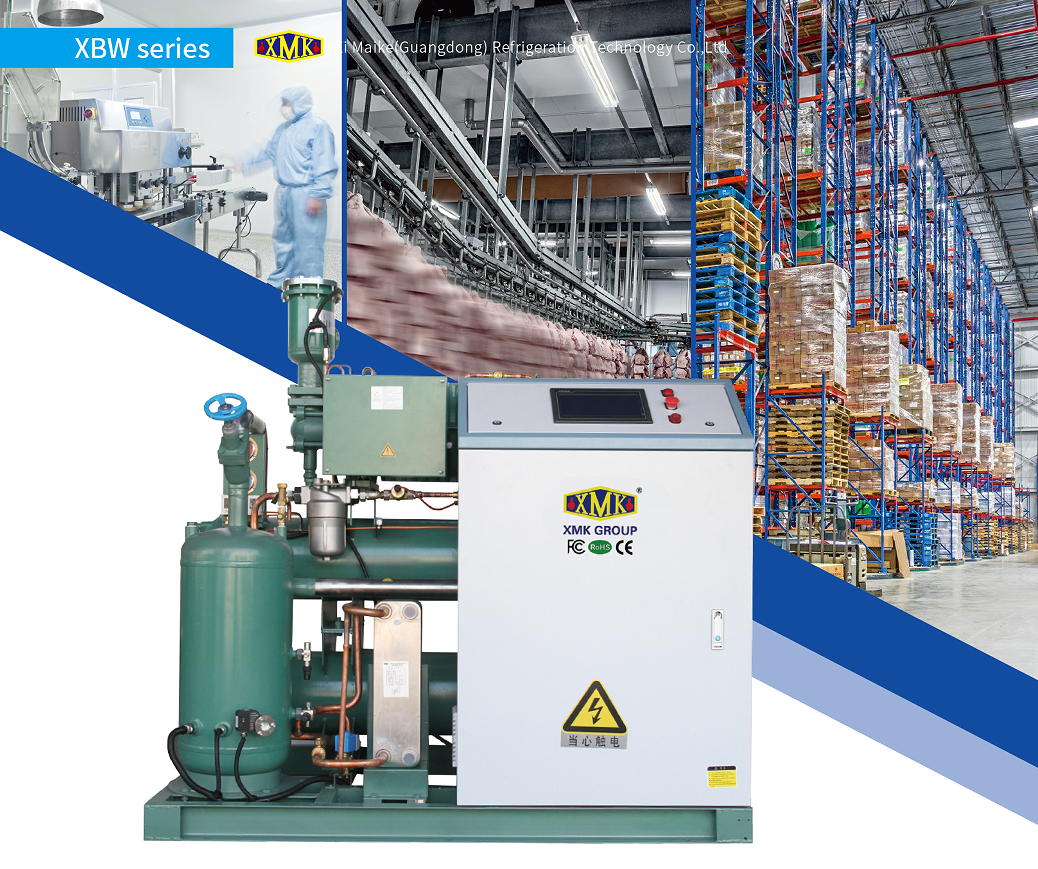

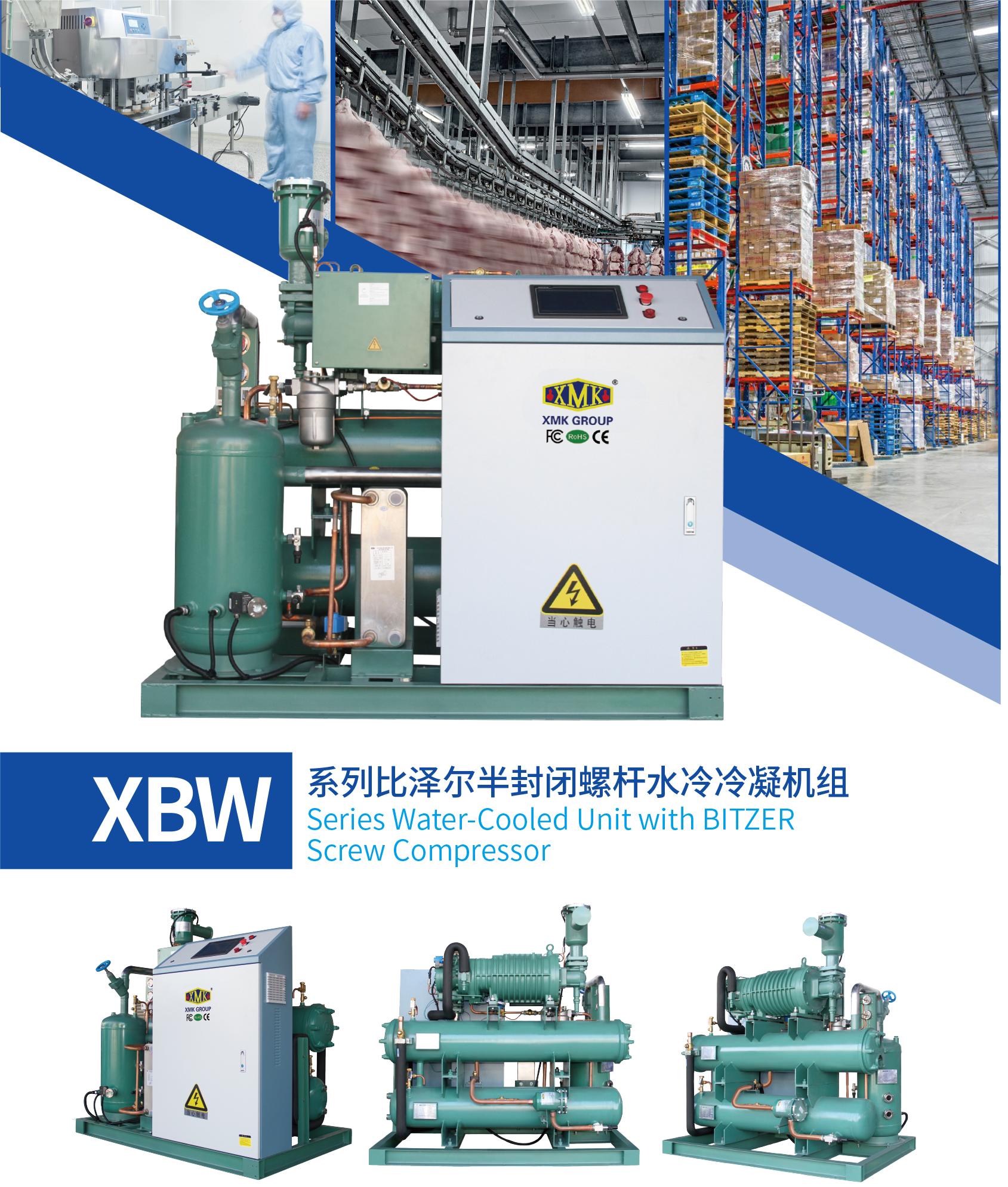

XBW Series Water-Cooled Unit with BlTZER Screw Compressor

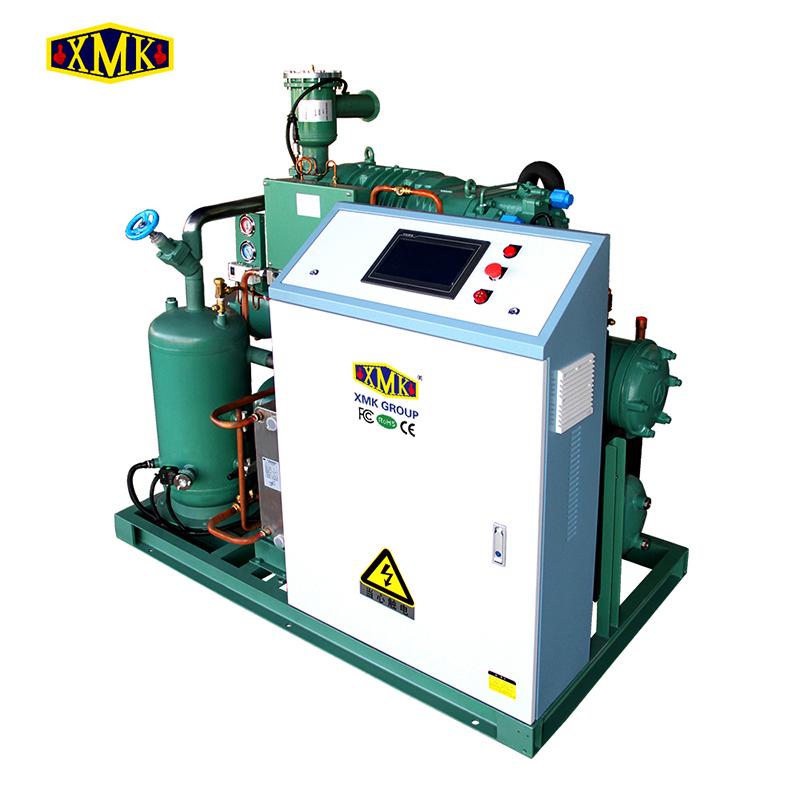

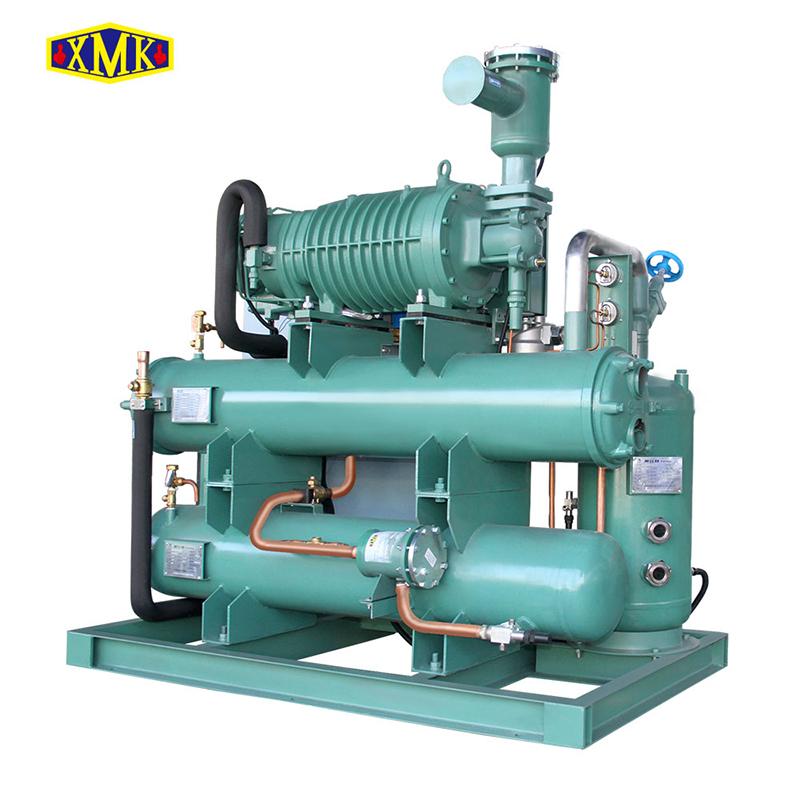

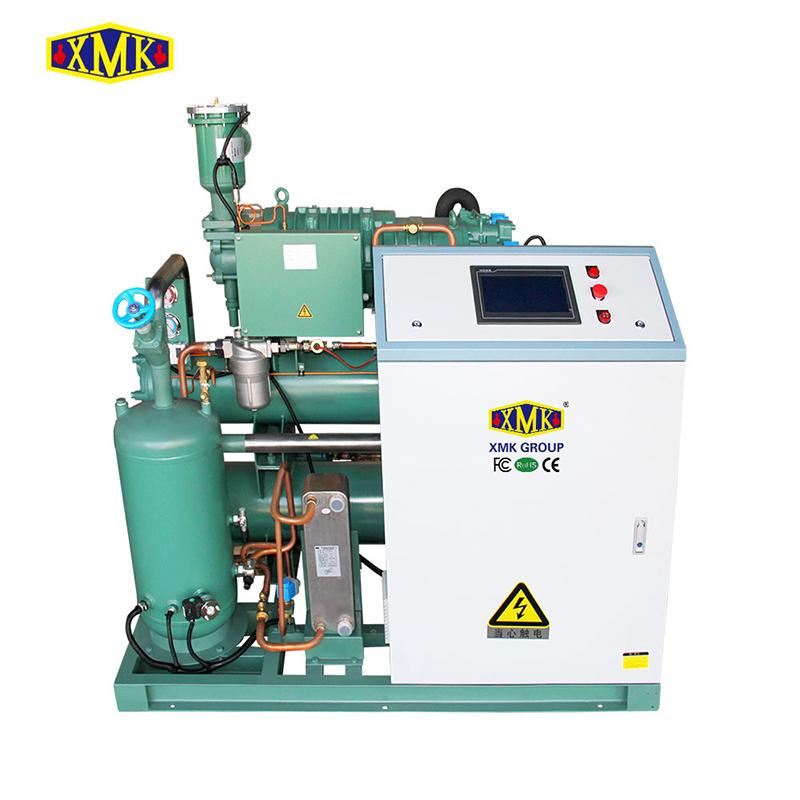

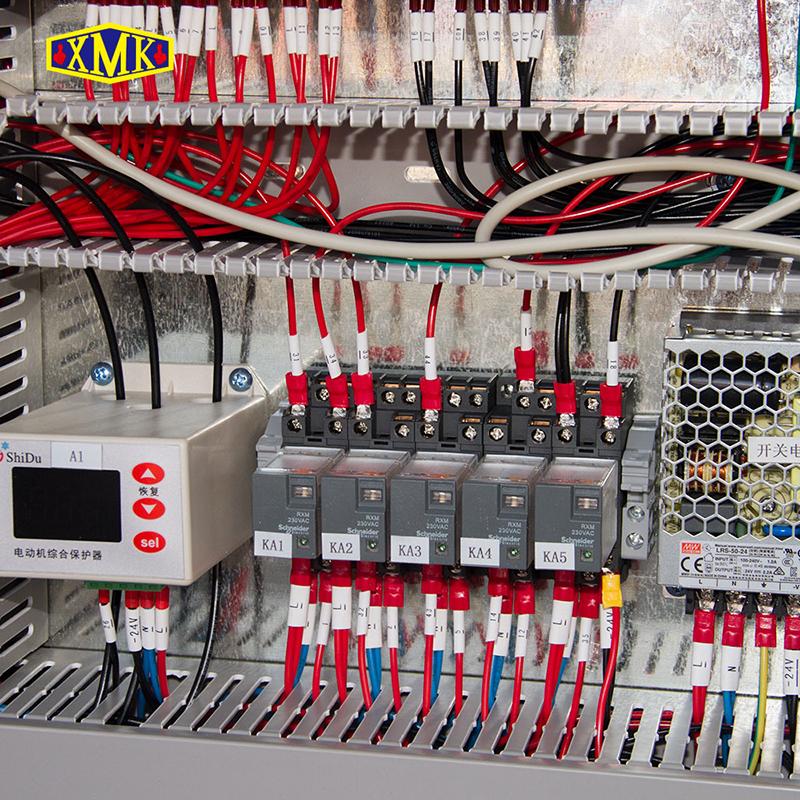

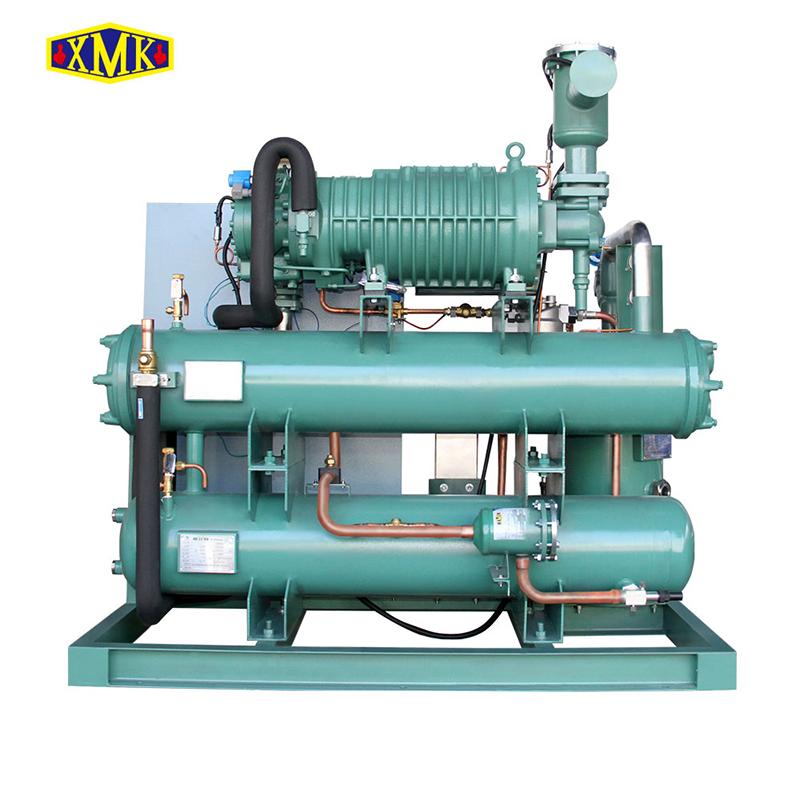

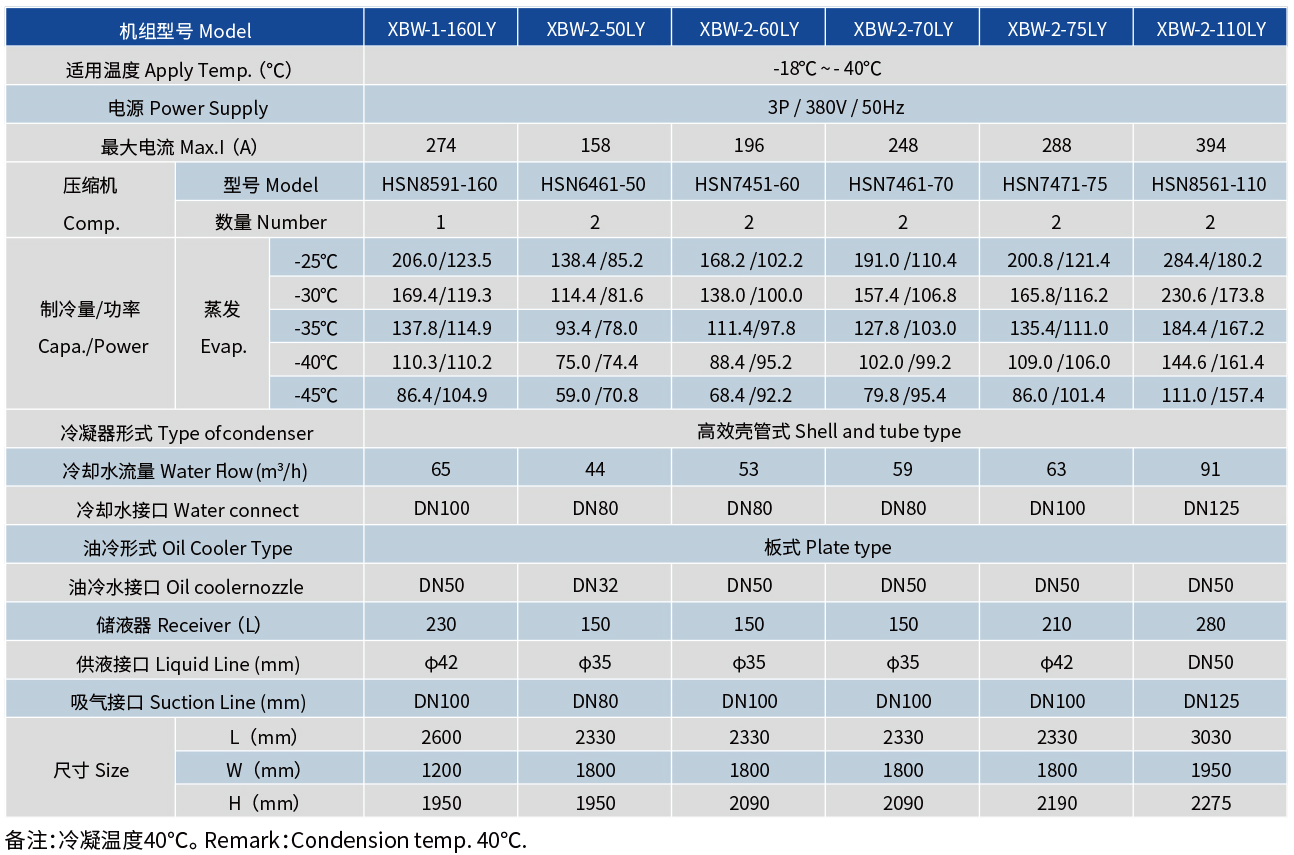

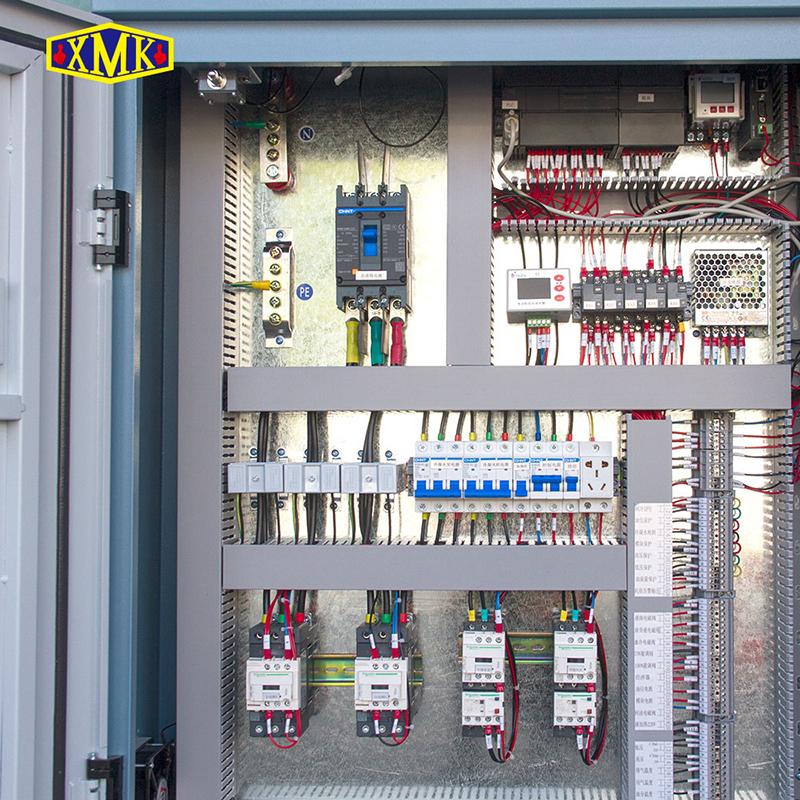

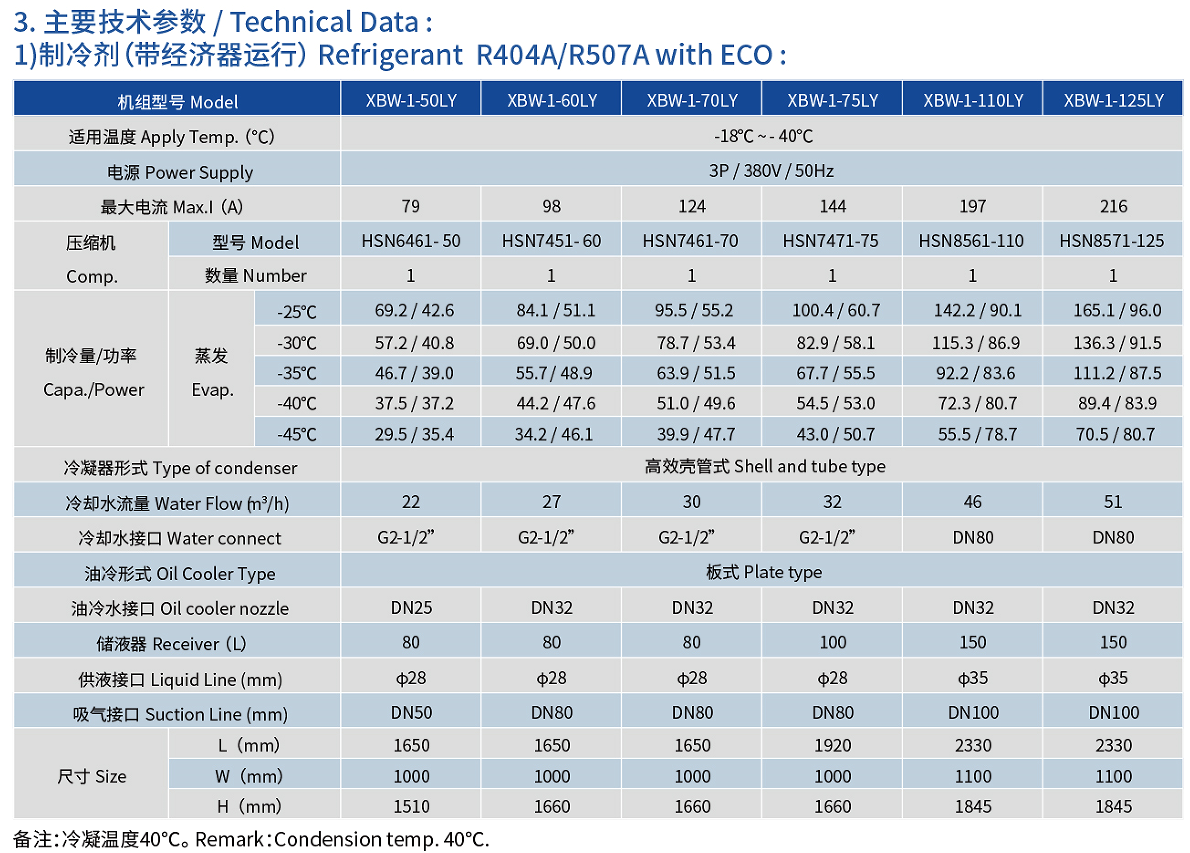

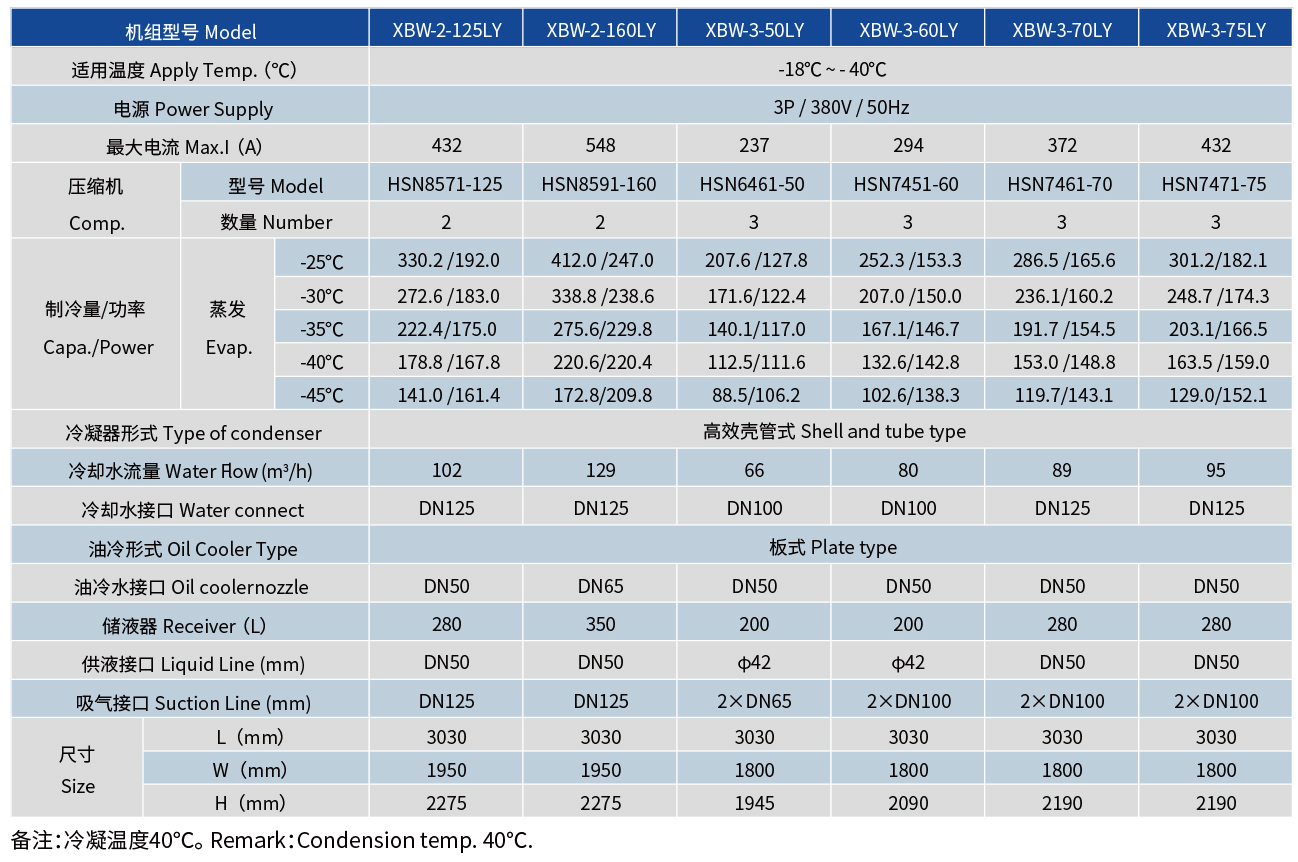

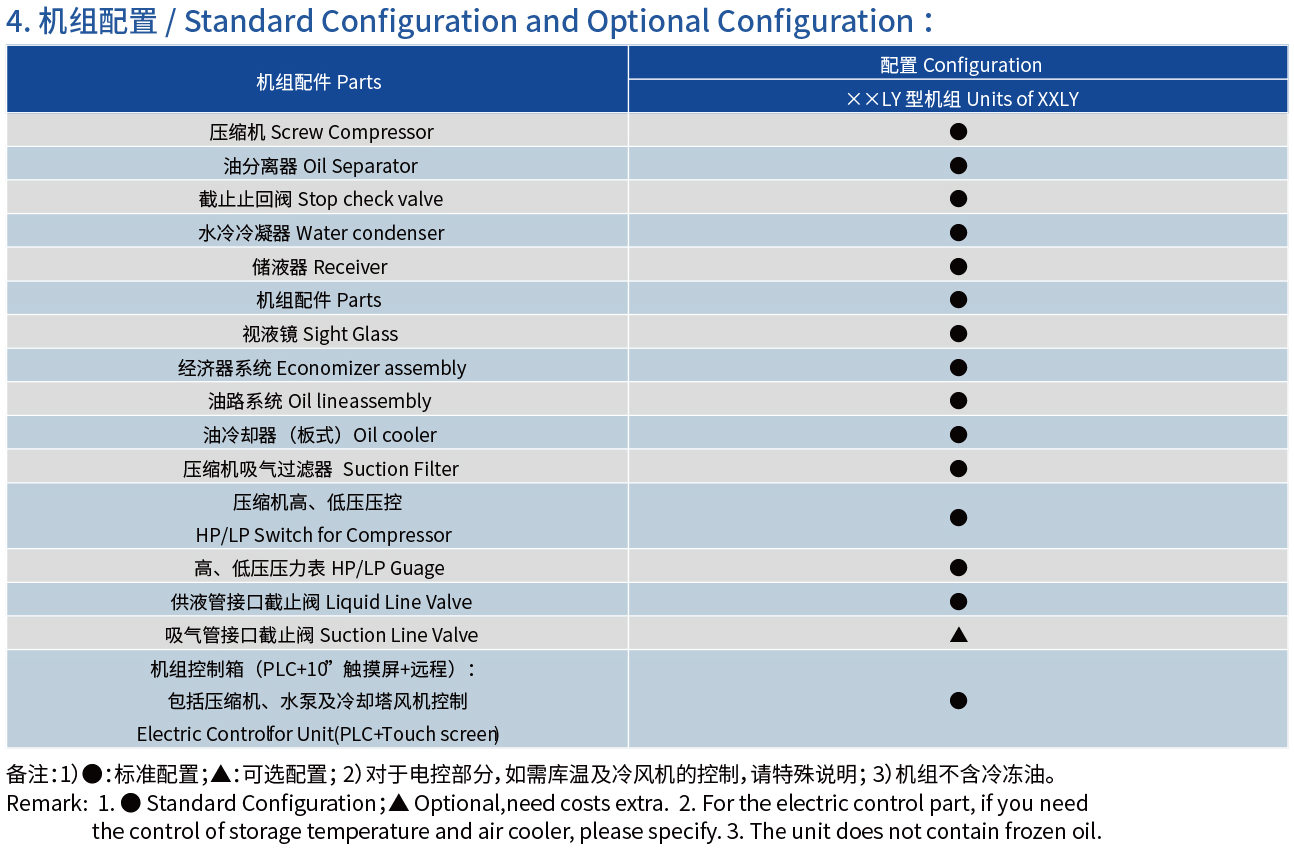

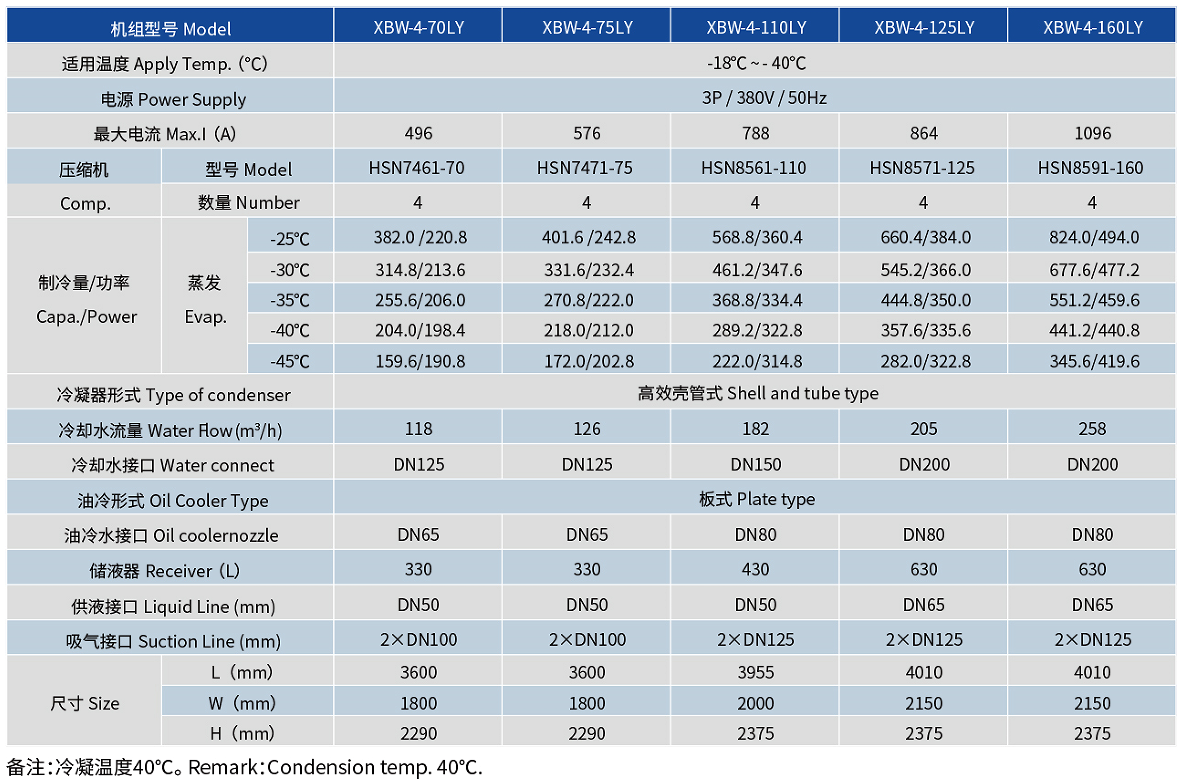

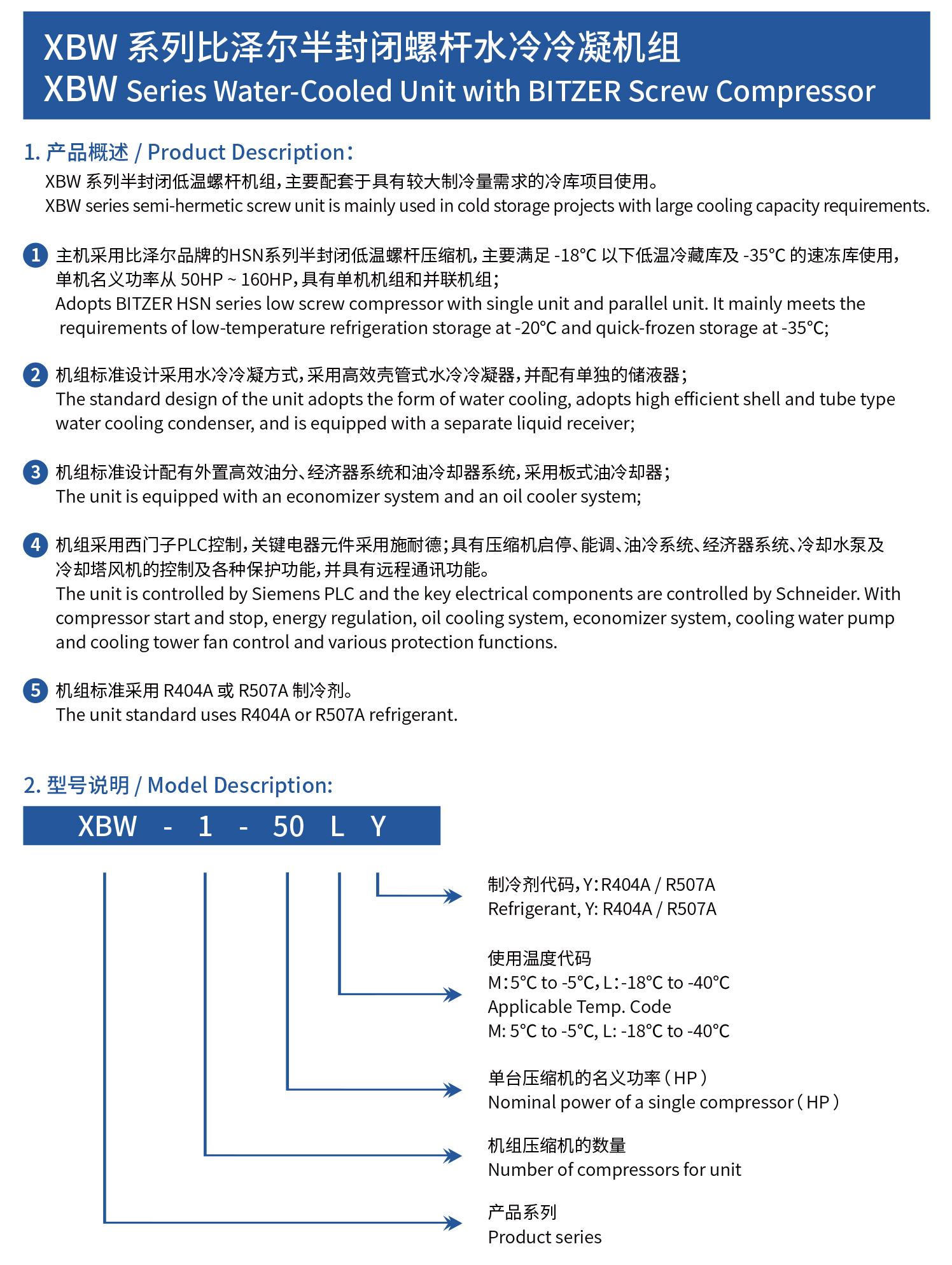

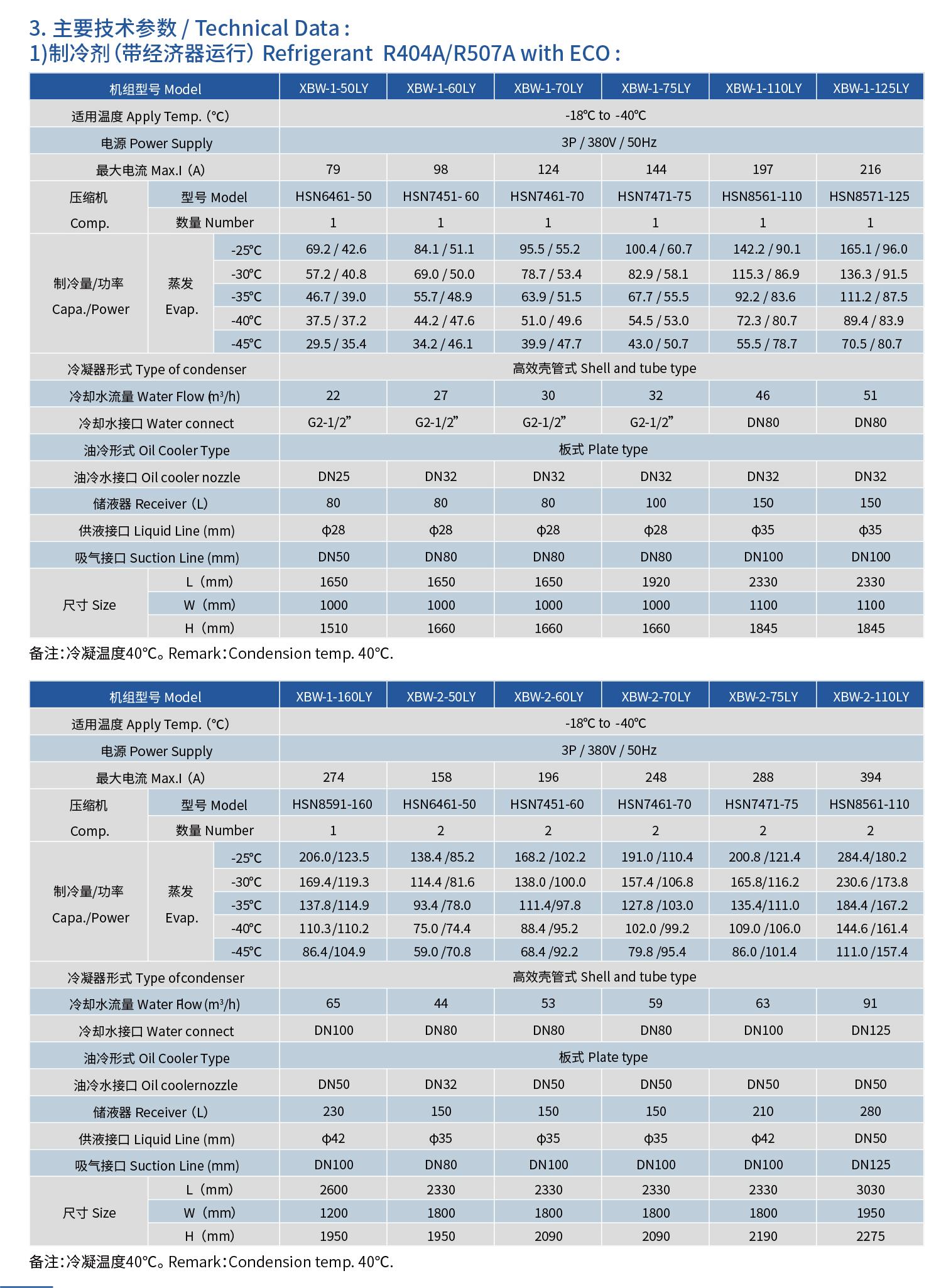

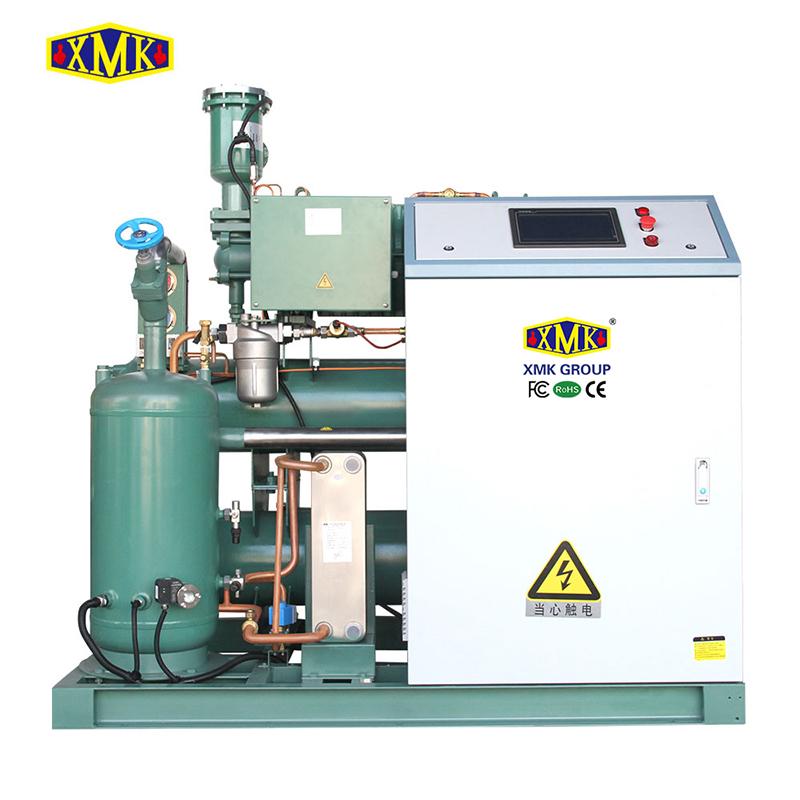

Screw Bitzer Semi-hermetic Compressor Condensing Unit Product description:  XBW series semi-hermetic screw unit is mainly used in cold storage projects with large coolingcapacity requirements.1.Adopts BITZER HSN series low screw compres-sor with single unit and parallel unit. It mainlymeets the requirements of low-temperaturerefrigeration storage at -20°C and quick-frozenstorage at -35°Cwith BITZER or FRASCOLD ,Ithas good quality and high reliability.2.The standard design of the unit adopts theform of water cooling, adopts high efficientshell and tube type water cooling condenser,and is equipped with a separate liquid receiver.3.The unit is equipped with an economizersystem and an oil cooler system.4.The unit is controlled by Siemens PLC and thekey electrical components are controlled bySchneider. With compressor start and stop,energy regulation, oil cooling system, econo-mizer system, cooling water pump and coolingtower fan control and various protection functions.tures;temperatures.5.The unit standard uses R404A or R507A refrigerant.Bitzer Condensing Unit Data: Power Supply  380V 50Hz 3phase Apply Temp. -18 to -40 degree Compressor Model HSN6461-50 Compressor Max.I(A) 79 Capacity(-35℃）46.7Capacity(-40℃）37.5Capacity(-45℃）29.5 Suction Line (mm) 28 Liquid Line （mm） DN50 Size length (mm) 1650 Size Width (mm) 1000 Size Height (mm) 1510

XMK-204 Liquid Accumulator Refrigeration PartsHas stronger construction. It maximize prevents the refrigerant lost.The liquid accumulator separator is designed with internal bend pipes to prevent from internal splashing and help the aggregation of the oil at the bottom of the separator.The separator shall be installed as nearer to the compressor as possible.ModelConnector sizeXMK-2041/2 ODFXMK-2055/8 ODFXMK-2063/4 ODFXMK-2077/8 ODFXMK-208/2111-1/8 ODFXMK-209/2131-3/8 ODFXMK-210/2151-5/8 ODFXMK-2212-1/8 ODFFeatures:1. “U” tube design for maximum flow of refrigerant and minimum oil entrapment;2. Saving refrigerant;3. Metering Orifice matched to system capacity assures optimum liquid refrigerant and oil flow back to compressor.4. Exterior corrosion resistant static electrical painting process protecting the shell from the rust.5. Maximum working pressure: 3.0 Mpa.

43.9KW Fin Type Evaporator  Product description:   HC series air cooled condensers are mainly equipped with open-type condensing units with scrollcompressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors canbe installed together or sepa rately from compressors .Design of High barrel with Side-mounted Structure.   1.Condensers and compressors can be installed together or separately from compressors. Design of Highbarrel with Side-mounted Structure.   2.Copper tube and corrugated aluminium fins with a distance of2.1 mm are used.   3.Fan specifications adopt φ400mm, φ500mm and φ630mm.   4.Testing pressure 32bar.   5.Adopt high-quality steel plate with powder coating RAL9003 or RAL6001.   6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449A and other refrig-erants.   7.Retain 1.5bar pressure before leaving factory. HC Series Air Cooled Condenser Data Sheet:   Model HC98/440NT Capacity (KW) 43.9 Surface (㎡） 97.7 Volume (dm) 11.6 Fan Motor Air Flow 14000 Fan Motor Power 960 Fan Motor Current 2.08 dB (A) 56 Connect Pipe Inlet 28 Connect Pipe Outlet 22 Weight (kg) 75

ZSI15KQE Blast Freezer Compressor Refrigeration Condensing Unit   Product description:   BUW-B series box-type condensing units have the following characteristics   1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.   2.The cover of the case adopts hinge structure,which is easy to maintain and operate.   3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.   4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.   5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect.    Copeland ZSI15KQE Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -15 to -23 degree Compressor Model ZSI15KQE Compressor Max.I(A) 11.9 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min) 1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815

ZFI59KQE R404A Cold Room Compressor Refrigeration Unit   Product description:   BUW-B series box-type condensing units have the following characteristics   1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.   2.The cover of the case adopts hinge structure,which is easy to maintain and operate.   3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.   4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.   5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect.    Copeland ZFI59KQE Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model ZFI59KQE Compressor Max.I(A) 29 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.48 Rev.(r/min) 1380 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1020 Size Width (mm) 805 Size Height (mm) 1205

Fin space 6.4mm hydrophilic aluminium ceiling mounted Evaporator with aluminum shell can be used for the food fresh, cold storage and quick freezing etc.

XMK-233 2L vertical Liquid Receiver Refrigeration Spare PartsThe liquid receiver acts as a stock of liquid refrigerant for the evaporators, located after the condenser in a refrigeration system.The selection of receiver size should be based on refrigerant charge in the system, and it also should be sized to hold the full system charge during service work, the capacity of each liquid receiver listed on Technical data sheet below.ModelConnector sizeXMK-1333/8XMK-2333/8XMK-3333/8XMK-4441/2XMK-6441/2XMK-8441/2XMK-10555/8XMK-12555/8XMK-14555/8Production Introduction:1.Designed for refrigerant storage in system’s normal operation or maintaining.2.System adjustment is allowed to suit with different condition or loading.3.Compatible with HFC, CFC, CFC and associated oils and additives4. Assemble a high quality rotator valve or safety valve.

300mm axial fan(three),CS singler blower celling mounted evaporator can be used for the food fresh cold storage and-5~5℃ cold room.
