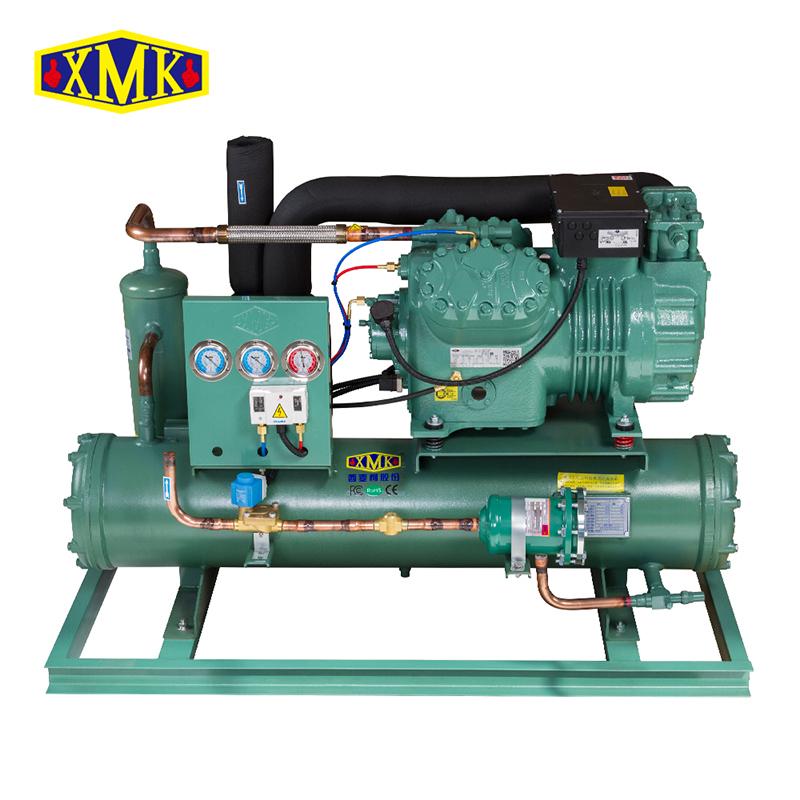

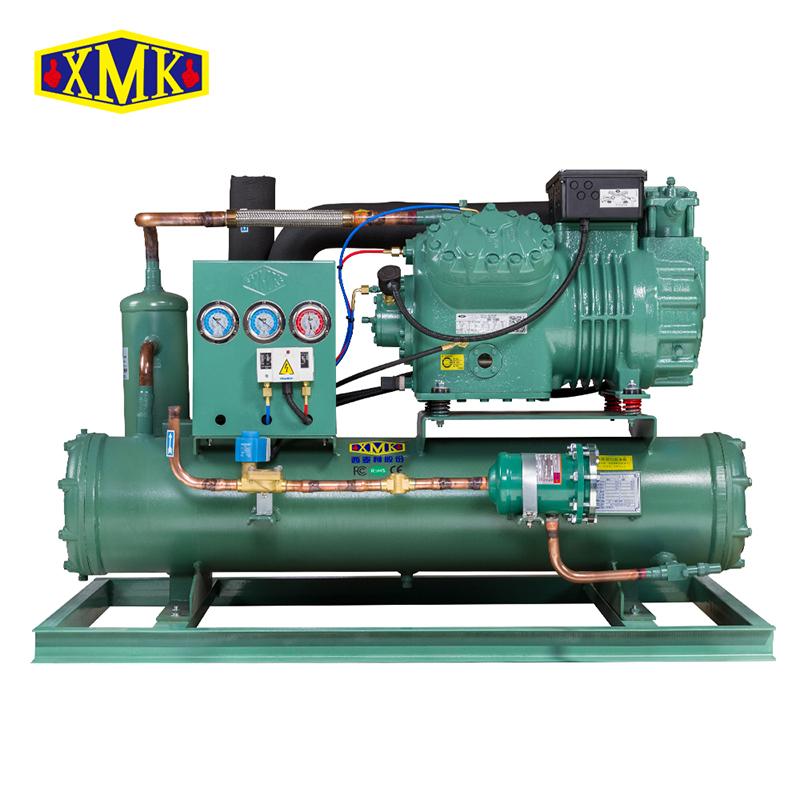

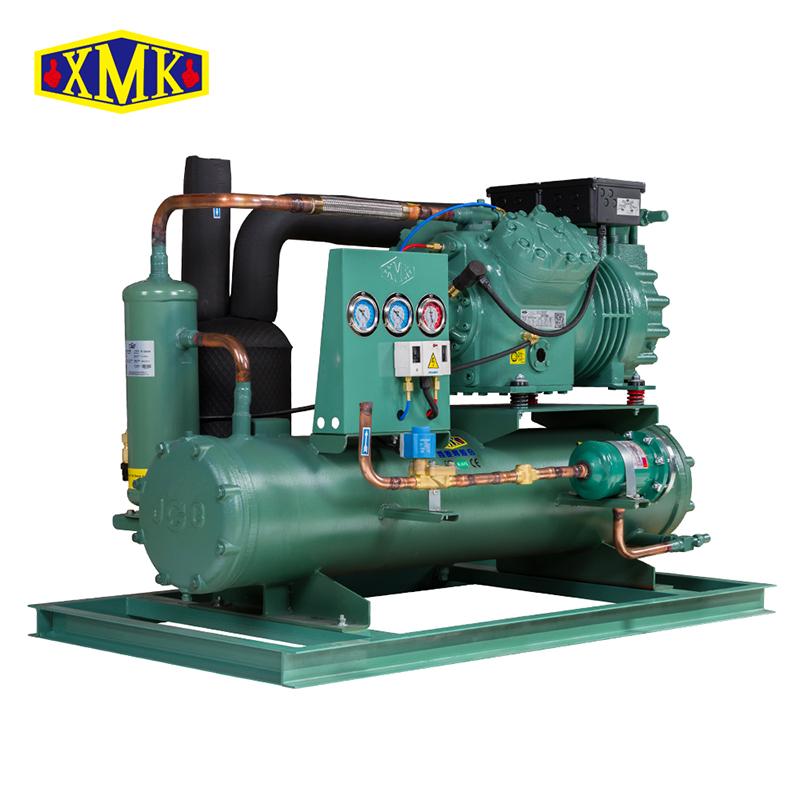

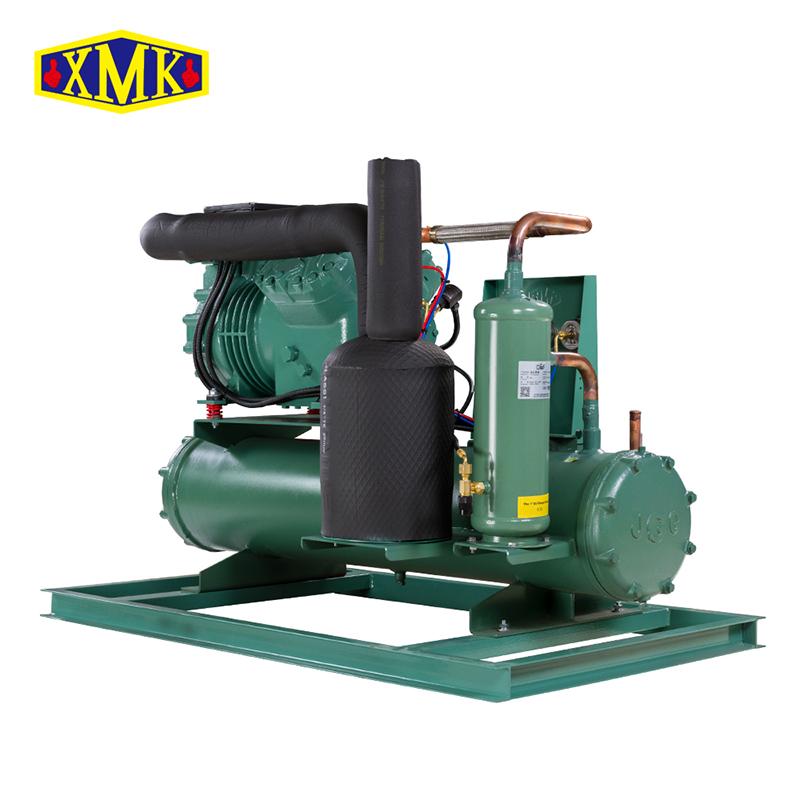

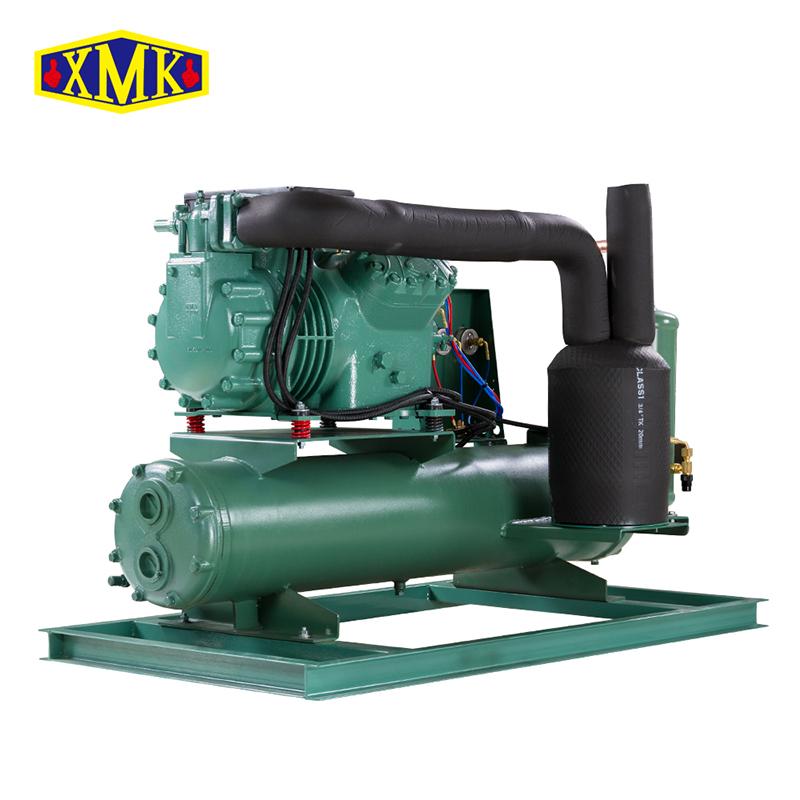

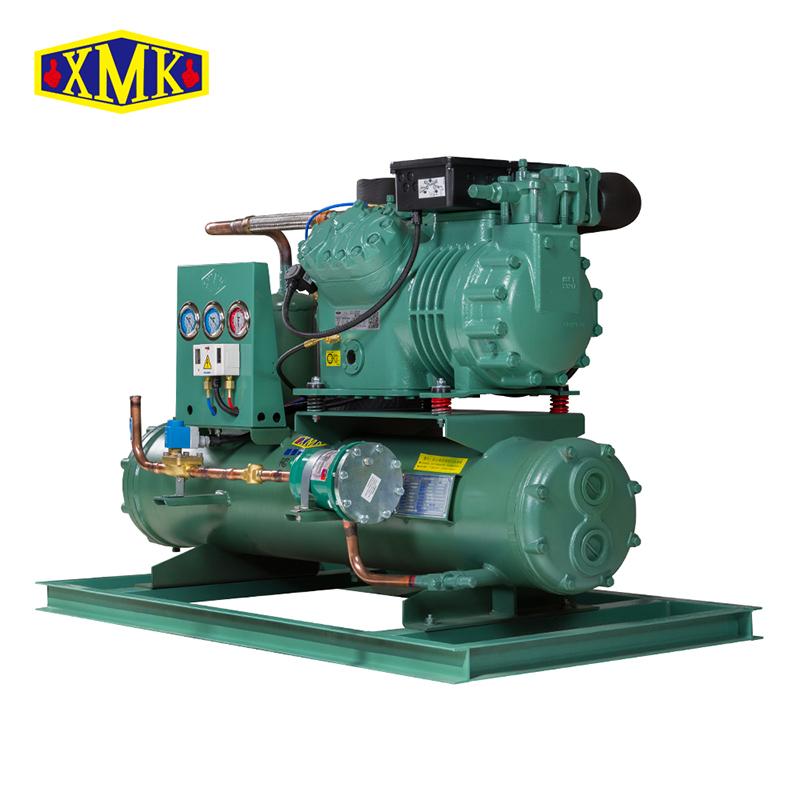

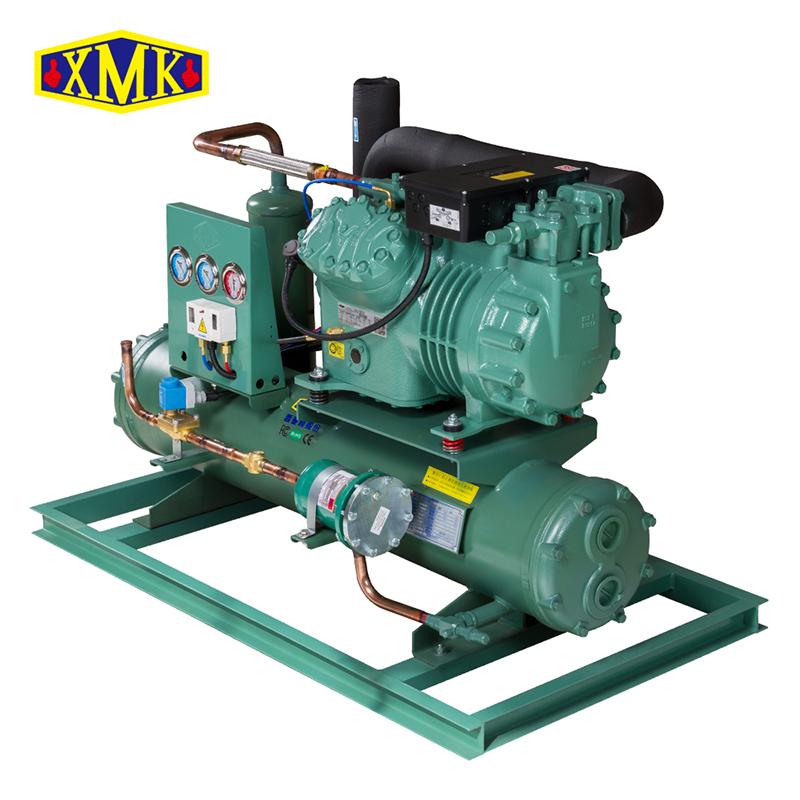

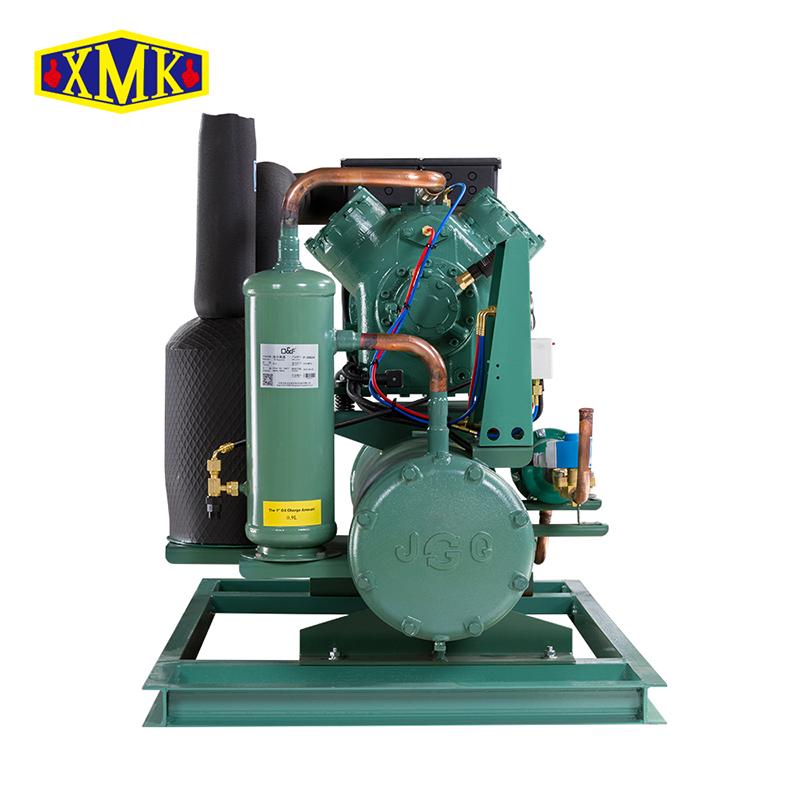

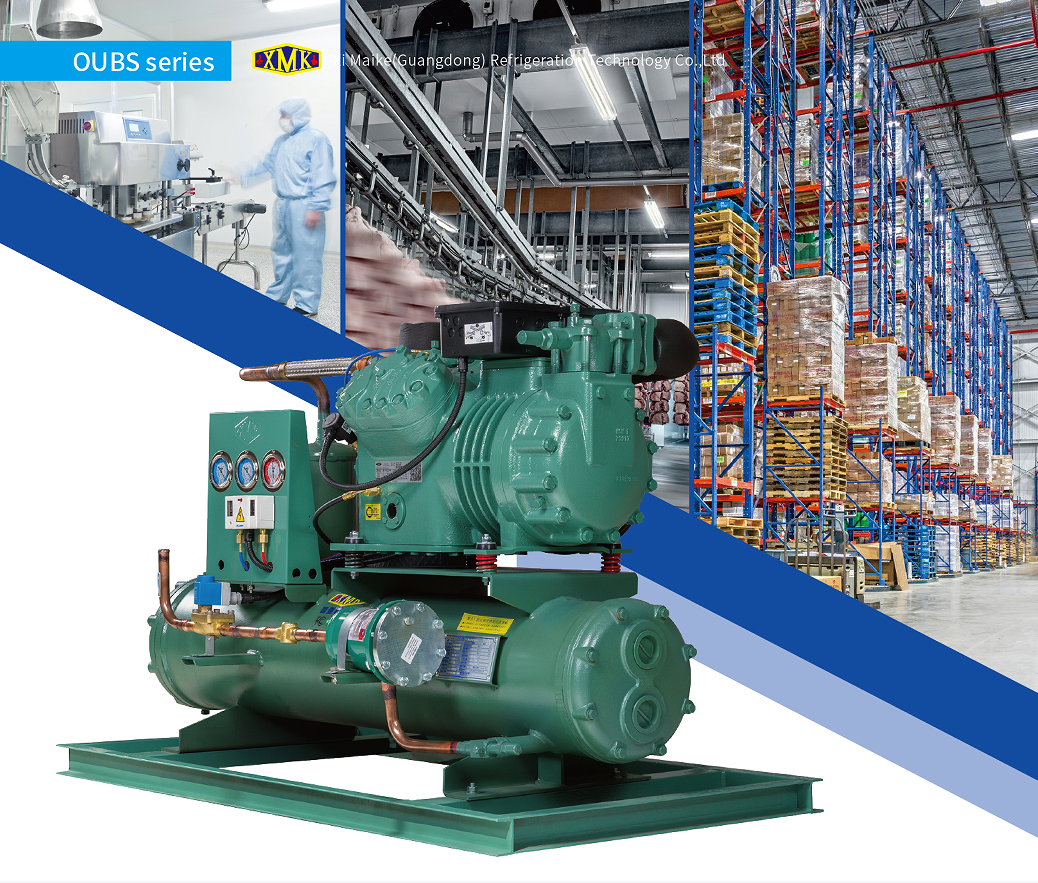

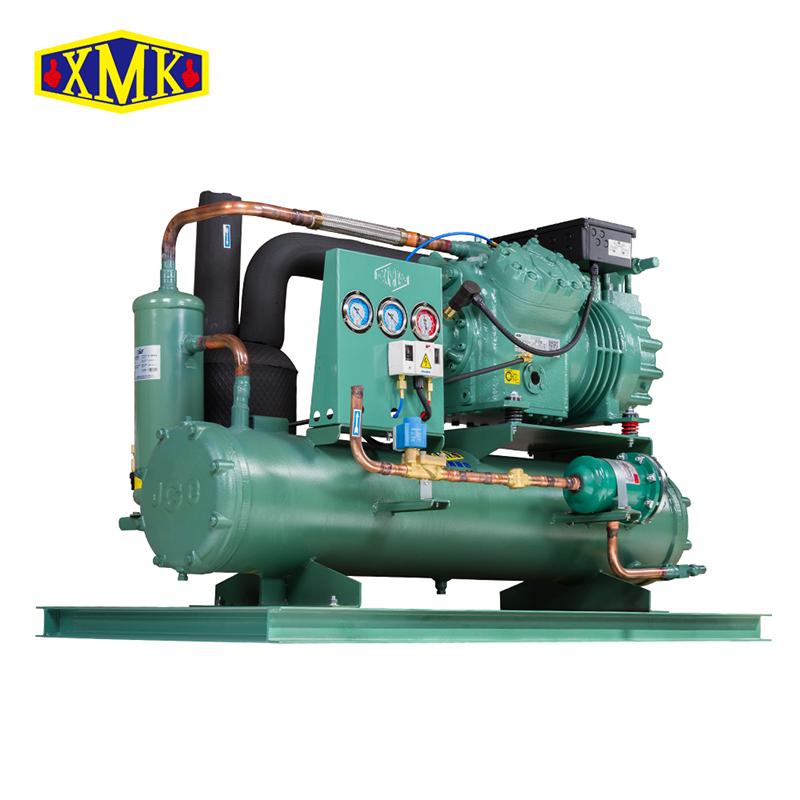

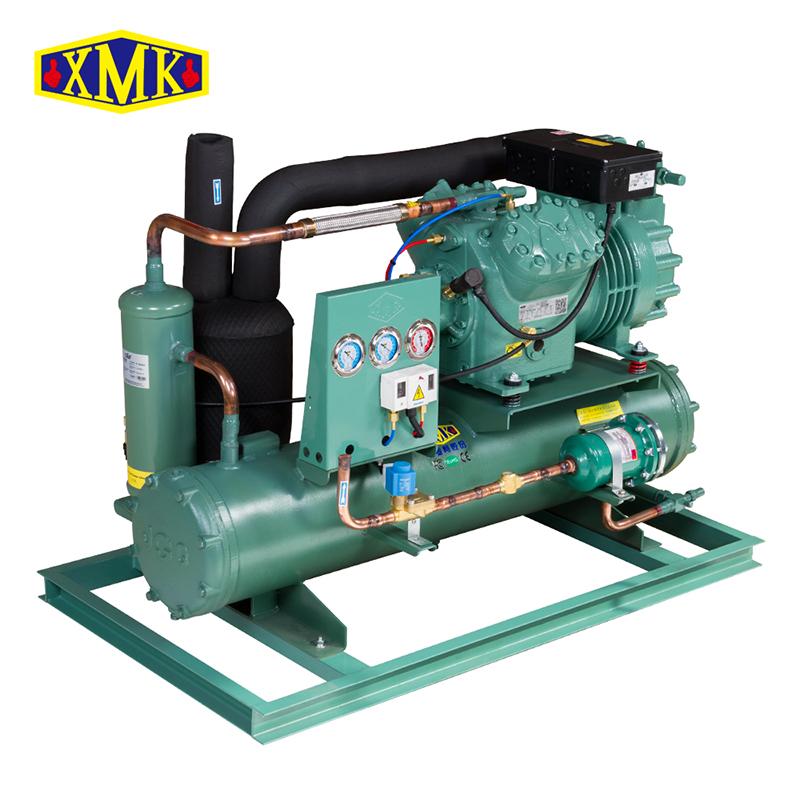

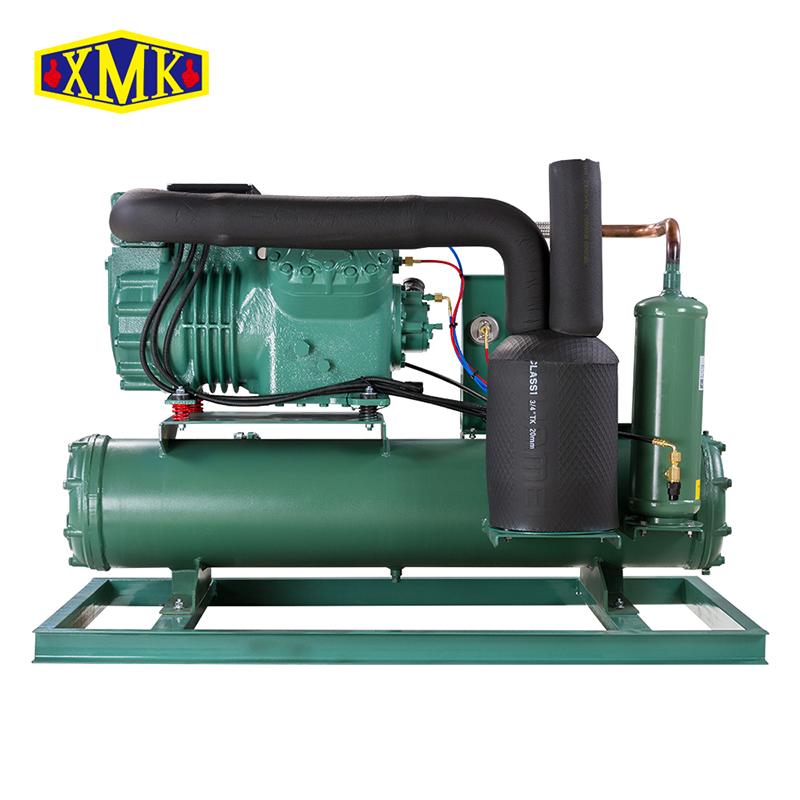

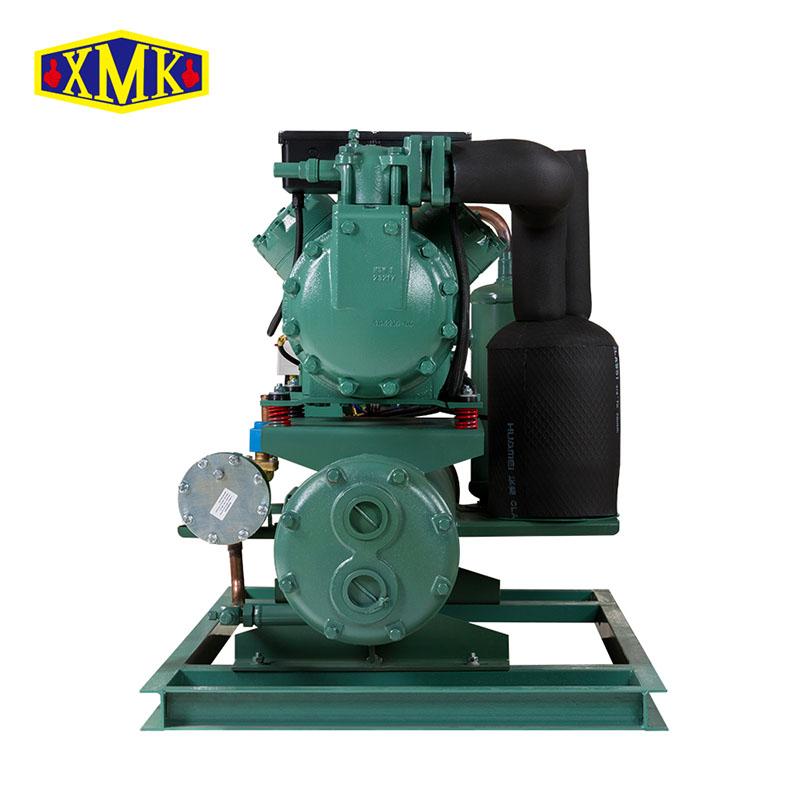

OUBS Series Water-Cool Unit with Semi-Hermrtic Compressor

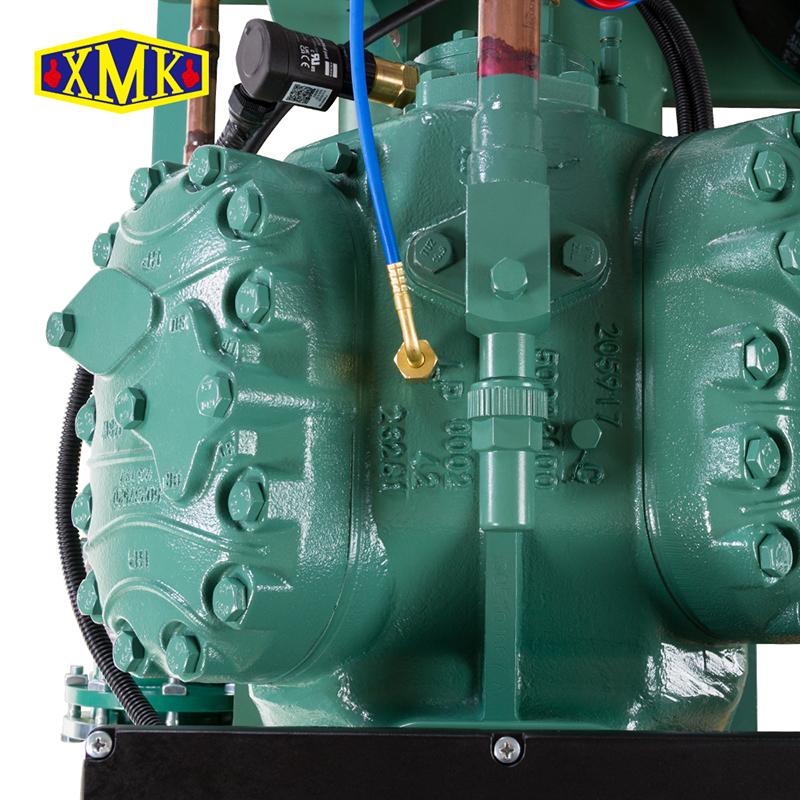

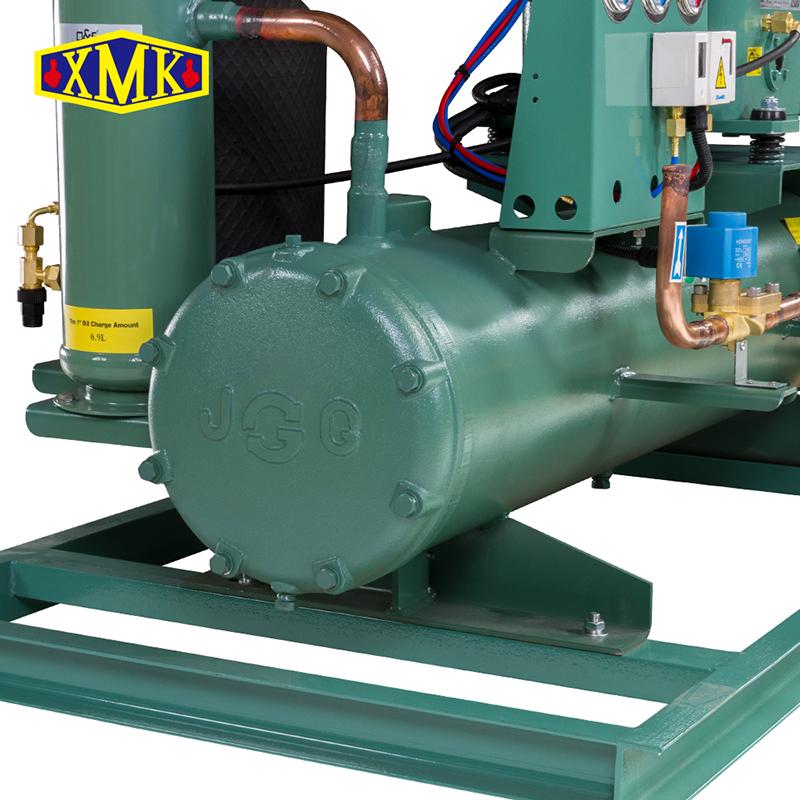

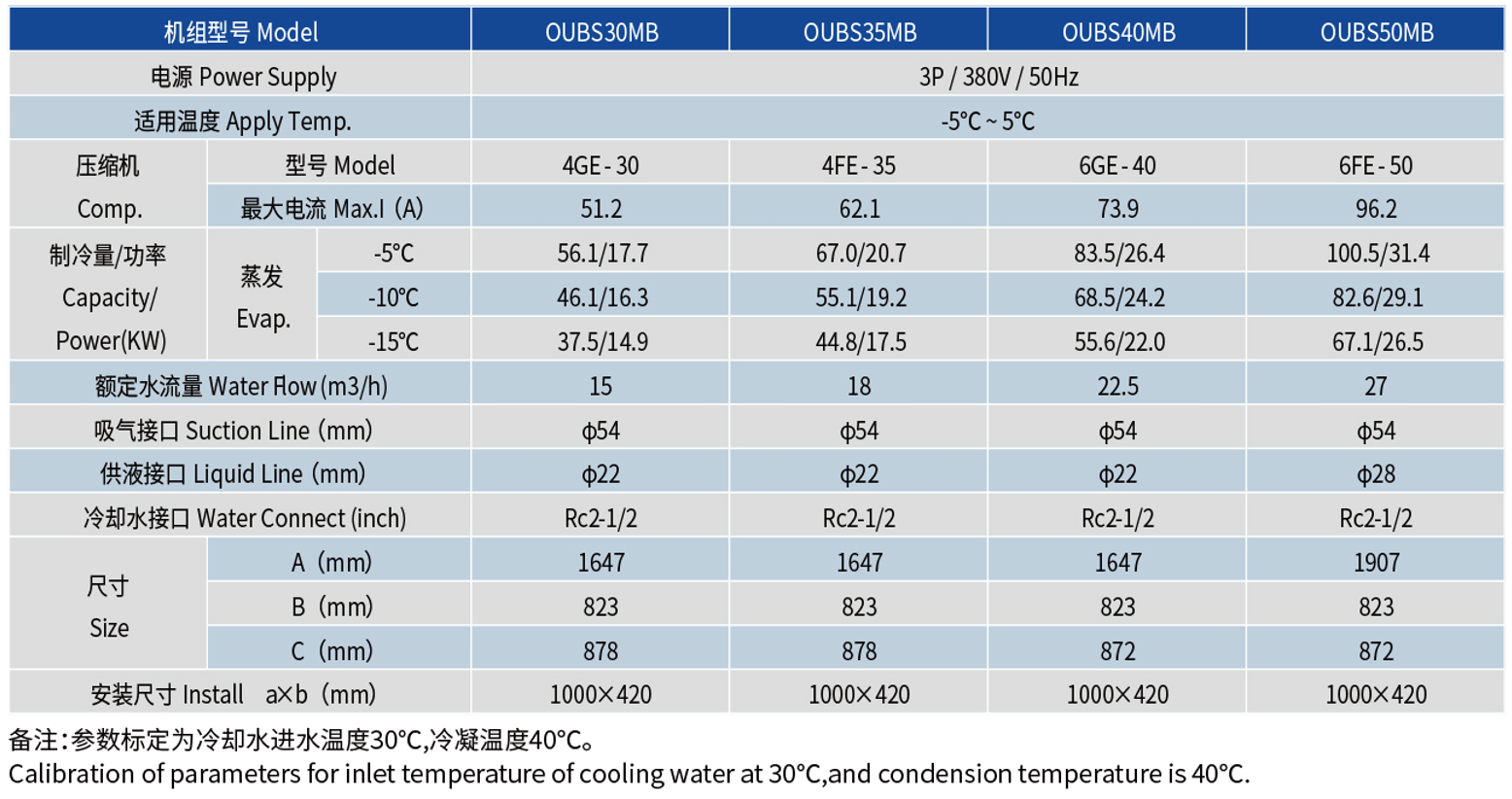

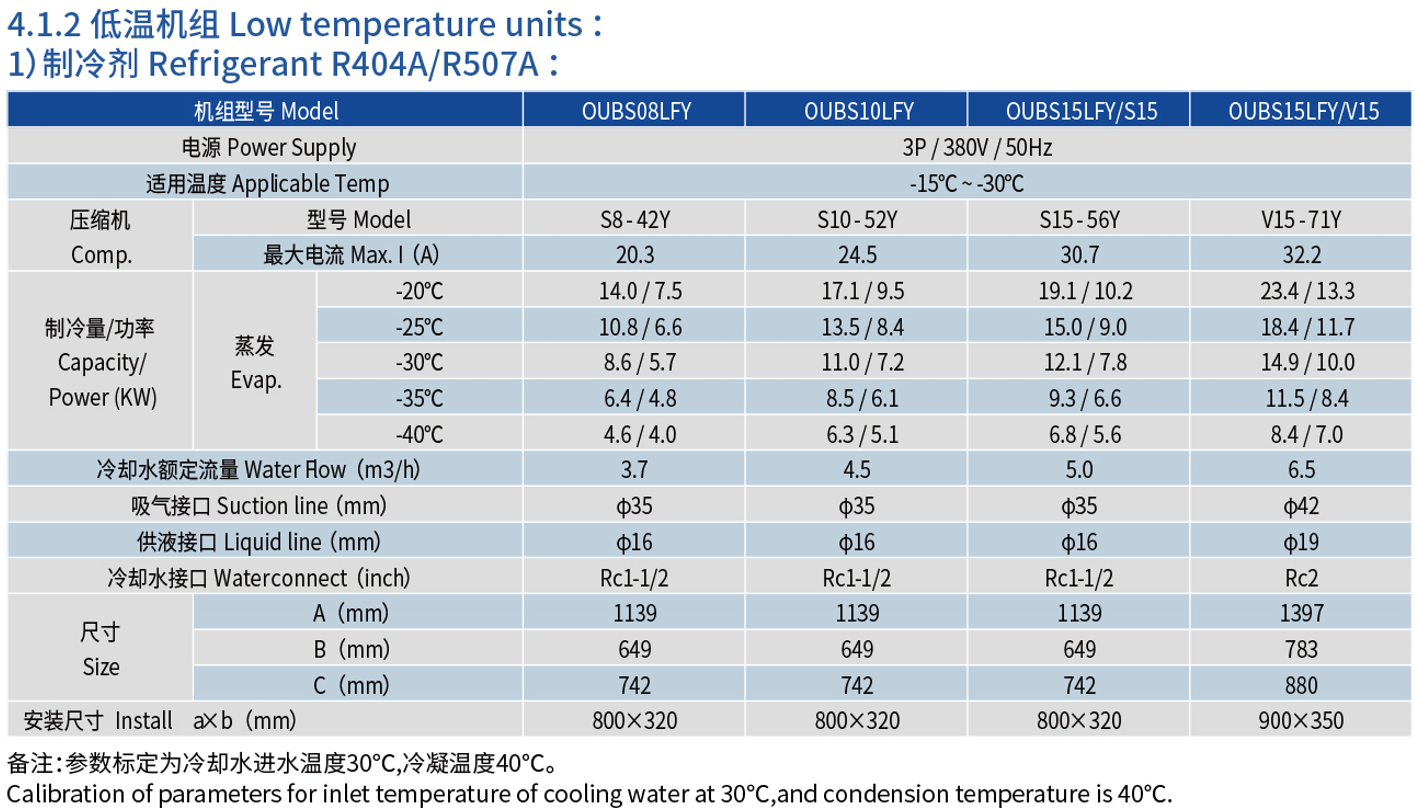

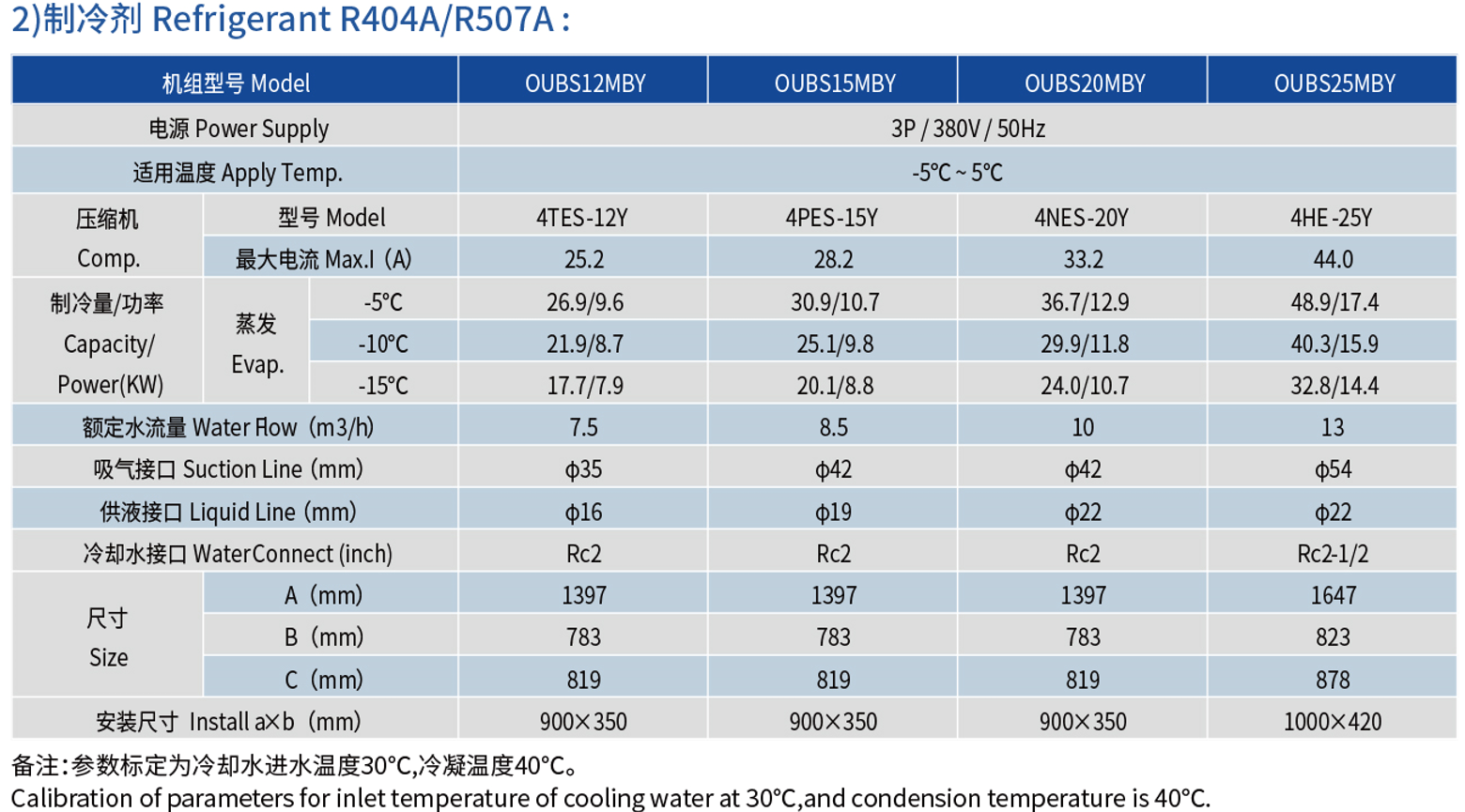

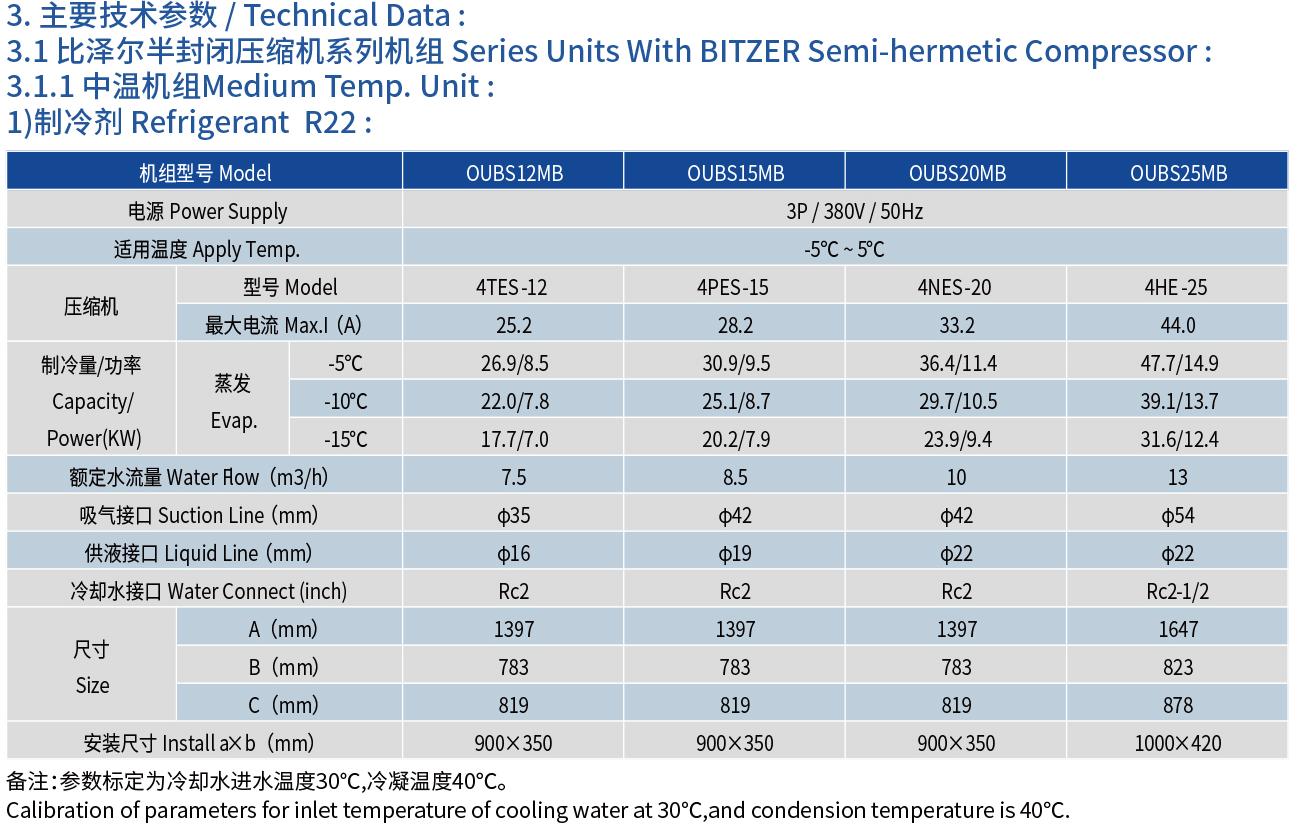

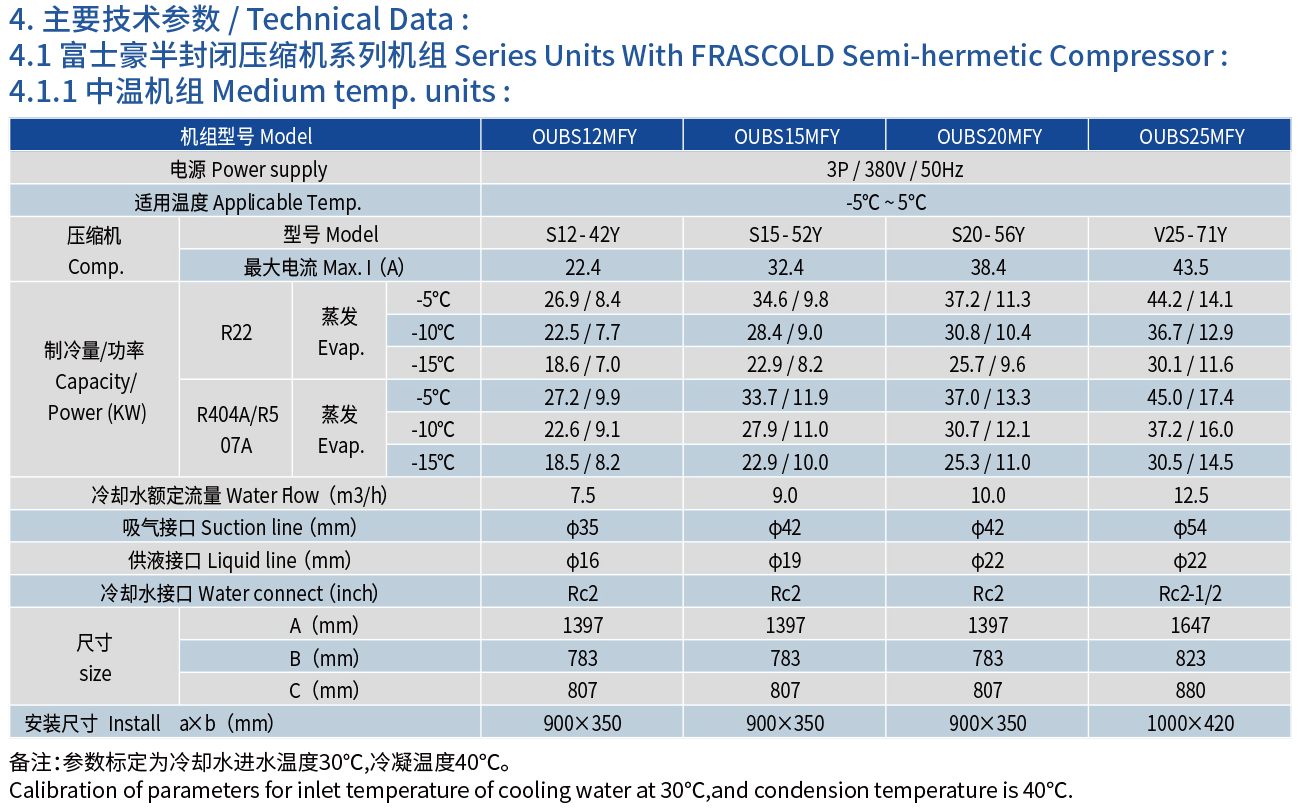

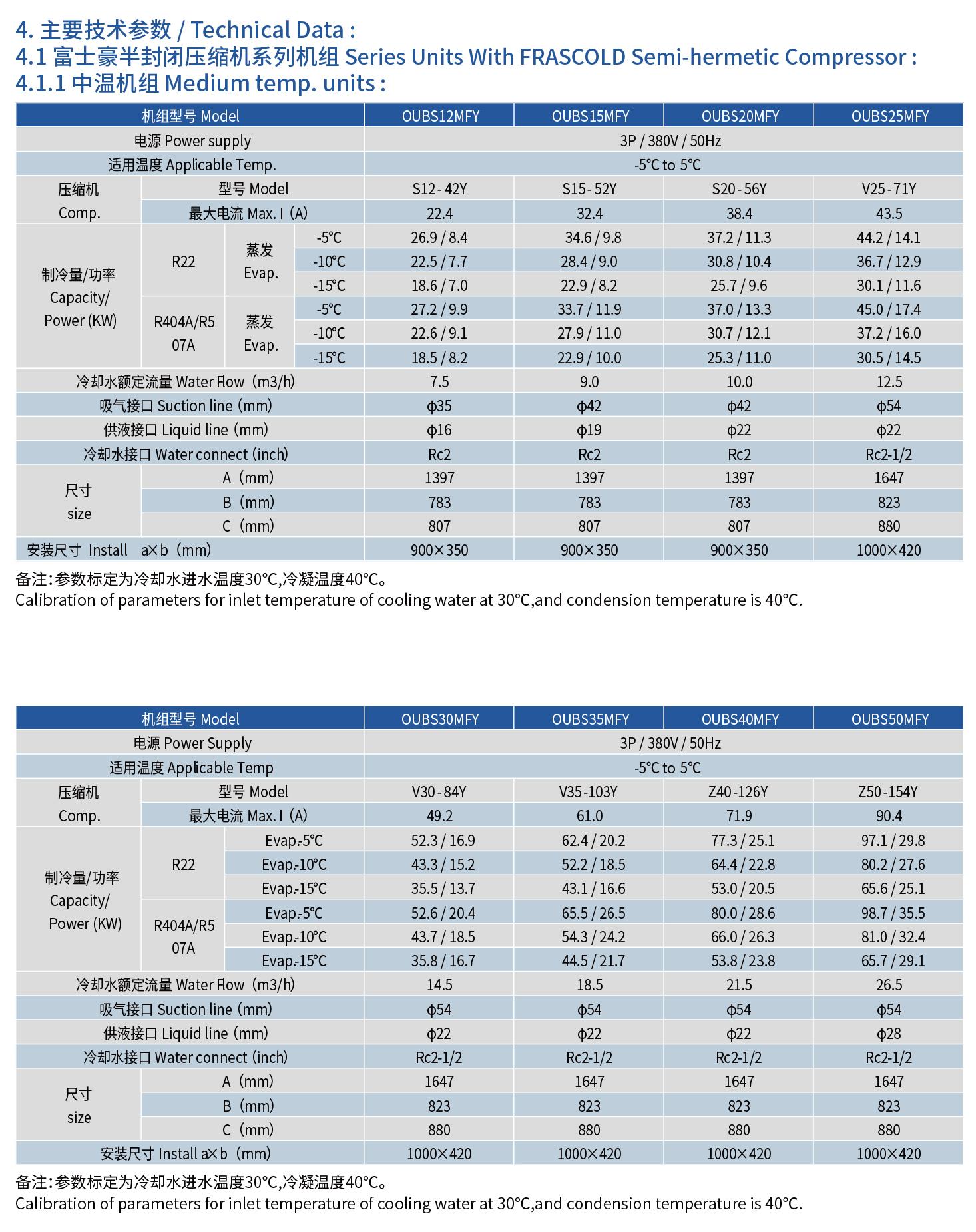

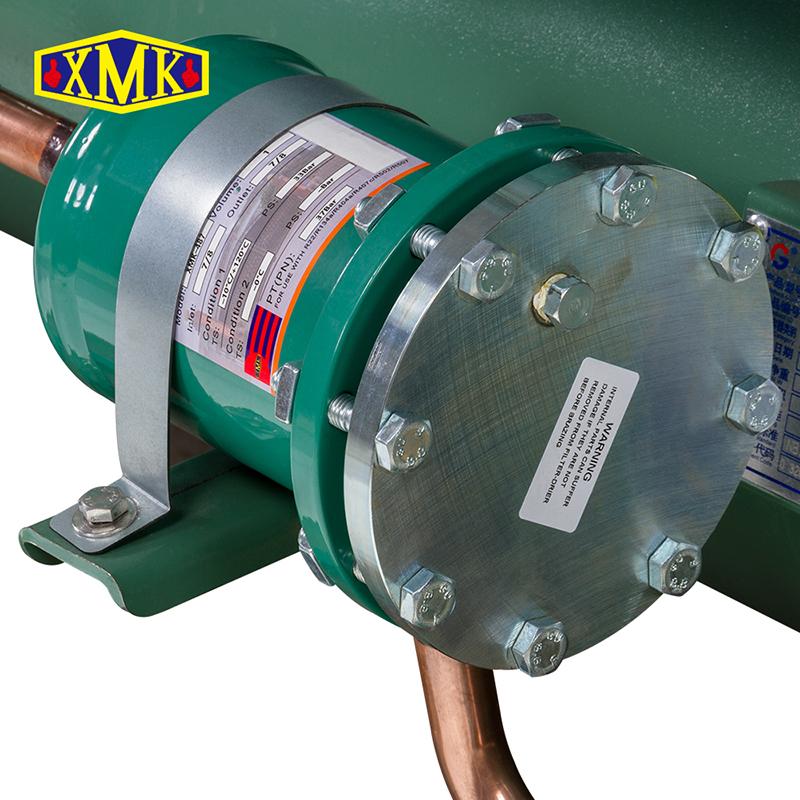

S12-42Y Refrigeration Unit Frascold Condensing Unit For Cold Room Product description:  OUBS series water-cool condensing units have the following characteristics1.Adopted semi-hermetic piston compressorswith BITZER or FRASCOLD ,It has good qualityand high reliability.2.Adopted high efficiency shell-tube type watercondenser with good cooling effect and lowcondensation temperature.3.The condenser, compressor and various accessories are installed on an integral frame,which is compact in structure and convenientin operation and maintenance.4.The product series is complete, suitable for awide range of temperatures. It has medium，low temperature and quick frozen workingconditions design. It can meet the needs ofrefrigeration equipment at various tempera-tures;temperatures.5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.Cooling Water Condensing Unit data: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model S12-42Y Compressor Max.I(A) 22.4Capacity(KW) -5℃ 27.2Capacity(KW) -10℃22.6Capacity(KW) -15℃ 18.5 Suction Line (mm) 35 Liquid Line （mm） 22 Size length (mm) 1397 Size Width (mm) 556 Size Height (mm) 807

S15-52Y Refrigeration Unit Frascold Condensing Unit For Cold Room Product description:  OUBS series water-cool condensing units have the following characteristics1.Adopted semi-hermetic piston compressorswith BITZER or FRASCOLD ,It has good qualityand high reliability.2.Adopted high efficiency shell-tube type watercondenser with good cooling effect and lowcondensation temperature.3.The condenser, compressor and various accessories are installed on an integral frame,which is compact in structure and convenientin operation and maintenance.4.The product series is complete, suitable for awide range of temperatures. It has medium，low temperature and quick frozen workingconditions design. It can meet the needs ofrefrigeration equipment at various tempera-tures;temperatures.5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.Cooling Water Condensing Unit data: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model S15-52Y Compressor Max.I(A) 32.4Capacity(KW) -5℃ 33.7Capacity(KW) -10℃27.9Capacity(KW) -15℃ 22.9 Suction Line (mm) 42 Liquid Line （mm） 22 Size length (mm) 1397 Size Width (mm) 590 Size Height (mm) 807

S6J-16.2Y Compressor Condenser Evaporator Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer S6J-16.2Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -25 to -55 degree Compressor Model S6J-16.2Y Compressor Max.I(A) 31 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.2 Fan Power (W) 548X4 Suction Line (mm) 42 Liquid Line （mm） 22 Size length (mm) 1550 Size Width (mm) 1250 Size Height (mm) 930

LT series cooling fans are mainly used in horizontal floor type structure and high wind pressure air duct fan,which evenly sends the cold air into the warehouse through the air duct.

43.9KW Fin Type Evaporator  Product description:   HC series air cooled condensers are mainly equipped with open-type condensing units with scrollcompressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors canbe installed together or sepa rately from compressors .Design of High barrel with Side-mounted Structure.   1.Condensers and compressors can be installed together or separately from compressors. Design of Highbarrel with Side-mounted Structure.   2.Copper tube and corrugated aluminium fins with a distance of2.1 mm are used.   3.Fan specifications adopt φ400mm, φ500mm and φ630mm.   4.Testing pressure 32bar.   5.Adopt high-quality steel plate with powder coating RAL9003 or RAL6001.   6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449A and other refrig-erants.   7.Retain 1.5bar pressure before leaving factory. HC Series Air Cooled Condenser Data Sheet:   Model HC98/440NT Capacity (KW) 43.9 Surface (㎡） 97.7 Volume (dm) 11.6 Fan Motor Air Flow 14000 Fan Motor Power 960 Fan Motor Current 2.08 dB (A) 56 Connect Pipe Inlet 28 Connect Pipe Outlet 22 Weight (kg) 75

4FES-5Y Bitzer Open Compressor Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4FES-5Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. 5 to 15 degree Compressor Model 4FES-5Y Compressor Max.I(A) 10 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.04 Fan Power (W) 240X2 Suction Line (mm) 22 Liquid Line （mm） 12 Size length (mm) 1435 Size Width (mm) 850 Size Height (mm) 830

ZB130KQE Copeland Compressor Scroll Unit   Product description:   BUW-B series box-type condensing units have the following characteristics   1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.   2.The cover of the case adopts hinge structure,which is easy to maintain and operate.   3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.   4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.   5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect.    Copeland ZB130KQE Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB130KQE Compressor Max.I(A) 38 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.2 Rev.(r/min) 1380 Suction Line (mm) 42 Liquid Line （mm） 22 Size length (mm) 1620 Size Width (mm) 805 Size Height (mm) 1205

4TES-9Y Compressor Room Air Cooler Refrigeration Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4TES-9Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model 4TES-9Y Compressor Max.I(A) 19.9 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240X4 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430

4PES-15Y Refrigeration Unit Bitzer Condensing Unit For Cold Room Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4PES-15Y Condensing Unit data: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4PES-15Y Compressor Max.I(A) 28.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240x4 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430
