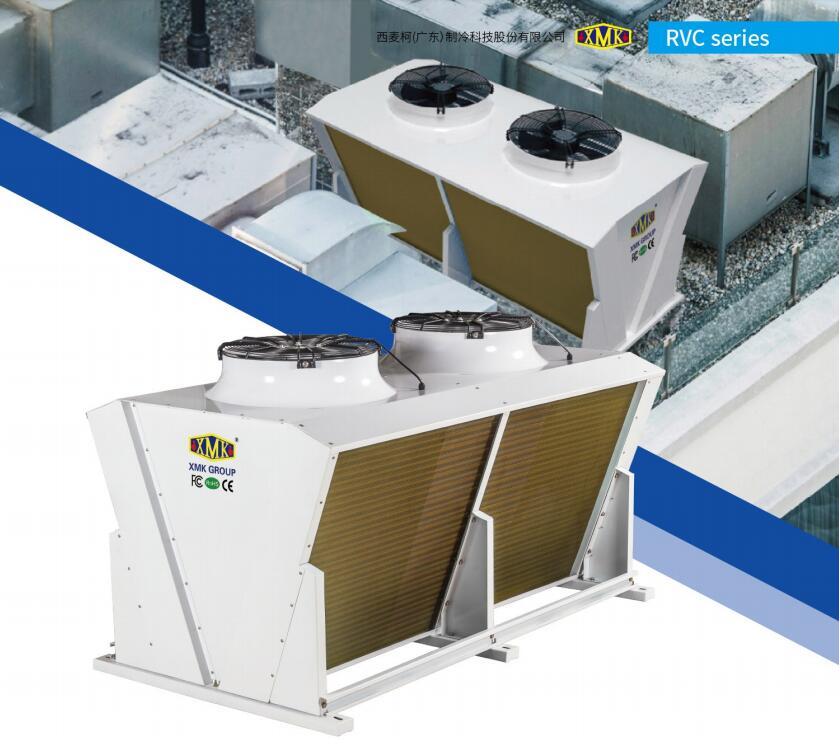

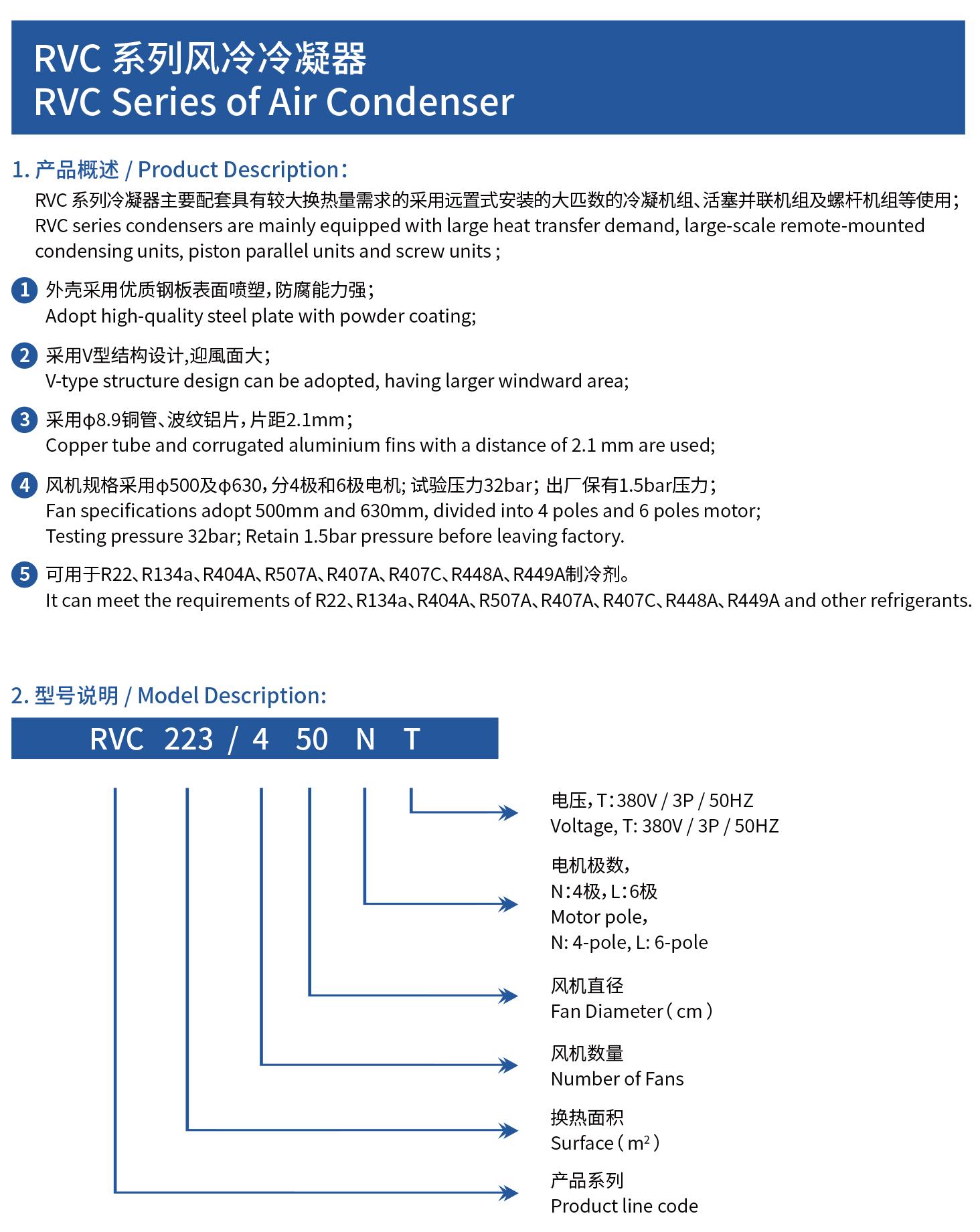

RVC Series of Air Condenser

RVC series condensers are mainly equipped with large heat trangsfer demand, large-scale remote-mouned condensing unit, piston parallet units and screw units.It features simple structure, small floor coverage, excellent anticorrosion performance and so on. Fan divided into 4 poles and 6 poles motor .

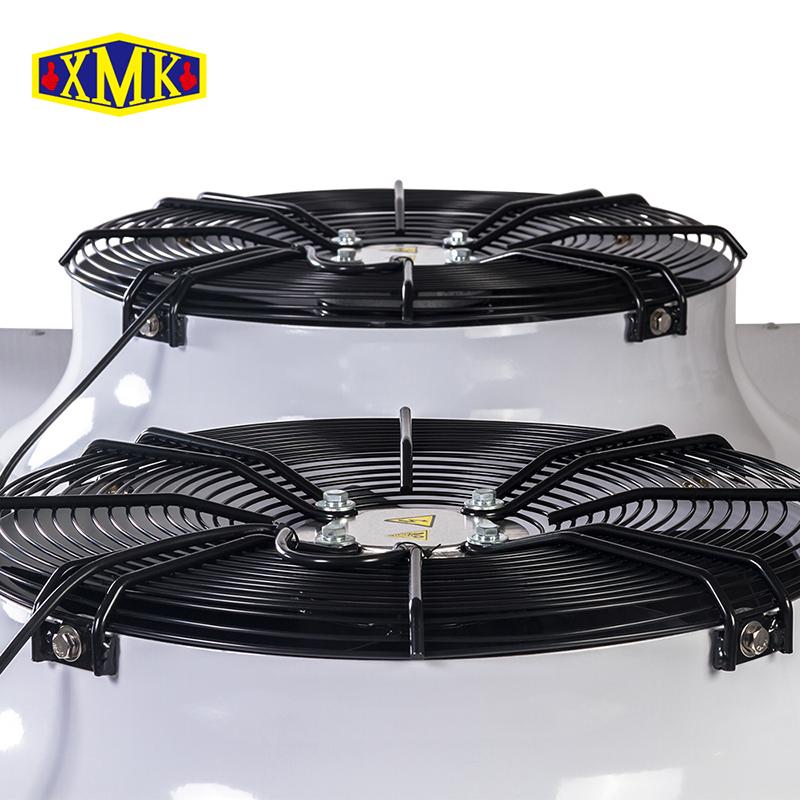

RVC refrigeration condensing unit air condensers are mainly equipped with large heat trangsfer demand, large-scale remote-mouned condensing unit, piston parallet units and screw units.V type structure design can be adopted ,having larger windward area. Fan specification adopt 630mm , divided into 4 poles and 6 poles motor

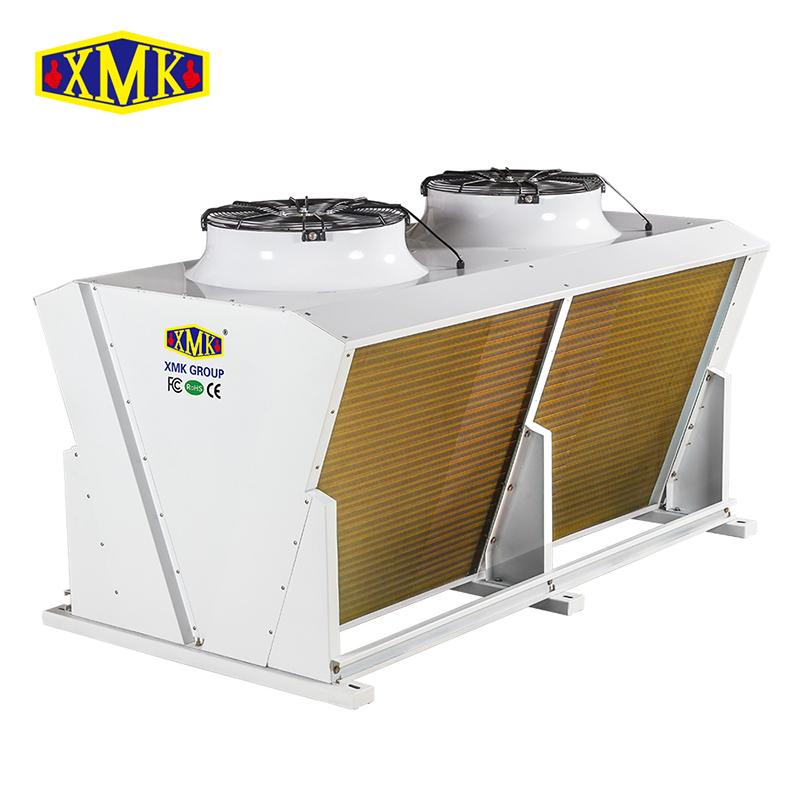

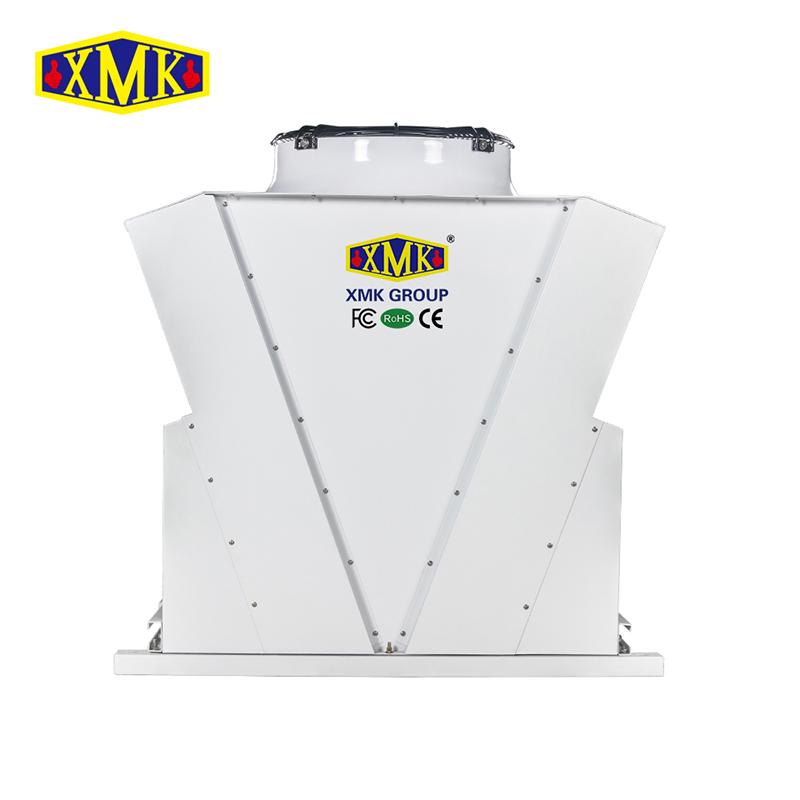

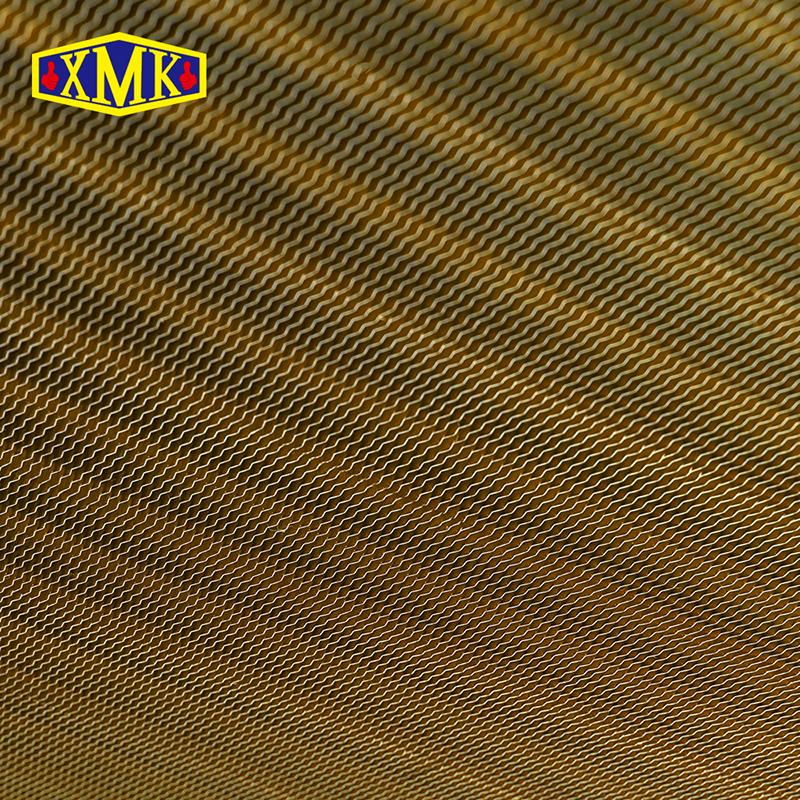

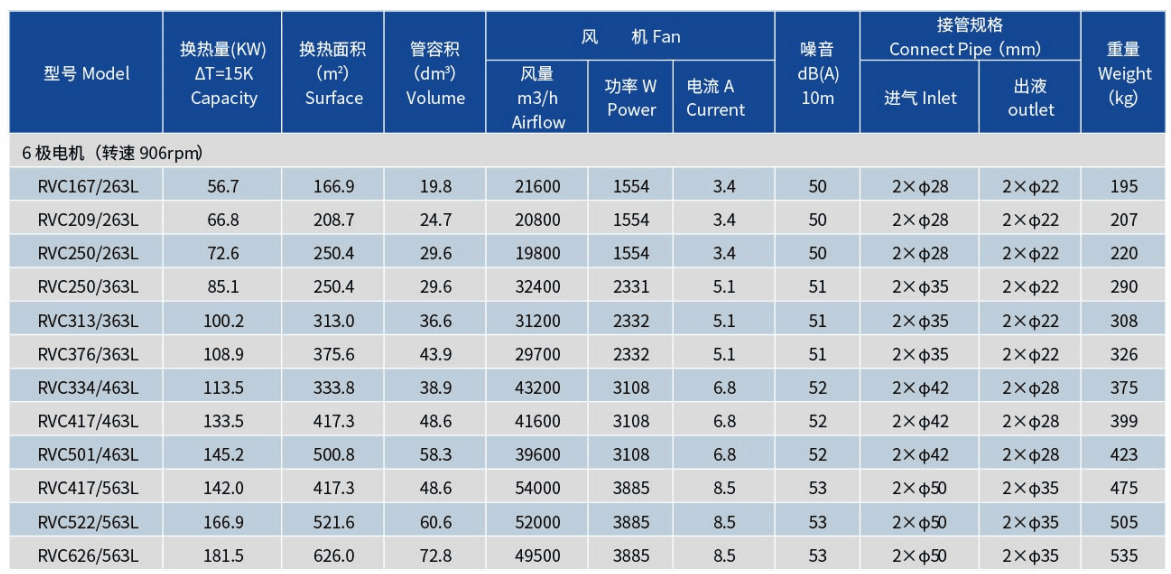

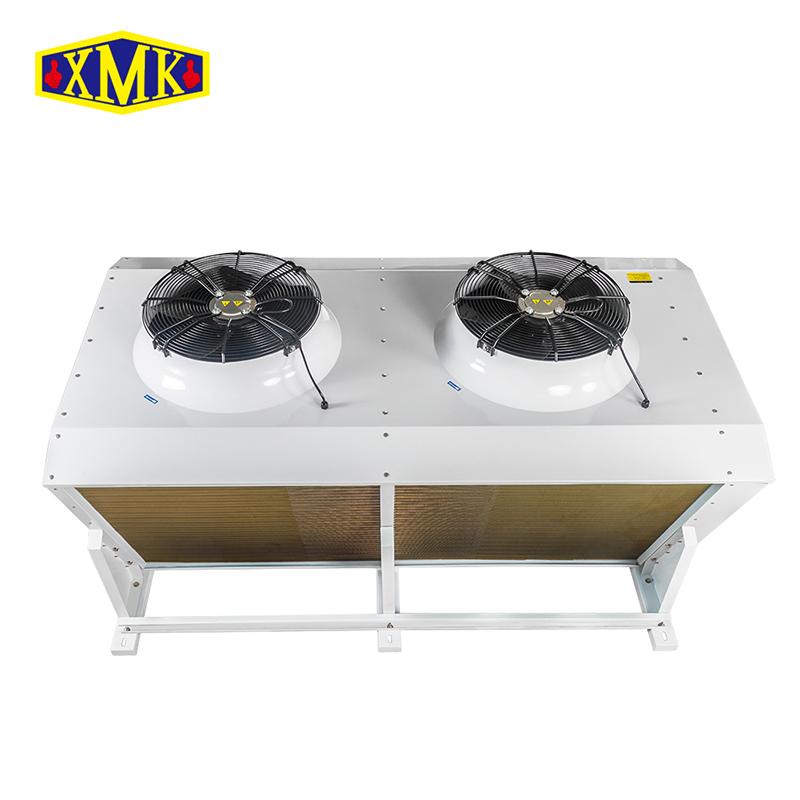

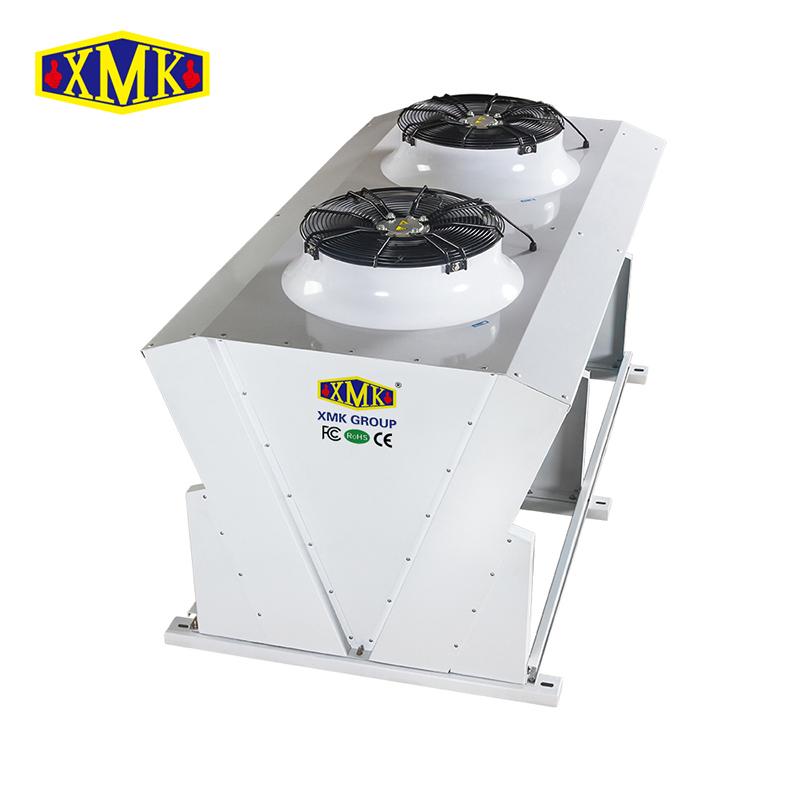

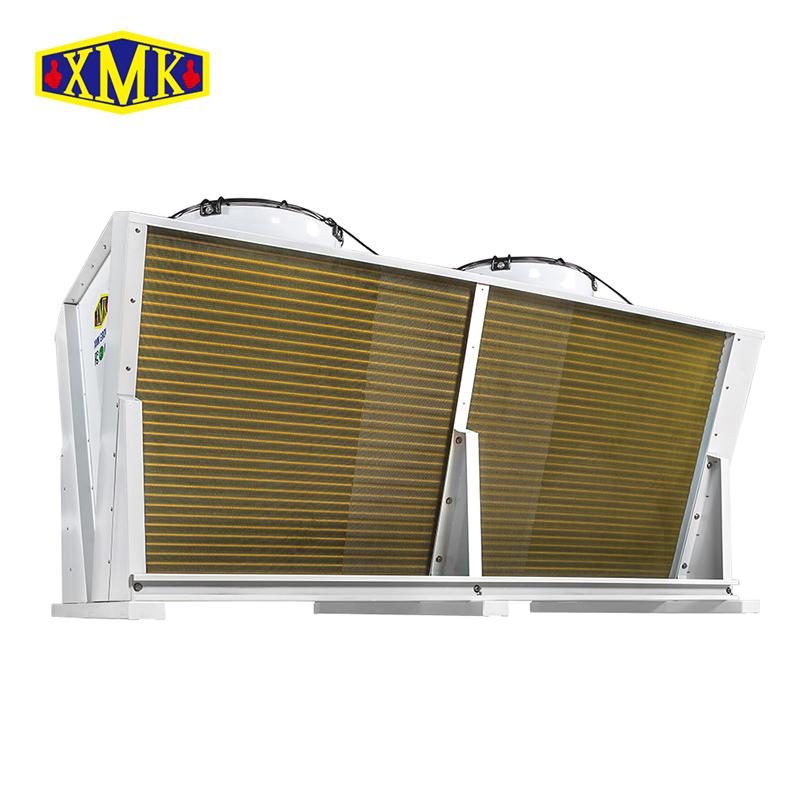

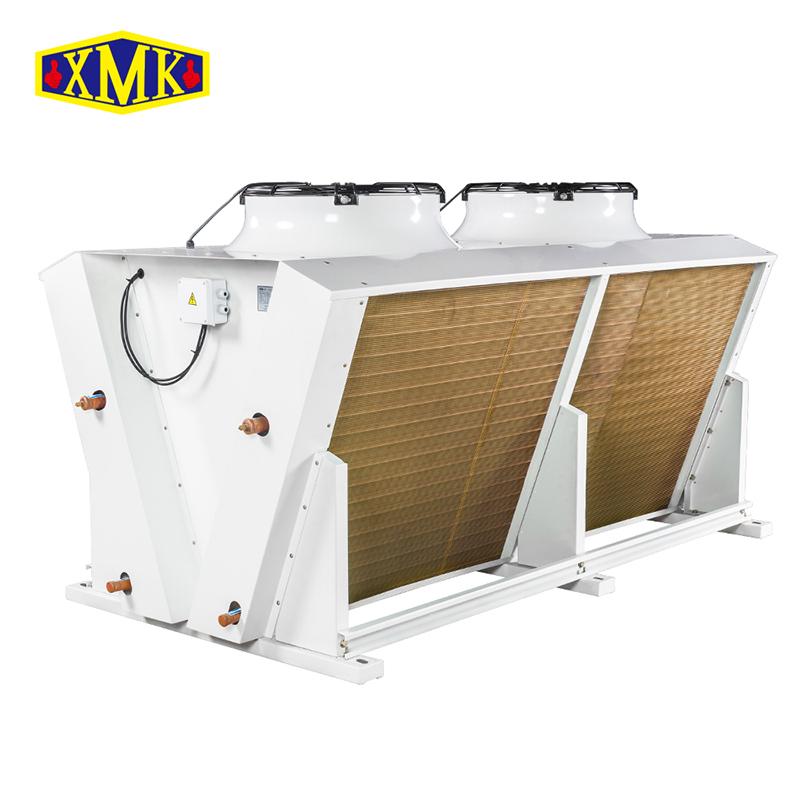

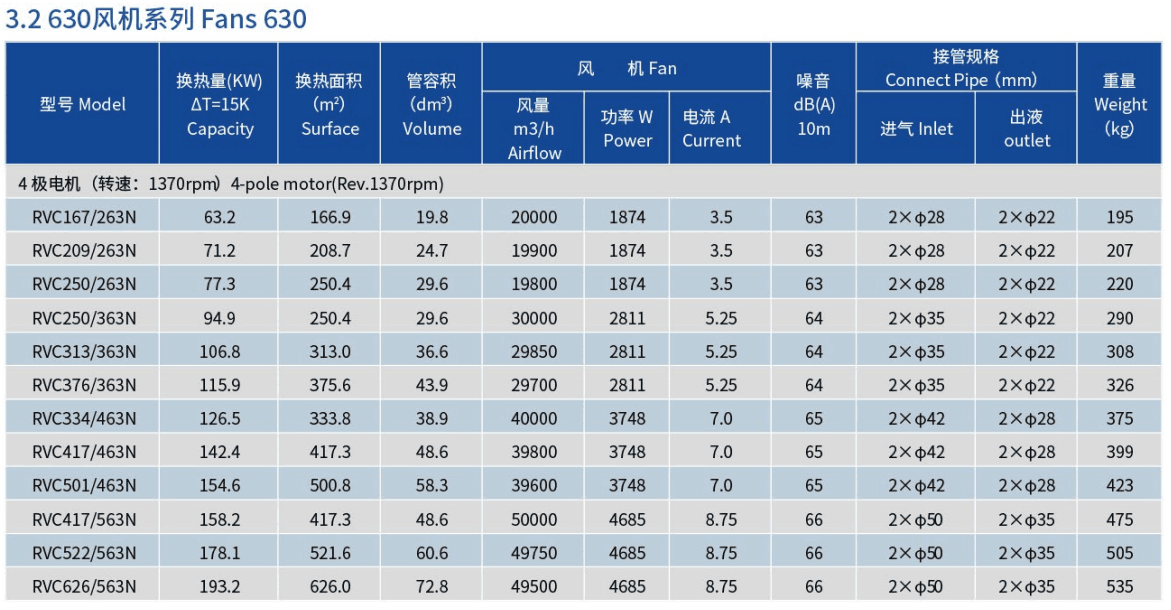

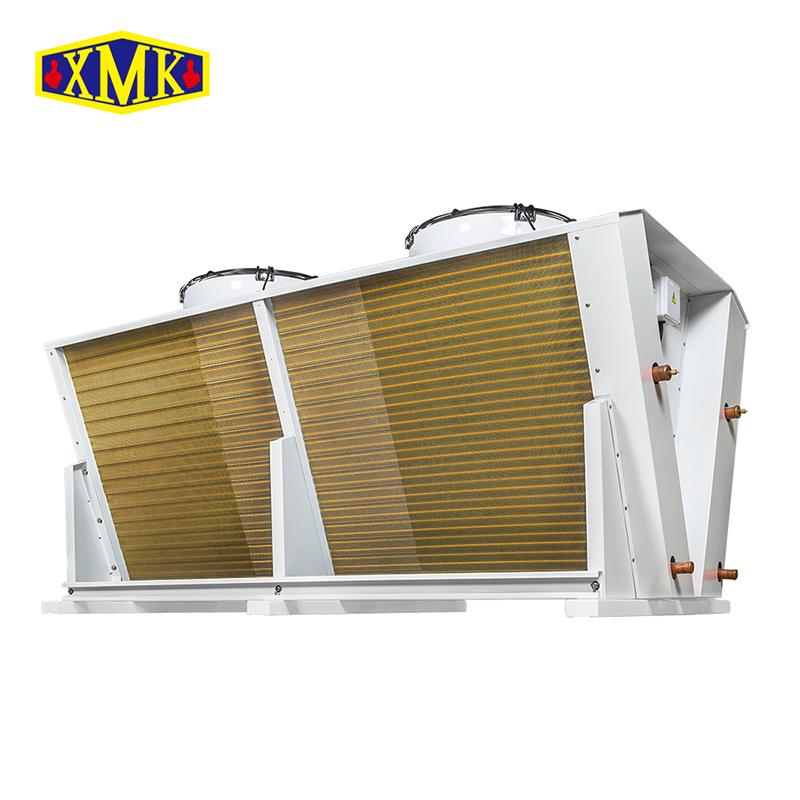

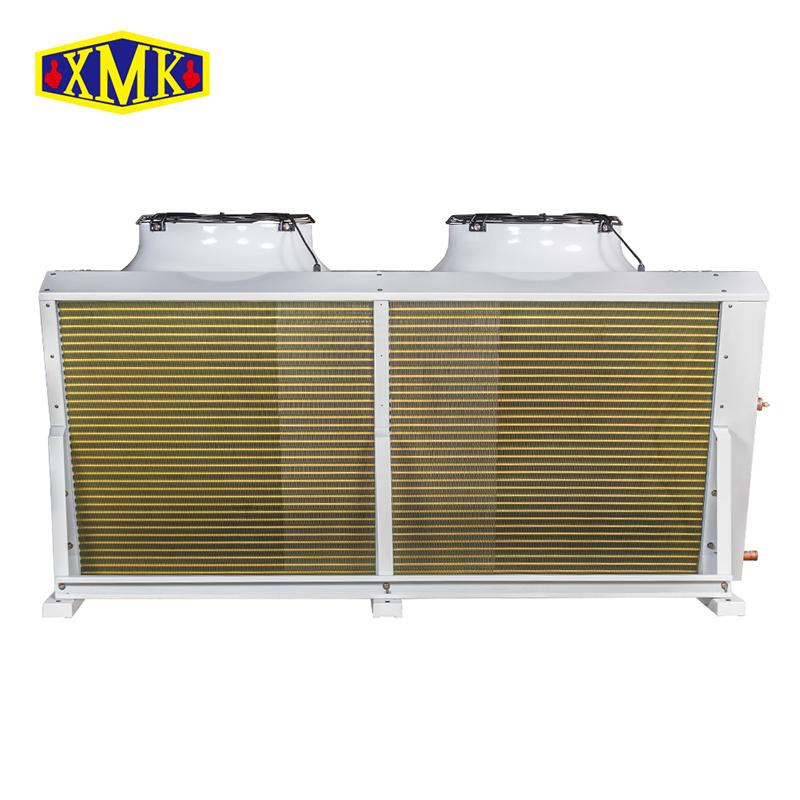

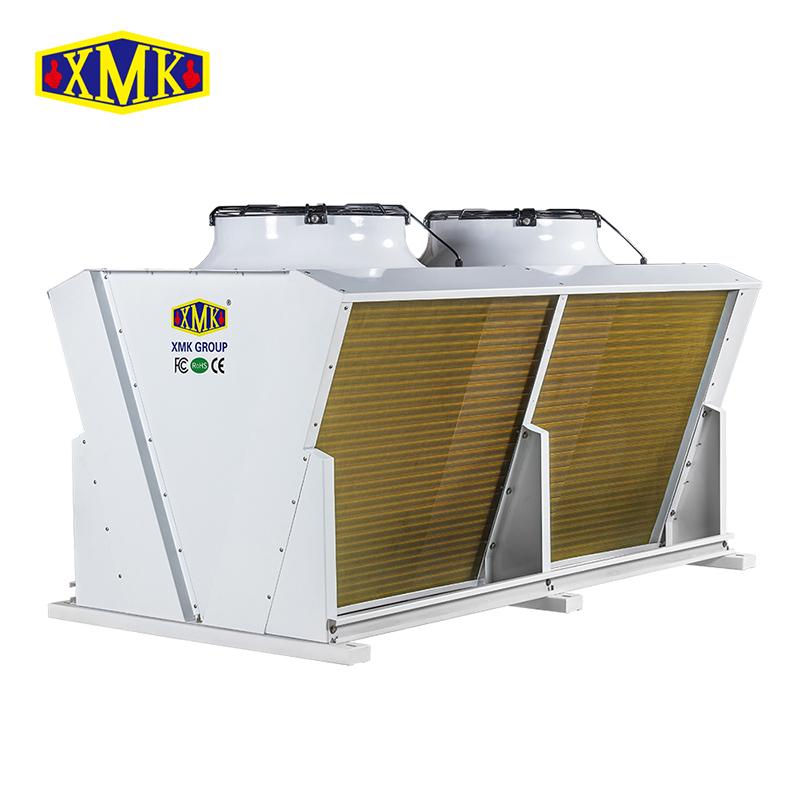

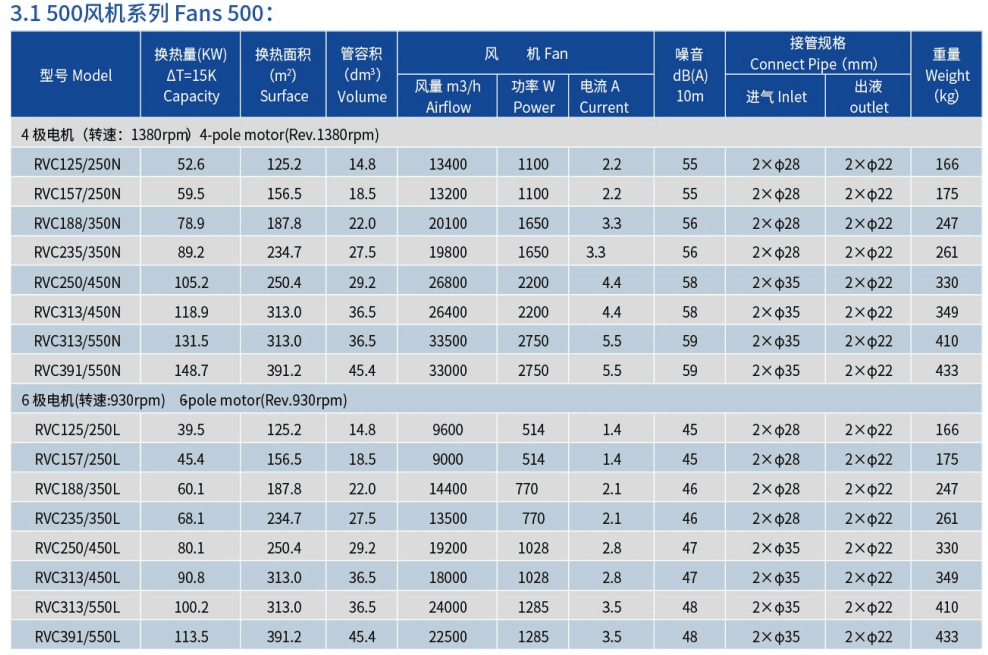

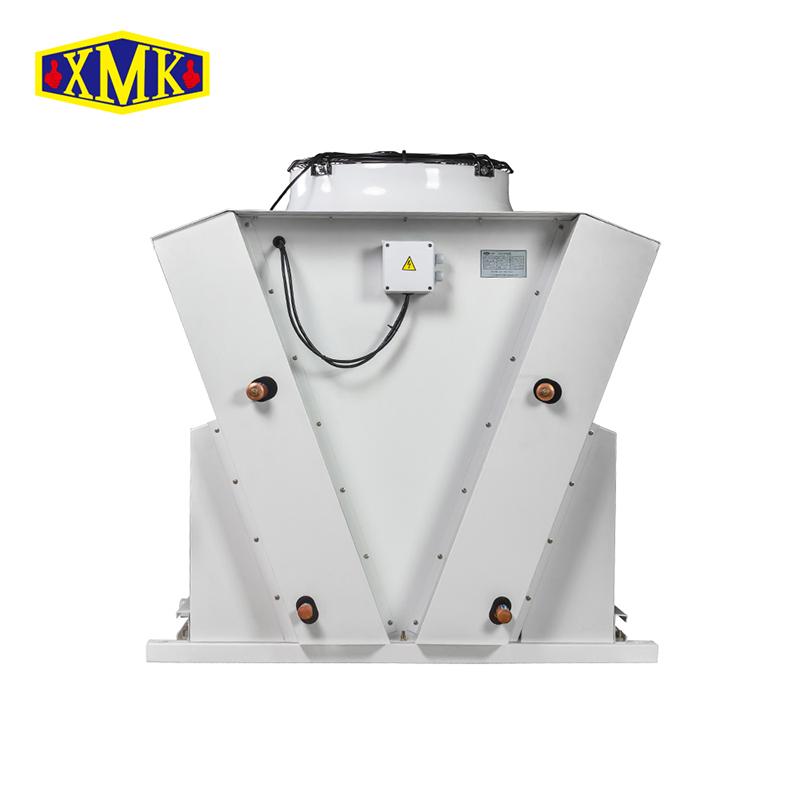

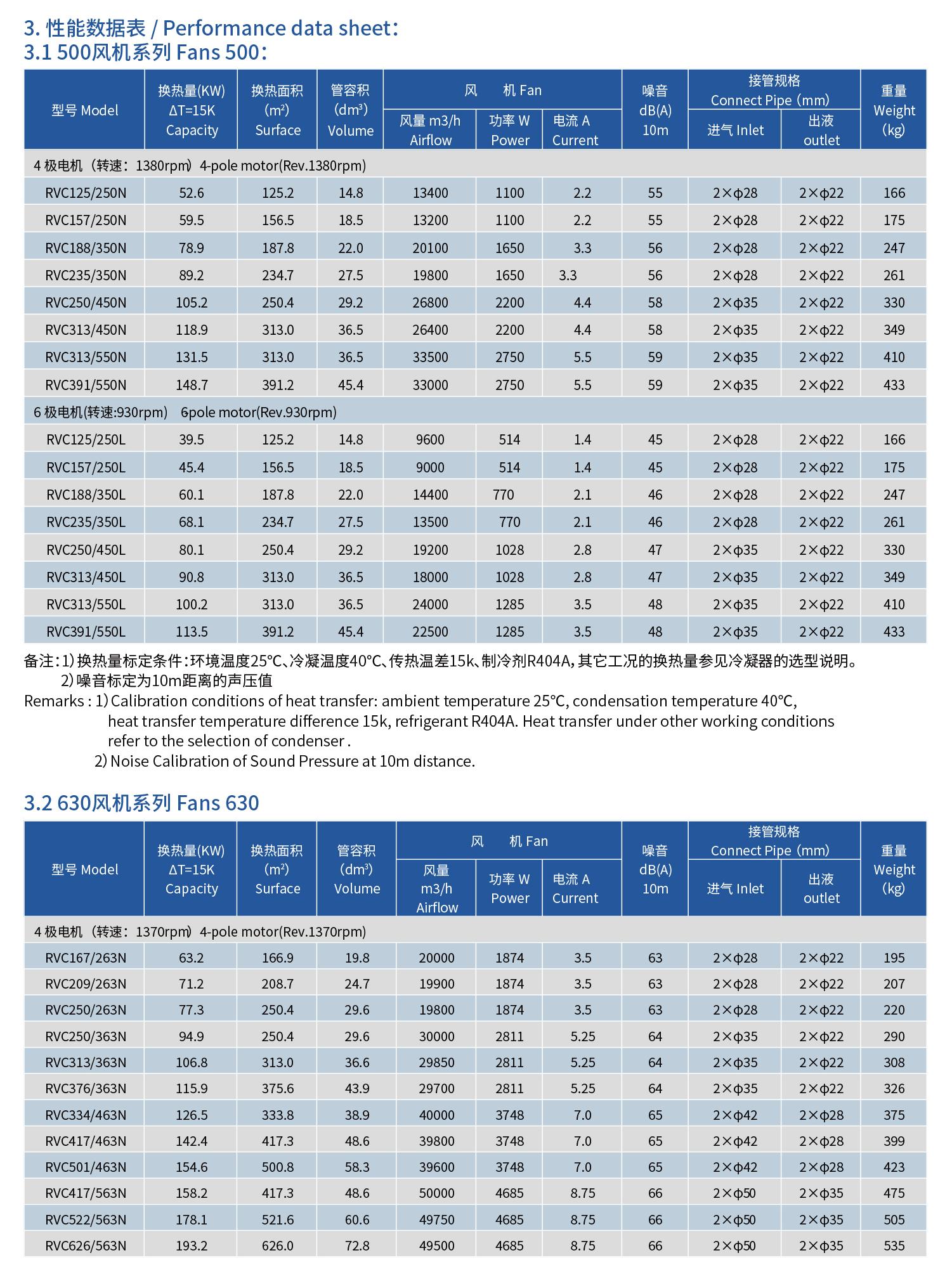

XMK Factory V Type Air Cooled Condenser  Product description:  RVC series condensers are mainly equipped with large heat transfer demand, large-scaleremote-mounted condensing units, piston parallel units and screw units.1.V-type structure design can be adopted,having larger windward area.2.Copper tube and corrugated aluminium fins with a distance of 2.1 mm are used.3.Fan specifications adopt 500mm and 630mm, divided into 4 poles and 6 poles motor.4.Testing pressure 32bar.5.Adopt high-quality steel plate with powder coating.6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449Aand other refrigerants.7.Retain 1.5bar pressure before leaving factory.RVC Series Air Cooled Condenser Data Sheet: ModelRVC157/250N Capacity (KW)59.5Surface (㎡）156.5 Volume (dm)18.5Fan Motor Air Flow13200Fan Motor Power1100Fan Motor Current2.2dB (A)55Connect Pipe Inlet2X28Connect Pipe Outlet2X22Weight (kg)175

RVC series condensers are mainly equipped with large heat trangsfer demand, large-scale remote-mouned condensing unit, piston parallet units and screw units.It features simple structure, small floor coverage, excellent anticorrosion performance and so on. Model condenser max match use to 630 m2 cold room use.

ZSI21KQE Compressor Scroll Copeland Condensing UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZSI21KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -23 degree Compressor Model ZSI21KQE Compressor Max.I(A) 14.6 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1 Rev.(r/min)910 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 1040 Size Width (mm) 570 Size Height (mm) 1100

ZB45KQE Compressor Unit Condensing Unit Copeland Product description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB45KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB45KQE Compressor Max.I(A) 16.1 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.1 Rev.(r/min)1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 1320 Size Width (mm) 655 Size Height (mm) 1065

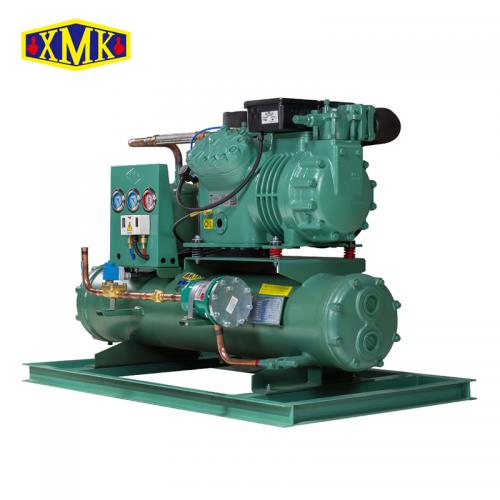

Condenser Freezer Low Temperature Coldroom Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4FE-35Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4FE-35Y Compressor Max.I(A) 62.1 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 7 Fan Power (W) 937x4 Suction Line (mm) 54 Liquid Line （mm） 22 Size length (mm) 1800 Size Width (mm) 1300 Size Height (mm) 1880

23.6KW  Cold Storage Condenser Refrigeration  Product description:   HC series air cooled condensers are mainly equipped with open-type condensing units with scrollcompressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors canbe installed together or sepa rately from compressors .Design of High barrel with Side-mounted Structure.   1.Condensers and compressors can be installed together or separately from compressors. Design of Highbarrel with Side-mounted Structure.   2.Copper tube and corrugated aluminium fins with a distance of2.1 mm are used.   3.Fan specifications adopt φ400mm, φ500mm and φ630mm.   4.Testing pressure 32bar.   5.Adopt high-quality steel plate with powder coating RAL9003 or RAL6001.   6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449A and other refrig-erants.   7.Retain 1.5bar pressure before leaving factory. HC Series Air Cooled Condenser Data Sheet:   Model HC53/240NT Capacity (KW) 23.6 Surface (㎡） 52.6 Volume (dm) 6.3 Fan Motor Air Flow 7000 Fan Motor Power 480 Fan Motor Current 1.04 dB (A) 53 Connect Pipe Inlet 22 Connect Pipe Outlet 16 Weight (kg) 53

4HE-18Y Air Cooled Bitzer Compressor Refrigeration Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4HE-18Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model 4HE-18Y Compressor Max.I(A) 36.7 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240x4 Suction Line (mm) 42 Liquid Line （mm） 22 Size length (mm) 1435 Size Width (mm) 1150 Size Height (mm) 1430
