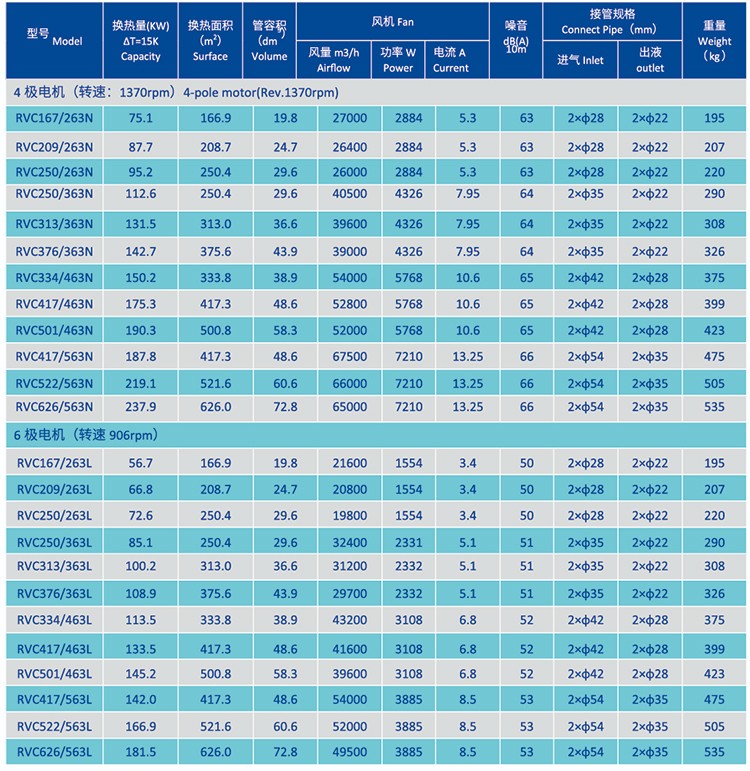

Italy stander Air cooled condenser match 313m2 Surface

RVC series condensers are mainly equipped with large heat trangsfer demand, large-scale remote-mouned condensing unit, piston parallet units and screw units.It features simple structure, small floor coverage, excellent anticorrosion performance and so on. Fan divided into 4 poles and 6 poles motor .

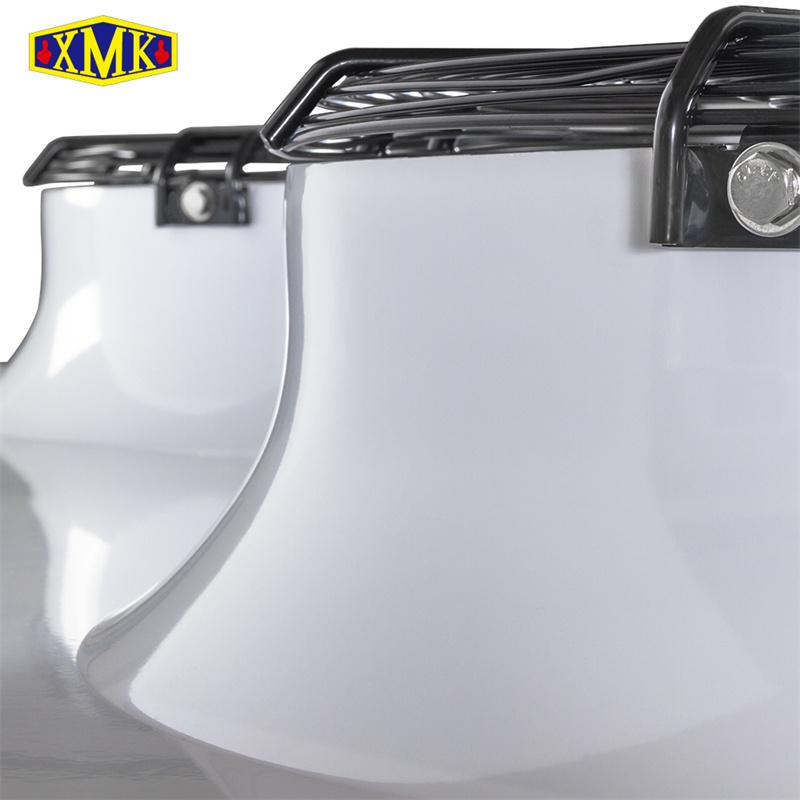

RVC refrigeration condensing unit air condensers are mainly equipped with large heat trangsfer demand, large-scale remote-mouned condensing unit, piston parallet units and screw units.V type structure design can be adopted ,having larger windward area. Fan specification adopt 630mm , divided into 4 poles and 6 poles motor

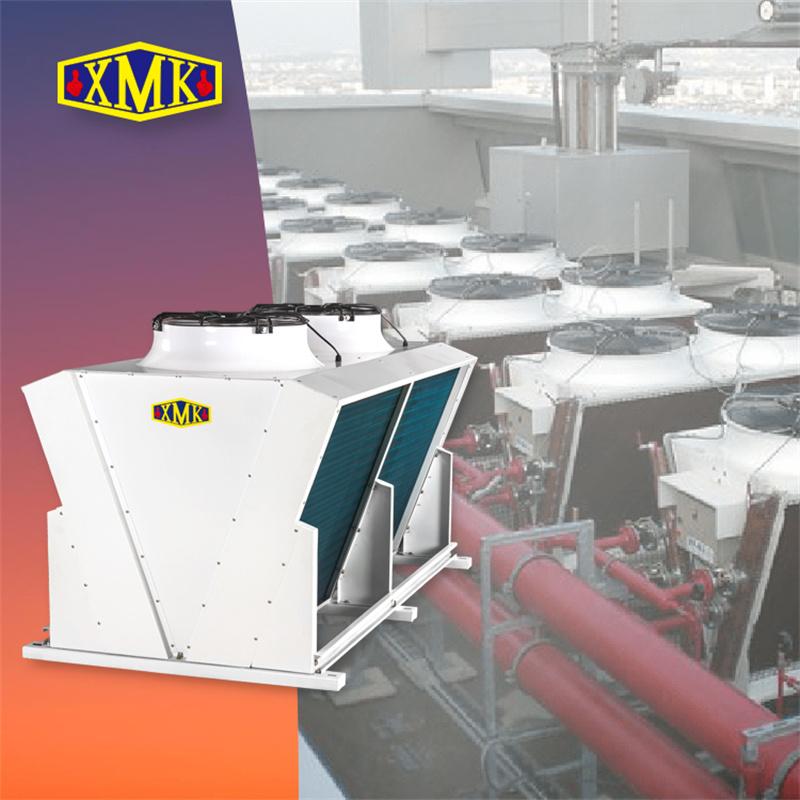

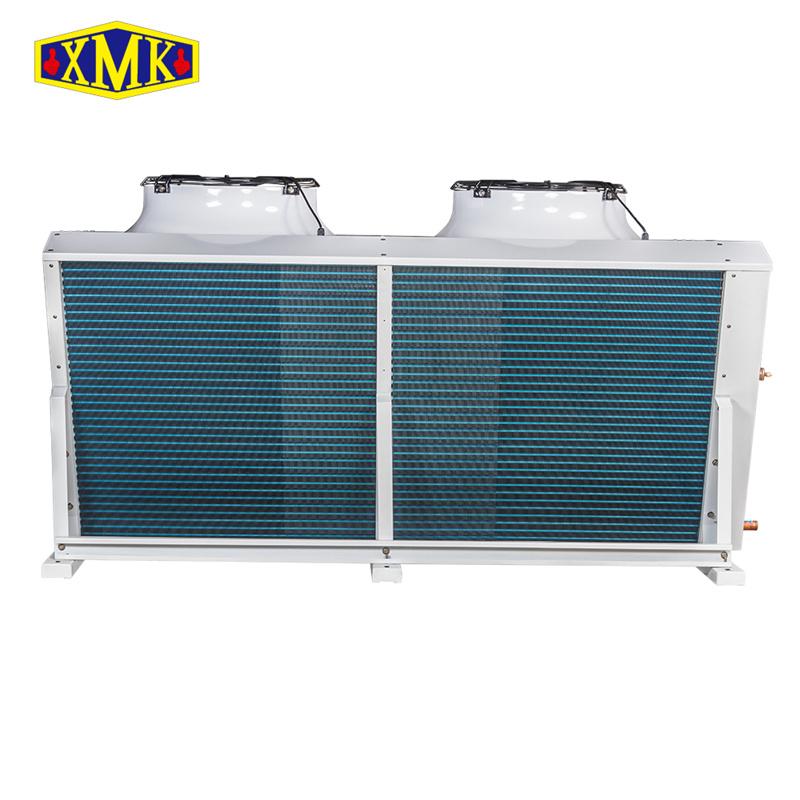

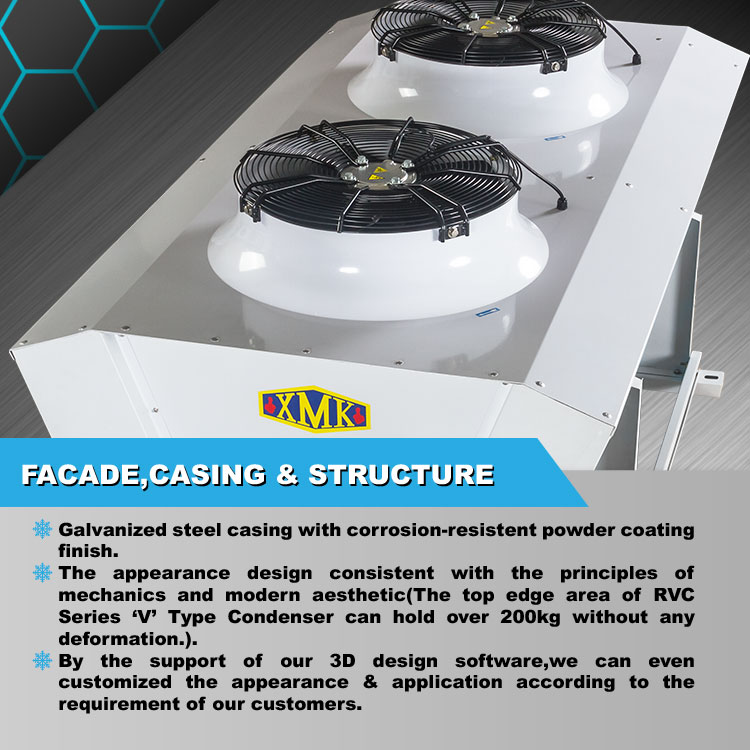

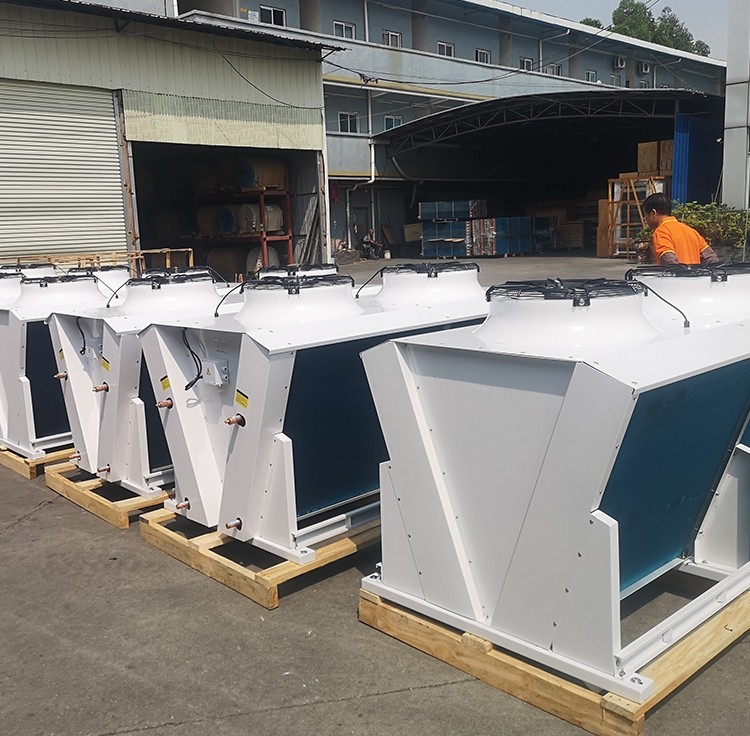

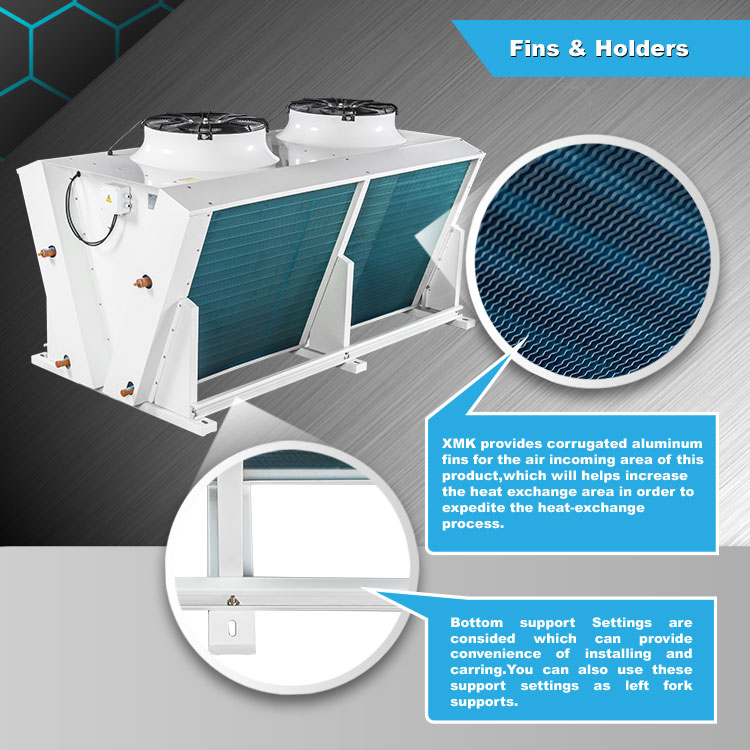

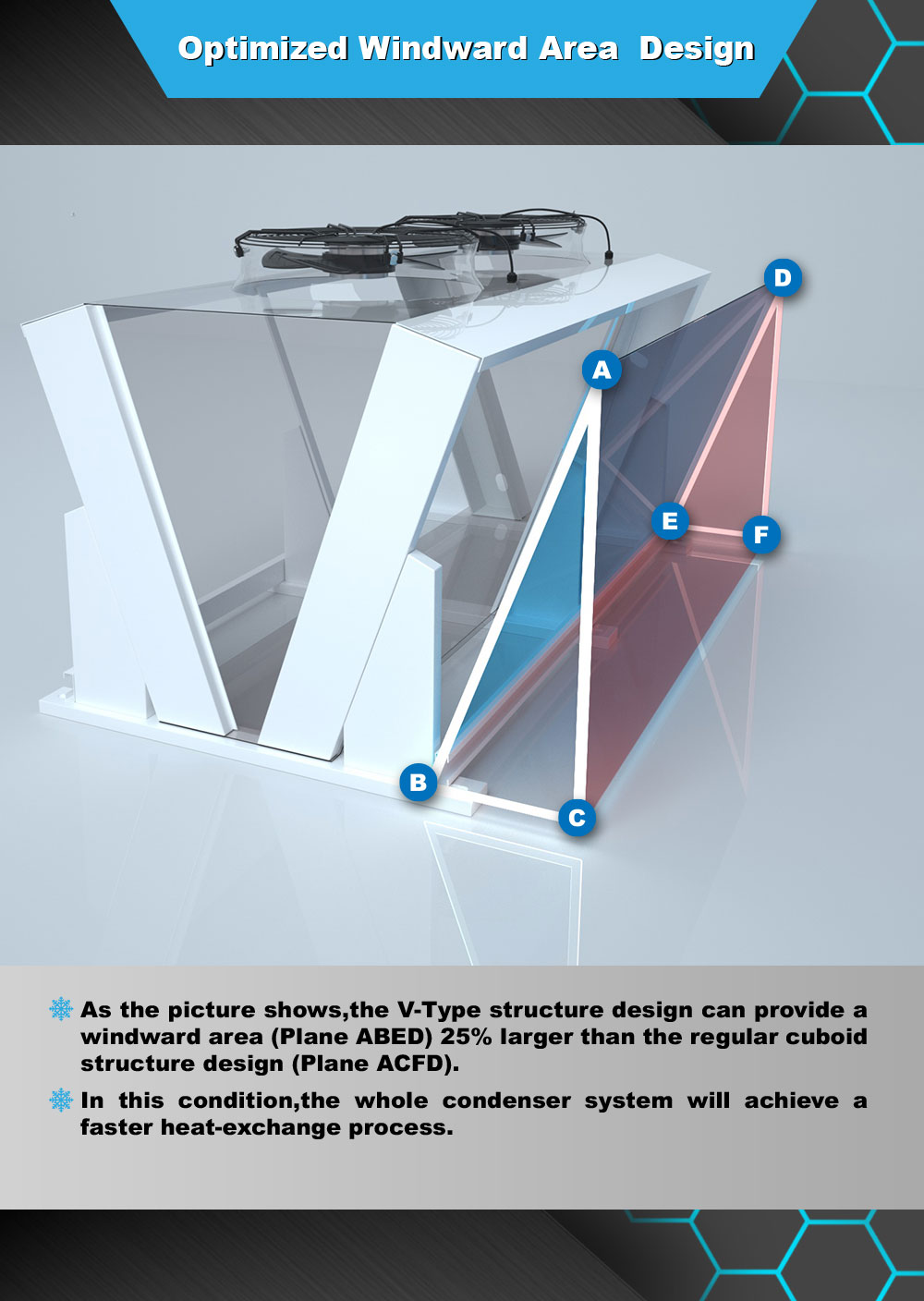

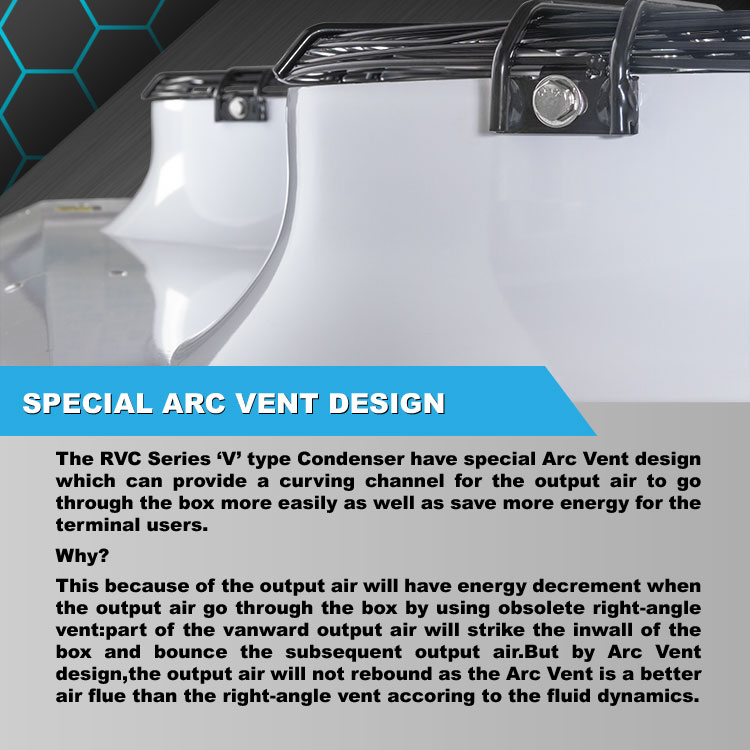

XMK Factory V Type Air Cooled Condenser  Product description:  RVC series condensers are mainly equipped with large heat transfer demand, large-scaleremote-mounted condensing units, piston parallel units and screw units.1.V-type structure design can be adopted,having larger windward area.2.Copper tube and corrugated aluminium fins with a distance of 2.1 mm are used.3.Fan specifications adopt 500mm and 630mm, divided into 4 poles and 6 poles motor.4.Testing pressure 32bar.5.Adopt high-quality steel plate with powder coating.6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449Aand other refrigerants.7.Retain 1.5bar pressure before leaving factory.RVC Series Air Cooled Condenser Data Sheet: ModelRVC157/250N Capacity (KW)59.5Surface (㎡）156.5 Volume (dm)18.5Fan Motor Air Flow13200Fan Motor Power1100Fan Motor Current2.2dB (A)55Connect Pipe Inlet2X28Connect Pipe Outlet2X22Weight (kg)175

RVC series condensers are mainly equipped with large heat trangsfer demand, large-scale remote-mouned condensing unit, piston parallet units and screw units.It features simple structure, small floor coverage, excellent anticorrosion performance and so on. Model condenser max match use to 630 m2 cold room use.

Refcomp Screw Semi-hermetic Compressor Condensing Unit Product description:  XRW series semi-hermetic screw unit is mainly used in cold storage projects with large coolingcapacity requirements1.Adopts Refcomp SW3 series screw compressorwith single unit and parallel unit.2.The series of products include two applicationseries of medium-temperature and low-tem-perature units. The medium-temperature unitmainly meets the requirements of cold storageat about OC, while the low-temperature unitmainly meets the requirements of low-tem-perature refrigeration storage at -20C andquick-frozen storage at -35C.3.The standard design of the unit adopts theform of water cooling, adopts high efficientshell and tube type water cooling condenser,and is equipped with a separate liquid receiver.4.The low temperature unit is equipped with aneconomizer system and an oil cooler system.5.The unit is controlled by Siemens PLC and thekey electrical components are controlled bySchneider. With compressor start and stop,energy regulation, oil cooling system, econo-mizer system, cooling water pump and coolingtower fan control and various protection functions.6.The unit standard uses R404A or R507A refrigerant. Bitzer 6GE-34Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -5 to 5 degree Compressor Model SW3H5000 Compressor Max.I(A) 90Capacity(-5℃）102.8Capacity(-10℃）84.2Capacity(-15℃）68.3 Suction Line (mm) 28 Liquid Line （mm） DN50 Size length (mm) 1650 Size Width (mm) 1000 Size Height (mm) 1520

Copeland Compressor Condensing Refrigeration Unit   Product description:   BUW-B series box-type condensing units have the following characteristics   1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.   2.The cover of the case adopts hinge structure,which is easy to maintain and operate.   3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.   4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.   5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect.    Copeland ZB29KQE Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB29KQE Compressor Max.I(A) 11 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min) 1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815

XMK-133 3/8 vertical Liquid Receiver Refrigeration The liquid receiver acts as a stock of liquid refrigerant for the evaporators, located after the condenser in a refrigeration system.The selection of receiver size should be based on refrigerant charge in the system, and it also should be sized to hold the full system charge during service work, the capacity of each liquid receiver listed on Technical data sheet below.ModelConnector sizeXMK-1333/8XMK-2333/8XMK-3333/8XMK-4441/2XMK-6441/2XMK-8441/2XMK-10555/8XMK-12555/8XMK-14555/8Production Introduction:1.Designed for refrigerant storage in system’s normal operation or maintaining.2.System adjustment is allowed to suit with different condition or loading.3.Compatible with HFC, CFC, CFC and associated oils and additives4. Assemble a high quality rotator valve or safety valve.

4CES-9Y Cold Room Compressor Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4CES-9Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. 5 to 15 degree Compressor Model 4CES-9Y Compressor Max.I(A) 20.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240X4 Suction Line (mm) 28 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430

XMK-5201 1/2 ODF Oil Separator RefrigerationWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.
