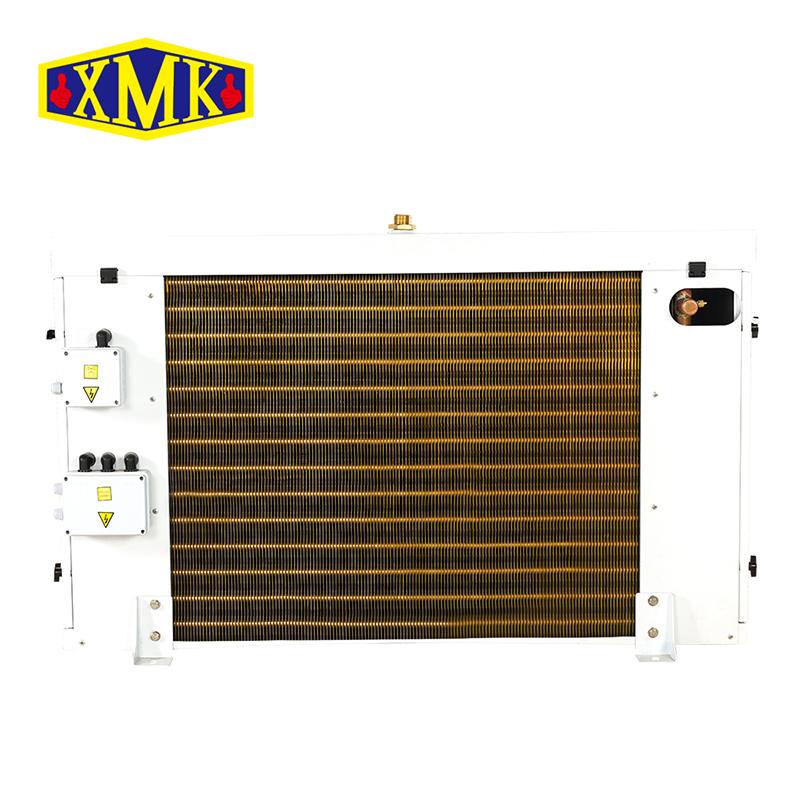

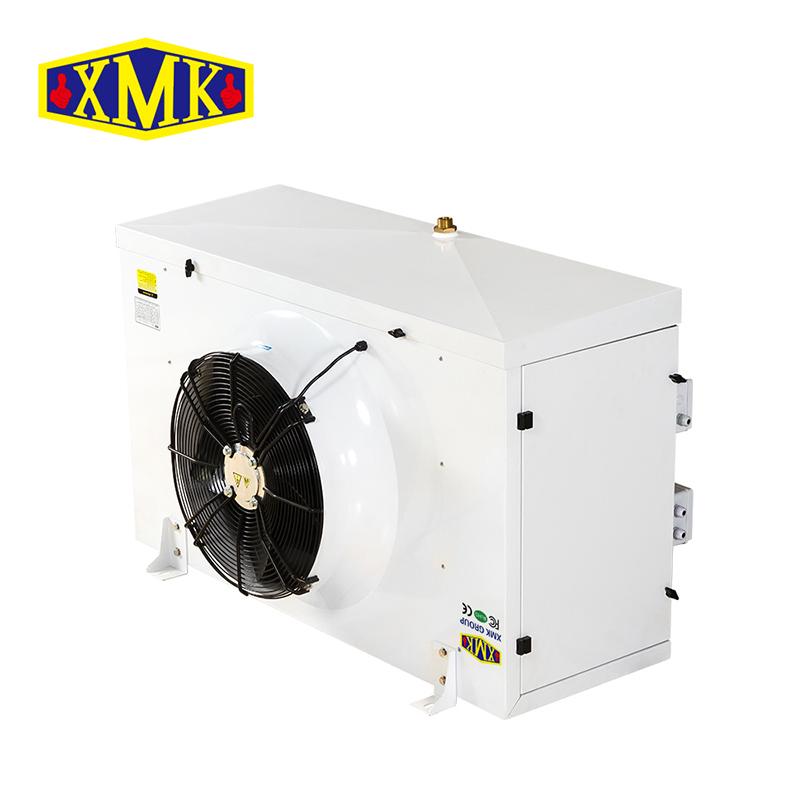

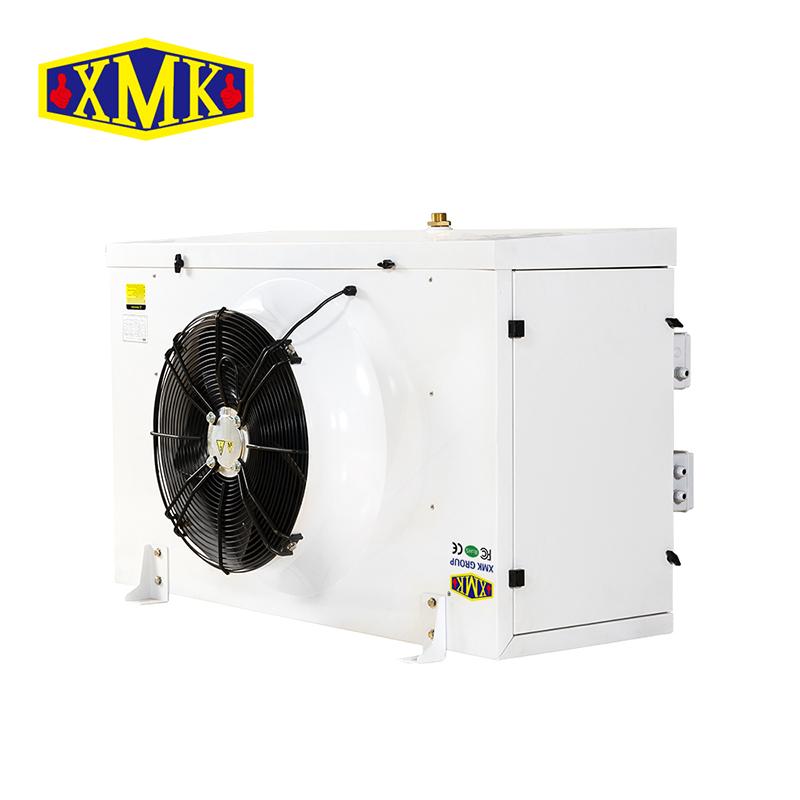

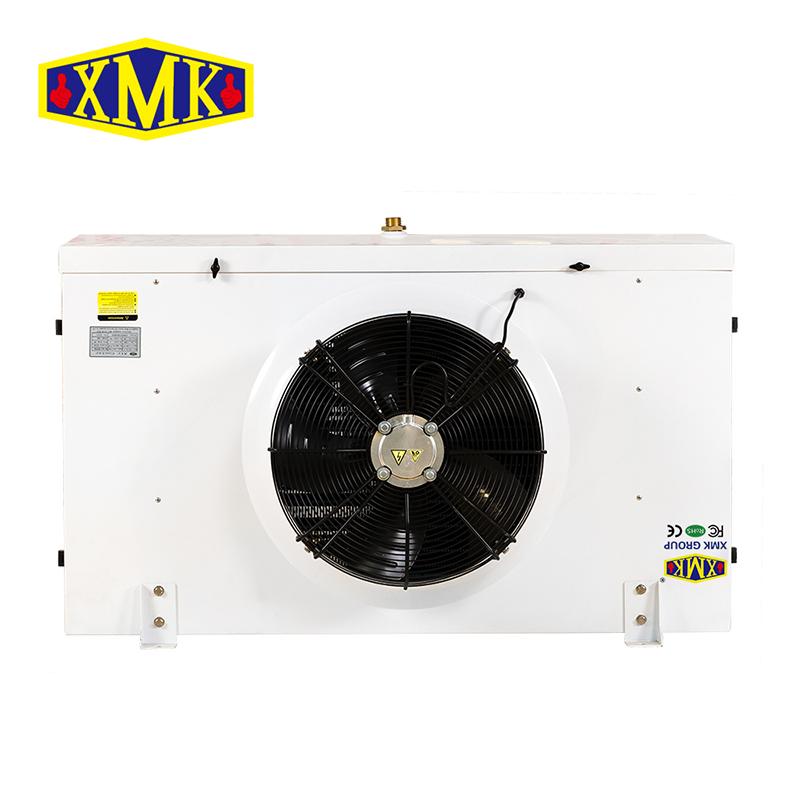

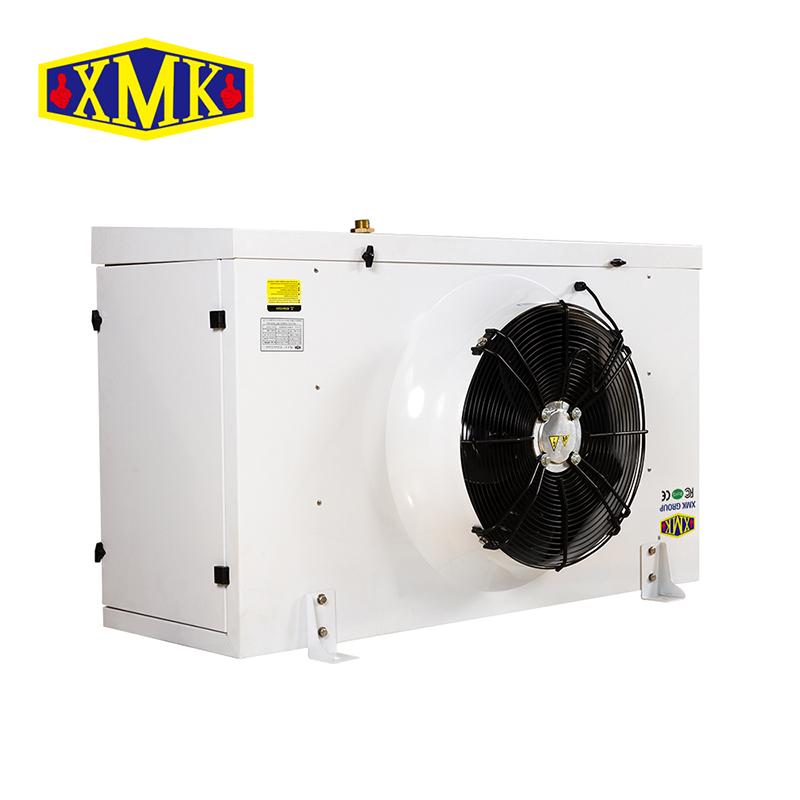

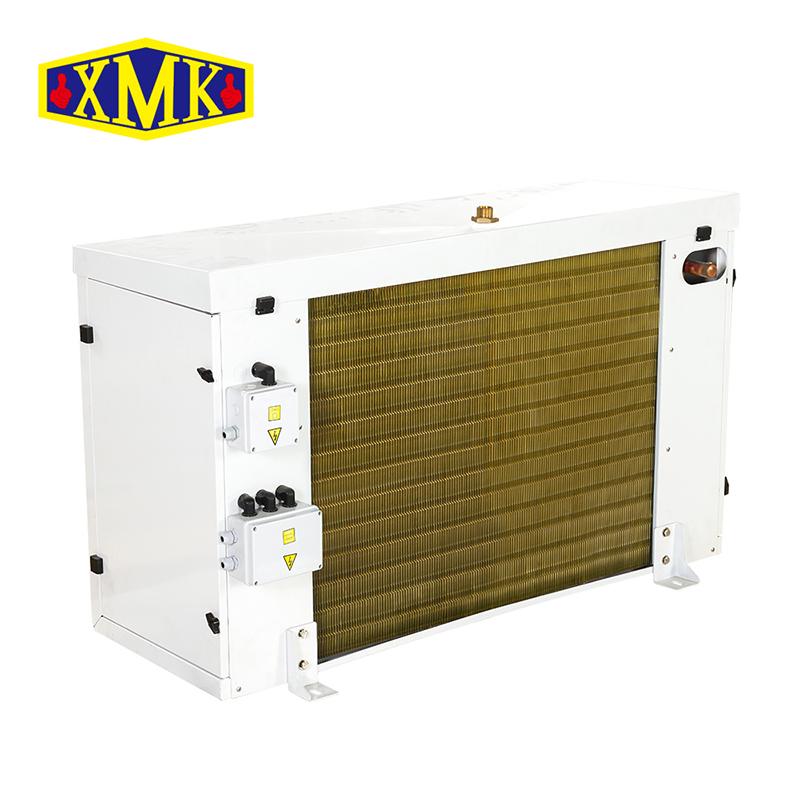

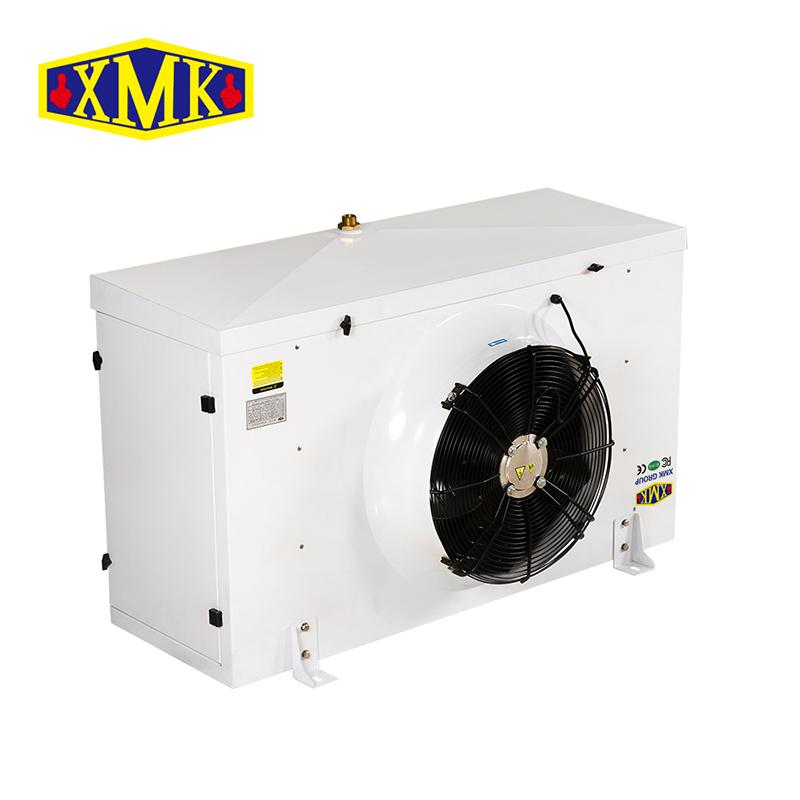

Air Cooler Unit For Low temperature Cold Room

CS one fan Upgraded Type Condenser Portable Air Cooler Evaporator For low temerature small Cold Room With Electrical Defrost.

  • Item NO.:

    CS5/CS7 -130J
  • Order(MOQ):

    1
  • Payment:

    EXW
  • Product Origin:

    CHINA
  • Color:

    White
  • Shipping Port:

    Guangzhou
  • Lead Time:

    7-35days

Product Feature:


Casting:  Adopt high-quality steel plate with powder coating RAL9003

Hinged structure is adopted for both side plates and external drip tray, which is convenient and quick to operate

Heat exchanger coil : copper tubingφ15,spacing 50×50

Corrugated aluminium fins,fin spacing 9.0mm


Fans : External rotor motor with high wind pressure, working temperature -40°C to 60℃

Fans individually connected to junction box

Fan bladeφ300,φ400, φ500, φ630, standard 4-pole motor


Defrosting : Standard use of electric defrosting,stainless heating pipes installed in the middle of coil and inner water plate.


Independent electric heating tube junction box.


Refrigerants :  meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants


Voltage:220V/1Ph/50or60HZ,220V/3PH/60HZ,110V/1Ph/60HZ,380V/3PH/50HZ


1*300MM Axial fan Air Cooled Evaporator for freezer room Fin space 9.0MM

Evaporator for low temp room 300MM Product Parameters.png

Seafood cold room 4.jpg

Product Application industry Display.jpg
