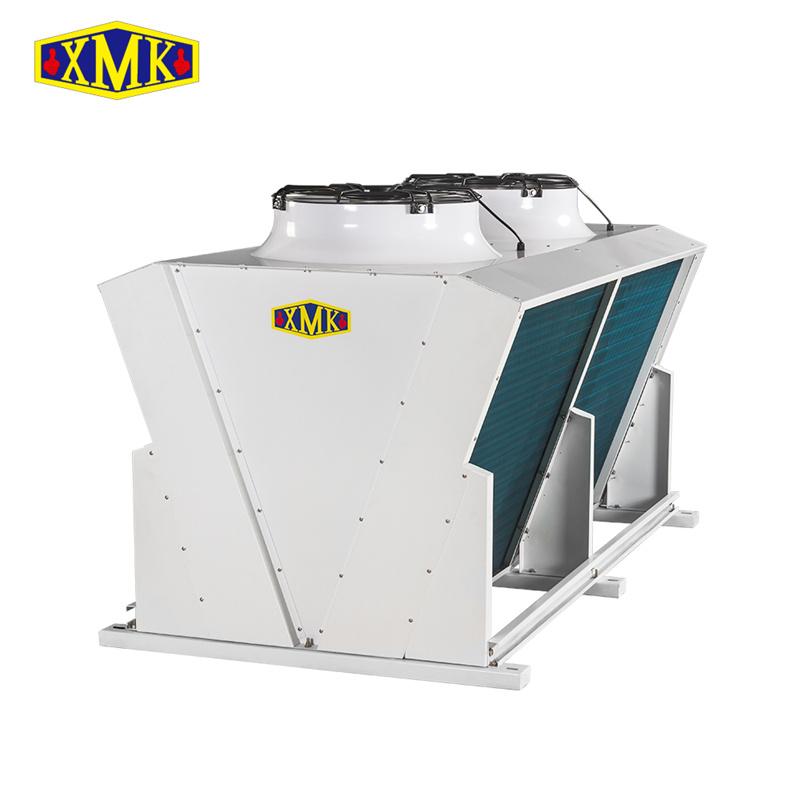

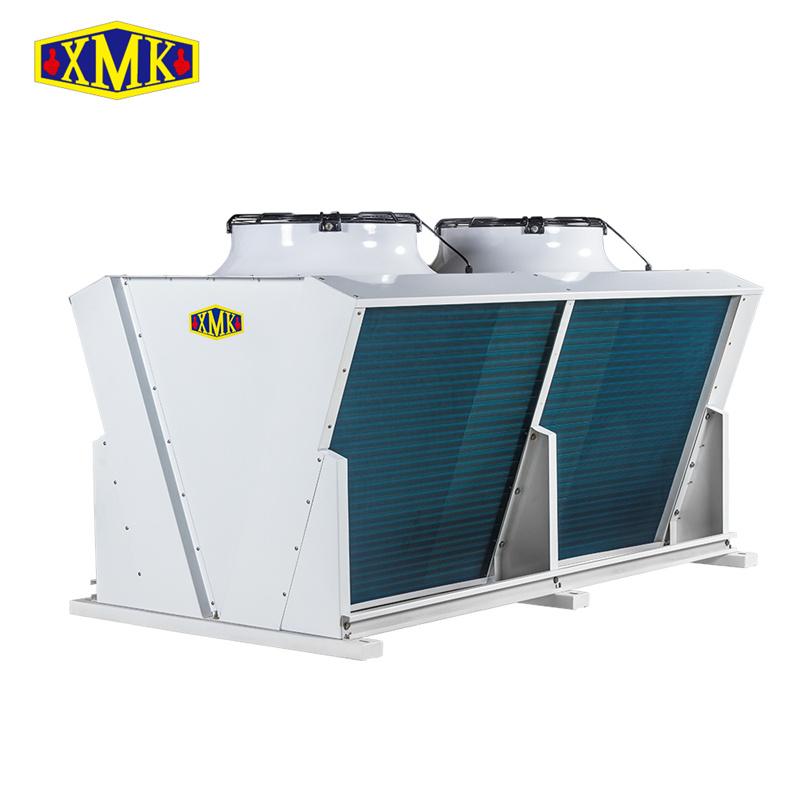

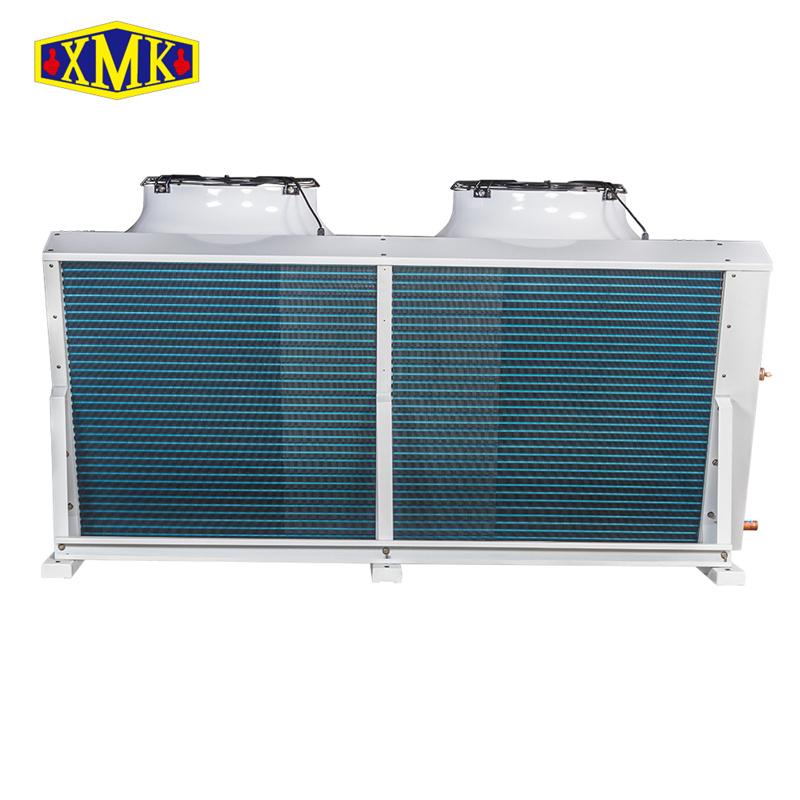

V type air cooled condenser for cold storage

RVC series condensers are mainly equipped with large heat trangsfer demand, large-scale remote-mouned condensing unit, piston parallet units and screw units.It features simple structure, small floor coverage, excellent anticorrosion performance and so on.

Fan divided into 4 poles and 6 poles motor .


  • Item NO.:

    RVC157/250N
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    white
  • Shipping Port:

    Guangzhou

Product Feature

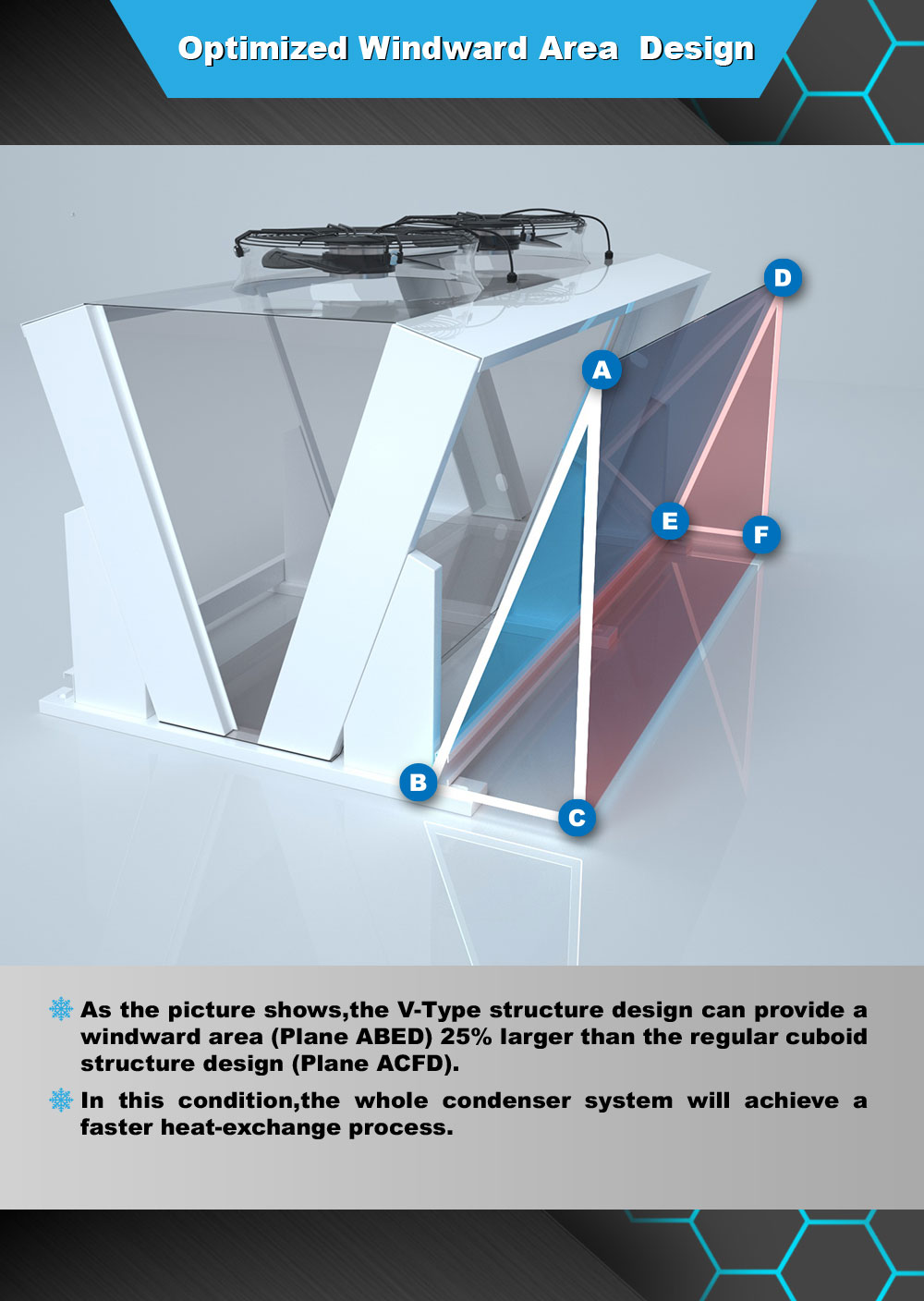

  • V-type structure design can be adopted , having larger windward area.

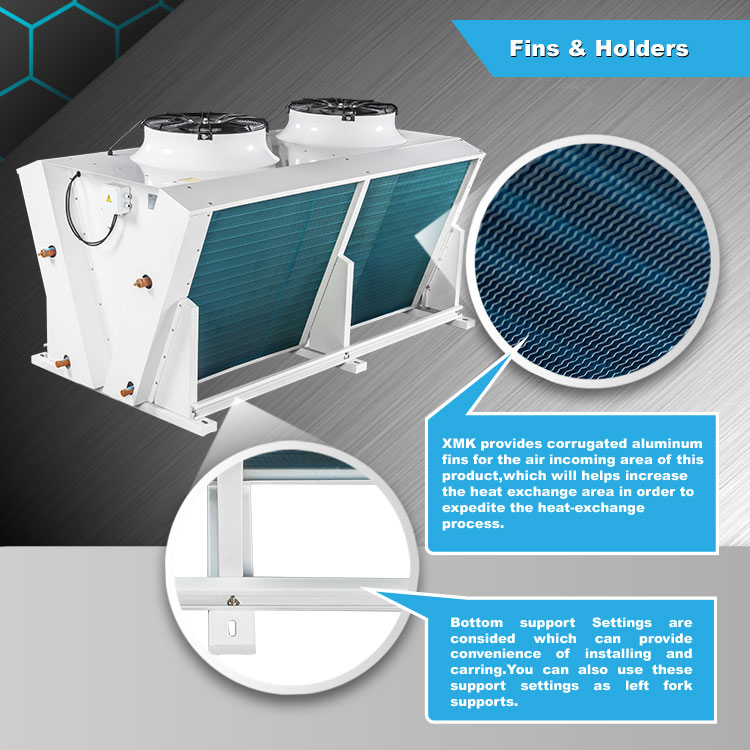

  • Copper tube and corrugated aluminium fins with a distance of 2.1 mm are used.

  • Fan spacifications adopt 500mm and 630mm , divided into 4 pole and 6 pole motor

  • Testing pressure 32bar

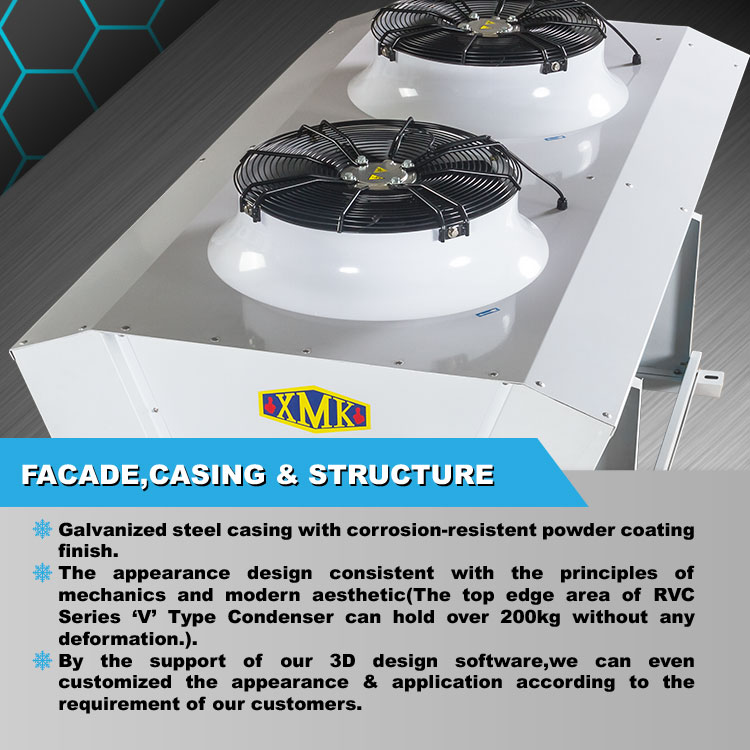

  • Adopt high quality steel plate with powder coating .

  • It can meet the requirements of R22 , R134a, R404A ,R507a, R407A, R407C,R448A,R449A and other refrigerants.

  • Retain 1.5bar pressure before leaving factory.

Specification

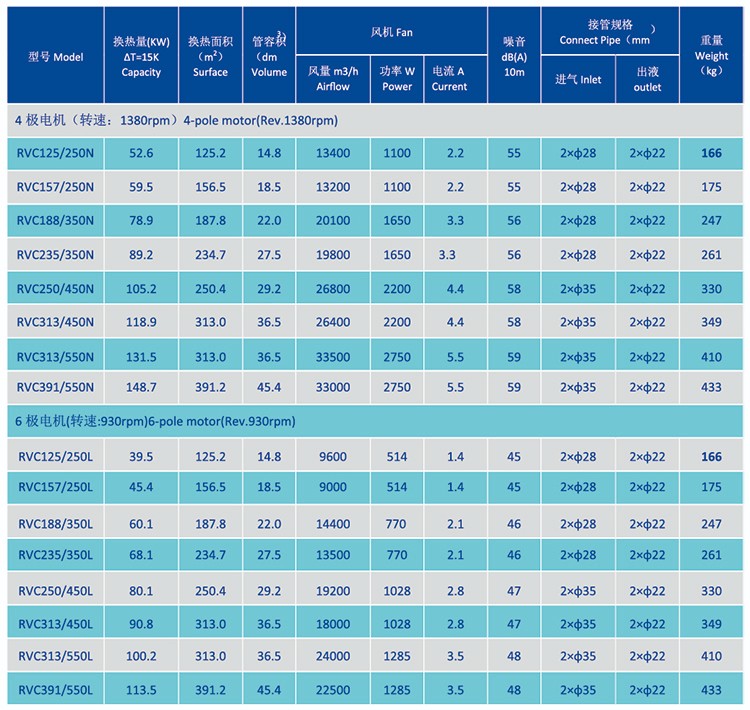

Model in fin spacing 2.1mm with 500mm fans, divided into 4 pole and 6 pole motor
