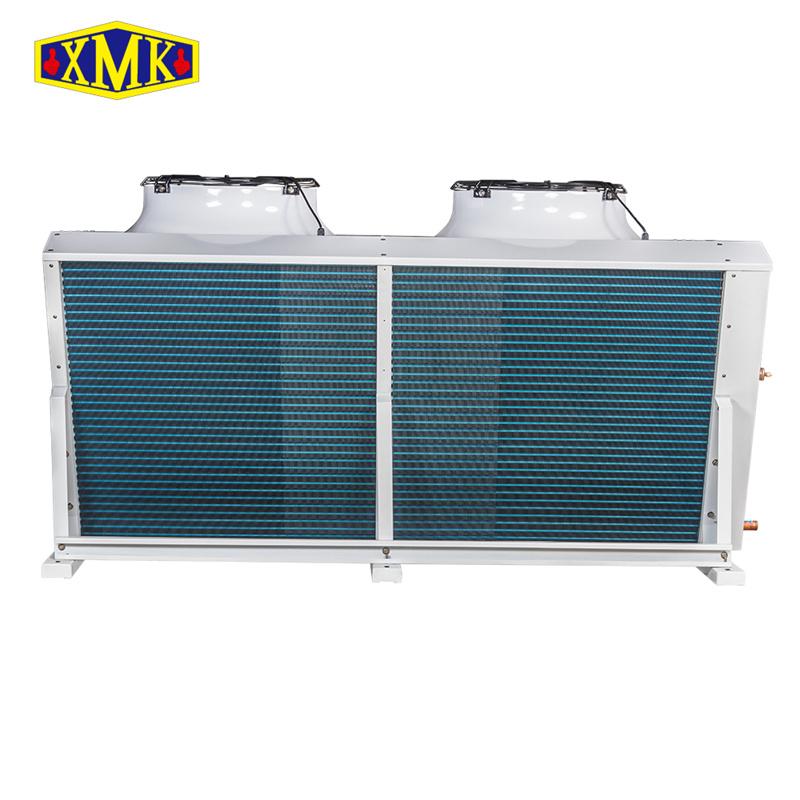

Icehouse refrigeration condensing unit air condenser

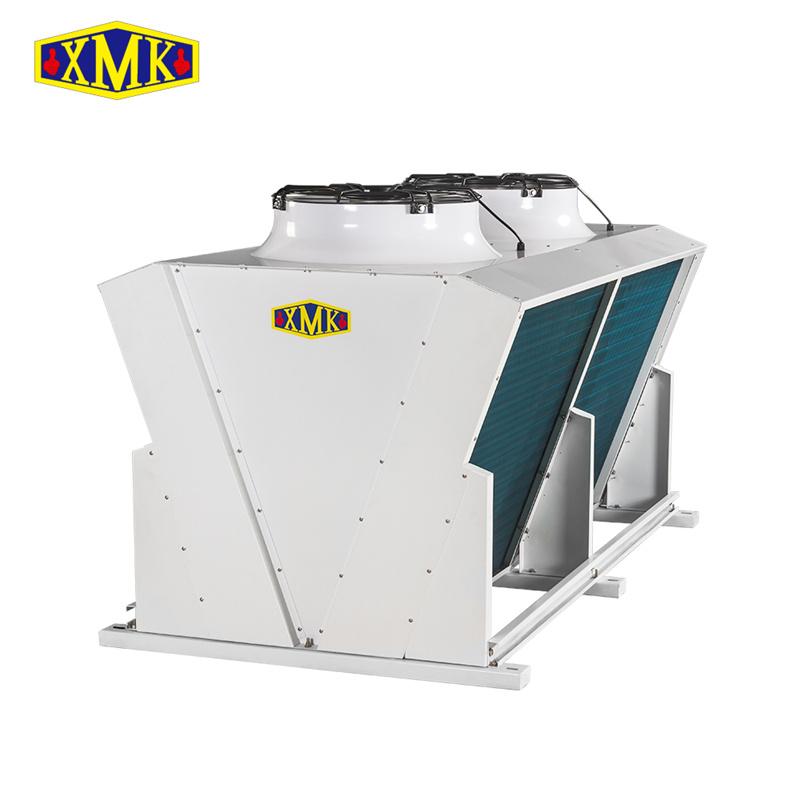

RVC refrigeration condensing unit air condensers are mainly equipped with large heat trangsfer demand, large-scale remote-mouned condensing unit, piston parallet units and screw units.V type structure design can be adopted ,having larger windward area.

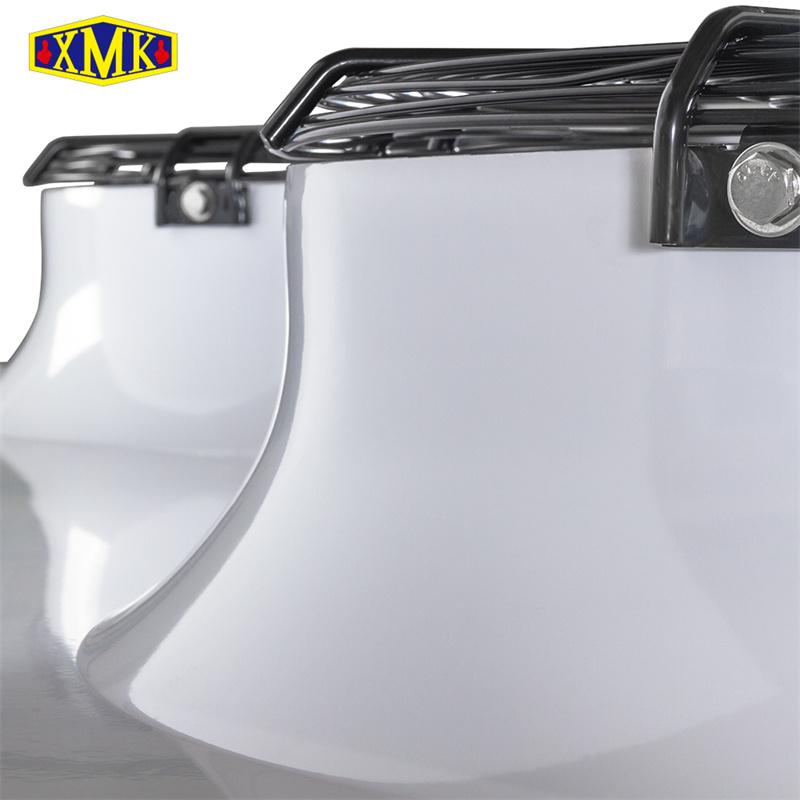

Fan specification adopt 630mm , divided into 4 poles and 6 poles motor


  • Item NO.:

    RVC250/263L
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    white
  • Shipping Port:

    Guangzhou

Product Feature

  1. It design with simple structure, small floor coverage, excellent anticorrosion performance, etc.V-type having larger windward area.

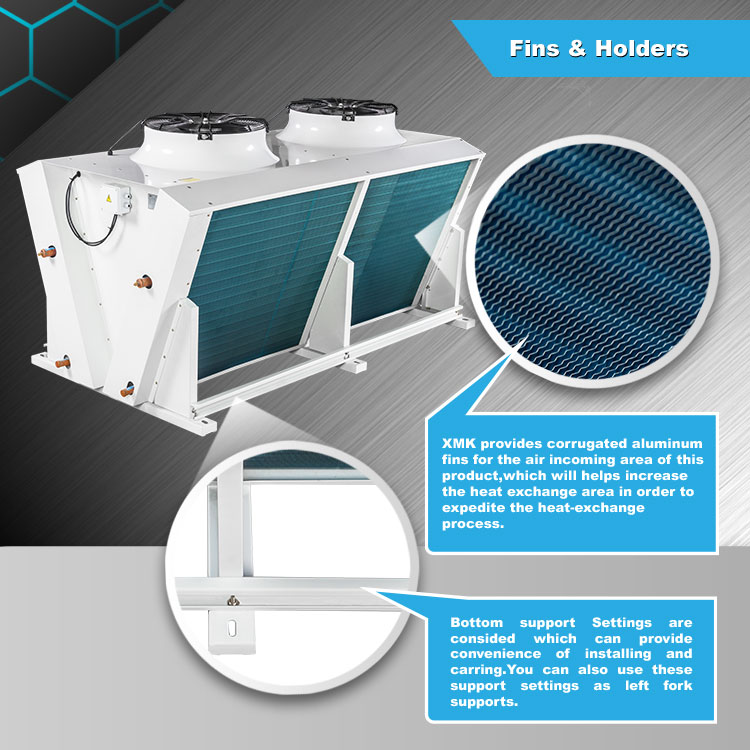

  2. Copper tube and corrugated aluminium fins with a distance of 2.1 mm are used.

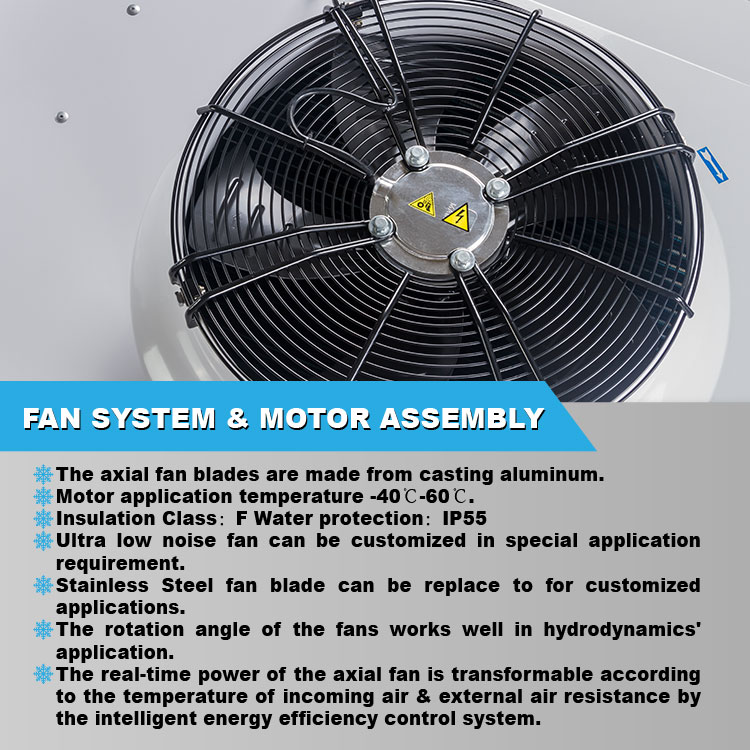

  3. Fan spacifications adopt 500mm and 630mm , divided into 4 pole and 6 pole motor

  4. Testing pressure 32bar

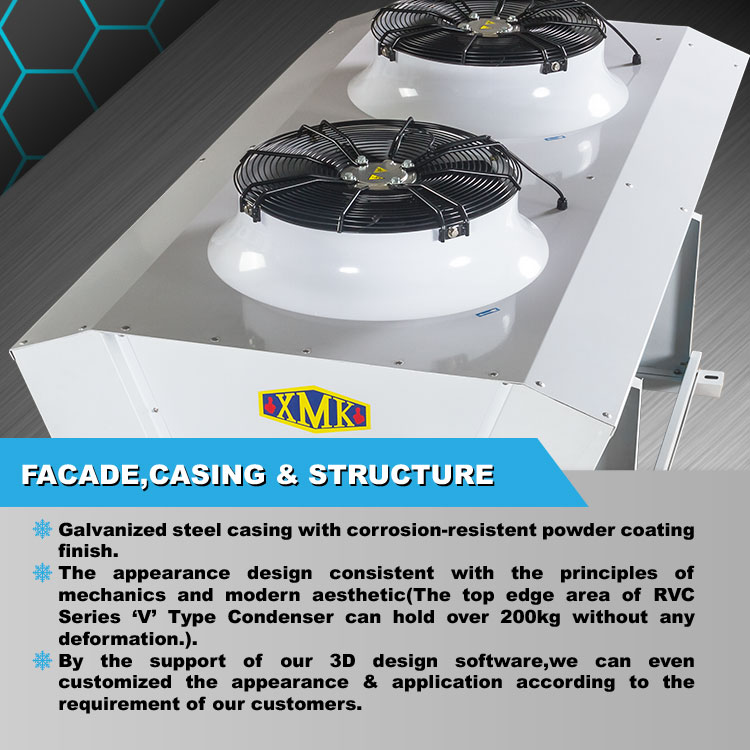

  5. Adopt high quality steel plate with powder coating .

  6. It can meet the requirements of R22 , R134a, R404A ,R507a, R407A, R407C,R448A,R449A and other refrigerants.

  7. Retain 1.5bar pressure before leaving factory.

Specification

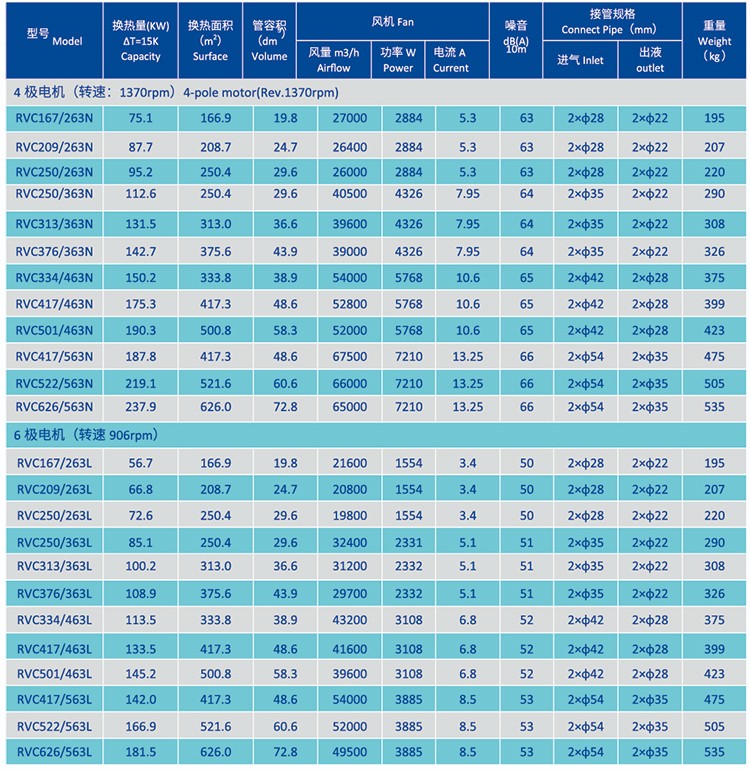

Models in fin spacing 2.1mm with 630mm fans.
