59.5KW Capacity V Type Air Cooled Condenser

  • Item NO.:

    RVC157/250N
  • Order(MOQ):

    1
  • Payment:

    EX-WORK
  • Market Price:

    1307
  • Price Range:

    1307 - 1420
  • Product Origin:

    China
  • Color:

    Green
  • Shipping Port:

    Guangzhou
  • Lead Time:

    15 to 20 days

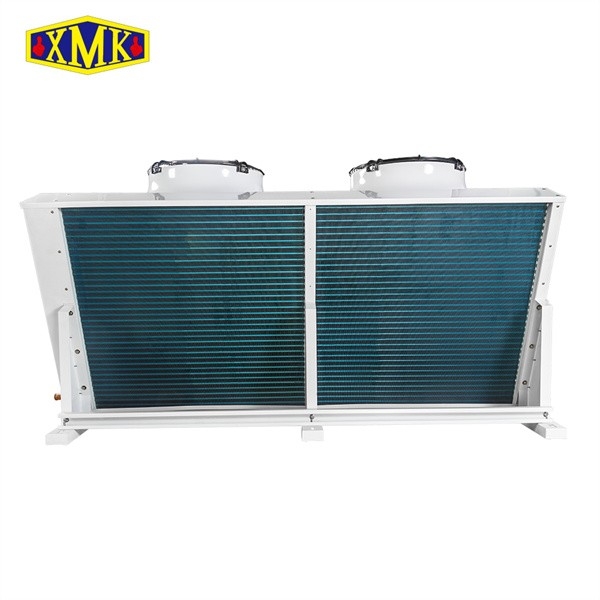

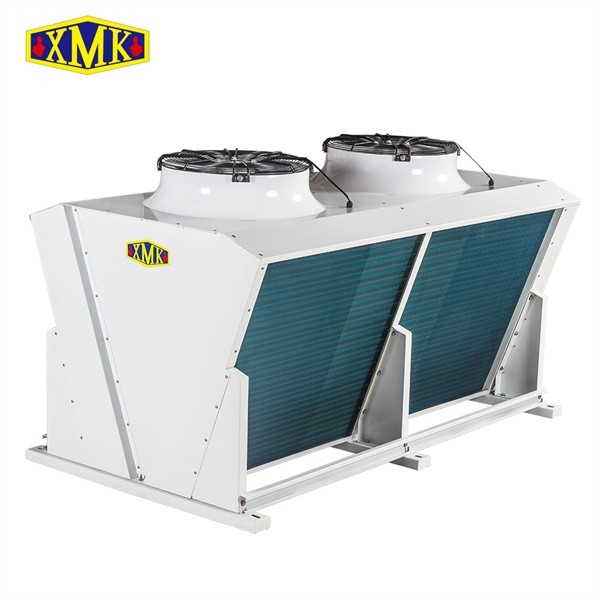

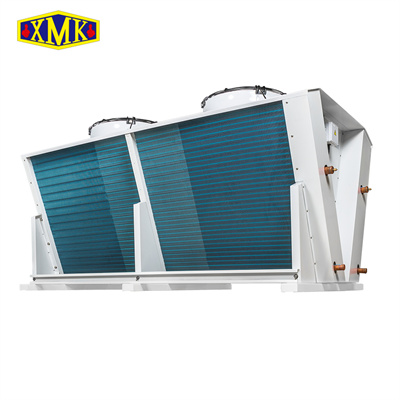

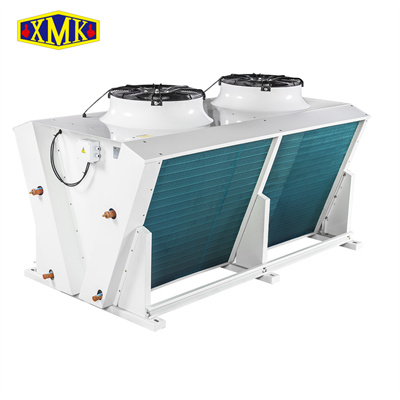

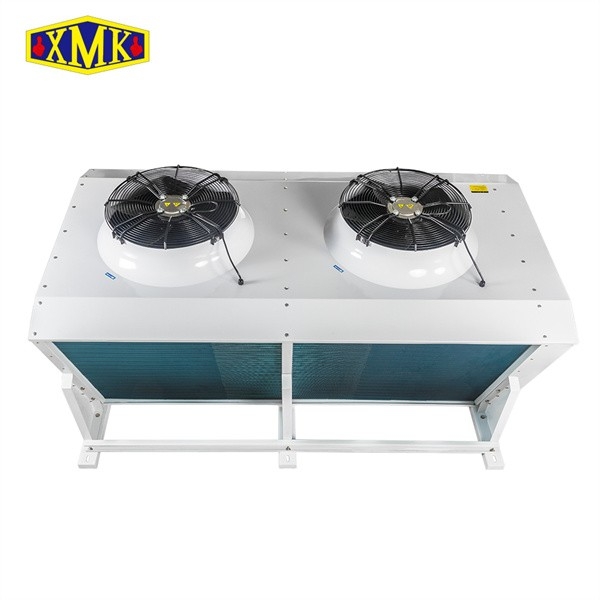

XMK Factory V Type Air Cooled Condenser

Product description:



RVC series condensers are mainly equipped with large heat transfer demand, large-scaleremote-mounted condensing units, piston parallel units and screw units.

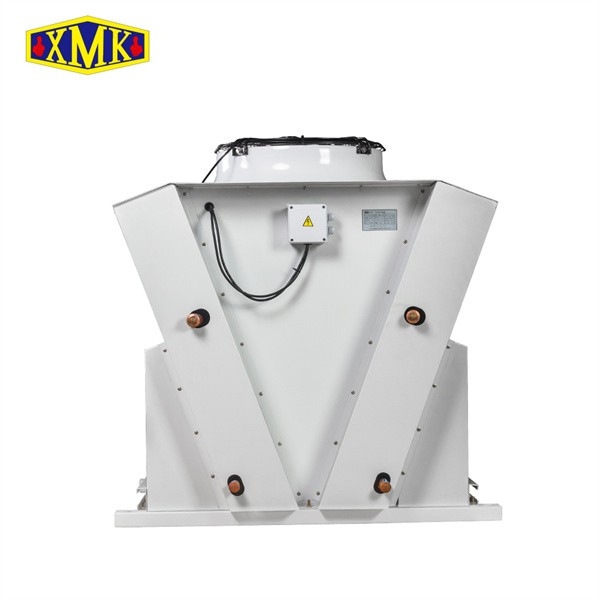

1.V-type structure design can be adopted,having larger windward area.


2.Copper tube and corrugated aluminium fins with a distance of 2.1 mm are used.

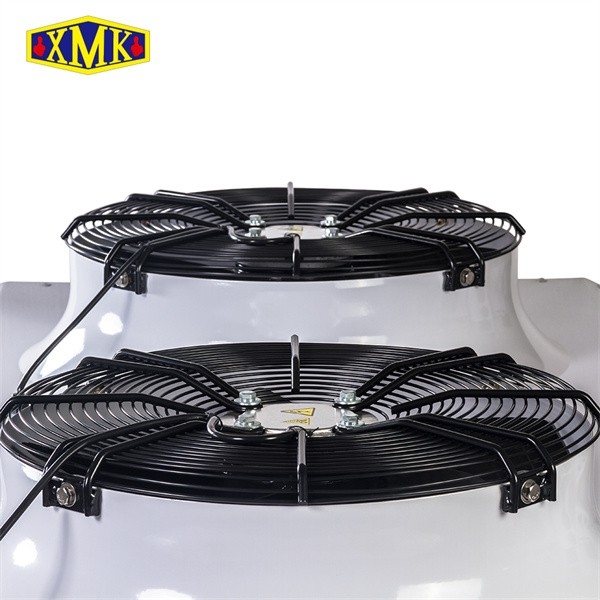

3.Fan specifications adopt 500mm and 630mm, divided into 4 poles and 6 poles motor.


4.Testing pressure 32bar.


5.Adopt high-quality steel plate with powder coating.


6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449Aand other refrigerants.


7.Retain 1.5bar pressure before leaving factory.


RVC Series Air Cooled Condenser Data Sheet:


Model
RVC157/250N
Capacity (KW)59.5
Surface (㎡)
156.5
Volume (dm)18.5
Fan Motor Air Flow
13200
Fan Motor Power
1100
Fan Motor Current
2.2
dB (A)55
Connect Pipe Inlet2X28
Connect Pipe Outlet2X22
Weight (kg)
175


RC 09.jpgRC 02.jpgRC 07.jpgRC 20.jpg
