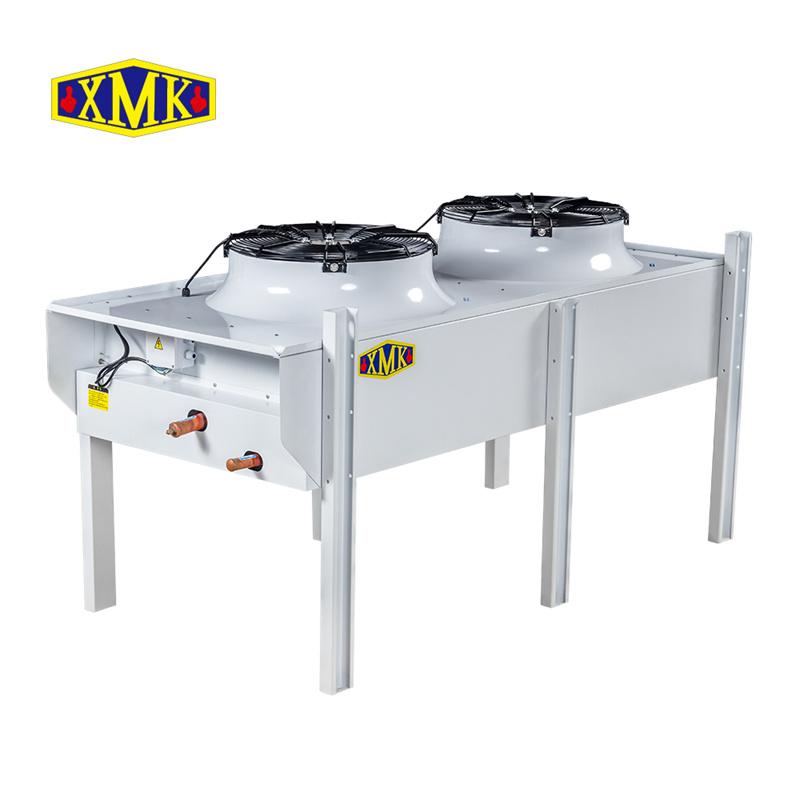

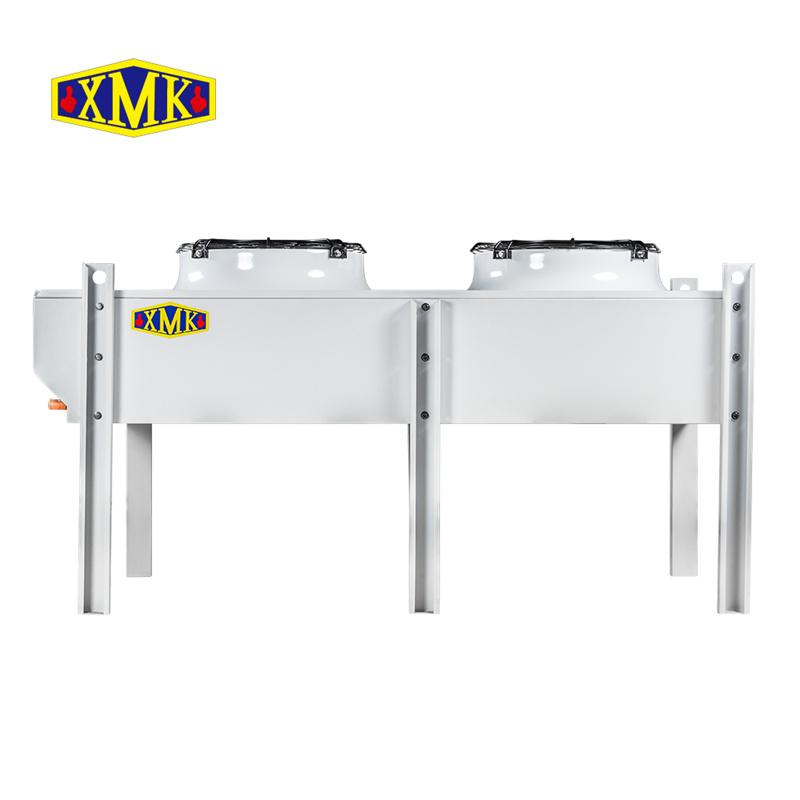

air-cooled condenser for cool room

RC series air cooled condensers are mainly equipped with large heat transfer demand, large-scale remote-mounted condensing units, piston parallel units and screw units, with good heat transfer capacity.


  • Item NO.:

    RC99/250N
  • Order(MOQ):

    1
  • Payment:

    EXW, 30% TT before production, 70% TT before
  • Product Origin:

    Guangzhou, China
  • Color:

    White
  • Shipping Port:

    Huangpu, Guangzhou
  • Lead Time:

    7 days

1. condensers are used 2.1mm distance of copper tube and corrugated aluminum fins.

2. fan specification: 500mm, 550mm, 630mm (4-pole, 6-pole), working environment: 60°C~-40°C

3. testing pressure 32 bar

4. adopt high-quality steel plate with powder coating RAL9003 or RAL6001.

5. it can meet the requirements of R22, R134a, R404a, R507c, R407c, R448a, R449a, etc.

6. retain 32bar pressure before delivery.

7. painting plate: international 1.0mm TK

8. Air volume is concentrated and long-range, fast return airflow.

9. Adopt flat-plate structure design, either horizontally installed or side-mounted


Model Heat transfer capacity (KW) Surface (㎡) Volume (dm³) Fan motor airflow (m³/h) Fan motor Power (W) Fan motor Current (A) Noise dB (A) 10m Connect pipe inlet Connect pipe outlet
RC99/250N 47.5 98.9 11.7 14000 1096 2.2 52 φ35 φ28
