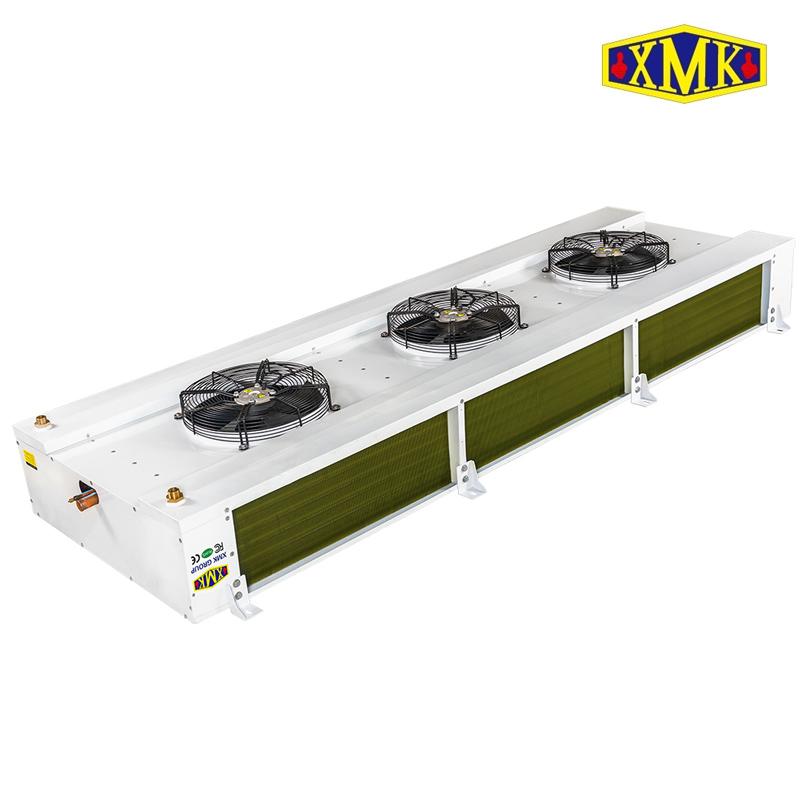

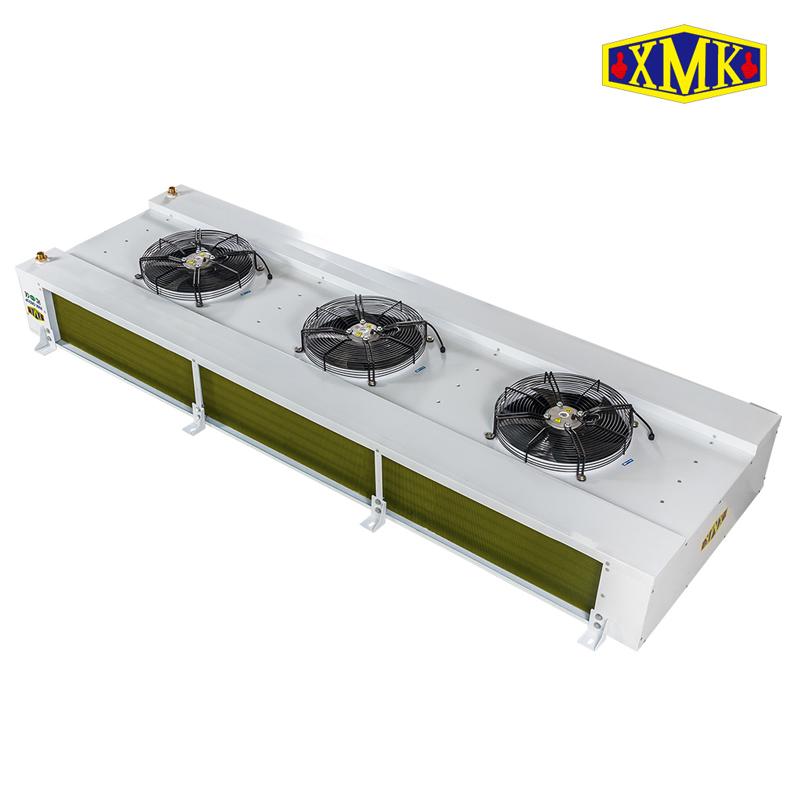

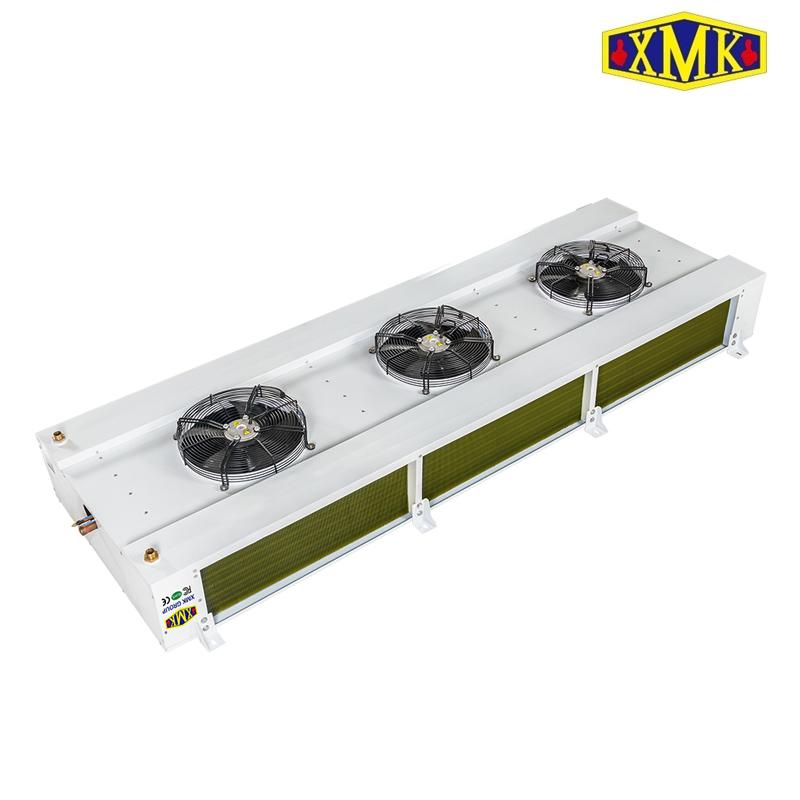

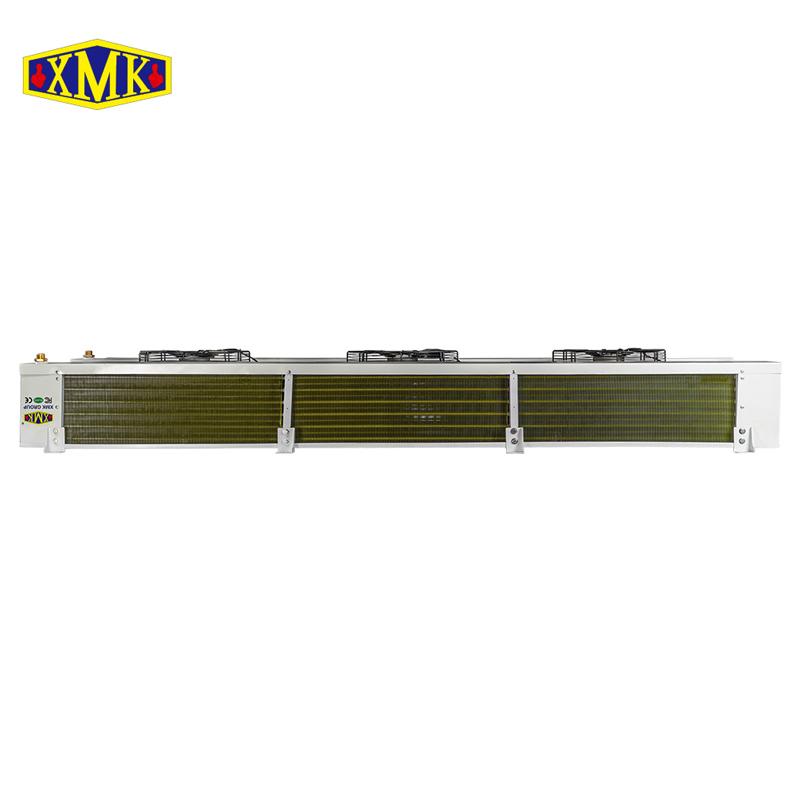

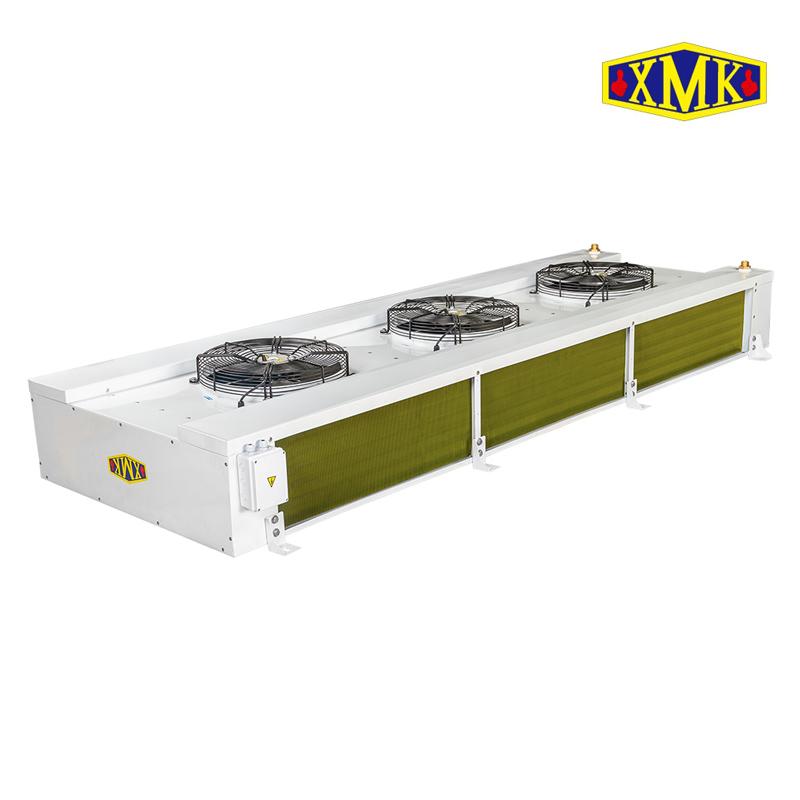

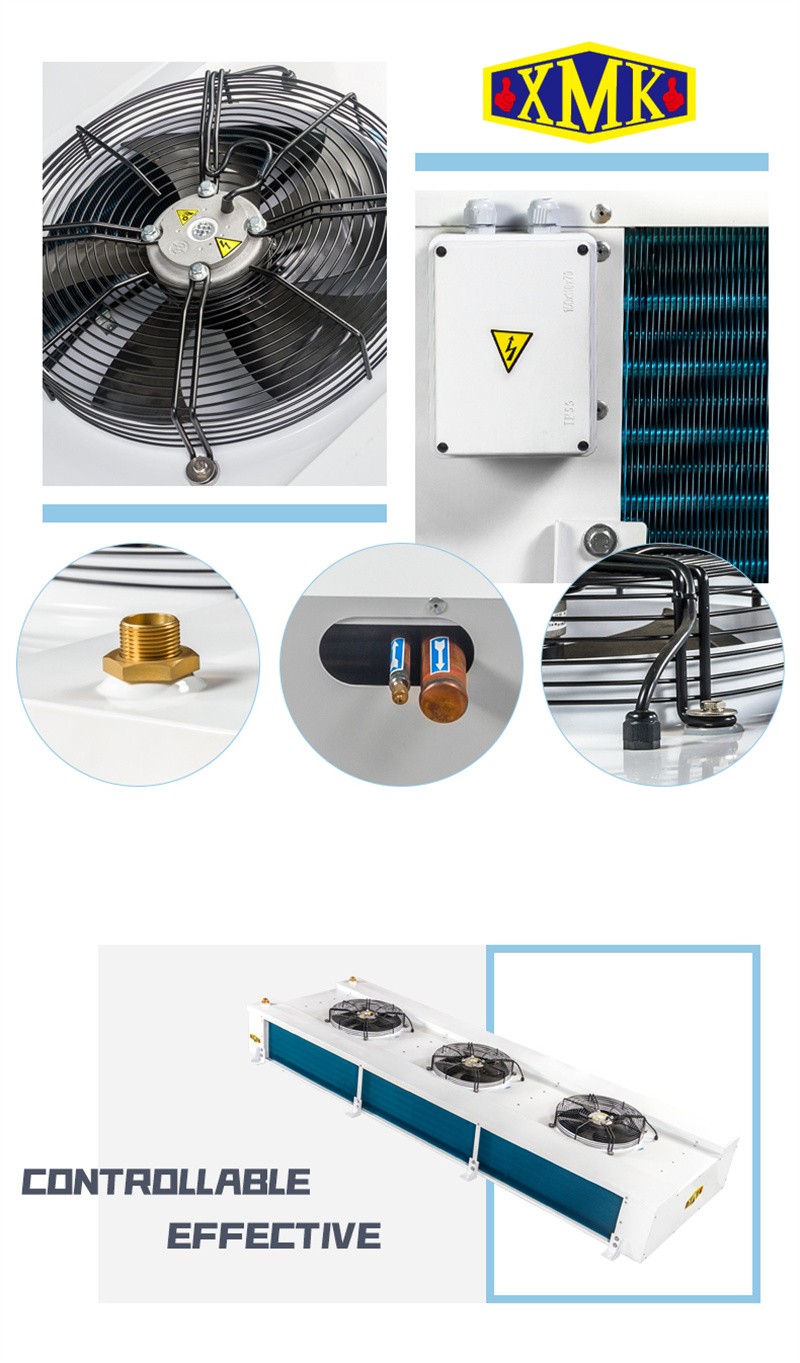

Vegetable greenhouse IDB series cooling system evaporator

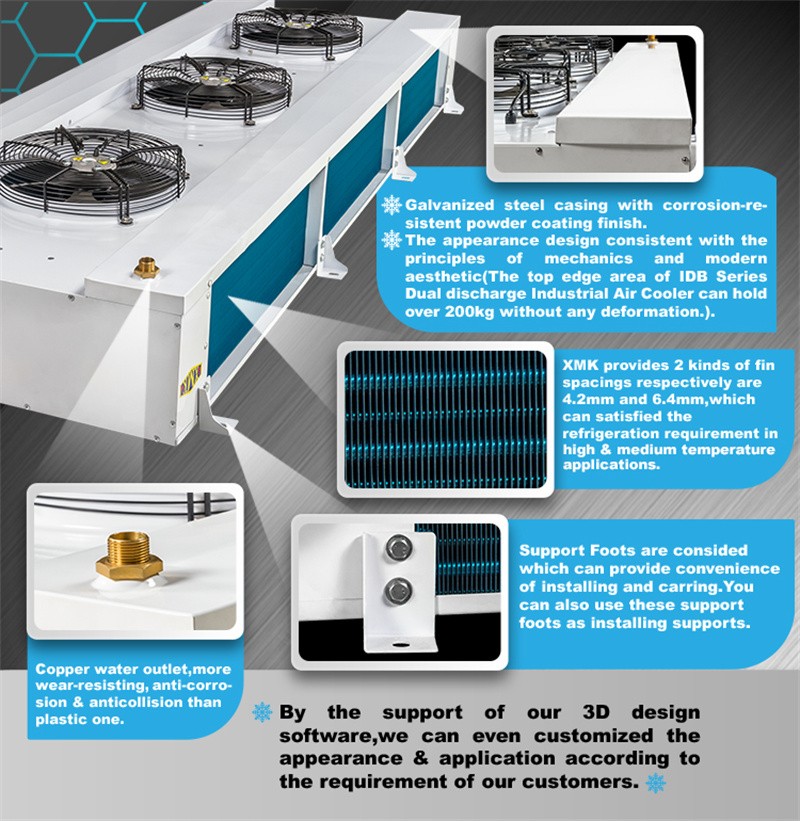

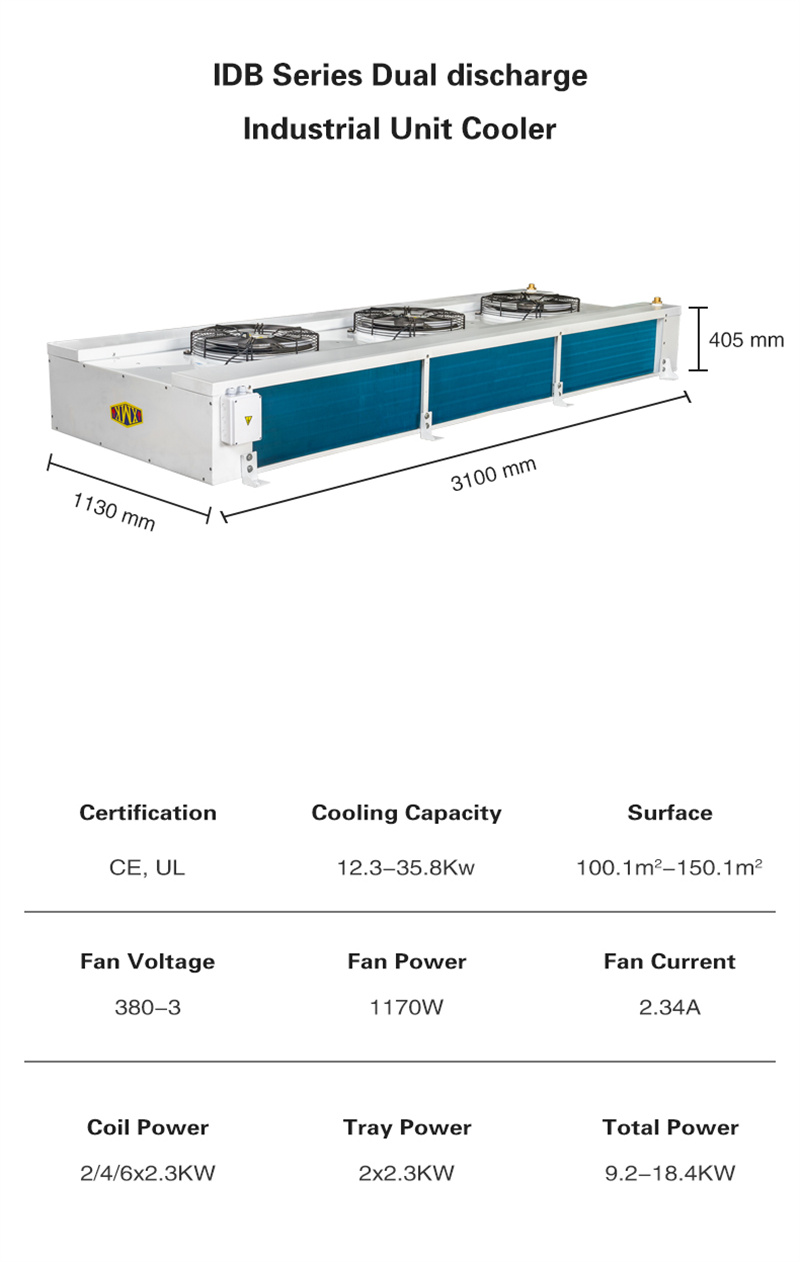

IDB series 6.4mm fin specing type refrigeration system air cooler is design in dual discharge and mainly used in operation room which require working temperature during -18°C to -2°C. Fan blade φ450 in voltage 380V. stander use of electric defrosting .

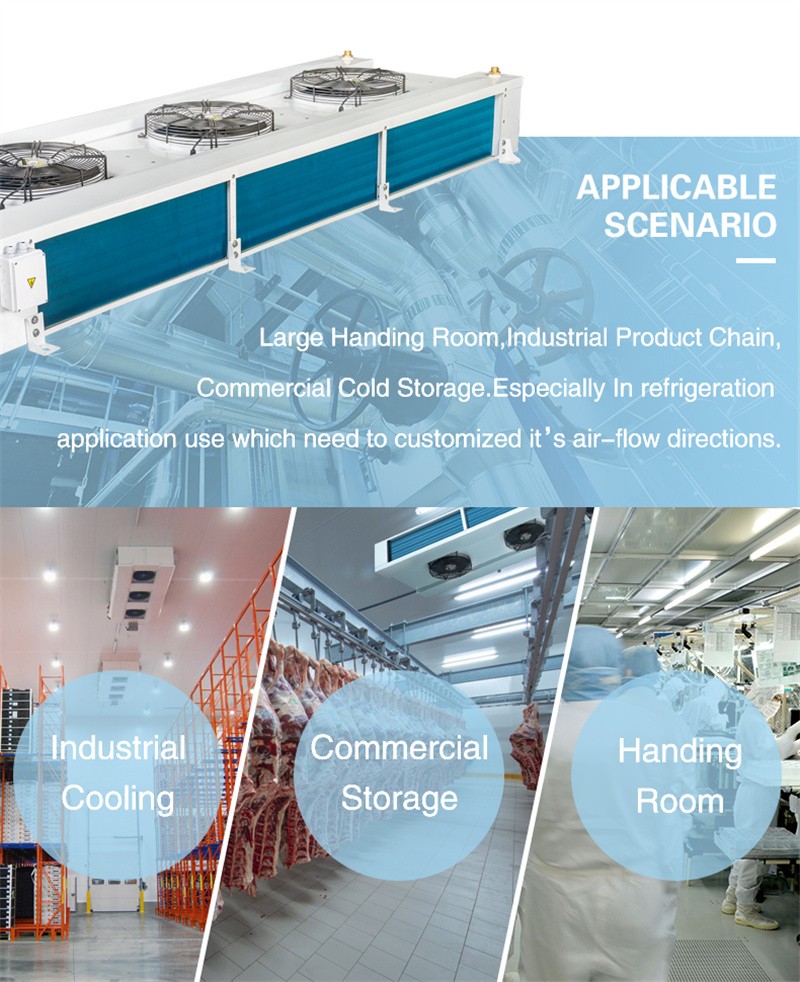

IDB series industrial dual discharge cooler is mainly used in medium and largecold room with personnel operation.
