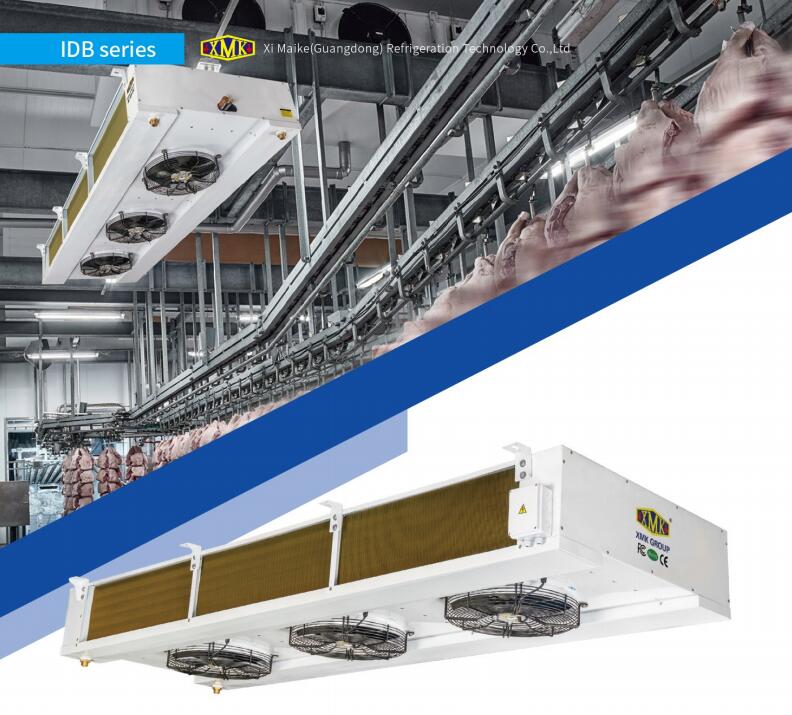

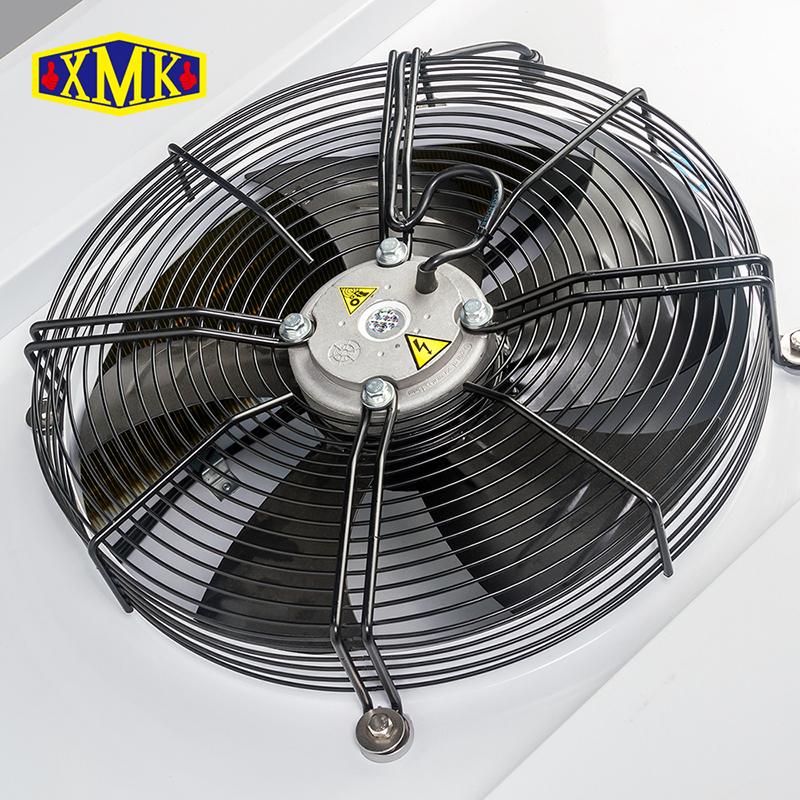

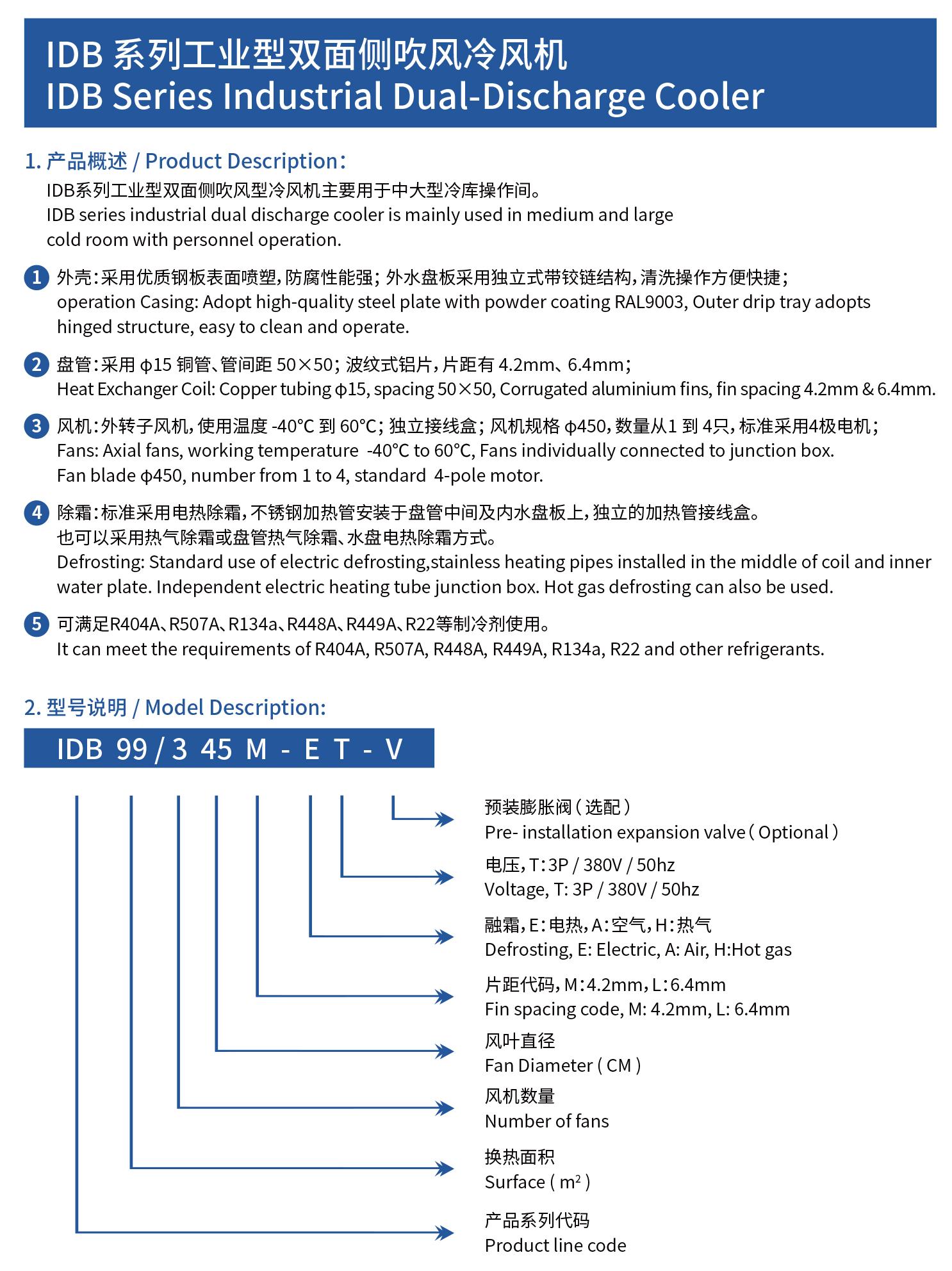

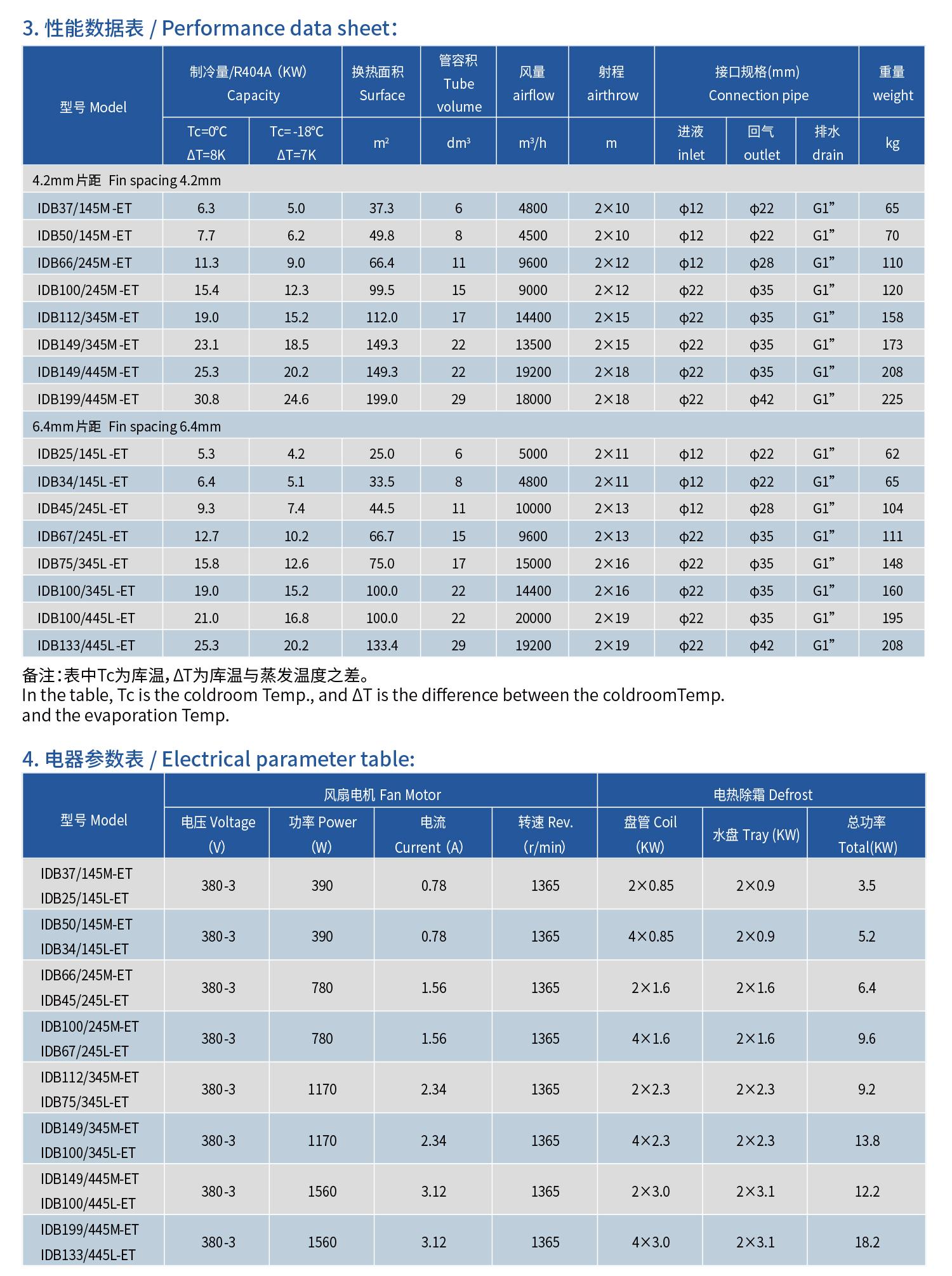

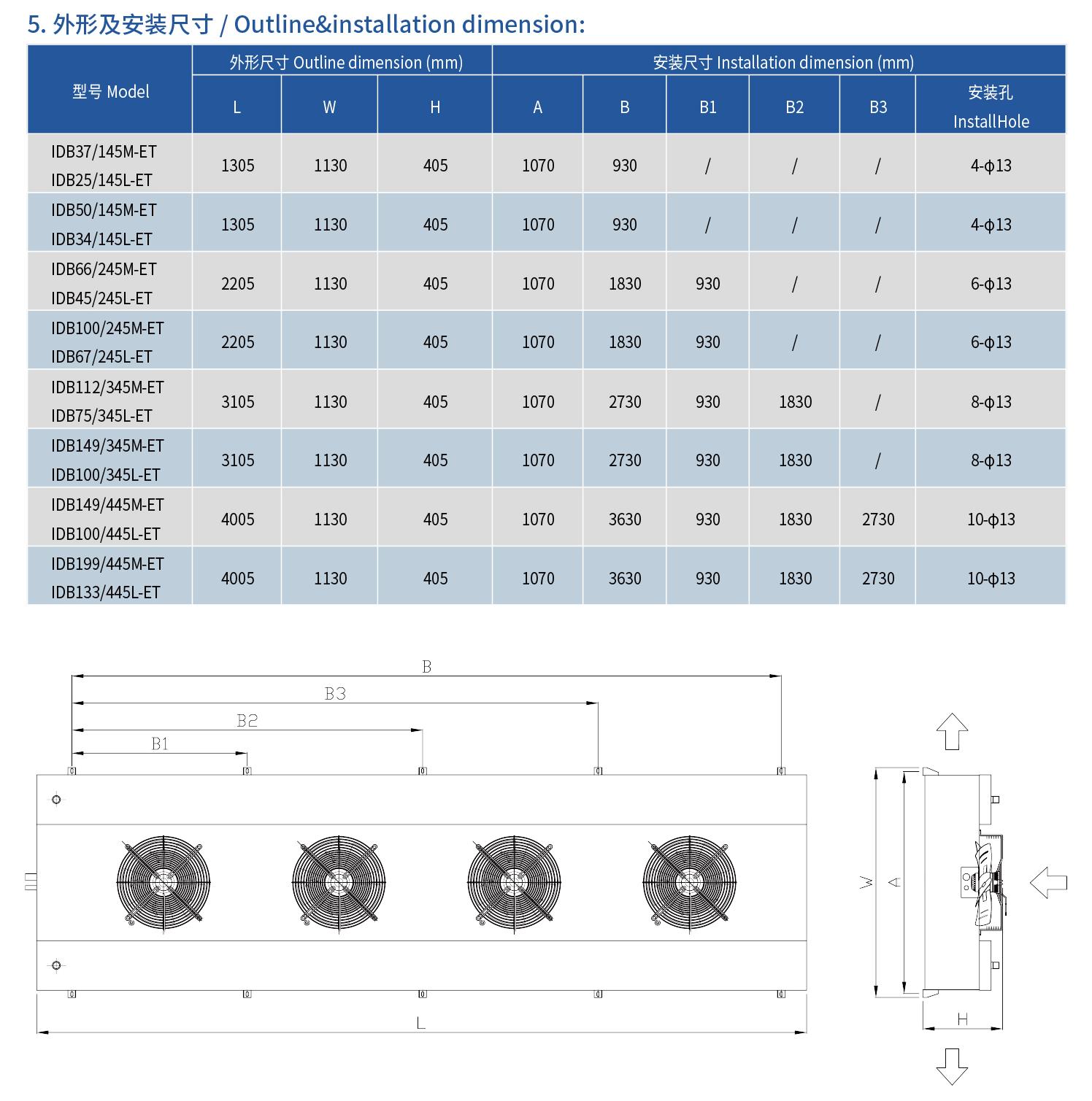

IDB series industrial cooling system evaporator are mainly used in medium amd large cold rooms with personnal operation. Working temperature -40 ~60°C ,fan blade φ450 in voltage 380V.

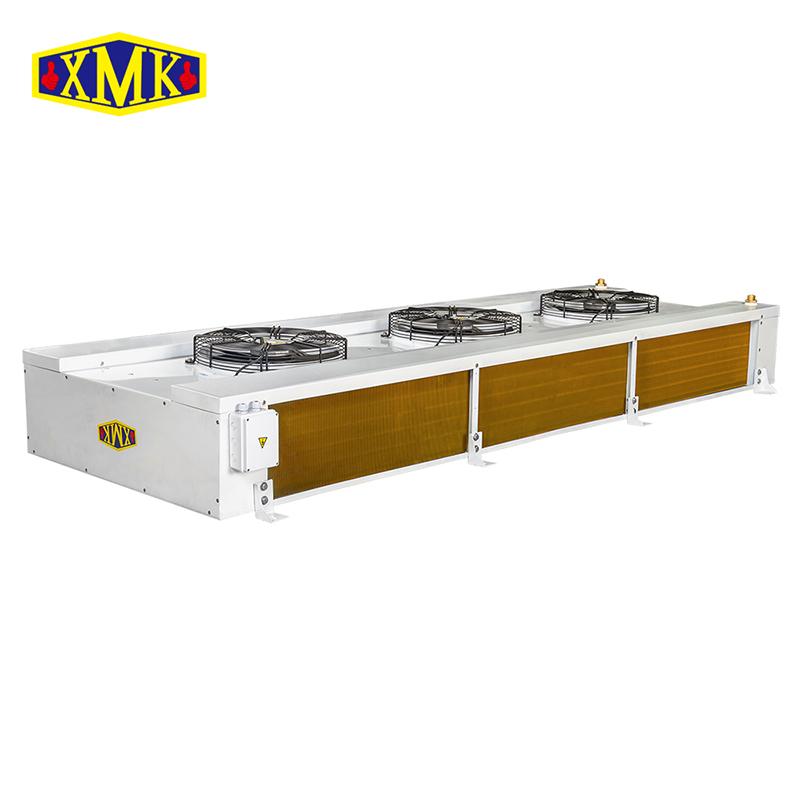

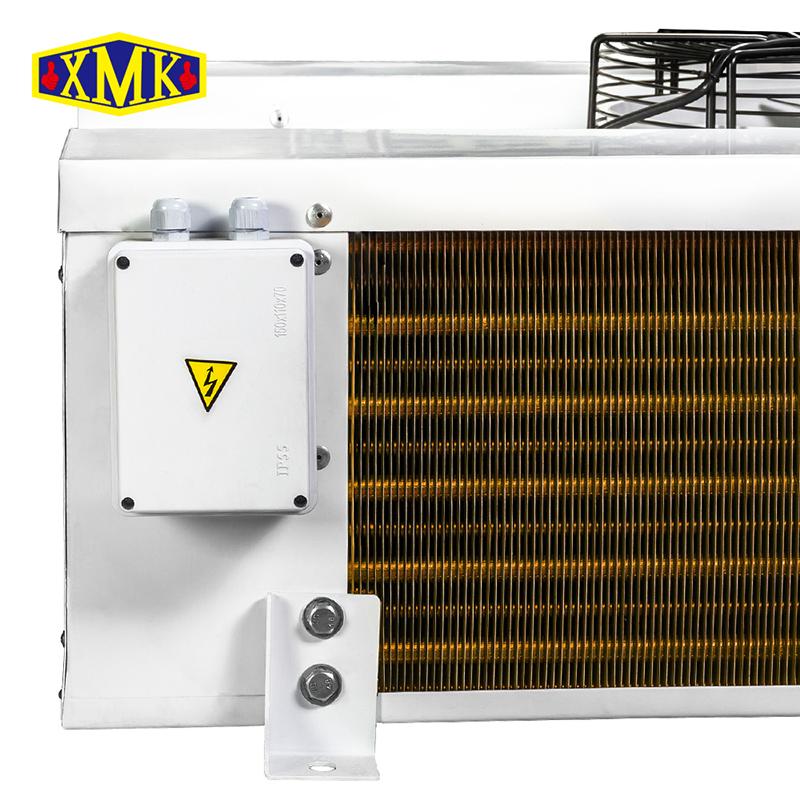

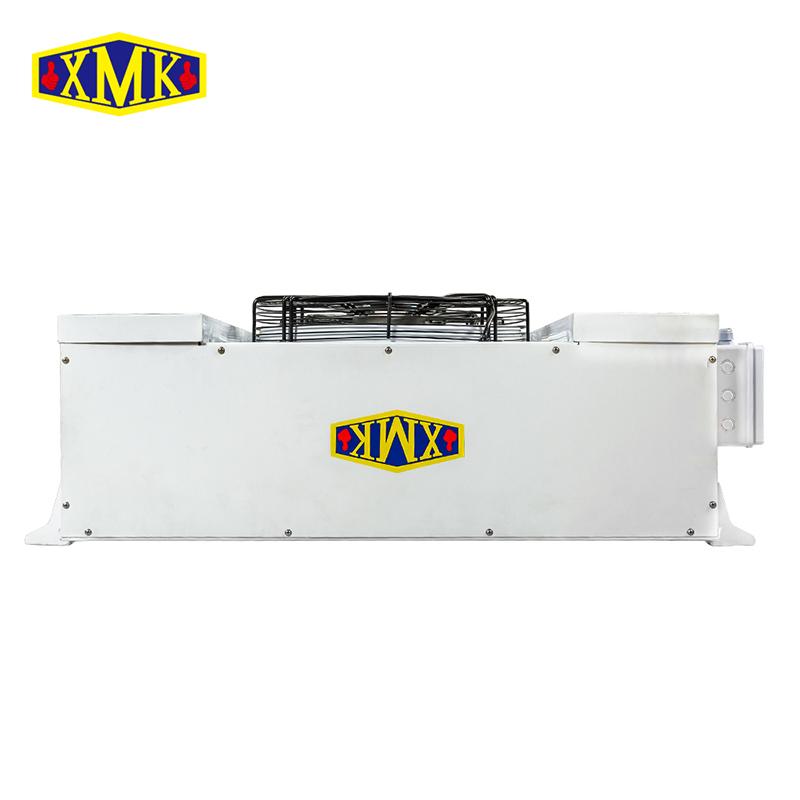

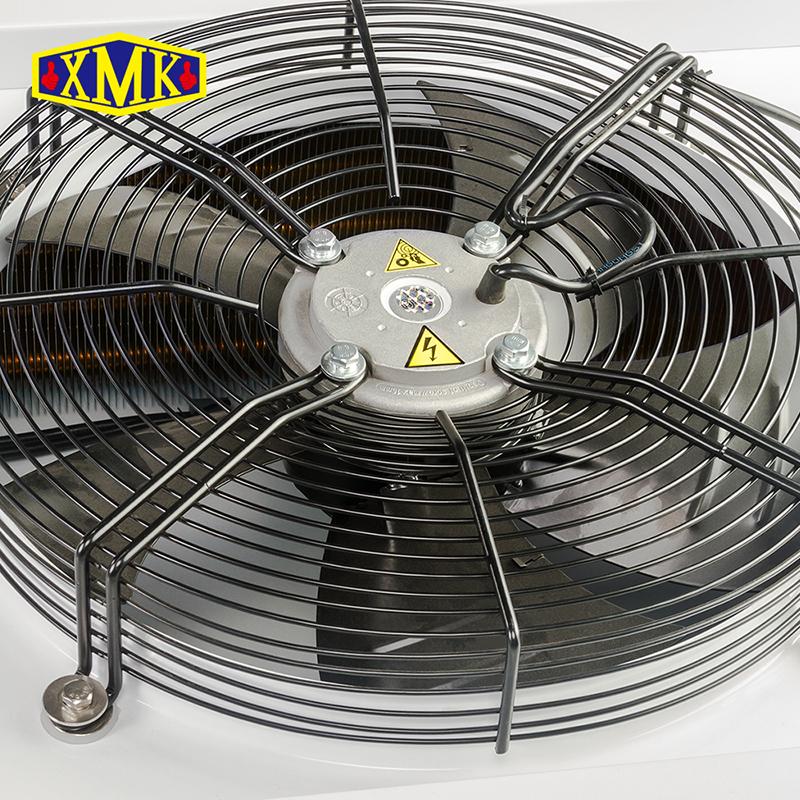

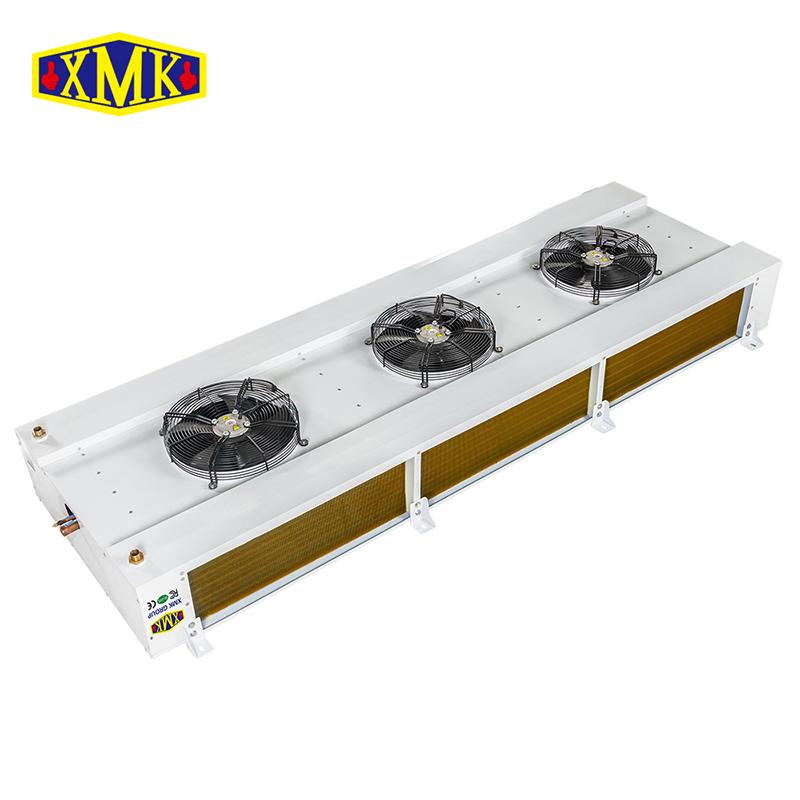

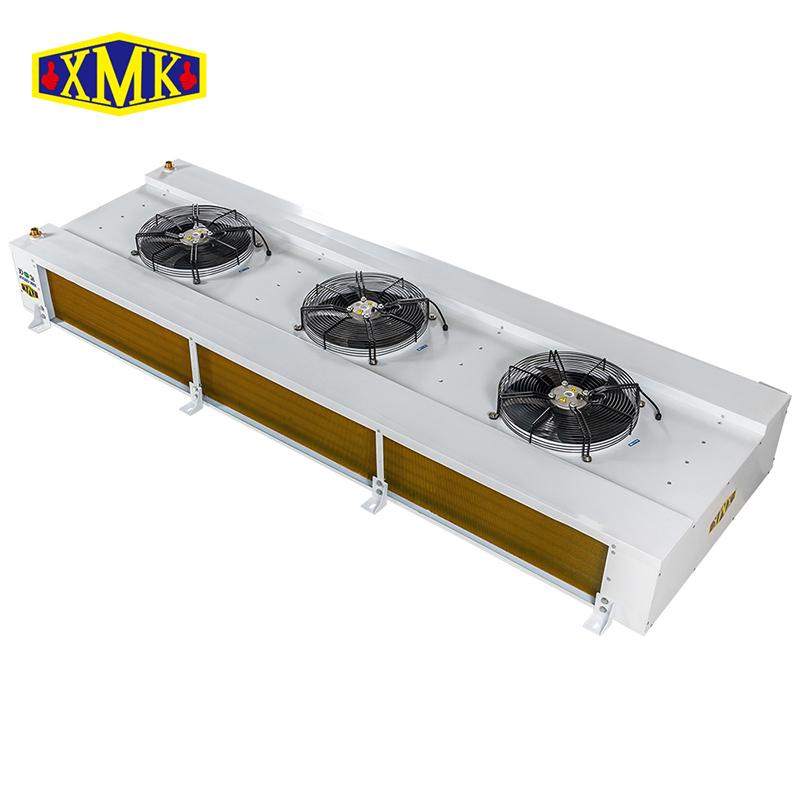

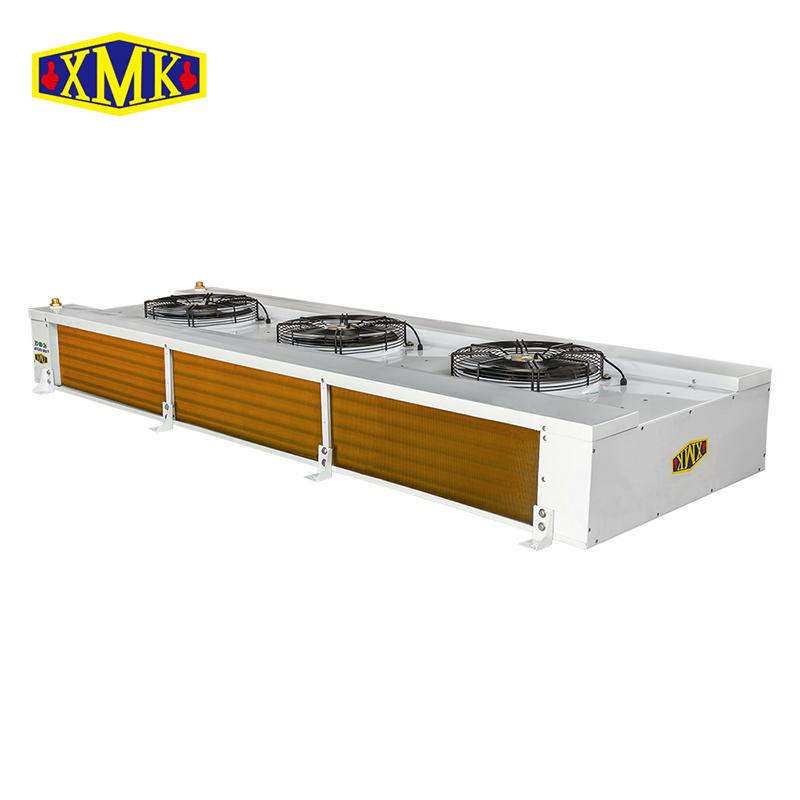

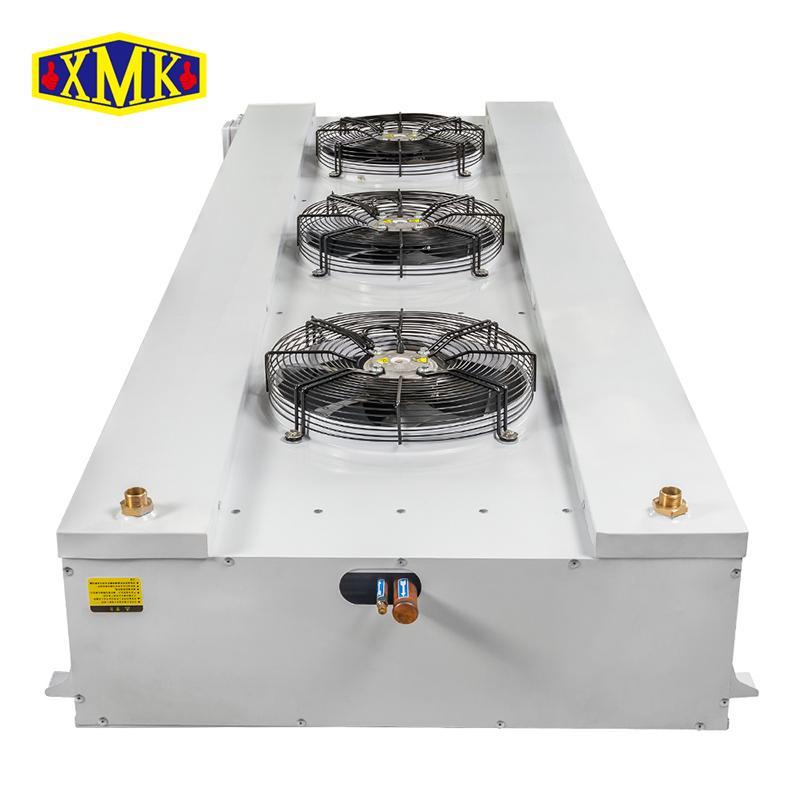

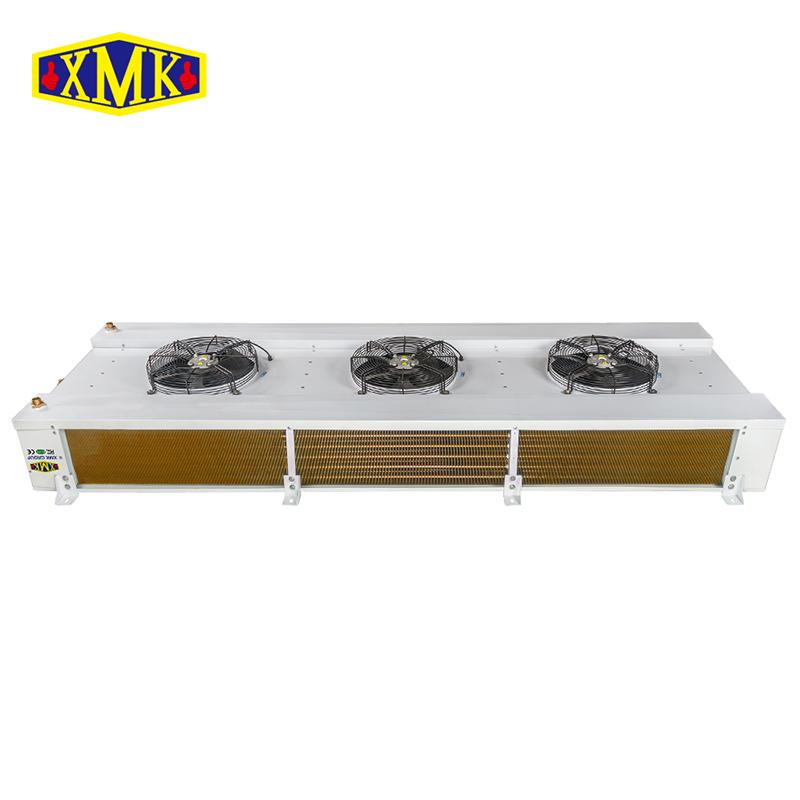

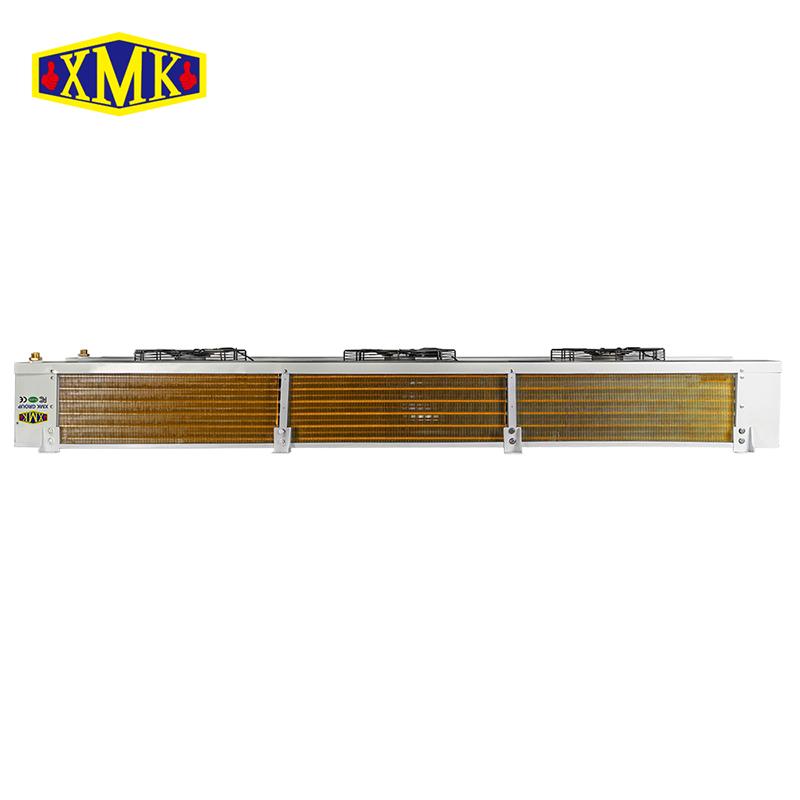

IDB series 6.4mm fin specing type refrigeration system air cooler is design in dual discharge and mainly used in operation room which require working temperature during -18°C to -2°C. Fan blade φ450 in voltage 380V. stander use of electric defrosting .
S12-42Y Refrigeration Unit Frascold Condensing Unit For Cold Room Product description: OUBS series water-cool condensing units have the following characteristics1.Adopted semi-hermetic piston compressorswith BITZER or FRASCOLD ,It has good qualityand high reliability.2.Adopted high efficiency shell-tube type watercondenser with good cooling effect and lowcondensation temperature.3.The condenser, compressor and various accessories are installed on an integral frame,which is compact in structure and convenientin operation and maintenance.4.The product series is complete, suitable for awide range of temperatures. It has medium，low temperature and quick frozen workingconditions design. It can meet the needs ofrefrigeration equipment at various tempera-tures;temperatures.5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.Cooling Water Condensing Unit data: Power Supply 380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model S12-42Y Compressor Max.I(A) 22.4Capacity(KW) -5℃ 27.2Capacity(KW) -10℃22.6Capacity(KW) -15℃ 18.5 Suction Line (mm) 35 Liquid Line （mm） 22 Size length (mm) 1397 Size Width (mm) 556 Size Height (mm) 807
XMK-205 Liquid Accumulator Refrigeration Parts For Condensing Unit Has stronger construction. It maximize prevents the refrigerant lost. The liquid accumulator separator is designed with internal bend pipes to prevent from internal splashing and help the aggregation of the oil at the bottom of the separator. The separator shall be installed as nearer to the compressor as possible. Model Connector size XMK-204 1/2 ODF XMK-205 5/8 ODF XMK-206 3/4 ODF XMK-207 7/8 ODF XMK-208/211 1-1/8 ODF XMK-209/213 1-3/8 ODF XMK-210/215 1-5/8 ODF XMK-221 2-1/8 ODF Features: 1. “U” tube design for maximum flow of refrigerant and minimum oil entrapment; 2. Saving refrigerant; 3. Metering Orifice matched to system capacity assures optimum liquid refrigerant and oil flow back to compressor. 4. Exterior corrosion resistant static electrical painting process protecting the shell from the rust. 5. Maximum working pressure: 3.0 Mpa.
SEMI-HERMETIC For standard refrigerantsUniversal and environmentally friendly: ECOLINE reciprocating compressors offer high cooling capacity with minimal energy requirements and are optimised for HFC, HFO and low-GWP refrigerants. The optional VARISTEP mechanical capacity control offers high part-load efficiency in medium and low temperature application.
20Ton Catalogue Air Cooled Condensing Unit Product description: 1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability. 2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency. 4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4NES-20Y Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4NES-20Y Compressor Max.I(A) 33.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 548x4 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1550 Size Width (mm) 1150 Size Height (mm) 1630
This series of products is mainly developed for commercial and supermarket applications.Can save about 20% of electricity bill every day; It is especially suitable for convenience store and supermarket refrigeration system;
This wall-mounted type of CA series air cooler design with 300mm blowers & 6.4mm fin spacing , apply to cold storage which require cold room temperaturer -18 °C , such as frozen food, meat, cold food and seafood.
MTZ80 Danfoss Compressor With Comdensing Unit Product description: 1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with DANFOSS or FRASCOLD, It has good quality and high reliability. 2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency. 4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Danfoss MTZ80 Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. 5 to 15 degree Compressor Model MTZ80 Compressor Max.I(A) 13.6 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240X4 Suction Line (mm) 28 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430
