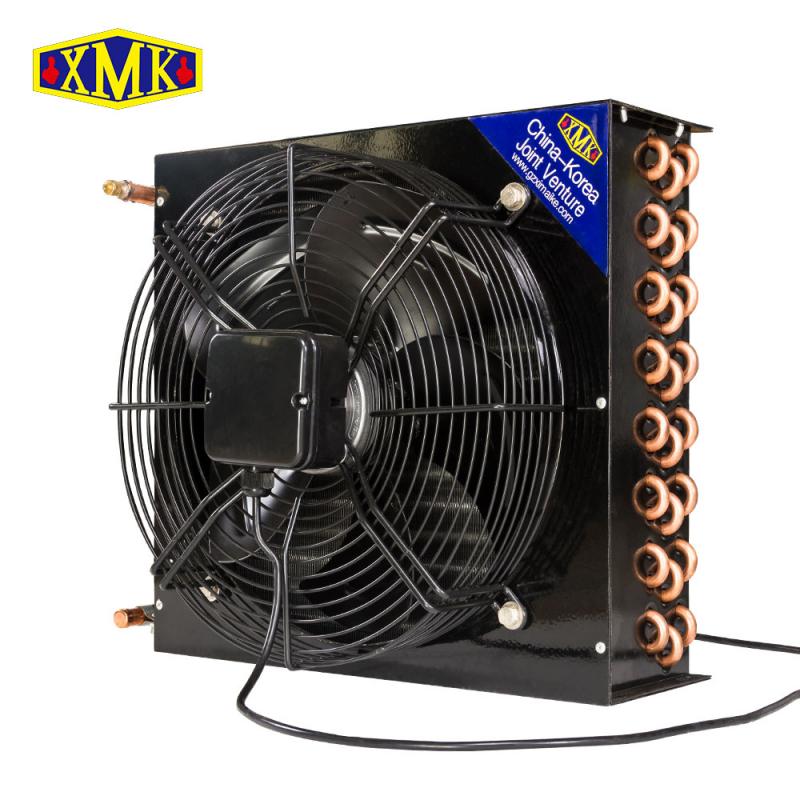

3HP Air cooler condenser for condensing unit

Air cooled condenser is specially designed for Freon refrigeration equipment and cooled by air.

We have FNF, HC ,V type and LQF 4 sub series. FNF series is mainly equipped with open-type condensing units with scroll compressor,hemertic & semi-hemertic compressor.


  • Item NO.:

    3HP
  • Order(MOQ):

    5
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    black, green, customized
  • Shipping Port:

    Guangzhou
  • Lead Time:

    14

Product Feature

  • Casing adopt high-quality steel plate with powder coating RAL9003 or RAL 6001

  • pipes with AL fins with good transfer performance.

  • Fan specification: adopt 400mm,500mm,630mm

  • Suitable for refrigerant of R22,R134a,R404a,R507 and etc.

  • FNF series with external fans, good heat transfer effect, suitable for high capacity units.

  • Accept customization

Specifiction

Model
Horse PowerCapacity(W)Heat exchange surface (m2)Fan motor
T=13Knumber (piece)fan dia.(Φmm)Airflow(m3/h)power(W)Voltage(V)
FNF-5.5/18
3HP55001814004150270380
FNF-6.0/223HP60002214004150270380
FNF-8.8/284HP88002814004150270380
FNF-10/425HP100004215006800500380
FNF-12.9/496HP129004915006800500380

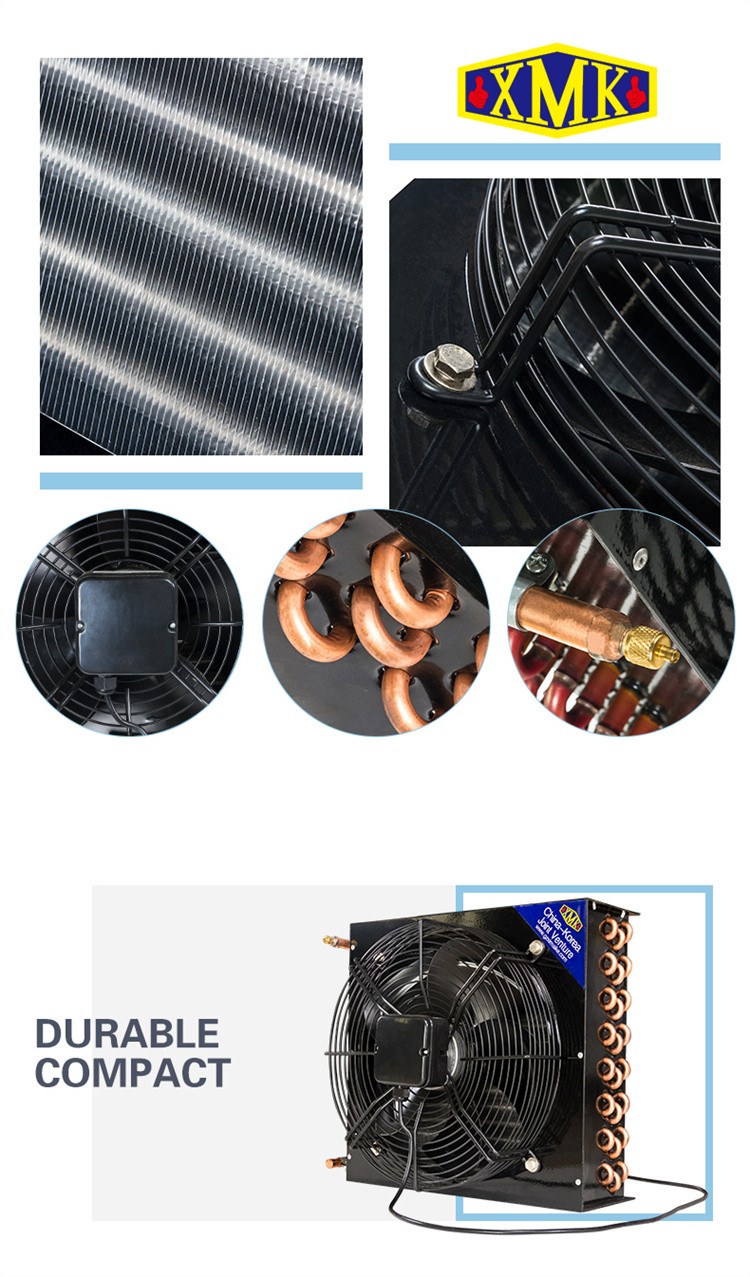

xmk air cooler condenser.jpgFNF_04.jpgFNF_03.jpgFNF_01.jpg细节介绍4.jpg
