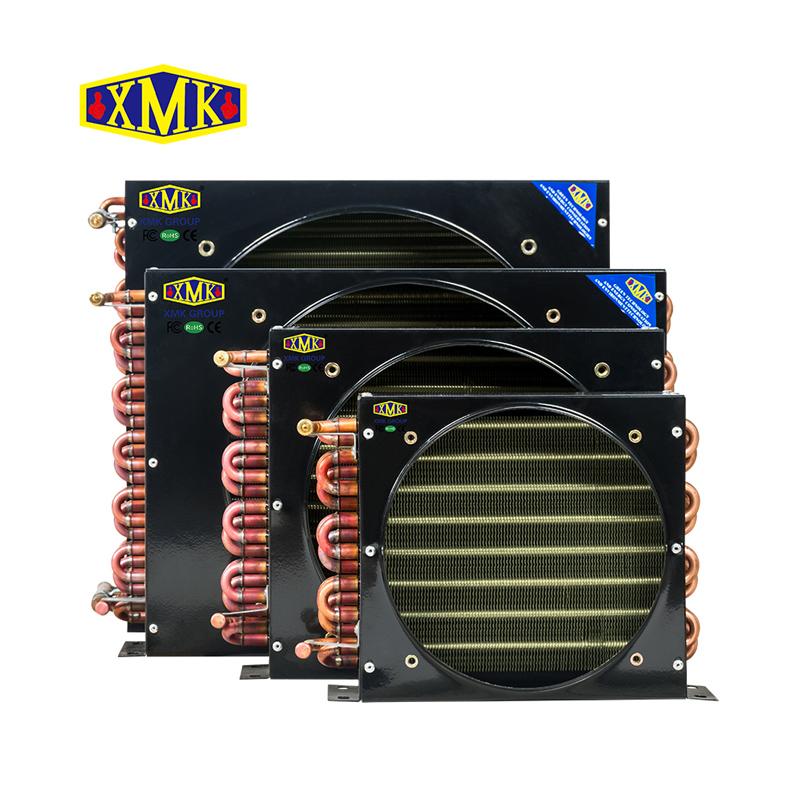

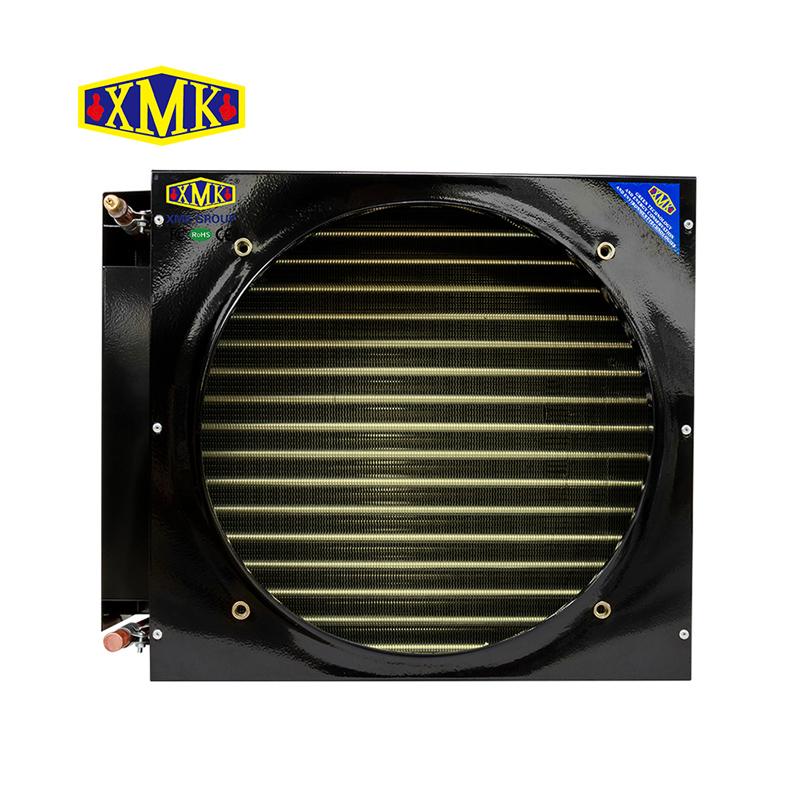

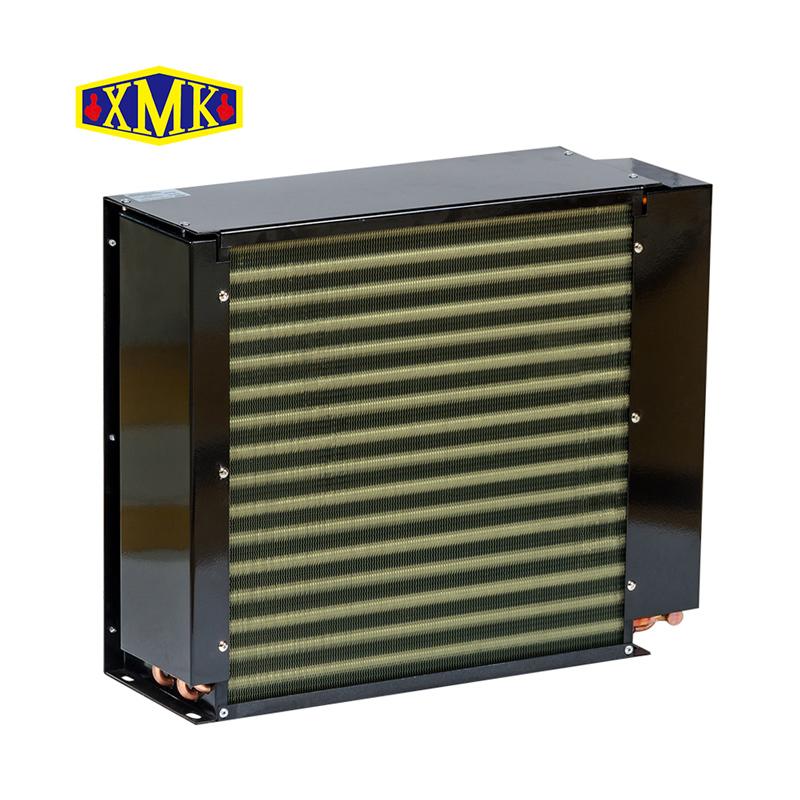

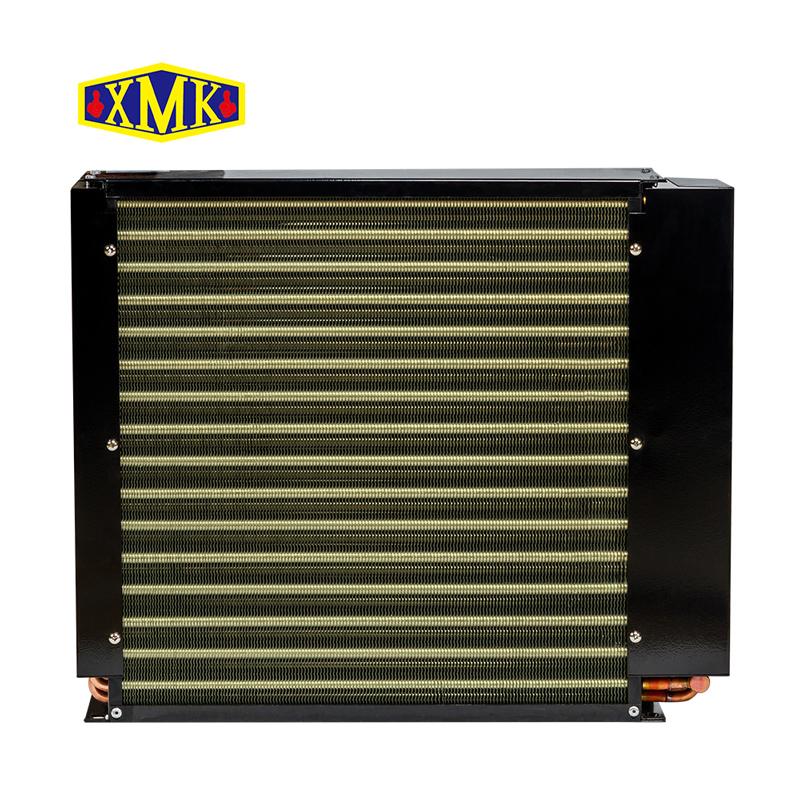

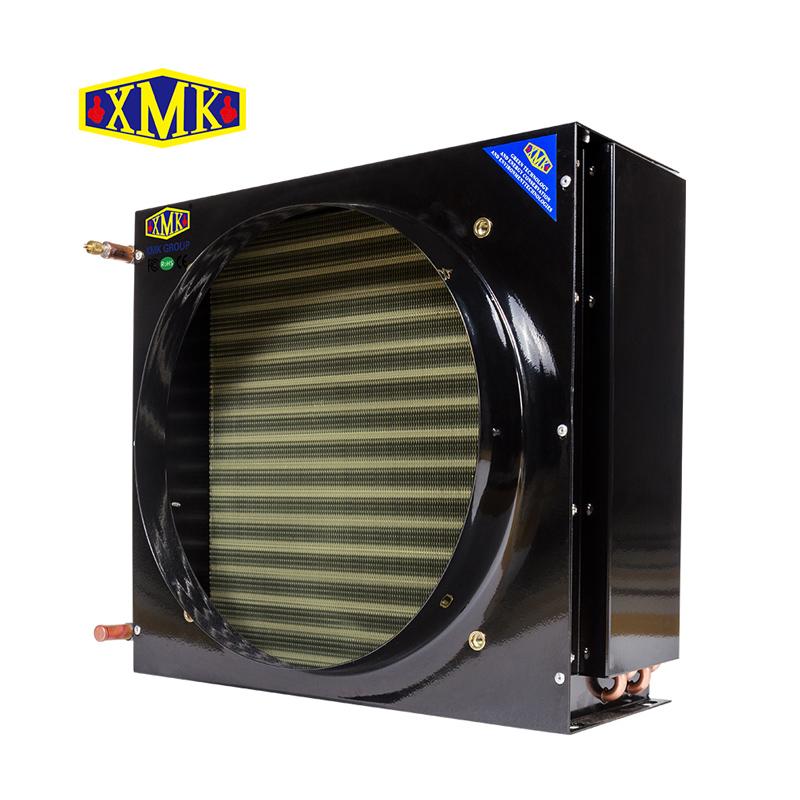

Refrigerator spare parts copper tube condenser 5HP

Air cooled condenser is specially designed for Freon refrigeration equipment and cooled by air.

XMK FNF series is suitable for R134a, R22, R404a, R407 and other refrigerants, widely used in freezing, refrigeration, air conditioning, heat pumps and industrial refrigeration.



  • Item NO.:

    5HP
  • Order(MOQ):

    5
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    black, green, customized
  • Shipping Port:

    Guangzhou

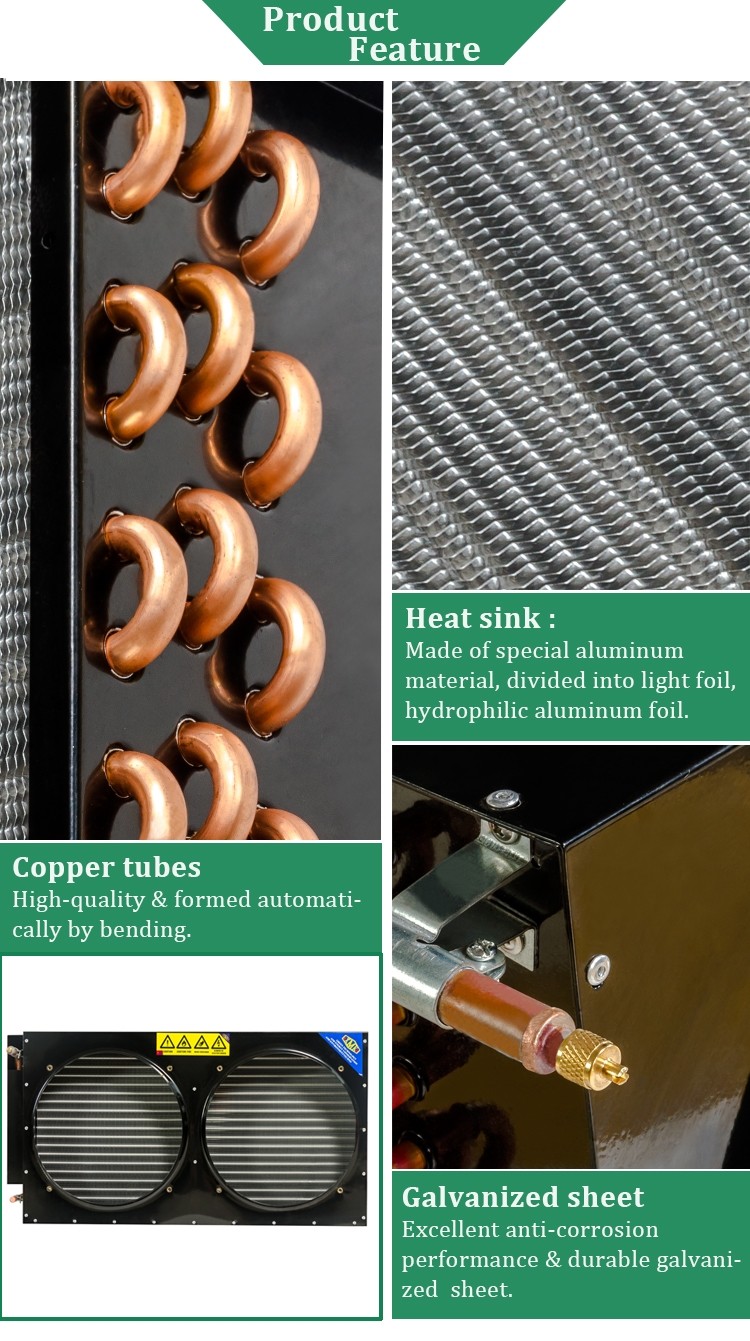

Product Description

  • Casing adopt high-quality steel plate with powder coating RAL9003 or RAL 6001

  • Pipes with AL fins with good transfer performance.

  • Fan specification: adopt 400mm,500mm,630mm

  • Suitable for refrigerant of R22,R134a,R404a,R507 and etc.

  • FNF series with external fans, good heat transfer effect, suitable for high capacity units.

  • Customized is acceptable.

Specification

Model Horse Power Capacity(W) Surface Fan Motor
T=13k m2 number

fan dia

.(Φmm)

Airflow

(m3/h)

Power(W) Voltage(V)
FNF-7.2/24
3HP 7200 24 2 350 2*2900 2*170 380
FNF-8.8/28 4HP 8800 28 2
400 2*4200 2*245 380
FNF-9.0/35 5HP 9000
35
2 400
2*4200 2*245 380
FNF-10.2/42 5HP 10200 42 2 400 2*4200 2*245 380
FNF-15.2/50 6.5HP 15200 50 2 400 2*4200 2*245
380
FNF-19.2/60 7.5HP 19200 60
2 400 2*4200 2*245 380
FNF-21.5/66 8.5HP 21500 66 2 400
2*4200 2*245 380
FNF-24.2/88 10HP
24200 88 2 500 2*6800
2*500
380
FNF-36/120 15HP 36000 120 2 500 2*6800 2*500 380



copper tube condenser 5HP.jpg
