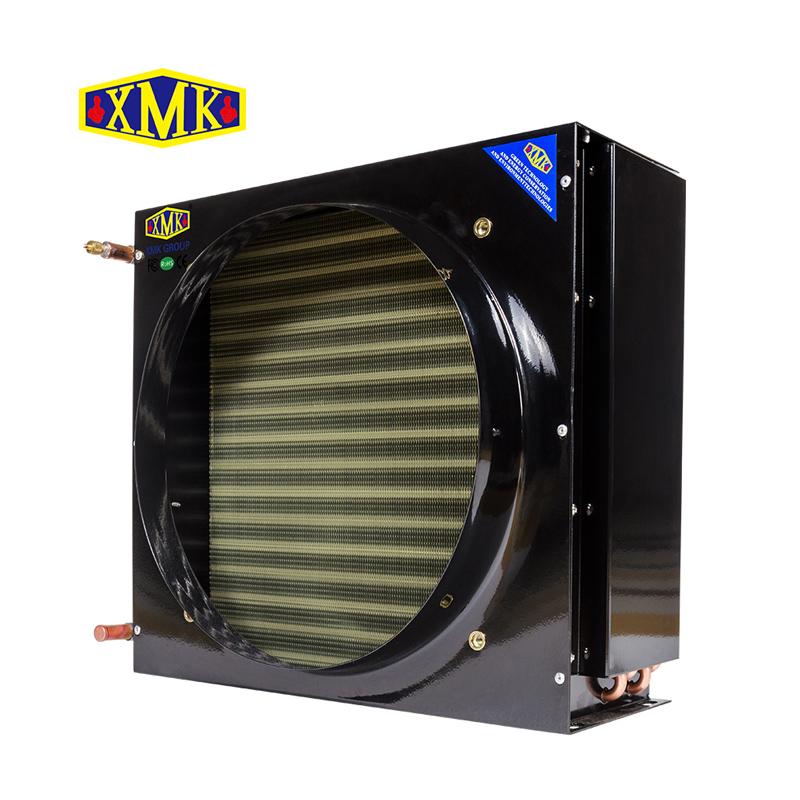

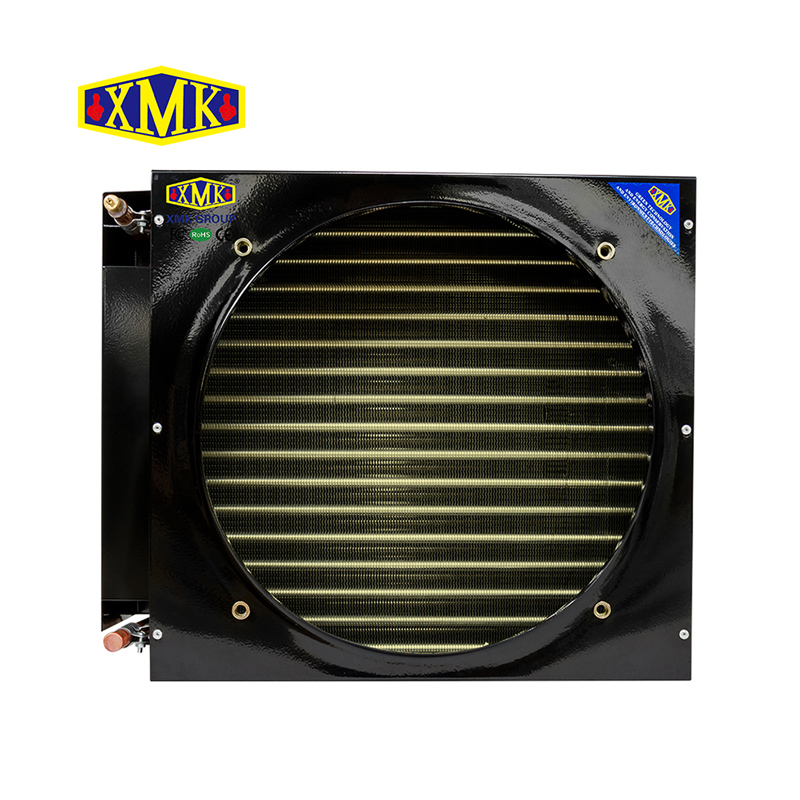

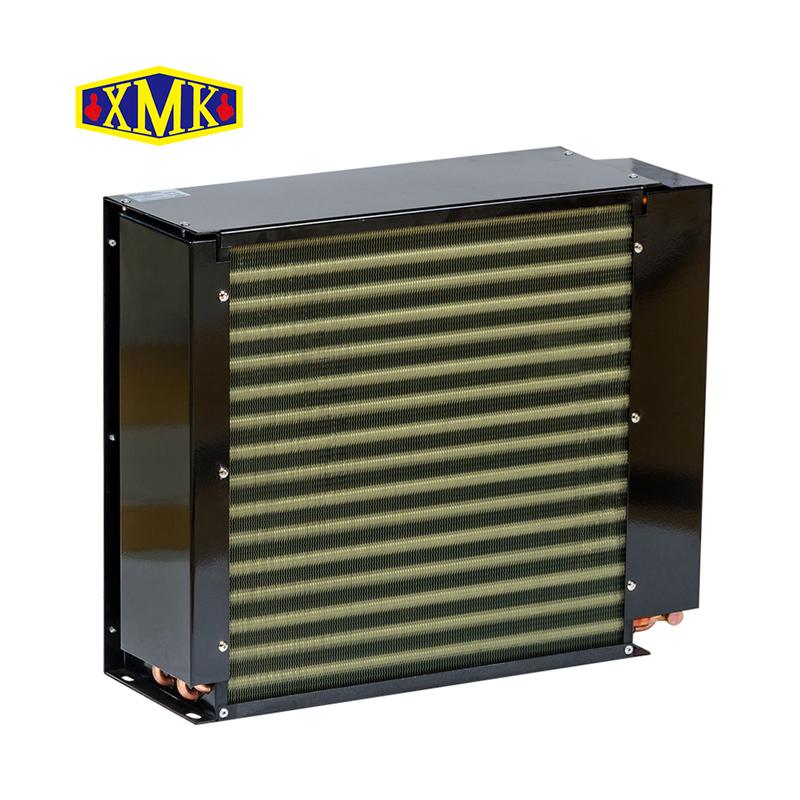

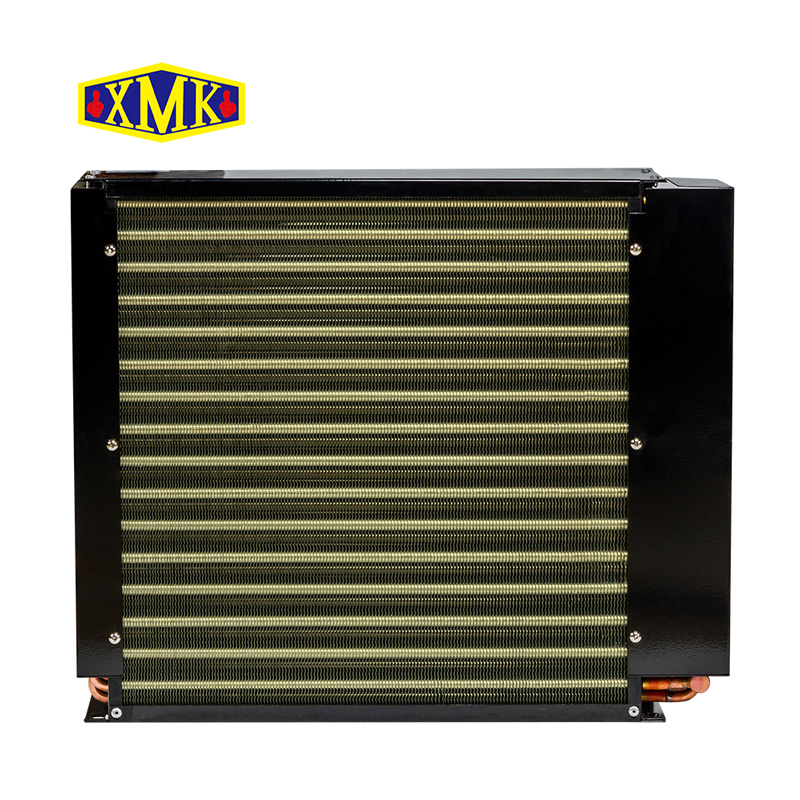

Condenser refrigerator heat exchanger 2HP to 6HP 1 blower

Air cooled condenser is specially designed for Freon refrigeration equipment and cooled by air.

XMK FNF series is suitable for R134a, R22, R404a, R407 and other refrigerants, widely used in freezing, refrigeration, air conditioning, heat pumps and industrial refrigeration. Fan blower support 350mm to 500mm.

  • Item NO.:

    2HP
  • Order(MOQ):

    5
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    black, green, customized
  • Shipping Port:

    Guangzhou

Product Description

  • Casing adopt high-quality steel plate with powder coating RAL9003 or RAL 6001

  • Pipes with AL fins with good transfer performance.

  • Fan specification: adopt 400mm,500mm,630mm

  • Suitable for refrigerant of R22,R134a,R404a,R507 and etc.

  • FNF series with external fans, good heat transfer effect, suitable for high capacity units.

  • Customized is acceptable.


Specification



ModelHorse PowerCapacity(W)SurfaceFan Motor
T=13k m2 number

fan dia

.(Φmm)

Airflow

(m3/h)

Power(W) Voltage(V)
FNF-2.8/13
2HP 2800 13
1
350 2860 170 380
FNF-4.4/15 2.5HP 4400 15 1 350 2860 170 380
FNF-5.5/18 <3HP 5500 18 1 400 4150 270 380
FNF-6.0/22 3HP 6000 22 1 400 4150 270 380
FNF-8.8/28 4HP 8800 28 1 400 4150 270 380
FNF-10/42 5HP 10000 42 1 500 6800 500 380
FNF-12.9/49 6HP 12900 49 1 500 6800 500 380

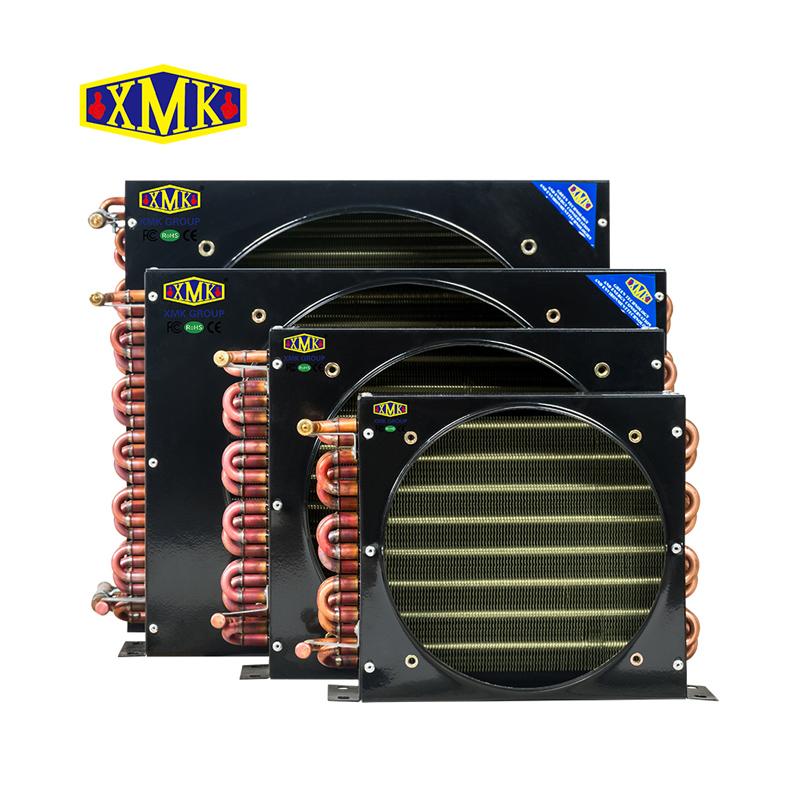

0303 (1).jpgcondenser 2HP to 6HP.jpgcopper tube coil.jpg
