Refrigeration parts copper tube condenser 15HP capacity 36000W

Air cooled condenser is specially designed for Freon refrigeration equipment and cooled by air.

XMK FNF series is suitable for R134a, R22, R404a, R407 and other refrigerants, widely used in freezing, refrigeration, air conditioning, heat pumps and industrial refrigeration. Voltage 380V


  • Item NO.:

    15HP
  • Order(MOQ):

    5
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    black, green, customized
  • Shipping Port:

    Guangzhou

Product Description

  • Casing adopt high-quality steel plate with powder coating RAL9003 or RAL 6001

  • Pipes with AL fins with good transfer performance.

  • Fan specification: adopt 400mm,500mm,630mm

  • Suitable for refrigerant of R22,R134a,R404a,R507 and etc.

  • FNF series with external fans, good heat transfer effect, suitable for high capacity units.

  • Customized is acceptable.

Specification

ModelHorse PowerCapacity(W)SurfaceFan Motor
T=13km2number

fan dia

.(Φmm)

Airflow

(m3/h)

Power(W)Voltage(V)
FNF-24.2/8810HP242008844004*42004*245380
FNF-36/13015HP3600013044004*42004*245
380
FNF-38/14015HP big38000140
44004*42004*245380
FNF-42/15020HP420001504400
4*42004*245380
FNF-50/18025HP
5000018045004*6800
4*500
380
FNF-60/21030HP6000021045004*68004*500380

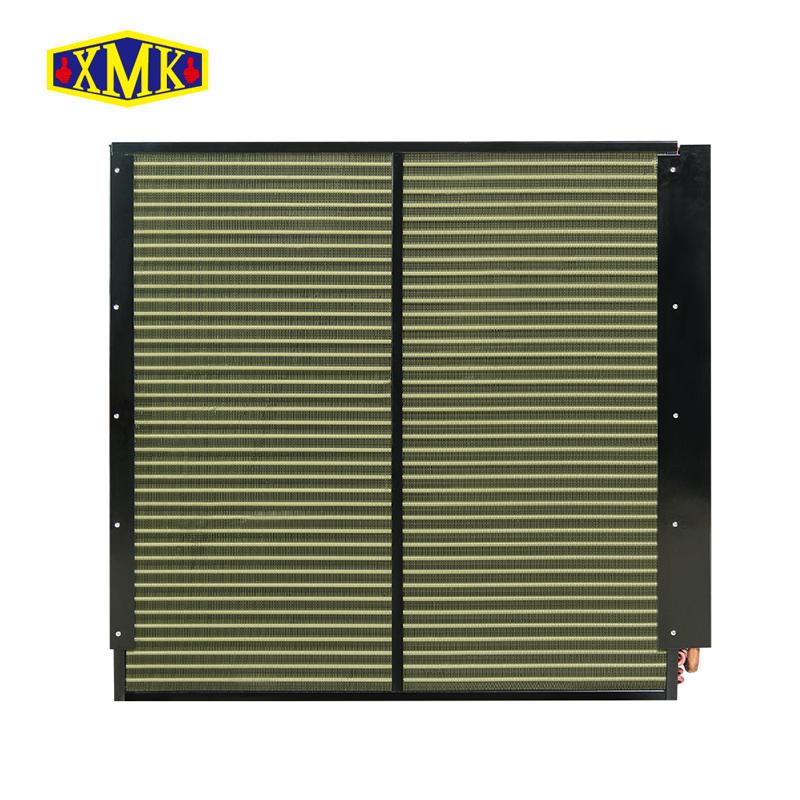

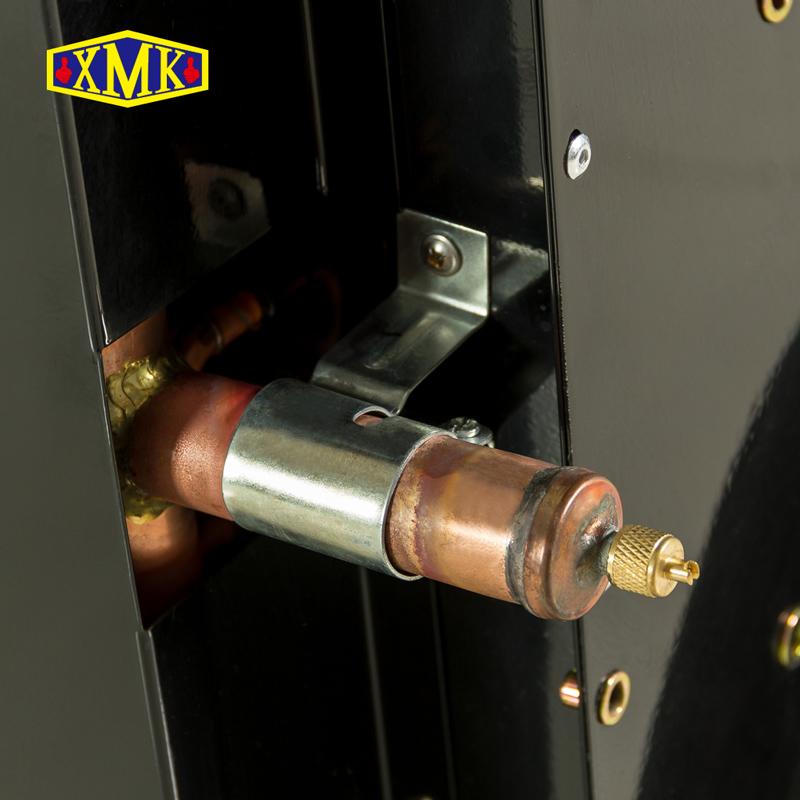

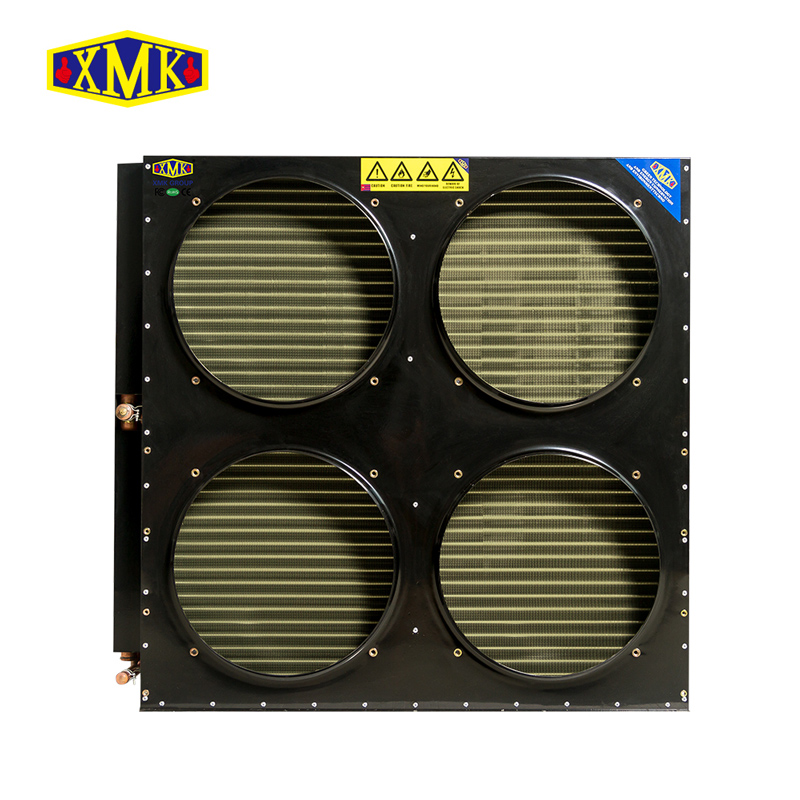

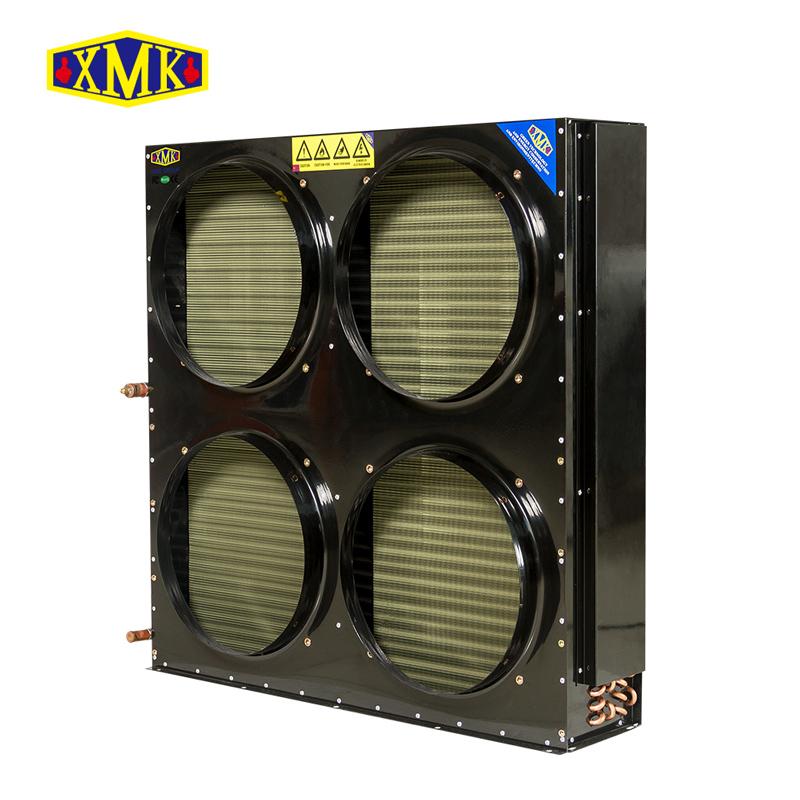

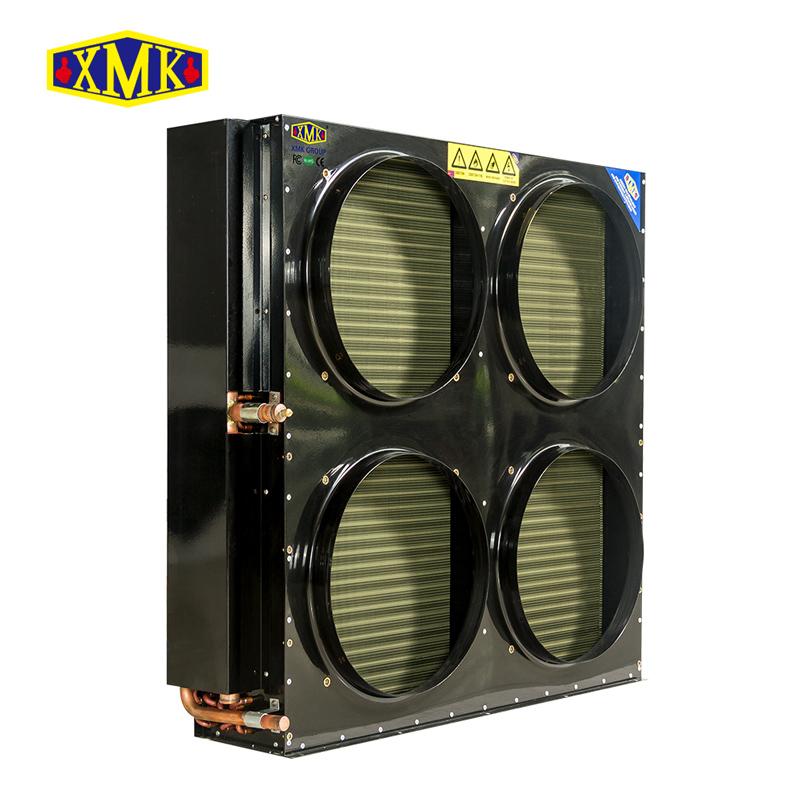

XMK air cooled condenser .jpg15HP condenser.jpgblack condenser copper tube.jpg
