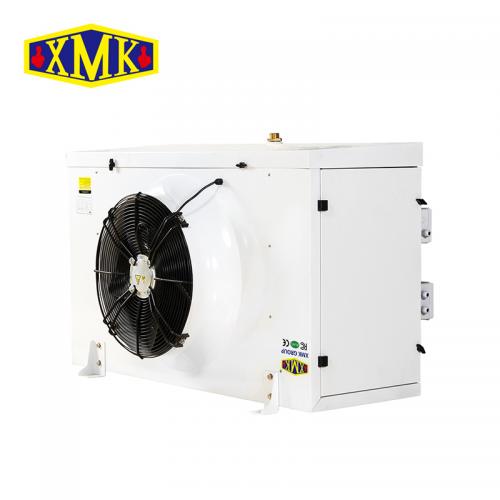

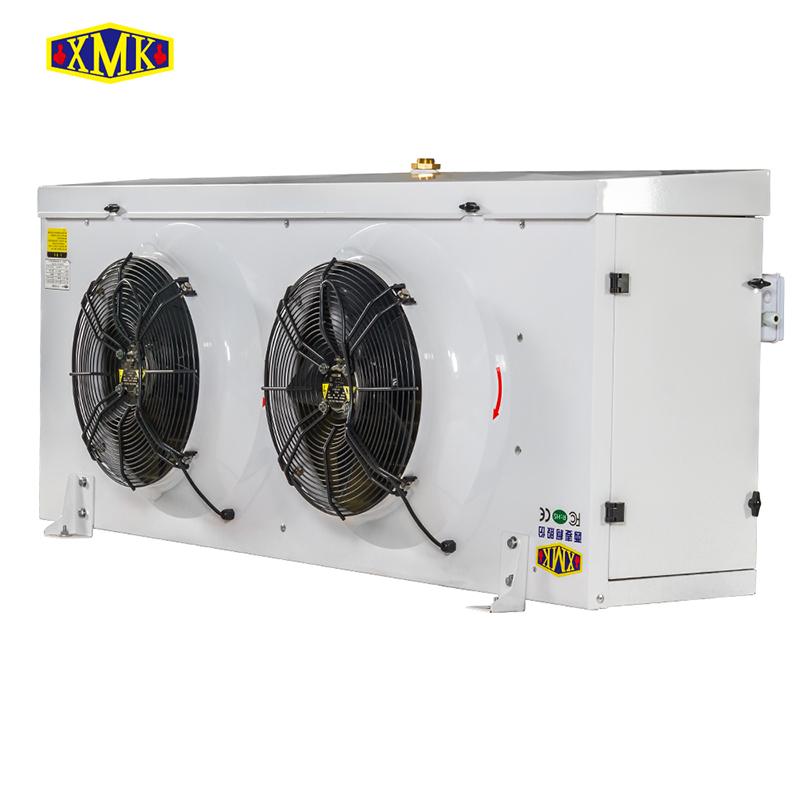

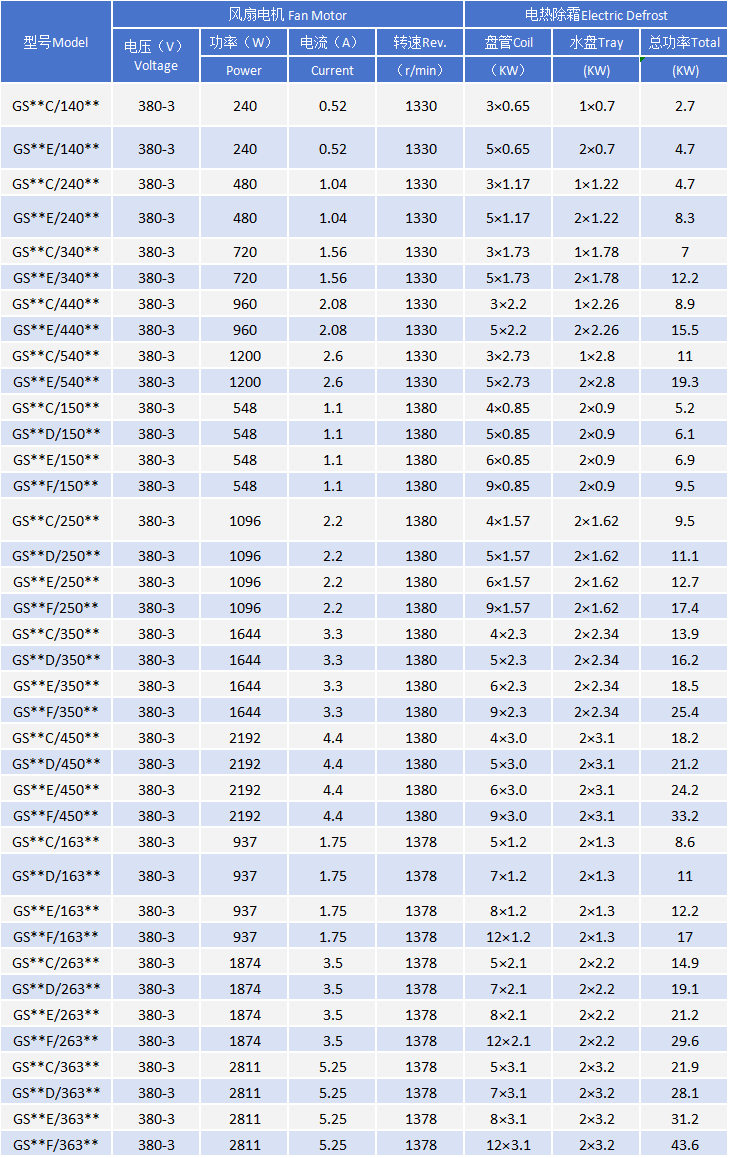

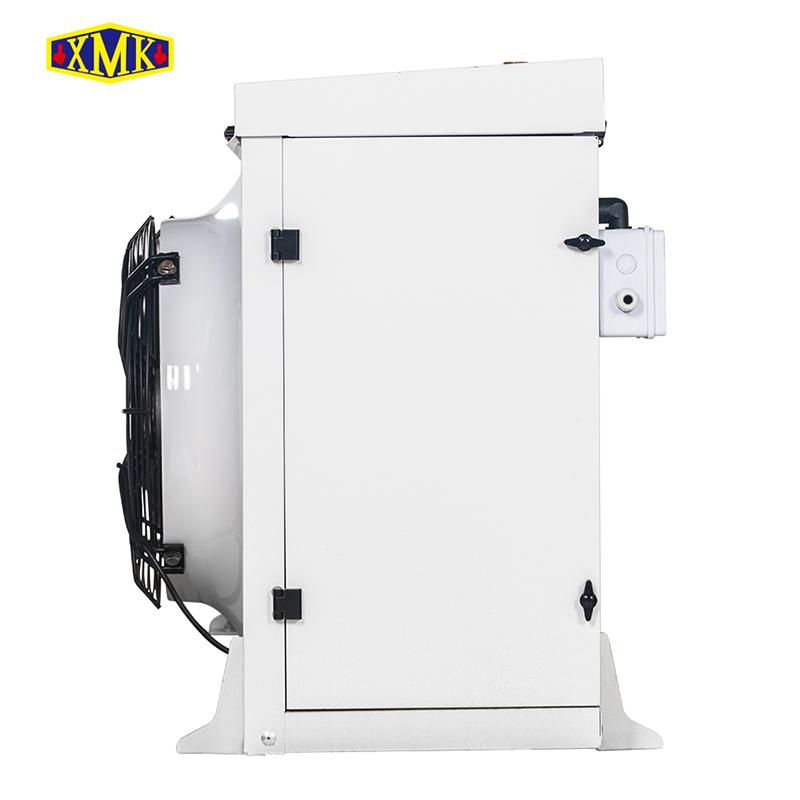

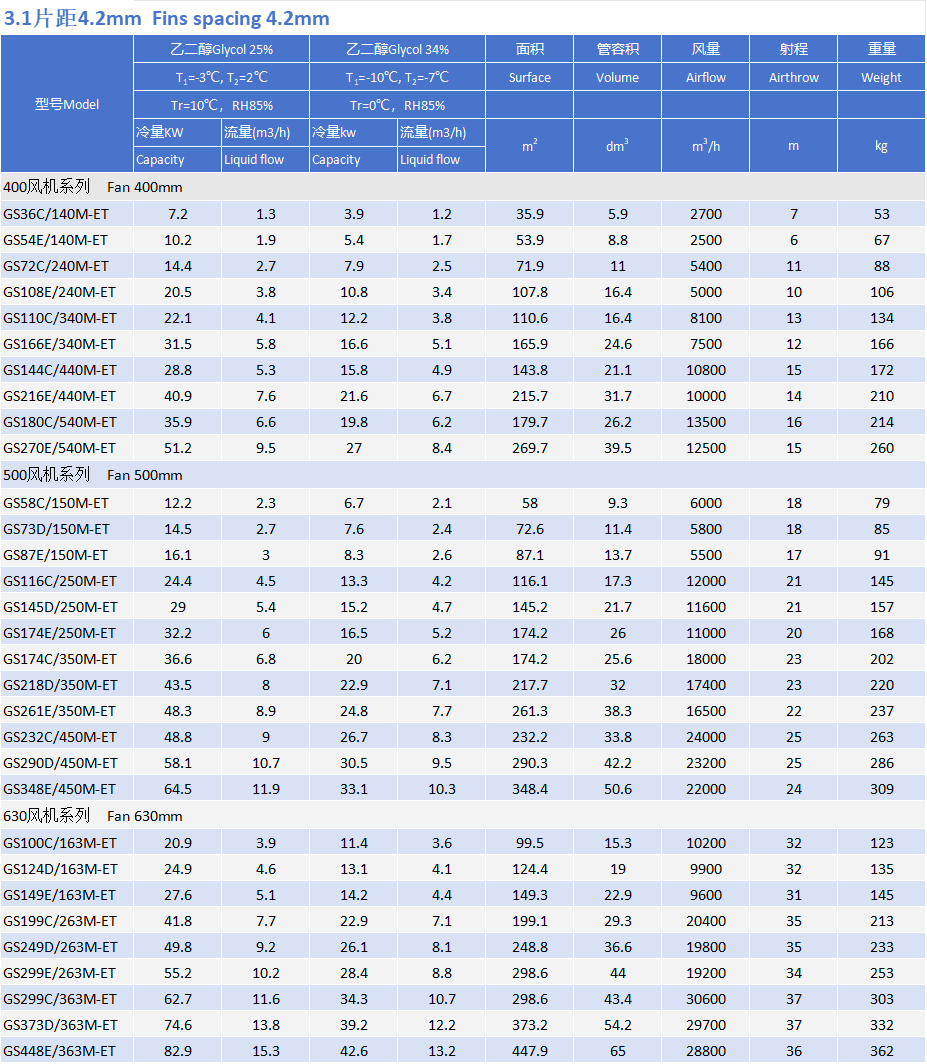

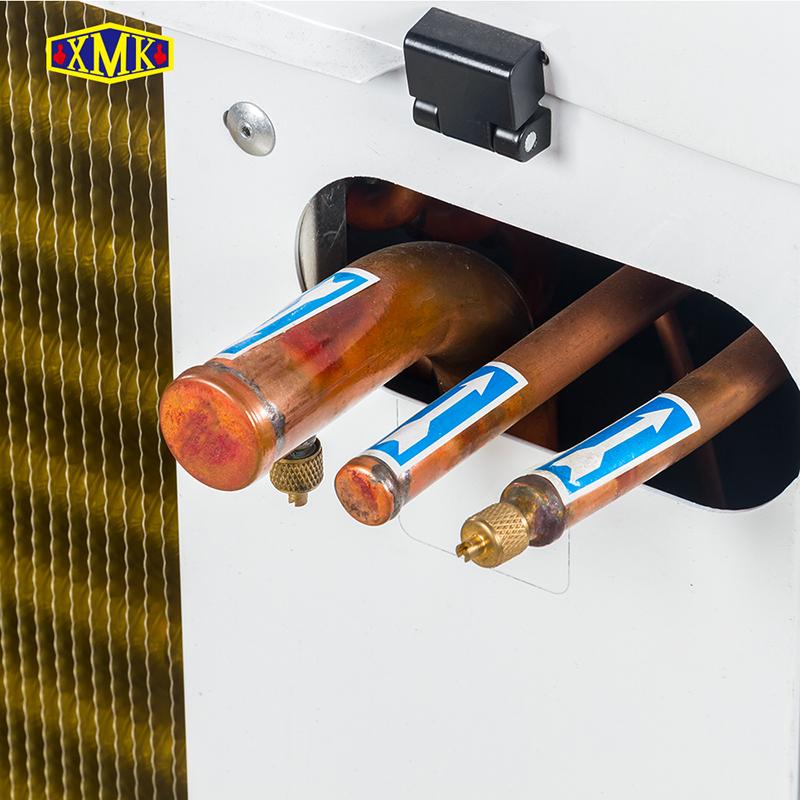

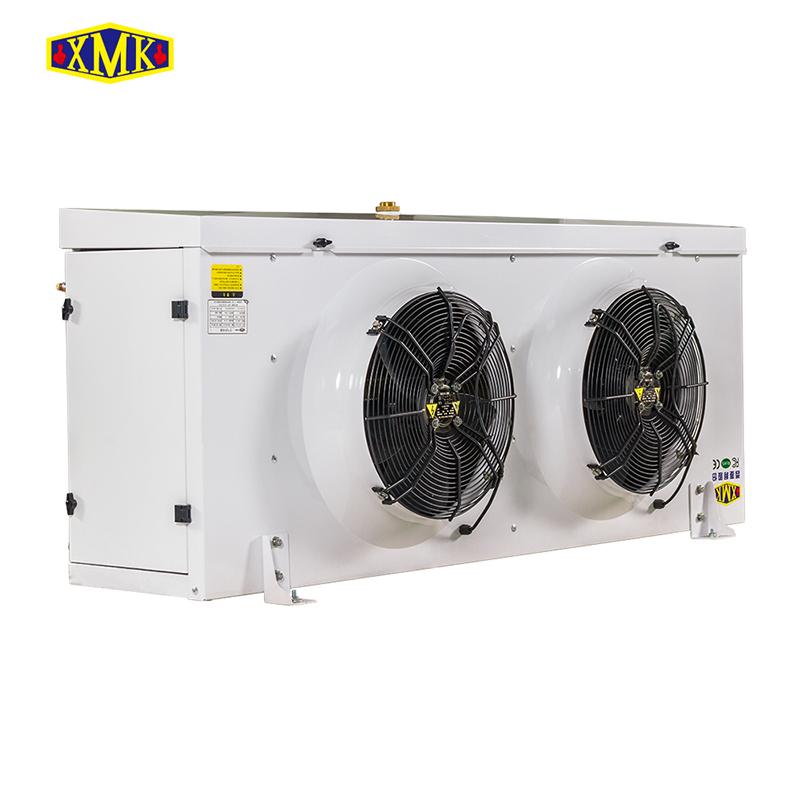

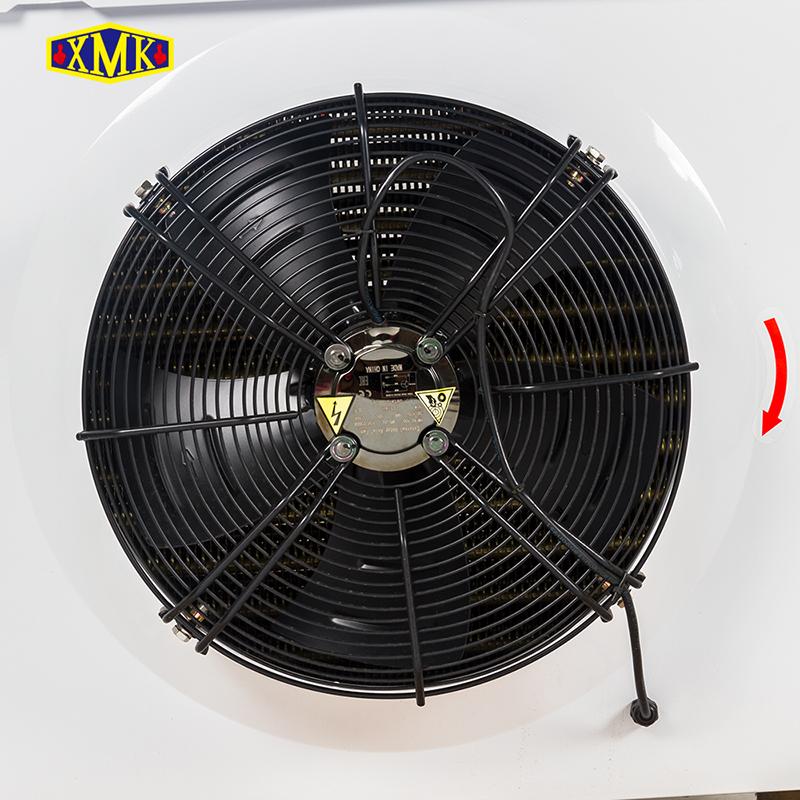

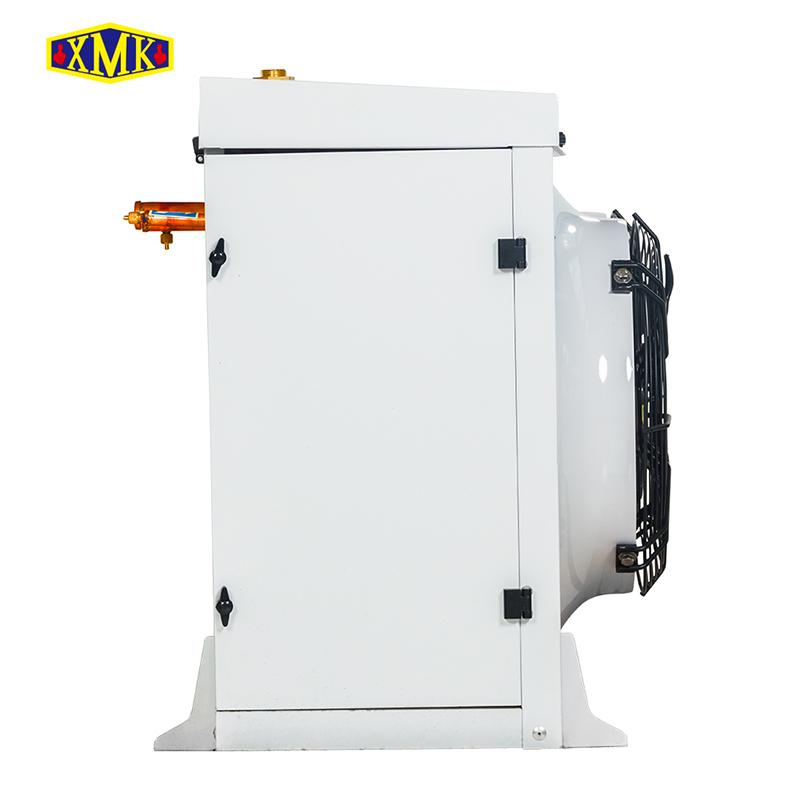

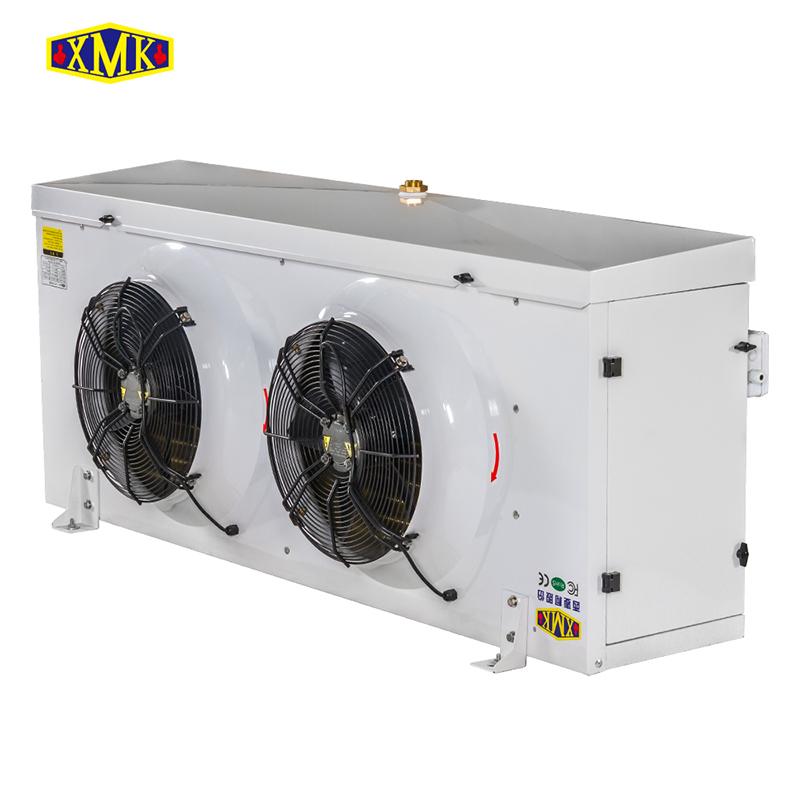

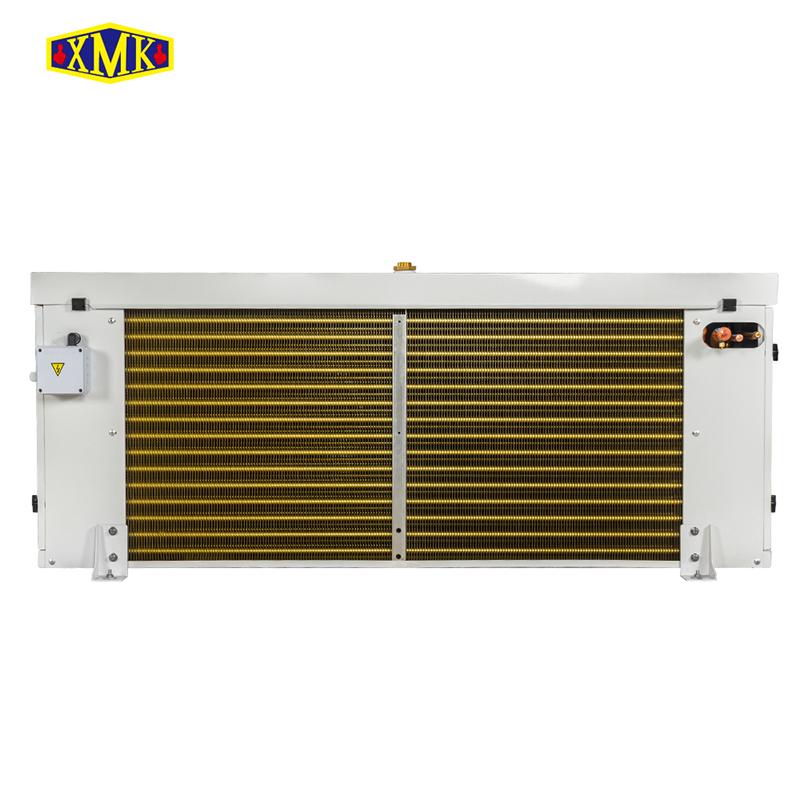

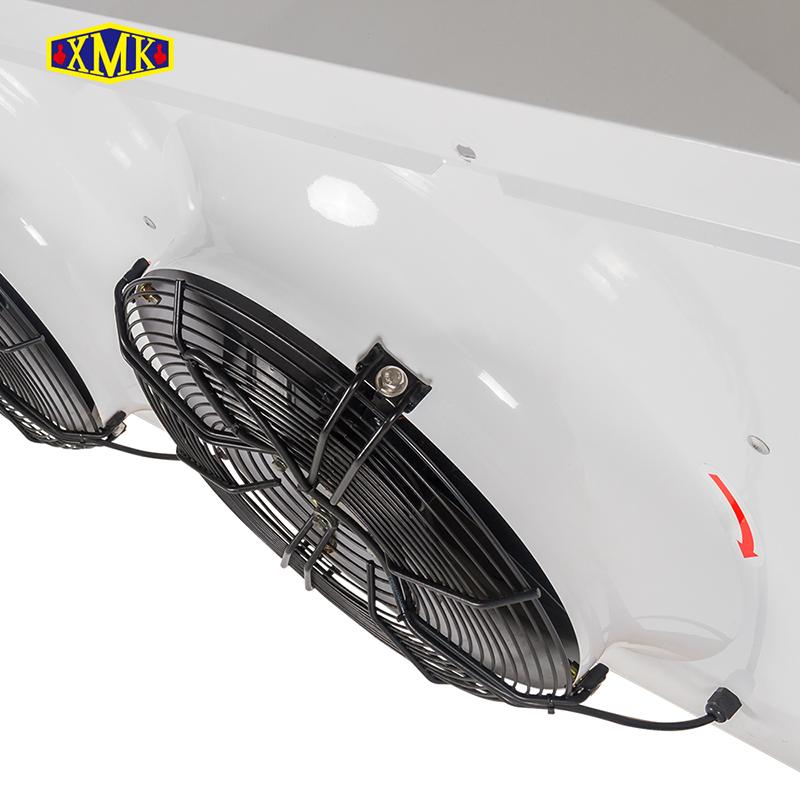

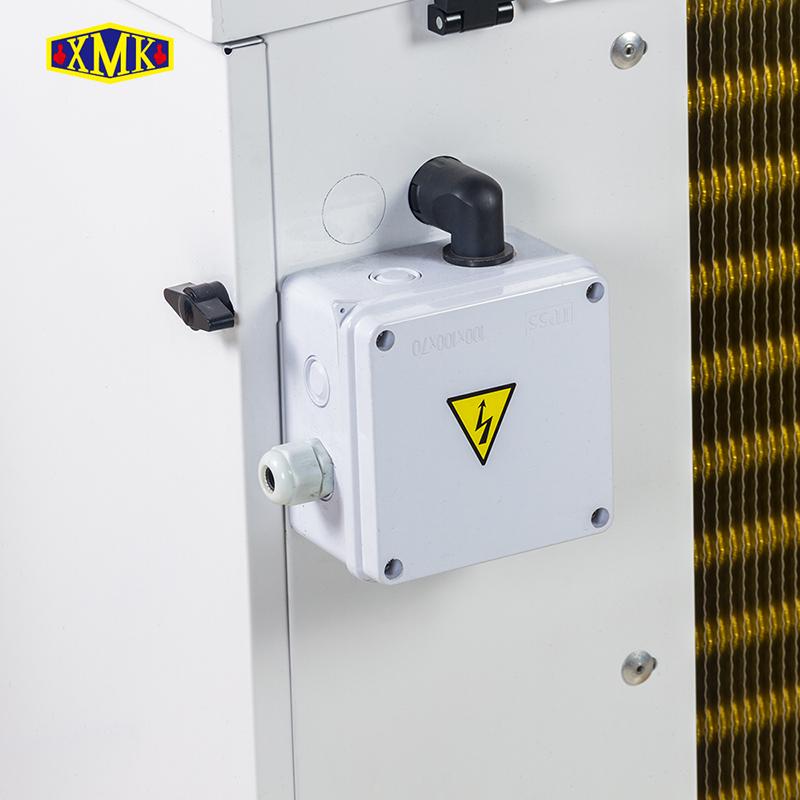

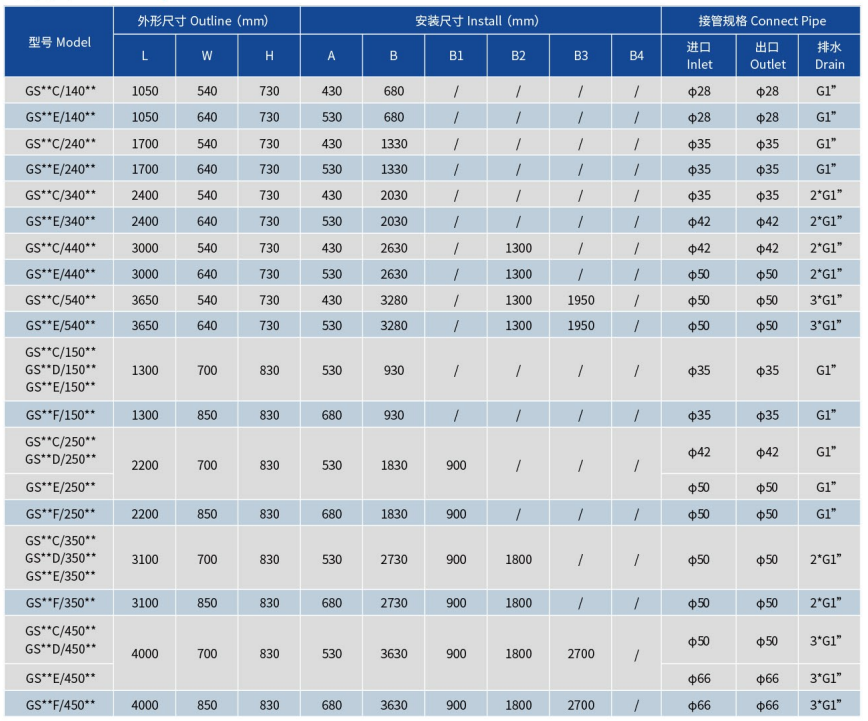

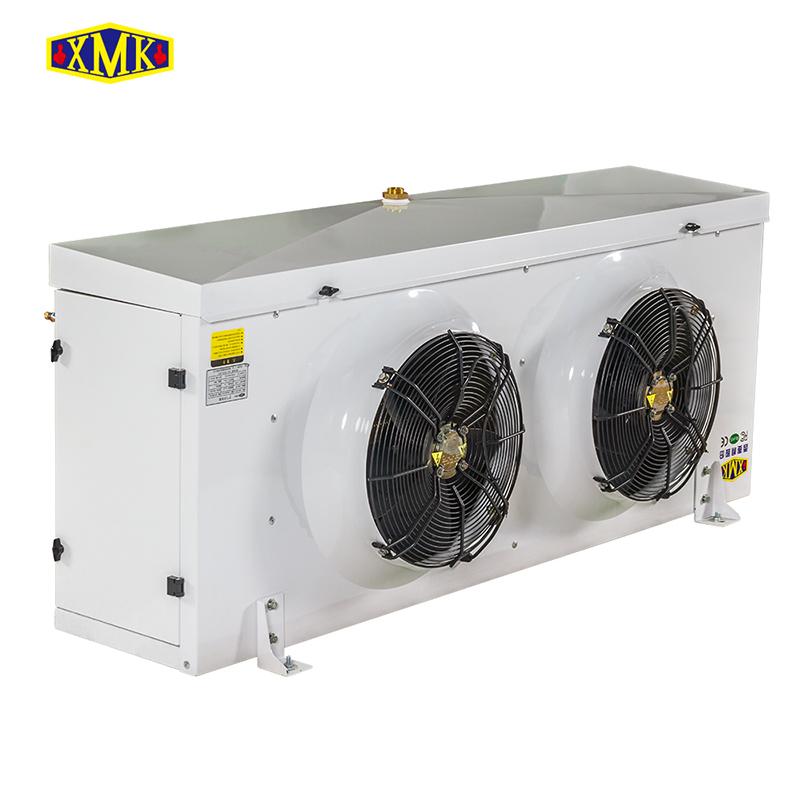

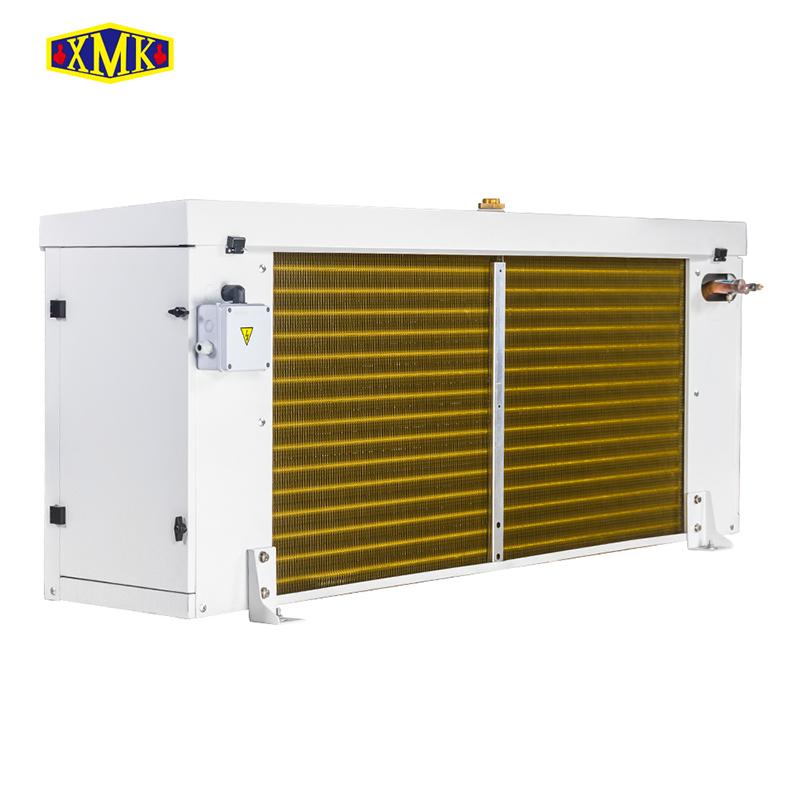

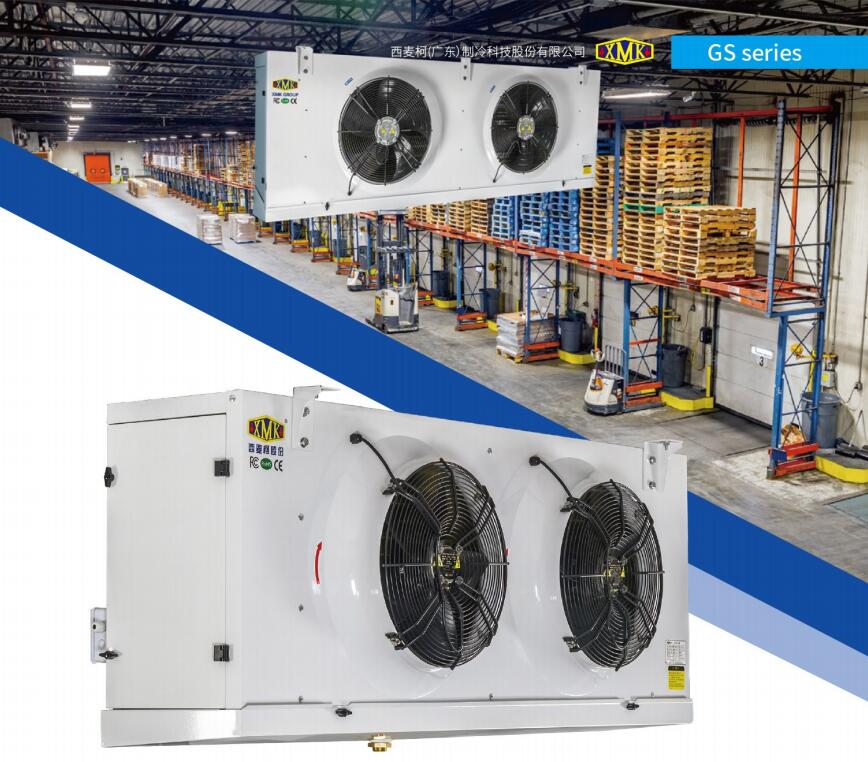

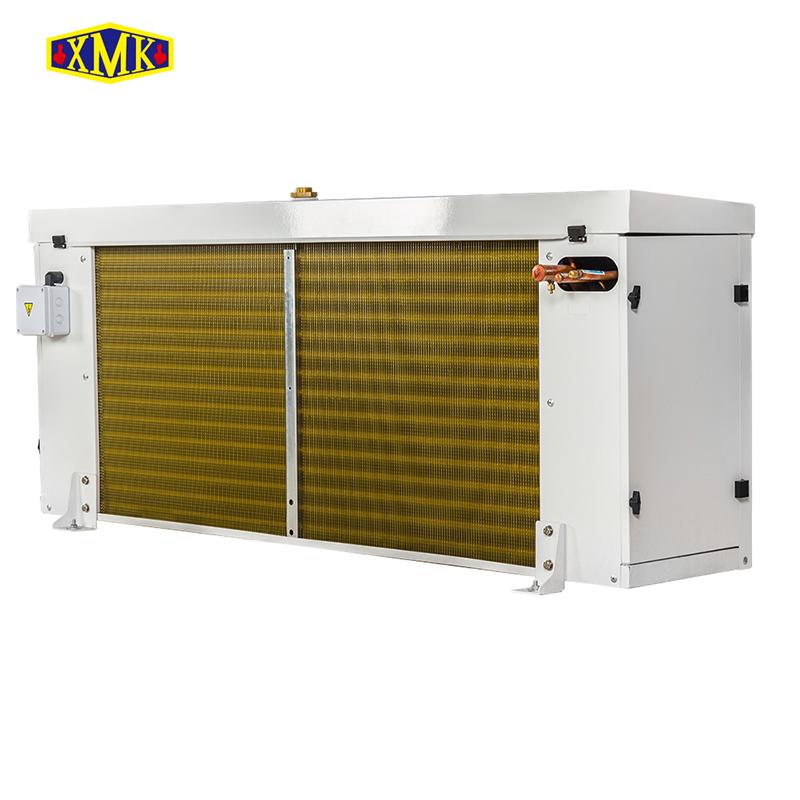

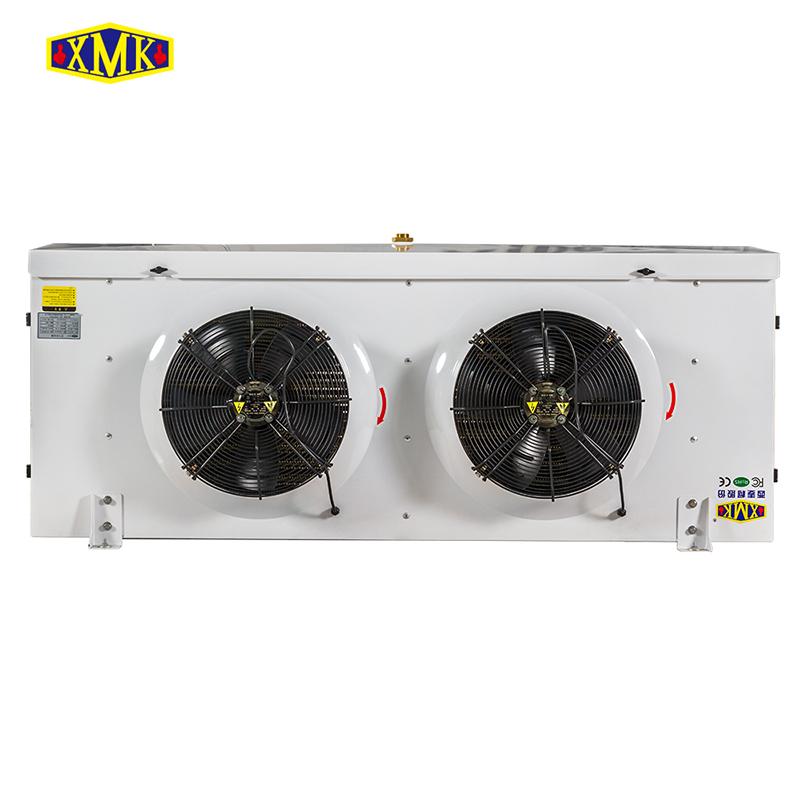

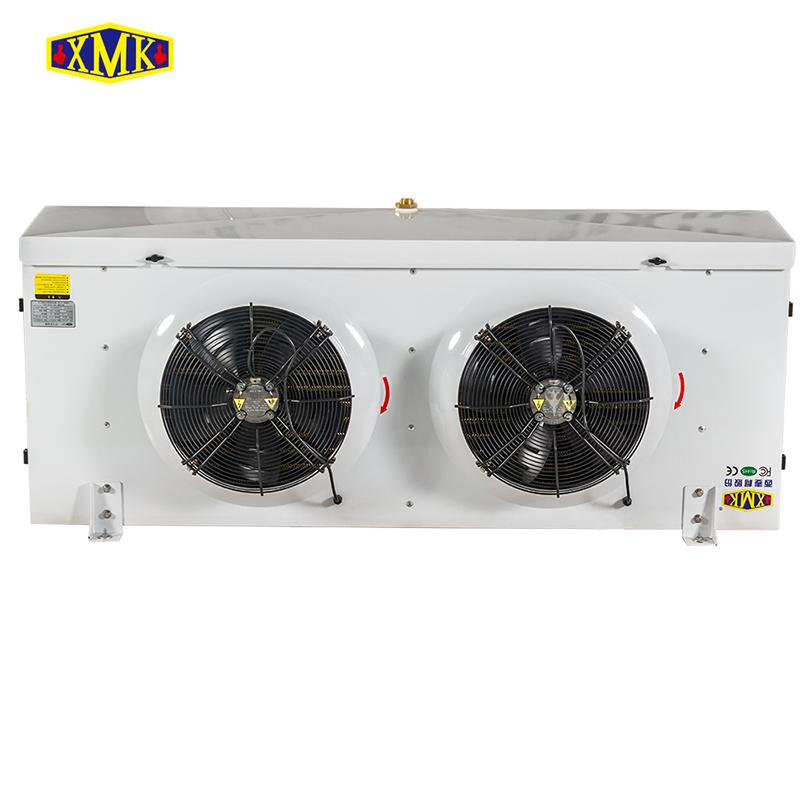

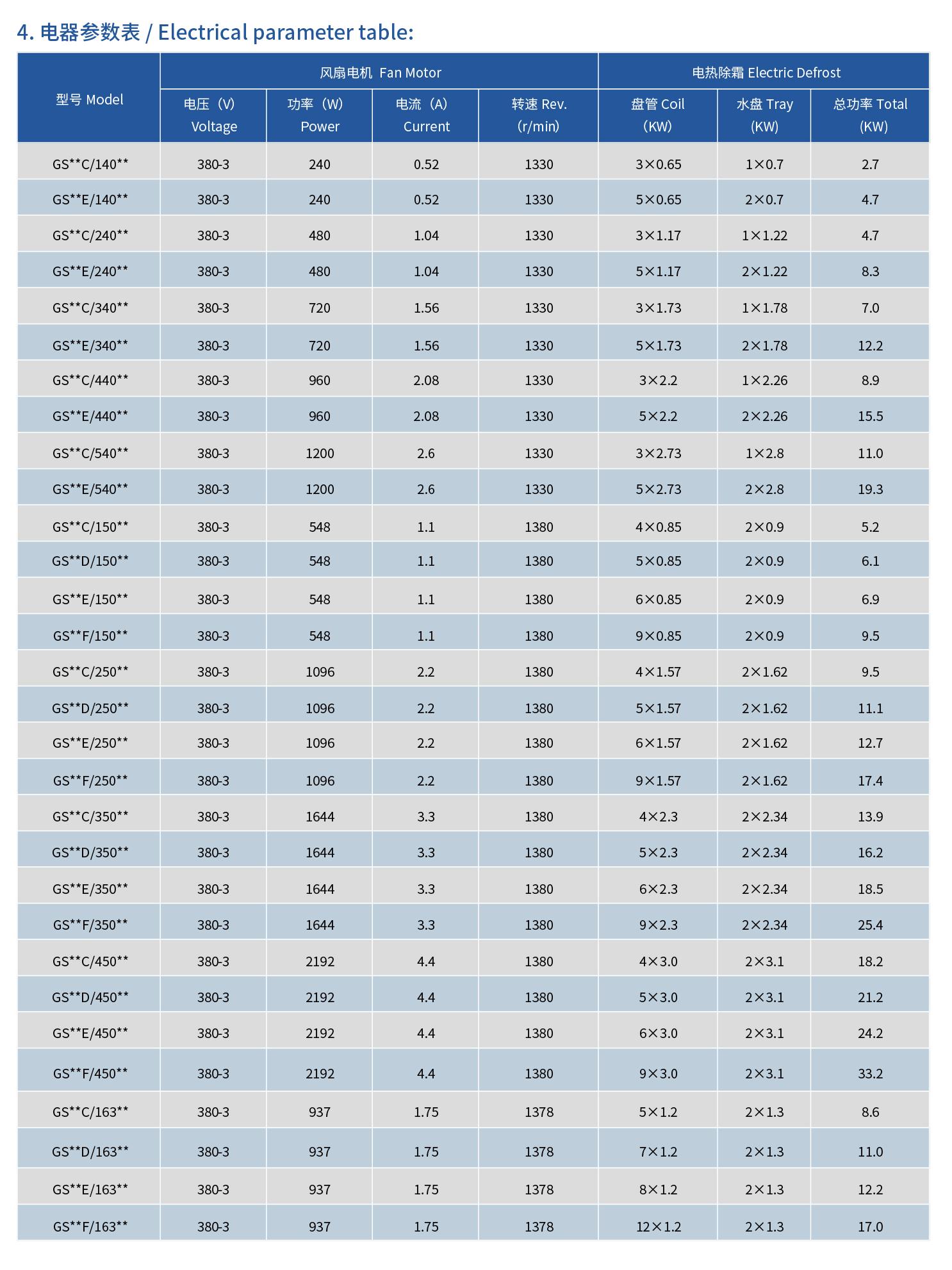

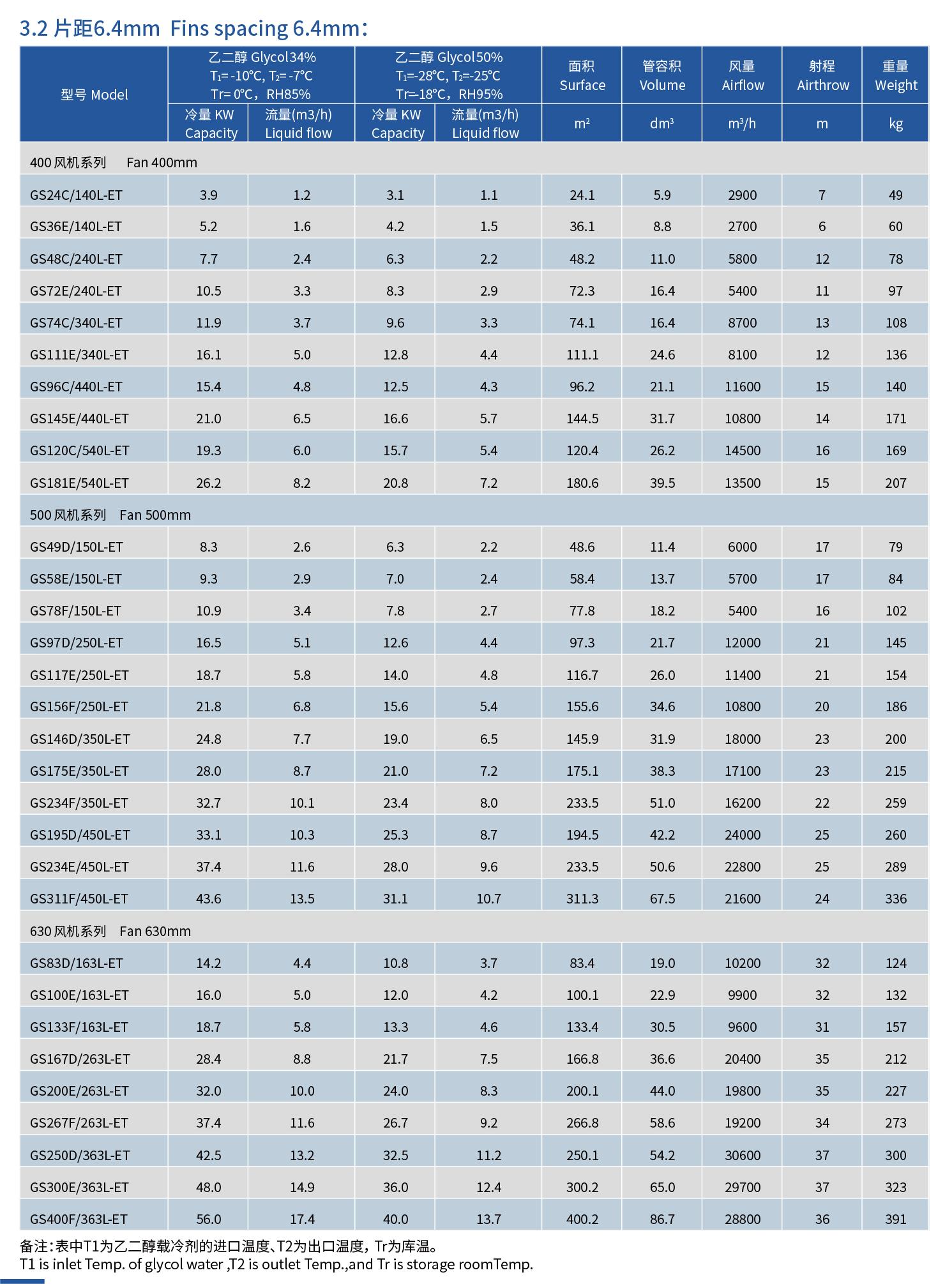

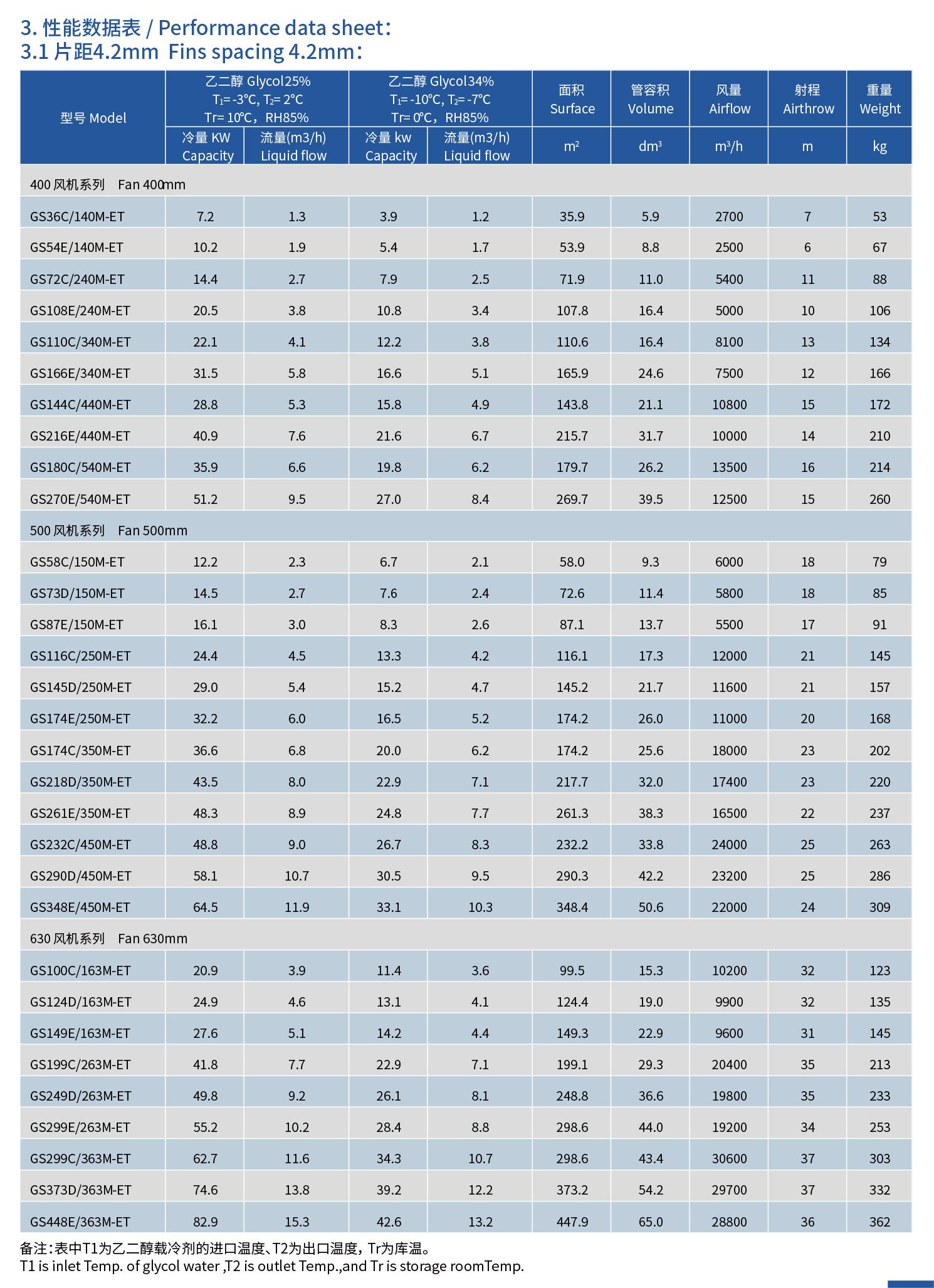

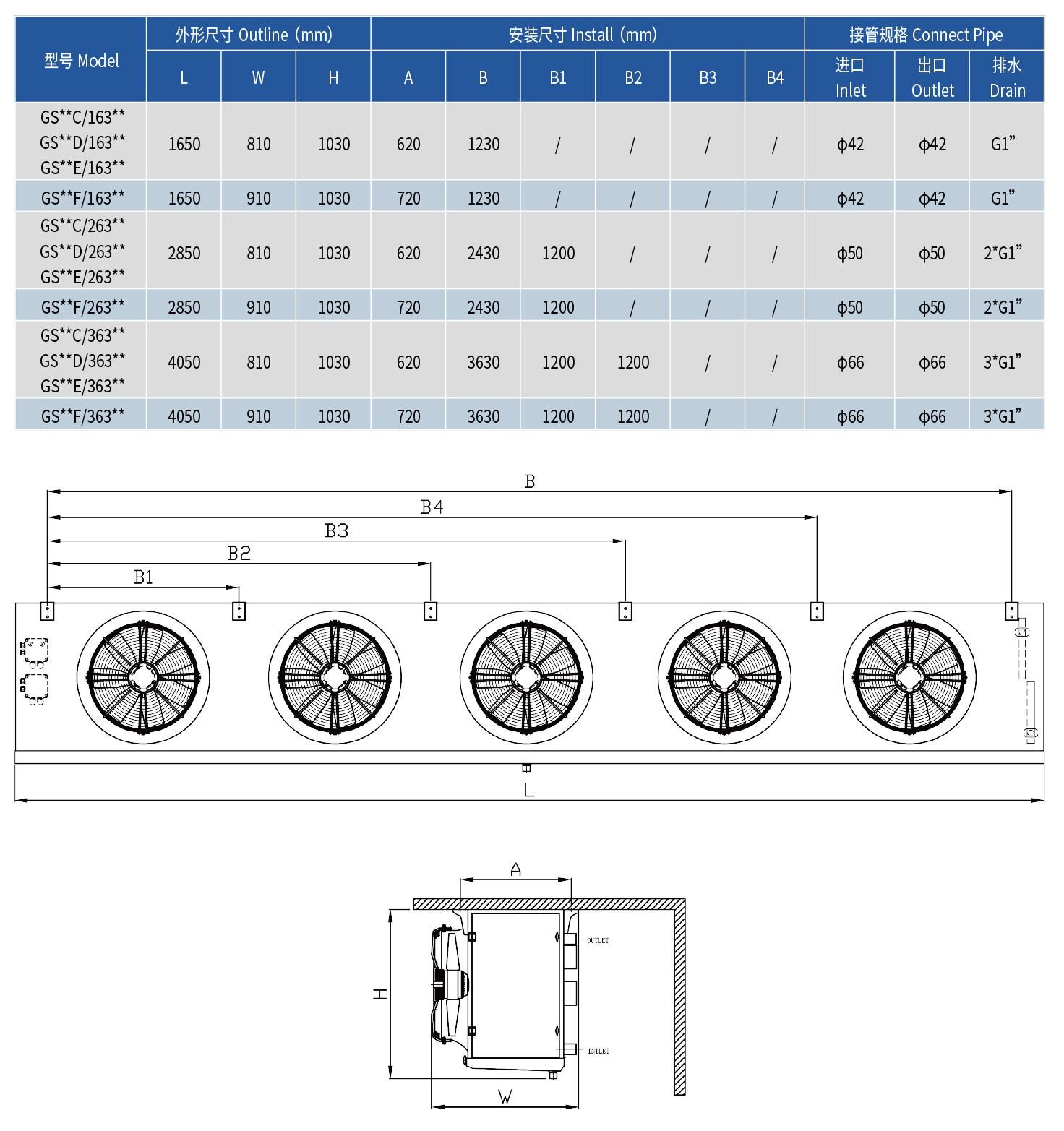

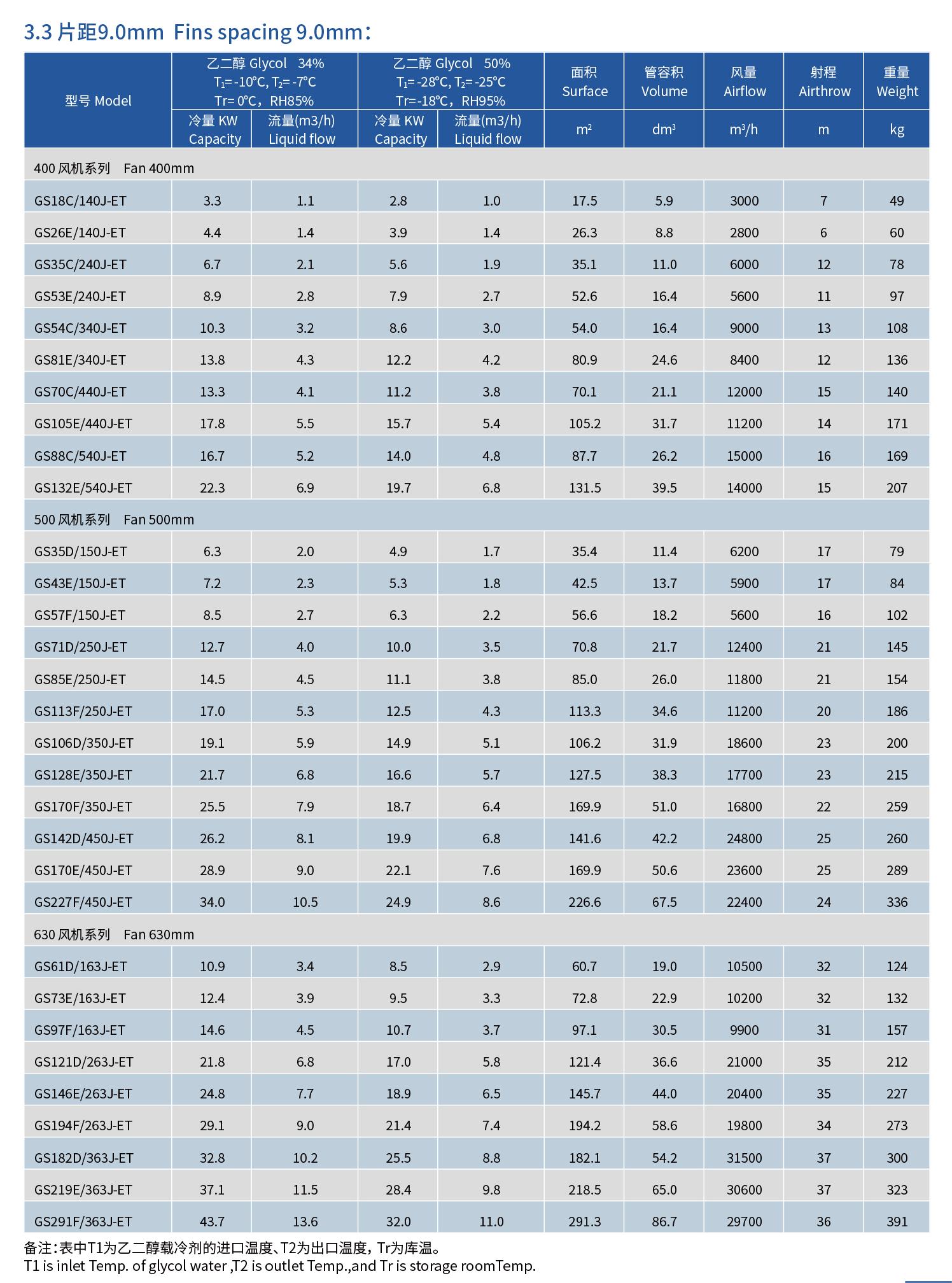

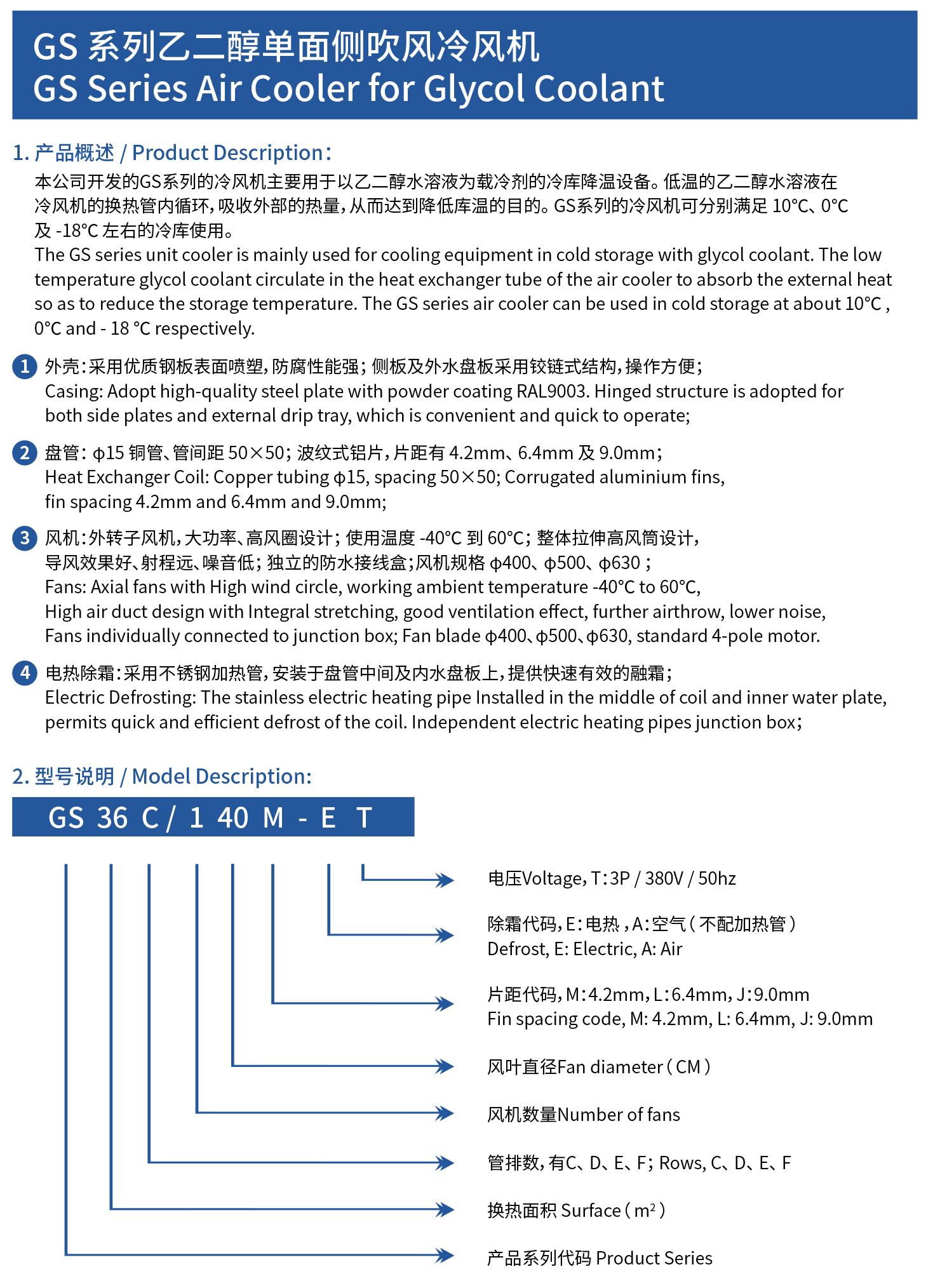

GS Series Air Cooler for Glycol Coolant

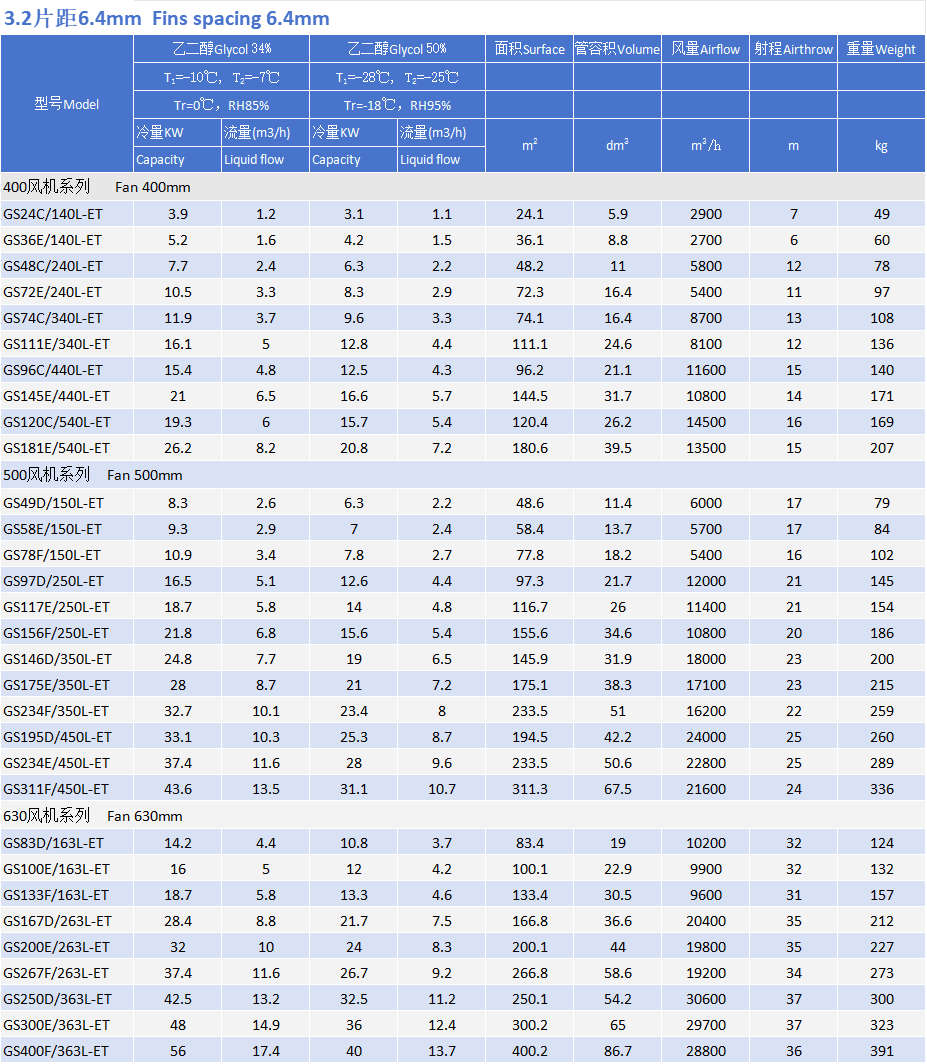

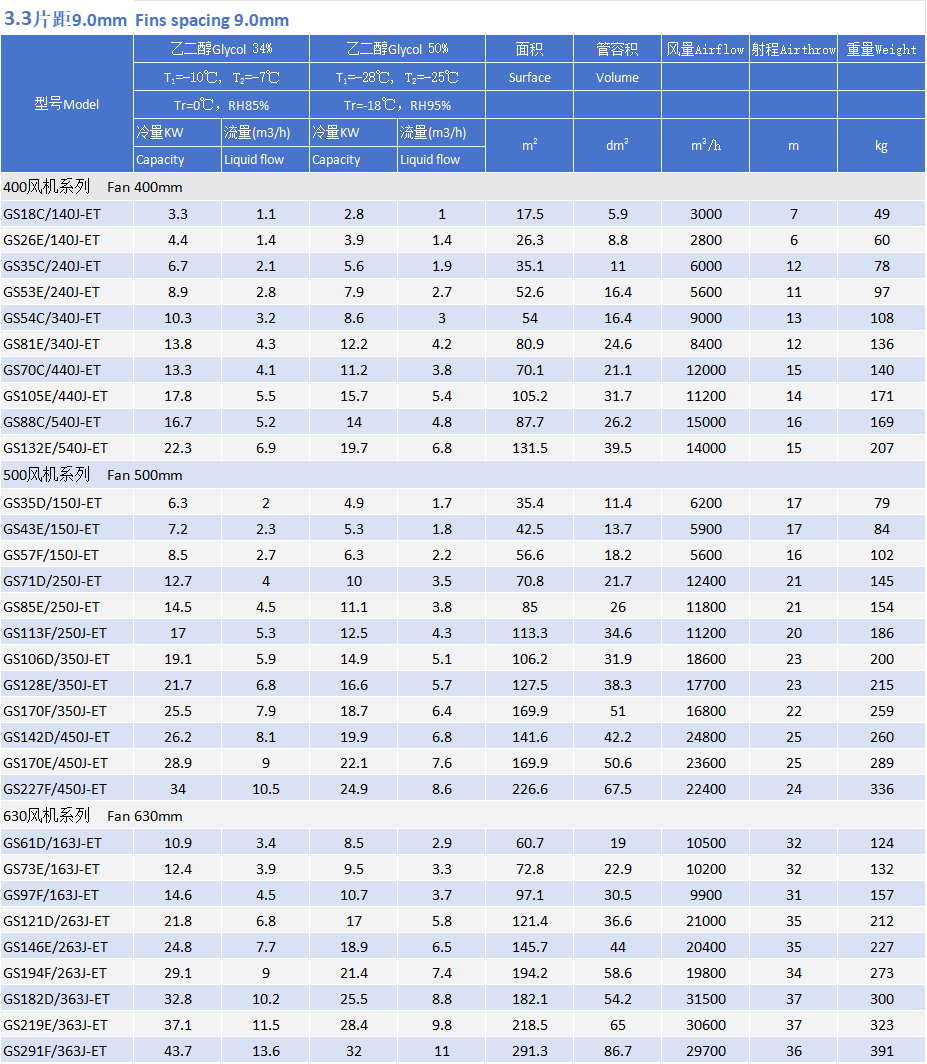

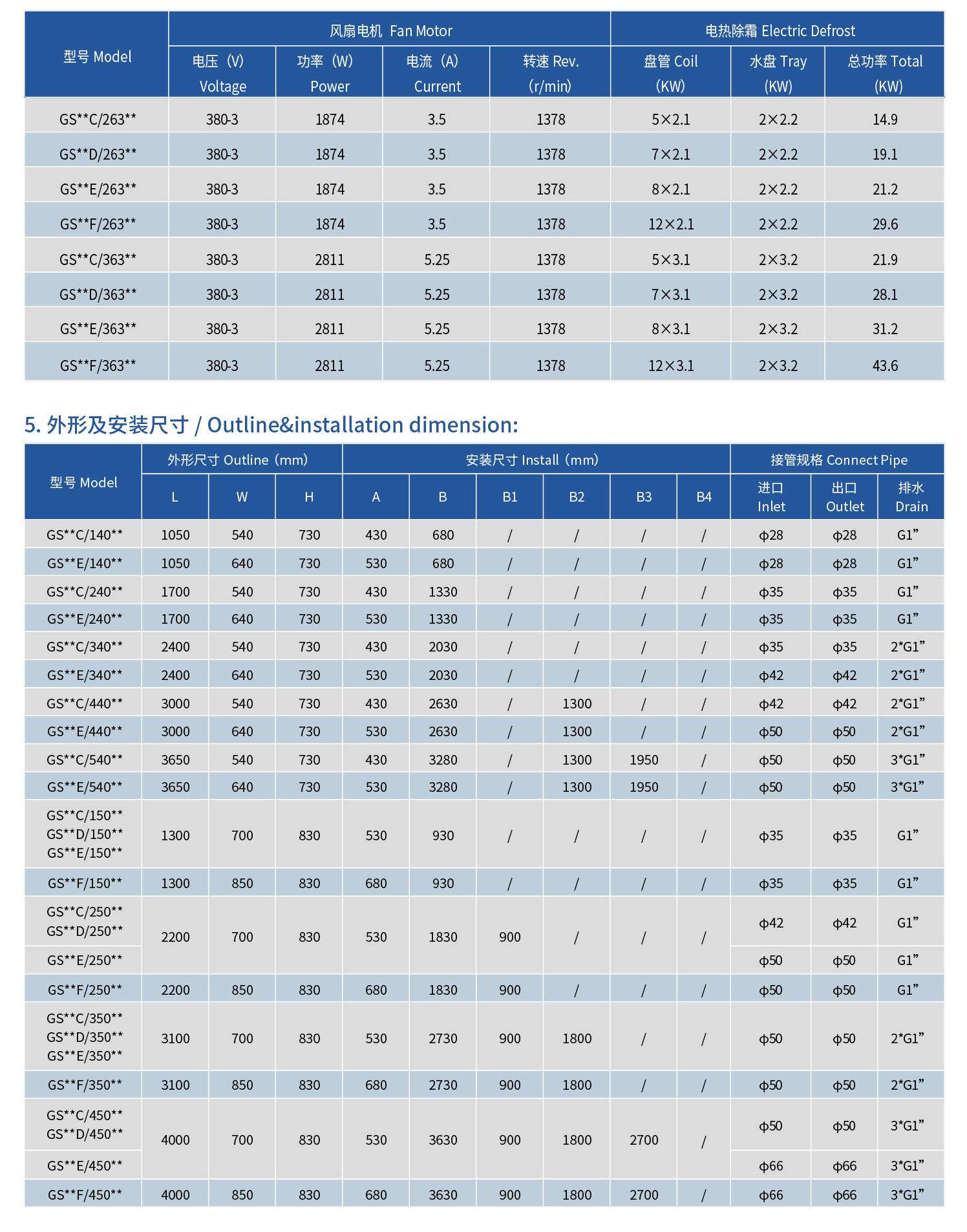

The GS series industrial glycol air coolers is mainly used for cooling equipment in cold storage with glycol coolant. The low temperature glycol aqueous solution in the heat exchanger tube of the air cooler to absorb the external heat so as to reduce the storage temperature. The GS series air cooler can be used in cold storage at about 10°C, 0°C and -18°C respectively

The GS series industrial glycol air coolers is mainly used for cooling equipment in cold storage with glycol coolant. The low temperature glycol aqueous solution in the heat exchanger tube of the air cooler to absorb the external heat so as to reduce the storage temperature. The GS series air cooler can be used in cold storage at about 10°C, 0°C and -18°C respectively.

23.6KW  Cold Storage Condenser Refrigeration  Product description:   HC series air cooled condensers are mainly equipped with open-type condensing units with scrollcompressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors canbe installed together or sepa rately from compressors .Design of High barrel with Side-mounted Structure.   1.Condensers and compressors can be installed together or separately from compressors. Design of Highbarrel with Side-mounted Structure.   2.Copper tube and corrugated aluminium fins with a distance of2.1 mm are used.   3.Fan specifications adopt φ400mm, φ500mm and φ630mm.   4.Testing pressure 32bar.   5.Adopt high-quality steel plate with powder coating RAL9003 or RAL6001.   6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449A and other refrig-erants.   7.Retain 1.5bar pressure before leaving factory. HC Series Air Cooled Condenser Data Sheet:   Model HC53/240NT Capacity (KW) 23.6 Surface (㎡） 52.6 Volume (dm) 6.3 Fan Motor Air Flow 7000 Fan Motor Power 480 Fan Motor Current 1.04 dB (A) 53 Connect Pipe Inlet 22 Connect Pipe Outlet 16 Weight (kg) 53

S15-52Y Refrigeration Unit Frascold Condensing Unit For Cold Room Product description:  OUBS series water-cool condensing units have the following characteristics1.Adopted semi-hermetic piston compressorswith BITZER or FRASCOLD ,It has good qualityand high reliability.2.Adopted high efficiency shell-tube type watercondenser with good cooling effect and lowcondensation temperature.3.The condenser, compressor and various accessories are installed on an integral frame,which is compact in structure and convenientin operation and maintenance.4.The product series is complete, suitable for awide range of temperatures. It has medium，low temperature and quick frozen workingconditions design. It can meet the needs ofrefrigeration equipment at various tempera-tures;temperatures.5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.Cooling Water Condensing Unit data: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model S15-52Y Compressor Max.I(A) 32.4Capacity(KW) -5℃ 33.7Capacity(KW) -10℃27.9Capacity(KW) -15℃ 22.9 Suction Line (mm) 42 Liquid Line （mm） 22 Size length (mm) 1397 Size Width (mm) 590 Size Height (mm) 807

Air cooled condenser is specially designed for Freon refrigeration equipment and cooled by air. XMK FNF series is suitable for R134a, R22, R404a, R407 and other refrigerants, widely used in freezing, refrigeration, air conditioning, heat pumps and industrial refrigeration. Fan blower support 350mm to 500mm.

LQF series quick-frozen cold storage air cooler apply for meat ,seafood or others cold storage freezer room. Total 3 type of fin spacing in 6.4mm,10mm and 12mm to meet different cold room temperature requirement. Especially to -20°C to -35°C.

4GE-30Y 30HP Bitzer Cold Room Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4GE-30Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4GE-30Y Compressor Max.I(A) 44 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 4.4 Fan Power (W) 548x4 Suction Line (mm) 54 Liquid Line （mm） 22 Size length (mm) 1550 Size Width (mm) 1150 Size Height (mm) 1630

ZSI15KQE Blast Freezer Compressor Refrigeration Condensing Unit   Product description:   BUW-B series box-type condensing units have the following characteristics   1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.   2.The cover of the case adopts hinge structure,which is easy to maintain and operate.   3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.   4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.   5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect.    Copeland ZSI15KQE Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -15 to -23 degree Compressor Model ZSI15KQE Compressor Max.I(A) 11.9 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min) 1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815

Air cooled condenser is specially designed for Freon refrigeration equipment and cooled by air. XMK FNF series is suitable for R134a, R22, R404a, R407 and other refrigerants, widely used in freezing, refrigeration, air conditioning, heat pumps and industrial refrigeration.
