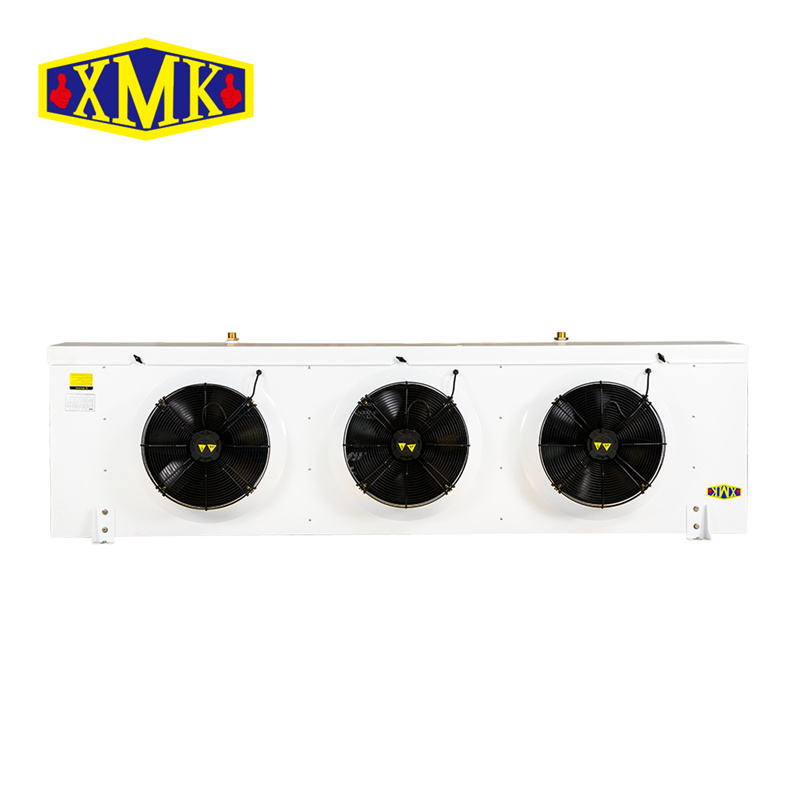

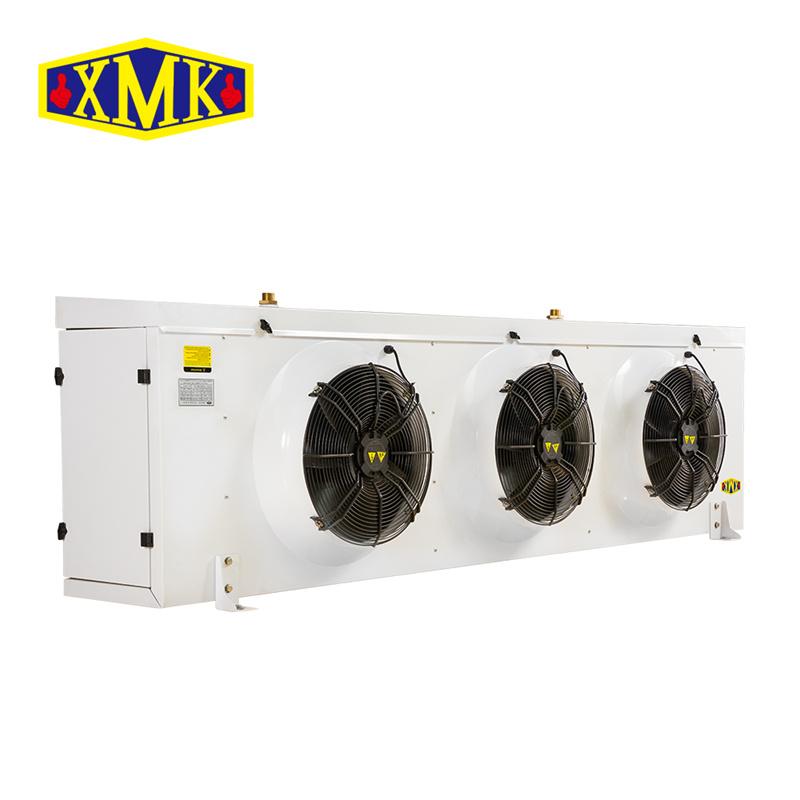

Industrial glycol air cooler for chiller room 10°C

The GS series industrial glycol air coolers is mainly used for cooling equipment in cold storage with glycol coolant. The low temperature glycol aqueous solution in the heat exchanger tube of the air cooler to absorb the external heat so as to reduce the storage temperature. The GS series air cooler can be used in cold storage at about 10°C, 0°C and -18°C respectively


  • Item NO.:

    GS166E/340M
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    white
  • Shipping Port:

    Guangzhou

Product Description

  • Casing

    Adopt high-quality steel plate with powder coating RAL9003, hinged structure is adopted for both side plateds and external drip tray, which is convenient and quick to operate.

  • Fans

    External rotor motor with high wind pressure, working ambient temperature -40~60°C.

    High air duct design with Integral stretching , good ventilation effect, further airthrow , lower noise, Fans individually connected to junction box ; Fan blade Φ400,Φ500,Φ630, standard 4-pole motor.

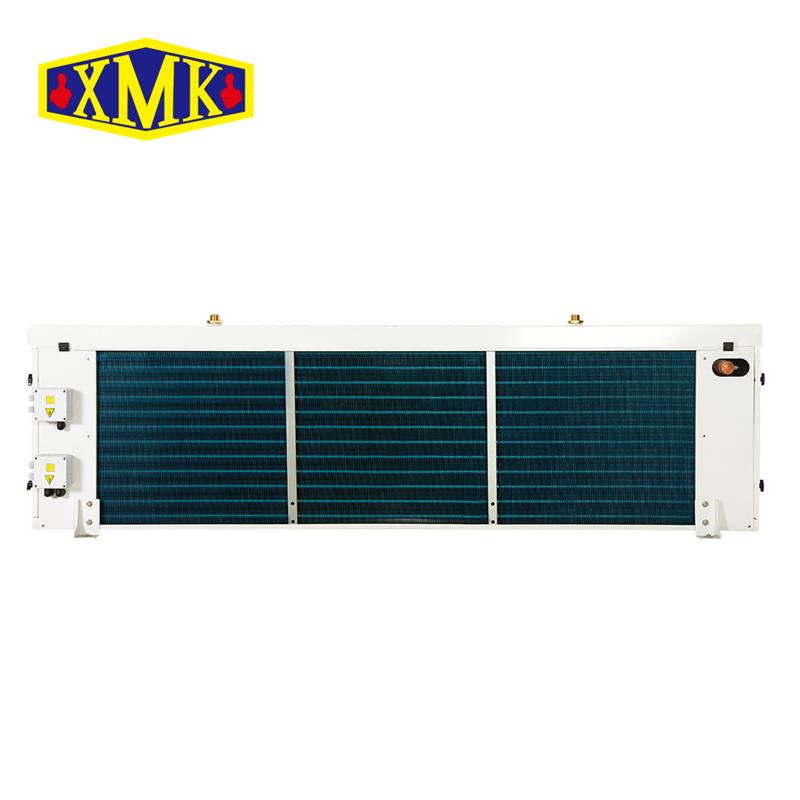

  • Heat Exchanger Coil

    Copper tubing Φ15, spacing 50X50

    Corrugated aluminium fins, fin spacing 4.2mm and 6.4mm and 9.0mm

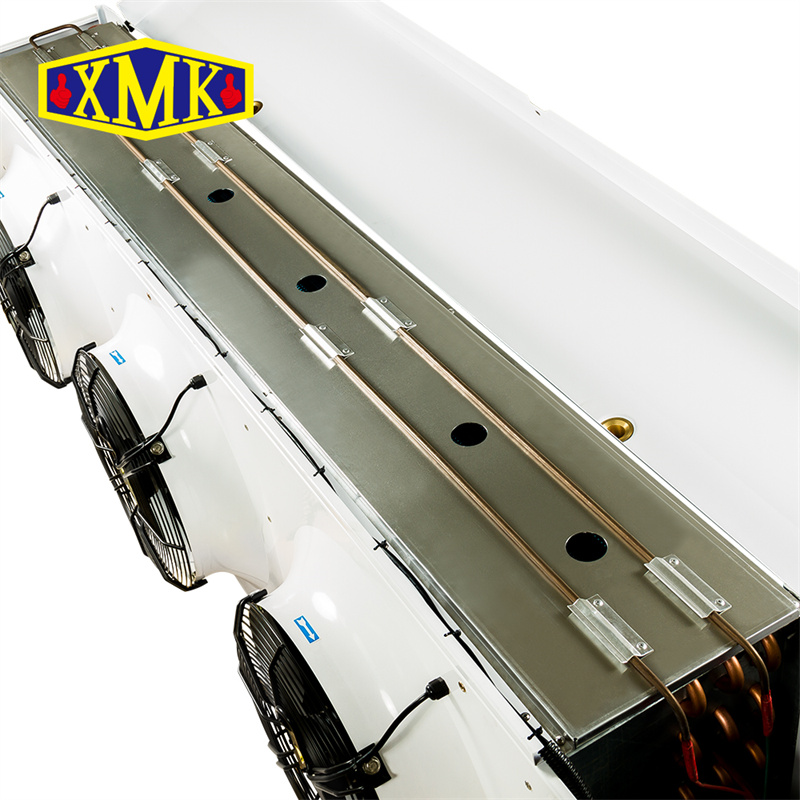

  • Electric Defrosting

    The stainless electirc heating pipe installed in the middle of coil and inner water plated , permits quick and efficient defrost of the coil. Independent electric heating pipes junction box.

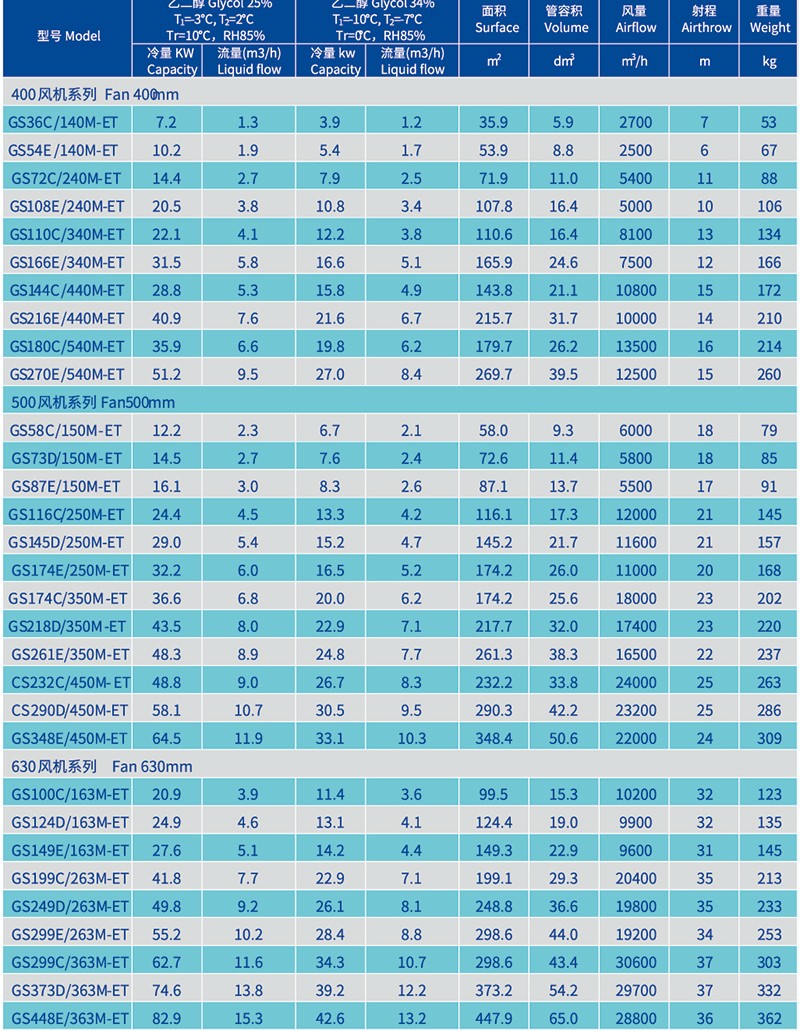

Specification

Model fin spacing 4.2mm for 10°C, Fan 400mm, 500mm, 630mm

Industrial glycol air cooler for 10°C.jpg

Industrial glycol air cooler .jpg
