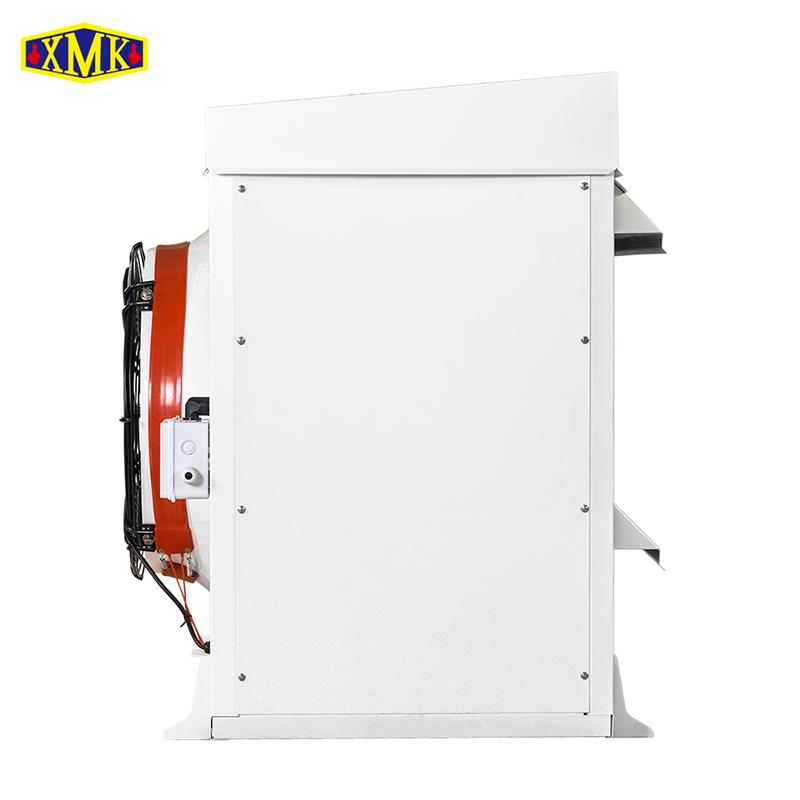

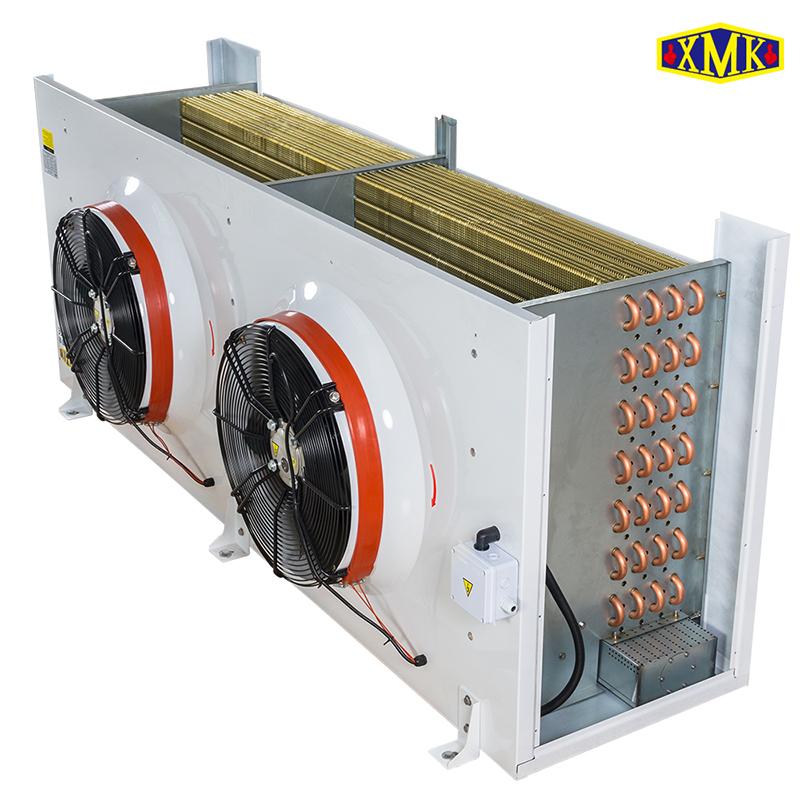

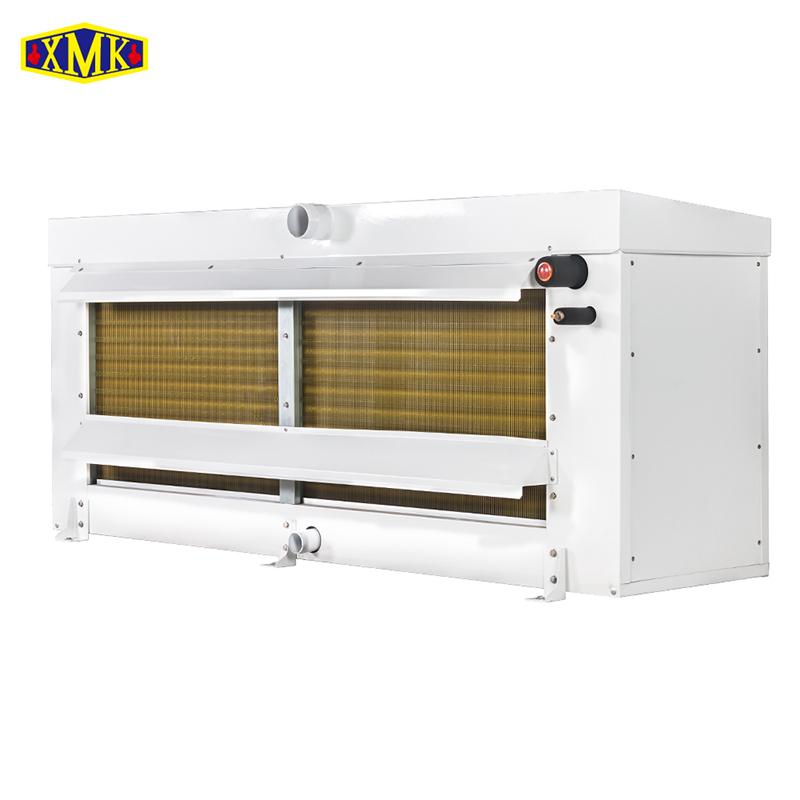

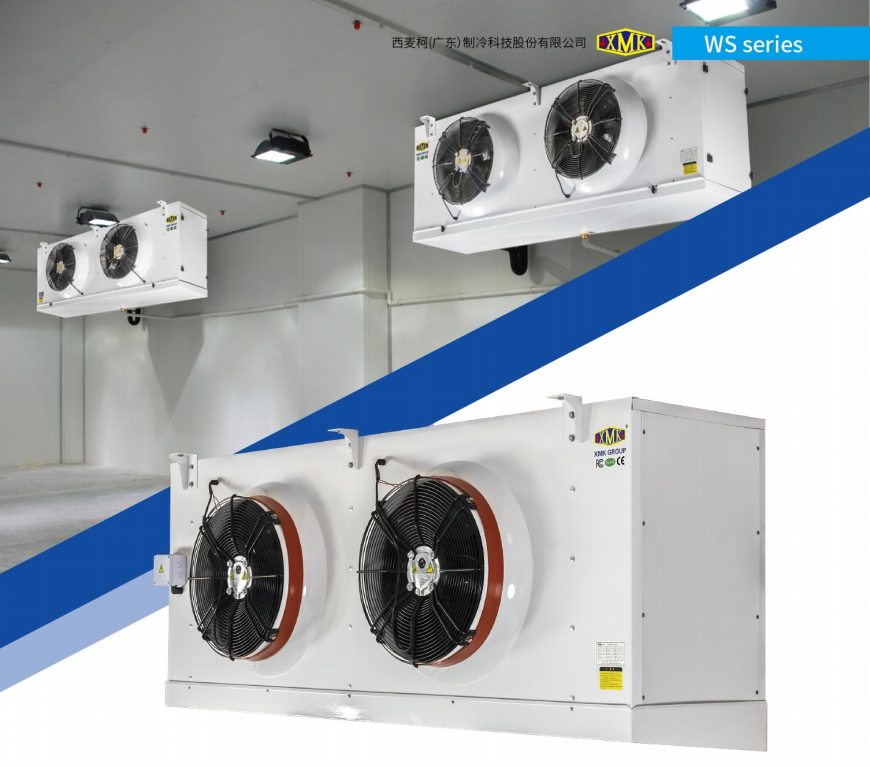

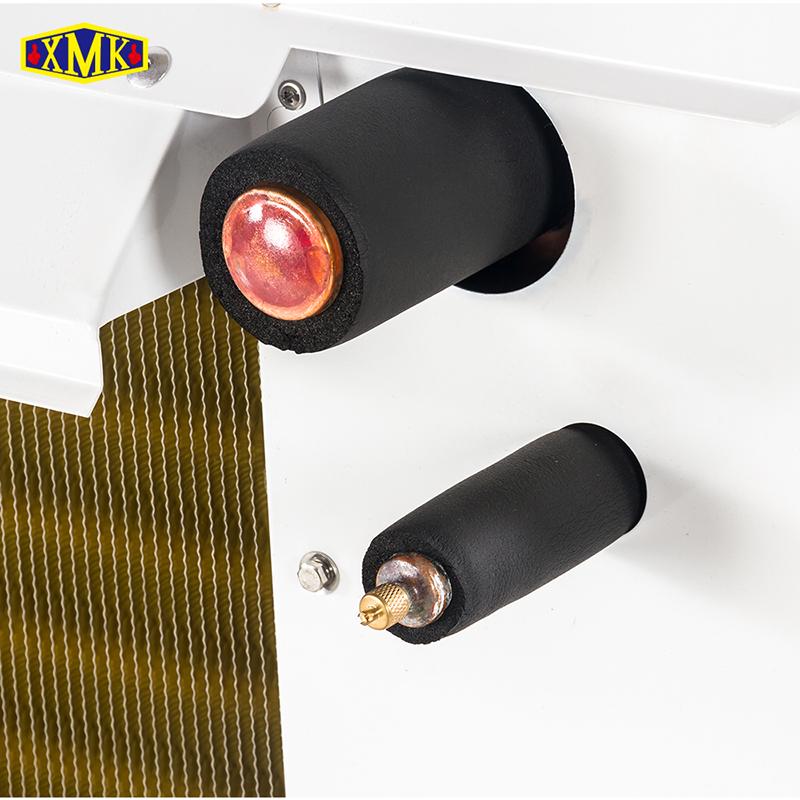

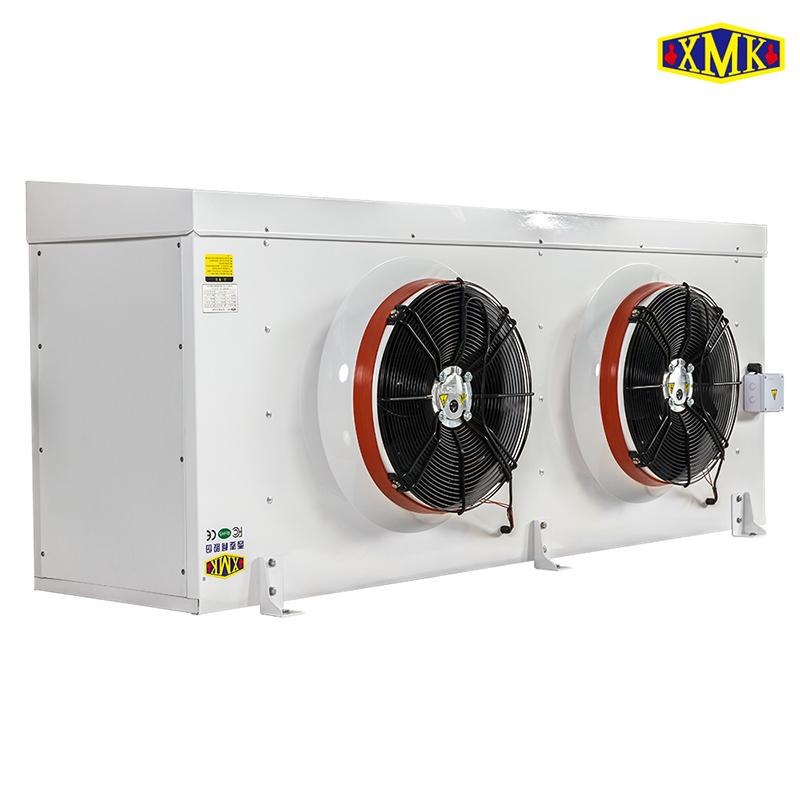

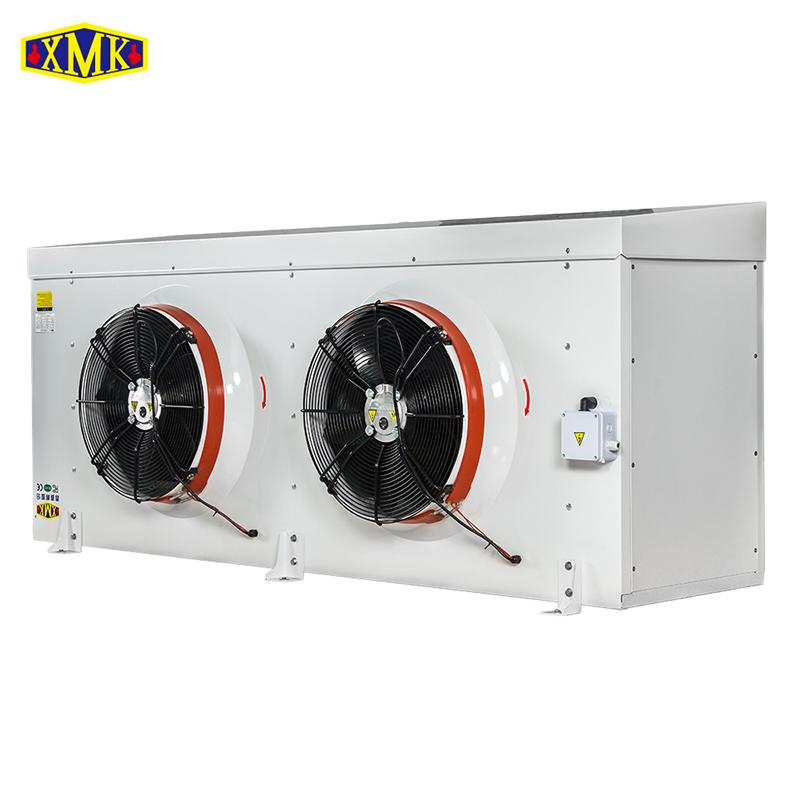

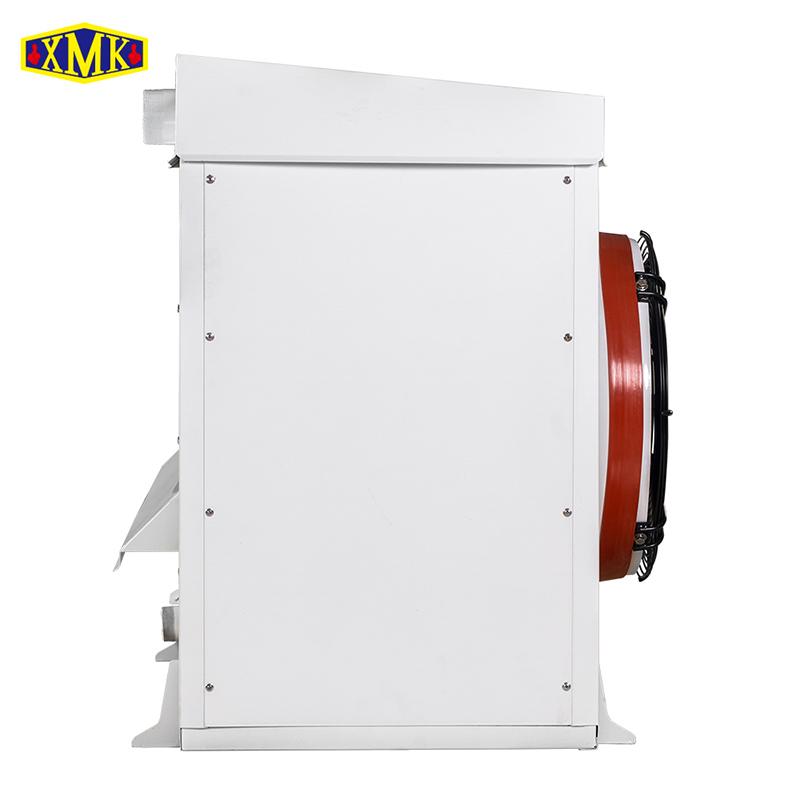

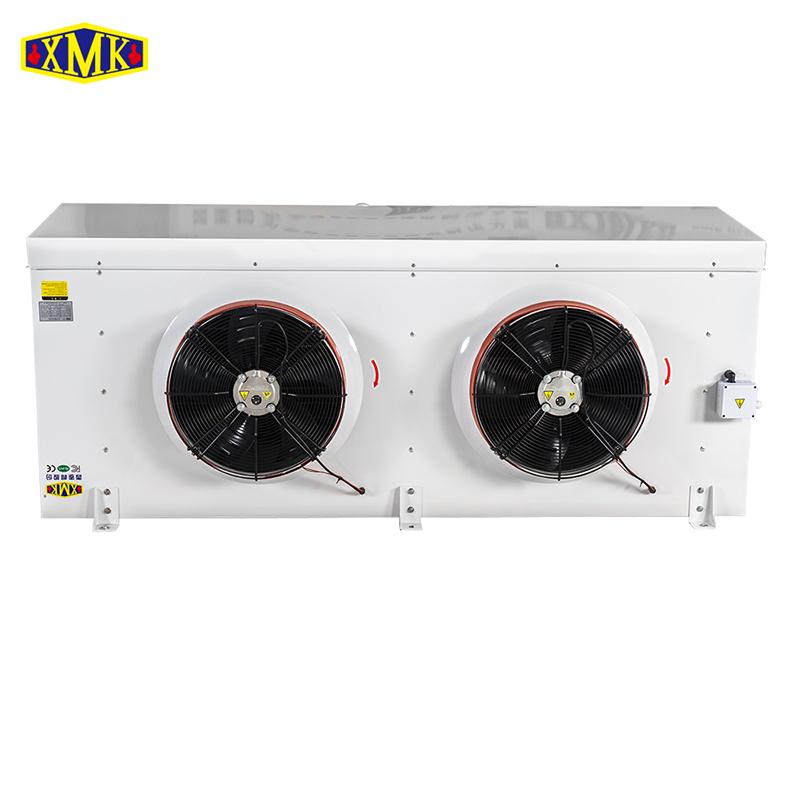

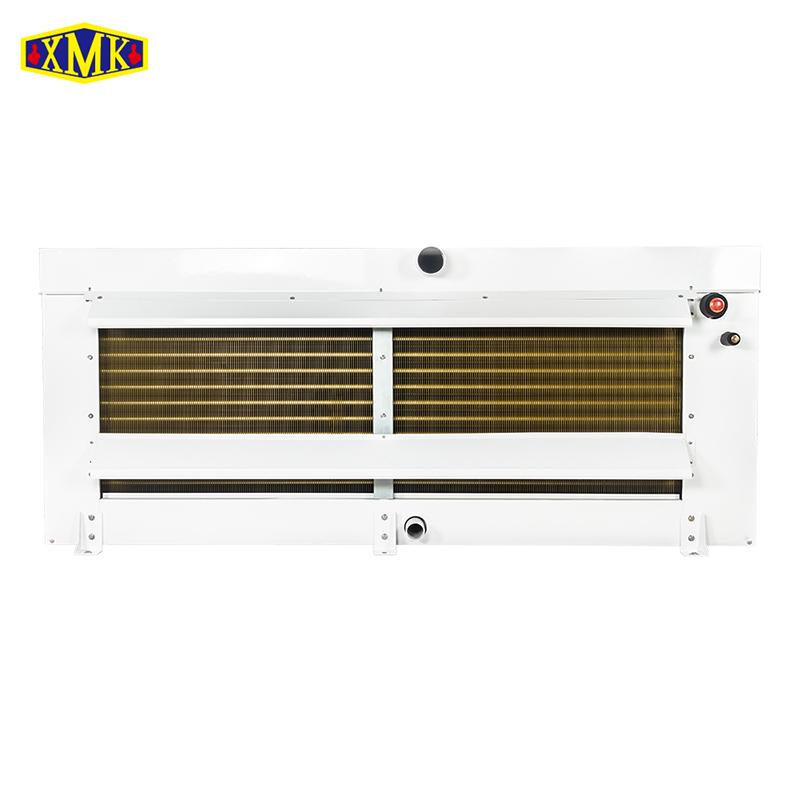

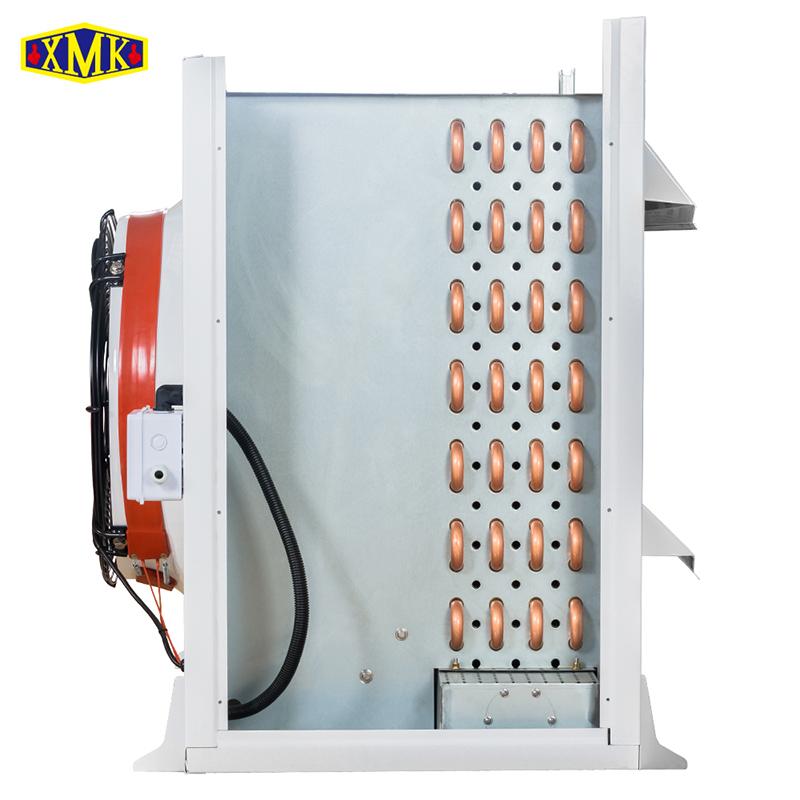

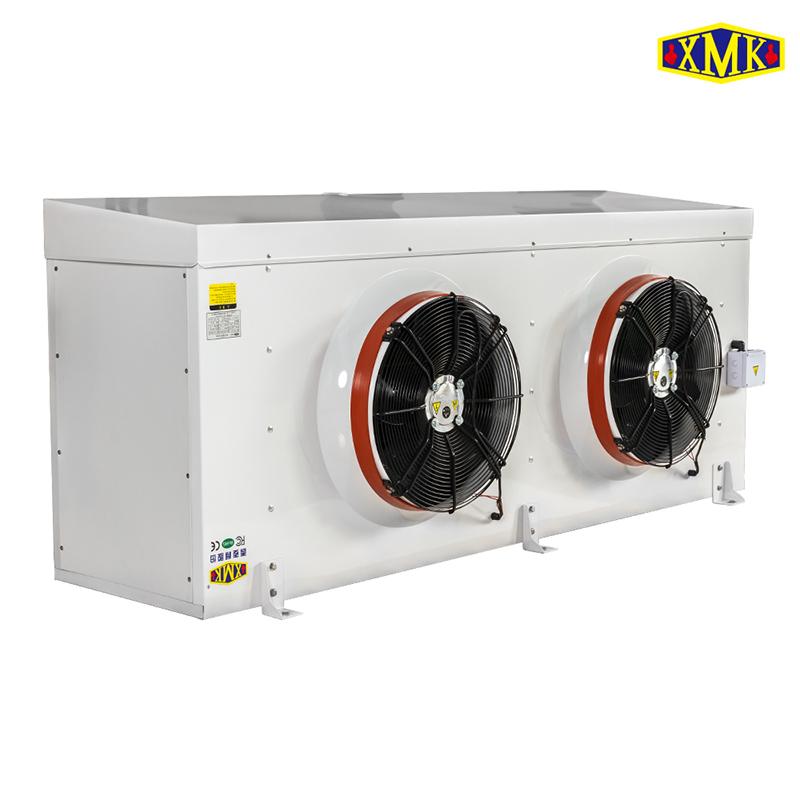

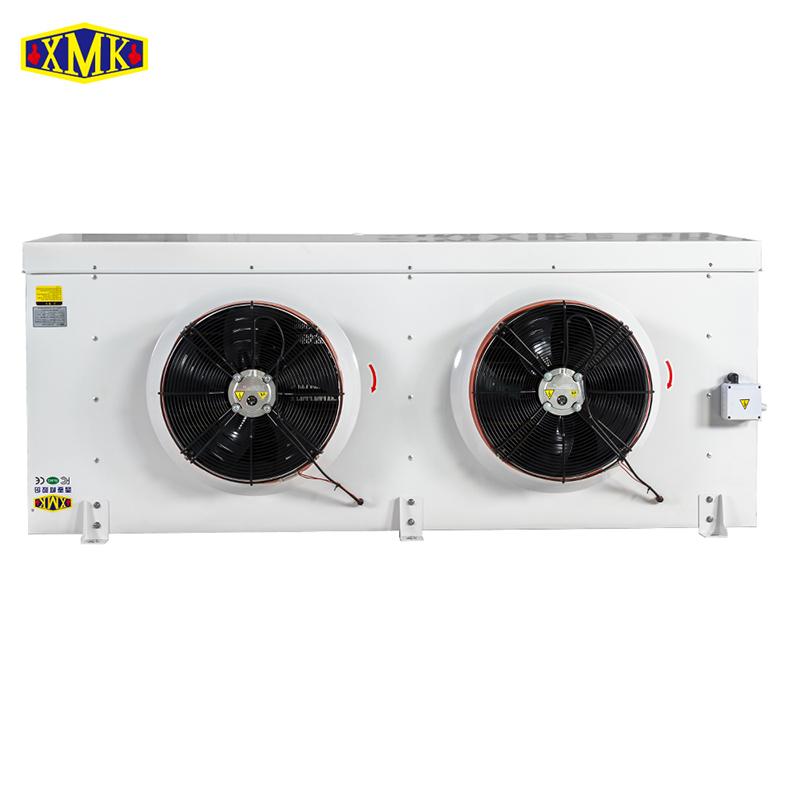

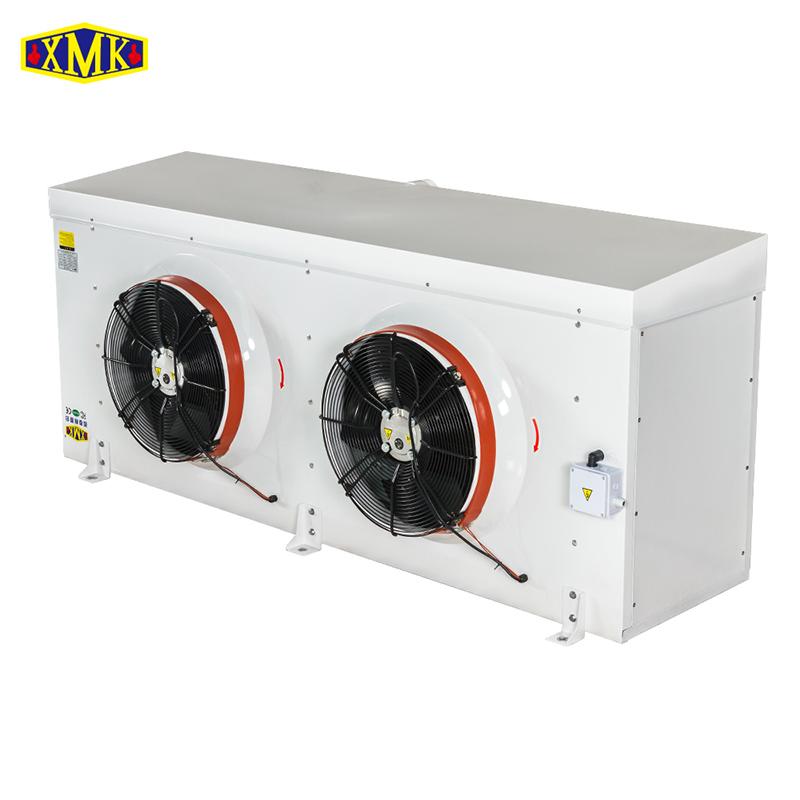

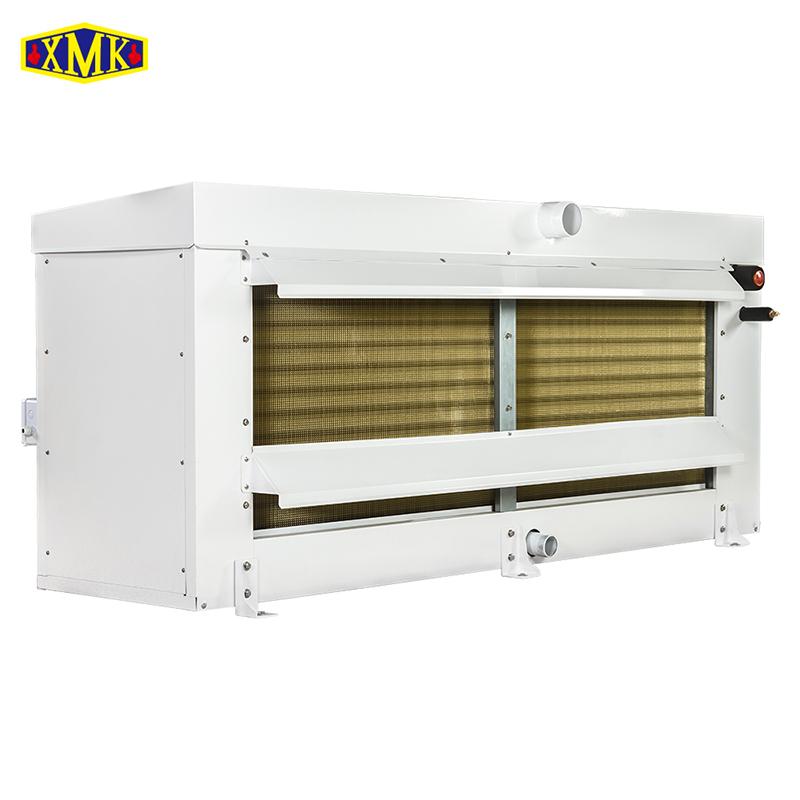

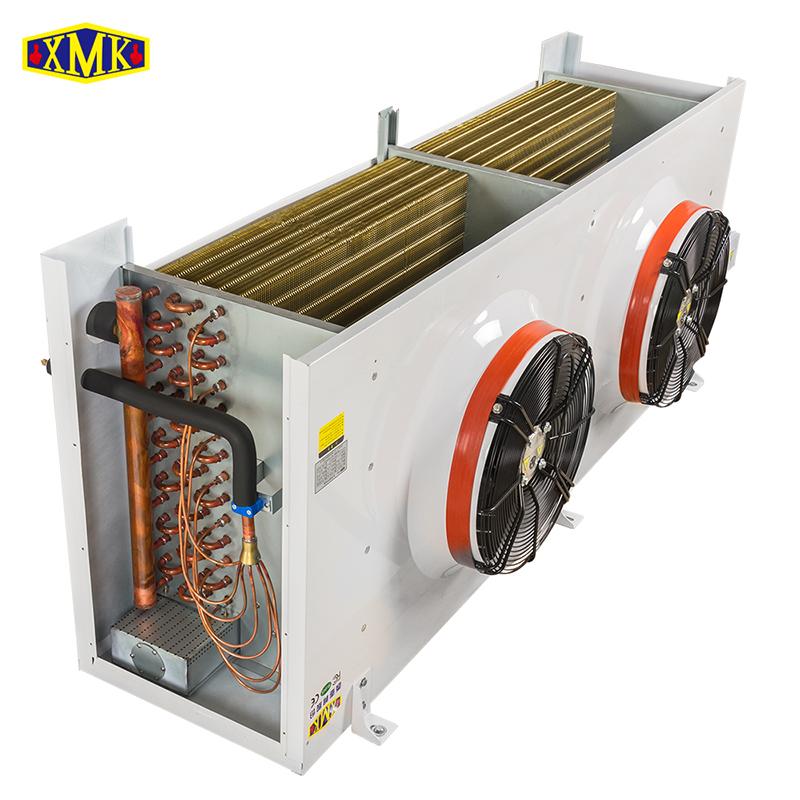

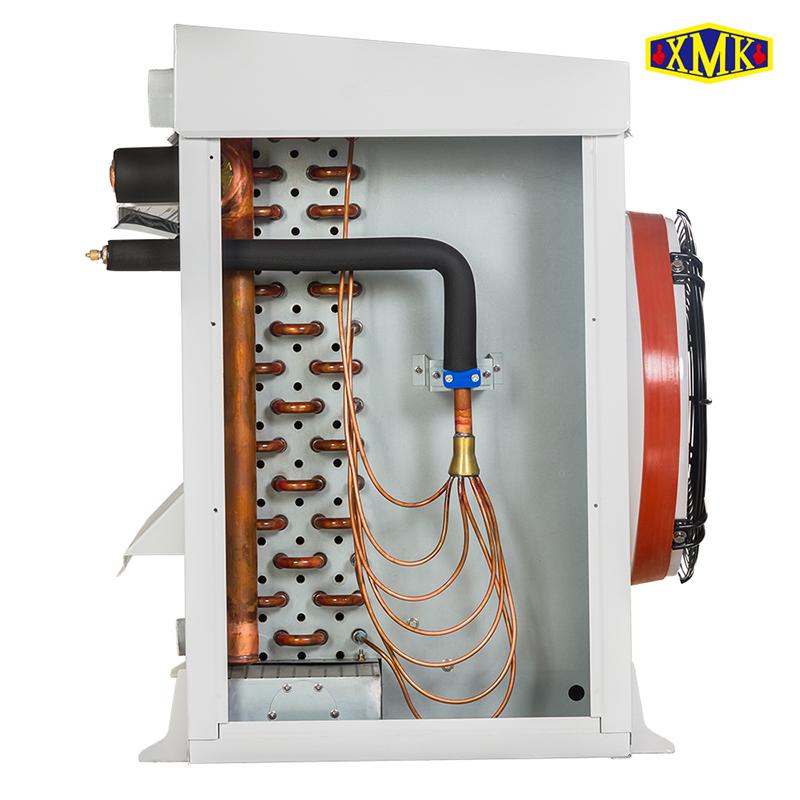

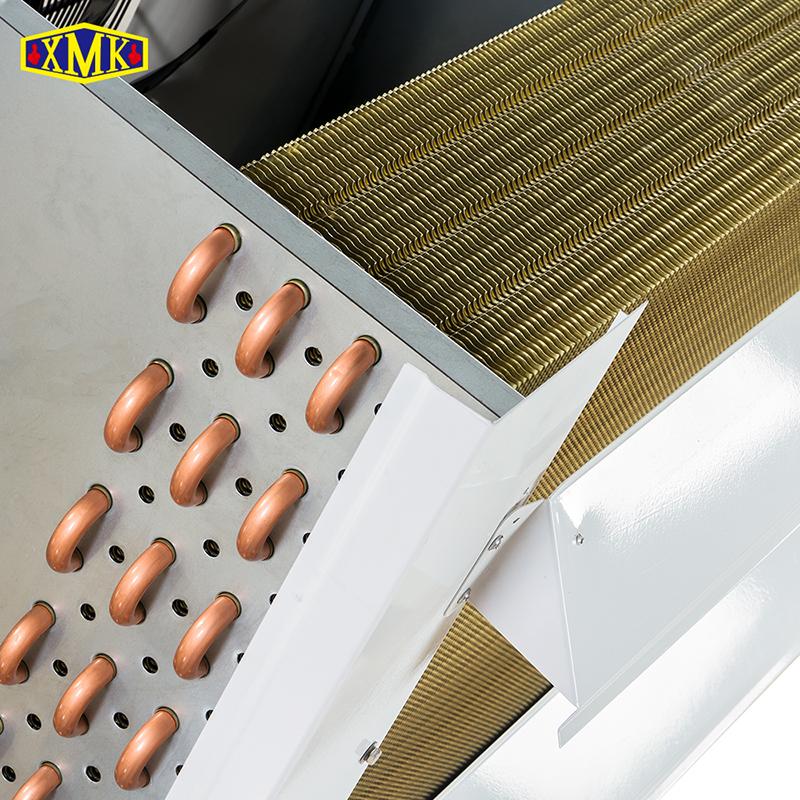

WS Series Air Cooler with Water Defrosting

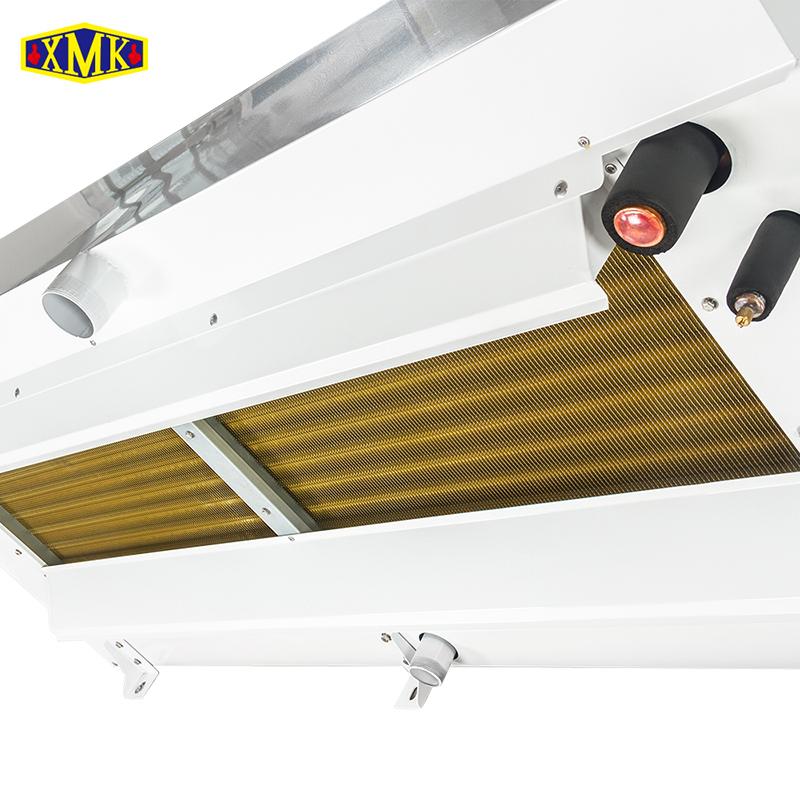

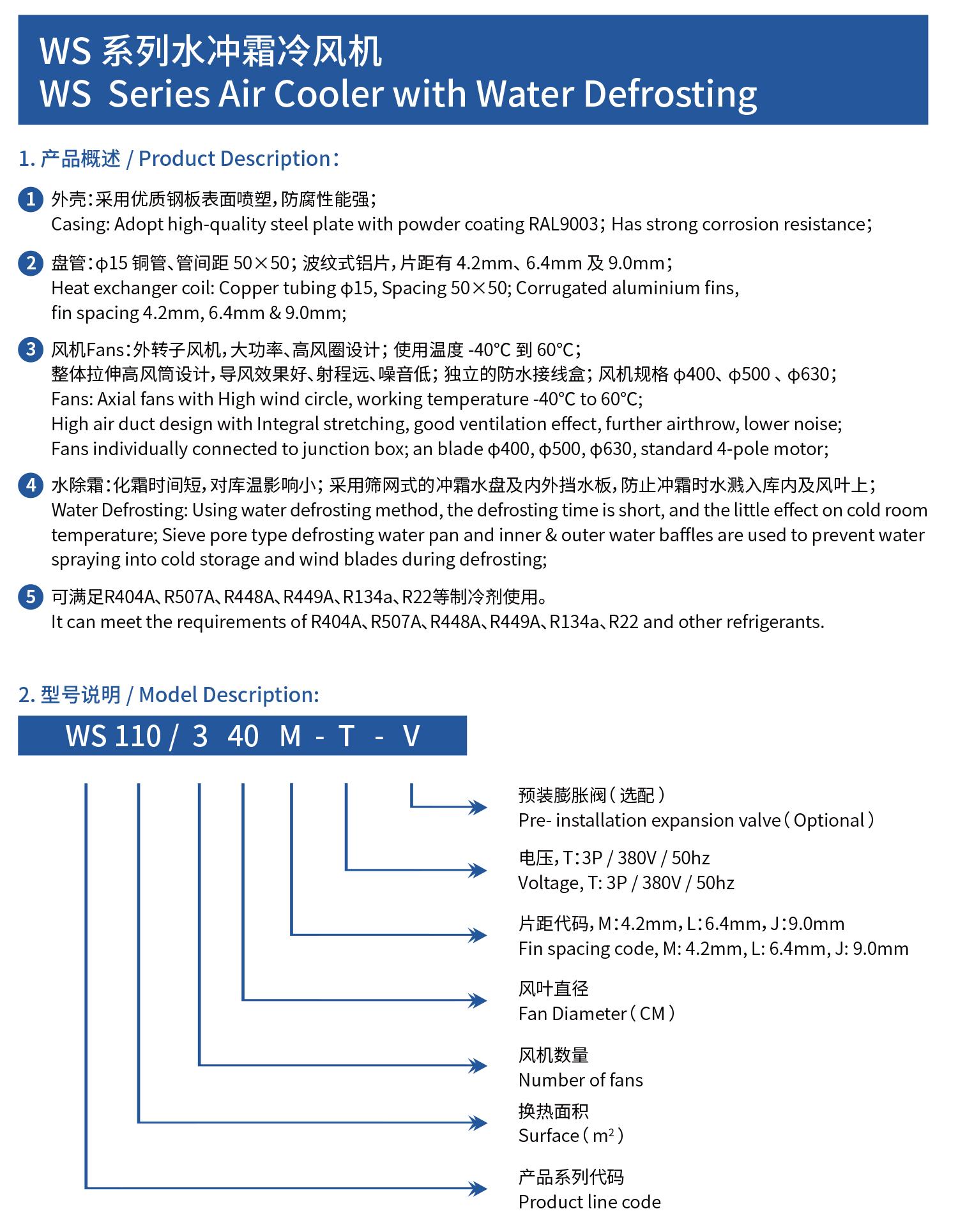

XMK design WS series unit cooler is using water defrosting method , the defrosting time is short, and the little effect on cold room temperature. Sieve poretype defrosting water pan and inner & outer water baffles are used to prevent water spraying into cold storage and wind blades during defrosting.

XMK design WS series unit cooler is using water defrosting method , the defrosting time is short, and the little effect on cold room temperature. Sieve poretype defrosting water pan and inner & outer water baffles are used to prevent water spraying into cold storage and wind blades during defrosting.Efficient recirculating and Low Consumption are product feature.
