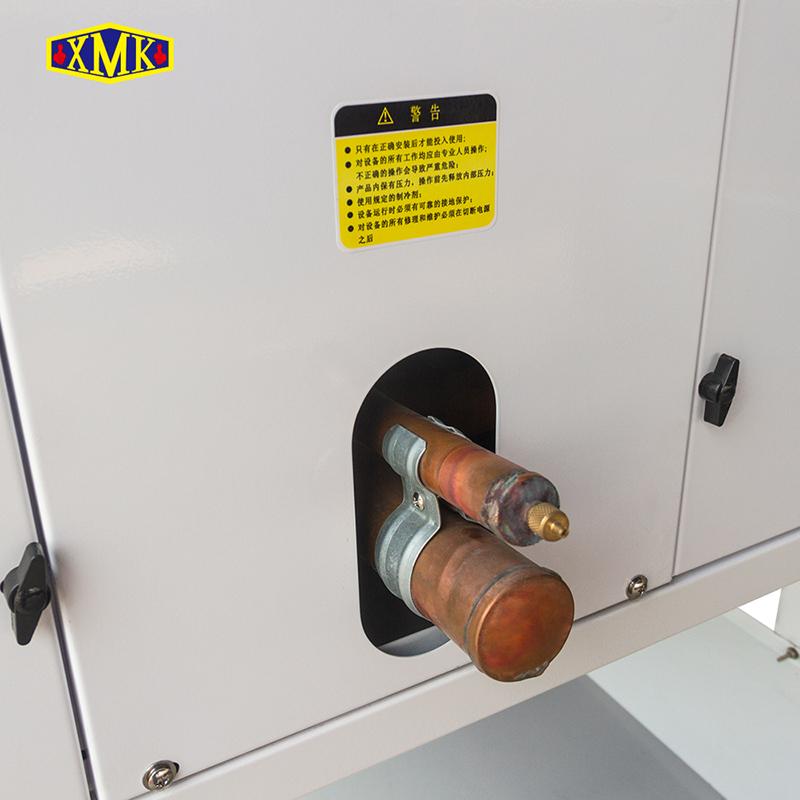

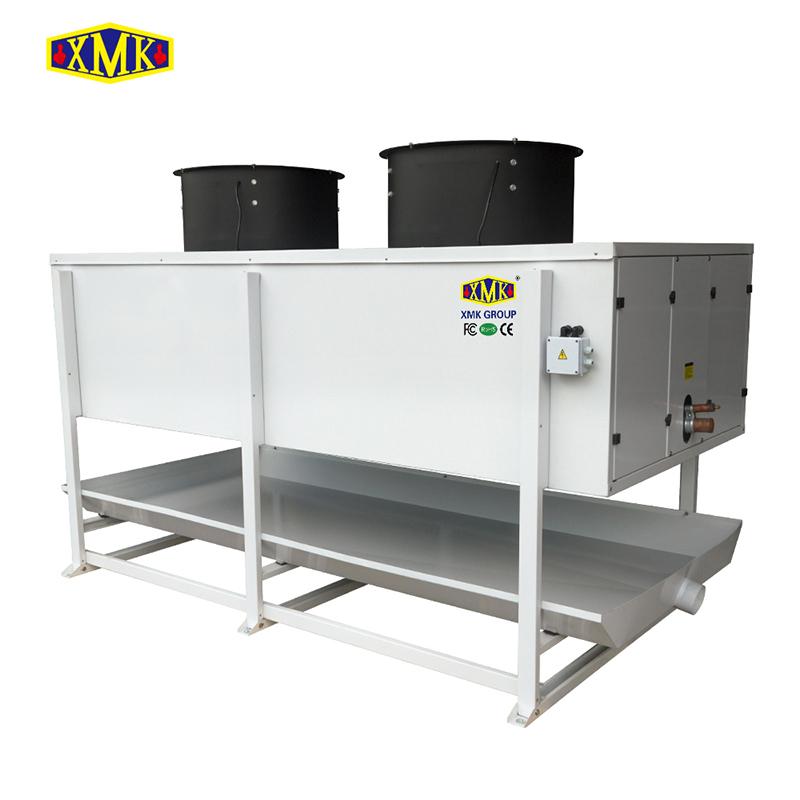

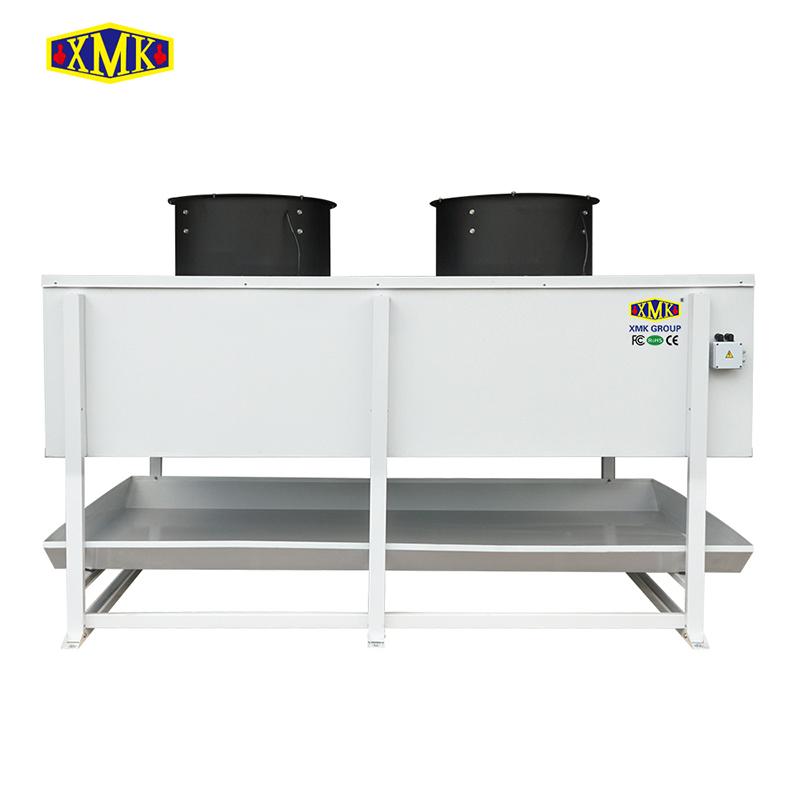

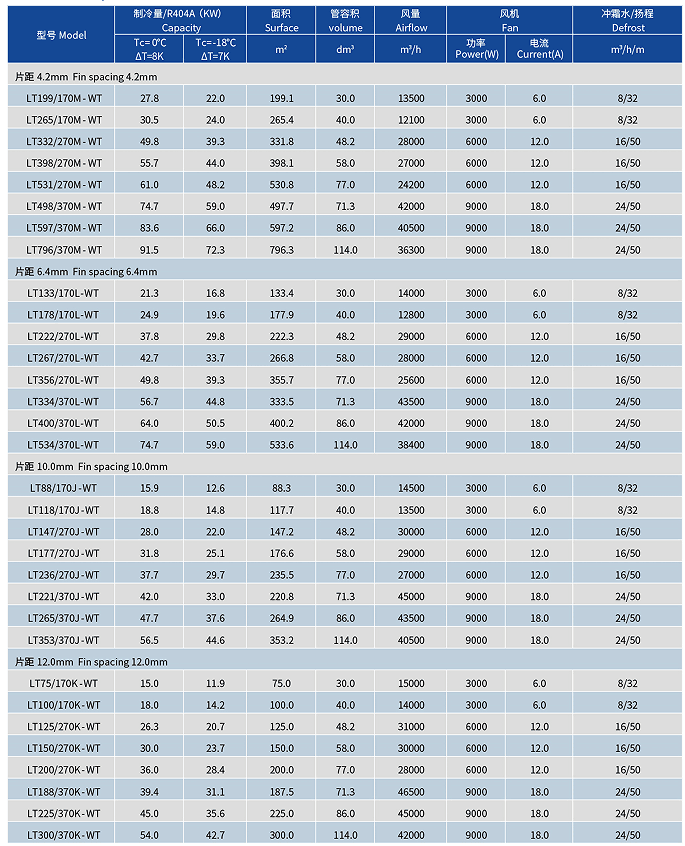

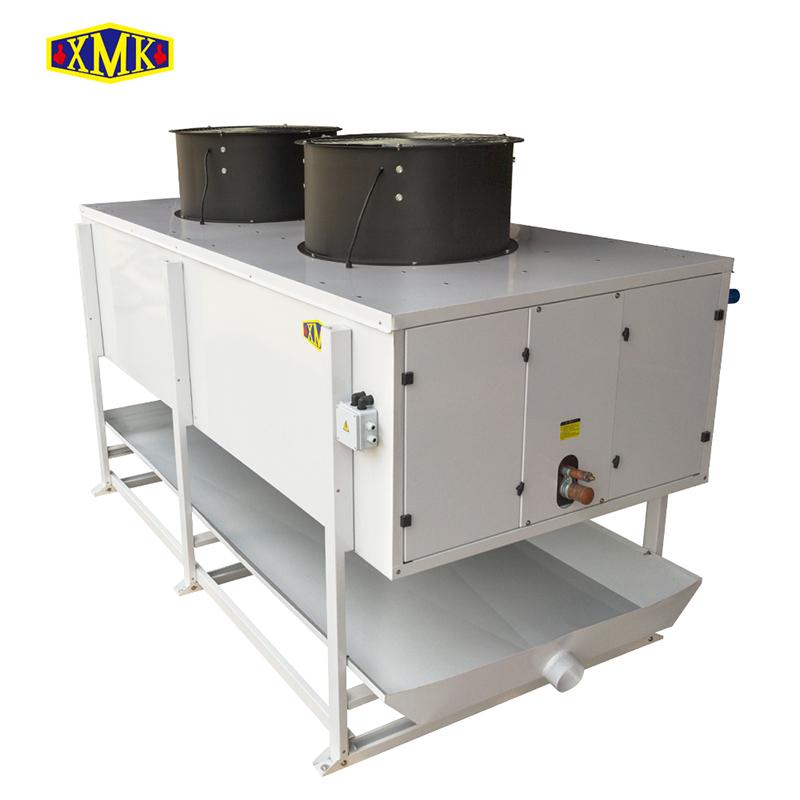

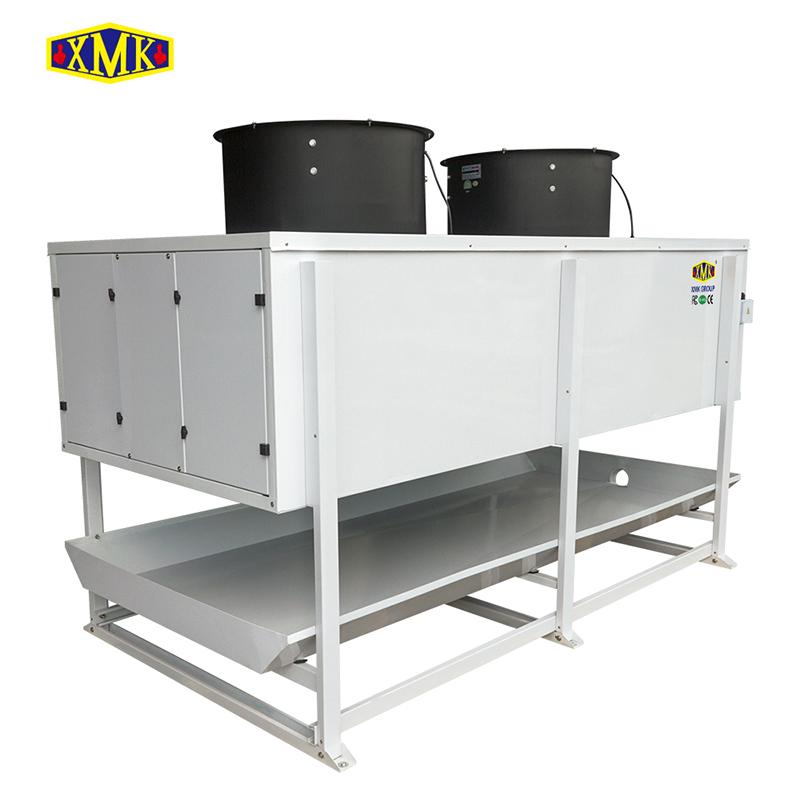

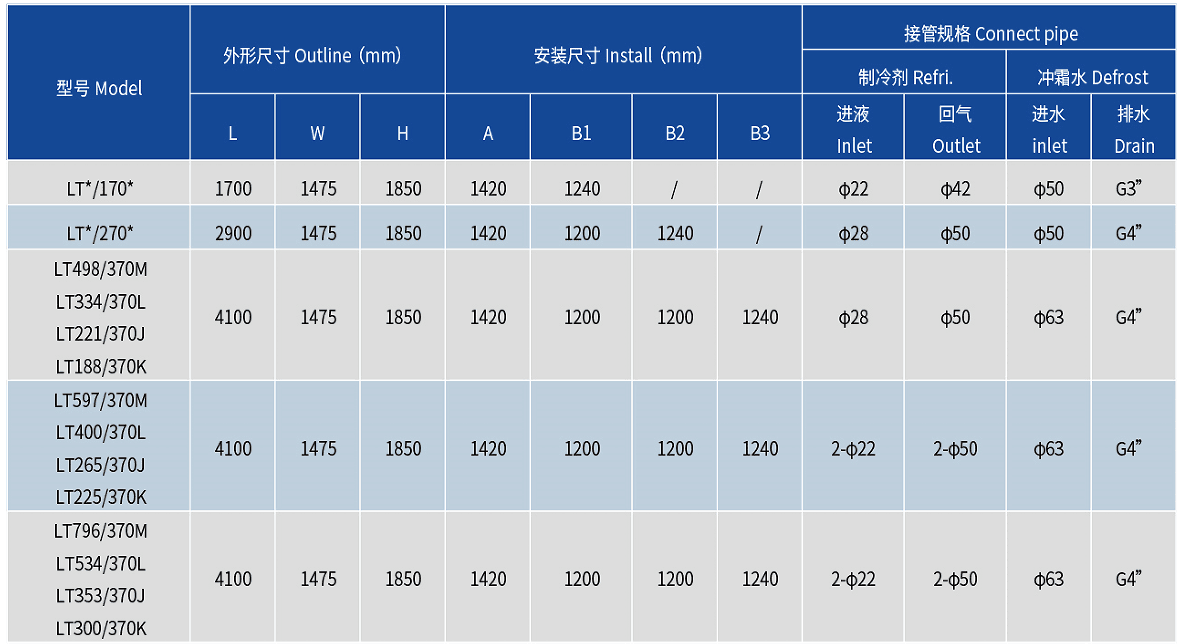

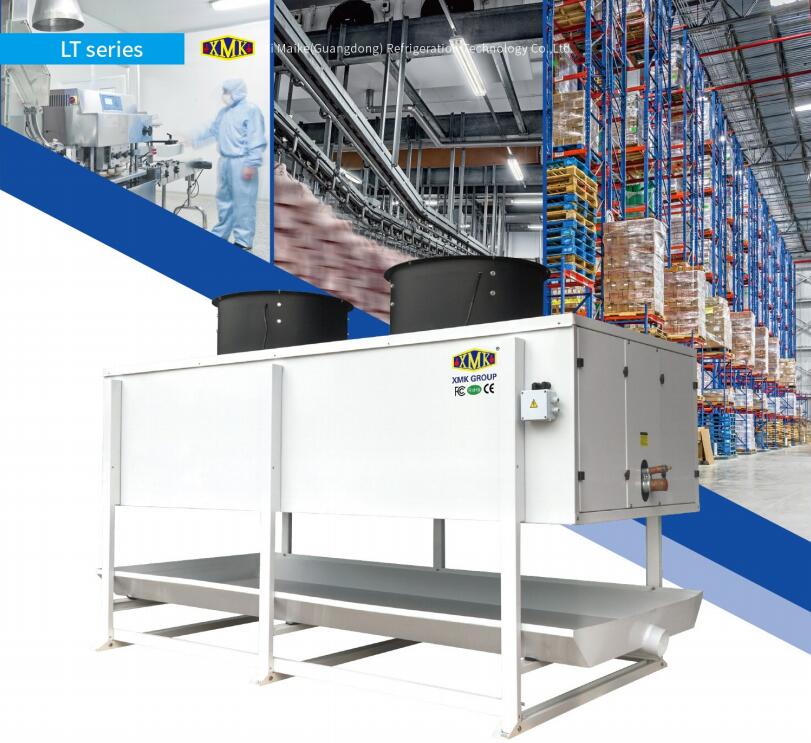

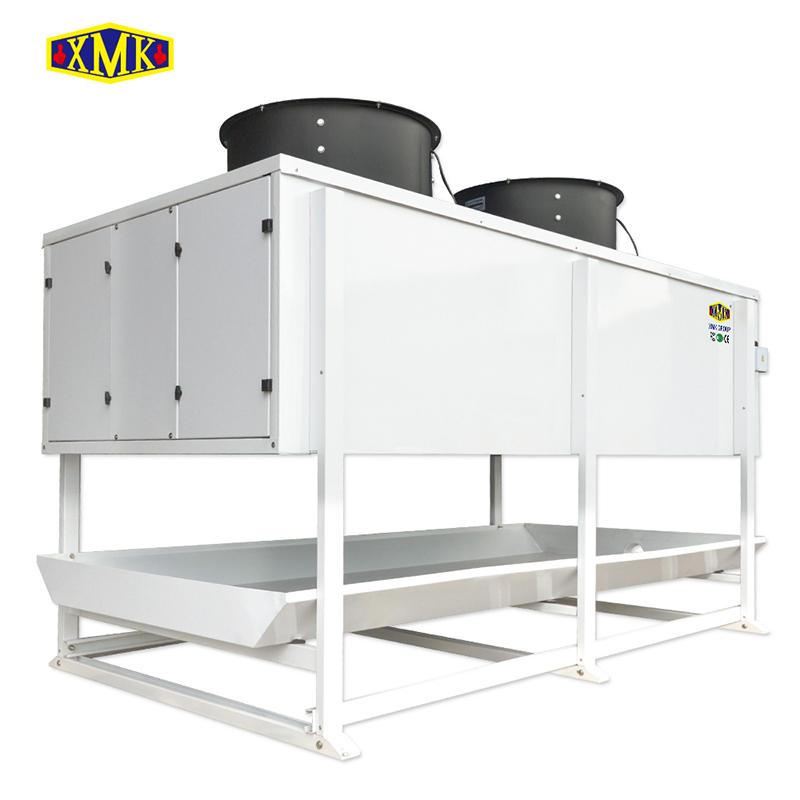

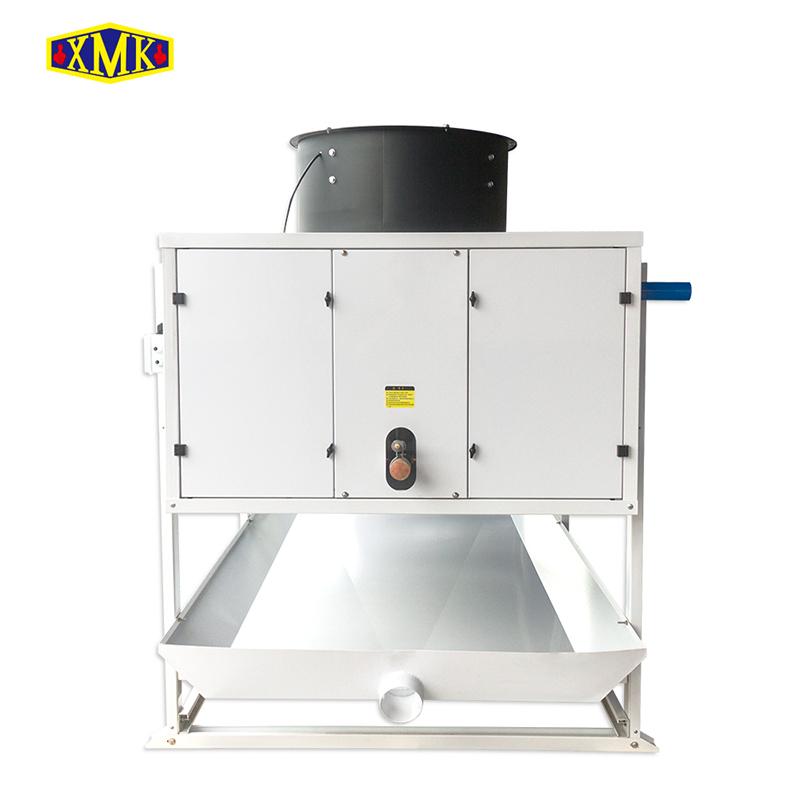

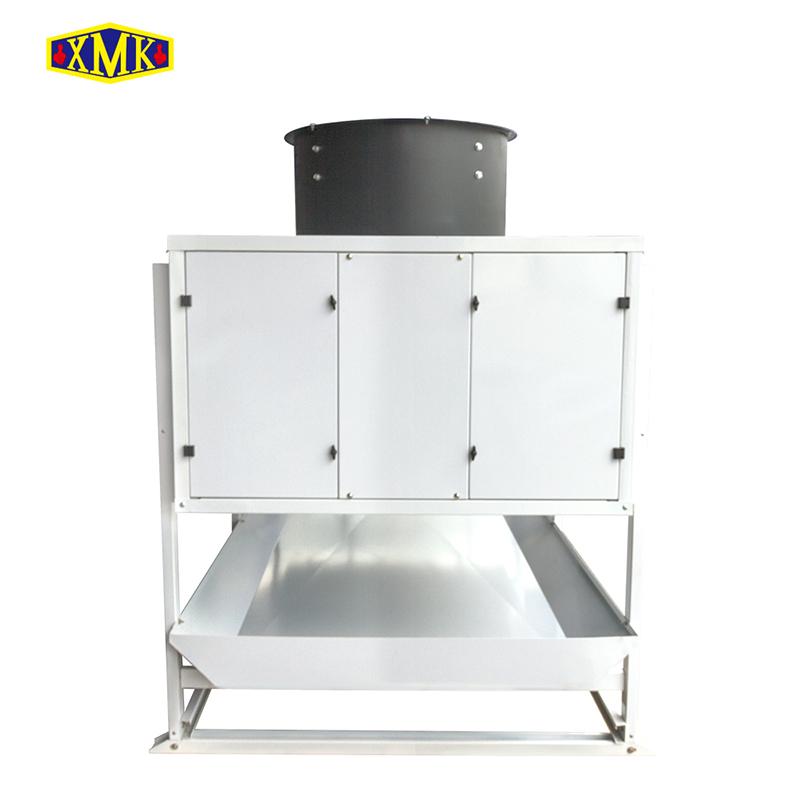

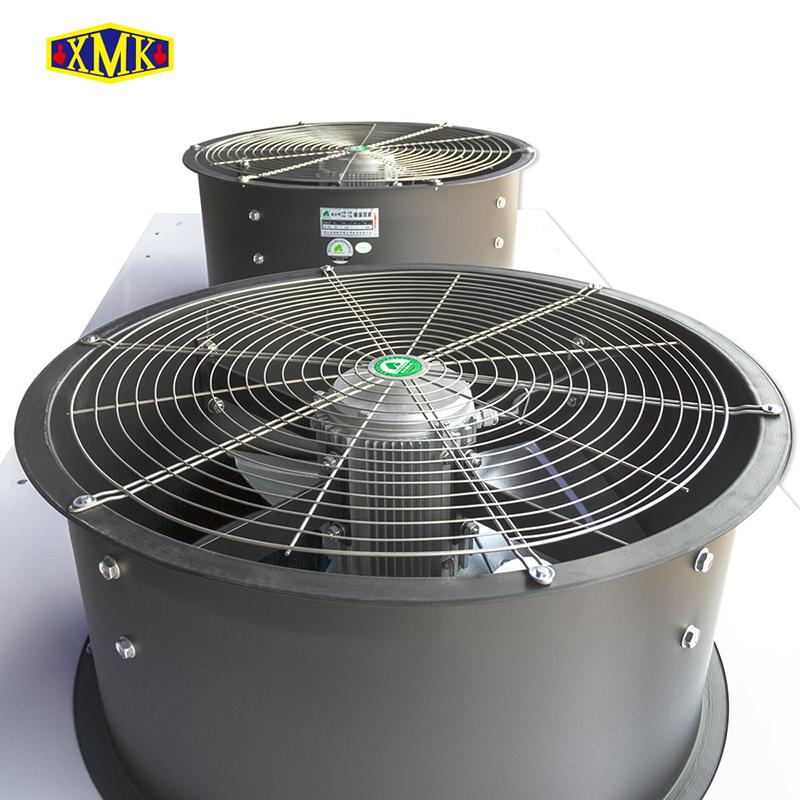

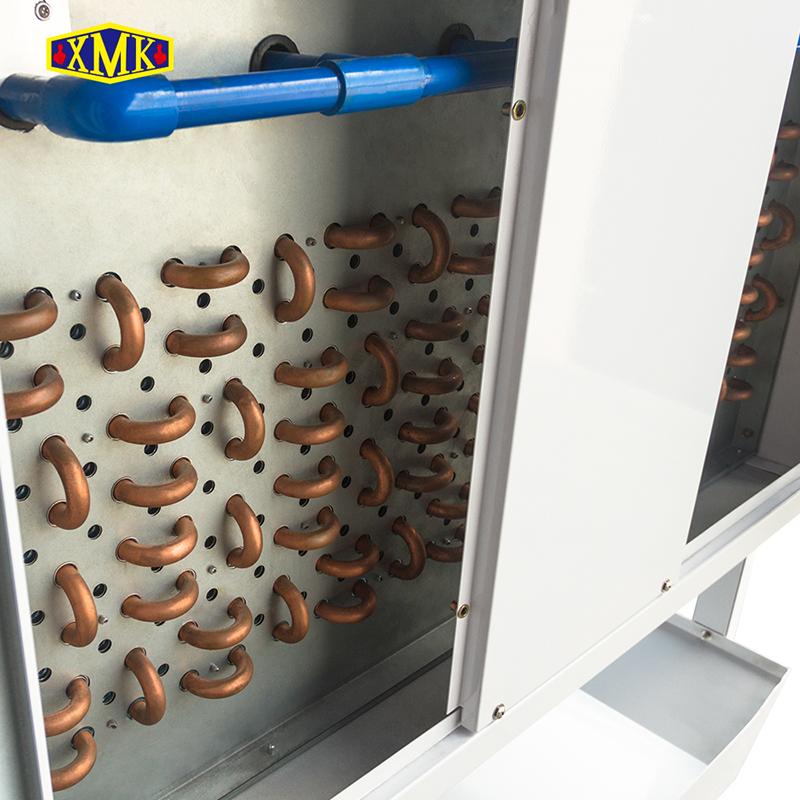

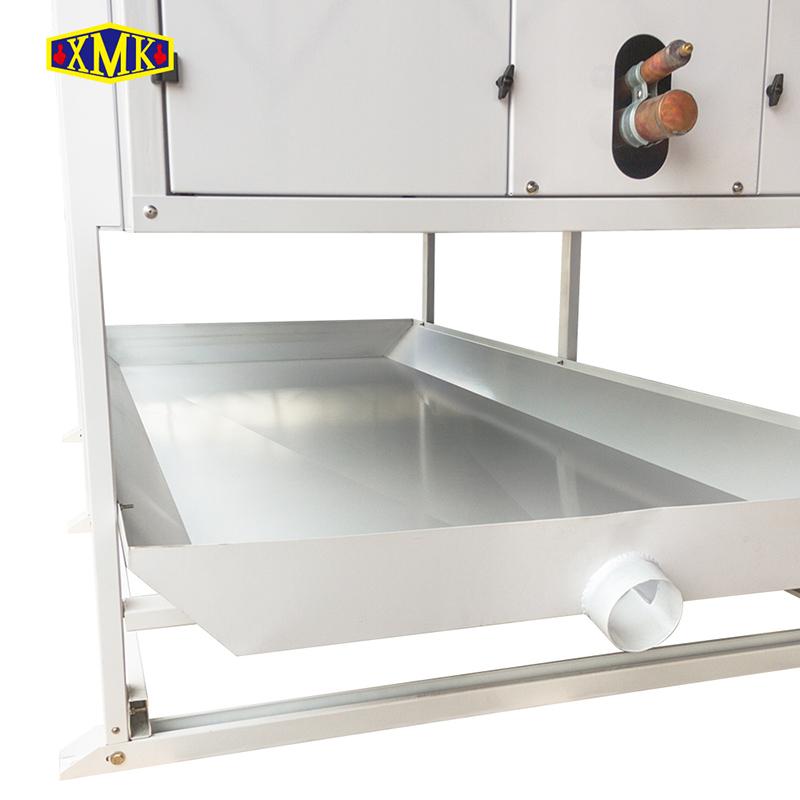

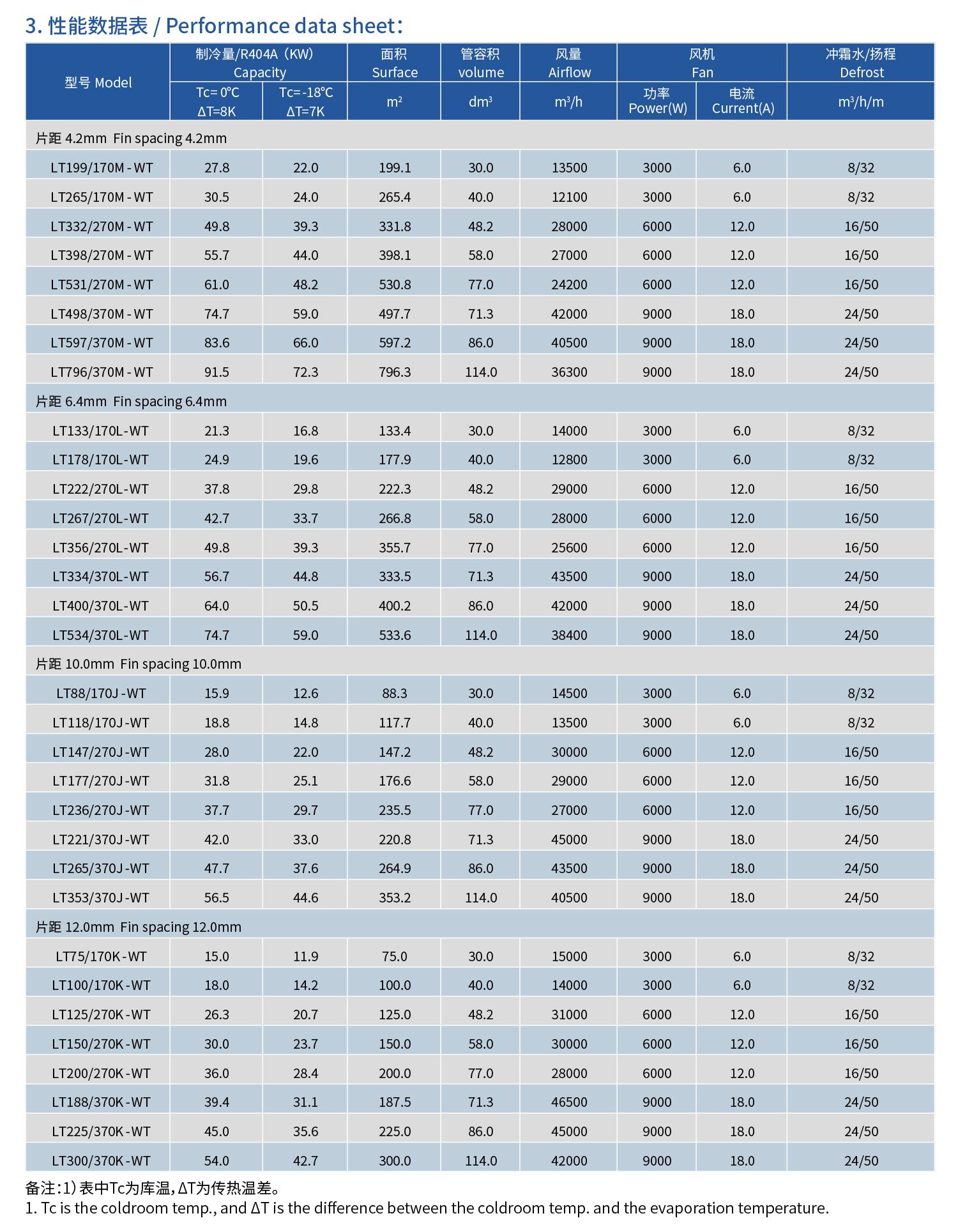

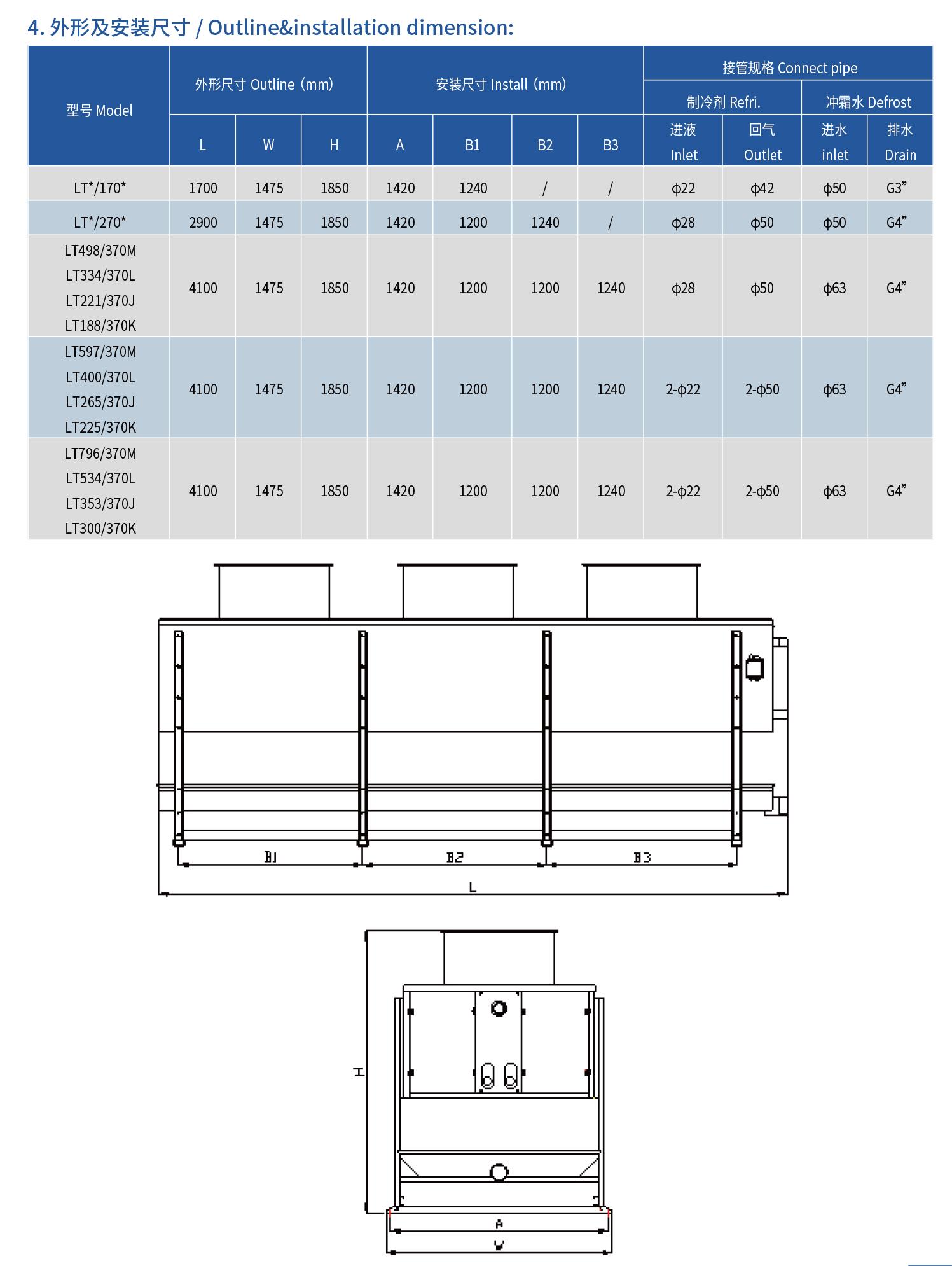

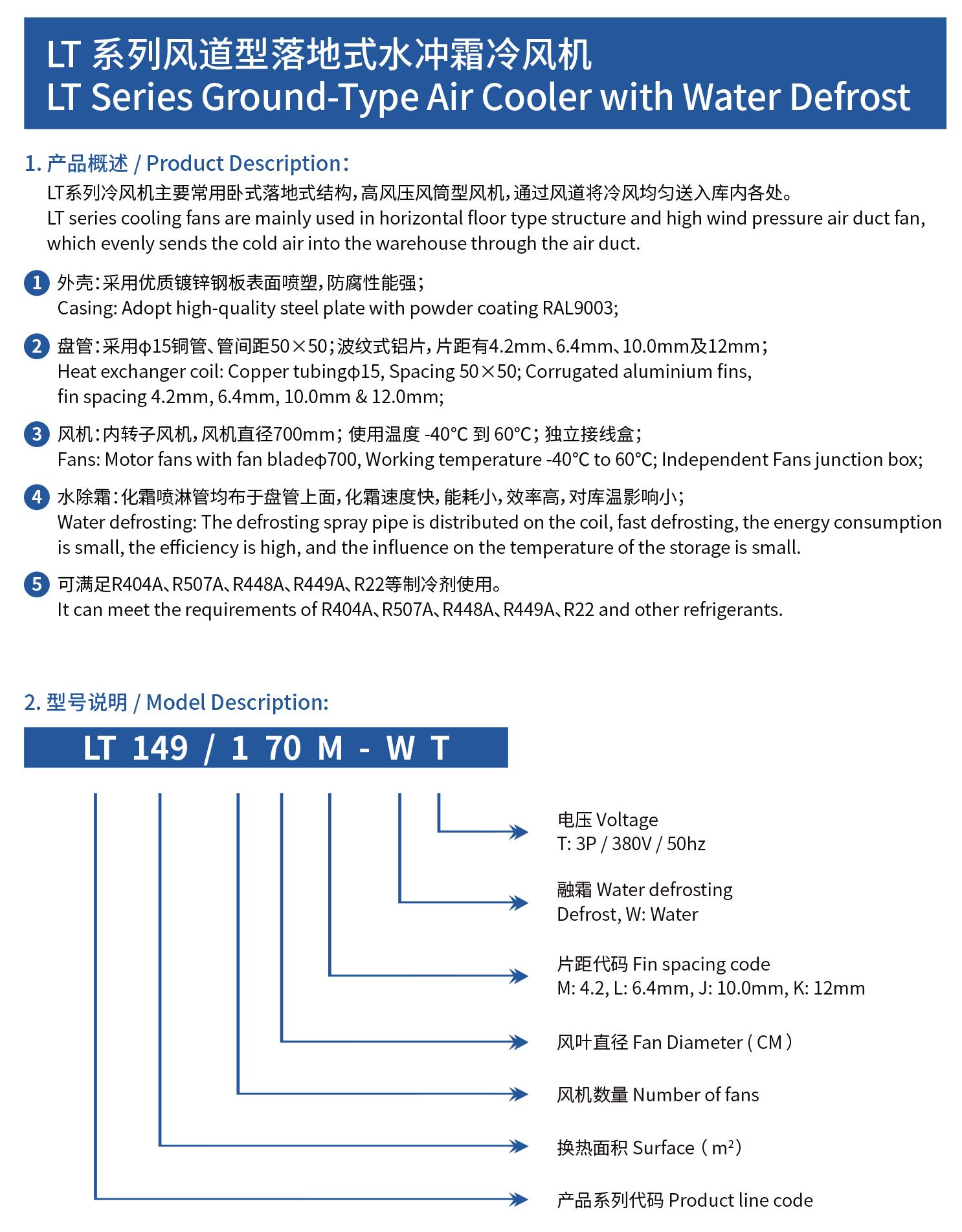

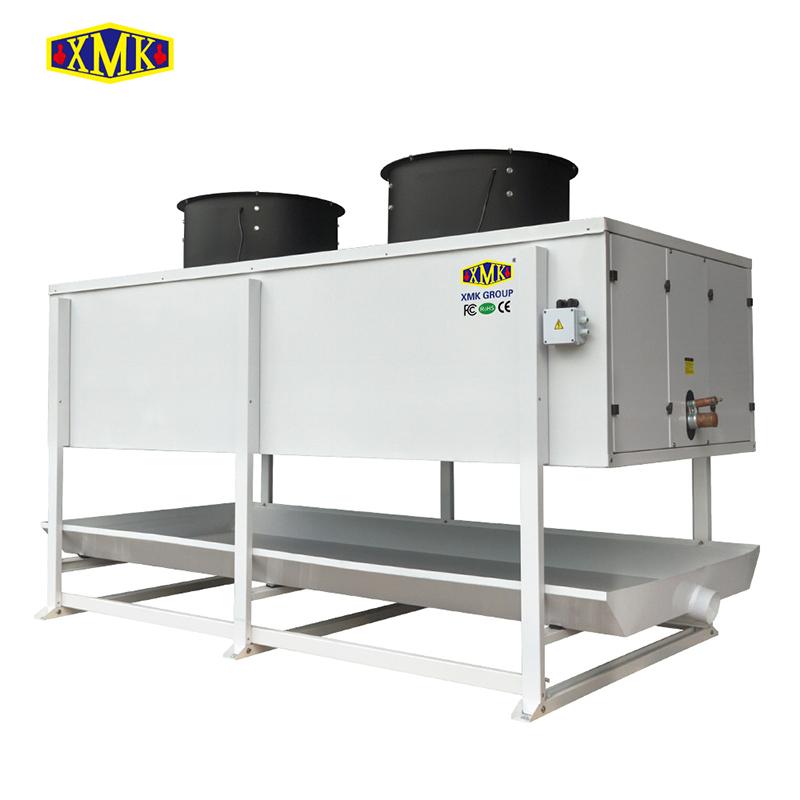

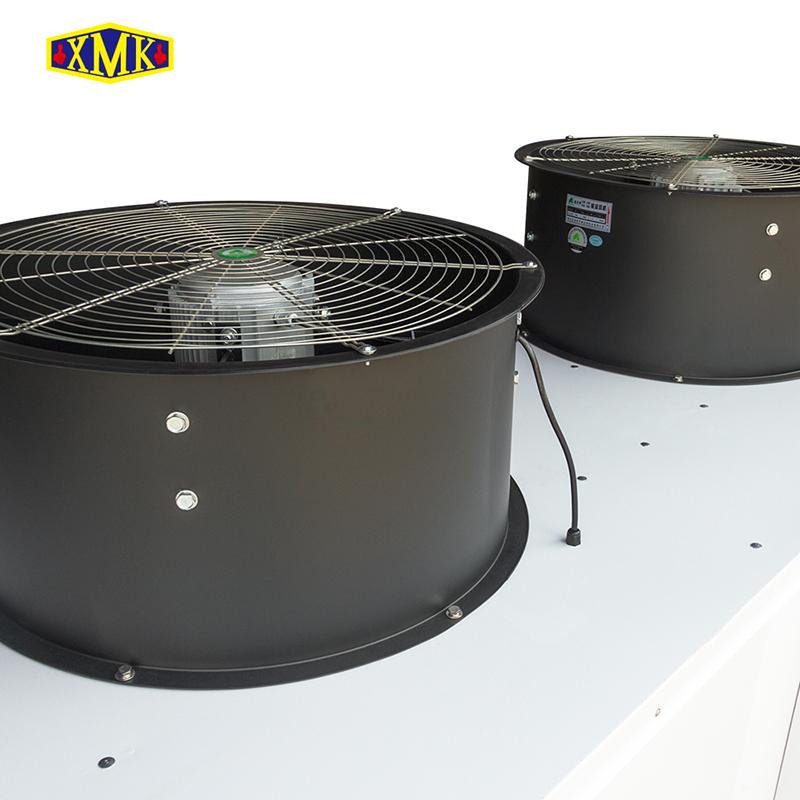

LT Series Ground-Type Air Cooler with Water Defrost

CA series 300mm compact air cooler are mainly used in small cold room which less than 10 m2 space. Design with wall-mounted type with light weight and strong anti-corrosion performance advantage.

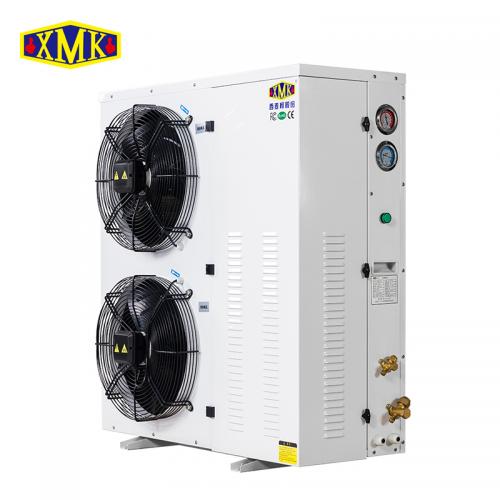

ZSI15KQE Blast Freezer Compressor Refrigeration Condensing UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZSI15KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -23 degree Compressor Model ZSI15KQE Compressor Max.I(A) 11.9 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min)1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815

4PES-15Y Refrigeration Unit Bitzer Condensing Unit For Cold Room Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4PES-15Y Condensing Unit data: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4PES-15Y Compressor Max.I(A) 28.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240x4 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430

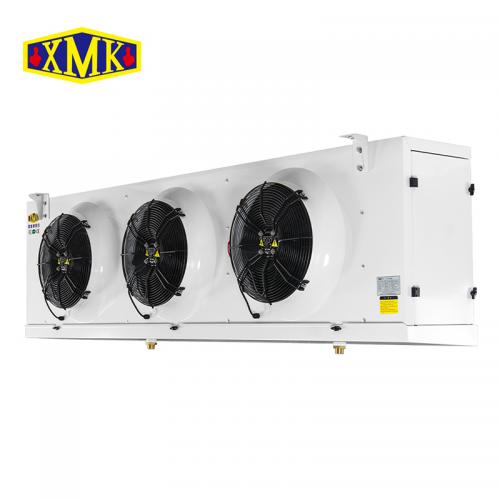

LQF series quick-frozen cold storage air cooler apply for meat ,seafood or others cold storage freezer room. Total 3 type of fin spacing in 6.4mm,10mm and 12mm to meet different cold room temperature requirement. Especially to -20°C to -35°C.

ZB114KQE Copeland Compressor Scroll UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB114KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB114KQE Compressor Max.I(A) 38 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.2 Rev.(r/min)1380 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1620 Size Width (mm) 805 Size Height (mm) 1205

XMK-205 Liquid Accumulator Refrigeration Parts For Condensing Unit     Has stronger construction. It maximize prevents the refrigerant lost.   The liquid accumulator separator is designed with internal bend pipes to prevent from internal splashing and help the aggregation of the oil at the bottom of the separator.   The separator shall be installed as nearer to the compressor as possible.     Model Connector size XMK-204 1/2 ODF XMK-205 5/8 ODF XMK-206 3/4 ODF XMK-207 7/8 ODF XMK-208/211 1-1/8 ODF XMK-209/213 1-3/8 ODF XMK-210/215 1-5/8 ODF XMK-221 2-1/8 ODF   Features:   1. “U” tube design for maximum flow of refrigerant and minimum oil entrapment;   2. Saving refrigerant;   3. Metering Orifice matched to system capacity assures optimum liquid refrigerant and oil flow back to compressor.   4. Exterior corrosion resistant static electrical painting process protecting the shell from the rust.   5. Maximum working pressure: 3.0 Mpa.

43.9KW Fin Type Evaporator  Product description:   HC series air cooled condensers are mainly equipped with open-type condensing units with scrollcompressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors canbe installed together or sepa rately from compressors .Design of High barrel with Side-mounted Structure.   1.Condensers and compressors can be installed together or separately from compressors. Design of Highbarrel with Side-mounted Structure.   2.Copper tube and corrugated aluminium fins with a distance of2.1 mm are used.   3.Fan specifications adopt φ400mm, φ500mm and φ630mm.   4.Testing pressure 32bar.   5.Adopt high-quality steel plate with powder coating RAL9003 or RAL6001.   6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449A and other refrig-erants.   7.Retain 1.5bar pressure before leaving factory. HC Series Air Cooled Condenser Data Sheet:   Model HC98/440NT Capacity (KW) 43.9 Surface (㎡） 97.7 Volume (dm) 11.6 Fan Motor Air Flow 14000 Fan Motor Power 960 Fan Motor Current 2.08 dB (A) 56 Connect Pipe Inlet 28 Connect Pipe Outlet 22 Weight (kg) 75

HC series air cooled condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure, with high heat transfer capacity.

4GE-23Y Bitzer Compressor With Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4GE-23Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4GE-23Y Compressor Max.I(A) 43.9 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240x4 Suction Line (mm) 54 Liquid Line （mm） 22 Size length (mm) 1435 Size Width (mm) 1150 Size Height (mm) 1430
