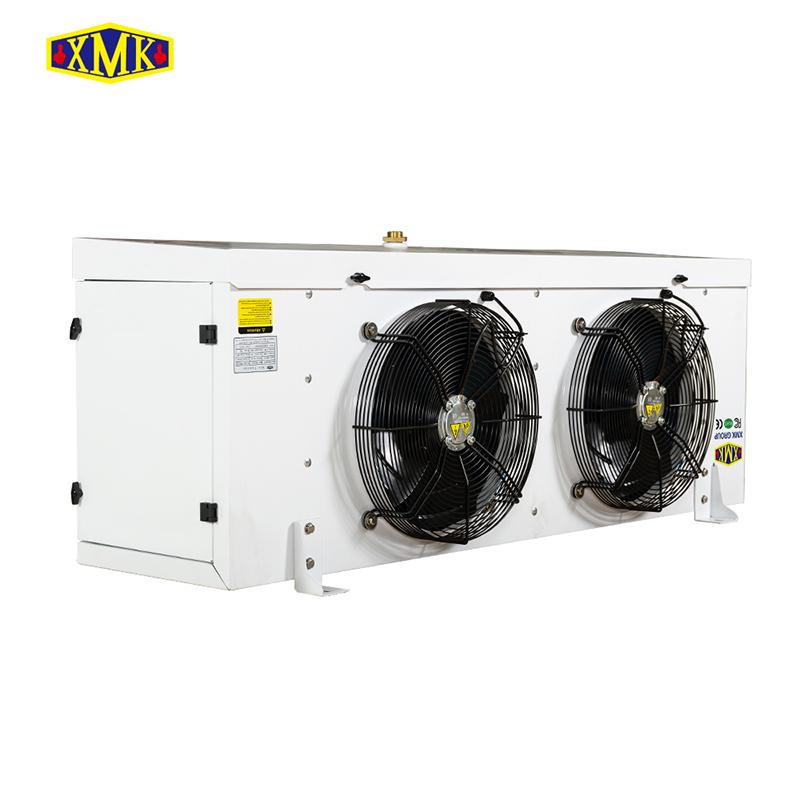

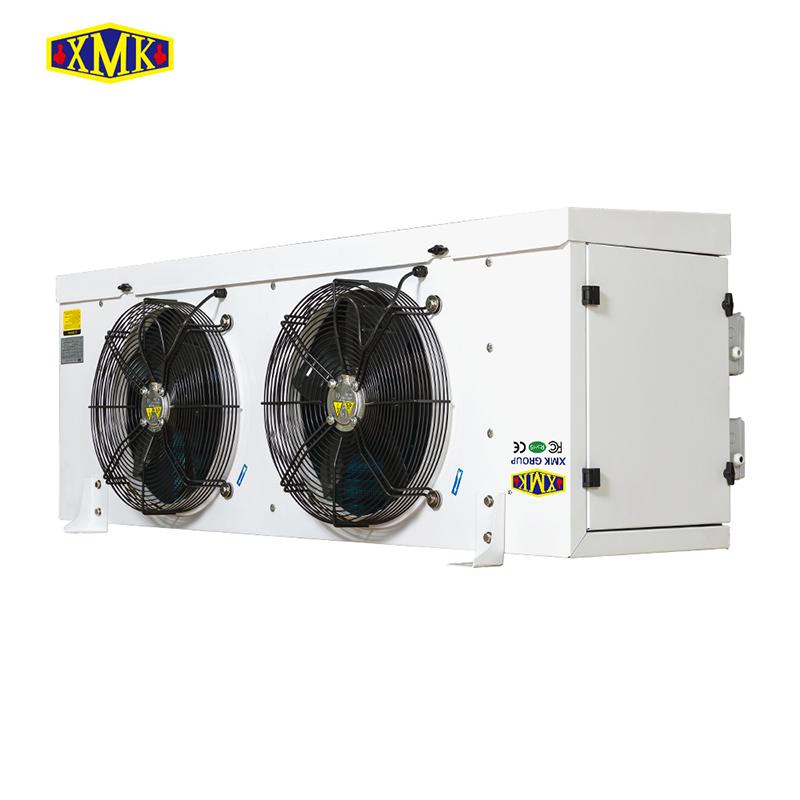

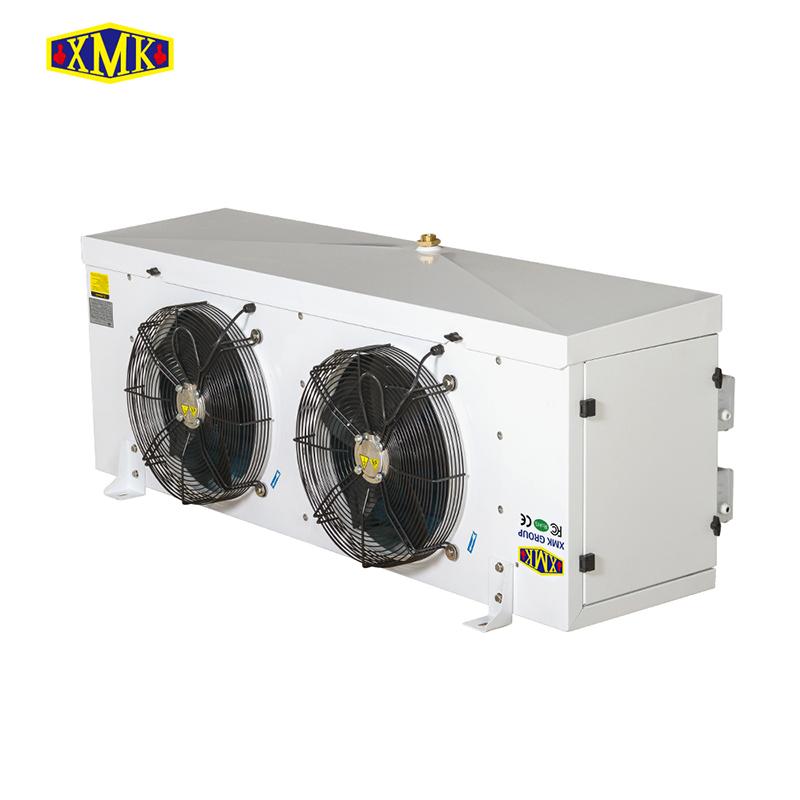

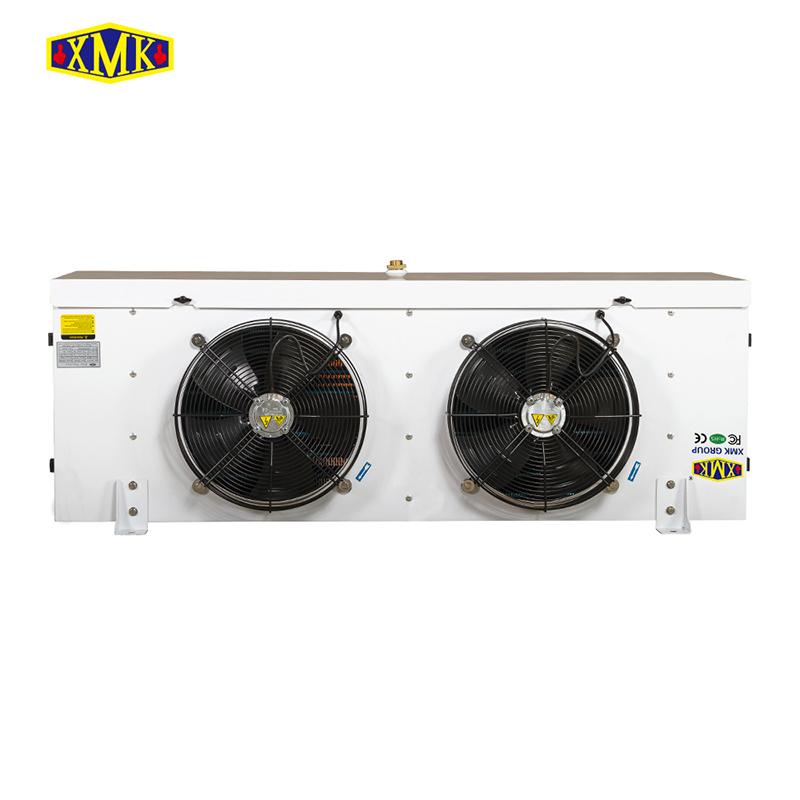

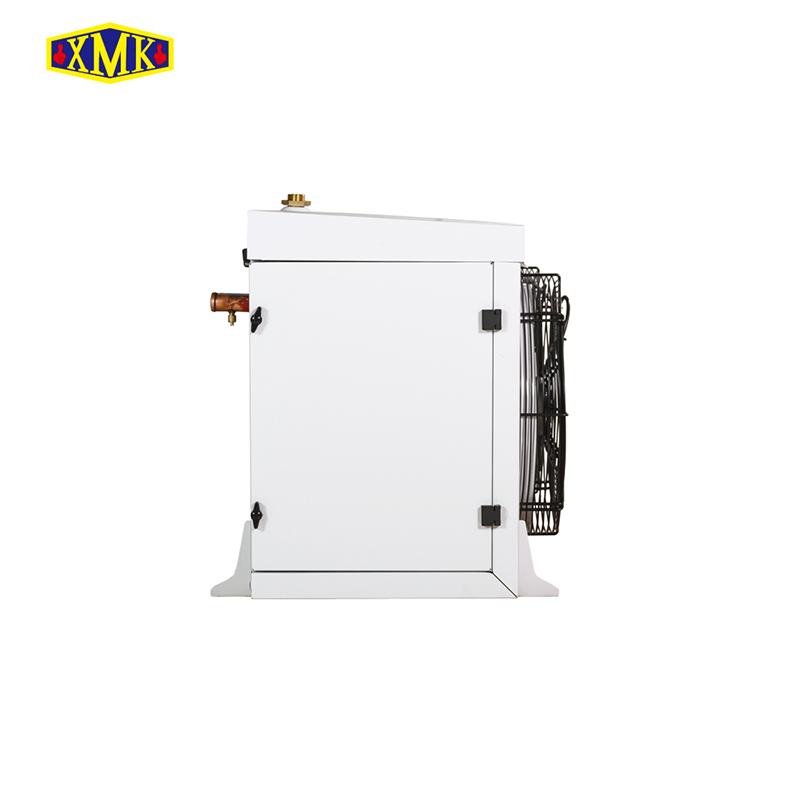

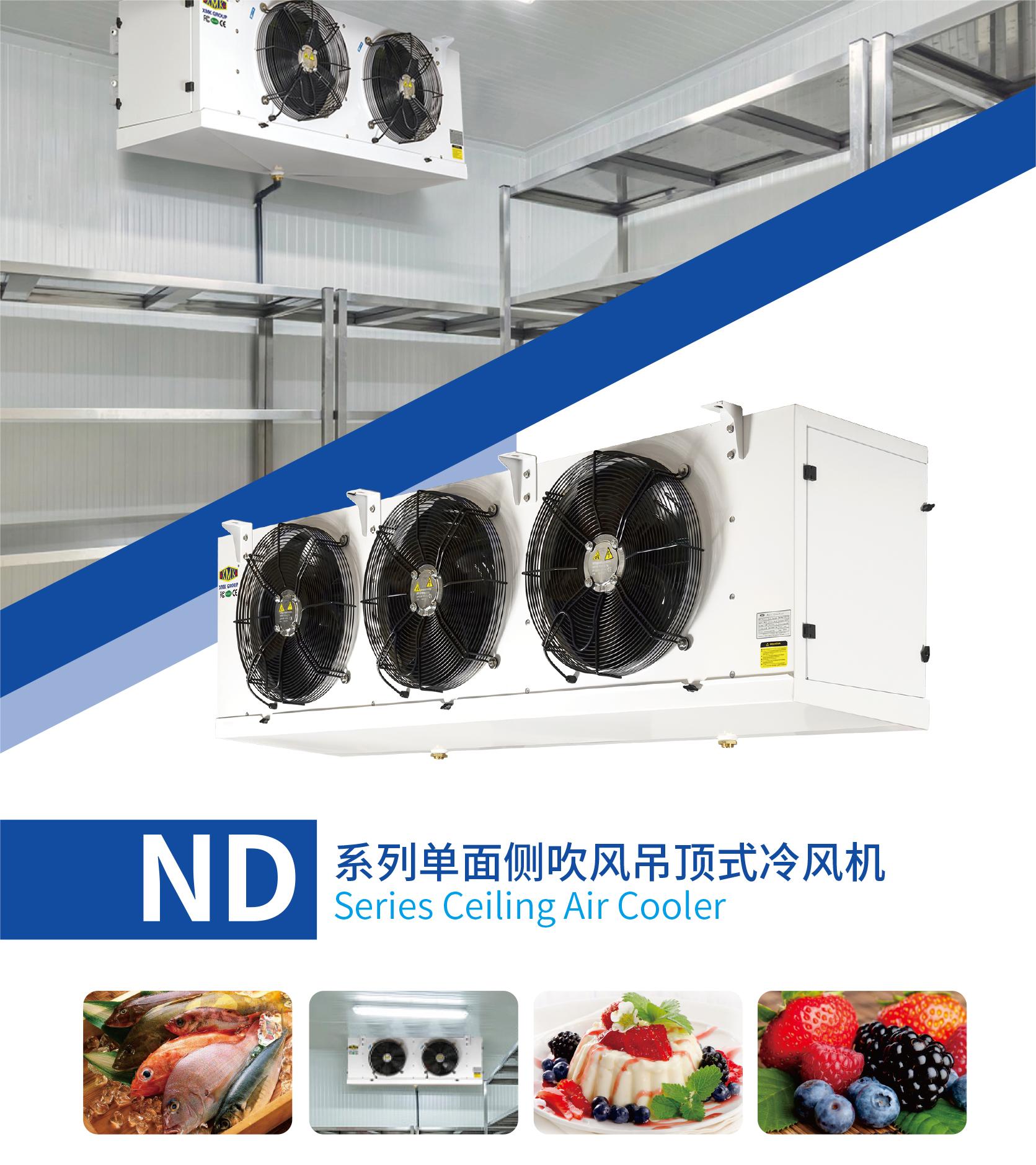

ND Series Ceiling Air Cooler

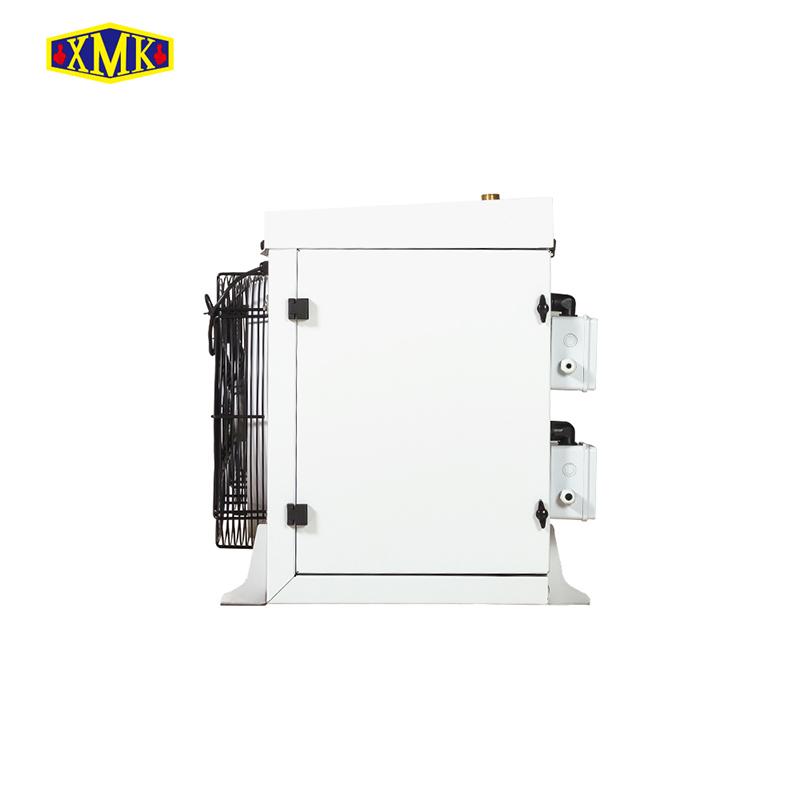

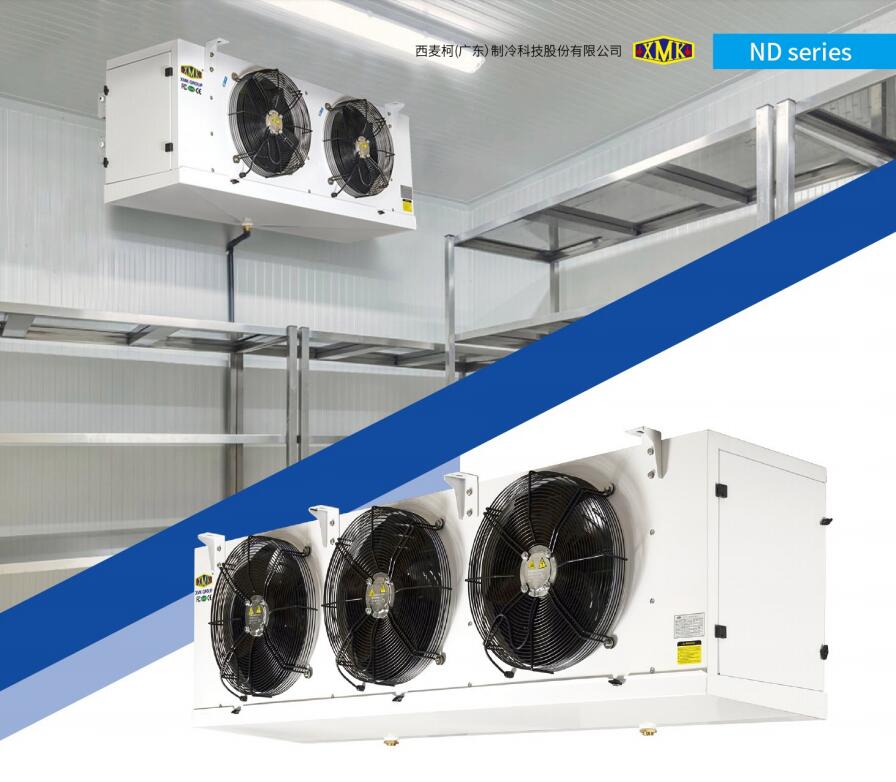

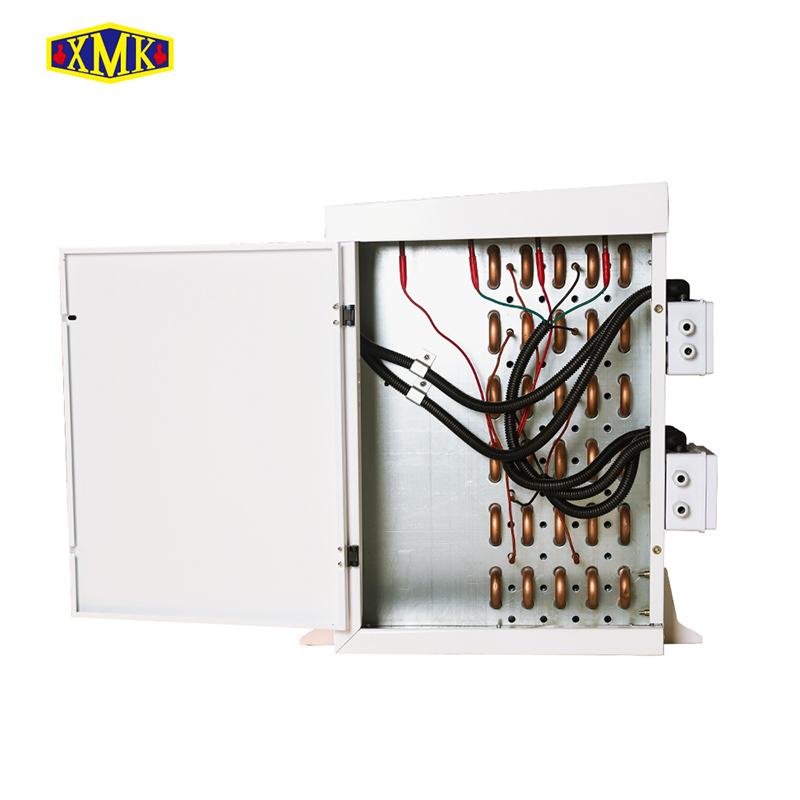

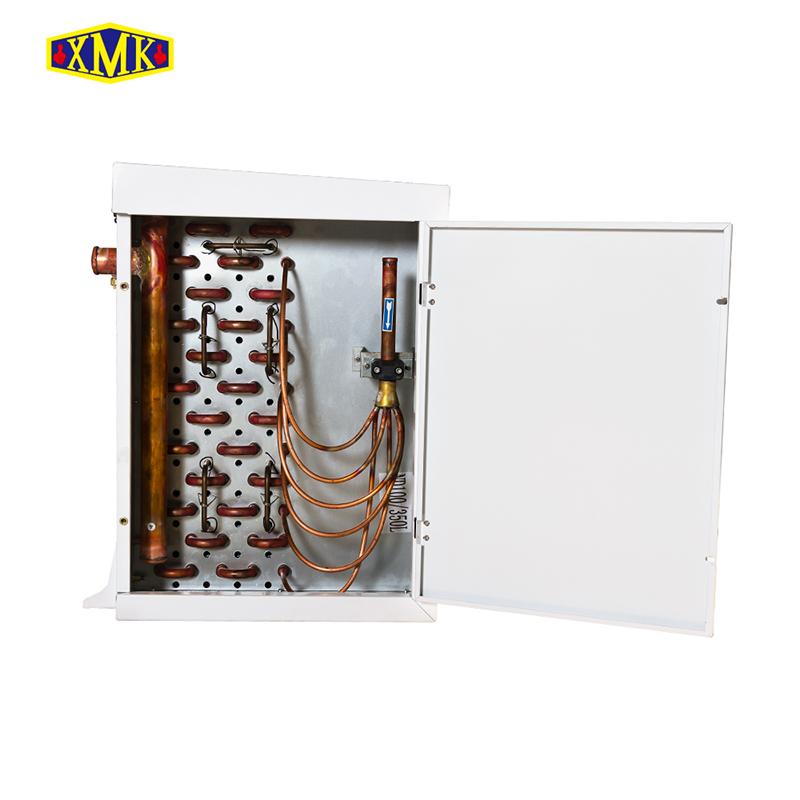

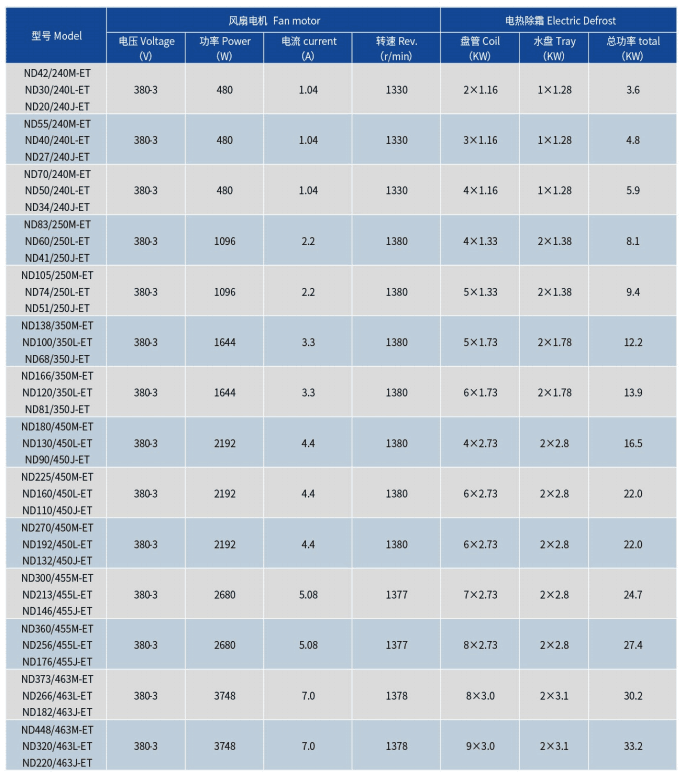

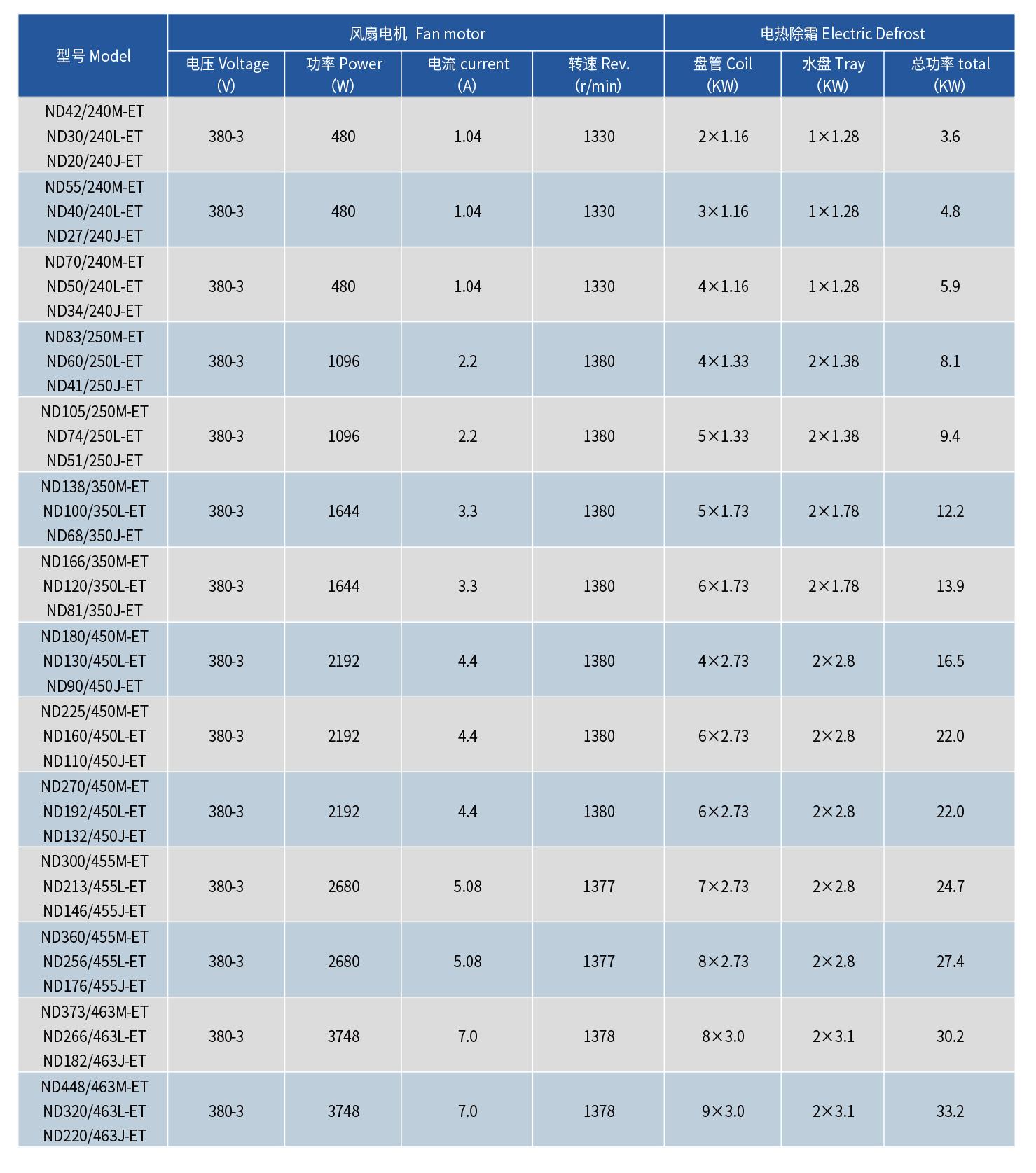

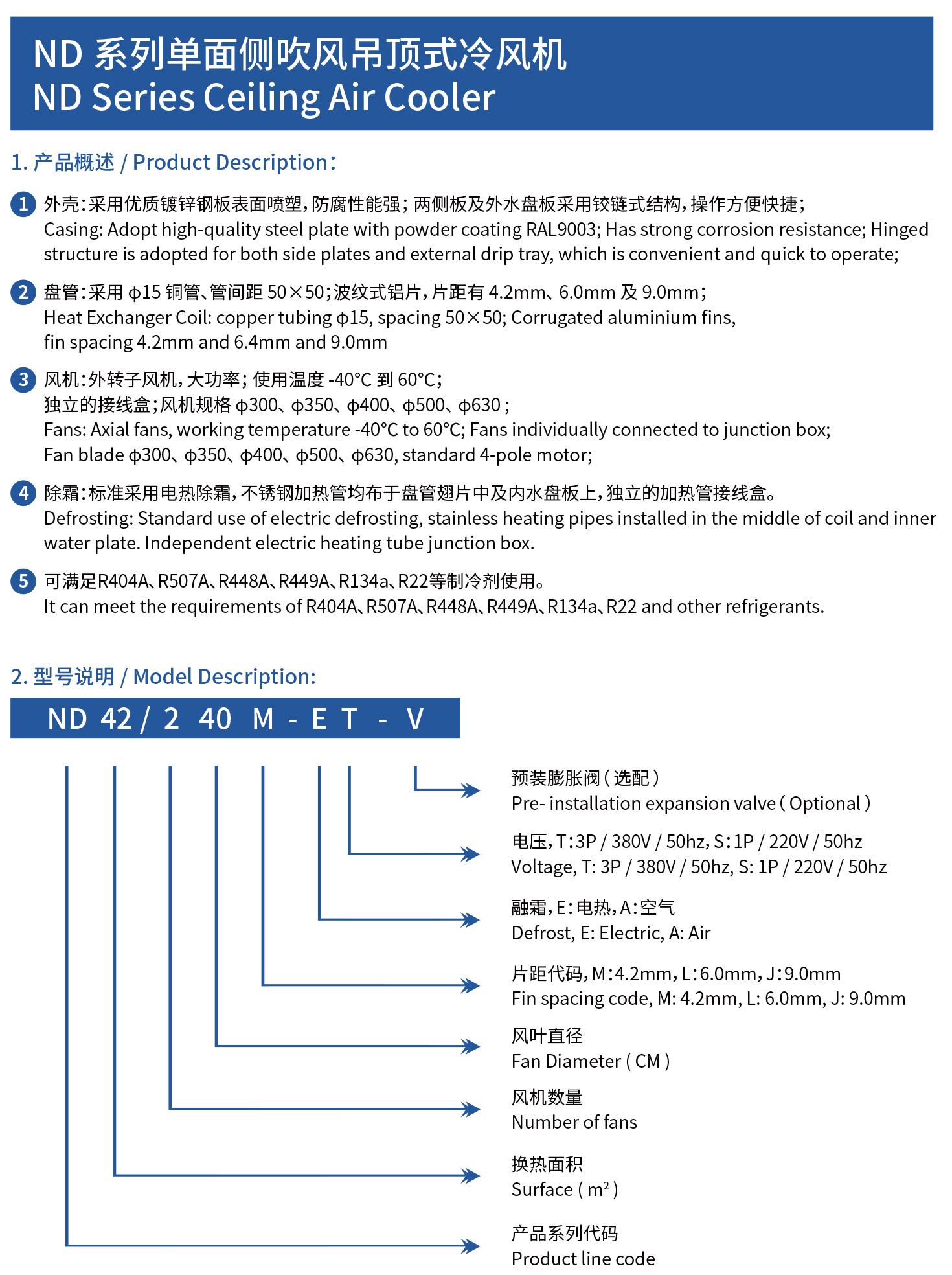

ND series is a general type industrial wall mounted evaporator for various cold rooms. Design in hinged structure for both side plates and external drip tray which is convenient and quick to operate.  Voltage in 220V or 380V .

ND series industrial wall mounted air cooler is use for various cold storages, such as planting greenhouse , food storage cooling system and so on. 2 blower with φ300, φ350,φ400, φ500,φ630.  Stander voltage 380V/3p/50Hz

This 4 fan blowers ND series industial evaporative air cooler is apply for large area planting greenhouse or cold storage which require working temperature during -5°C to 5 °C or -18 °C to -2 °C.  It can meet variety of refrigerant as R404A, R507A, R448A, R449A, R134a, R22 and others.

Semi-hermetic Compressor Condensing Unit Product description:  XRW series semi-hermetic screw unit is mainly used in cold storage projects with large coolingcapacity requirements1.Adopts Refcomp SW3 series screw compressorwith single unit and parallel unit.2.The series of products include two applicationseries of medium-temperature and low-tem-perature units. The medium-temperature unitmainly meets the requirements of cold storageat about OC, while the low-temperature unitmainly meets the requirements of low-tem-perature refrigeration storage at -20C andquick-frozen storage at -35C.3.The standard design of the unit adopts theform of water cooling, adopts high efficientshell and tube type water cooling condenser,and is equipped with a separate liquid receiver.4.The low temperature unit is equipped with aneconomizer system and an oil cooler system.5.The unit is controlled by Siemens PLC and thekey electrical components are controlled bySchneider. With compressor start and stop,energy regulation, oil cooling system, econo-mizer system, cooling water pump and coolingtower fan control and various protection functions.6.The unit standard uses R404A or R507A refrigerant.Refcomp Condensing Unit Data: Power Supply  380V 50Hz 3phase Apply Temp. -5 to 5 degree Compressor Model SW3H6000 Compressor Max.I(A) 105 Capacity(-5℃） 120Capacity(-10℃） 98.2Capacity(-15℃） 79.7 Suction Line (mm) 28 Liquid Line （mm） DN50 Size length (mm) 1650 Size Width (mm) 1000 Size Height (mm) 1520

4EES-6Y Bitzer Compressor With Comdensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4EES-6Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. 5 to 15 degree Compressor Model 4EES-6Y Compressor Max.I(A) 13.6 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240X4 Suction Line (mm) 28 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430

DE series air cooler can be use in small cold room or supermarket refrigerated display case as a air cooler for foods fresh keeping or frozen. Working temperature apply to over -18 °C.

4CES-9Y Cold Room Compressor Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4CES-9Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. 5 to 15 degree Compressor Model 4CES-9Y Compressor Max.I(A) 20.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240X4 Suction Line (mm) 28 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430

ZFI39KQE Compressor Condensing Unit For Meat Room Product description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZFI39KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model ZFI39KQE Compressor Max.I(A) 18.1 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.1 Rev.(r/min)1380 Suction Line (mm) 22 Liquid Line （mm） 12.7 Size length (mm) 1320 Size Width (mm) 655 Size Height (mm) 1065

LS series is XMK second generation quick-frozen air cooler which mainly use for freezer cold storage as evaporator, such as food storage , ice rink , beverage factory and so on. It is design with that efficient recirculating and allows for installation in very close to walls to save spacing.
