Strawberry greenhouses industrial noiseless evaporative air cooler

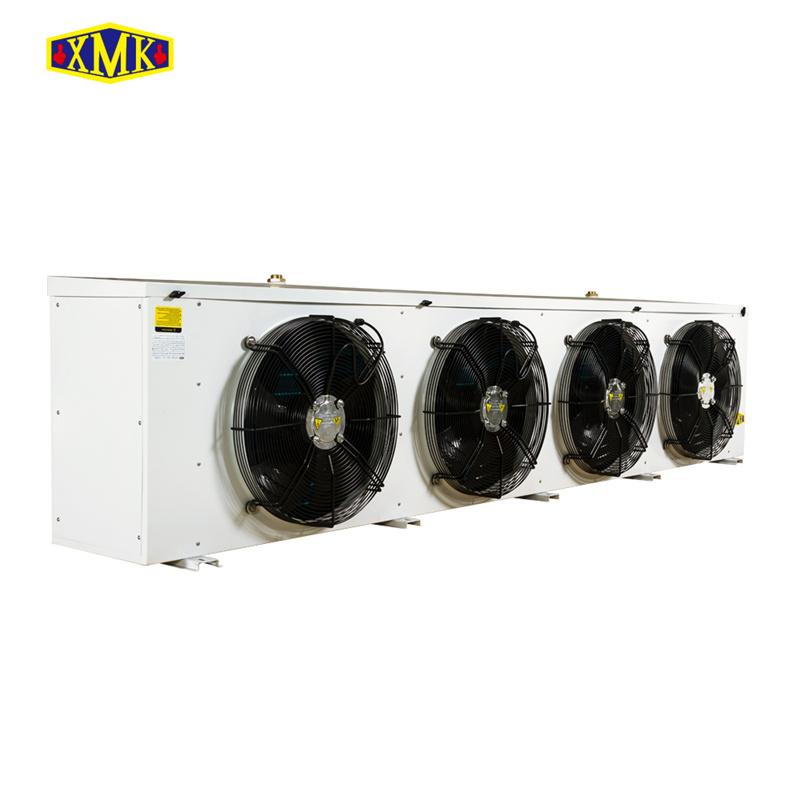

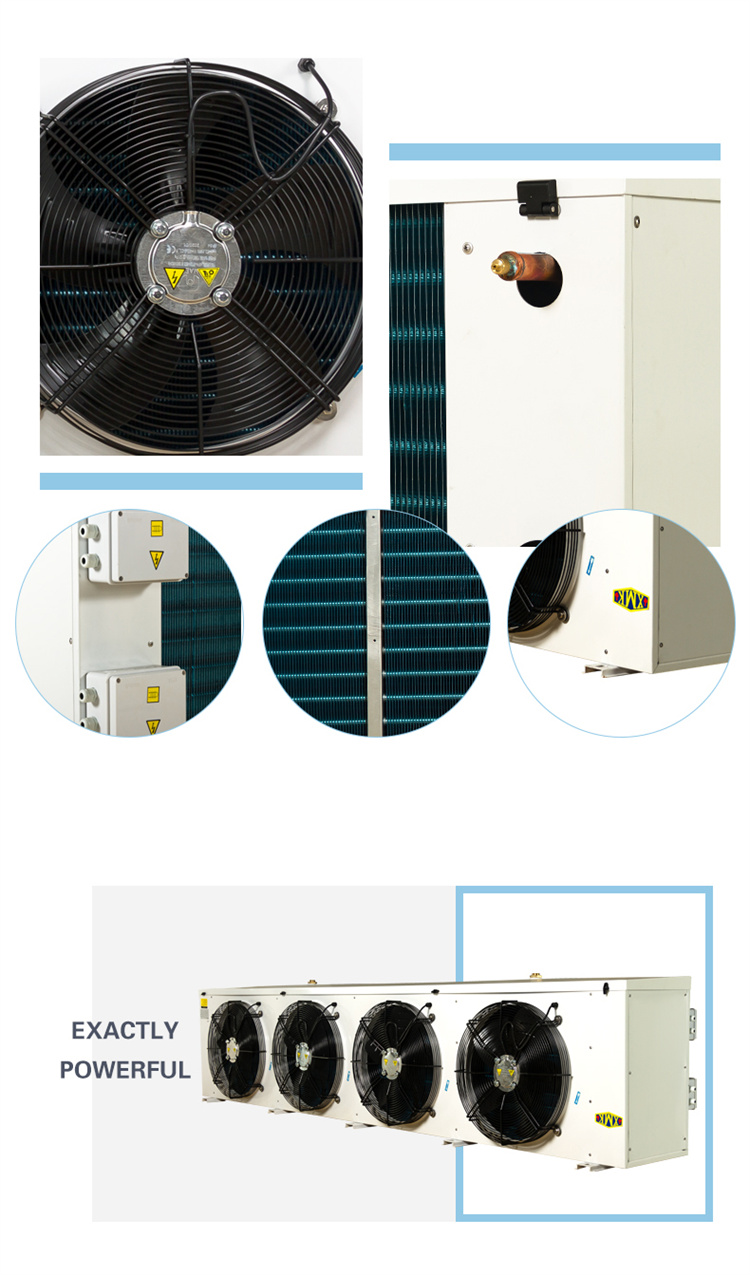

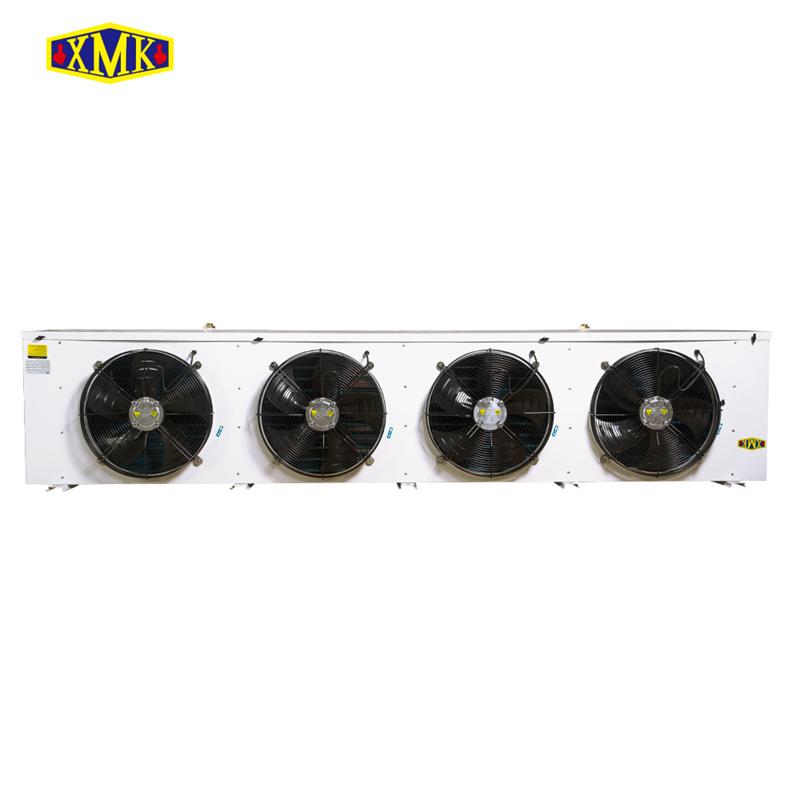

ND series is a general type industrial wall mounted evaporator for various cold rooms. Design in hinged structure for both side plates and external drip tray which is convenient and quick to operate.  Voltage in 220V or 380V .

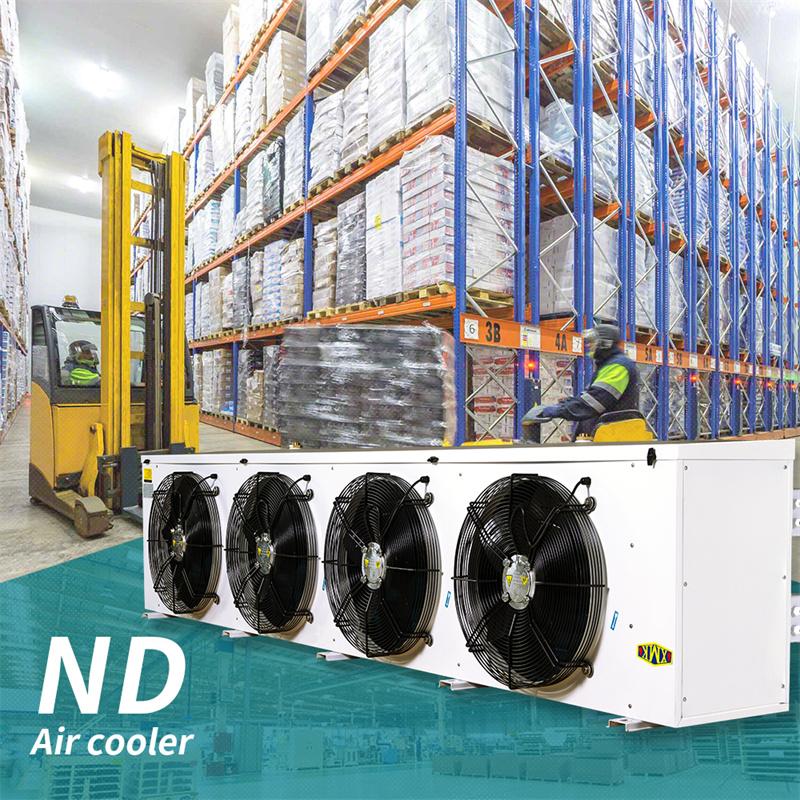

ND series industrial wall mounted air cooler is use for various cold storages, such as planting greenhouse , food storage cooling system and so on. 2 blower with φ300, φ350,φ400, φ500,φ630.  Stander voltage 380V/3p/50Hz

ND series is a general type industrial wall mounted evaporator for various cold rooms. Design in hinged structure for both side plates and external drip tray which is convenient and quick to operate. Voltage in 220V or 380V .

2EES-3 Bitzer Condensing Unit Compressor Cold RoomProduct description:BUB series horizontal box-type condensing units have the following characteristics.1.Products adopt horizontal box-type structure,high wind circle design, Excellent ventilationeffect and appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Adopted semi-hermetic piston compressorswith BITZER or FRASCOLD to meet the applica-tion of medium temperature and low tempera-ture respectively.4.Adopted U-type condenser, it has large wind-ward side, small wind resistance and goodheat transfer effect.5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. 2EES-3 Bitzer Condensing Unit Date: Power Supply  380V 50Hz 3phase Apply Temp. -5 to 5 degree Compressor Model 2EES-3 Compressor Max.I(A) 7.5 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min)1380 Suction Line (mm) 22 Liquid Line （mm） 12.7 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815

This series of products is mainly developed for commercial and supermarket applications；

RC series air cooled condensers are mainly equipped with large heat transfer demand, large-scale remote-mounted condensing units, piston parallel units and screw units.

S6F-30.2Y Cool Storage Bitzer Compressor Refrigeration Unit  Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability. 2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency. 4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Bitzer S6F-30.2Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -25 to -55 degree Compressor Model S6F-30.2Y Compressor Max.I(A) 51 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 4.4 Fan Power (W) 548X4 Suction Line (mm) 42 Liquid Line （mm） 22 Size length (mm) 1550 Size Width (mm) 1250 Size Height (mm) 1630

4HE-18Y Air Cooled Bitzer Compressor Refrigeration Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4HE-18Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model 4HE-18Y Compressor Max.I(A) 36.7 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240x4 Suction Line (mm) 42 Liquid Line （mm） 22 Size length (mm) 1435 Size Width (mm) 1150 Size Height (mm) 1430

XMK-5201 1/2 ODF Oil Separator RefrigerationWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.
