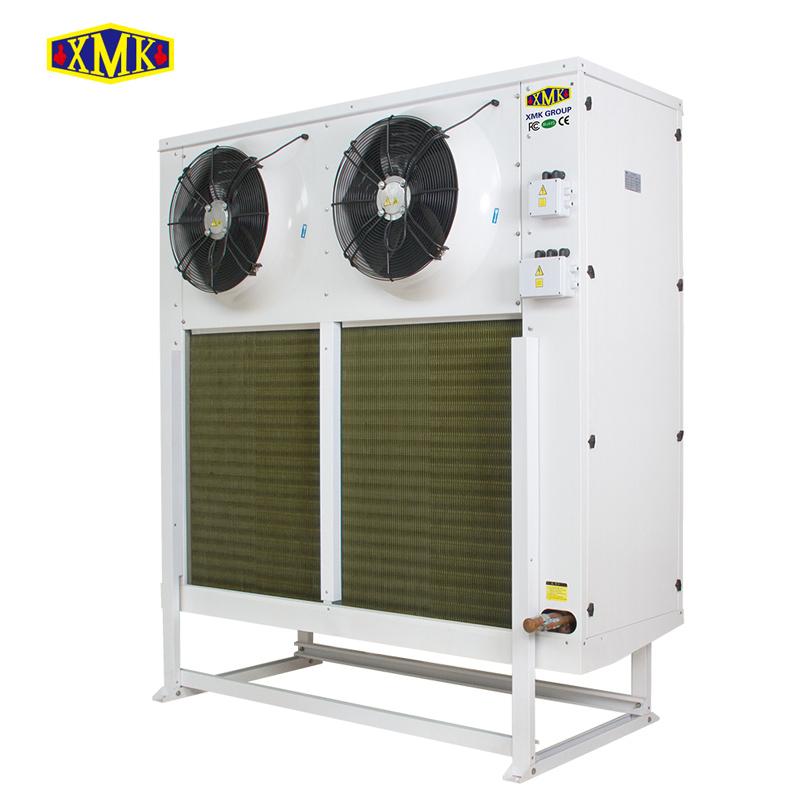

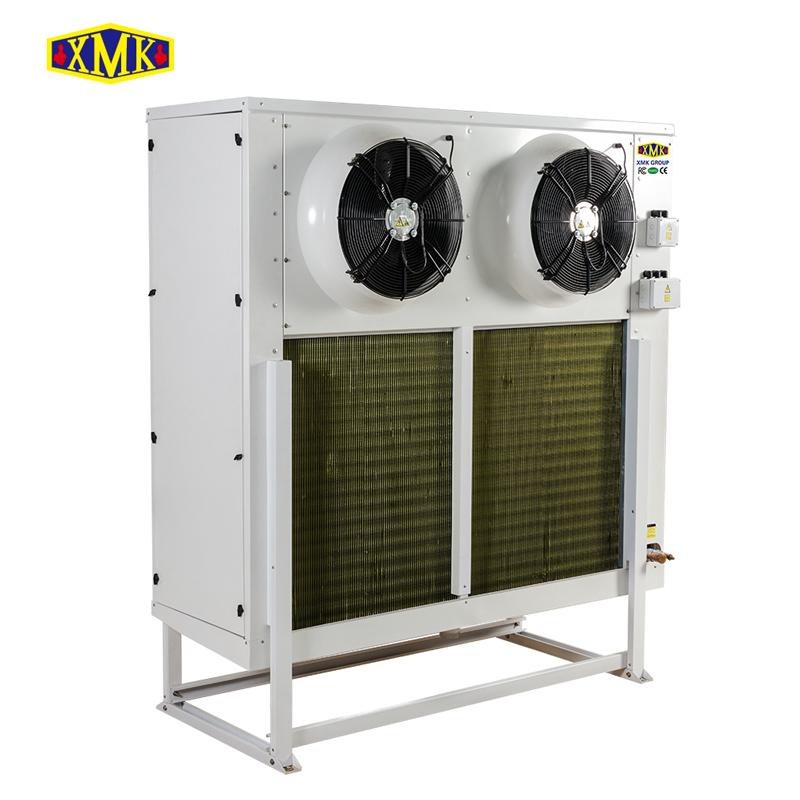

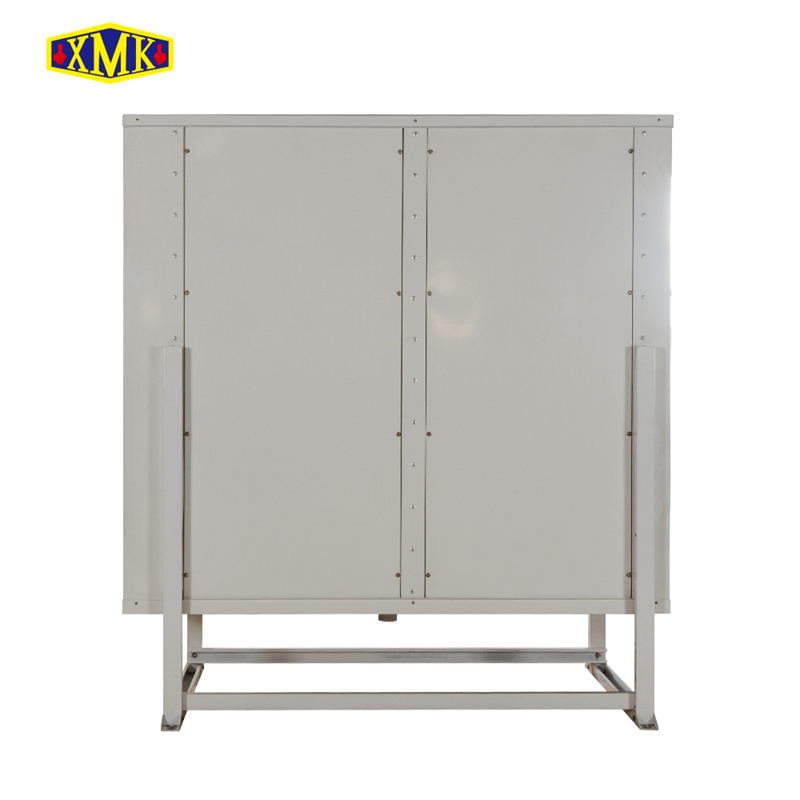

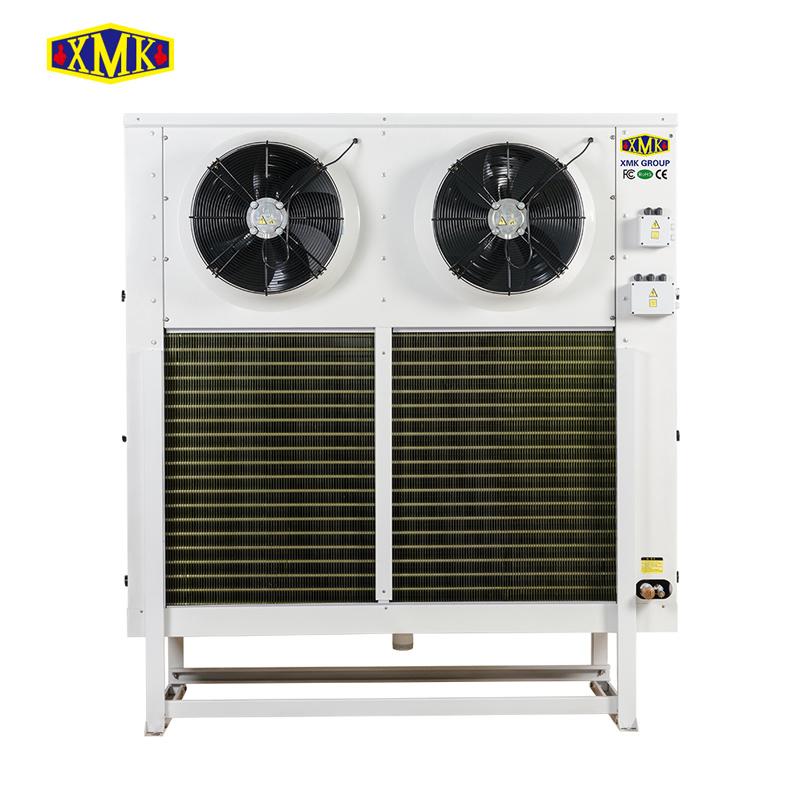

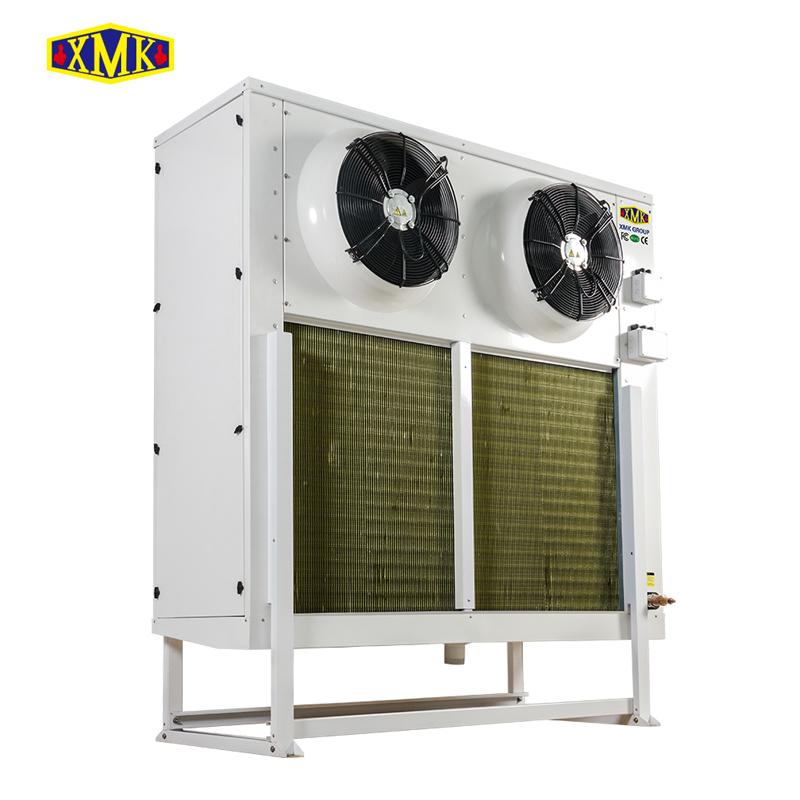

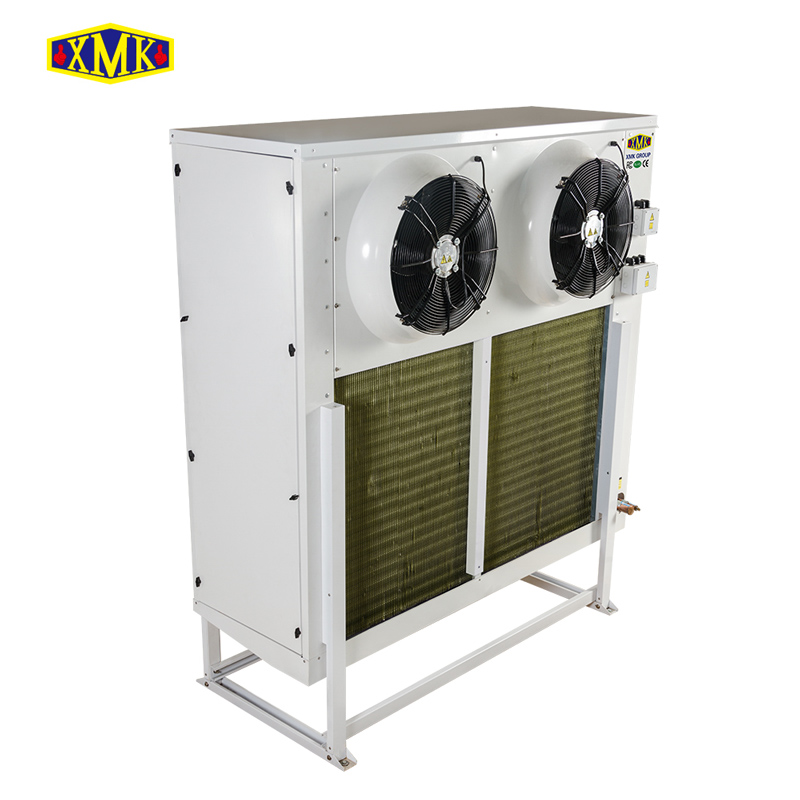

Efficient recirculating freezer room air cooler

LS series is XMK second generation quick-frozen air cooler which mainly use for freezer cold storage as evaporator, such as food storage , ice rink , beverage factory and so on. It is design with that efficient recirculating and allows for installation in very close to walls to save spacing.

Fan blade φ500 andφ630

  • Item NO.:

    LS124/250L
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    white
  • Shipping Port:

    Guangzhou

Product Feature

  • Casing:Adopt high-quality steel plate with powder coating RAL9003;

  • Heat exchanger coil:

Copper tubingφ15,Spacing 50×50

Corrugated aluminium fins,fin spacing 6.4mm,9.0mm&12.0mm

  • External rotor fans with fan blade φ500 andφ630,

  • Working temperature -40~60℃

Independent Fans junction box

  • Electric Defrosting

Using stainless heating pipe, installed in the middle of coil and inner water plate

Independent electric heating pipe junction box

  • Refrigerants : It can meet the requirements of R404A, R507A, R448A, R449A, R22 and other refrigerants.

Specification

Fin spacing in 6.4mm , model for -18° C cold storage

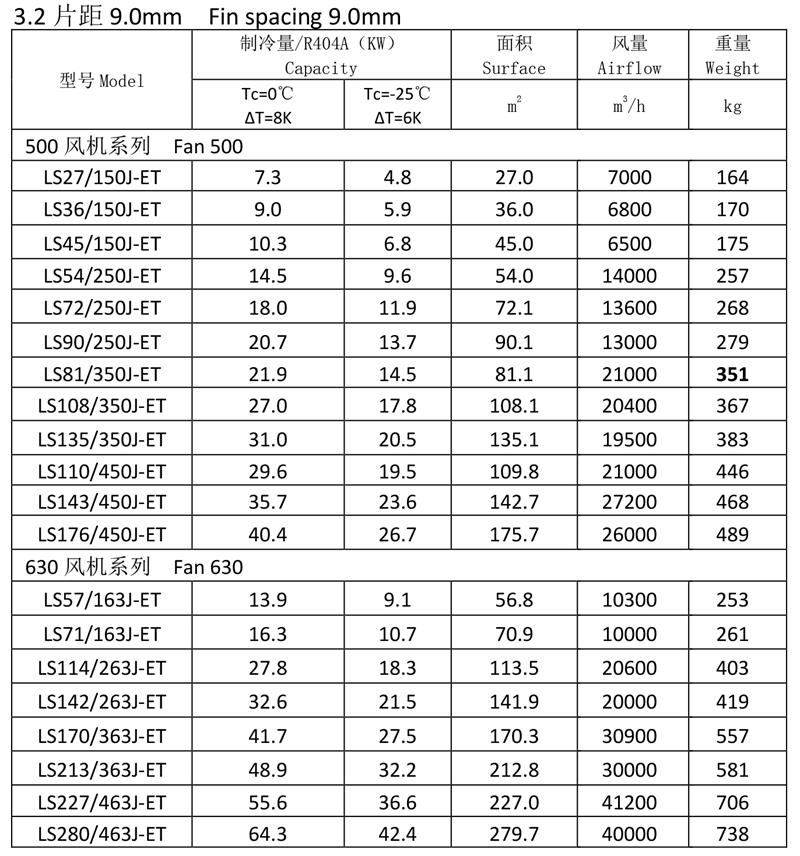

6.4mm.jpgFin spacing in 9.0 , model for -18°C to -25°C cold storage
