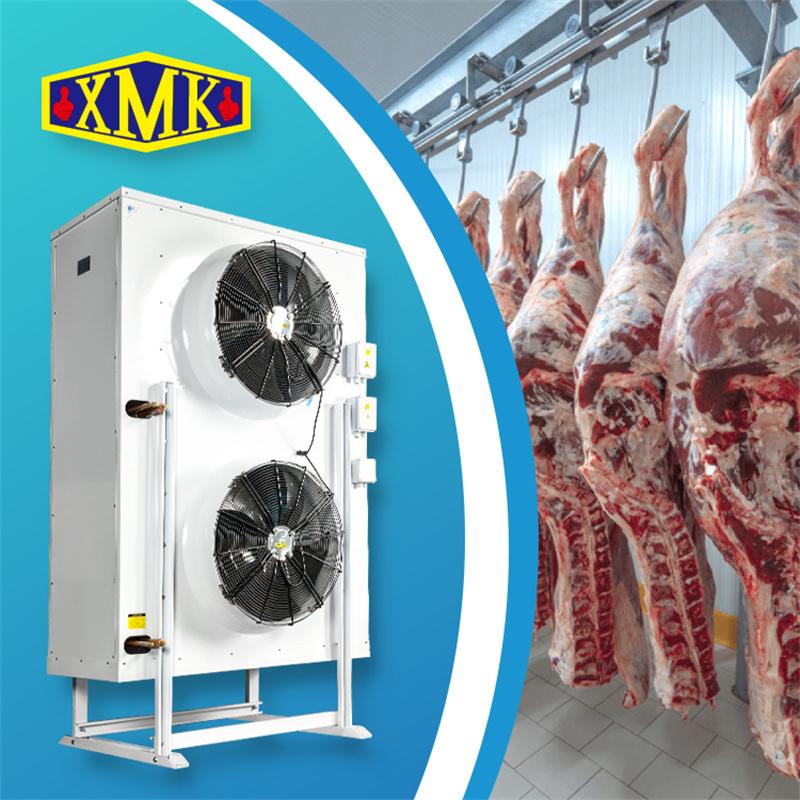

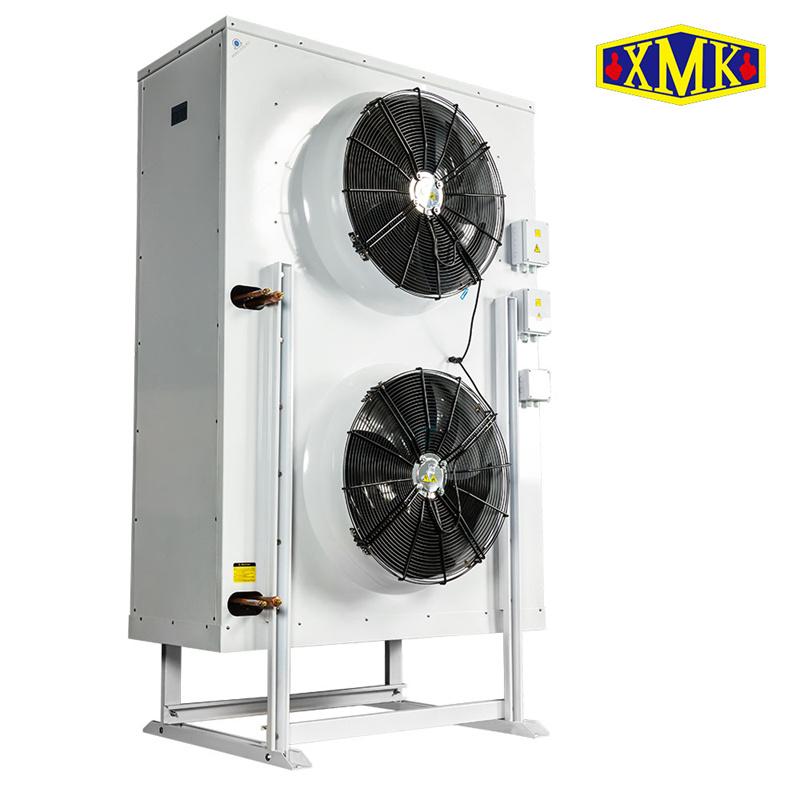

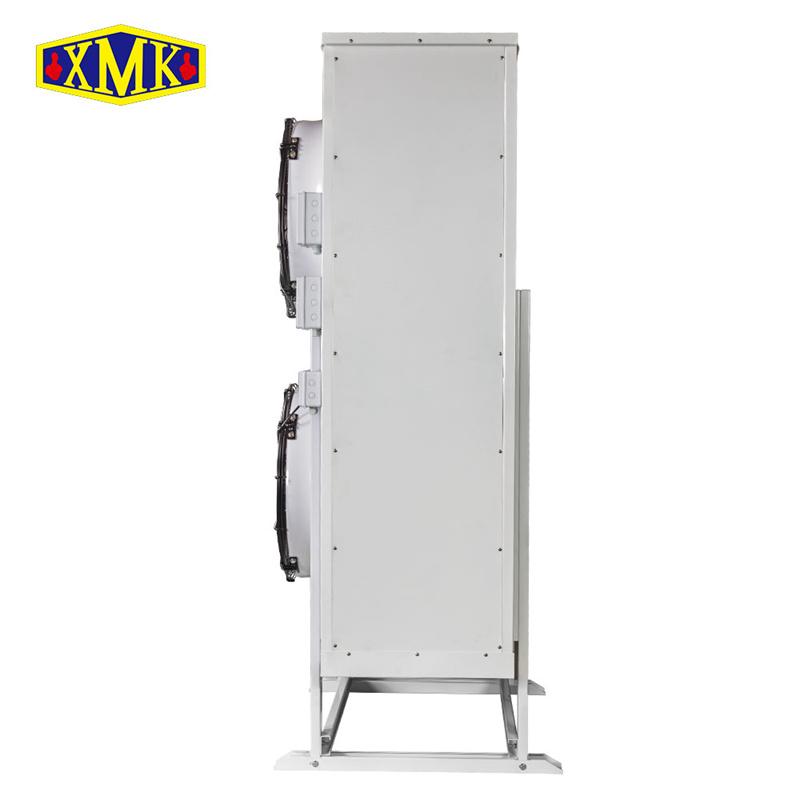

LQF series Ground-type fast freezer special evaporator

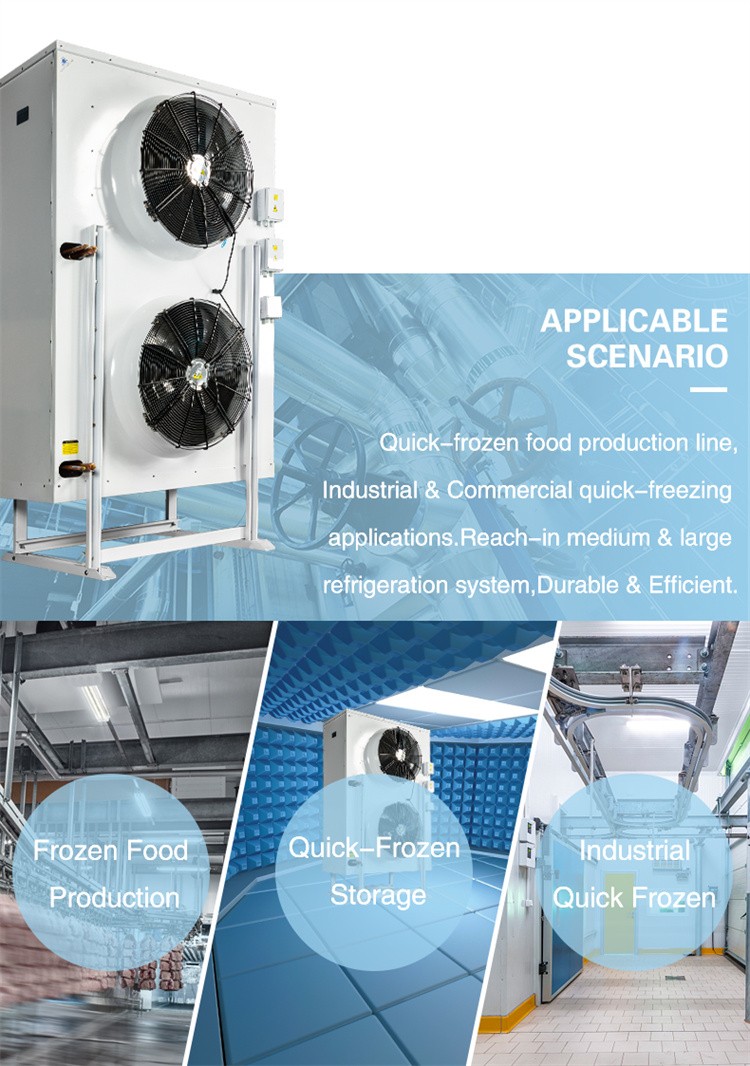

LQF series groud-type freezer evaporators is mainly apply for quick-frozen cold storage require -18°C to -35 °C. Special external rotor fans with blow wind type and high wind pressure design to keep the large heat exchanger area enought.

Fan blade diameter 630mm.



  • Item NO.:

    LQF100/263L
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    white
  • Shipping Port:

    Guangzhou

Product Feature

  • Casting:  Adopt high-quality steel plate with powder coating RAL9003

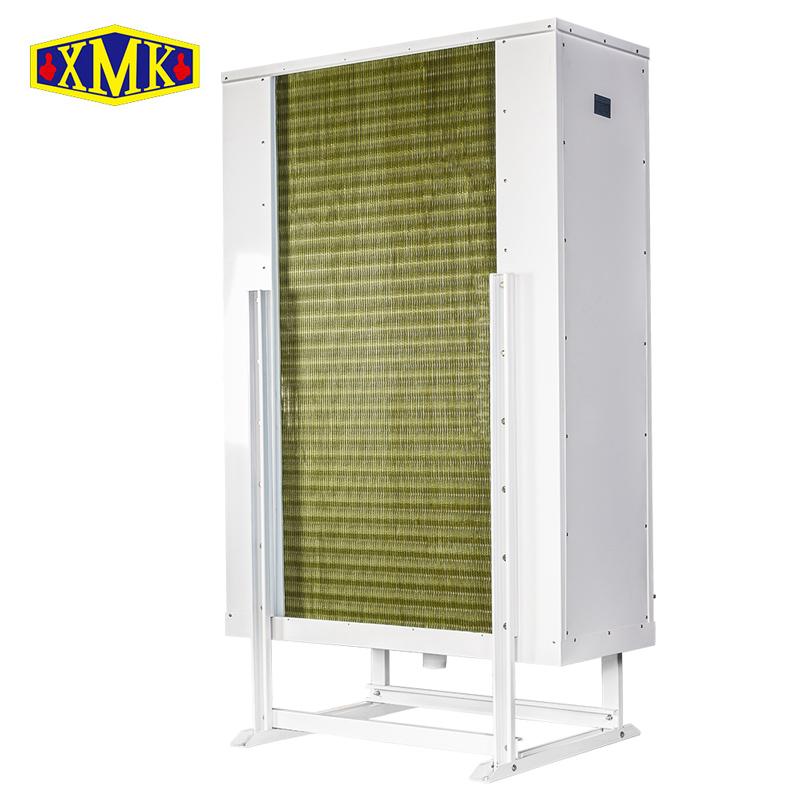

  • Heat exchanger coil : copper tubingφ15,spacing 50×50

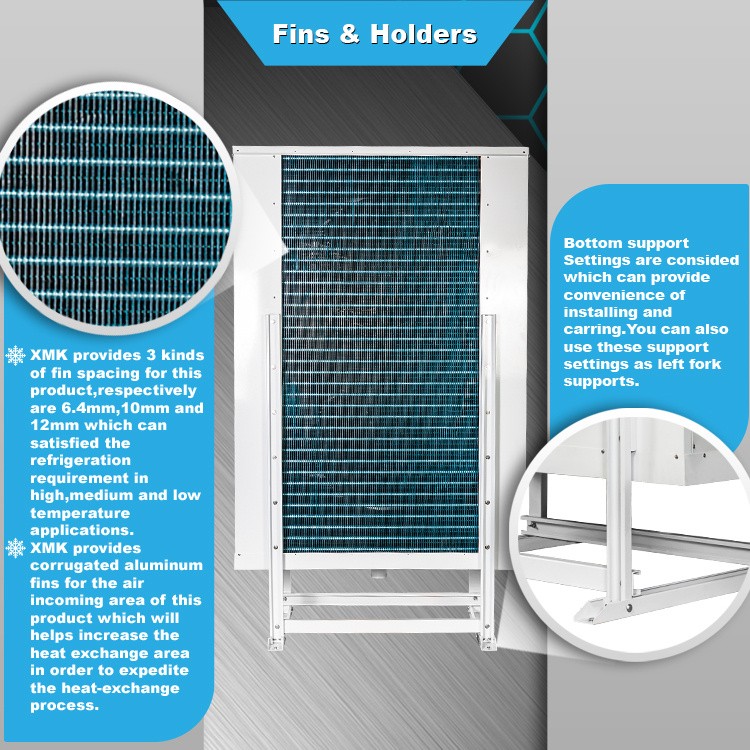

Corrugated aluminium fins,fin spacing 6.4mm,10mm and 12mm

  • Defrosting : Electric defrosting,using stainless heating pipes, installed in the middle of coil and inner water plate.

Independent electric heating pipe junction box.

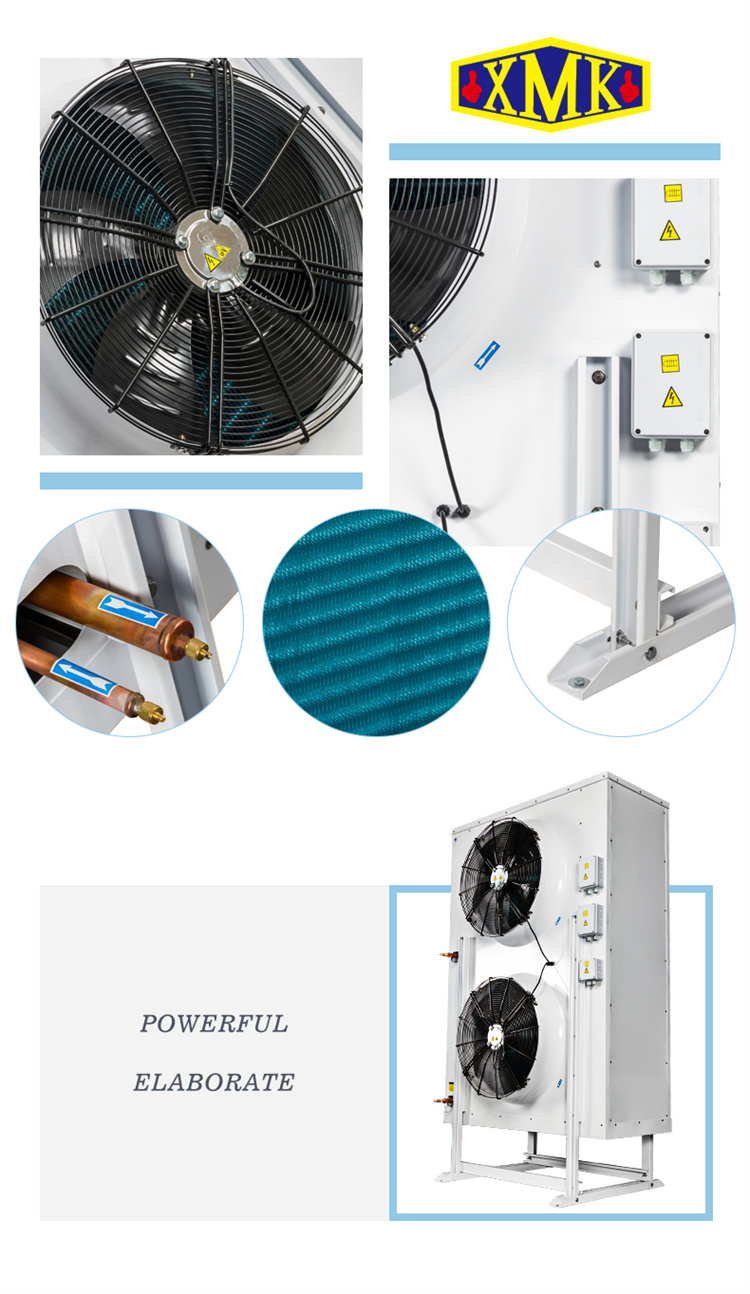

  • Fans : External rotor motor with blow wind type, high wind pressure design .

Working temperature -50°C to 60℃.

Independent fans junction box

Fan bladeφ630mm

  • Refrigerants :  meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants

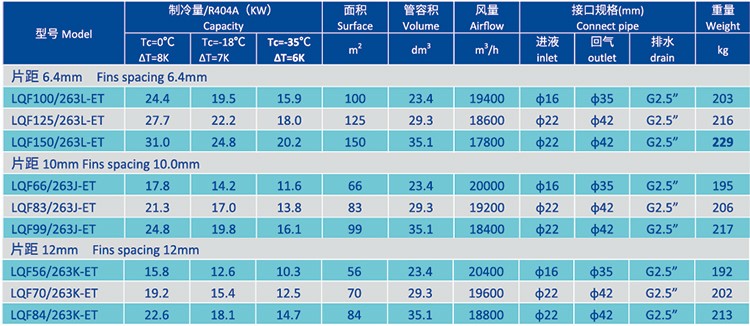

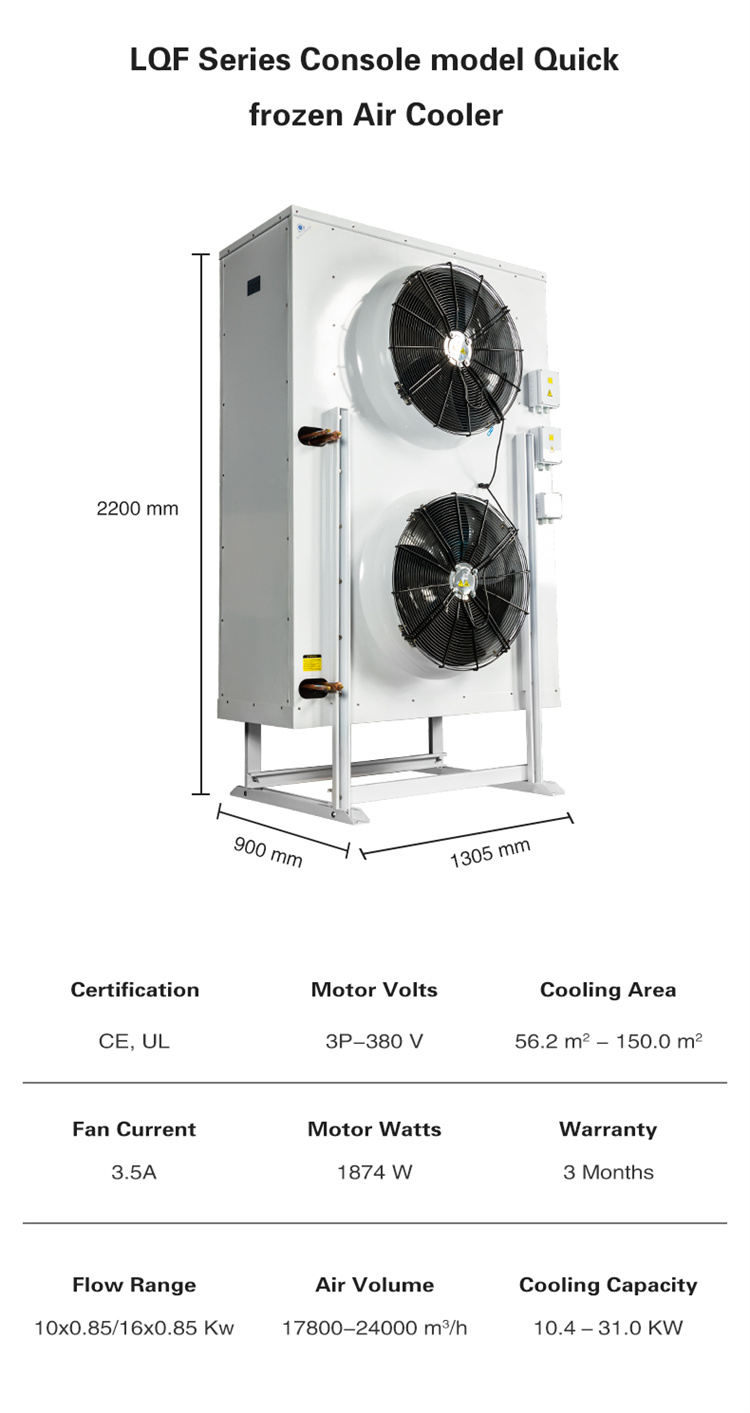

Specification

Two fan's blowers models , fin spacing in 6.4mm, 10mm and 12mm

双风数据.jpg双风口详情 (1).jpg双风口详情 (4).jpg双风口详情 (3).jpg双风口详情 (2).jpg
