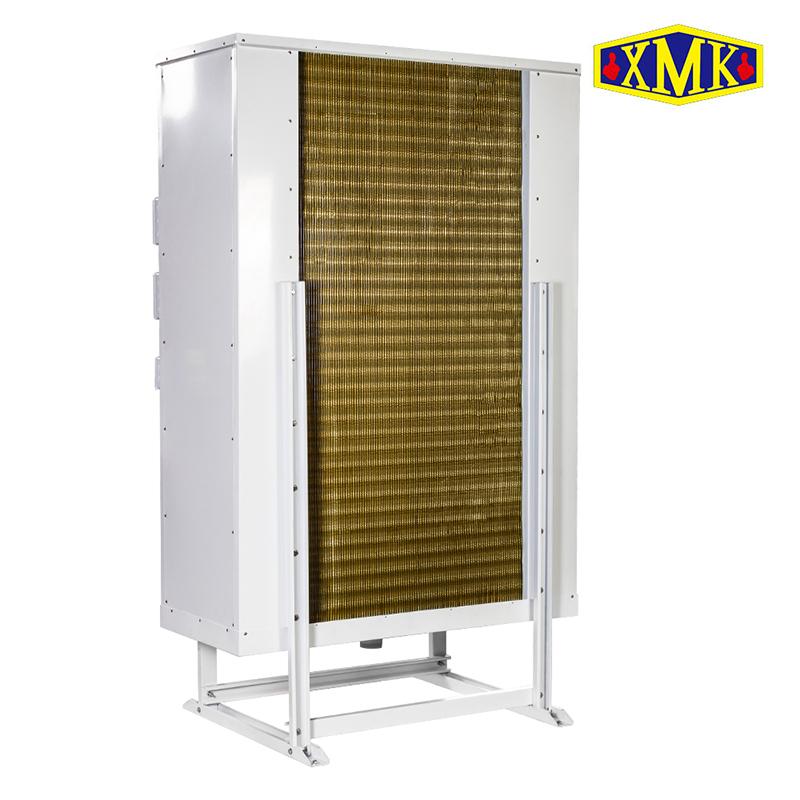

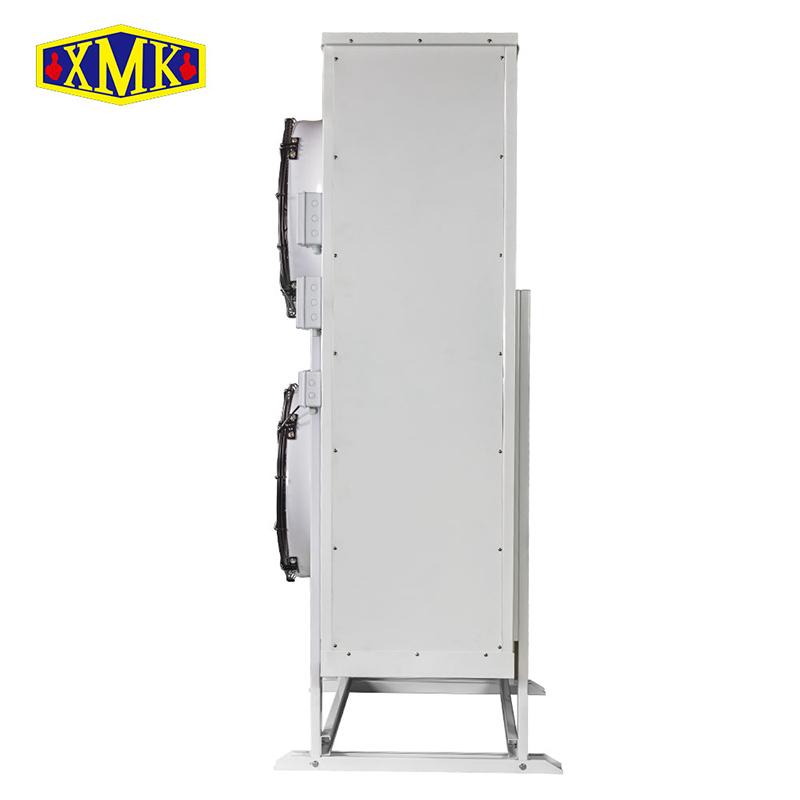

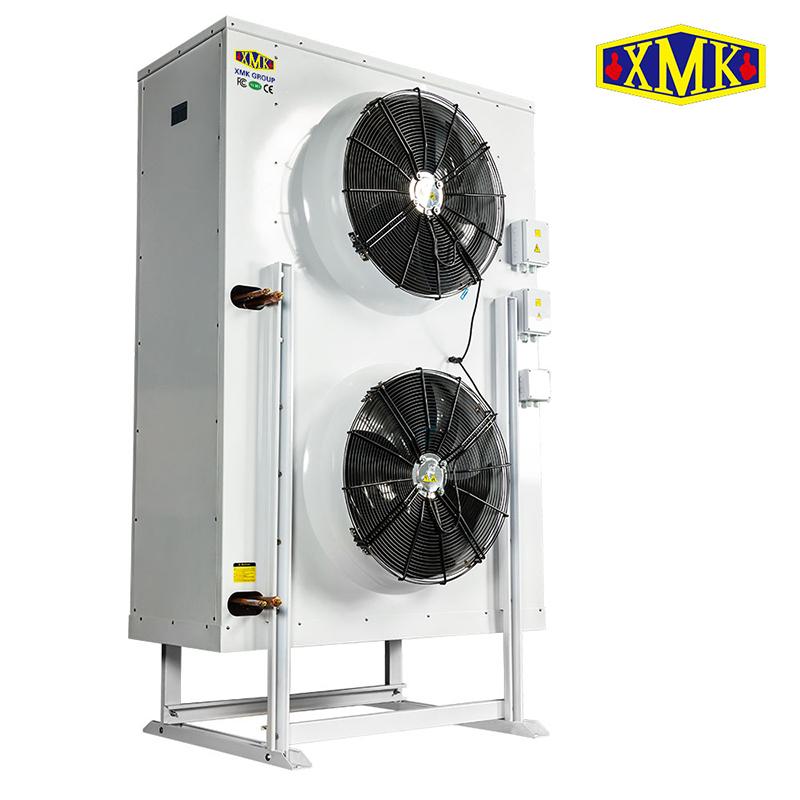

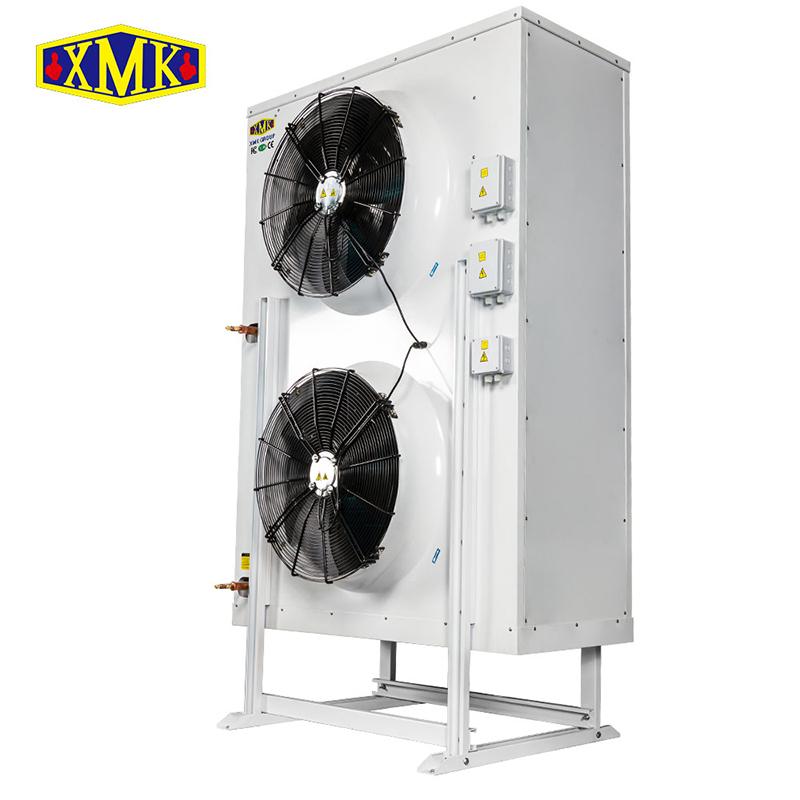

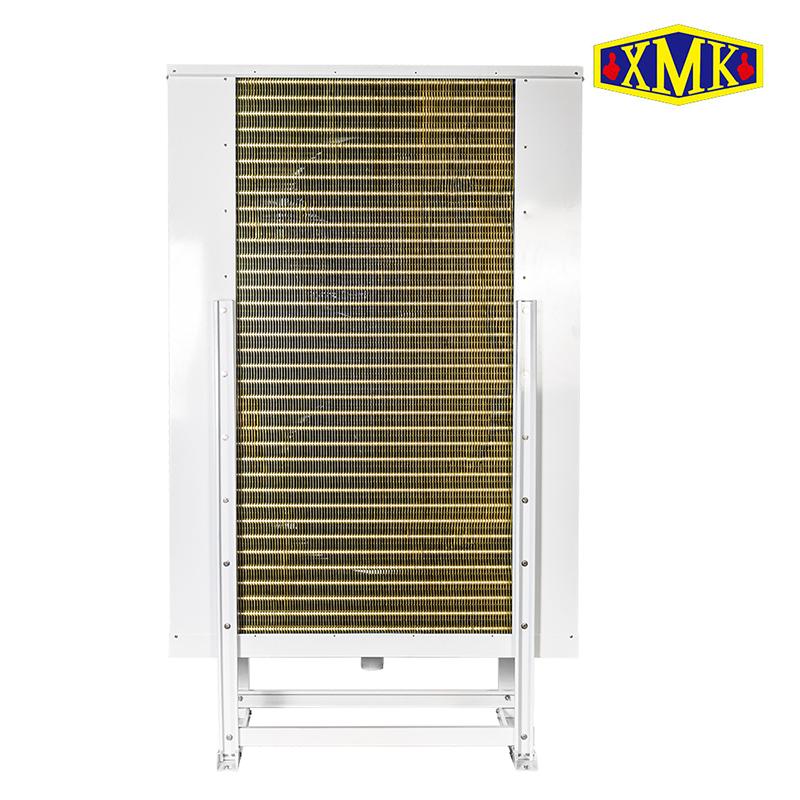

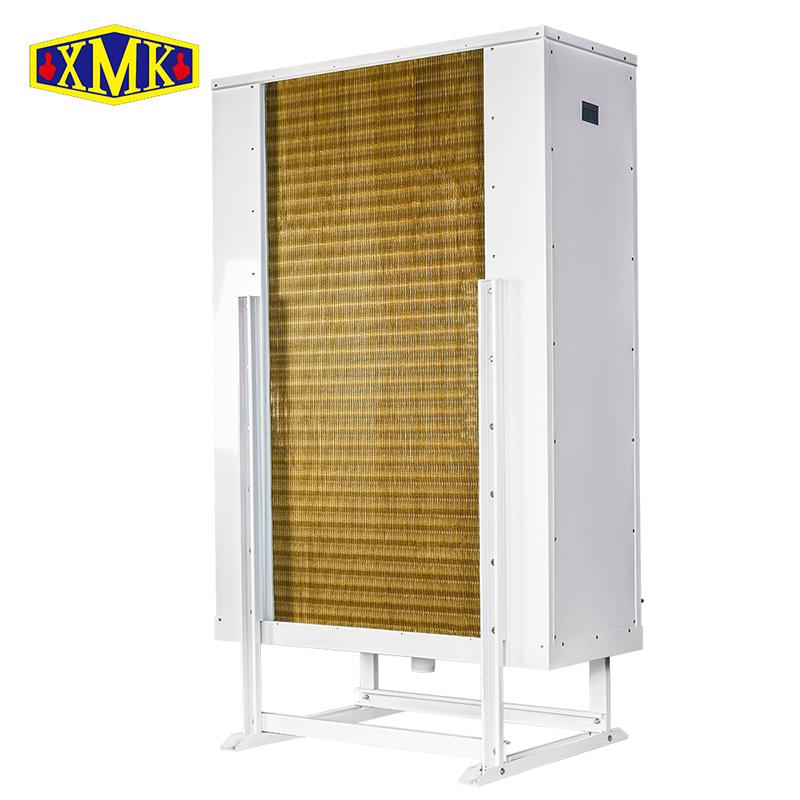

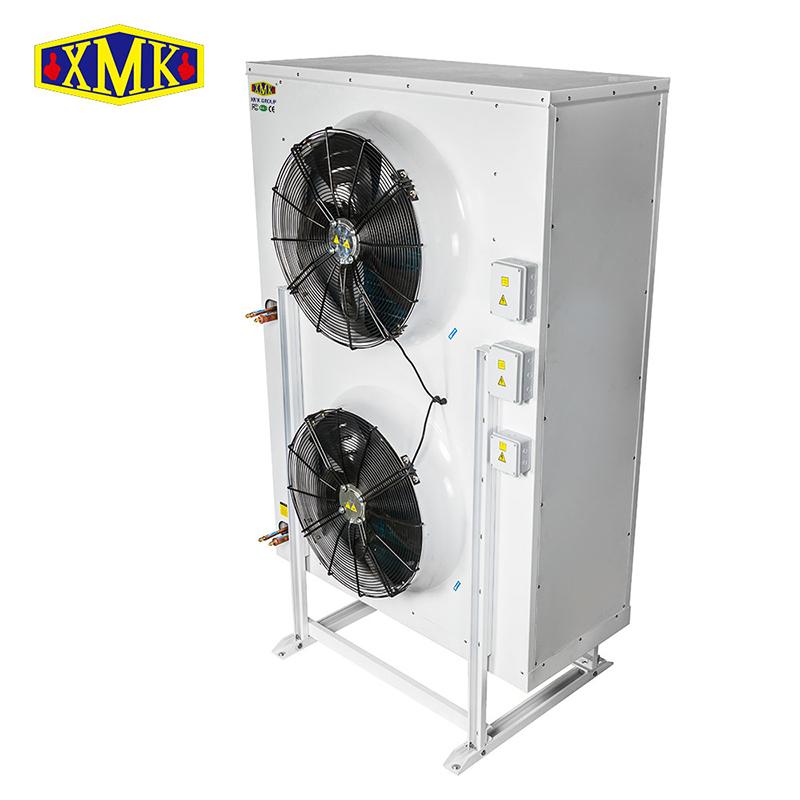

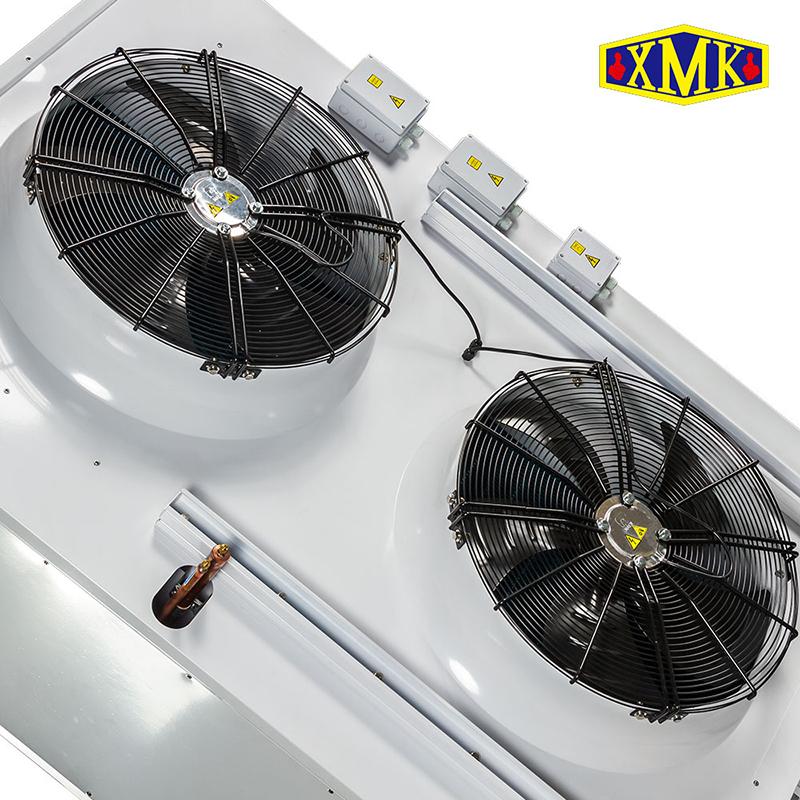

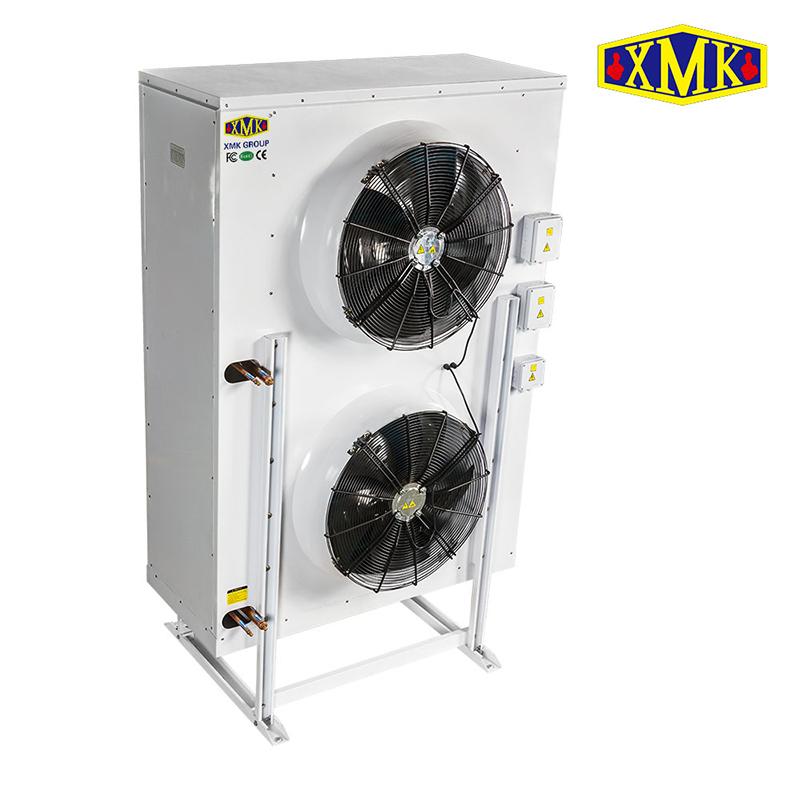

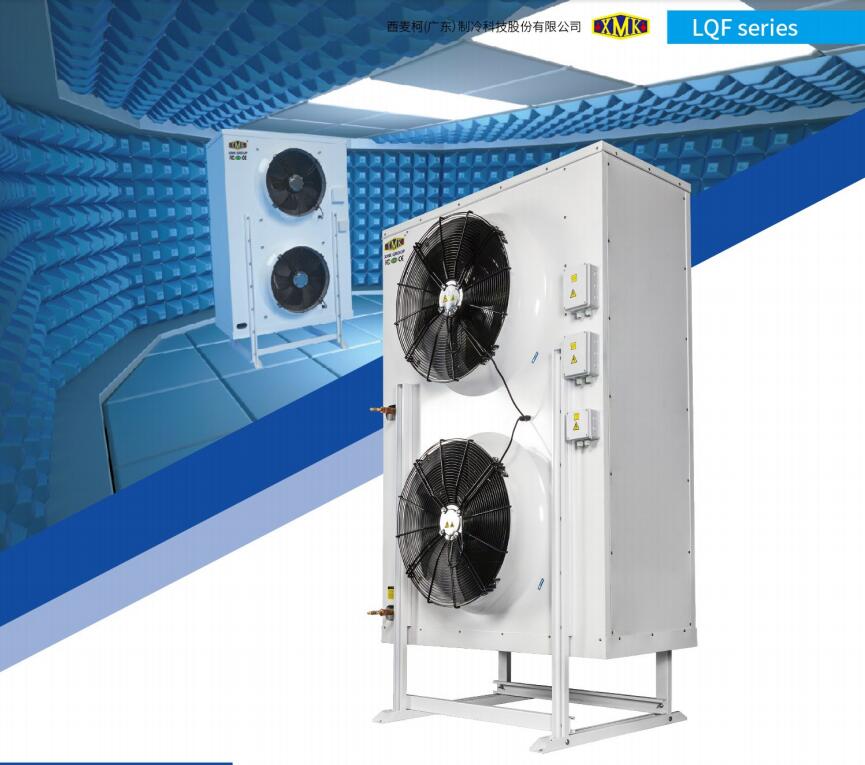

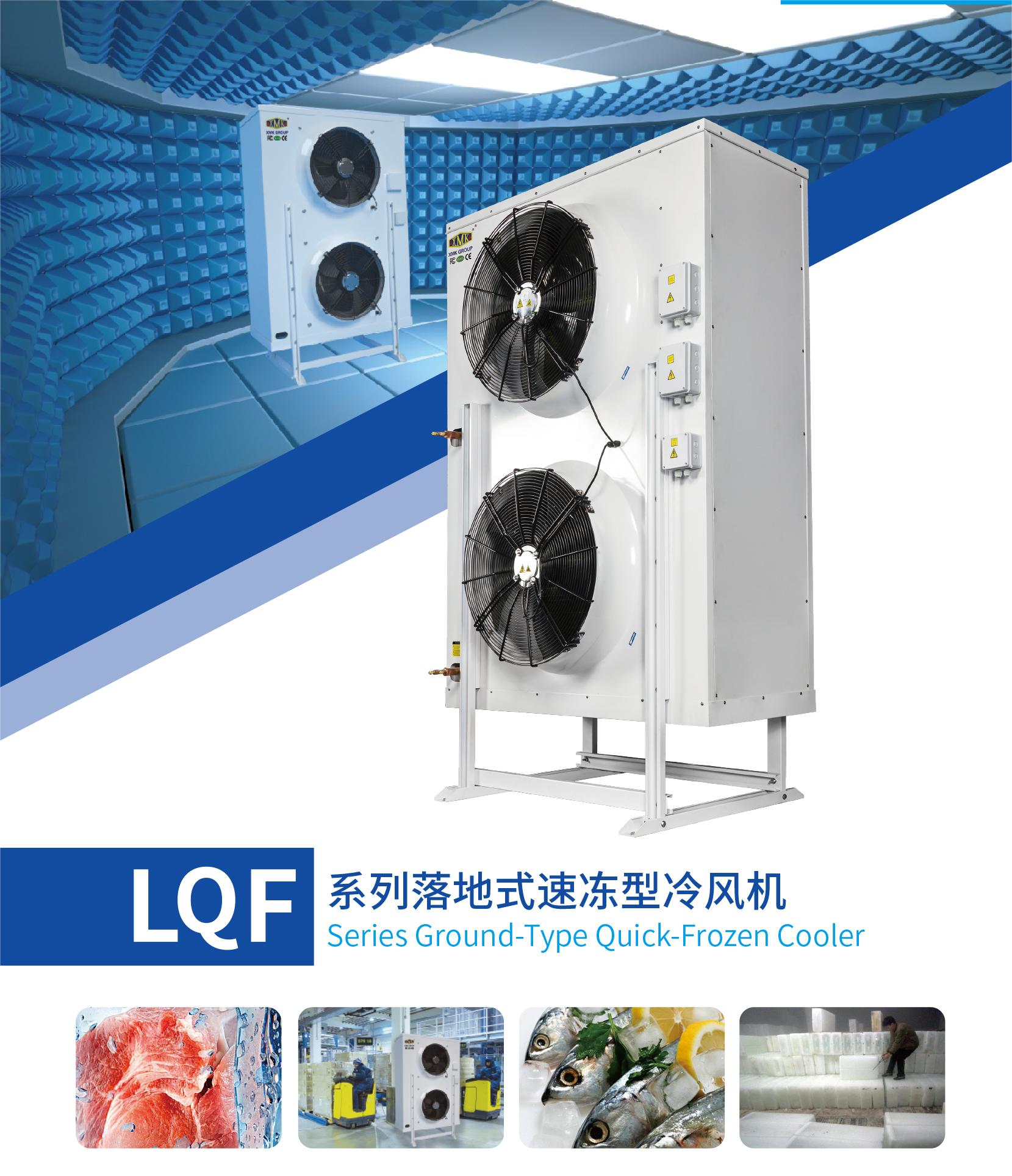

LQF Series Ground-Type Quick-Frozen Cooler

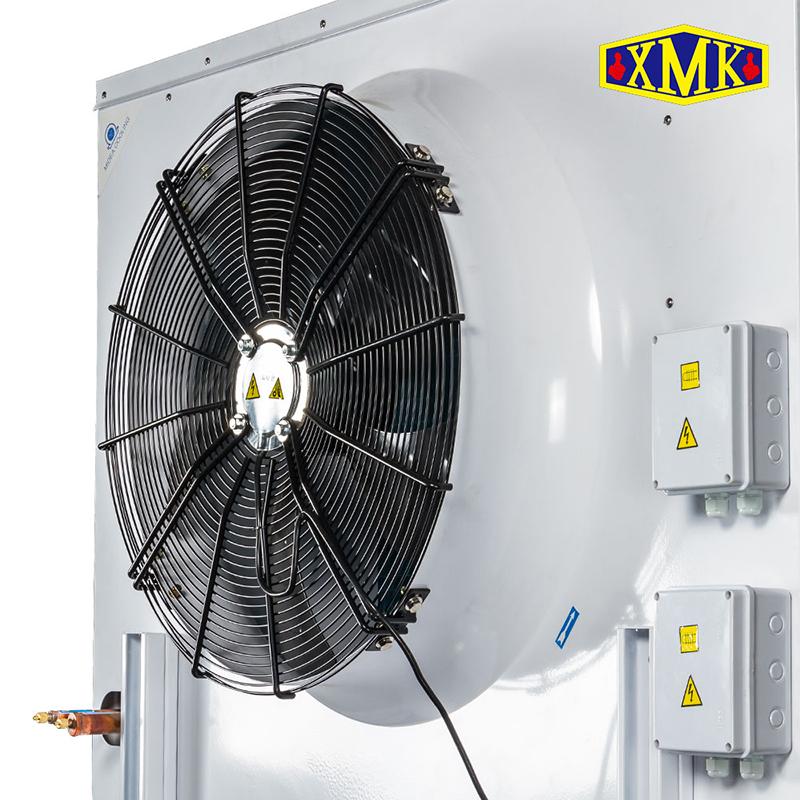

LQF series groud-type freezer evaporators is mainly apply for quick-frozen cold storage require -18°C to -35 °C. Special external rotor fans with blow wind type and high wind pressure design to keep the large heat exchanger area enought.  Fan blade diameter 630mm.

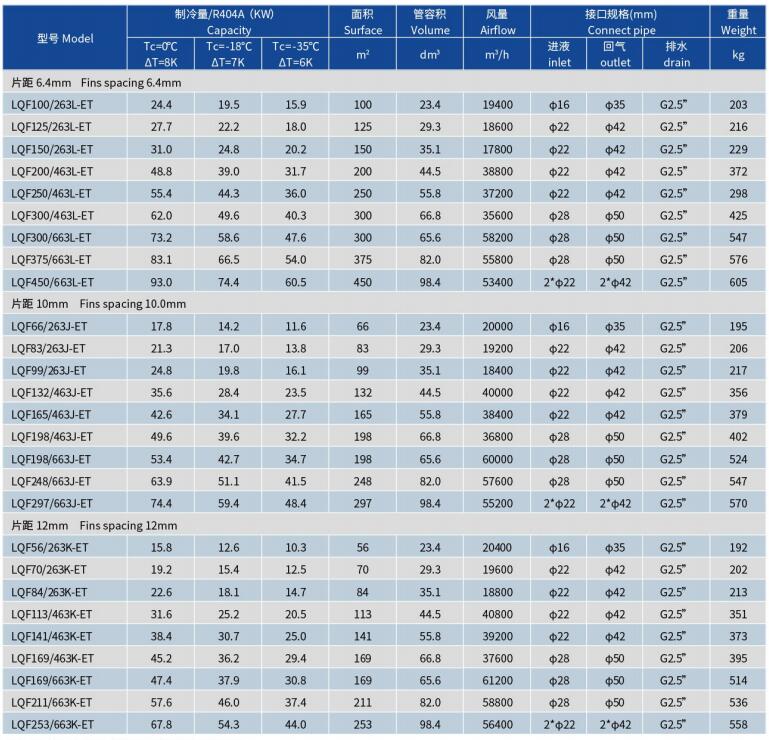

LQF series quick-frozen cold storage air cooler apply for meat ,seafood or others cold storage freezer room. Total 3 type of fin spacing in 6.4mm, 10mm and 12mm to meet different cold room temperature requirement. Fan blade diameter 630mm. voltage 380V

LS series is XMK second generation quick-frozen air cooler which mainly use for freezer cold storage as evaporator, such as food storage , ice rink , beverage factory and so on. It is design with that efficient recirculating and allows for installation in very close to walls to save spacing. Fan blade φ500 andφ630

LS series is XMK second generation quick-frozen air cooler which mainly use for freezer cold storage as evaporator, such as food storage , ice rink , beverage factory and so on. It is design with that efficient recirculating and allows for installation in very close to walls to save spacing.

LQF series quick-frozen cold storage air cooler apply for meat ,seafood or others cold storage freezer room. Total 3 type of fin spacing in 6.4mm,10mm and 12mm to meet different cold room temperature requirement. Especially to -20°C to -35°C.

ZB Copeland Chiller Compressor Condensing Unit For Cold StorageThis BUW-A series products with Emerson scroll compressor,applicable to cold display cabi-nets, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5'C~ 10"C.-l0'C~ -18C-18'C~-23"C. They can be widely used in hotels, restaurants, medicines, agricultur-al, chemicals industries all other place where cold storage is needed.1.Products adopt vertical box-type structure,compact structure design, excellent appear-ance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series scrollcompressor and ZSI series scroll compressorwith DTC spray to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt L-type condenser, it has large windwardside, small wind resistance and good heattransfer effect.5.Adopt 6-pole external rotor motor with lowspeed and low noise.6.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Copeland ZB21KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB21KQE Compressor Max.I(A) 8 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.5 Rev.(r/min)910 Suction Line (mm) 19 Liquid Line （mm） 9.5 Size length (mm) 1040 Size Width (mm) 570 Size Height (mm) 700

S4T-5.2Y Bitzer Condensing Unit For Cold Storage Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer S4T-5.2Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -25 to -55 degree Compressor Model S4T-5.2Y Compressor Max.I(A) 14 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.04 Fan Power (W) 240X4 Suction Line (mm) 28 Liquid Line （mm） 12 Size length (mm) 1435 Size Width (mm) 1050 Size Height (mm) 830

6GE-40Y Bitzer Chiller Cold Room Compressor Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 6GE-40Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 6GE-40Y Compressor Max.I(A) 7 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 7 Fan Power (W) 937x4 Suction Line (mm) 54 Liquid Line （mm） 22 Size length (mm) 1800 Size Width (mm) 1300 Size Height (mm) 1880

ND series is a general type industrial wall mounted evaporator for various cold rooms. Design in hinged structure for both side plates and external drip tray which is convenient and quick to operate.  Voltage in 220V or 380V .
