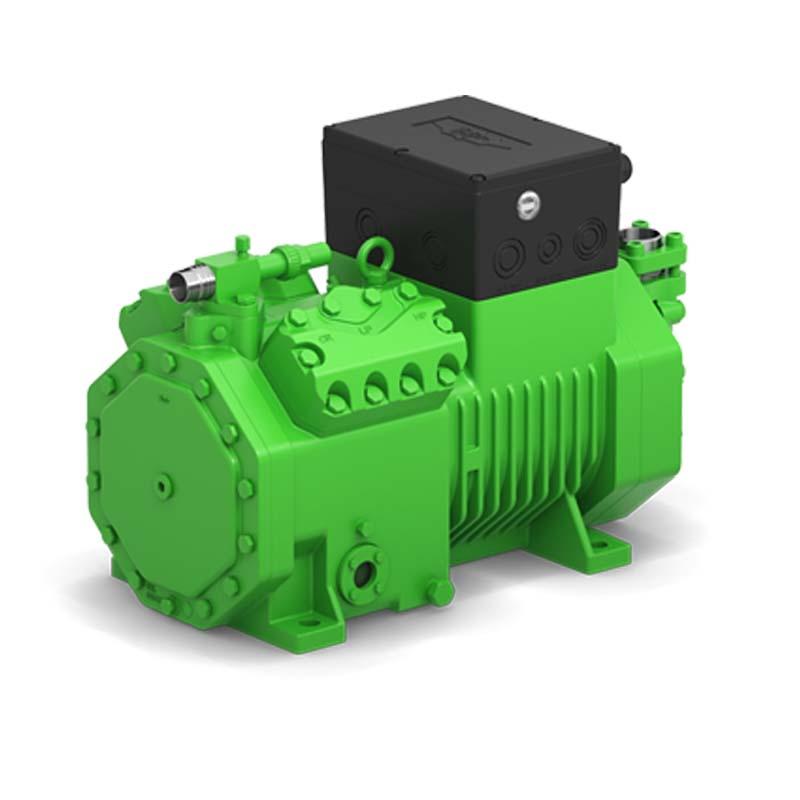

SEMI-HERMETIC For standard refrigerants
Universal and environmentally friendly: ECOLINE reciprocating compressors offer high cooling capacity with minimal energy requirements and are optimised for HFC, HFO and low-GWP refrigerants. The optional VARISTEP mechanical capacity control offers high part-load efficiency in medium and low temperature application.
Item NO.:
4TES-9(Y)Order(MOQ):
1Payment:
EXWProduct Origin:
CHINAColor:
green colorShipping Port:
GuangzhouLead Time:
7-35daysSEMI-HERMETIC For standard refrigerants
Universal and environmentally friendly: ECOLINE reciprocating compressors offer high cooling capacity with minimal energy requirements and are optimised for HFC, HFO and low-GWP refrigerants. The optional VARISTEP mechanical capacity control offers high part-load efficiency in medium and low temperature application.
SI | IP | |
Displacement (1450 RPM 50Hz) | 41,33 m3/h | 1459.6 CFH |
Displacement (1750 RPM 60Hz) | 49,88 m3/h | 1761.5 CFH |
No. of cylinder x bore x stroke | 4 x 60 mm x 42 mm | 4 x 2.36 inch x 1.65 inch |
Weight | 143 kg | 315 lb |
Max. pressure (LP/HP) | 19 / 32 bar | 275 / 464 psi |
Connection suction line | 35 mm - 1 3/8'' | 35 mm - 1 3/8'' |
Connection discharge line | 28 mm - 1 1/8'' | 28 mm - 1 1/8'' |
Oil type R134a/R407C/R404A/R507A/R407A/R407F | BSE32(Standard) | R134a tc>70°C: BSE55 (Option) | BSE32(Standard) | R134a tc>155°F: BSE55 (Option) |
Oil type R22 (R12/R502) | B5.2(Option) | B5.2(Option) |
Oil type R1234yf | BSE32 (Standard) | R1234yf tc>70°C : BSE55 (Option) | BSE32 (Standard) | R1234yf tc>70°C : BSE55 (Option) |
Oil type R1234ze | BSE55 (Standard) | to>15°C: BSE85K (Option) | tc>70°C: BSE85K (Option) | BSE55 (Standard) | to>15°C: BSE85K (Option) | tc>70°C: BSE85K (Option) |
Ölfüllung R454C/R455A | BSE32 (Standard) | BSE32 (Standard) |
SI | IP | |
Motor protection | SE-B1, CM-RC-01(Option) | SE-B1 |
Enclosure class | IP66 | IP66 |
Vibration dampers | Standard | Standard |
SI | IP | |
Discharge gas temperature sensor | Option | Option |
Capacity control | 100-50% (Option) | 100-50% (Option) |
Refrigerant Injection (RI) | Option | Option |
Oil level monitoring | OLC-K1 (Option) | OLC-K1 (Option) |
Start unloading | Option | Option |
Oil service valve | Option | Option |
Oil charge | 2,60 dm³ | 91.5 fl oz |
Discharge shut-off valve | Standard | Standard |
Suction shut-off valve | Standard | Standard |
Capacity Control - infinite | 100-10% (Option) | 100-10% (Option) |
Additional fan | Option | Option |
SI | IP | |
Motor version | 2 | 2 |
Motor voltage (more on request) | 380-420V PW-3-50Hz | 440-480V Y-3-60Hz UL |
Max operating current | 19.9 A | 19.9 A |
Oil type R515B | BSE55 (Standard) | to>15°C: BSE85K (Option) | tc>70°C: BSE85K (Option) | BSE55 (Standard) | to>15°C: BSE85K (Option) | tc>70°C: BSE85K (Option) |
Starting current (Rotor locked) | 49.0 A Y / 81.0 A YY | 90.0 A |
SI | IP | |
Sound power level (-10°C / 45°C) | 74,3 dB(A) @50Hz | 76,8 dB(A) @60Hz |
Sound power level (-35°C / 40°C) | 78,9 dB(A) @50Hz | 81,4 dB(A) @60Hz |
Sound pressure level @ 1m (-10°C / 45°C) | 66,3 dB(A) @50Hz | 68,8 dB(A) @60Hz |
Oil service valve | Option | Option |
Crankcase heater | 0..140 W PTC (Option) | 0..140 W PTC (Option) |
Oil level monitoring | OLC-K1 (Option) | OLC-K1 (Option) |
