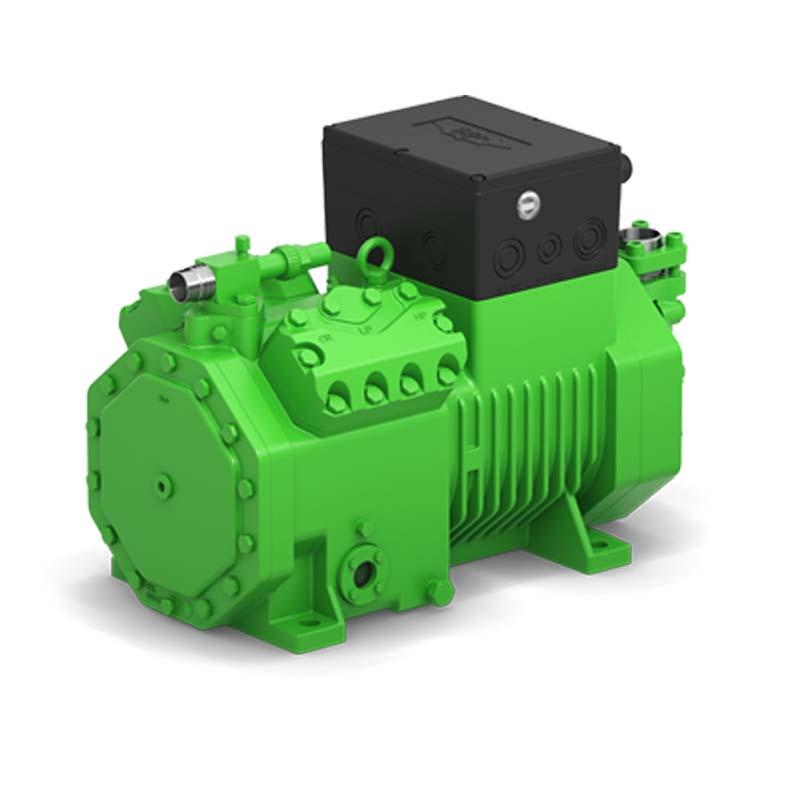

SEMI-HERMETIC For standard refrigerants
Universal and environmentally friendly: ECOLINE reciprocating compressors offer high cooling capacity with minimal energy requirements and are optimised for HFC, HFO and low-GWP refrigerants. The optional VARISTEP mechanical capacity control offers high part-load efficiency in medium and low temperature application.
Item NO.:
4DES-5(Y)Order(MOQ):
1Payment:
EXWProduct Origin:
CHINAColor:
green colorShipping Port:
GuangzhouLead Time：
7-35daysSEMI-HERMETIC For standard refrigerants
Universal and environmentally friendly: ECOLINE reciprocating compressors offer high cooling capacity with minimal energy requirements and are optimised for HFC, HFO and low-GWP refrigerants. The optional VARISTEP mechanical capacity control offers high part-load efficiency in medium and low temperature application.
| SI | IP | |
| Displacement (1450 RPM 50Hz) | 26,84 m3/h | 947.8 CFH |
| Displacement (1750 RPM 60Hz) | 32,39 m3/h | 1143.8 CFH |
| No. of cylinder x bore x stroke | 4 x 50 mm x 39,3 mm | 4 x 1.97 inch x 1.55 inch |
| Weight | 94 kg | 207 lb |
| Max. pressure (LP/HP) | 19 / 32bar | 275 / 464 psi |
| Connection suction line | 28 mm - 1 1/8'' | 28 mm - 1 1/8'' |
| Connection discharge line | 22 mm - 7/8'' | 22 mm - 7/8'' |
| Oil type R134a/R407C/R404A/R507A/R407A/R407F | BSE32(Standard) | R134a tc>70°C: BSE55 (Option) | BSE32(Standard) | R134a tc>155°F: BSE55 (Option) |
| Oil type R22 (R12/R502) | B5.2 (Option) | B5.2 (Option) |
| Oil type R1234yf | BSE32 (Standard) | R1234yf tc>70°C : BSE55 (Option) | BSE32 (Standard) | R1234yf tc>70°C : BSE55 (Option) |
| Oil type R1234ze | BSE55 (Standard) | to>15°C: BSE85K (Option) | tc>70°C: BSE85K (Option) | BSE55 (Standard) | to>15°C: BSE85K (Option) | tc>70°C: BSE85K (Option) |
| Ölfüllung R454C/R455A | BSE32 (Standard) | BSE32 (Standard) |
| SI | IP | |
| Motor protection | SE-B1 | SE-B1 |
| Enclosure class | IP66 | IP66 |
| Vibration dampers | Standard | Standard |
| Oil charge | 2,00 dm³ | 70.4 fl oz |
| SI | IP | |
| Discharge gas temperature sensor | Option | Option |
| Capacity control | 100-50% (Option) | 100-50% (Option) |
| Oil level monitoring | OLC-K1 (Option) | OLC-K1 (Option) |
| Capacity Control - infinite | 100-10% (Option) | 100-10% (Option) |
| Crankcase heater | 0..120 W PTC (Option) | 0..120 W PTC (Option) |
| Discharge shut-off valve | Standard | Standard |
| Suction shut-off valve | Standard | Standard |
| Additional fan | Option | Option |
| SI | IP | |
| Motor version | 2 | 2 |
| Motor voltage (more on request) | 380-420V Y-3-50Hz | 440-480V Y-3-60Hz UL |
| Max operating current | 14.5 A | 14.5 A |
| Oil type R515B | BSE55 (Standard) | to>15°C: BSE85K (Option) | tc>70°C: BSE85K (Option) | BSE55 (Standard) | to>15°C: BSE85K (Option) | tc>70°C: BSE85K (Option) |
| Starting current (Rotor locked) | 62.2 A | 66.5 A |
| SI | IP | |
| Crankcase heater | 0..120 W PTC (Option) | 0..120 W PTC (Option) |
| Sound power level (-10°C / 45°C) | 73,6dB(A) @ 50Hz | 75,1 dB(A) @ 60Hz |
| Sound power level (-35°C / 40°C) | 74,5 dB(A) @ 50Hz | 77,0 dB(A) @ 60Hz |
| Sound pressure level @ 1m (-10°C / 45°C) | 65,66dB(A) @ 50Hz | 67,1 dB(A) @ 60Hz |
| Oil level monitoring | OLC-K1 (Option) | OLC-K1 (Option) |
