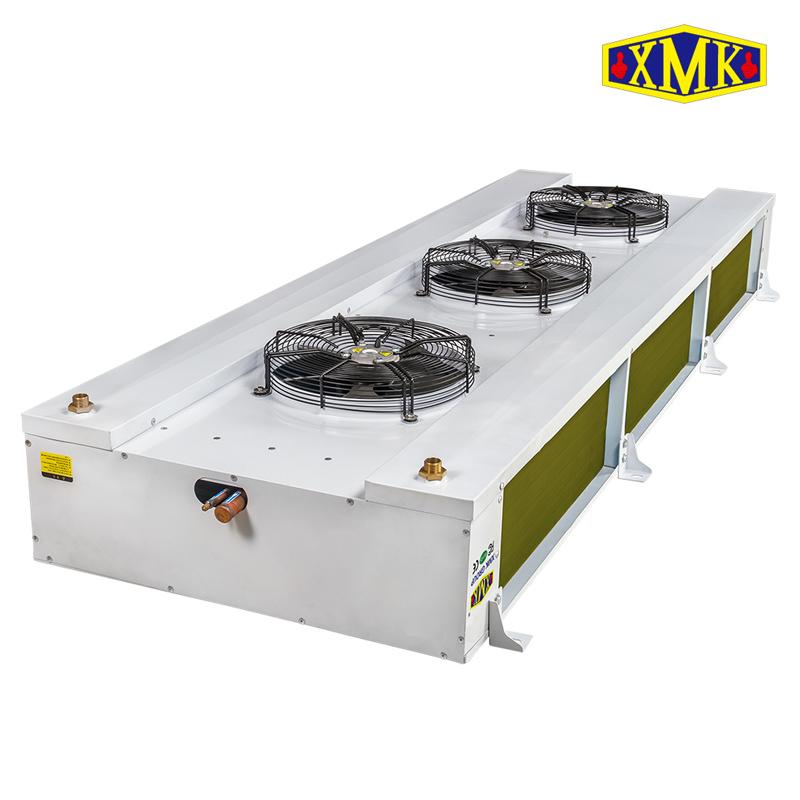

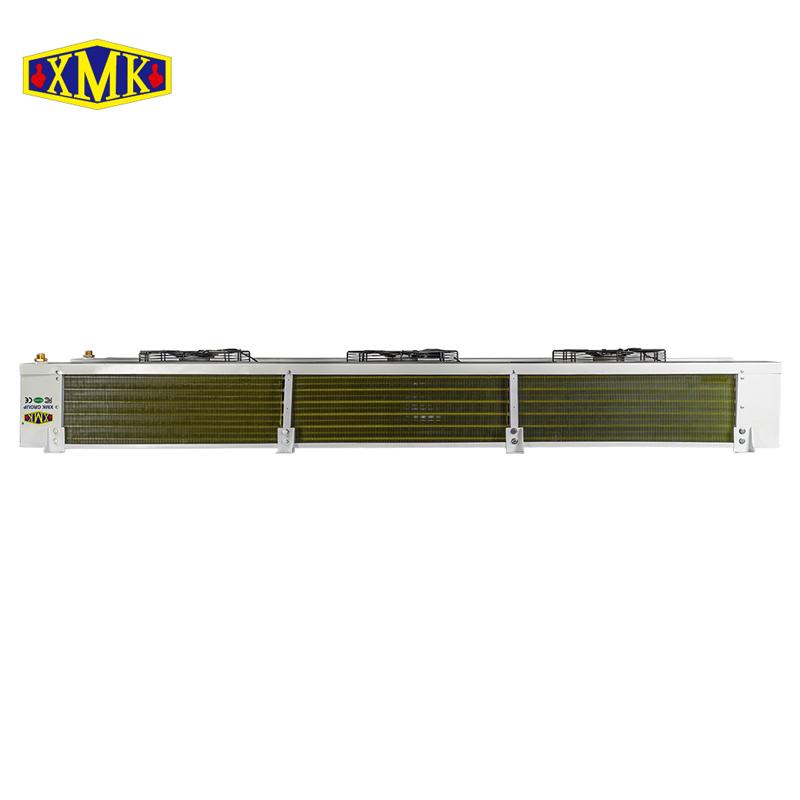

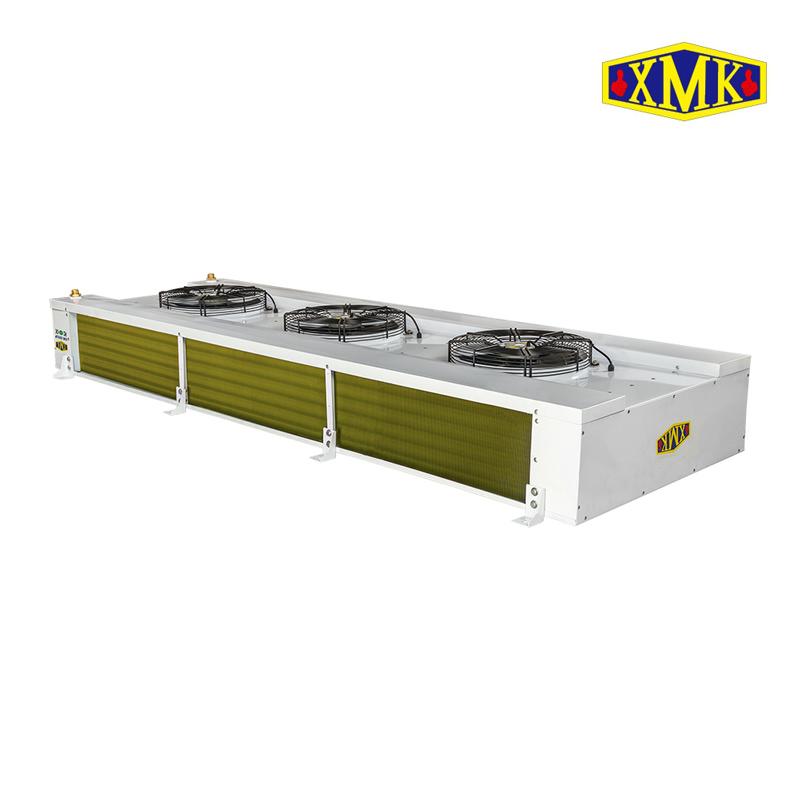

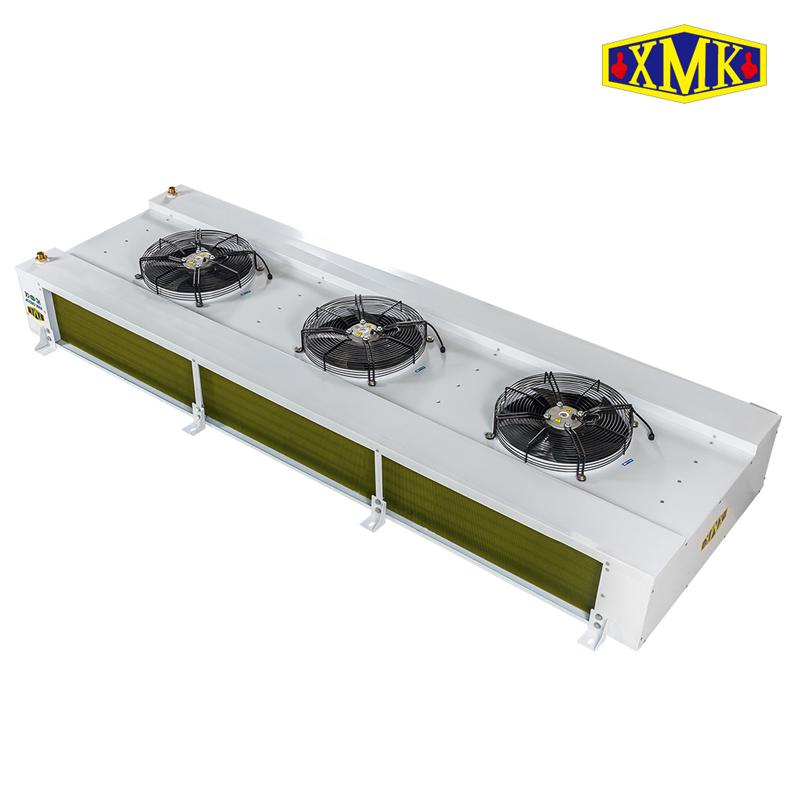

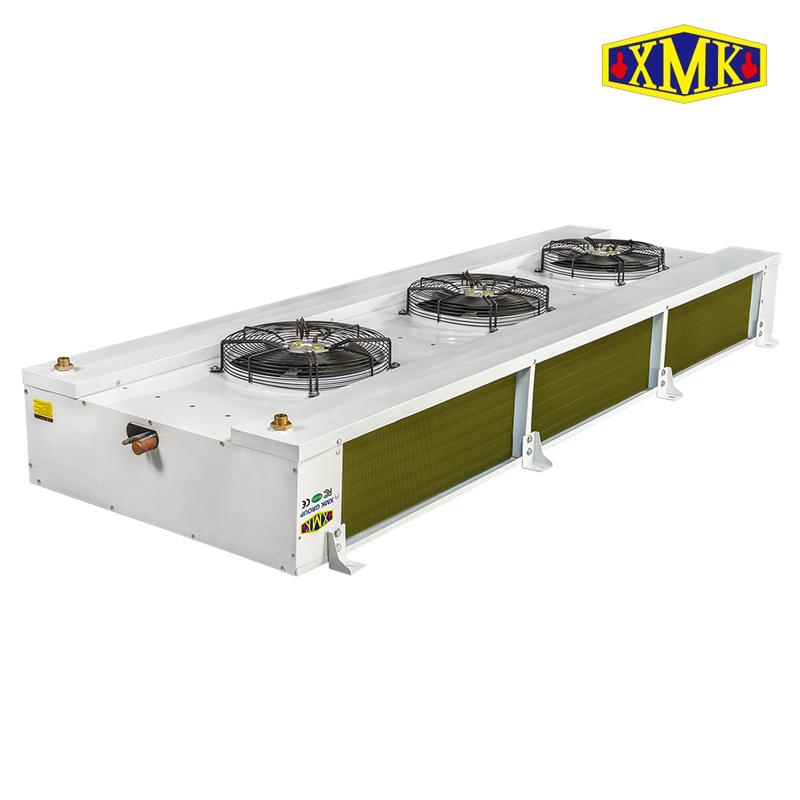

Industrial operation room refrigeration system air cooler

IDB series 6.4mm fin specing type refrigeration system air cooler is design in dual discharge and mainly used in operation room which require working temperature during -18°C to -2°C.

Fan blade φ450 in voltage 380V. stander use of electric defrosting .


  • Item NO.:

    IDB100/345L
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    white
  • Shipping Port:

    Guangzhou

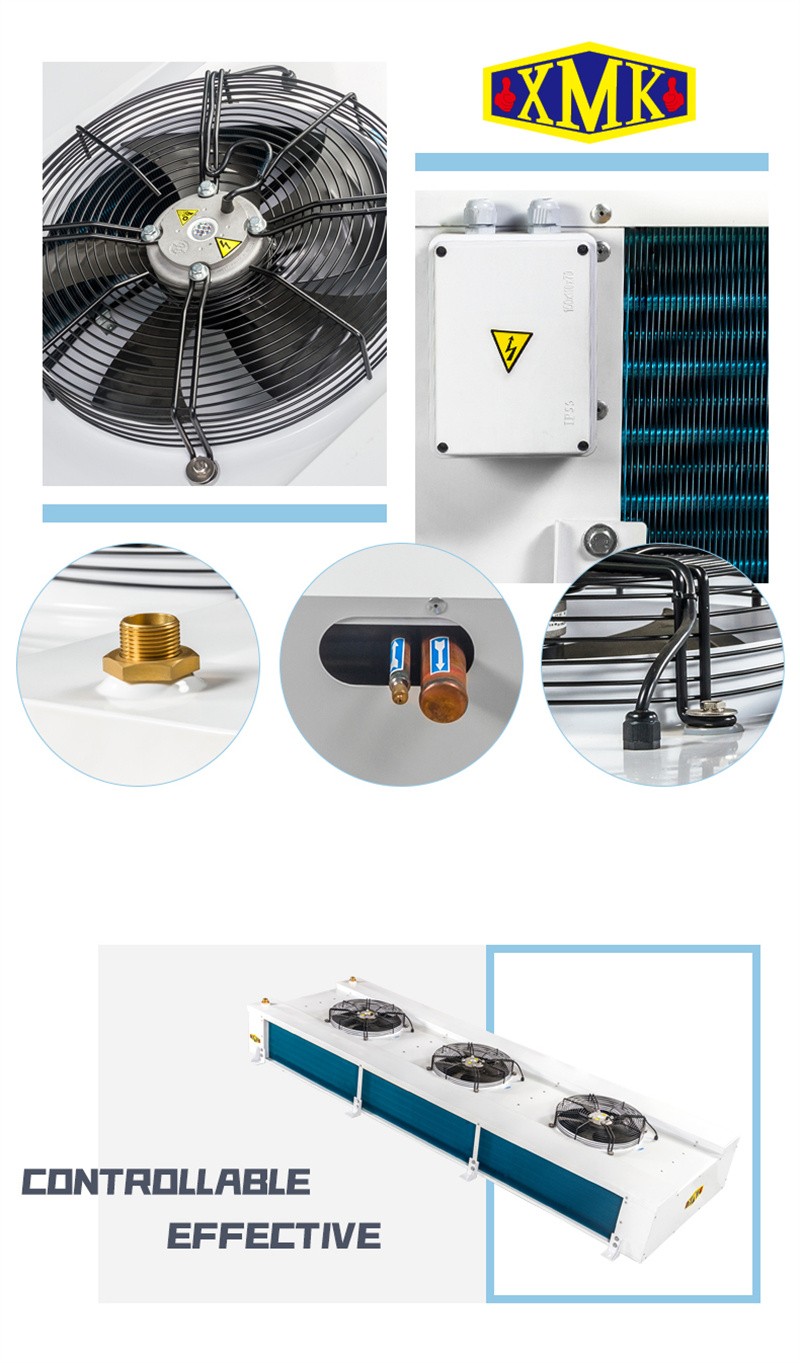

Product Feature

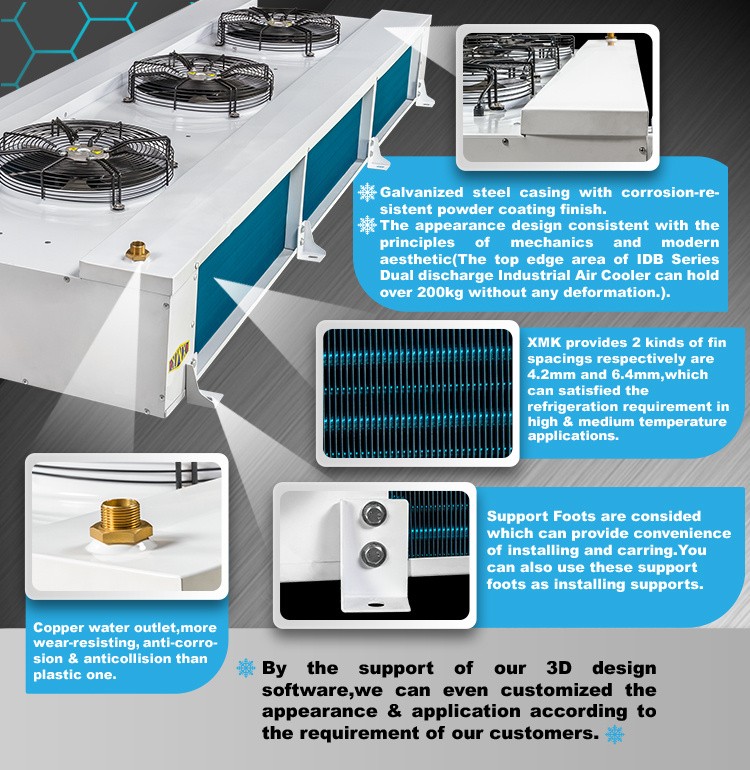

  • Casting : Adopt high-quality steel plate with powder coating RAL-9003.

Outer drip tray adopts higed structure, easy to clean and operate.

  • Heat exchanger coil : copper tubing φ15,spacing 50x50 . Corrugated aluminium fins, fin spacing 6.4 mm.

  • External rotor motor,working temperature -40~60 °C, fans individually connected to junction box.

Fan specification φ450, number from 1 to 4, standerd 4-poles

  • Defrosting : stander use of electirc defrosting, stainless heating pipes installed in the middle of coil and inner water palte.Independent electric heating tube junction box. Hot gas defrosting can also be used.

  • Refrigerants : meet requirements of R404A, R507A,R448A,R449A,R134a,R22 and other refrigerants.

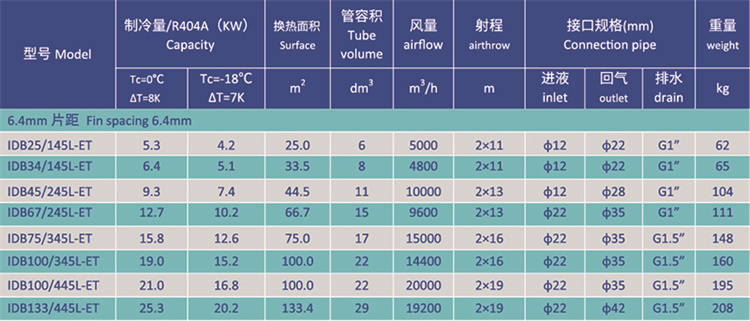

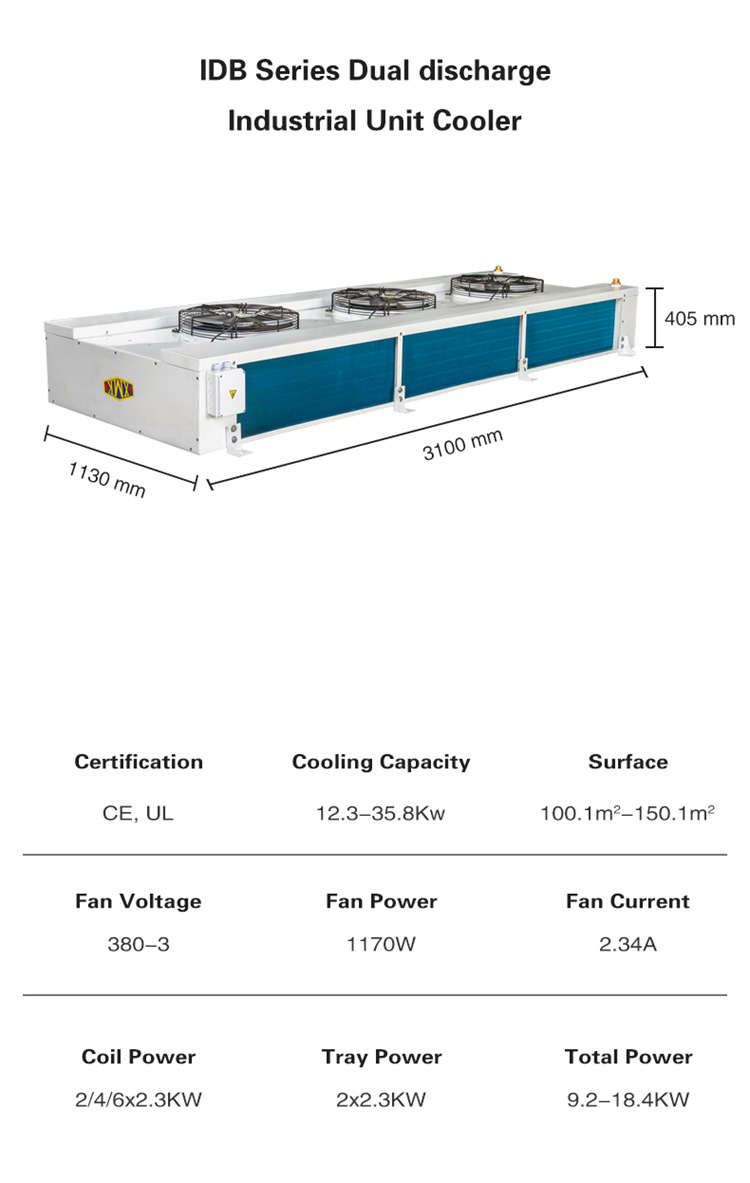

Specification

Models for cold room temperature -18°C to -2°C , Fin spacing 6.4mm

64mm (4).jpg


64mm (3).jpg64mm (1).jpg42mm (5).jpg64mm (2).jpg
