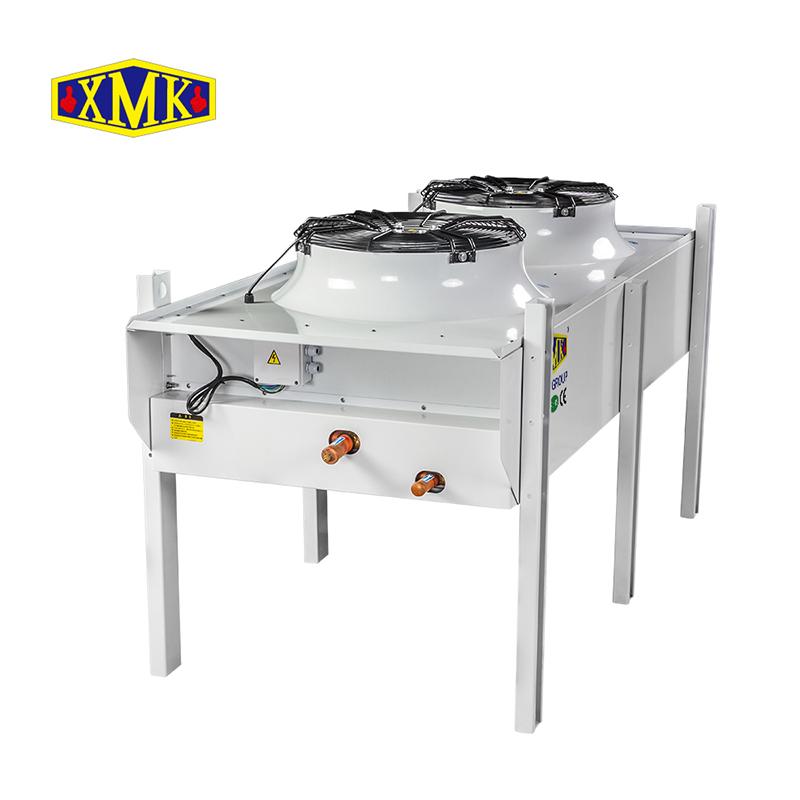

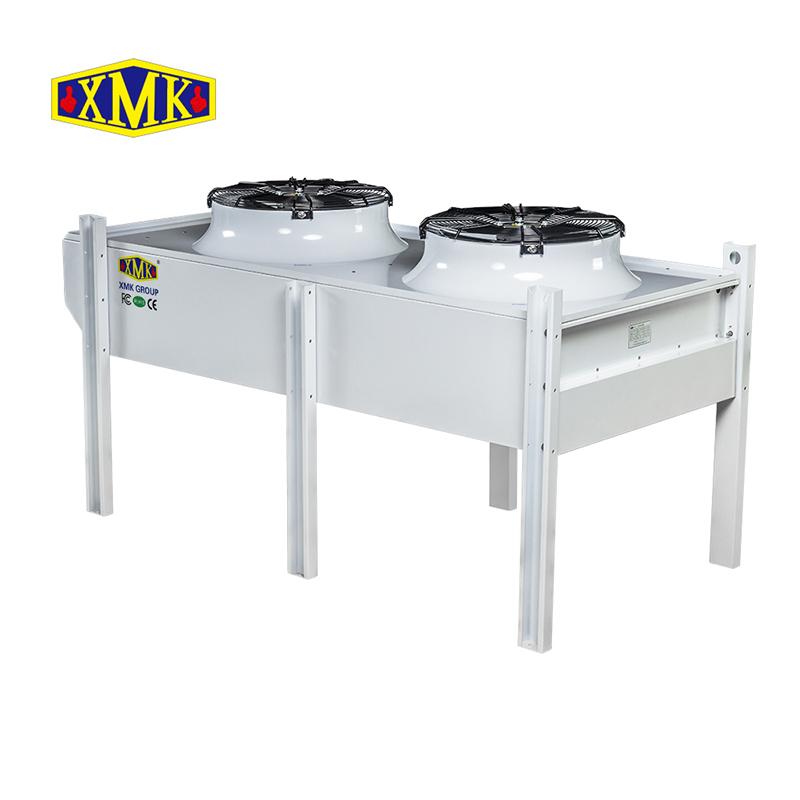

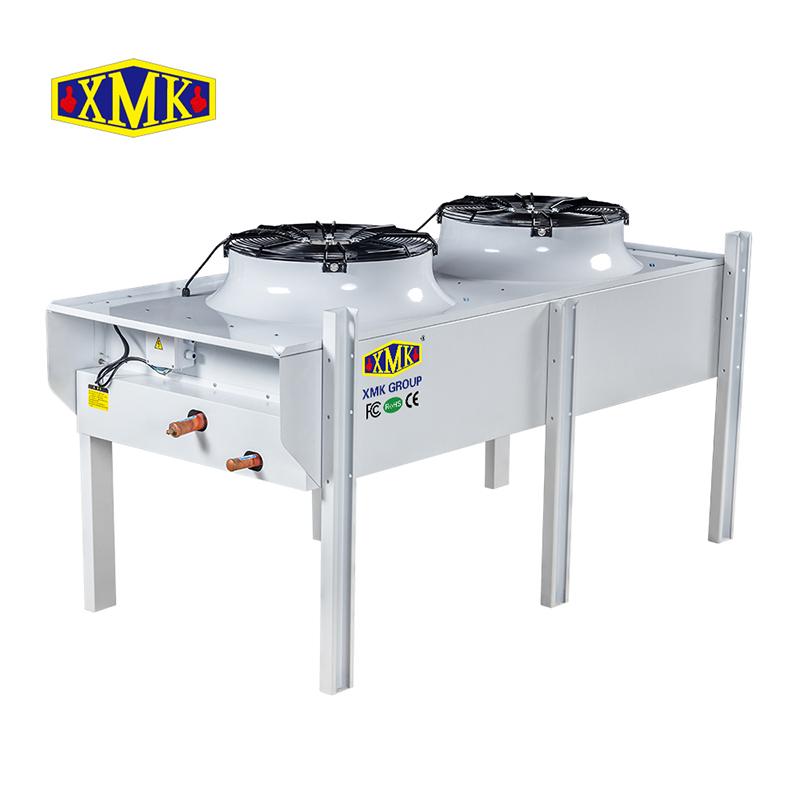

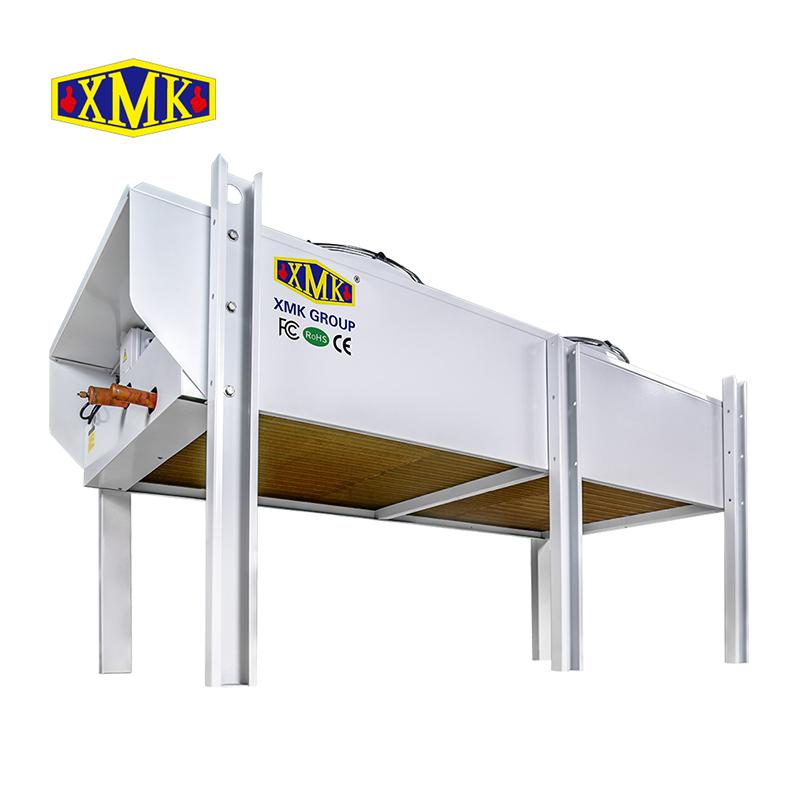

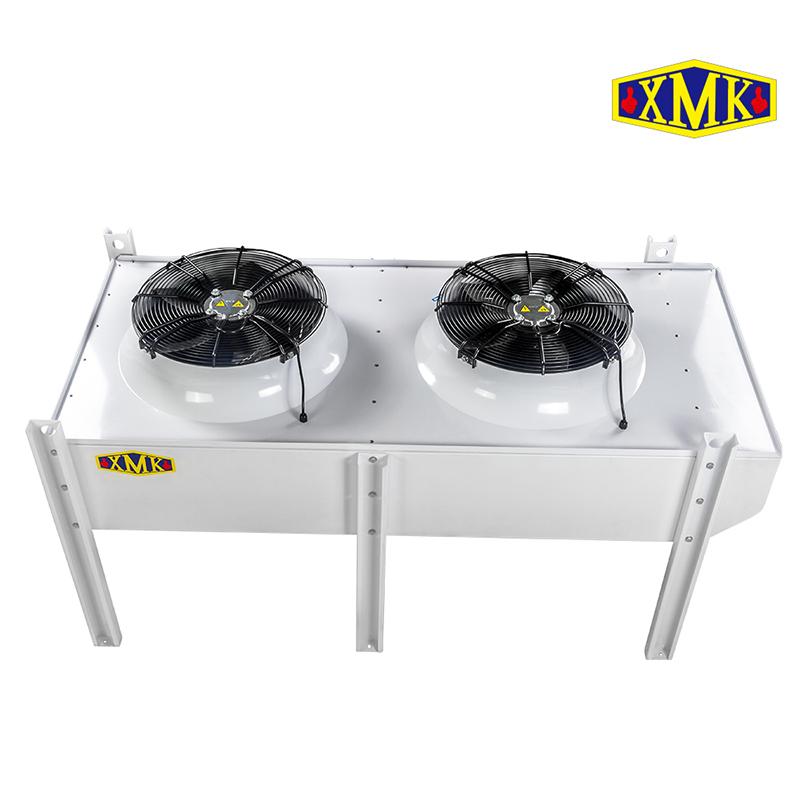

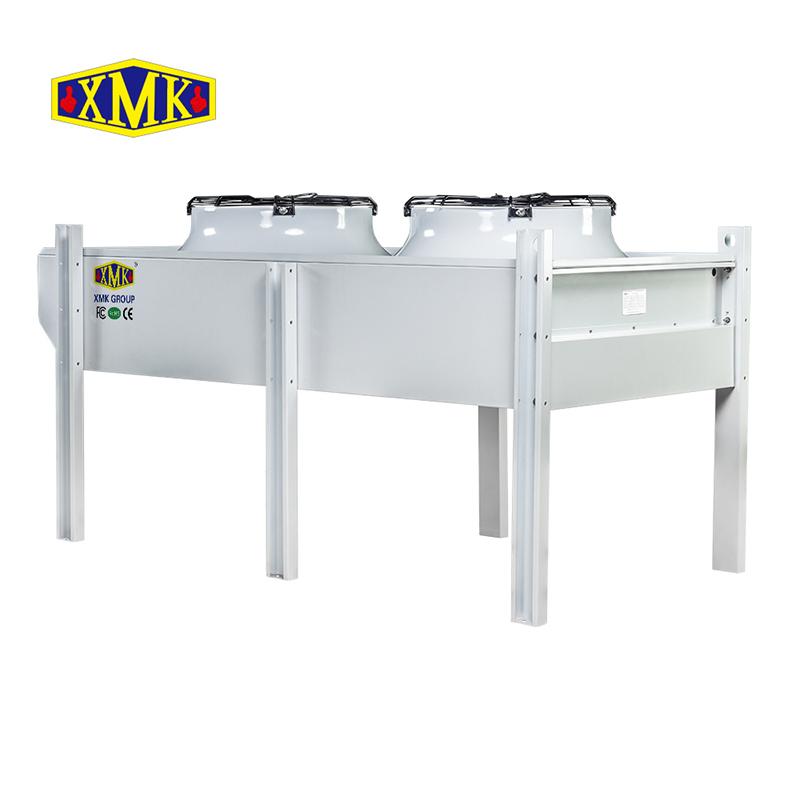

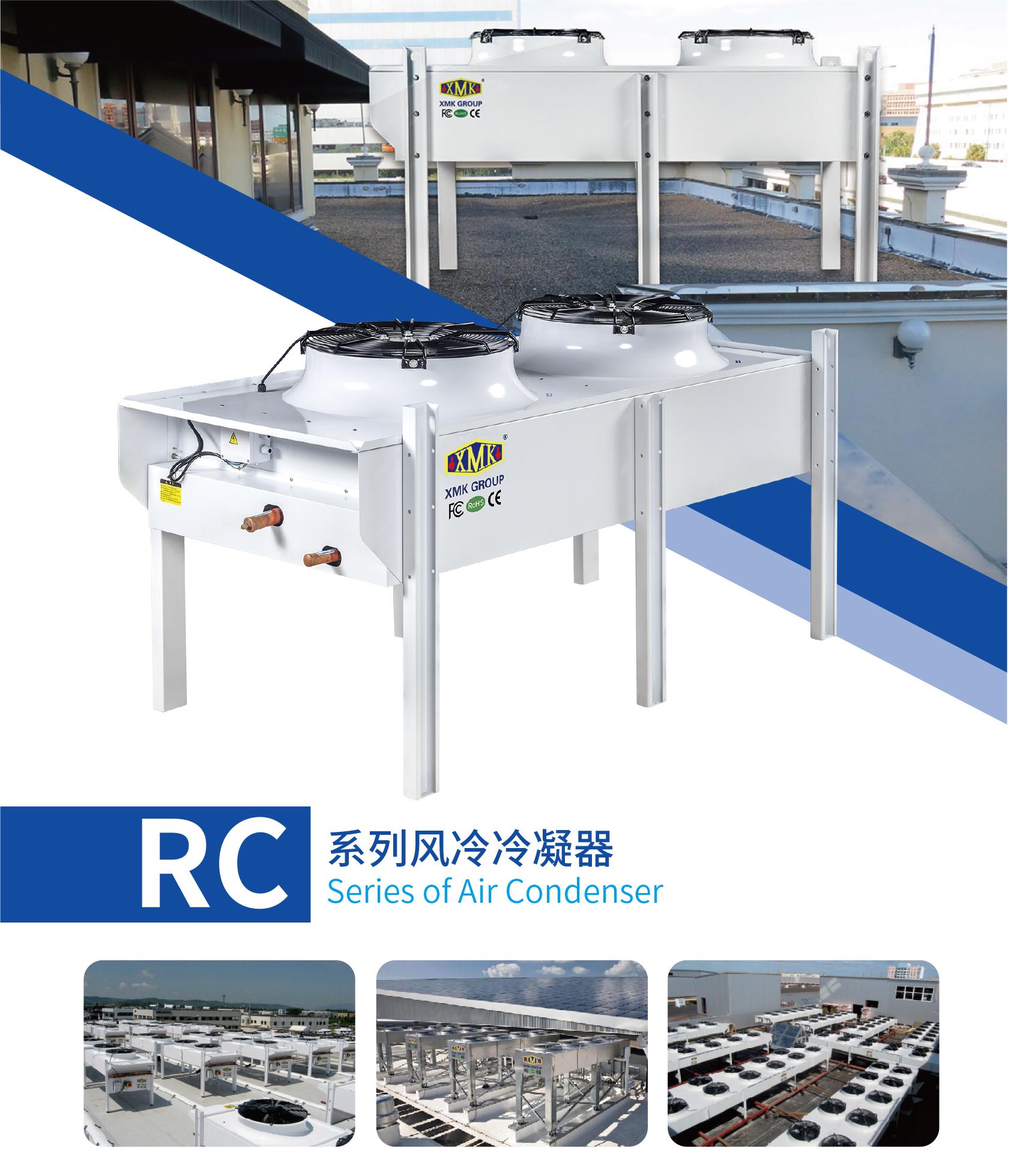

RC series air cooled condensers are mainly equipped with large heat transfer demand, large-scale remote-mounted condensing units, piston parallel units and screw units, with good heat transfer capacity.
Product Origin:
CHINAColor:
WhiteShipping Port:
GUANGZHOUProduct Description:

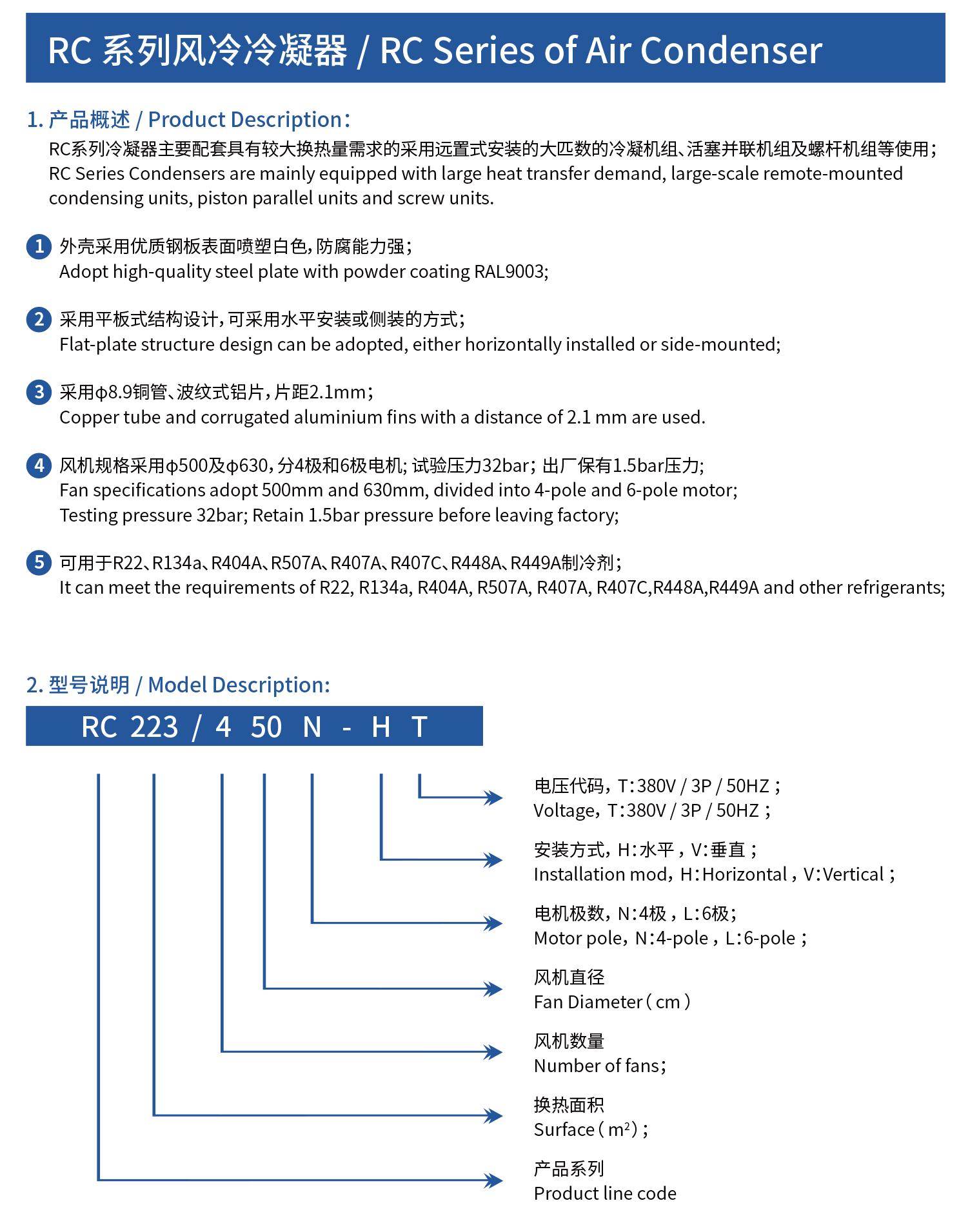

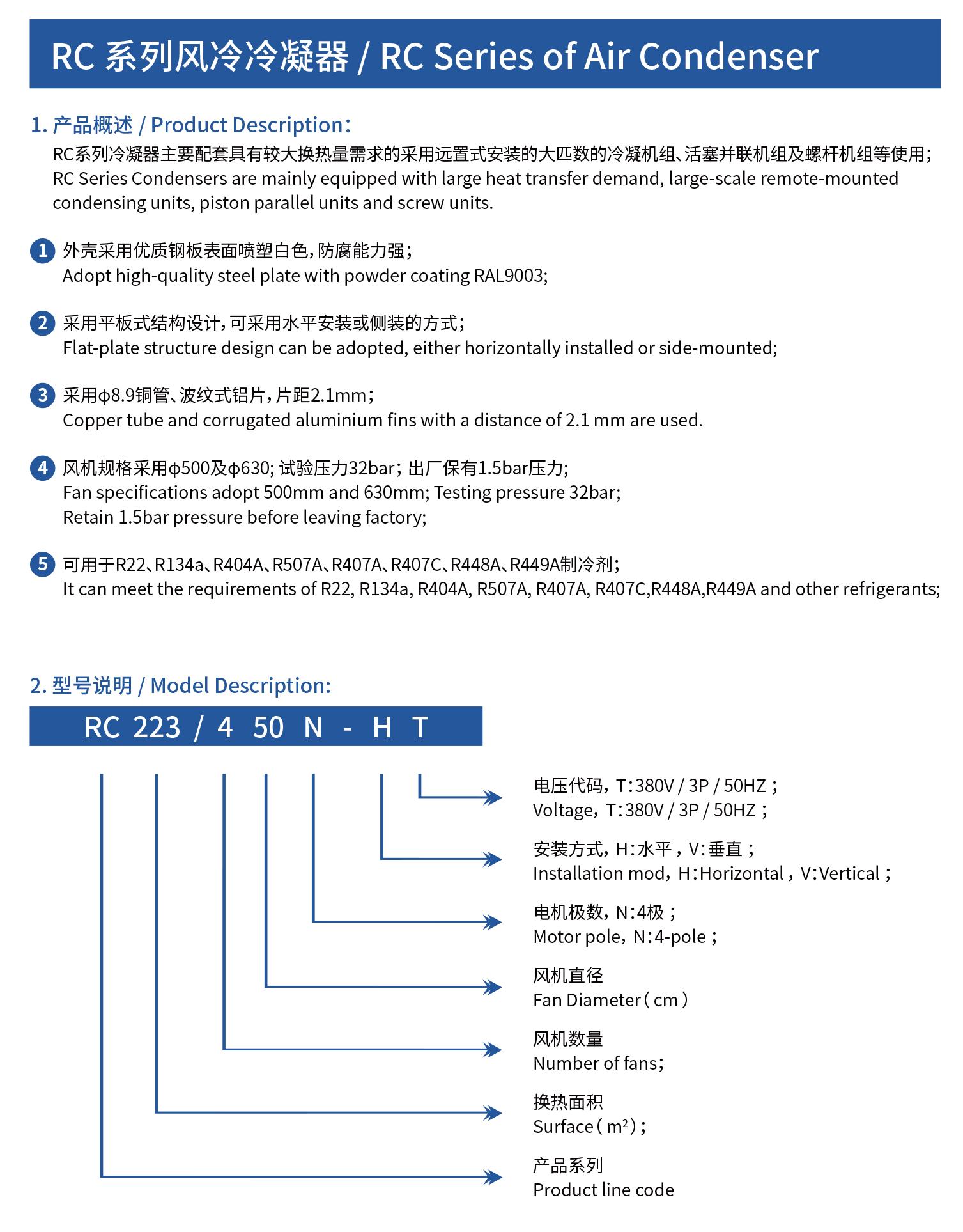

RC Series Condensers are mainly equipped with large heat transfer demand, large-scale remote-mounted condensing units, piston parallel units and screw units.
1、Adopt high-quality steel plate with powder coating RAL9003;
2、Flat-plate structure design can be adopted, either horizontally installed or side-mounted;
3、Copper tube and corrugated aluminium fins with a distance of 2.l mm are used.

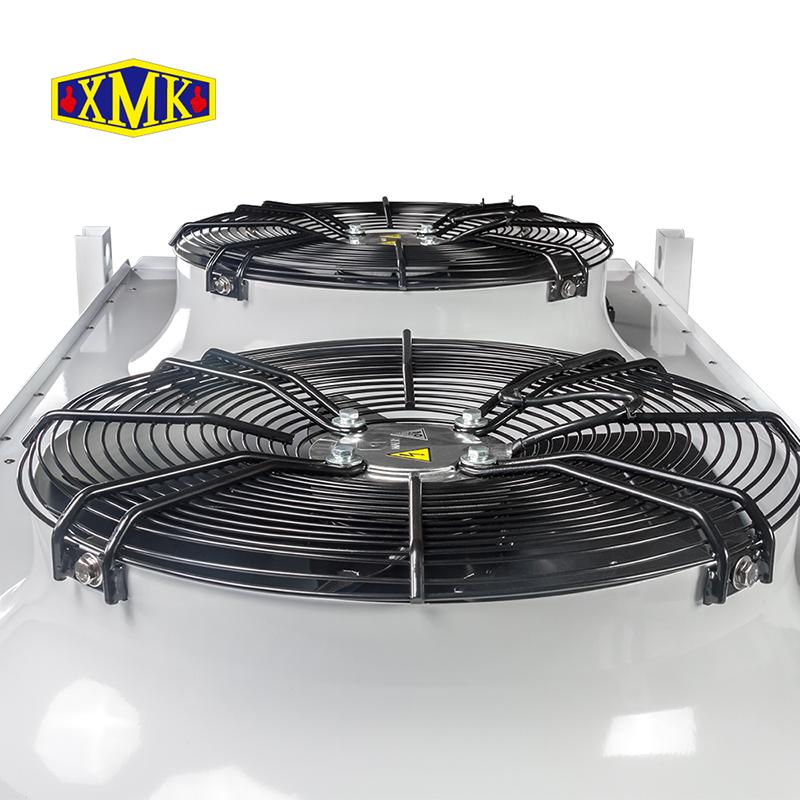

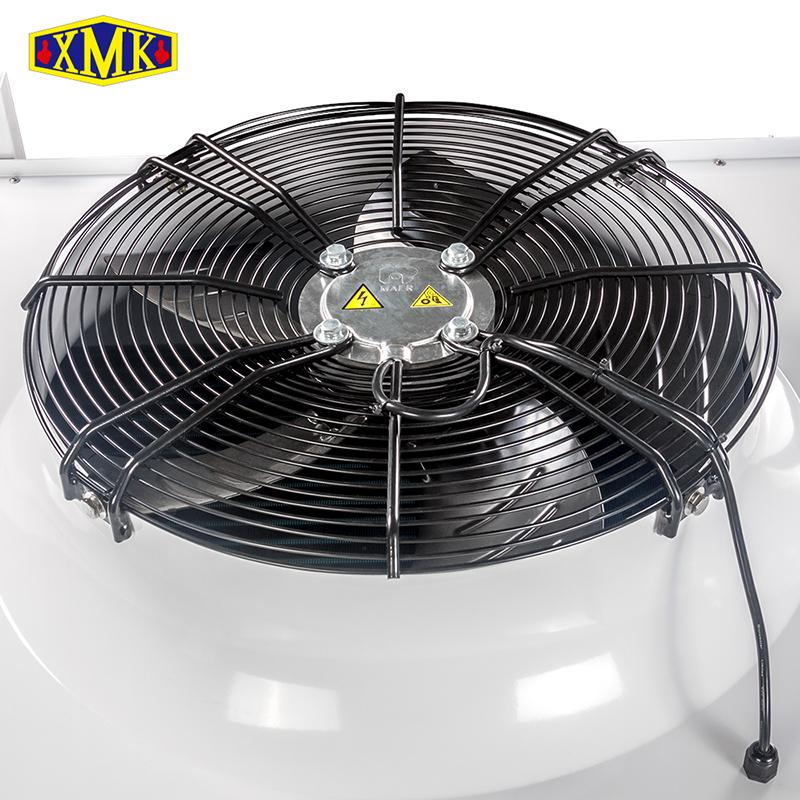

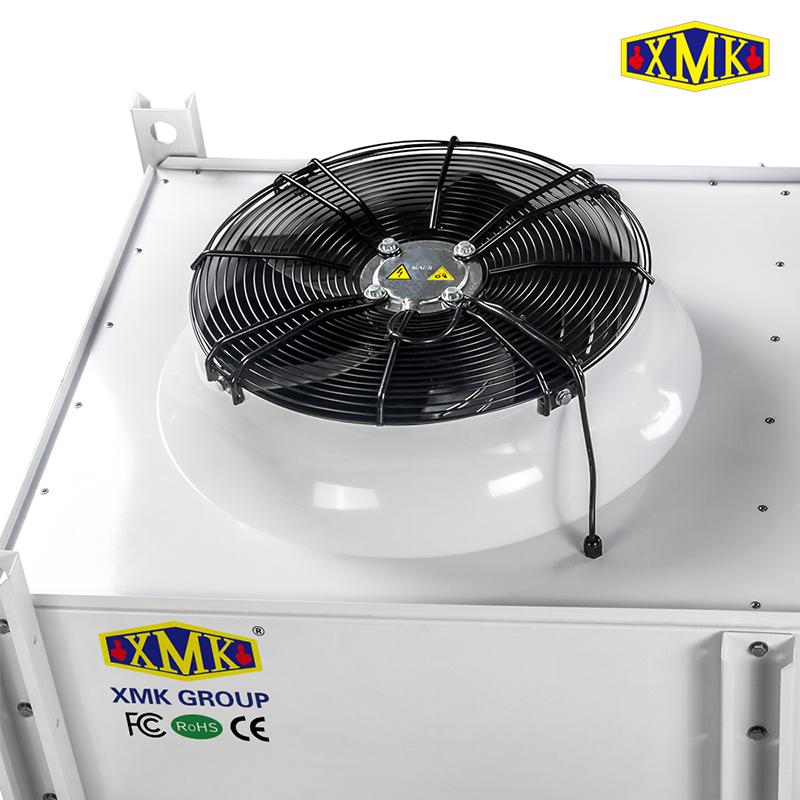

4、Fan specifications adopt 500mm and 630mm, divided into 4-pole and 6-pole motor；
Testing pressure 32bar, Retain 1.5bar pressure before leaving factory;
5、It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449A and other refrigerants;

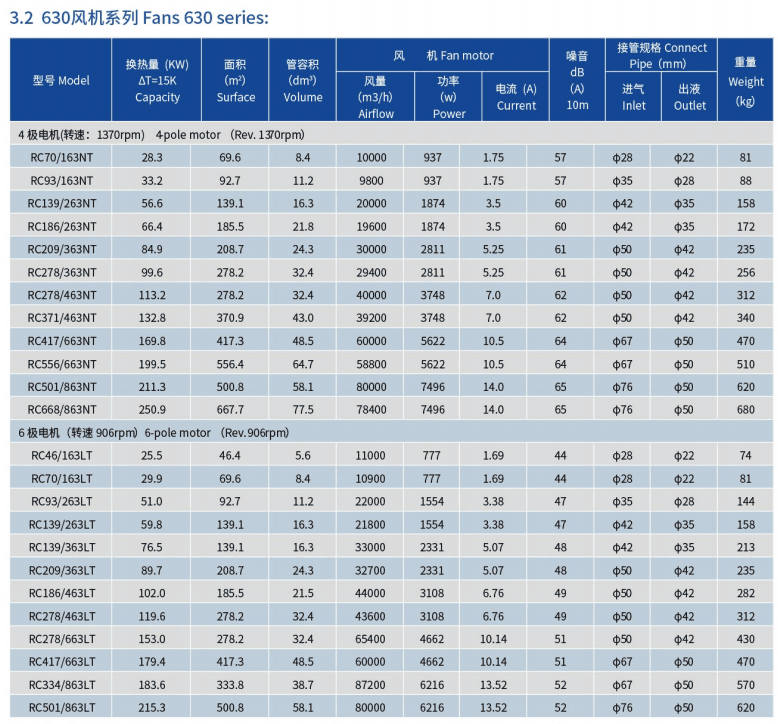

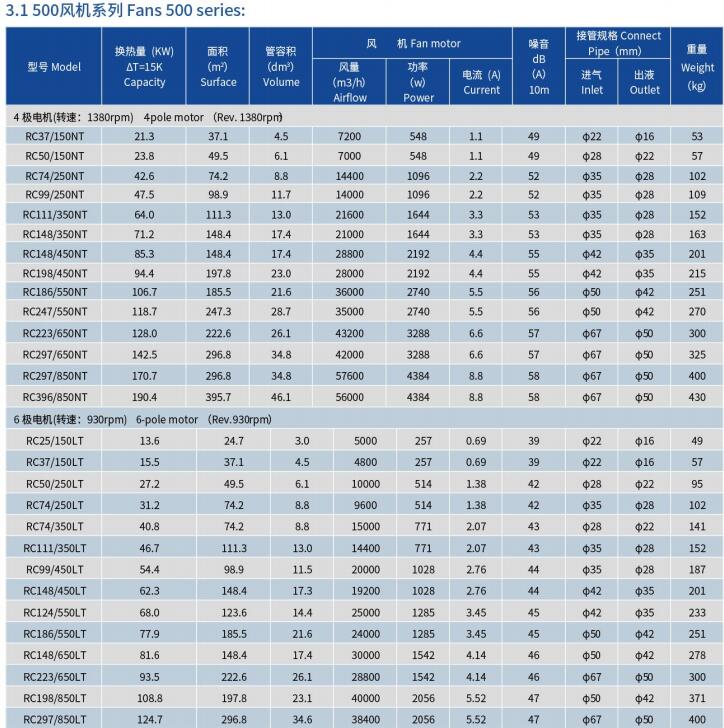

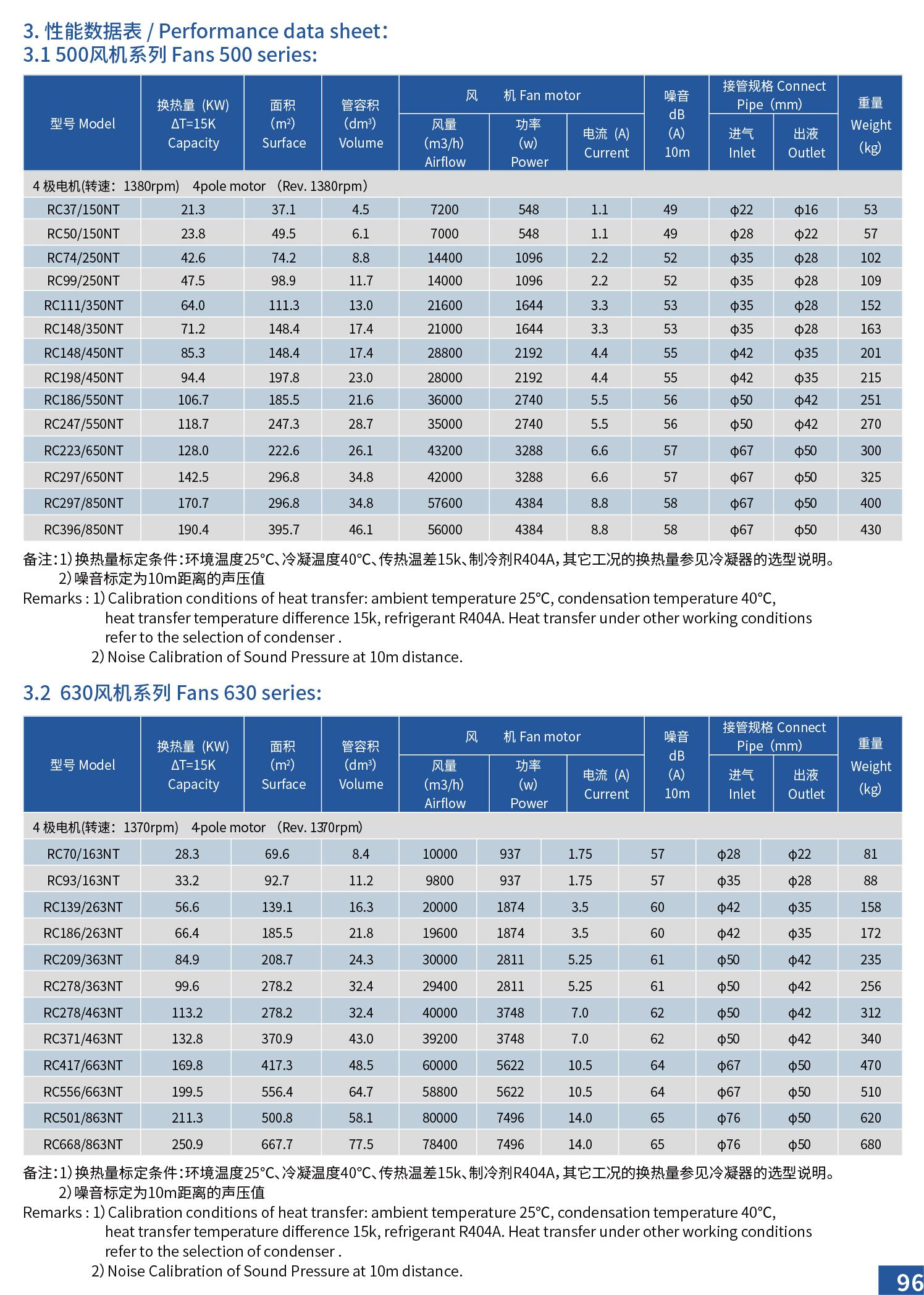

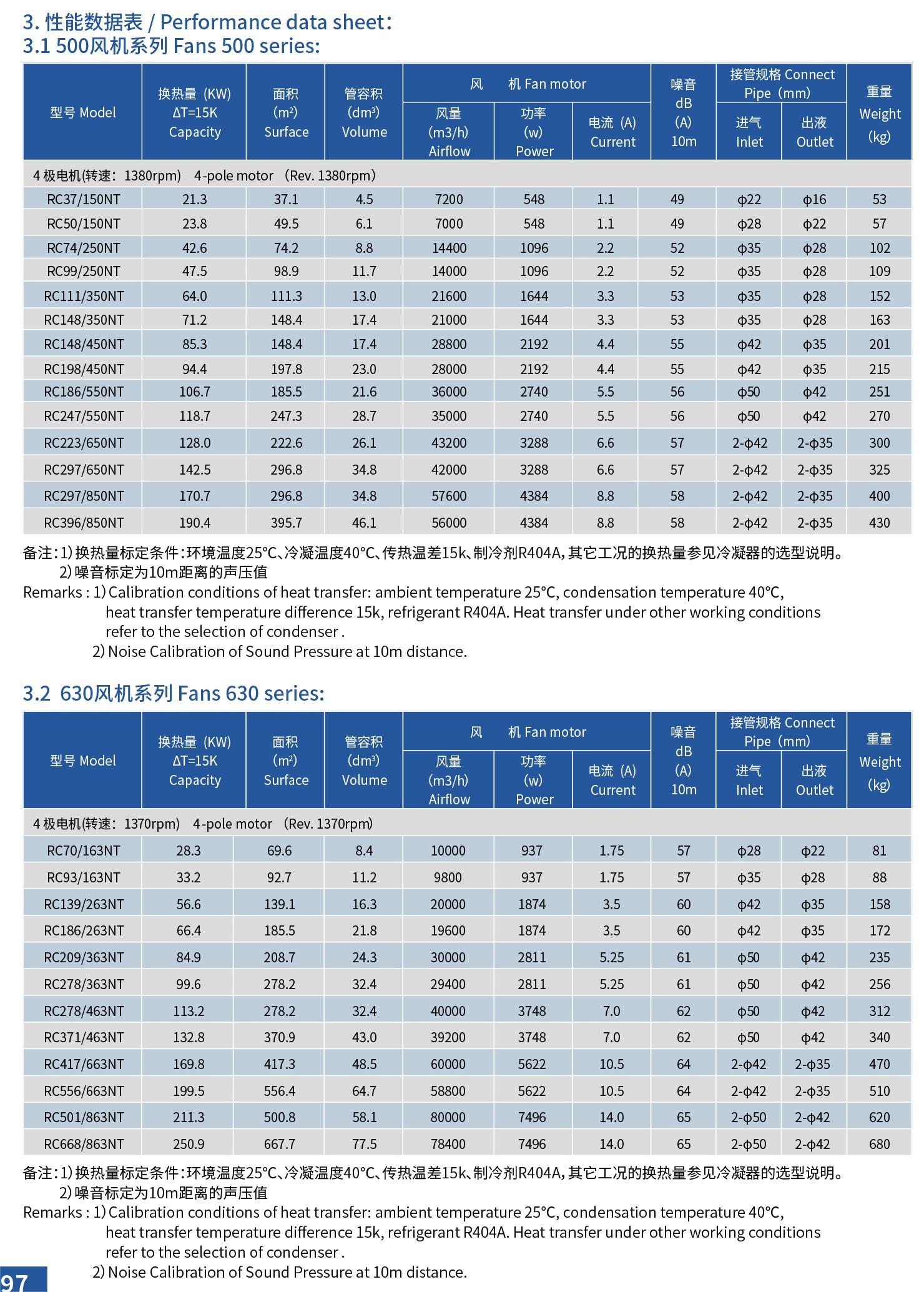

Performance data sheet:
Remarks : 1) Calibration conditions of heat transfer: ambient temperature 25°c, condensation temperature 40°c,heat transfer temperature difference 15k, refrigerant R404A. Heat transfer under other working conditionsrefer to the selection of condenser .
2)Noise Calibration of Sound Pressure at 10m distance.
Remarks : 1) Calibration conditions of heat transfer: ambient temperature 25°c, condensation temperature 40°c,heat transfer temperature difference 15k, refrigerant R404A. Heat transfer under other working conditionsrefer to the selection of condenser .
2)Noise Calibration of Sound Pressure at 10m distance.

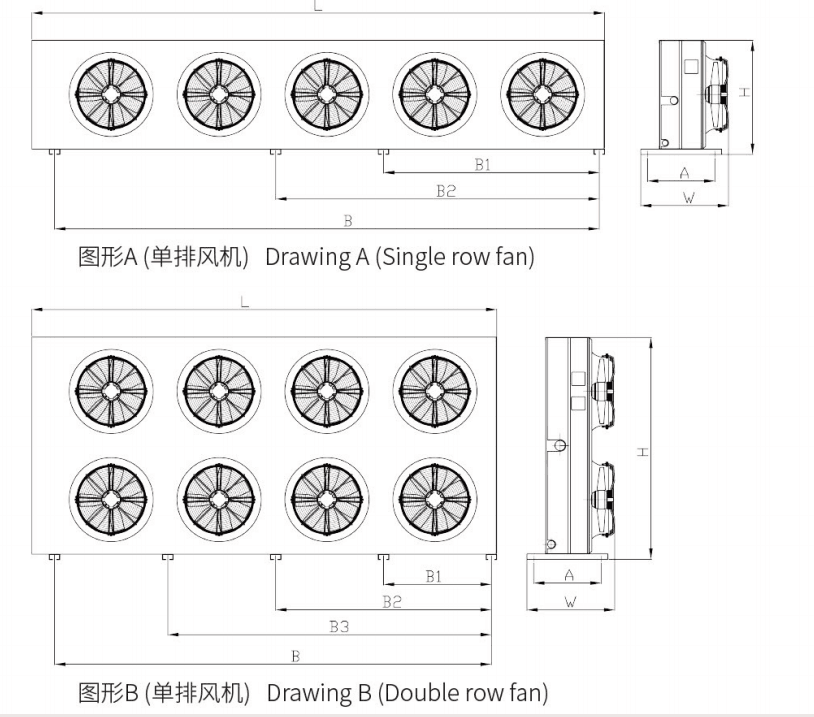

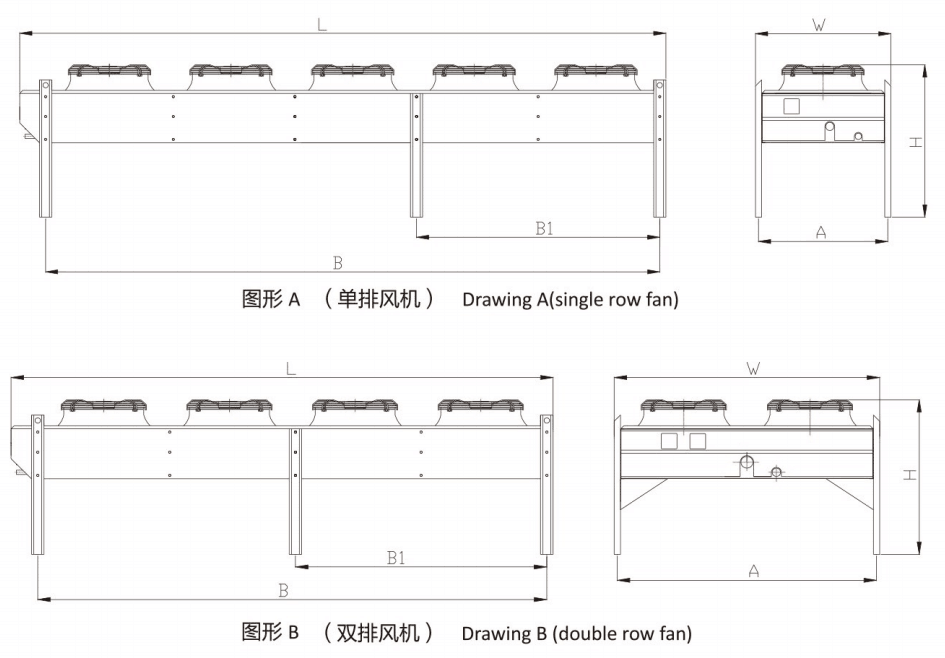

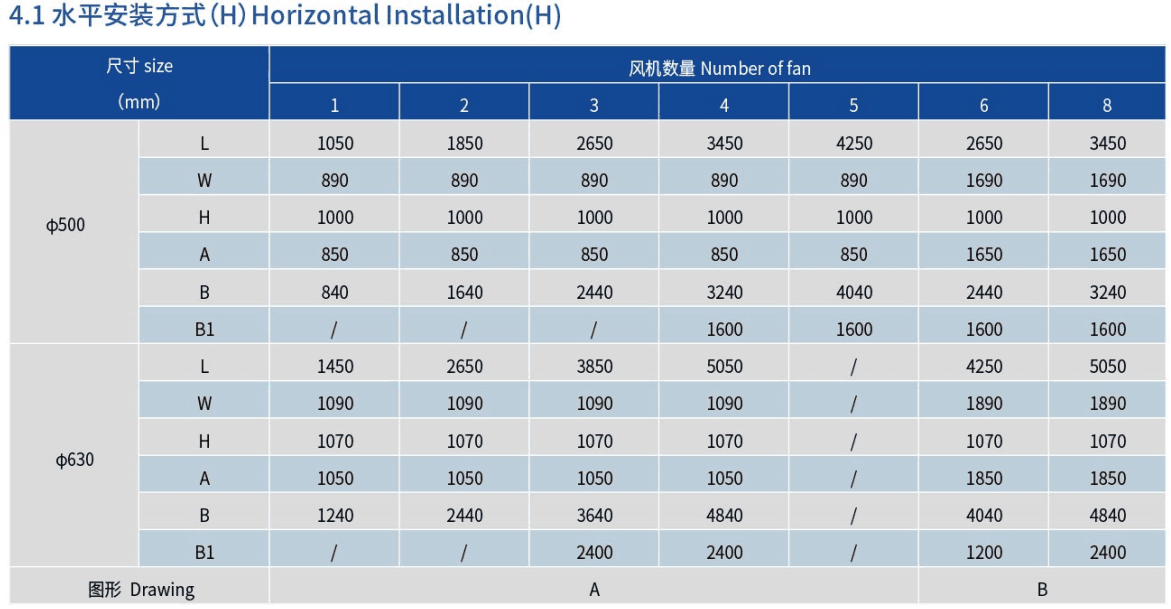

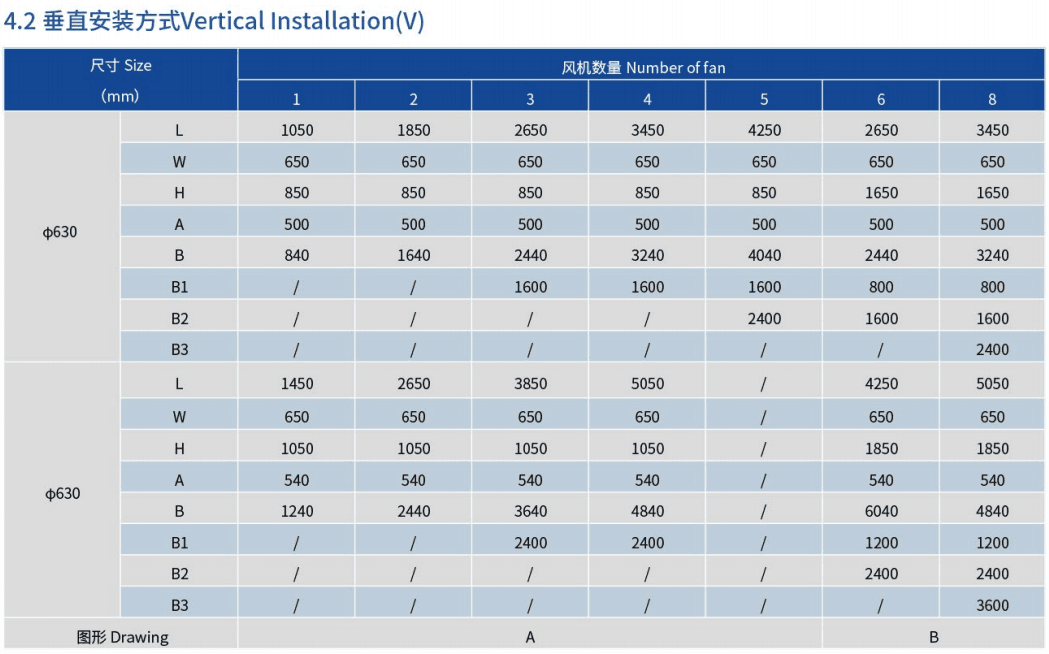

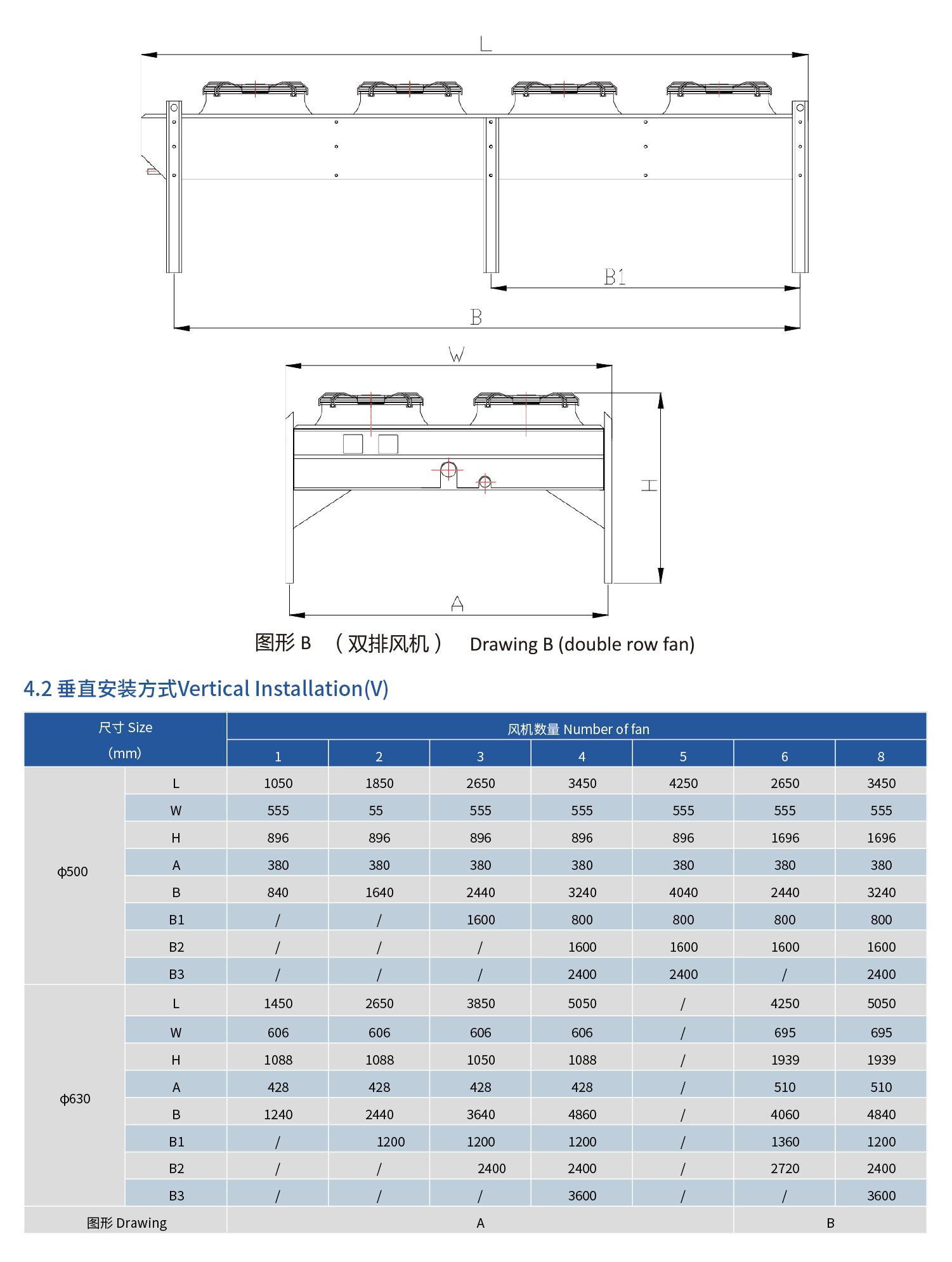

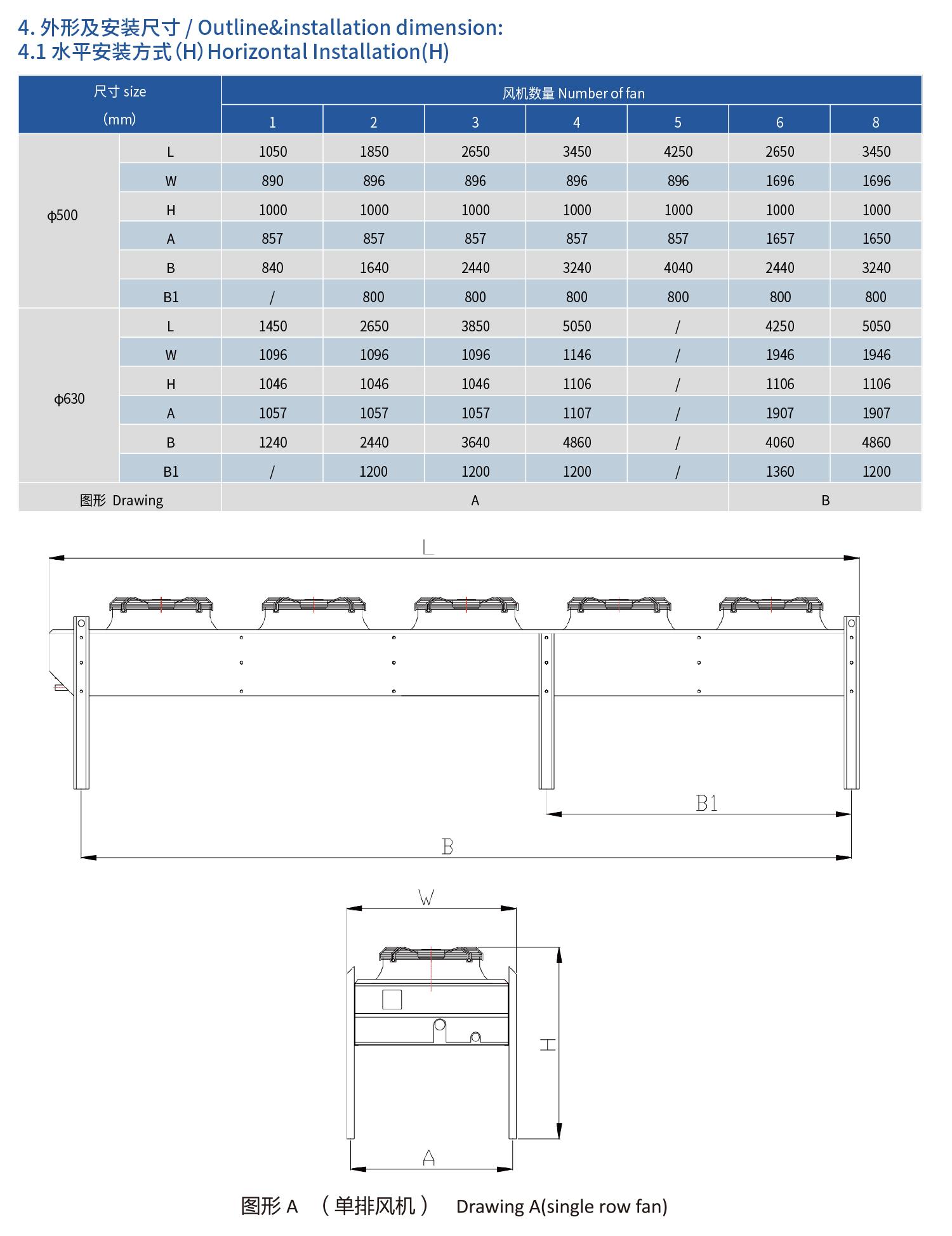

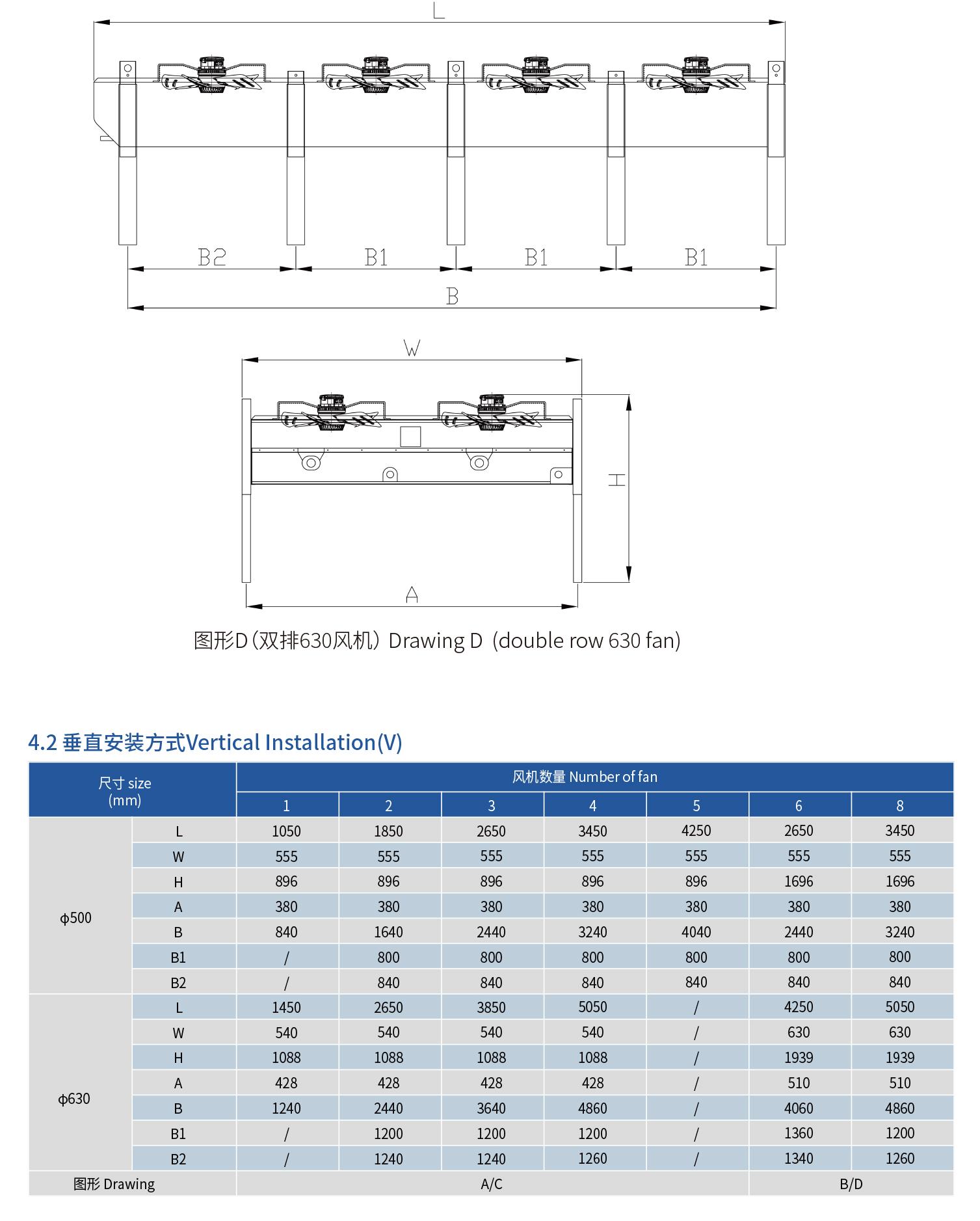

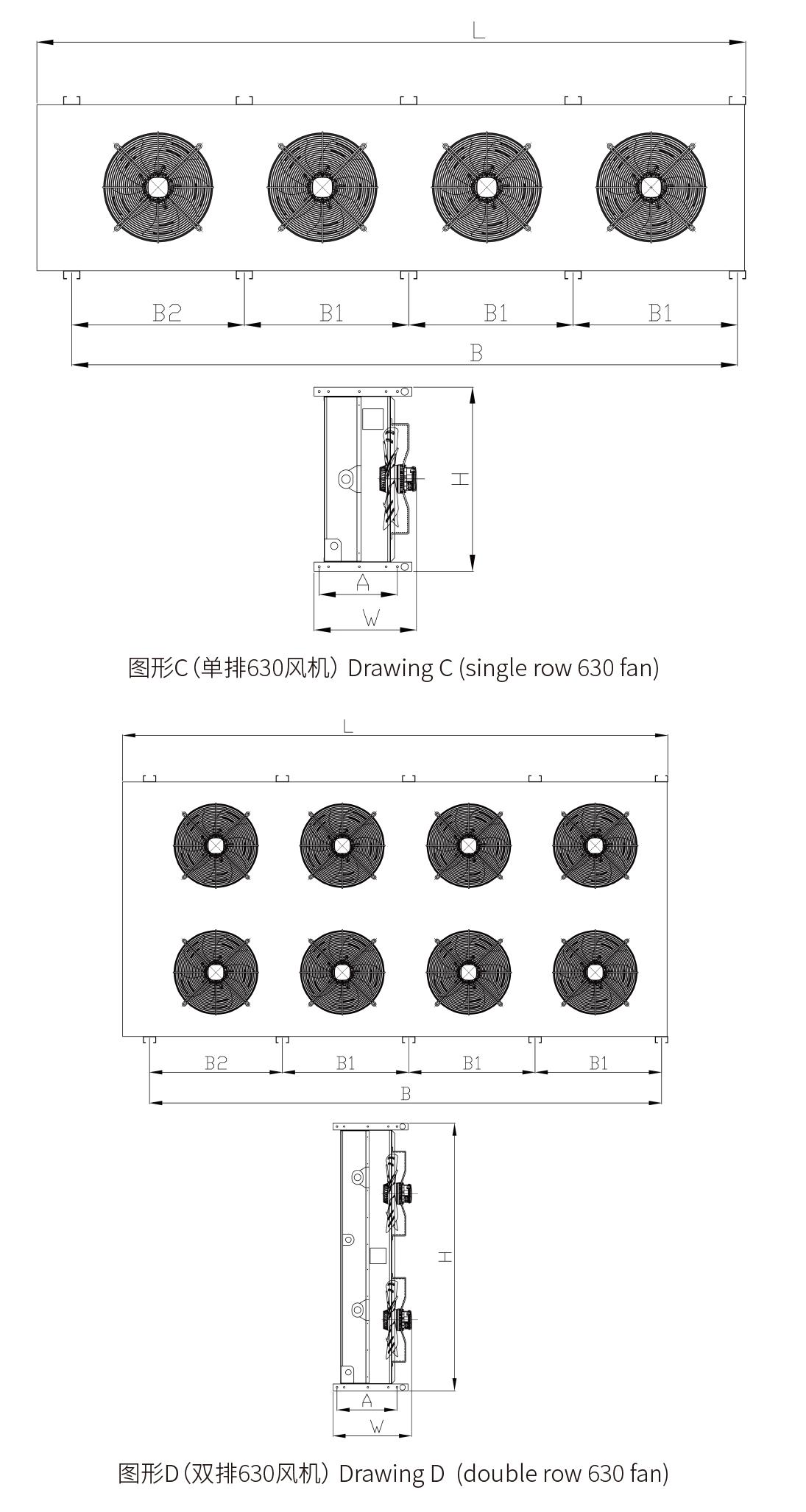

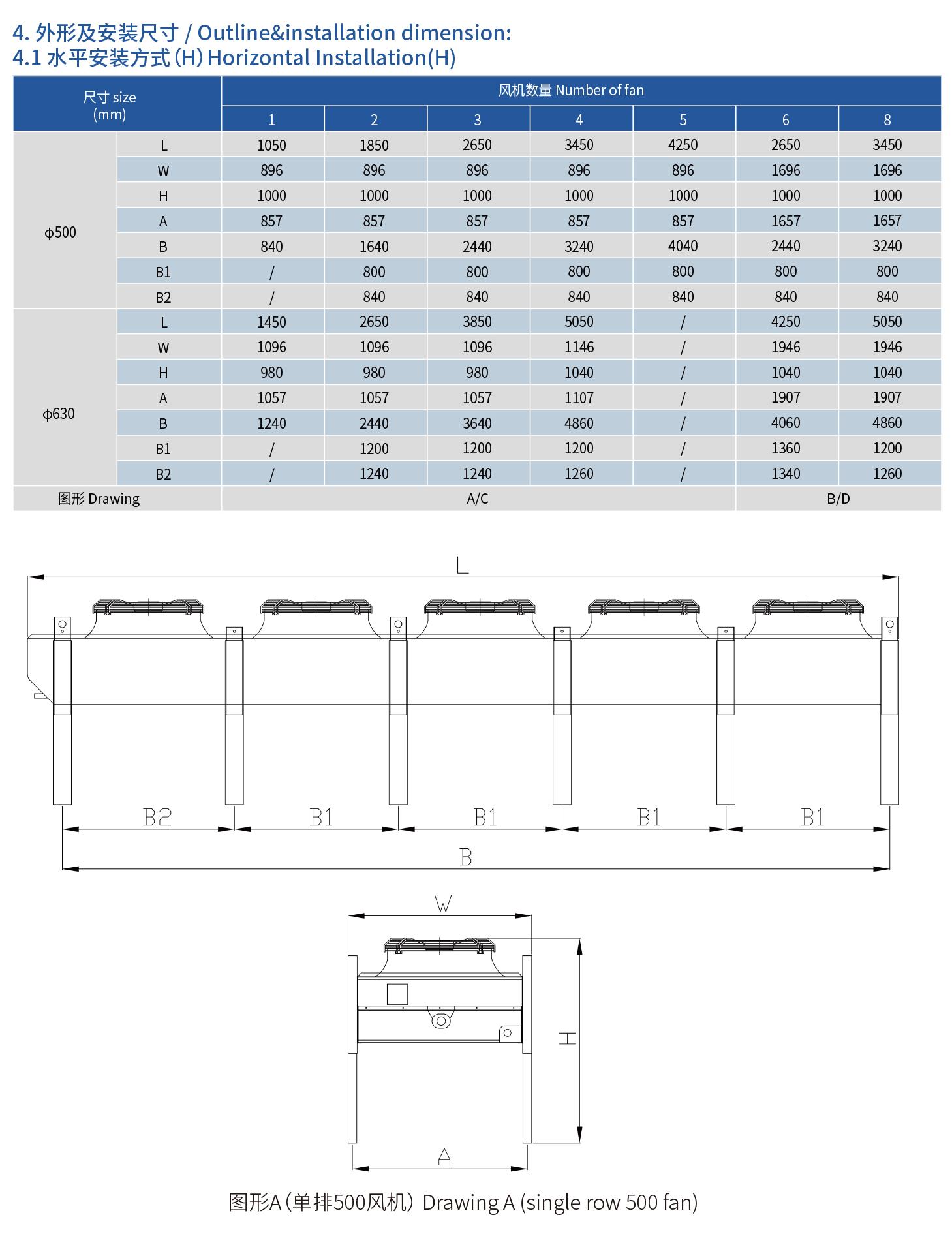

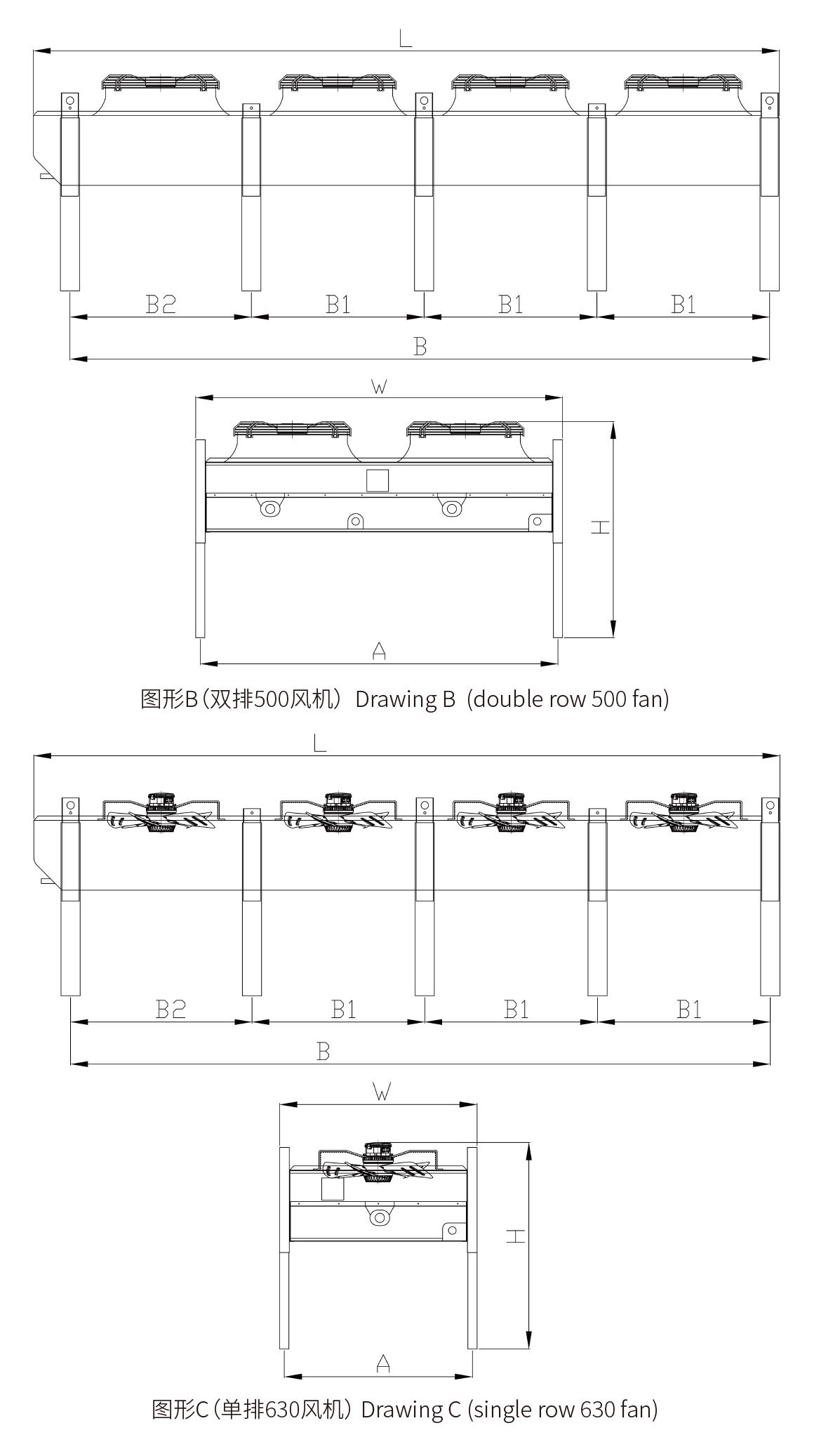

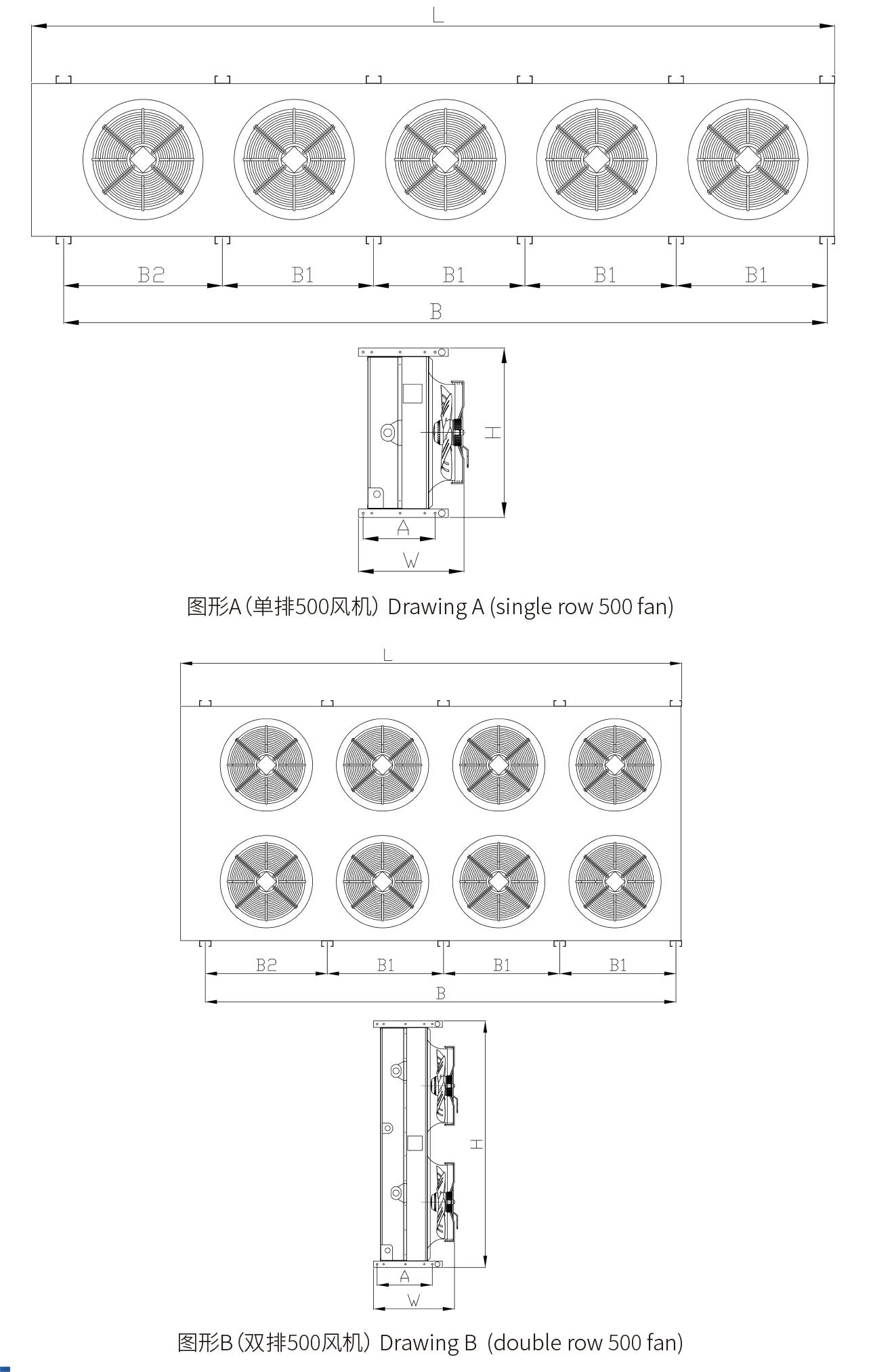

Outline&installation dimension:
