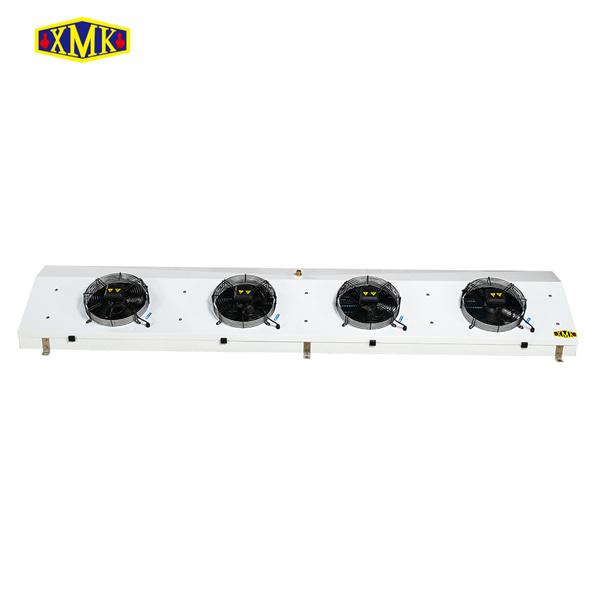

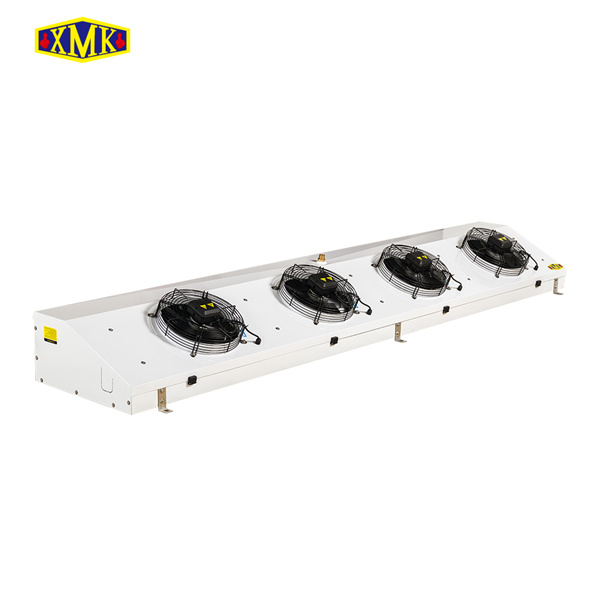

Commercial refrigerator cold storage evaporative air cooler

CA series Commercial refrigerator evaporative air cooler are mainly used in small cold room, which occupy less space. Design with wall-mounted type with light weight and strong anti-corrosion performance advantage.

Fan specification 300mm ,4 fans.

  • Item NO.:

    CA18/430L
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    white
  • Shipping Port:

    Guangzhou

Product Description

  • Casing material use Al-Mg alloy sheet with powder coating (RAL-9003), strong anti-corrosion performance and light weight. Drip trap adopts hinge structure, easy to clean and operate.

  • Electric defrost : using stainless heating pipes,installed in the middle of coil and inner water plate; Independent electric heating pipe junction box.

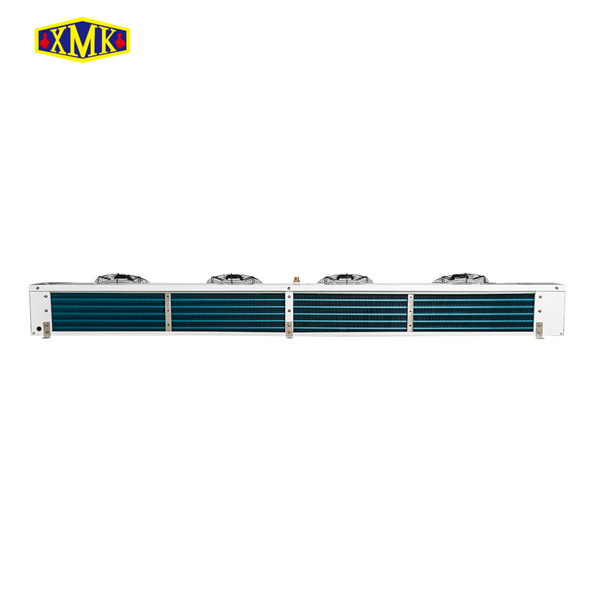

  • Heat exchanger coil :  copper tubing φ12,spacing 38.1×33 . Corrugated aluminium fins, fin spacing 4.2 mm & 6.4 mm.

  • Fans motor : external motor  with waterproof ,working temperature during -40°C to 60°C.

  • Refrigerants : meet requirements of R404A, R507A,R448A,R449A,R134a,R22 and other refrigerants.


Model in 6.4 mm fin spacing , 4 fans which meet to deep freezer cold storage


ModelCapacity R404(KW)
SurfaceAirflowWeight
Tc=0°CTc=-18°Cm2m3/hkgs
4.2mm  Fin spacing
CA27/430M7.35.827.1
4800
67
CA36/430M8.77.036.2440070
6.4 mm fin spacing
CA18/430L6.14.918.4
5400
67
CA25/430L7.45.924.6480070
