Cold storage refrigeration part CA compact air cooler

This wall-mounted type of CA series air cooler design with 300mm blowers & 6.4mm fin spacing , apply to cold storage which require cold room temperaturer -18 °C , such as frozen food, meat, cold food and seafood.

  • Item NO.:

    CA14/330L
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    white
  • Shipping Port:

    Guangzhou

Product Description

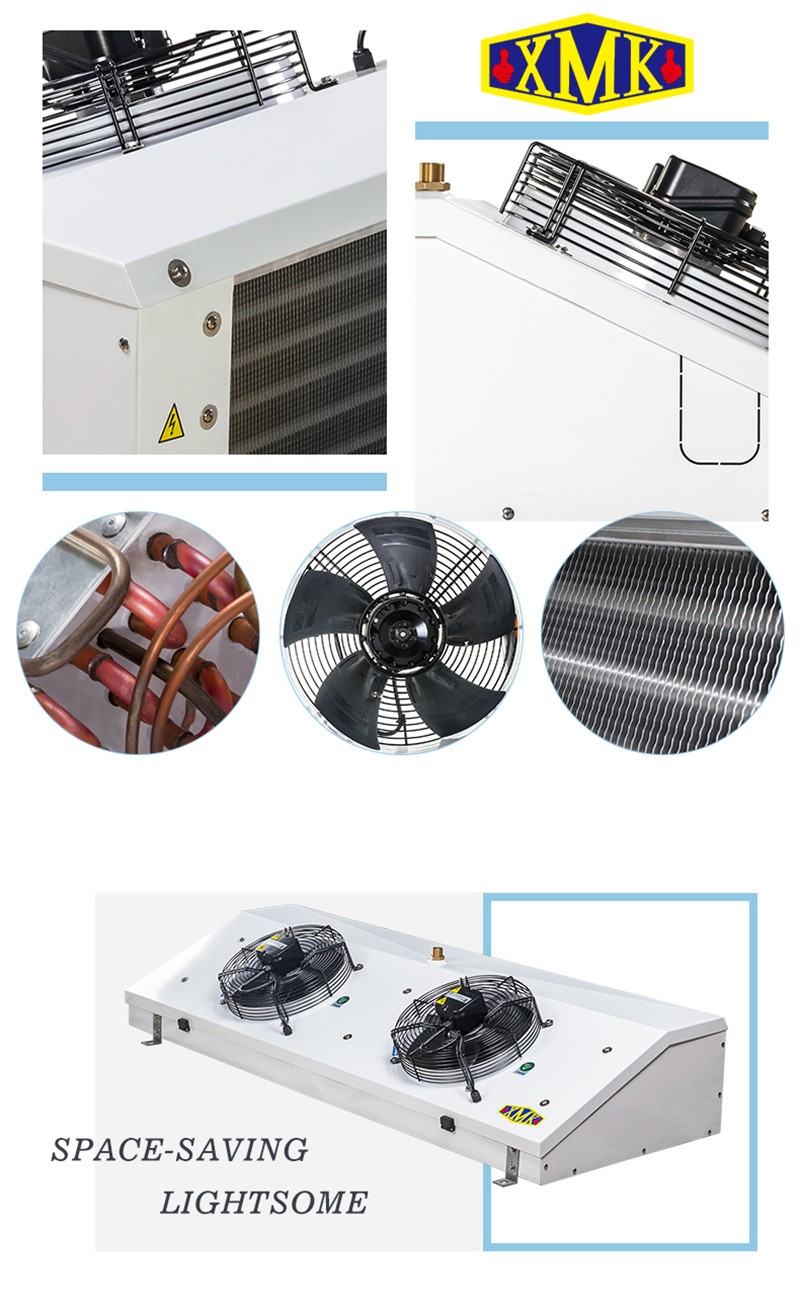

  • Casing material use Al-Mg alloy sheet with powder coating (RAL-9003), strong anti-corrosion performance and light weight. Drip trap adopts hinge structure, easy to clean and operate.

  • Electric defrost : using stainless heating pipes,installed in the middle of coil and inner water plate; Independent electric heating pipe junction box.

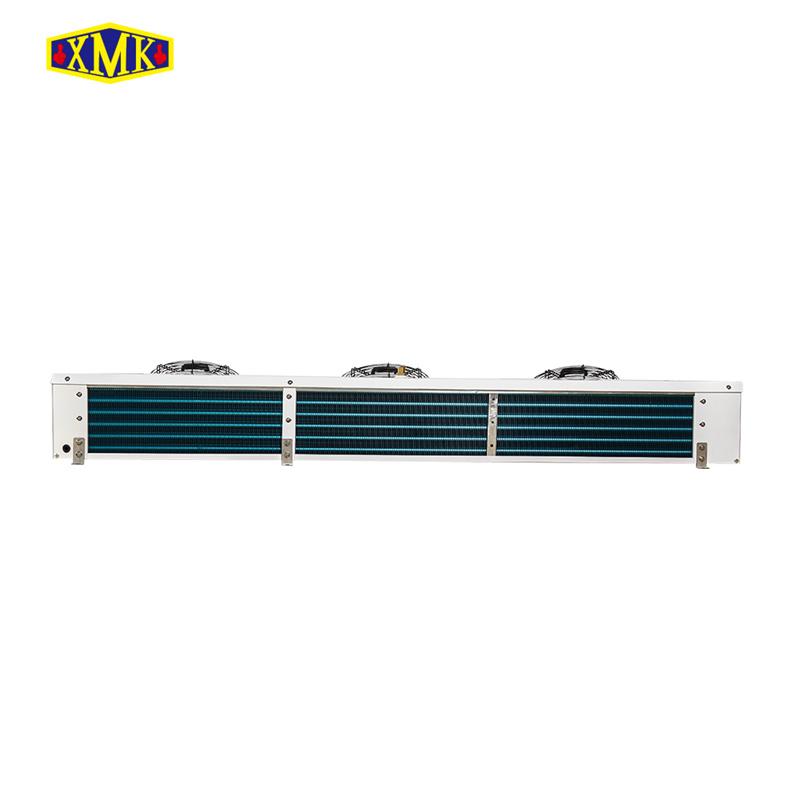

  • Heat exchanger coil :  copper tubing φ12,spacing 38.1×33 . Corrugated aluminium fins, fin spacing 4.2 mm & 6.4 mm.

  • Fans motor : external motor  with waterproof ,working temperature during -40°C to 60°C.

  • Refrigerants : meet requirements of R404A, R507A,R448A,R449A,R134a,R22 and other refrigerants.

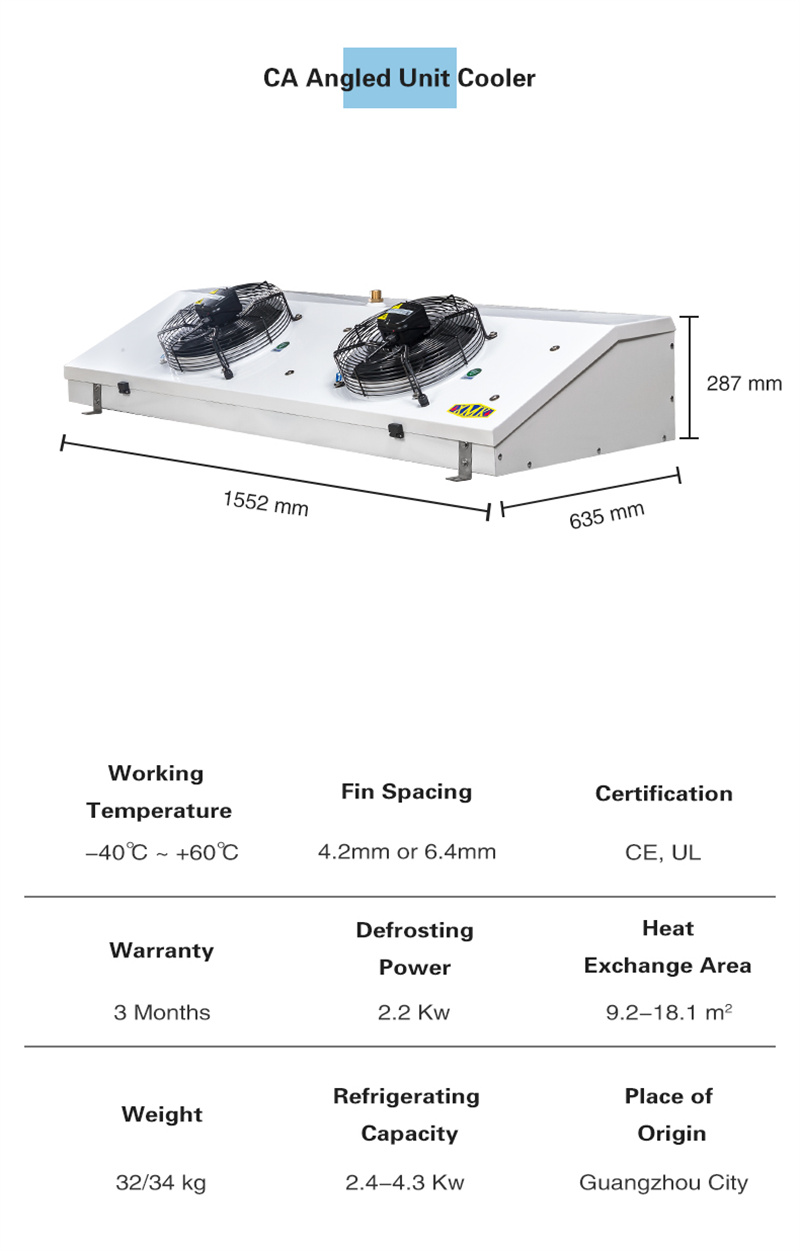

Specification

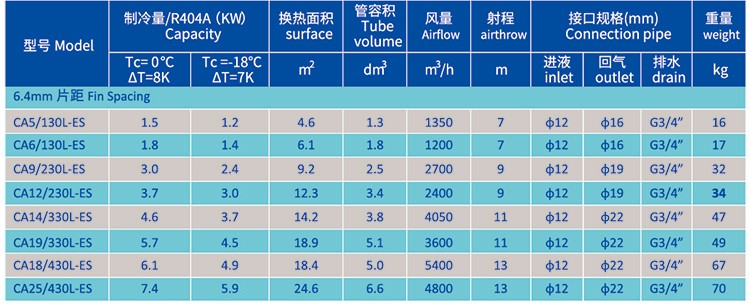

Model in 6.4mm fin spacing , fans 300mm

6 4 mm.jpg

CA 双风2.jpgCA 双风3.jpgCA 双风4.jpg
