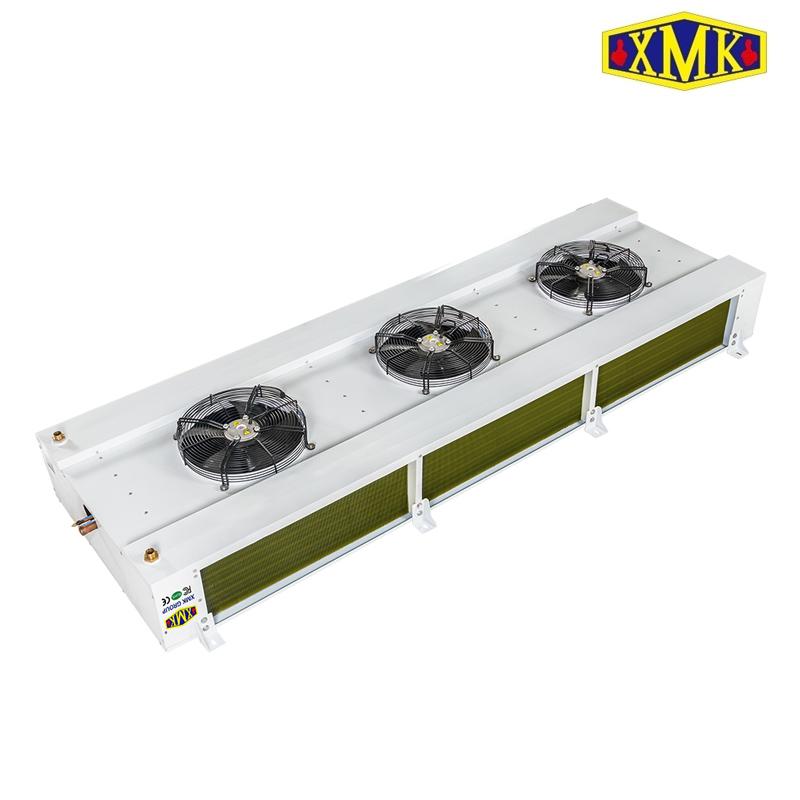

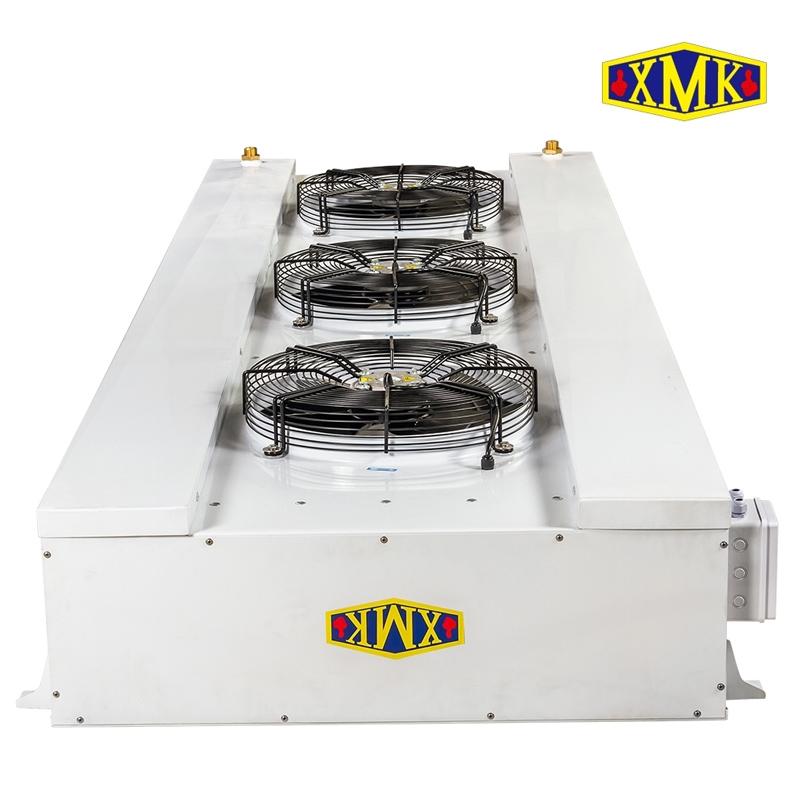

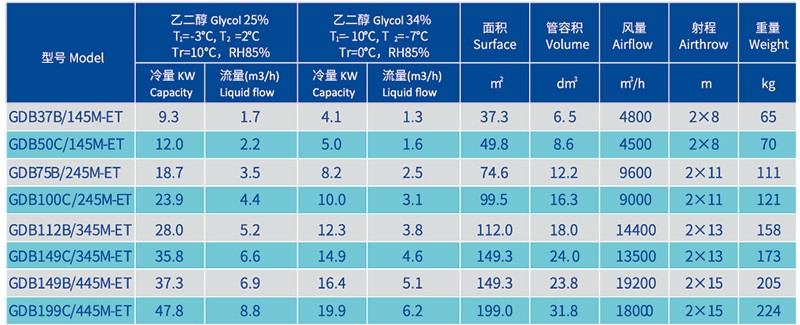

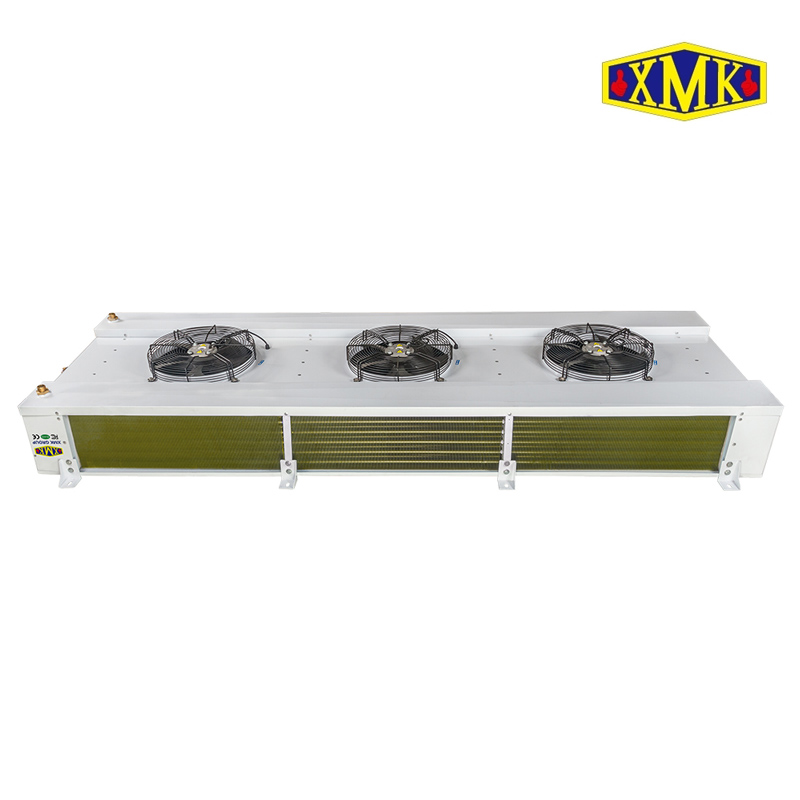

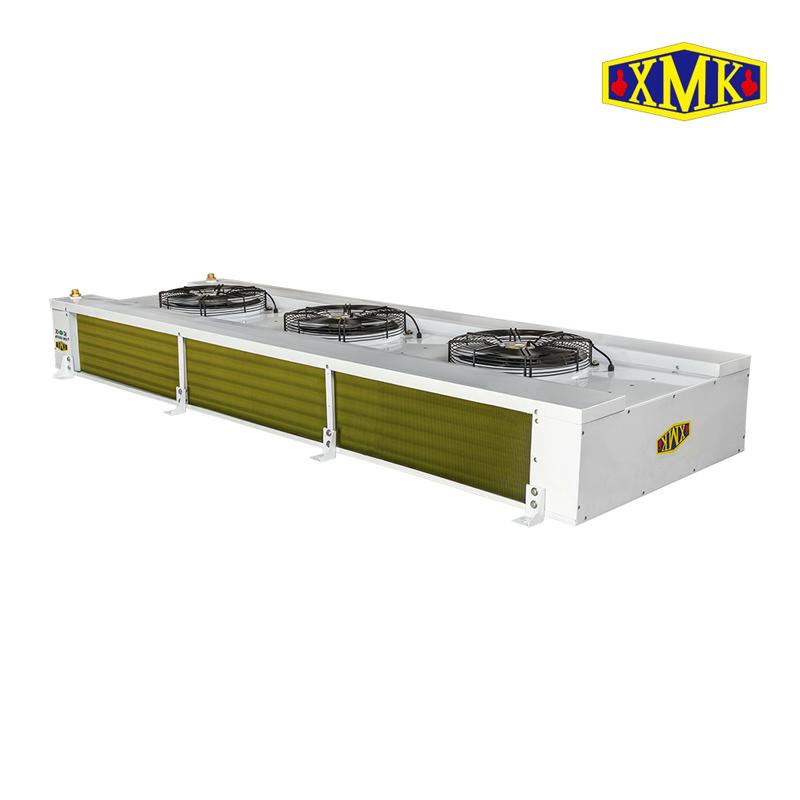

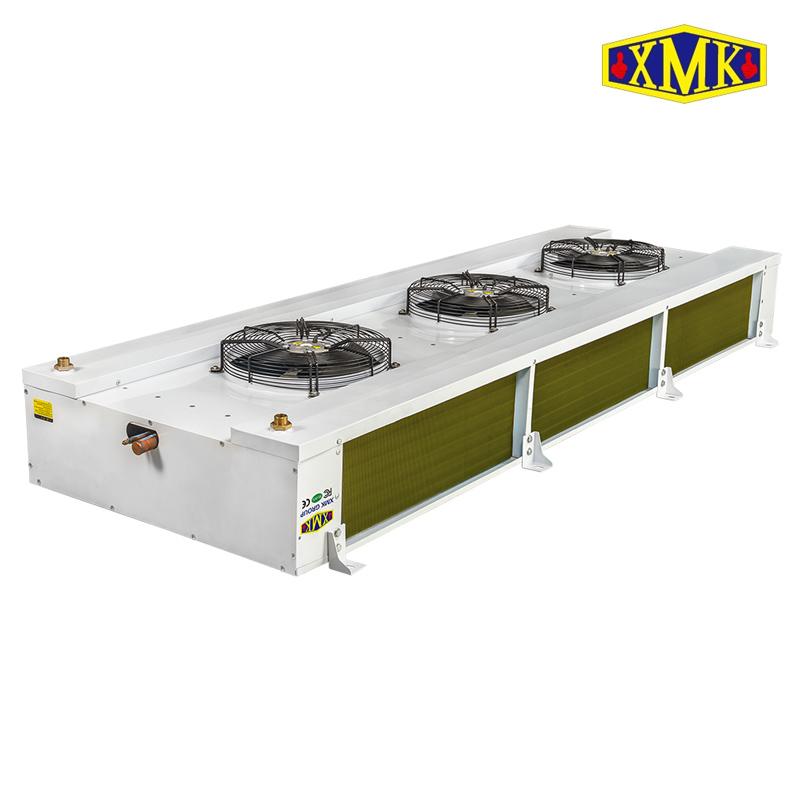

GDB series Dual discharge industrial glycol air cooler

The GDB series unit coolers is mainly used for cooling equipment in cold storage with glycol coolant.It is mainly used in large cold storage operation rooms with air inlet from below and air outlet from both sides. The GDB series air cooler can be used in cold storage at about 10°C, 0°C and -18°C respectively.
