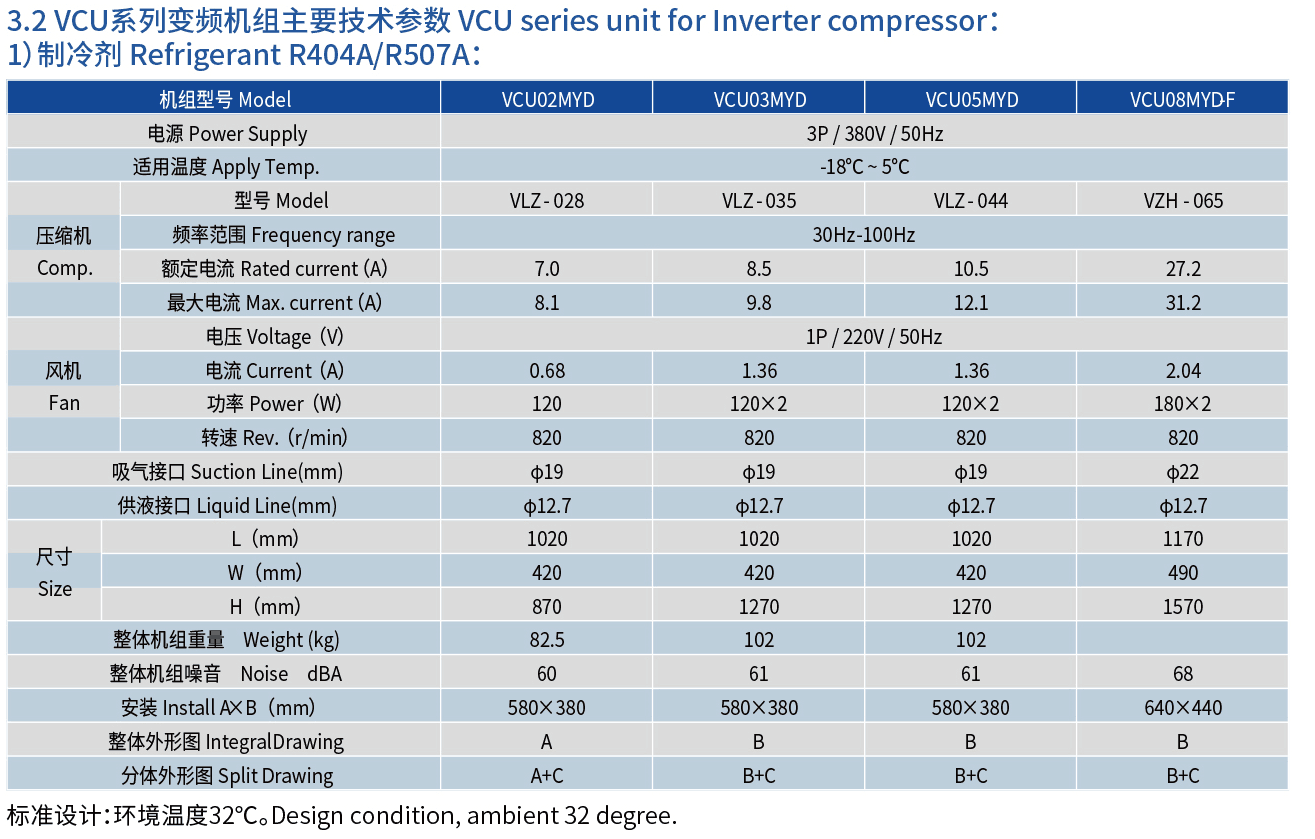

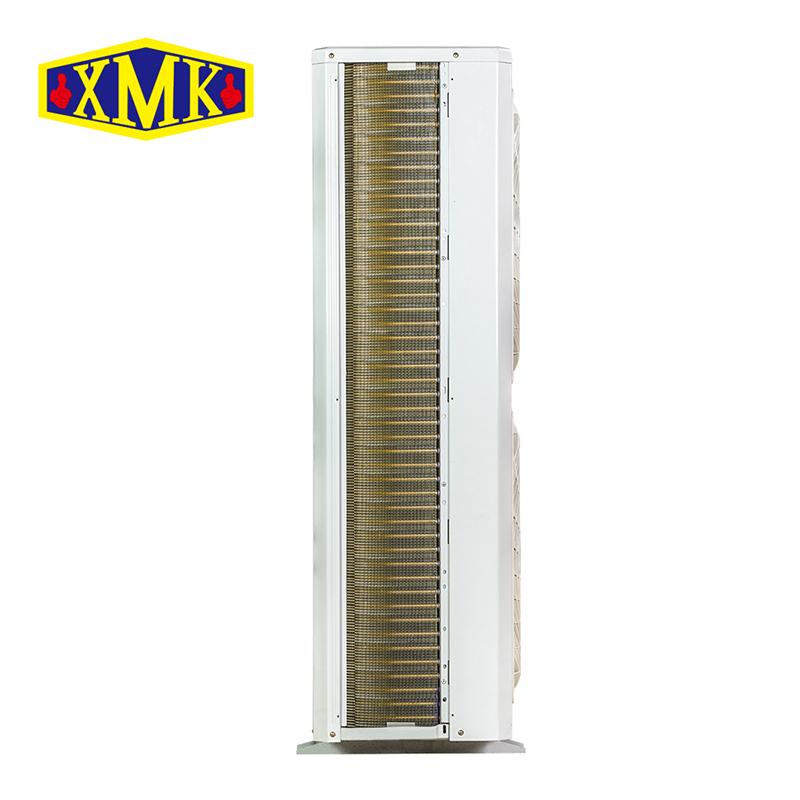

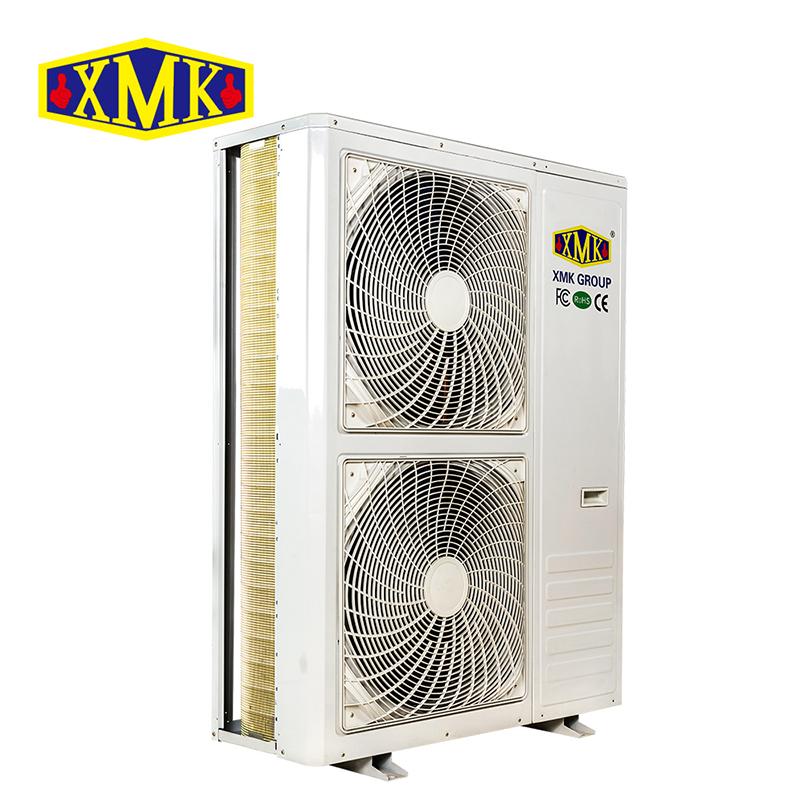

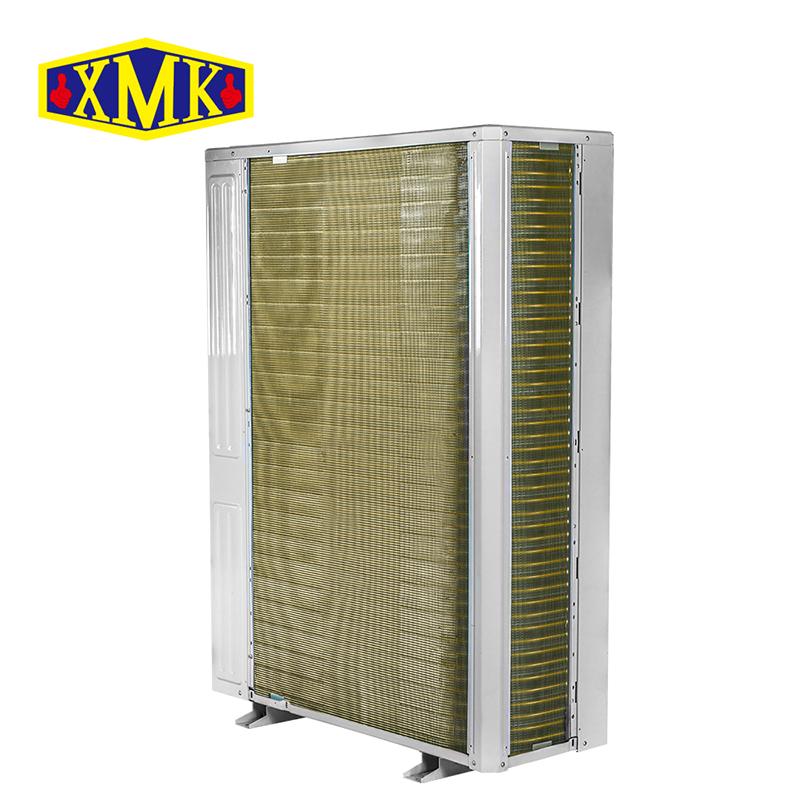

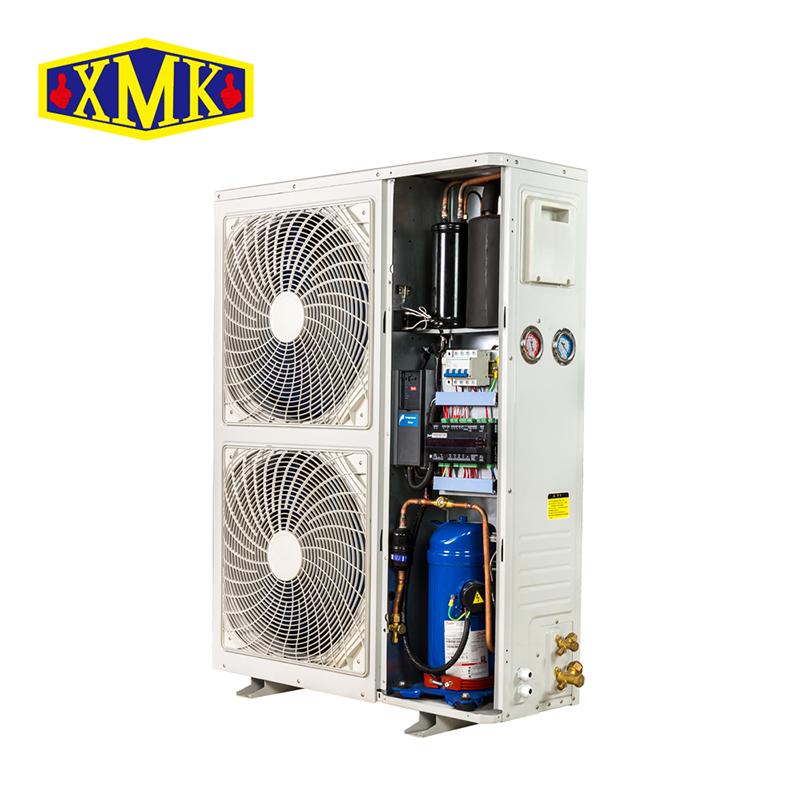

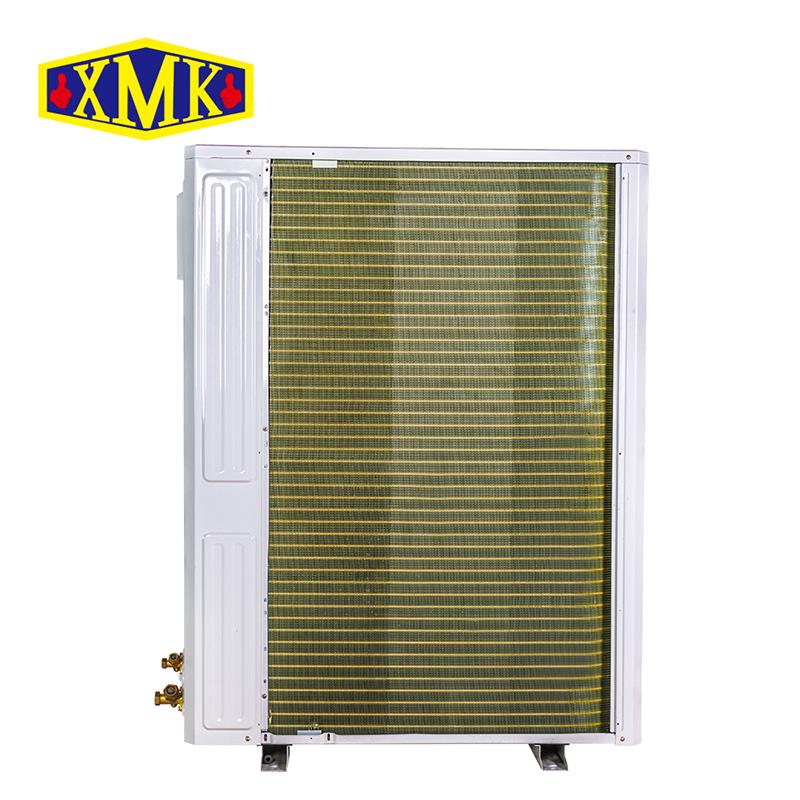

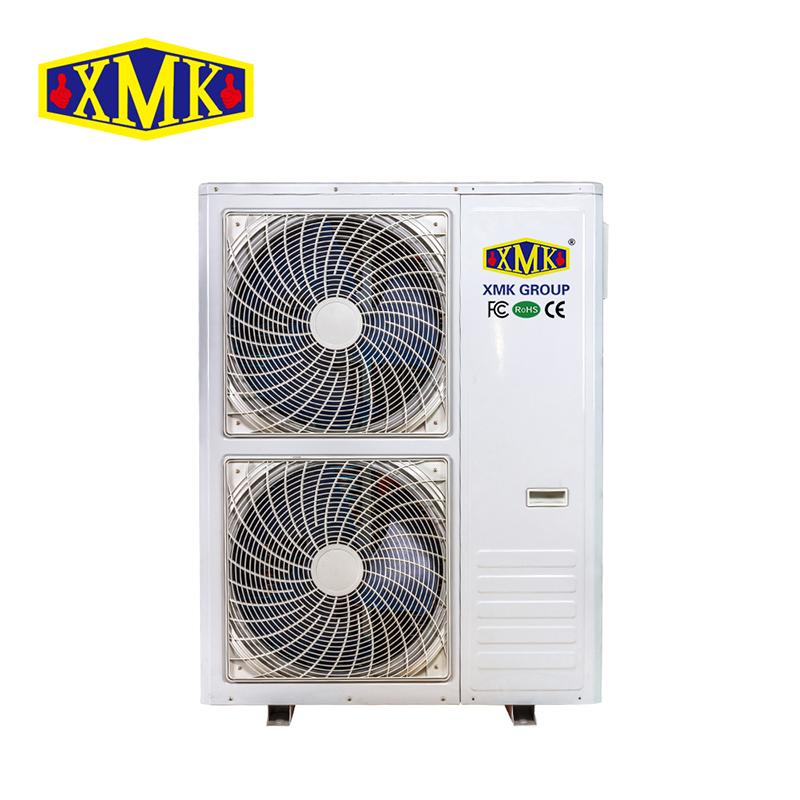

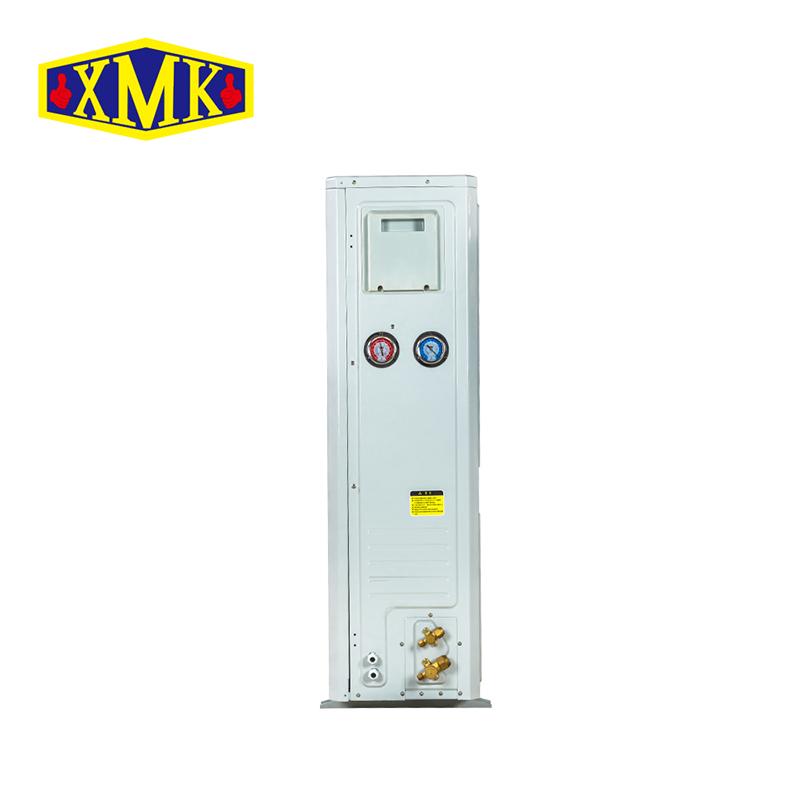

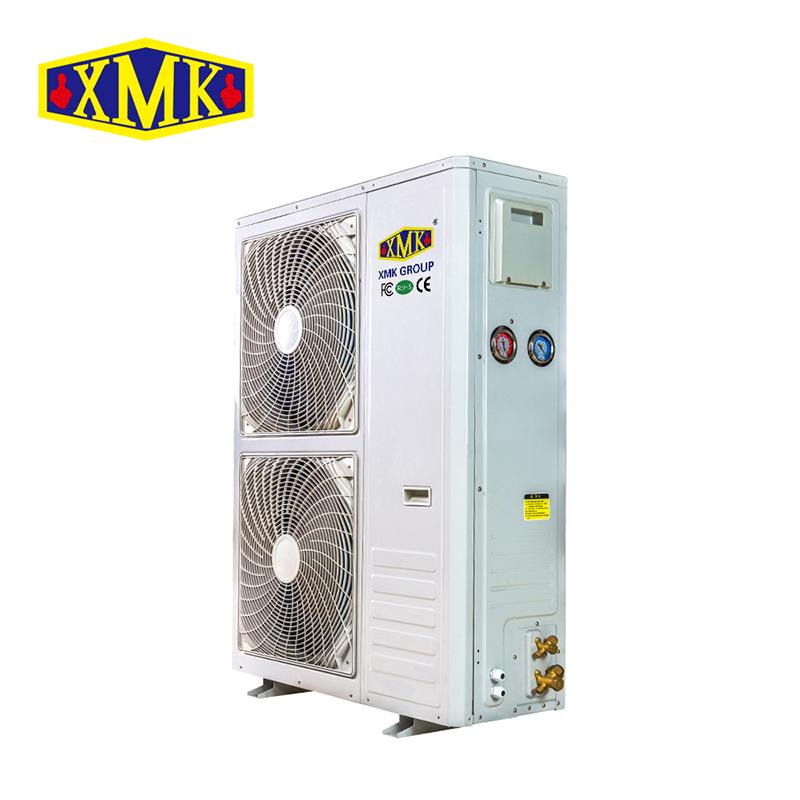

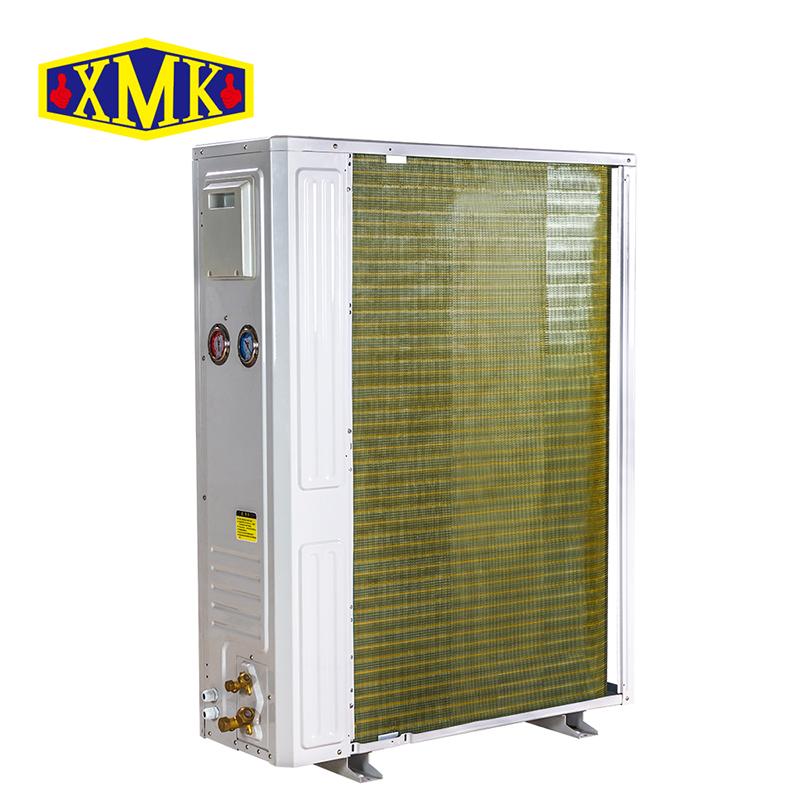

KCU/VCU Series Box-Type Unit with Danfoss Scroll Compressor

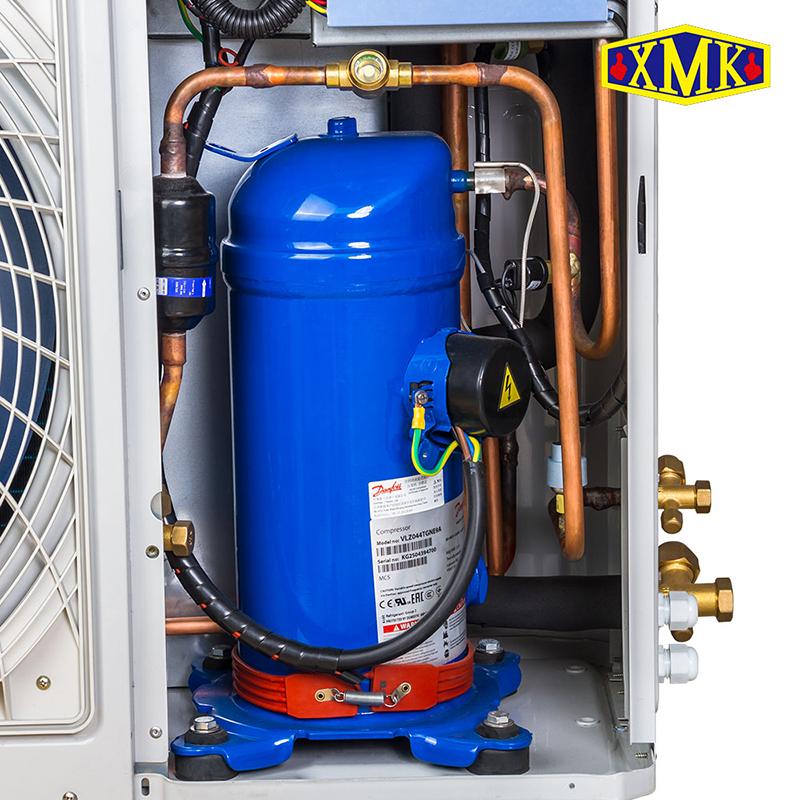

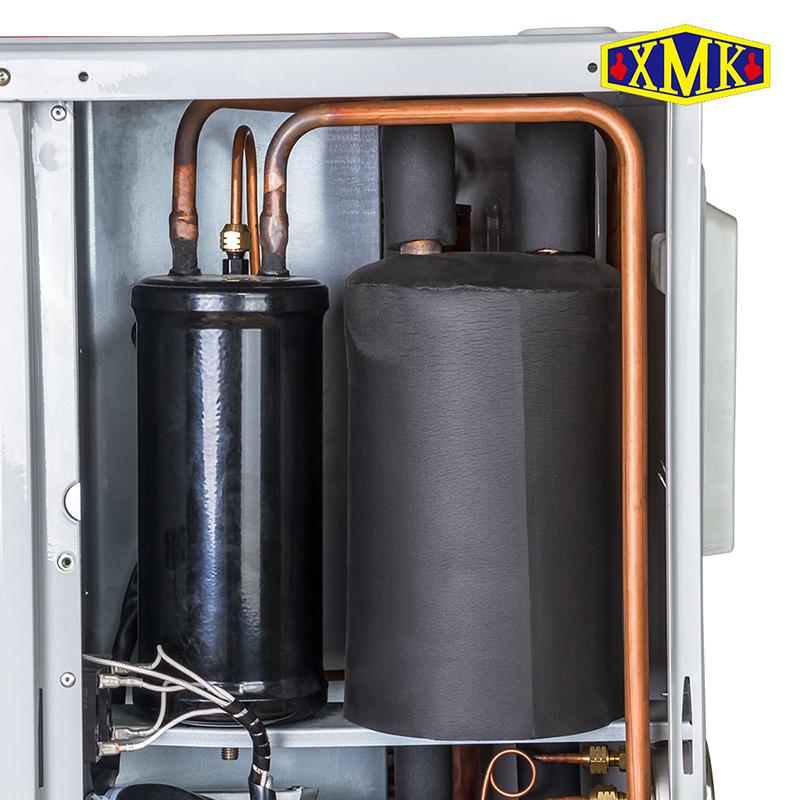

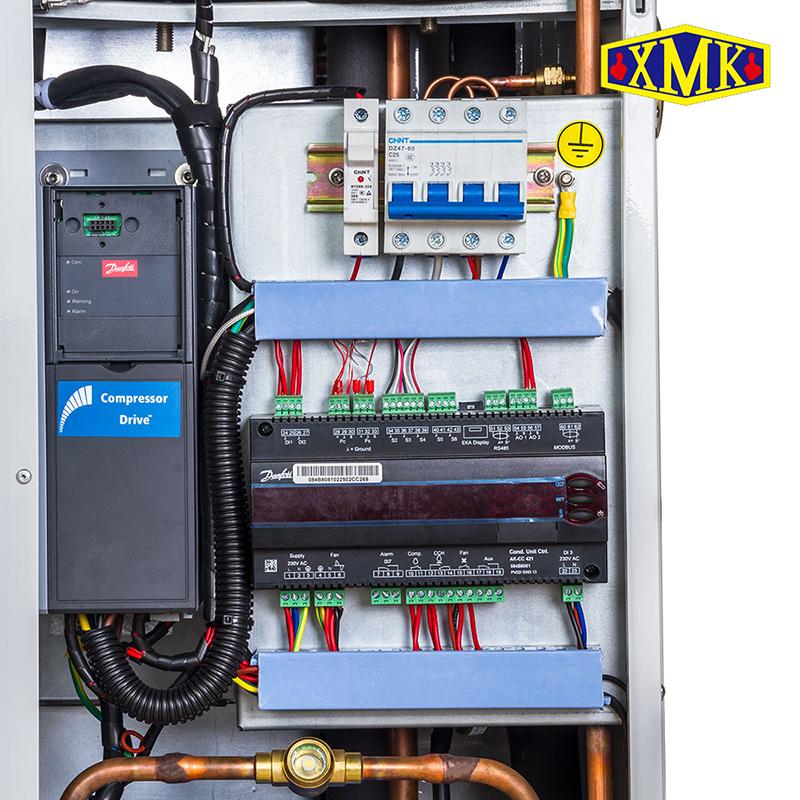

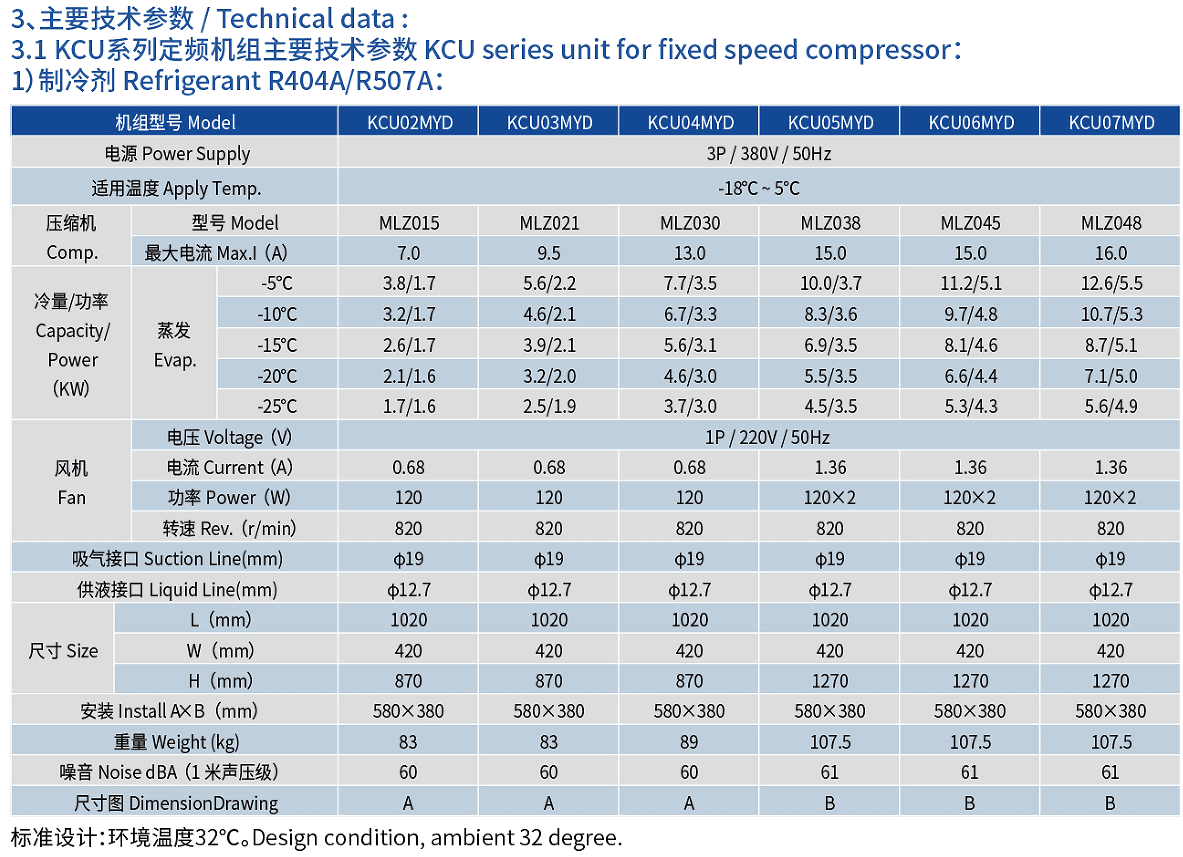

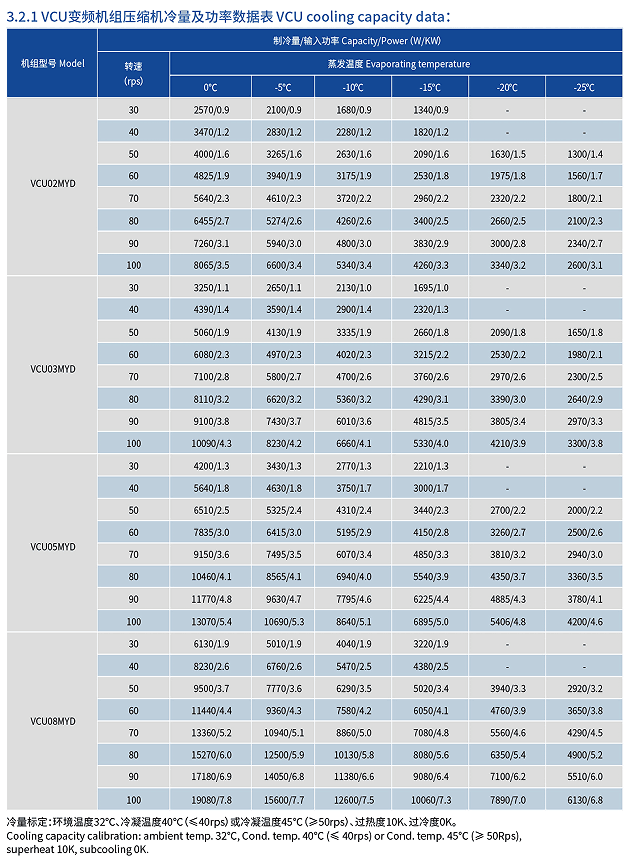

MLZ015 Danfoss Condensing Unit Scroll Compressor Box TypeProduct description:KCU/VCU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcommercial and supermarket applications.2.The unit adopts Danfoss MLZ fixed frequencyor VLZ variable frequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pcle low speed and low noise fan. It is verysuitable for residential area.4.The compressor and condenser can be dividedinto two cases according to the requirementsof customers.5.The unit is equipped with oil separator andaccumulator, unit control and fan speedregulation, etc. It is especially suitable forconvenience store and supermarket refrigera-tion system.6.The pressure control compressor starts andstops.7.With phase sequence, phase loss, over current,discharge temperature, system high and lowpressure protection and fault query functions.8.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ015 Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ015 Compressor Max.I(A) 7 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight83Noise dBA60

MLZ21 Danfoss Scroll Compressor Condensing UnitProduct description:KCU/VCU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcommercial and supermarket applications.2.The unit adopts Danfoss MLZ fixed frequencyor VLZ variable frequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pcle low speed and low noise fan. It is verysuitable for residential area.4.The compressor and condenser can be dividedinto two cases according to the requirementsof customers.5.The unit is equipped with oil separator andaccumulator, unit control and fan speedregulation, etc. It is especially suitable forconvenience store and supermarket refrigera-tion system.6.The pressure control compressor starts andstops.7.With phase sequence, phase loss, over current,discharge temperature, system high and lowpressure protection and fault query functions.8.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ021 Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ021 Compressor Max.I(A) 9.5 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight75Noise dBA60

MLZ038 Freezer Copeland Condensing Unit For Cold RoomProduct description:KCU/VCU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcommercial and supermarket applications.2.The unit adopts Danfoss MLZ fixed frequencyor VLZ variable frequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pcle low speed and low noise fan. It is verysuitable for residential area.4.The compressor and condenser can be dividedinto two cases according to the requirementsof customers.5.The unit is equipped with oil separator andaccumulator, unit control and fan speedregulation, etc. It is especially suitable forconvenience store and supermarket refrigera-tion system.6.The pressure control compressor starts andstops.7.With phase sequence, phase loss, over current,discharge temperature, system high and lowpressure protection and fault query functions.8.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ038 Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ038 Compressor Max.I(A) 15 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 1.36 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight97Noise dBA61

ZSI15KQE Blast Freezer Compressor Refrigeration Condensing Unit   Product description:   BUW-B series box-type condensing units have the following characteristics   1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.   2.The cover of the case adopts hinge structure,which is easy to maintain and operate.   3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.   4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.   5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect.    Copeland ZSI15KQE Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -15 to -23 degree Compressor Model ZSI15KQE Compressor Max.I(A) 11.9 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min) 1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815

Air cooled condenser is specially designed for Freon refrigeration equipment and cooled by air. XMK FNF series is suitable for R134a, R22, R404a, R407 and other refrigerants, widely used in freezing, refrigeration, air conditioning, heat pumps and industrial refrigeration. Voltage 380V

2DES-2Y Cold Room Compressor Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 2DES-2Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model 2DES-2Y Compressor Max.I(A) 7.5 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Fan Power (W) 240X2 Suction Line (mm) 22 Liquid Line （mm） 12 Size length (mm) 850 Size Width (mm) 800 Size Height (mm) 830

4TES-9Y Compressor Room Air Cooler Refrigeration Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer 4TES-9Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model 4TES-9Y Compressor Max.I(A) 19.9 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240X4 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430

ZSI18KQE Compressor Freezer Unit Cool Room Product description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZSI18KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -23 degree Compressor Model ZSI18KQE Compressor Max.I(A) 13.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1 Rev.(r/min)910 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 1040 Size Width (mm) 570 Size Height (mm) 1100

SEMI-HERMETIC For standard refrigerantsUniversal and environmentally friendly: ECOLINE reciprocating compressors offer high cooling capacity with minimal energy requirements and are optimised for HFC, HFO and low-GWP refrigerants. The optional VARISTEP mechanical capacity control offers high part-load efficiency in medium and low temperature application.
