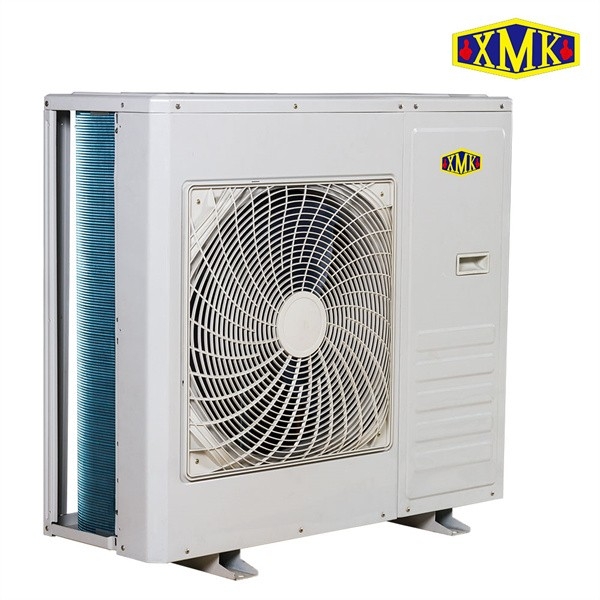

MLZ021 Scroll Compressor Condensing Unit R404

MLZ015 Danfoss Condensing Unit Scroll Compressor Box TypeProduct description:KCU/VCU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcommercial and supermarket applications.2.The unit adopts Danfoss MLZ fixed frequencyor VLZ variable frequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pcle low speed and low noise fan. It is verysuitable for residential area.4.The compressor and condenser can be dividedinto two cases according to the requirementsof customers.5.The unit is equipped with oil separator andaccumulator, unit control and fan speedregulation, etc. It is especially suitable forconvenience store and supermarket refrigera-tion system.6.The pressure control compressor starts andstops.7.With phase sequence, phase loss, over current,discharge temperature, system high and lowpressure protection and fault query functions.8.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ015 Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ015 Compressor Max.I(A) 7 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight83Noise dBA60

MLZ038 Freezer Copeland Condensing Unit For Cold RoomProduct description:KCU/VCU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcommercial and supermarket applications.2.The unit adopts Danfoss MLZ fixed frequencyor VLZ variable frequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pcle low speed and low noise fan. It is verysuitable for residential area.4.The compressor and condenser can be dividedinto two cases according to the requirementsof customers.5.The unit is equipped with oil separator andaccumulator, unit control and fan speedregulation, etc. It is especially suitable forconvenience store and supermarket refrigera-tion system.6.The pressure control compressor starts andstops.7.With phase sequence, phase loss, over current,discharge temperature, system high and lowpressure protection and fault query functions.8.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ038 Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ038 Compressor Max.I(A) 15 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 1.36 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight97Noise dBA61

This series of products is mainly developed for commercial and supermarket applications；

HS series ceiling air cooler is mainly used in medium and largecold room with personnel operation.

CDB air cooler is install in small handing rooms, labs or larders which has requirements in air-flow directions. Normally fin spacing in 4.2mm with 4-pole or 6-pole motor.

XMK-5202 5/8 ODF Oil Separator Refrigeration For Condensing UnitWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.

RVC series condensers are mainly equipped with large heat trangsfer demand, large-scale remote-mouned condensing unit, piston parallet units and screw units.It features simple structure, small floor coverage, excellent anticorrosion performance and so on. Fan divided into 4 poles and 6 poles motor .

HC series air cooled condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure, with high heat transfer capacity.

HC series air cooled condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure with best heat transfer capacity.
