BUW-A Series Compact Box-Type Unit With Scroll Compressor Suppliers & Manufacturers From China

Product Detail

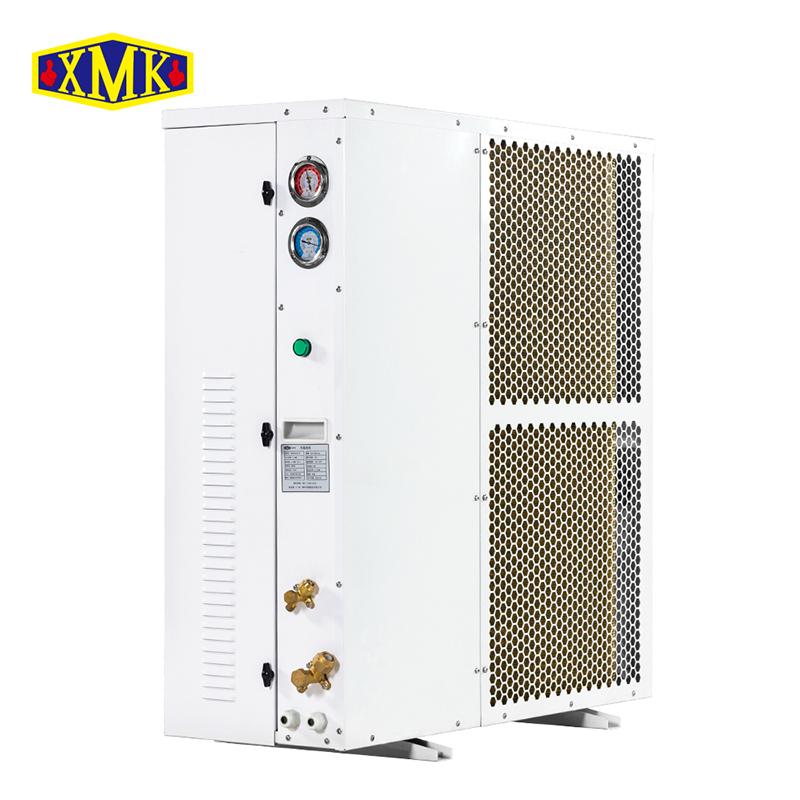

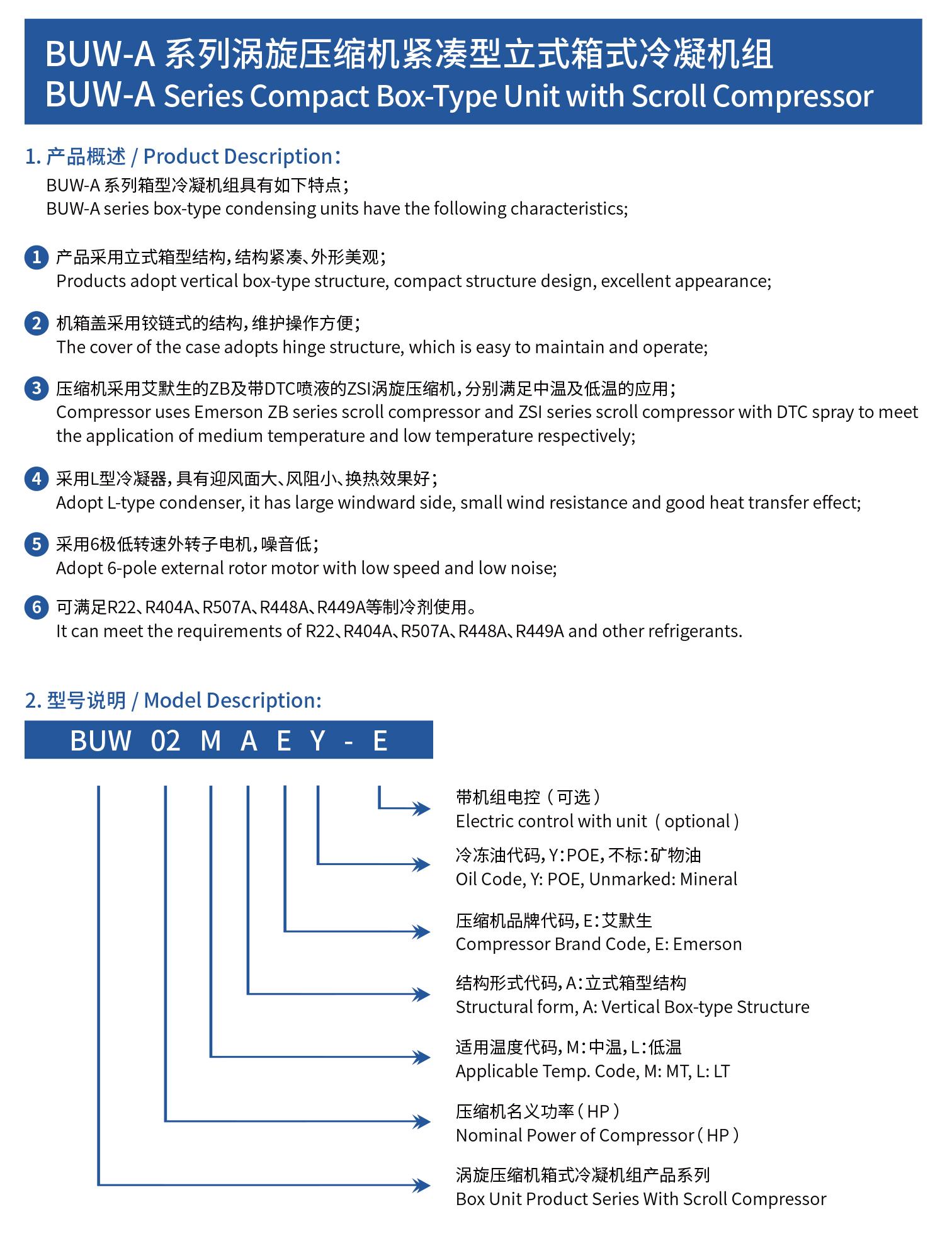

Product Description:

BUW-A series box-type condensing units have the following characteristics；

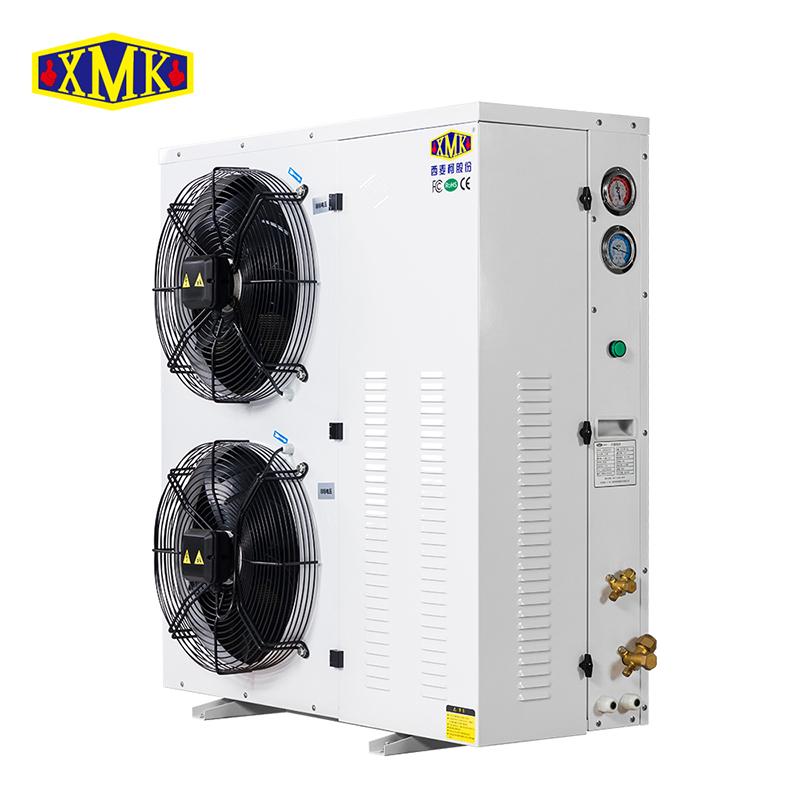

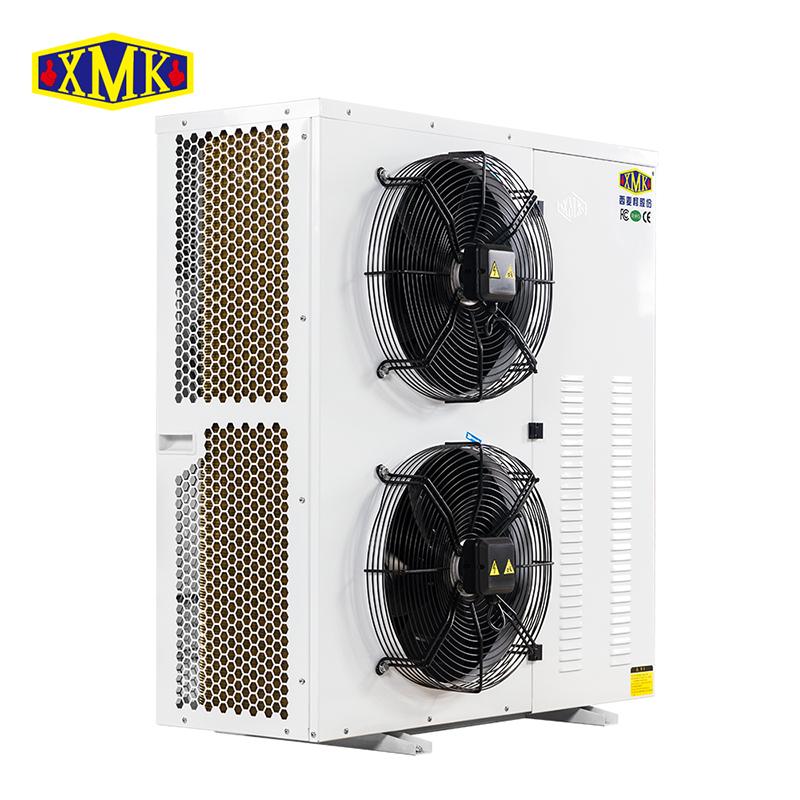

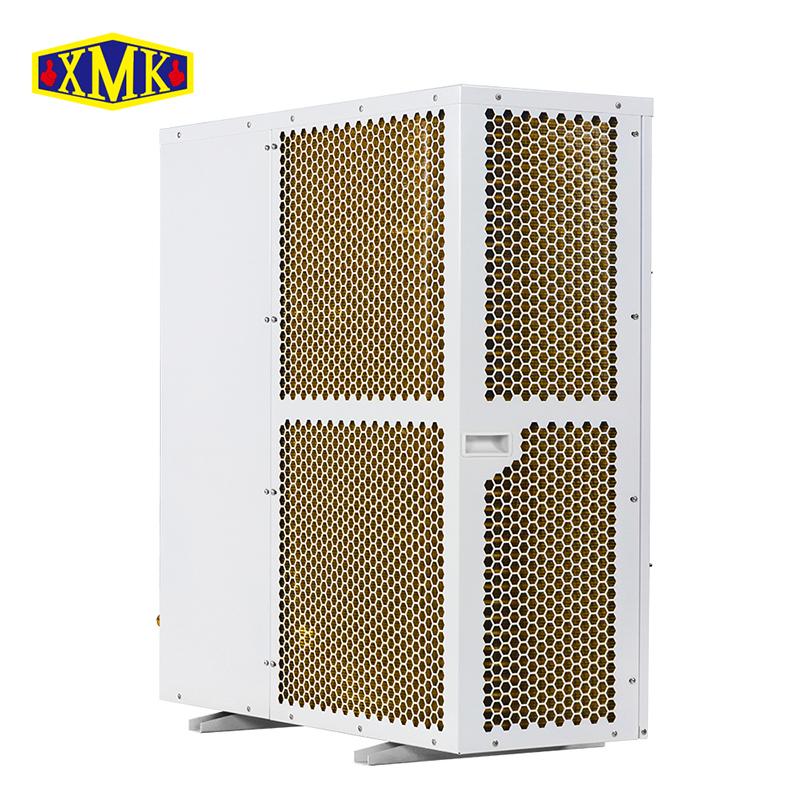

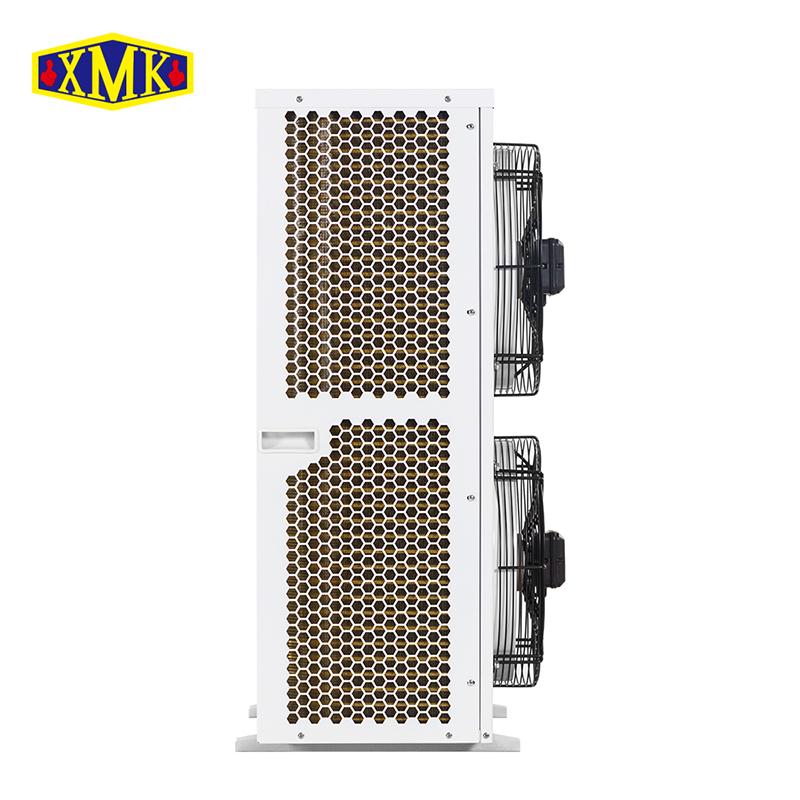

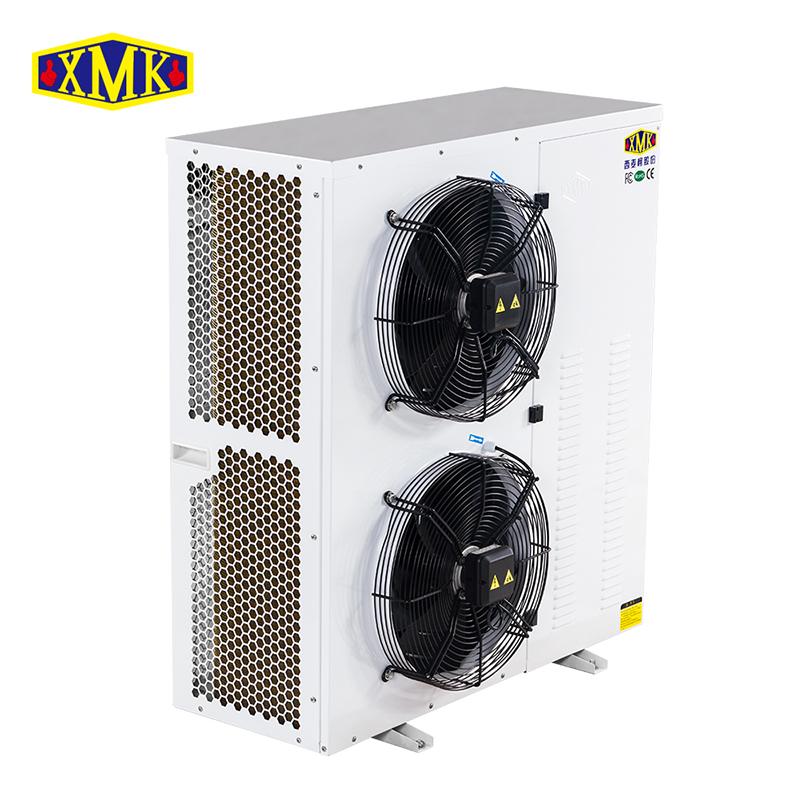

1. Products adopt vertical box-type structure, compact structure design, excellent appearance;

2. The cover of the case adopts hinge structure, which is easy to maintain and operate;

3. Compressor uses Emerson ZB series scroll compressor and ZSI series scroll compressor with DTC spray to meet the application of medium temperature and low temperature respectively;

4. Adopt L-type condenser, it has large windward side, small wind resistance and good heat transfer effect;

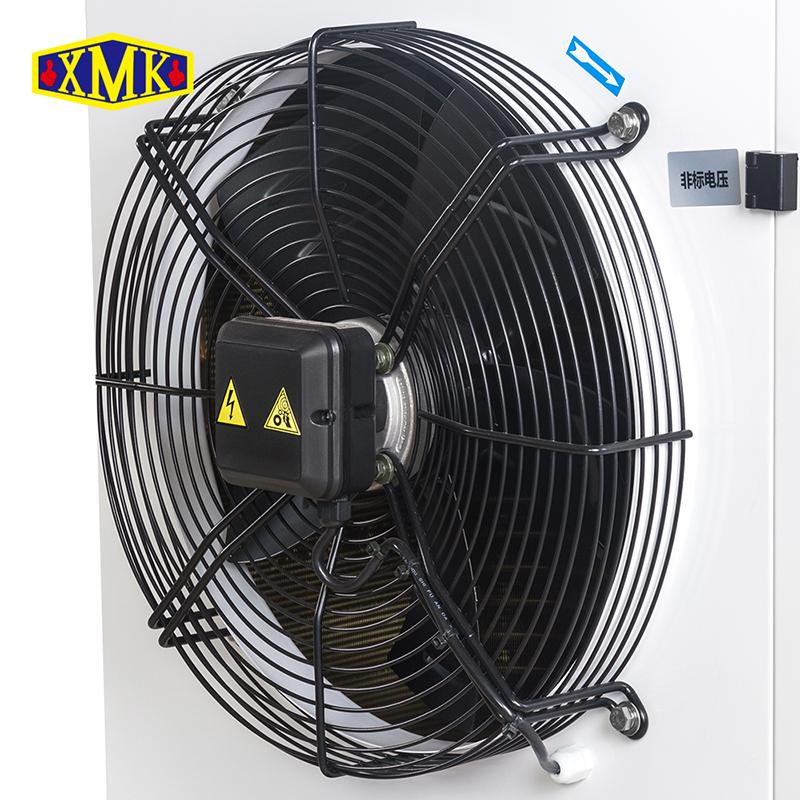

5. Adopt 6-pole external rotor motor with low speed and low noise;

6. It can meet the requirements of R22, R404A, R507A, R448A, R449A and other refrigerants.

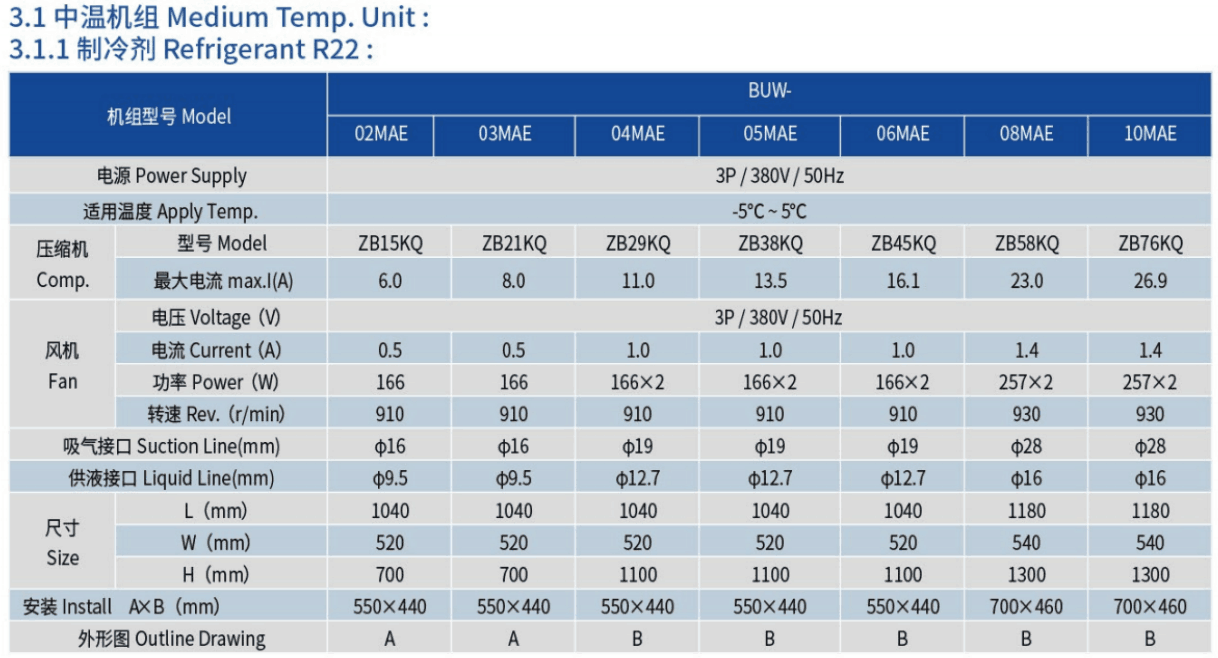

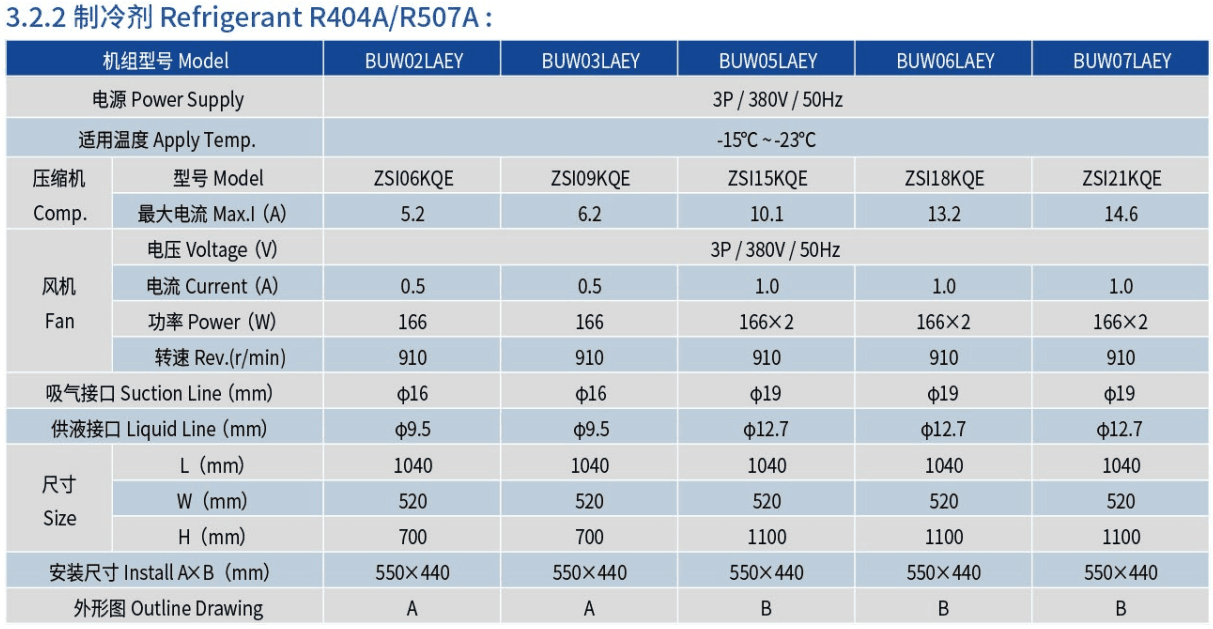

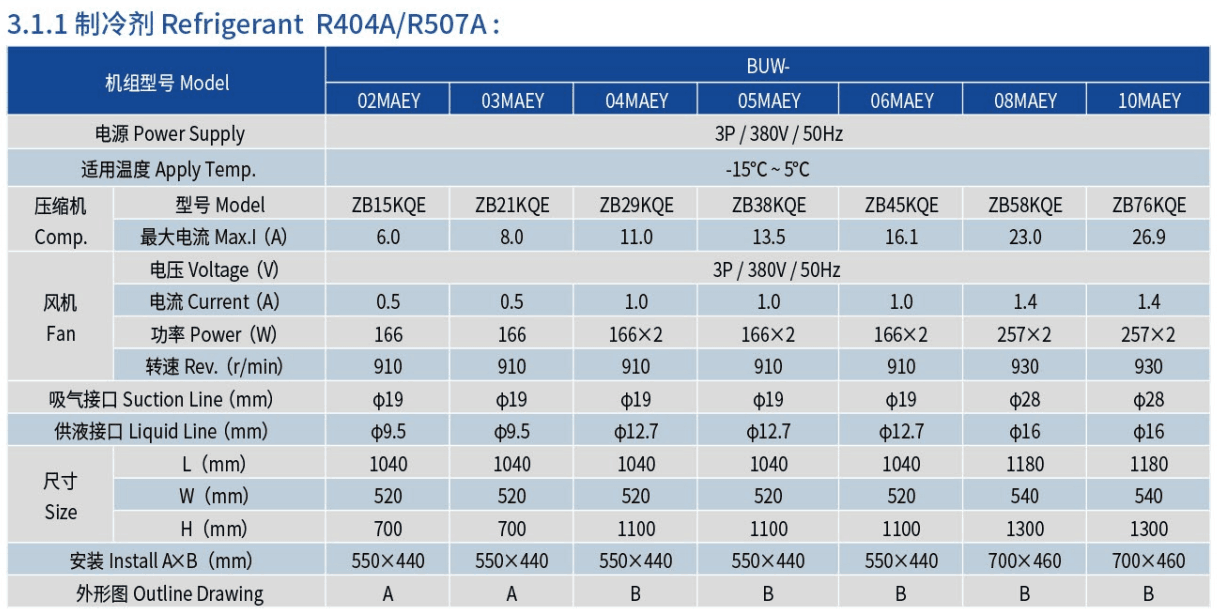

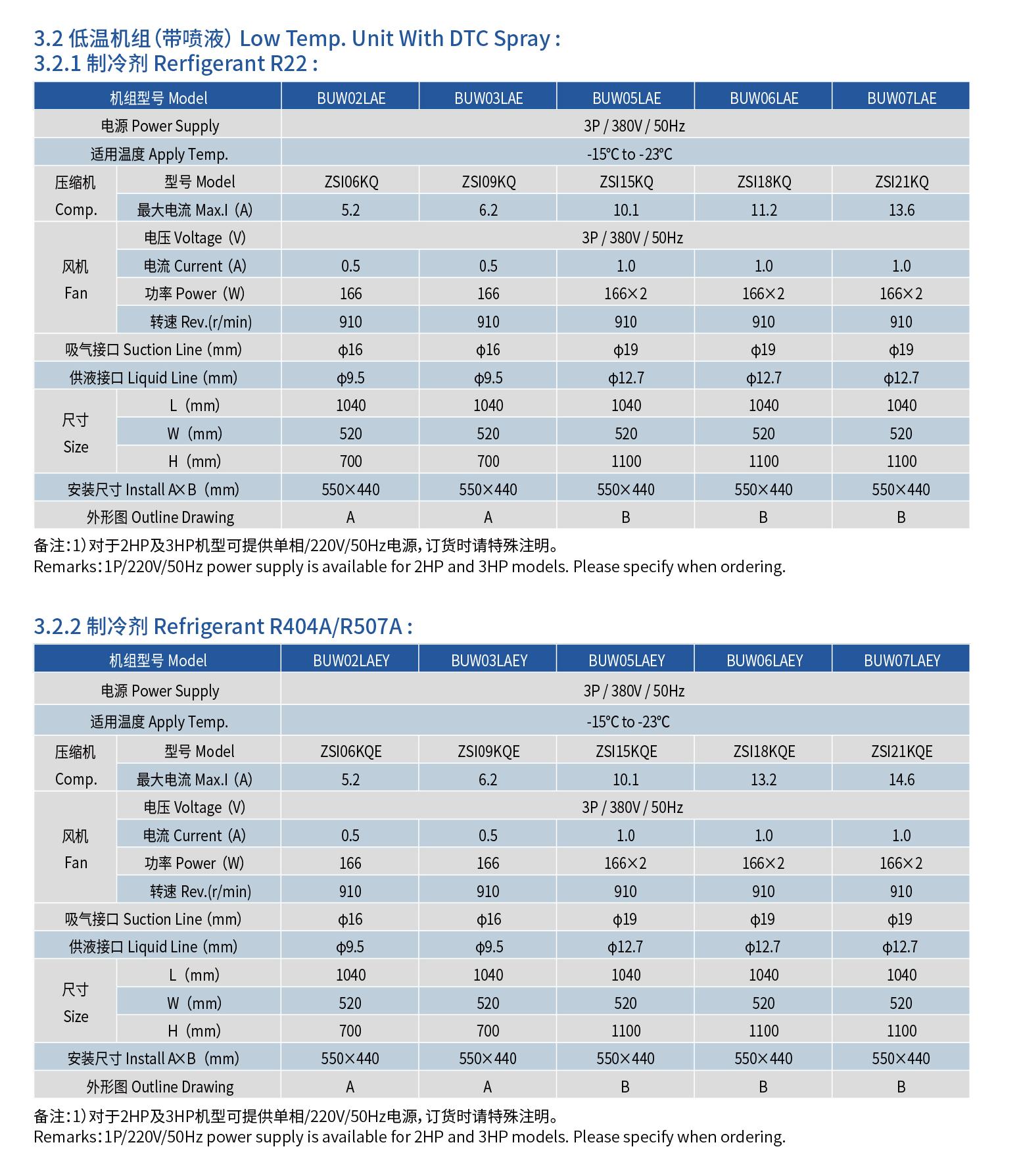

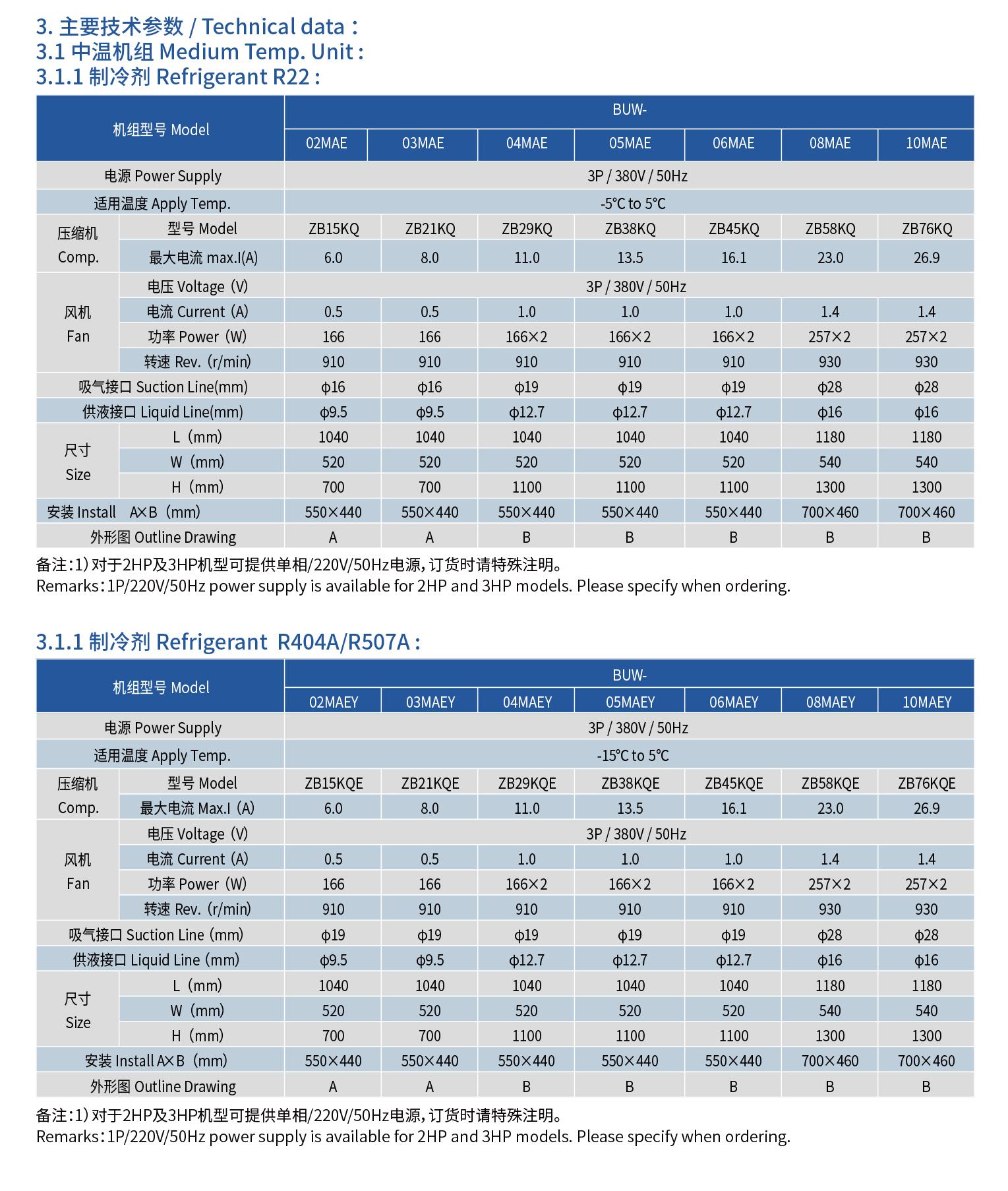

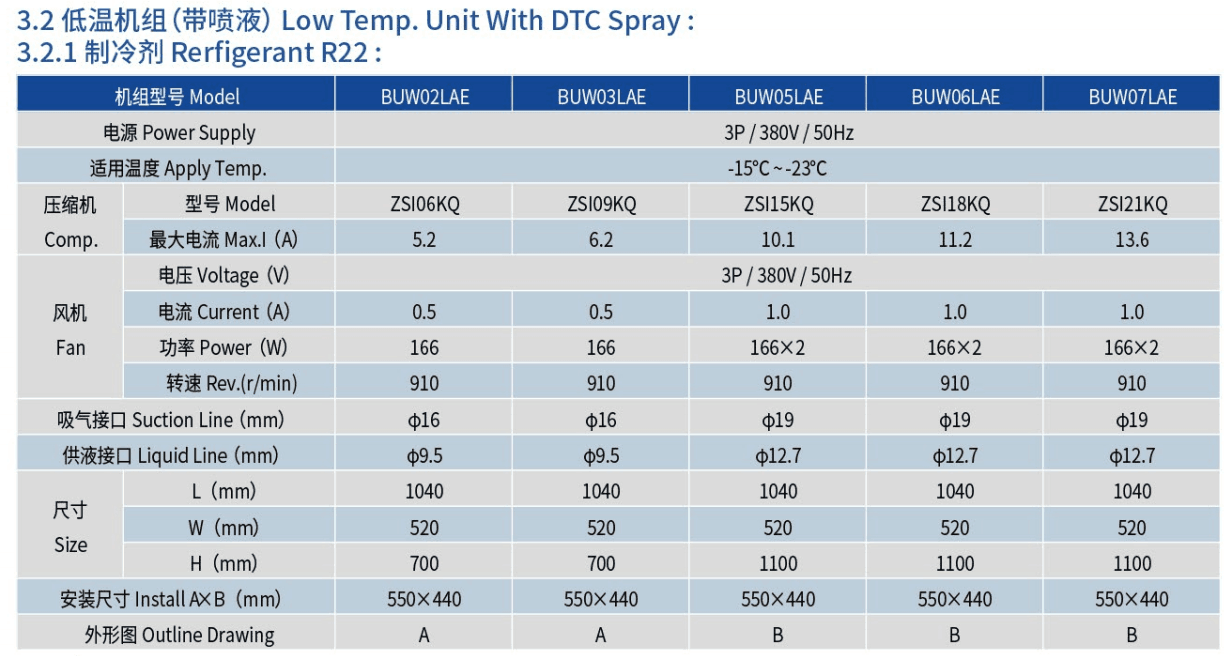

Technical data :

Remarks:1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering.

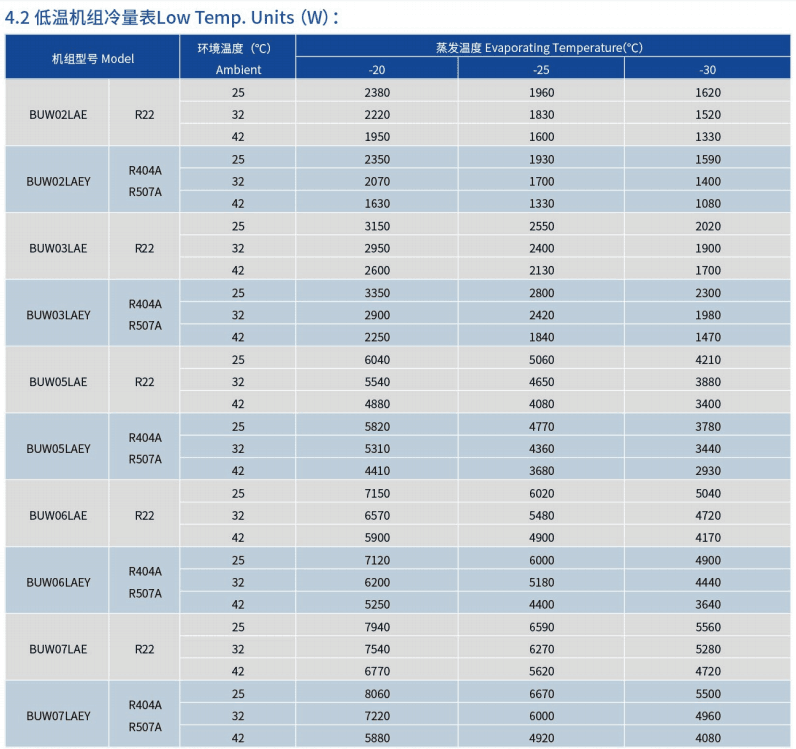

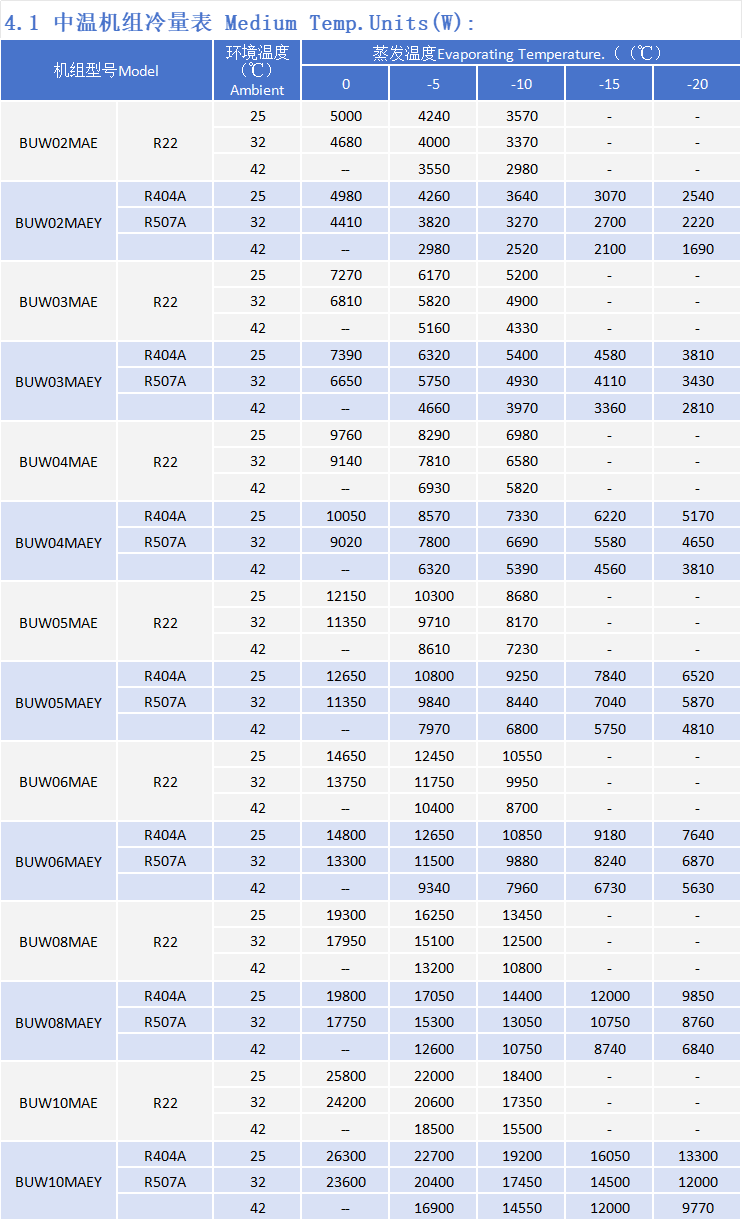

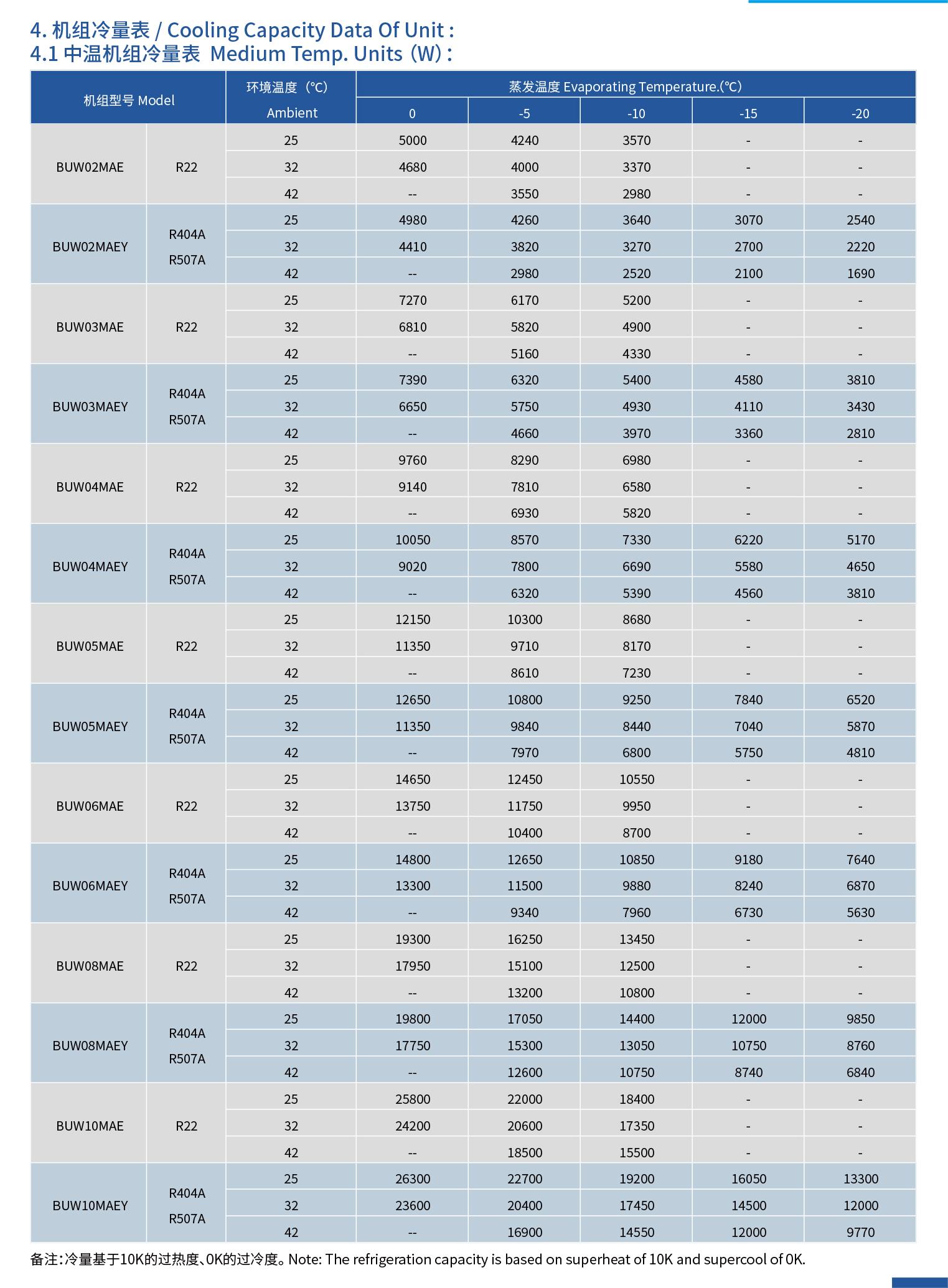

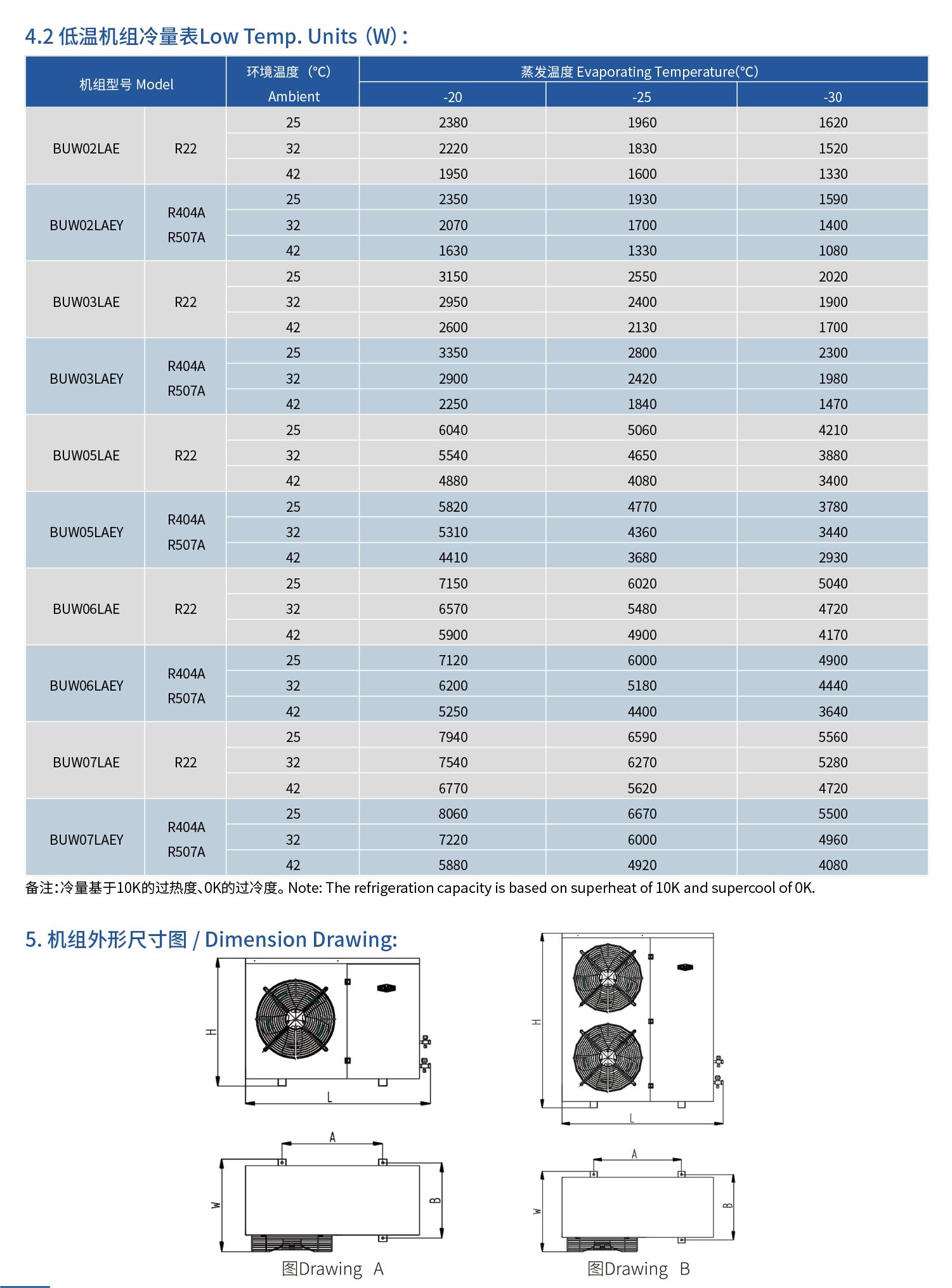

Cooling capacity Data of Unit :

Note: The refrigeration capacity is based on superheat of 10K and supercool of 0K.

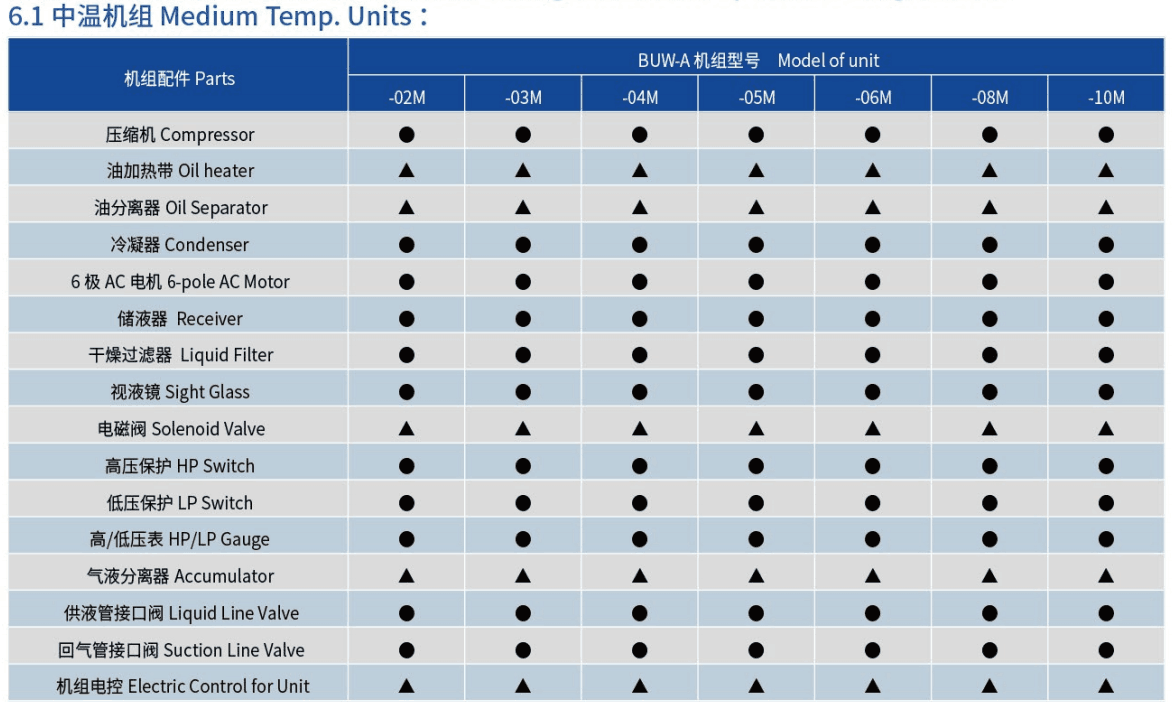

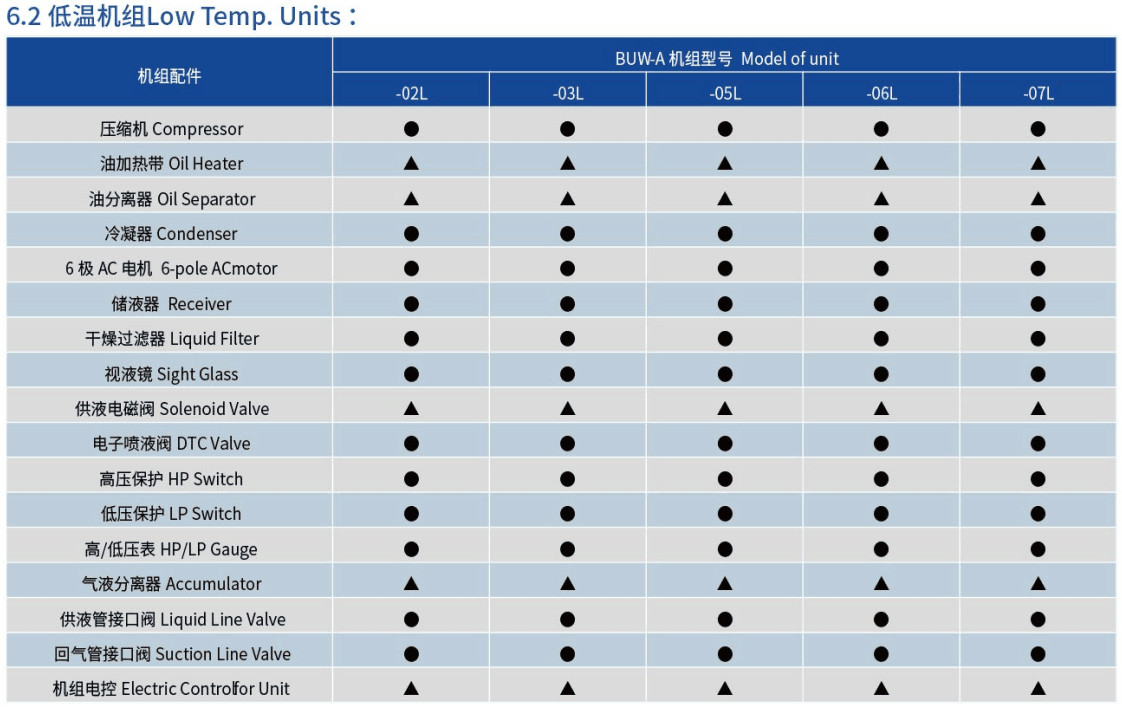

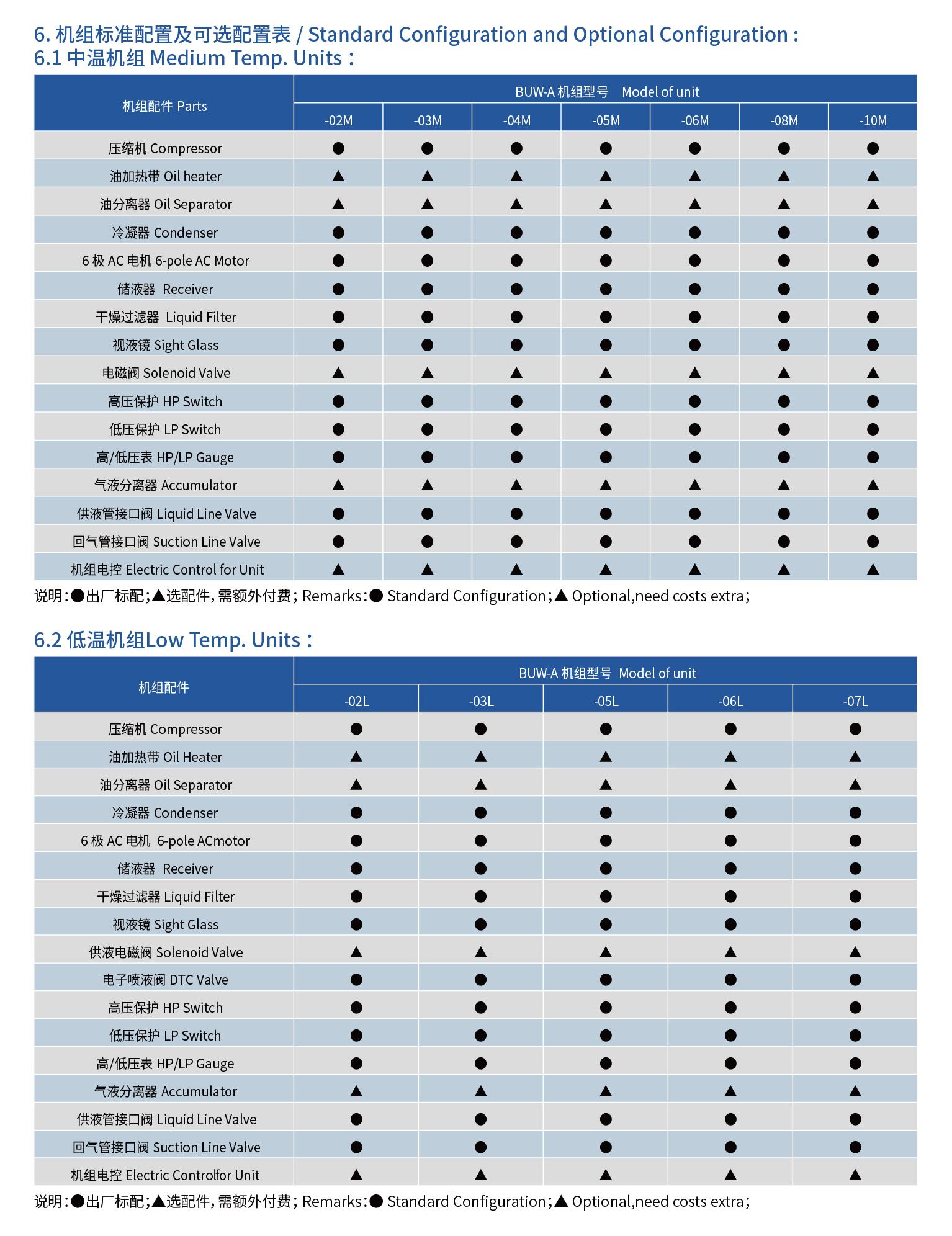

Standard Configuration and Optional configuration :

Remarks：● Standard Configuration；▲ Optional,need costs extra；
